HAUGEN ADJUSTABLE SPREADER BAR FOR TELEHANDLERS/FORKLIFTS

MASPR 812

HAUGEN ADJUSTABLE SPREADER BAR FOR TELEHANDLERS/FORKLIFTS

$3,595.00 - $5,595.00

Business Financing Available

Model
Style

Adjustable Spreader Bar

  • The fork pockets hold the Spreader Bar at 24" on center
  • Comes equipped with two 5 ton swivel hooks
  • Fork Pockets fit tines up to 3.50" x 7.50" wide
  • Secures to your Fork Tines with a pin.
  • Available sizes, 8' to 12' , 10' to 15' , and 13' to 20'

____________________________________________________________________________________________________________________________________________________________________________________________

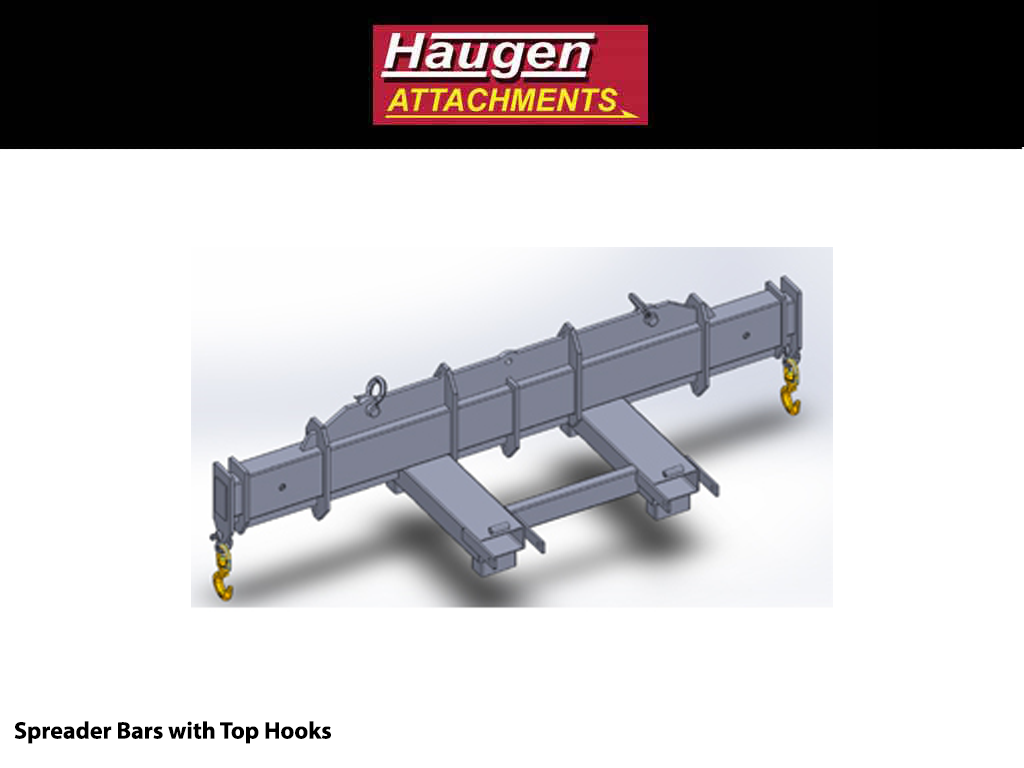

Adjustable Spreader Bar with Top Hook

  • Fits Telehandlers and Forklifts
  • The fork pockets hold the Spreader Bar at 24" on center.
  • 3/4" pins secure the spreader bar to your forks
  • Fork Pocket fit tines up to 3.50" thick x 7.50" wide.
  • Comes standard with two 5 ton swivel hooks and two shackles for the top of the plate
  • Available sizes, 8' to 12', 10' to 15', and 13' to 20'

    •

                Adjustable Spreader Bar

                Spread Lifting Capacity Weight
                Center Position - Single Point Load 10,000 lbs. 580 lbs.
                Point Loads @ 65.375" spread position 5,000 x 2 = 10,000 lbs.
                Point Loads @ 97.88" spread position 4,000 x 2 = 8,000 lbs.
                Point Loads @ 121.88" spread position 3,500 x 2 = 7,000 lbs.
                Point Loads @ 145.88" spread position 3,000 x 2 = 6,000 lbs.
                Spread Lifting Capacity Weight
                Center Position - Single Point Load 10,000 lbs. 685 lbs.
                Point Loads @ 65.375" spread position 5,000 x 2 = 10,000 lbs.
                Point Loads @ 89.00" spread position 5,000 x 2 = 10,000 lbs.
                Point Loads @ 120.00" spread position 4,000 x 2 = 8,000 lbs.
                Point Loads @ 150.00" spread position 3,500 x 2 = 7,000 lbs.
                Point Loads @ 180.00" spread position 3,000 x 2 = 6,000 lbs.
                Spread Lifting Capacity Weight
                Center Position - Single Point Load 10,000 lbs. 875 LBS
                Point Loads @ 65.375" spread position 5,000 x 2 = 10,000 lbs.
                Point Loads @ 110.00" spread position 4,000 x 2 = 8,000 lbs.
                Point Loads @ 162.00" spread position 3,500 x 2 = 7,000 lbs.
                Point Loads @ 201.00" spread position 3,000 x 2 = 6,000 lbs.
                Point Loads @ 240.00" spread position 2,250 x 2 = 4,500 lbs.



                Adjustable Spreader Bar with Top Hooks

                Model Spread Lifting Capacity Weight
                MASPRX 812 Center Position - Single Point Load 10000 LBS 720 LBS

                		Point Loads @ 65.375" spread position 5000 x 2 = 10000 LBS

                		Point Loads @ 97.88" spread position 4000 x 2 = 8000 LBS
                  Point Loads @ 121.88" spread position 3500 x 2 = 7000 LBS
                  Point Loads @ 145.88" spread position 3000 x 2 = 6000 LBS



                MASPRX 1015 Center Position - Single Point Load 10000 LBS  825 LBS
                  Point Loads @ 65.375" spread position 5000 x 2 = 10000 LBS
                  Point Loads @ 89.00" spread position 5000 x 2 = 10000 LBS
                  Point Loads @ 120.00" spread position 4000 x 2 = 8000 LBS
                  Point Loads @ 150.00" spread position 3500 x 2 = 7000 LBS
                  Point Loads @ 180.00" spread position 3000 x 2 = 6000 LBS




                MASPRX 1320 Center Position - Single Point Load 10000 LBS  995 LBS
                  Point Loads @ 63.375" spread position 5000 x 2 = 10000 LBS
                  Point Loads @ 110.00" spread position 4000 x 2 = 8000 LBS
                  Point Loads @ 162.00" spread position 3500 x 2 = 7000 LBS
                  Point Loads @ 201.00" spread position 3000 x 2 = 6000 LBS
                  Point Loads @ 240.00" spread position 2250 x 2 = 4500 LBS
