MPF 42-10

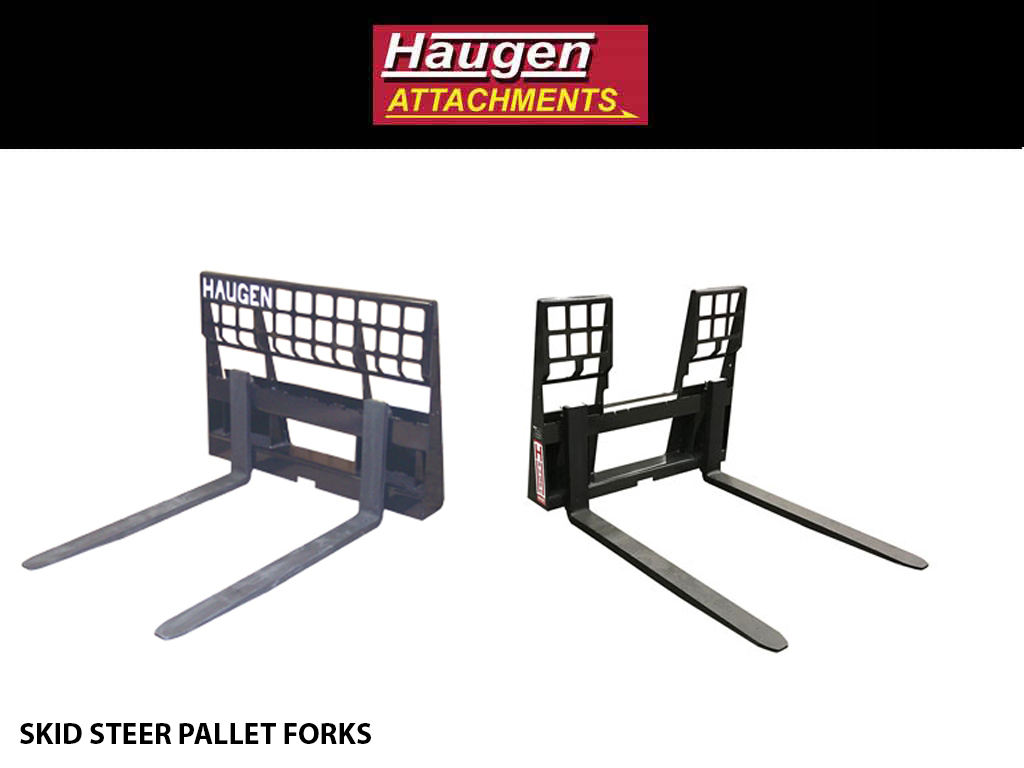

HAUGEN PALLET FORKS FOR SKID-STEER

Style
Size

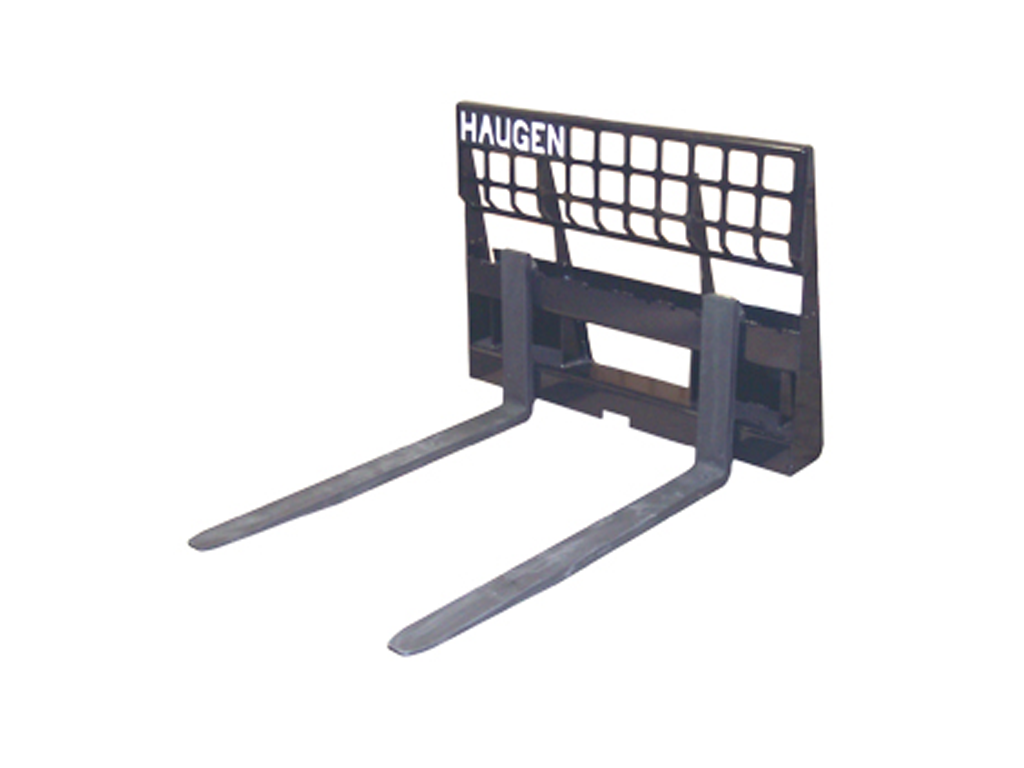

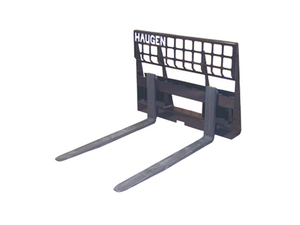

STANDARD DUTY PALLET FORKS

Rail Style Pallet Forks for skid-steer loaders.  Unlike other economy Pallet Forks these Forks and Frames are built heavy and will give you years of dependability and strength.   Plus Haugen Pallet Forks are 100% made in the USA

Features

  • Fork Tines are flush with the Brick Guard
     for better load support and increased capacity.
  • Heavy Duty reinforced top and bottom rails
  • Adjustable tines from 0 to 45 inches
  • 5000 lbs and 6000 lbs capacity models available
  • Brick Guards have a 10 degree angle
    built-in to maximize your Skid-Steers
    roll back and lifting capacity

Options

  • Optional 60 inch Wide Brick Guards
  • 60 inch tines available on 6000 lbs brick guards
  • Bolt-on Steps

______________________________________________________________________________________________________________________________________________________________________________________

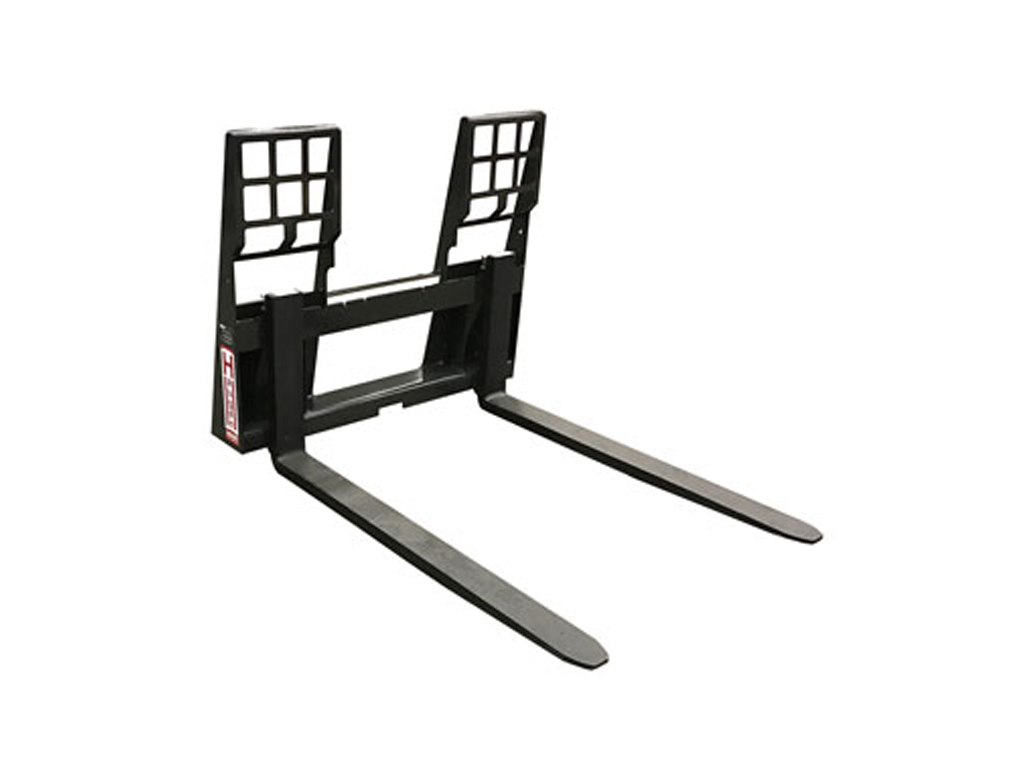

 WALK THROUGH PALLET FORKS

Rail Style Pallet Forks for skid-steer loaders.  Unlike other economy Pallet Forks these Forks and Frames are built heavy and will give you years of dependability and strength.   Plus Haugen Pallet Forks are 100% made in the USA

Features

  • Fork Tines are flush with the Brick Guard
     for better load support and increased capacity.
  • Heavy Duty reinforced top and bottom rails
  • Adjustable tines from 0 to 45 inches
  • 5000 lbs and 6000 lbs capacity models available
  • Brick Guards have a 10 degree angle
    built-in to maximize your Skid-Steers
    roll back and lifting capacity

STANDARD DUTY

Model Fork Length
Fork Size
Weight
Lift Capacity
MPF 42-10 42 Inch
1.5" x 4"
385 lbs
5000 lbs.
MPF 48-10 48 Inch
1.5" x 4"
395 lbs
5000 lbs.
MHPF 48-10
48 Inch 1.75" x 4"
495 lbs
6000 lbs.
MHPF 60-10
60 Inch
1.75" x 4"
530 lbs
6000 lbs.
MHPF 72-10
72 Inch
1.75" x 4"
560 lbs
 6000 lbs.
 Euro/Global Mount
 Large Volume Pricing available --- Call for Details



WALK THROUGH

Model Fork Length
Fork Size
Weight
Lift Capacity
MPF 42-WT 42 Inch
1.5" x 4"
375 lbs
5000 lbs.
MPF 48-WT 48 Inch
1.5" x 4"
385 lbs
5000 lbs.
MHPF 48-WT
48 Inch 1.75" x 4"
485 lbs
6000 lbs.
MHPF 60-WT
60 Inch
1.75" x 4"
520 lbs
6000 lbs.
MHPF 72-WT
72 Inch
1.75" x 4"
550 lbs
6000 lbs.
