ZW50-5B-005280

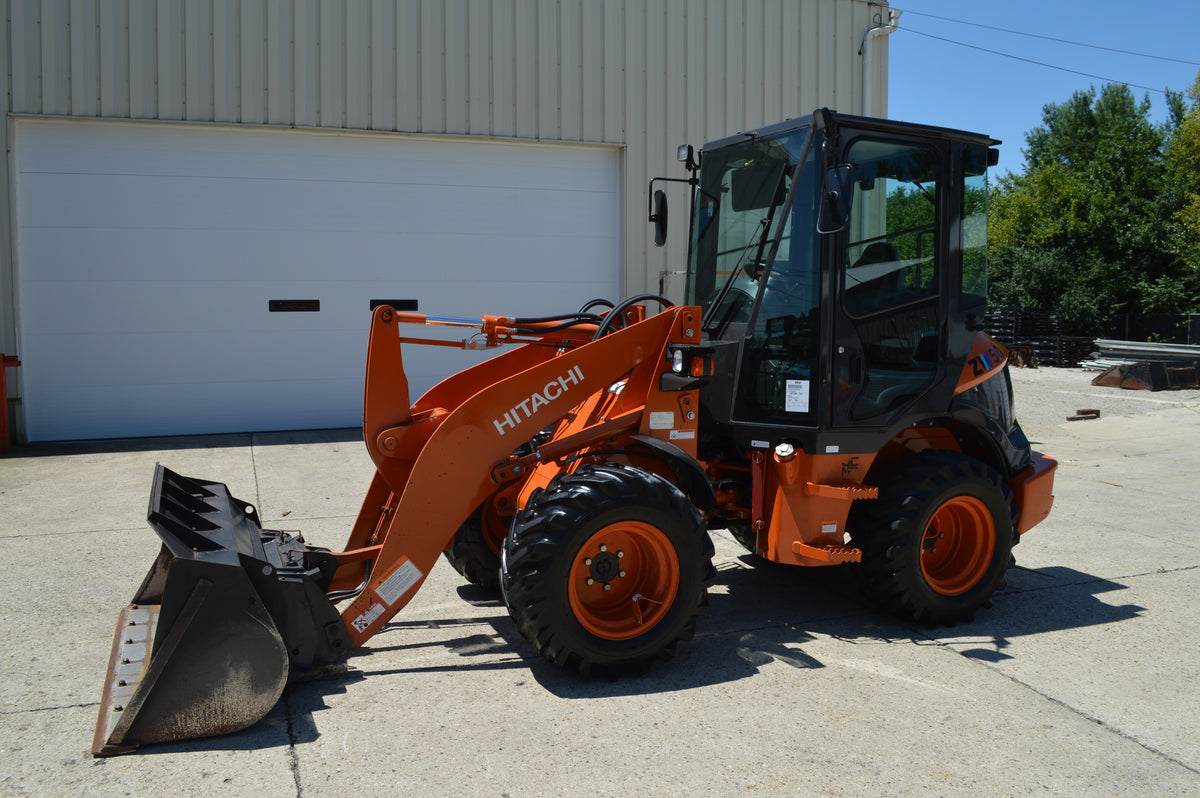

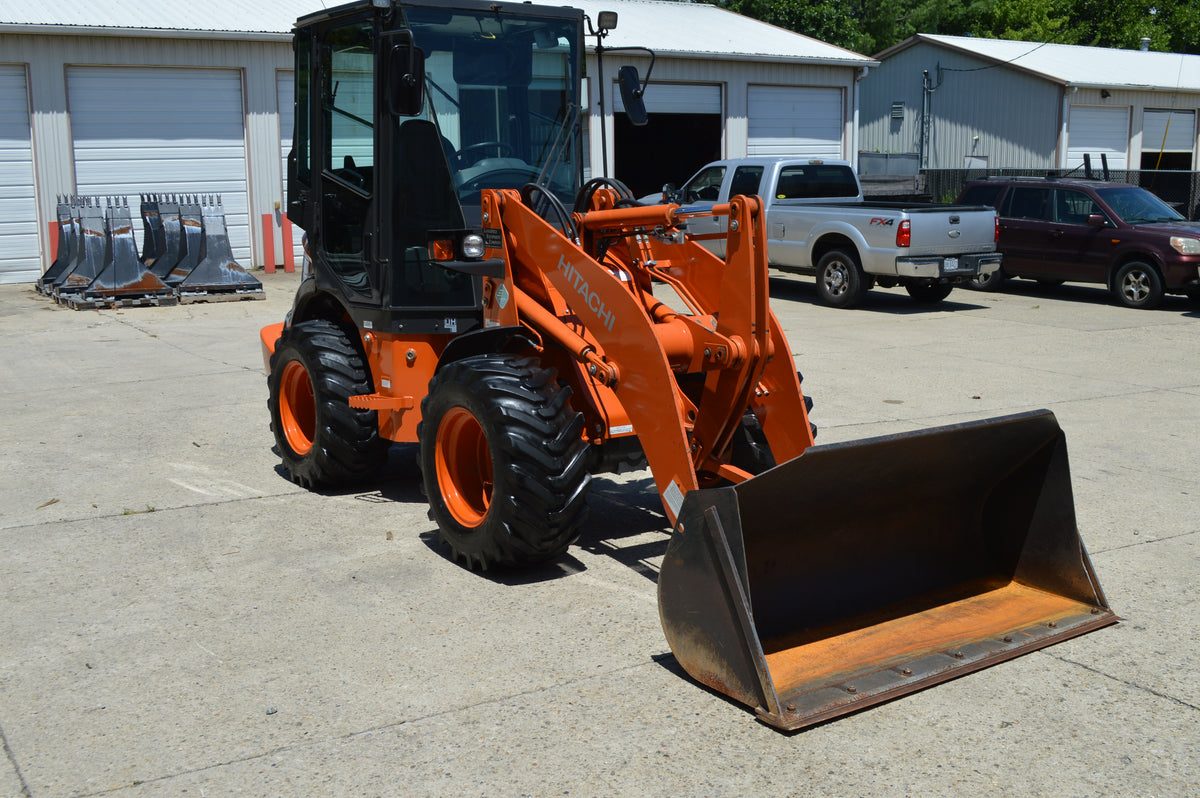

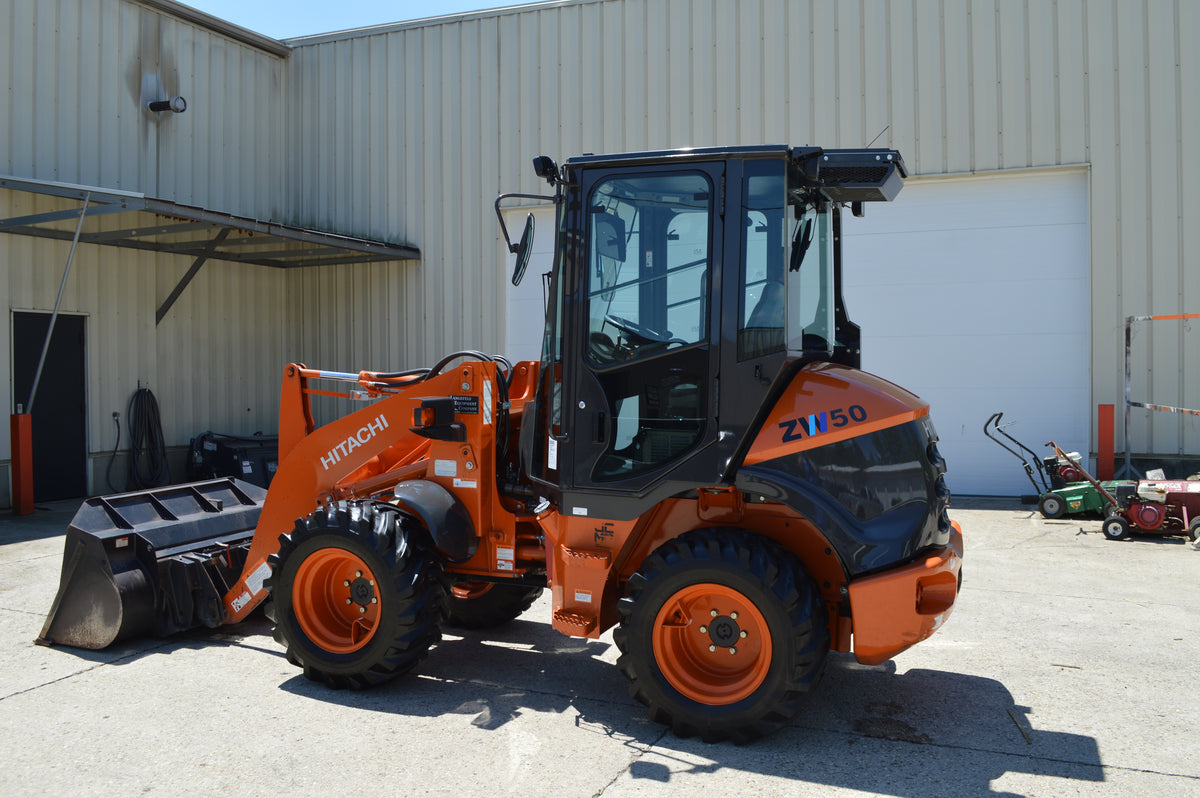

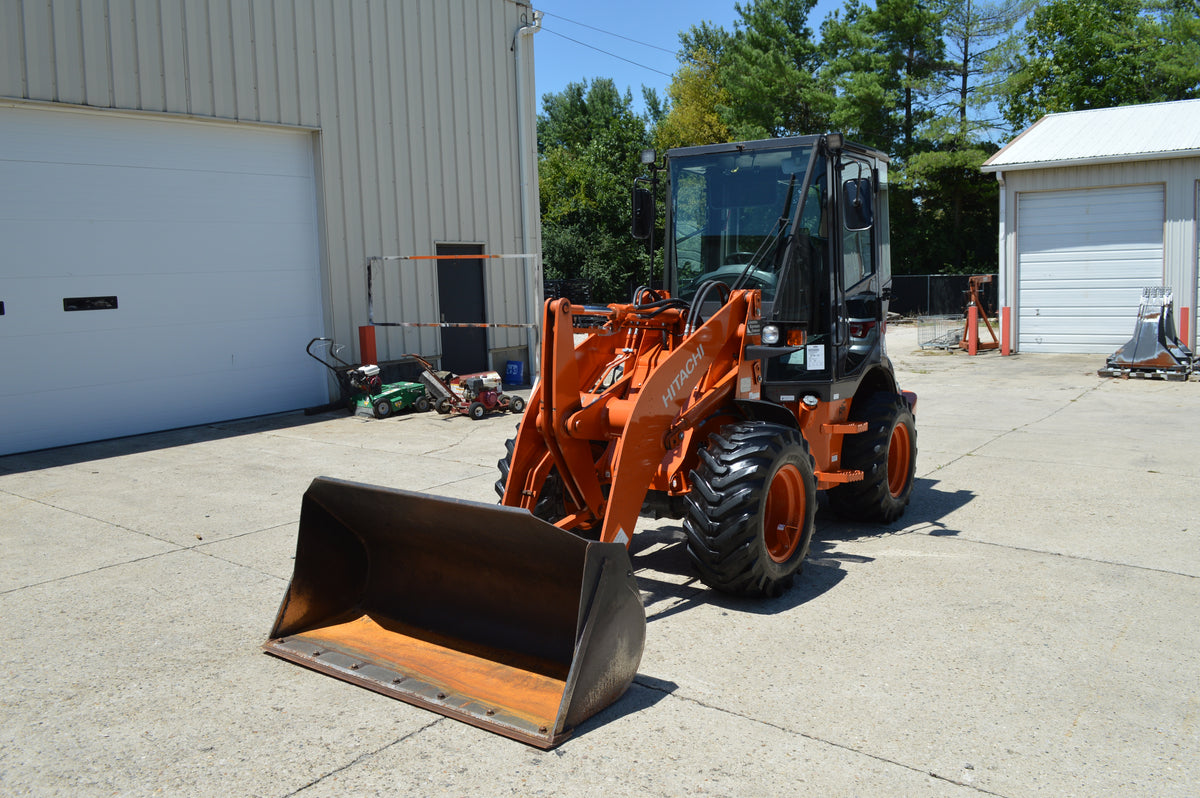

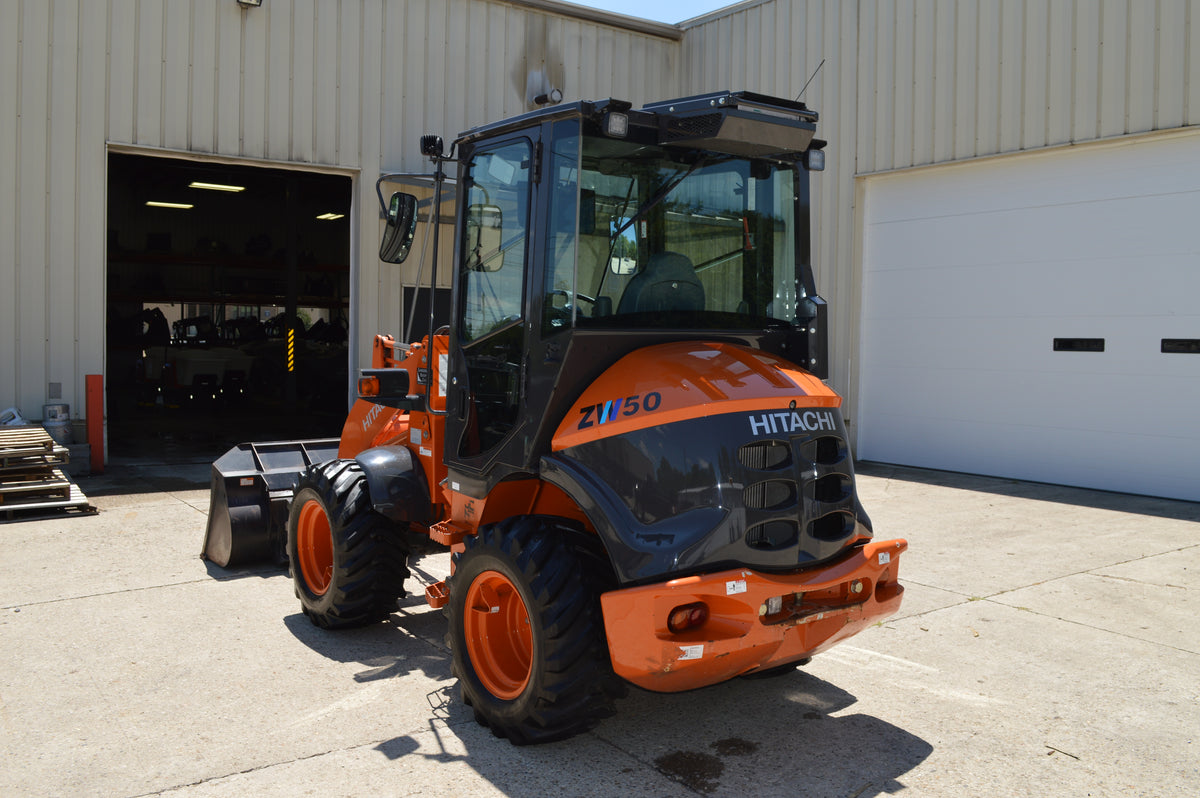

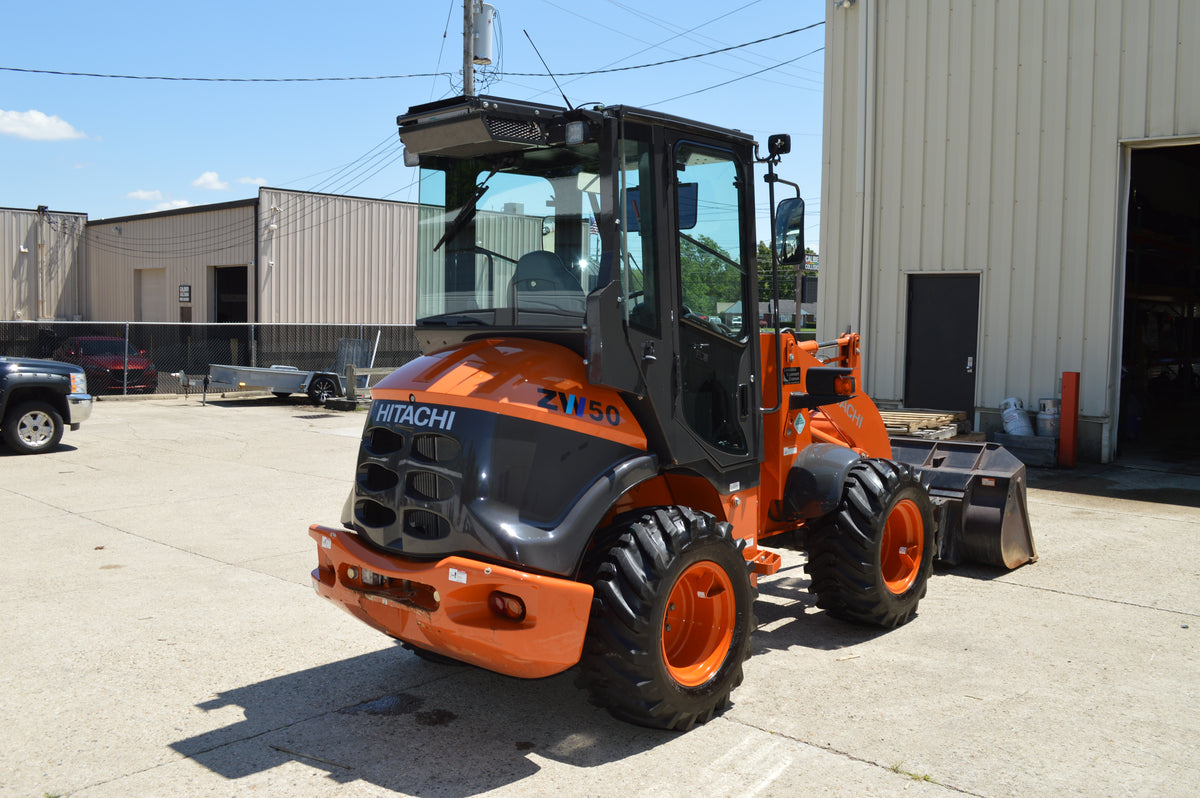

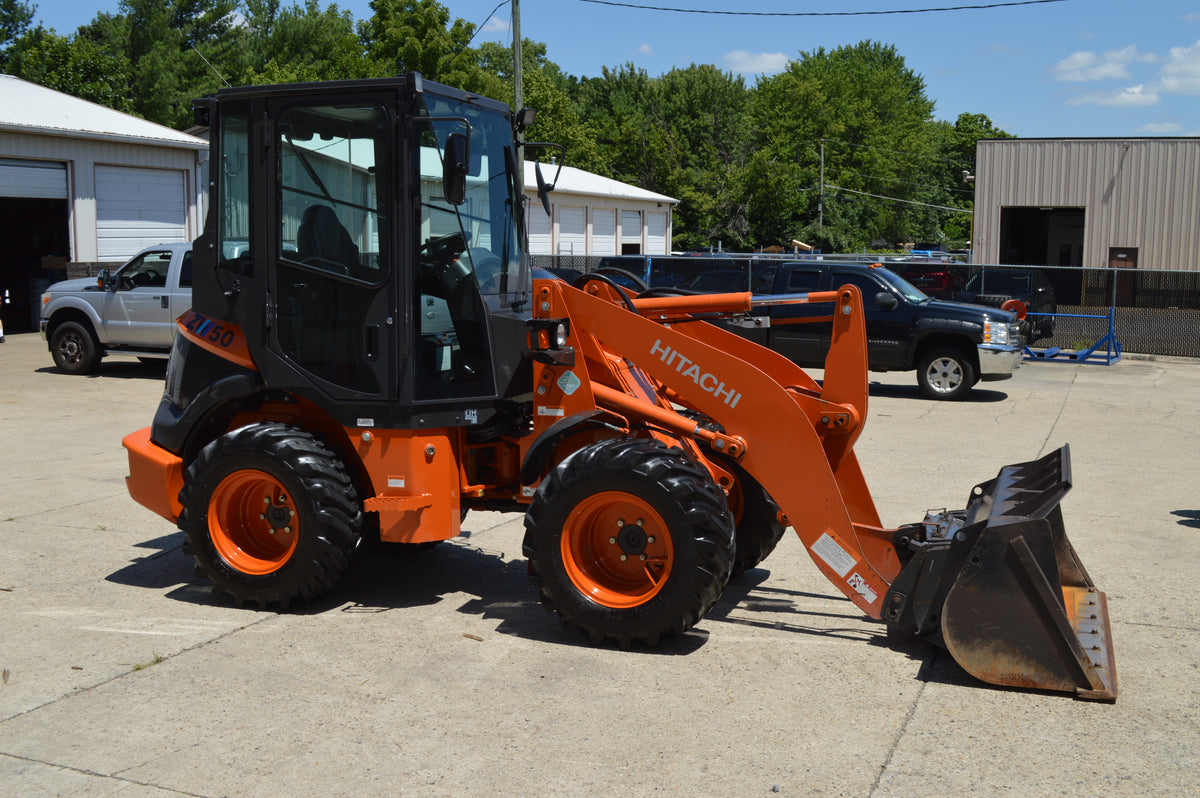

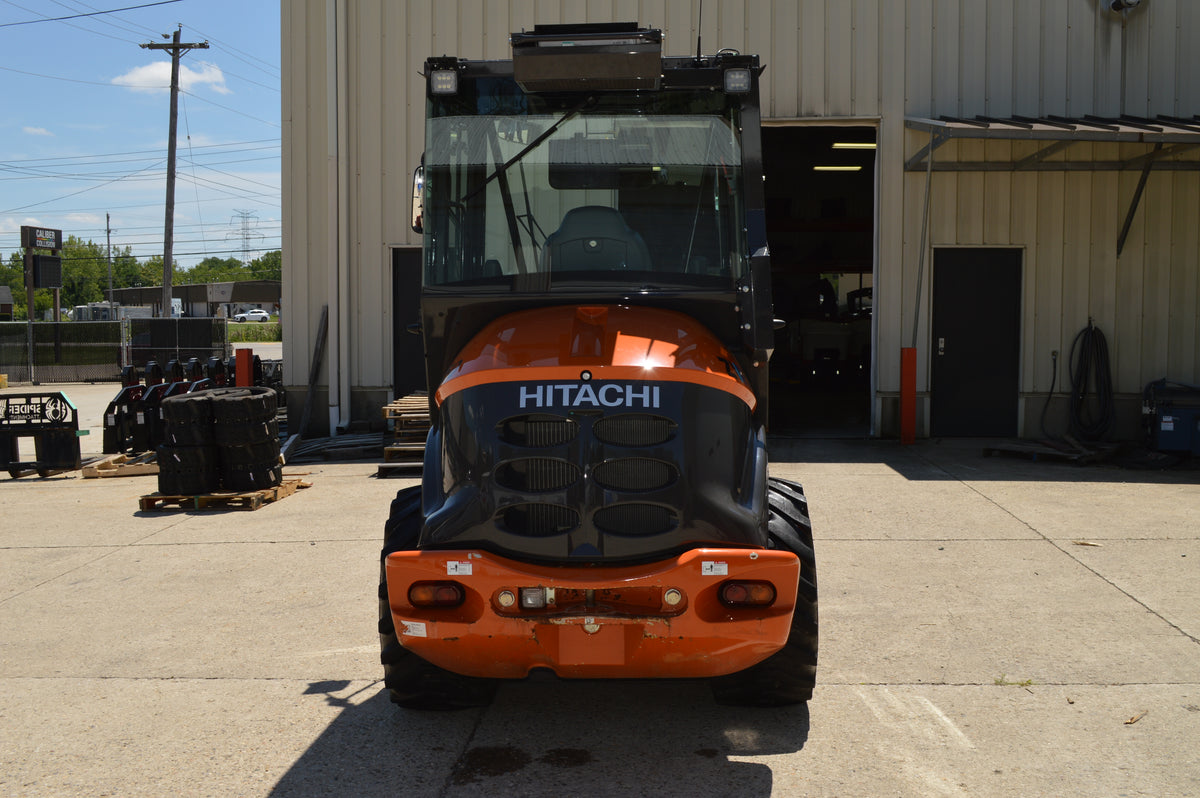

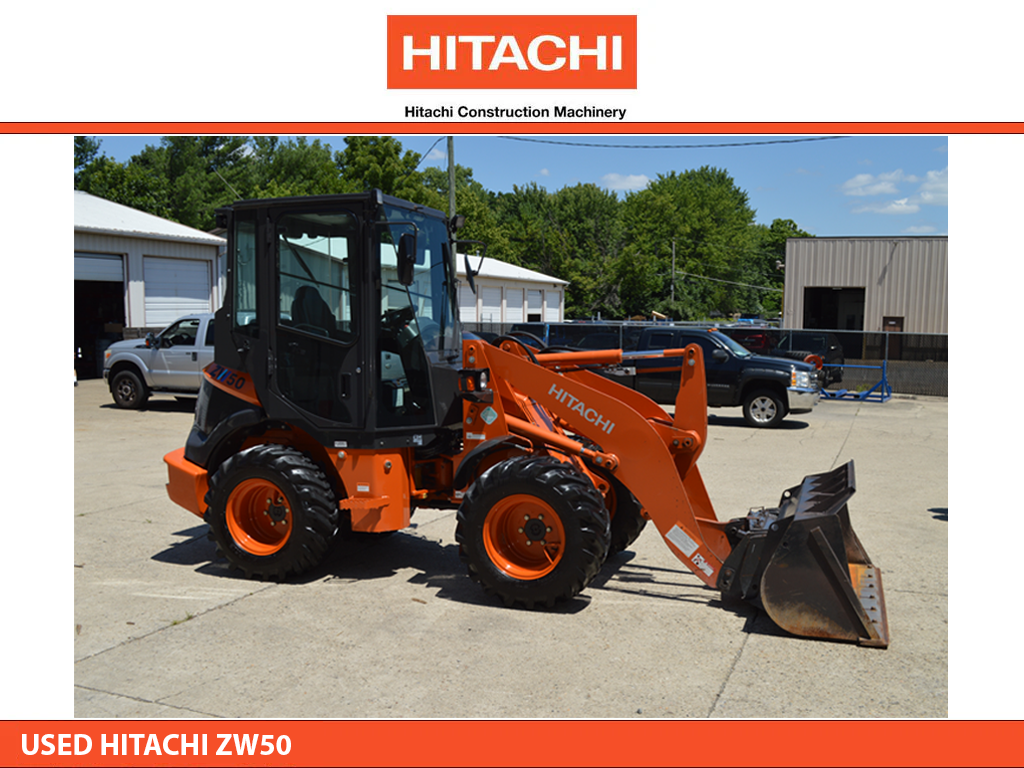

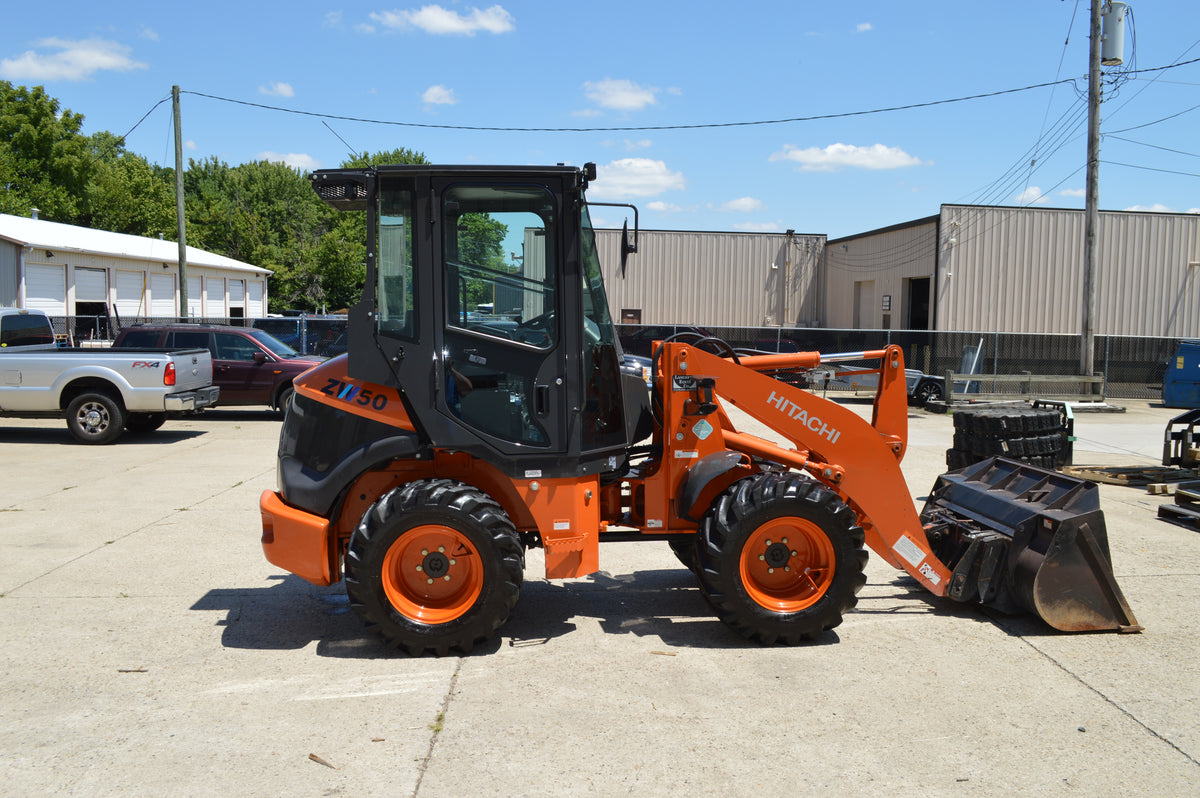

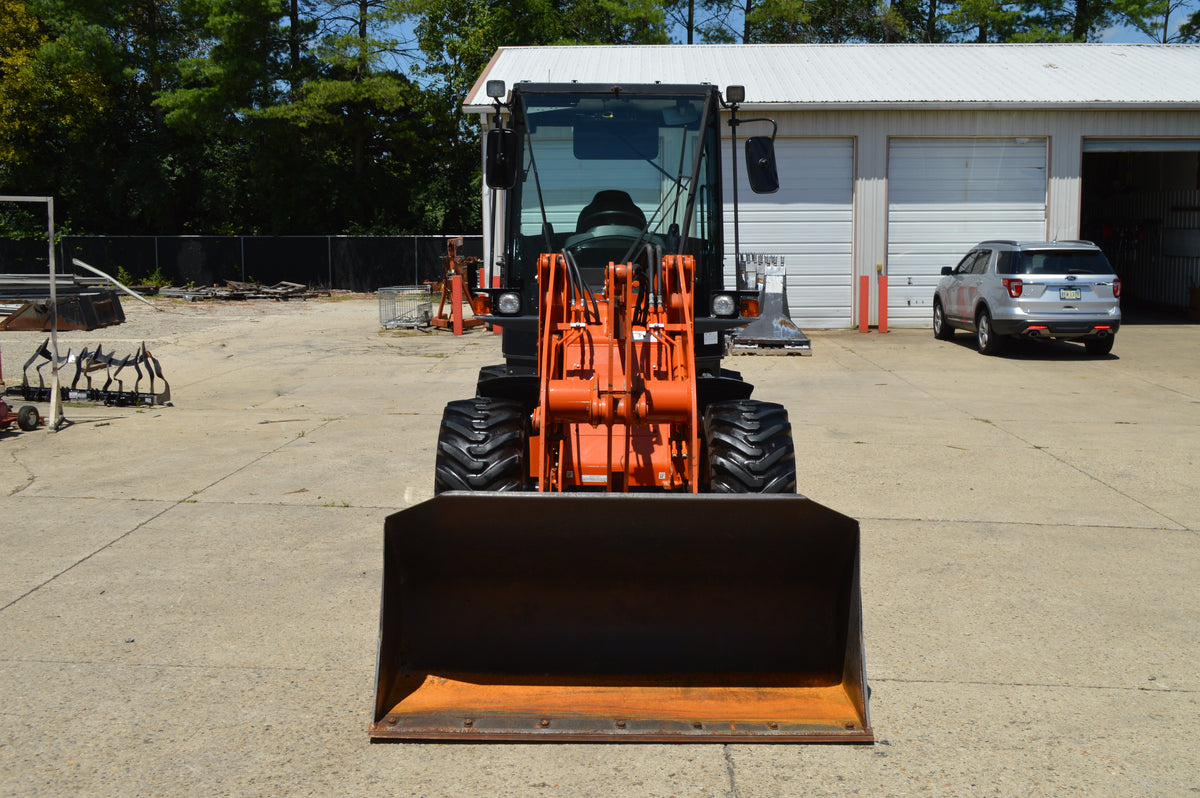

USED HITACHI ZW50-5B WHEEL LOADER (2021)
$49,950.00
2021 Hitachi ZW50-5B
- 760 Hours

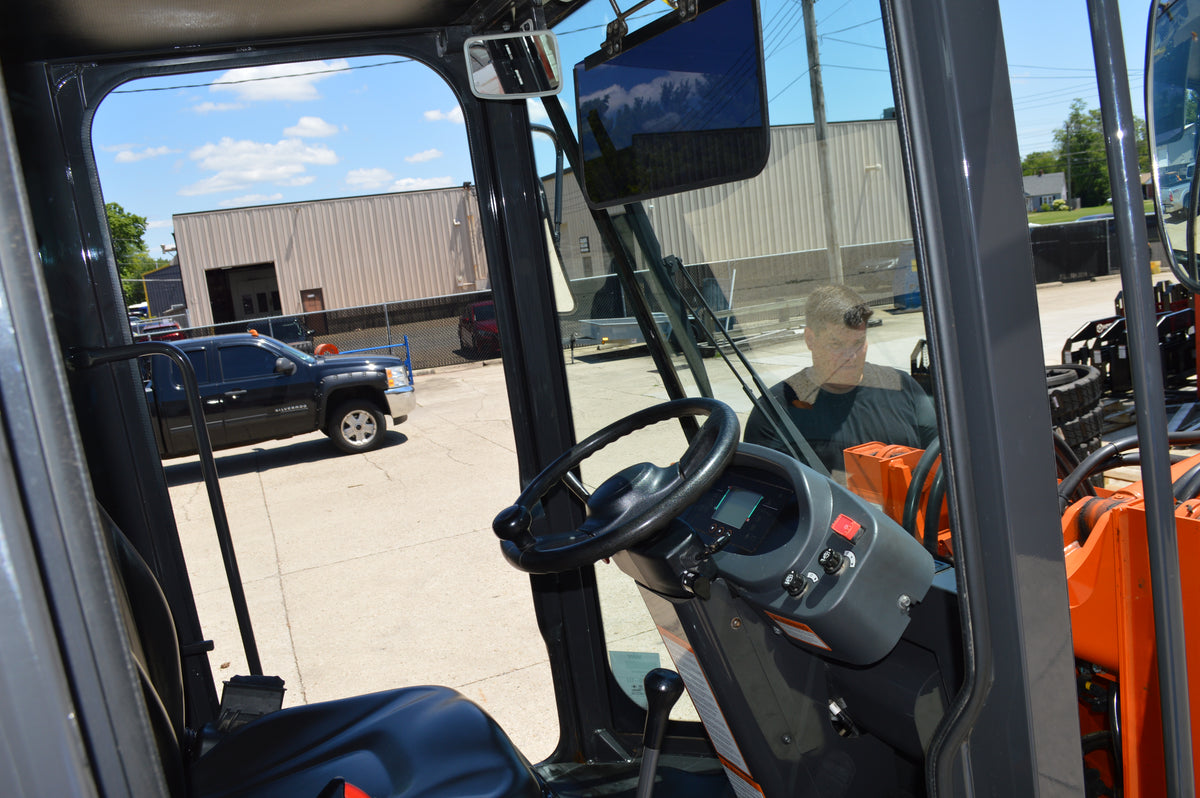

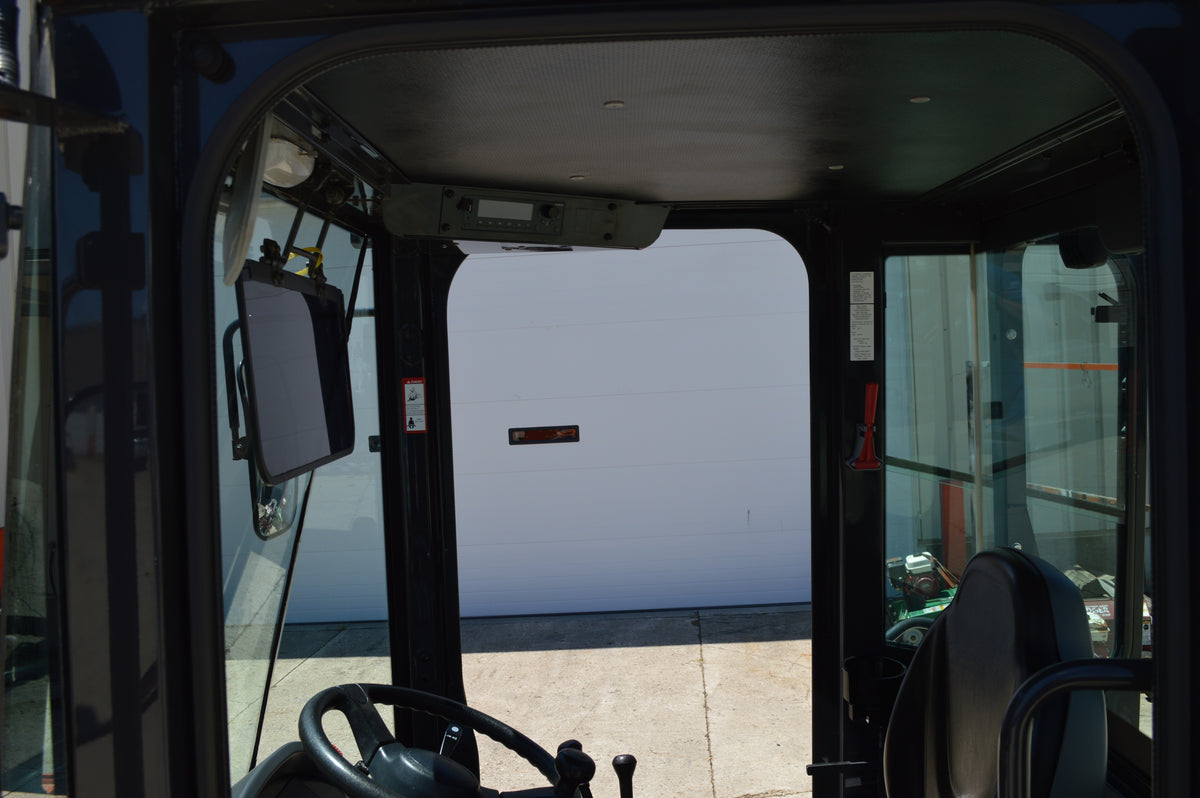

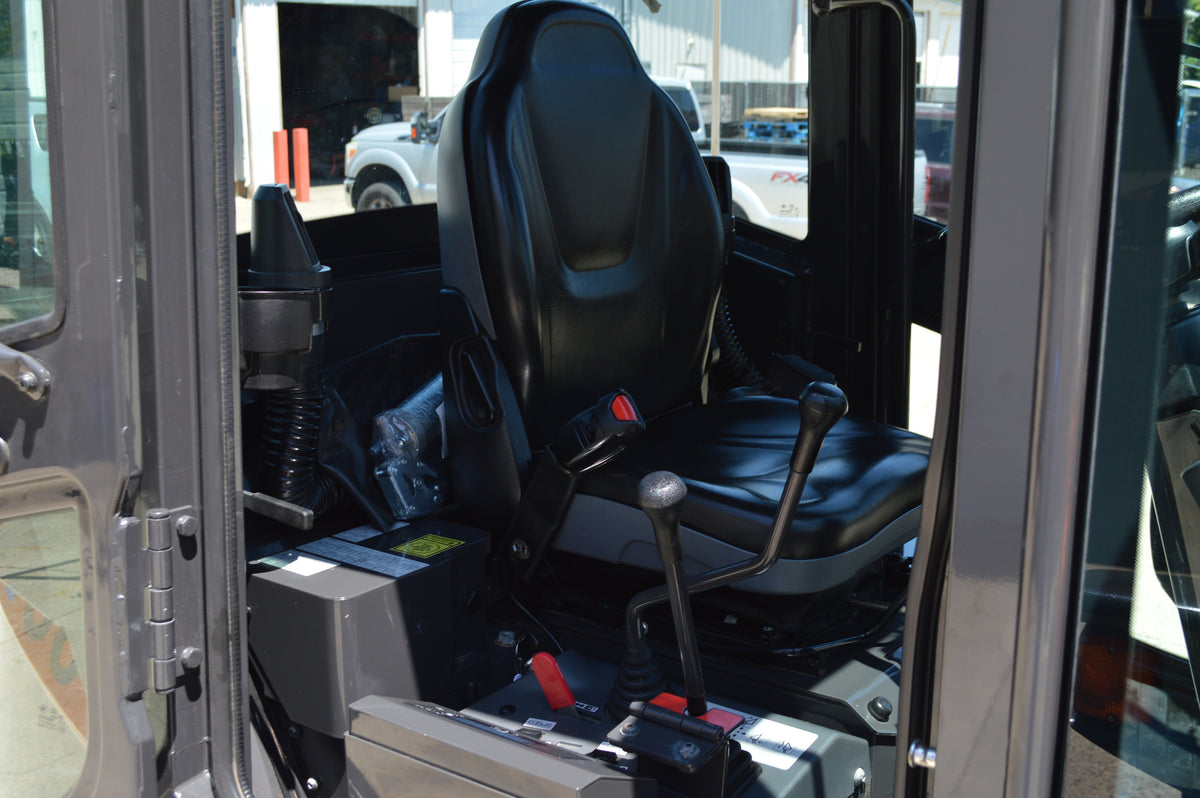

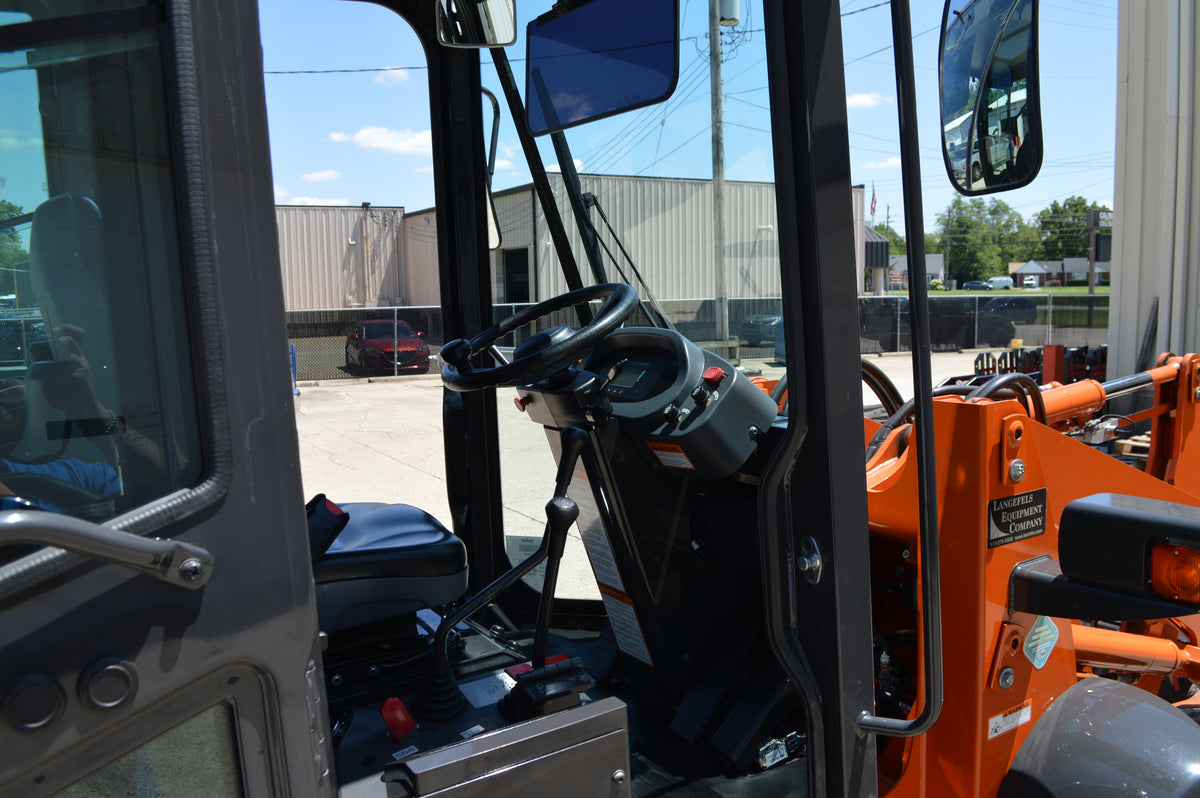

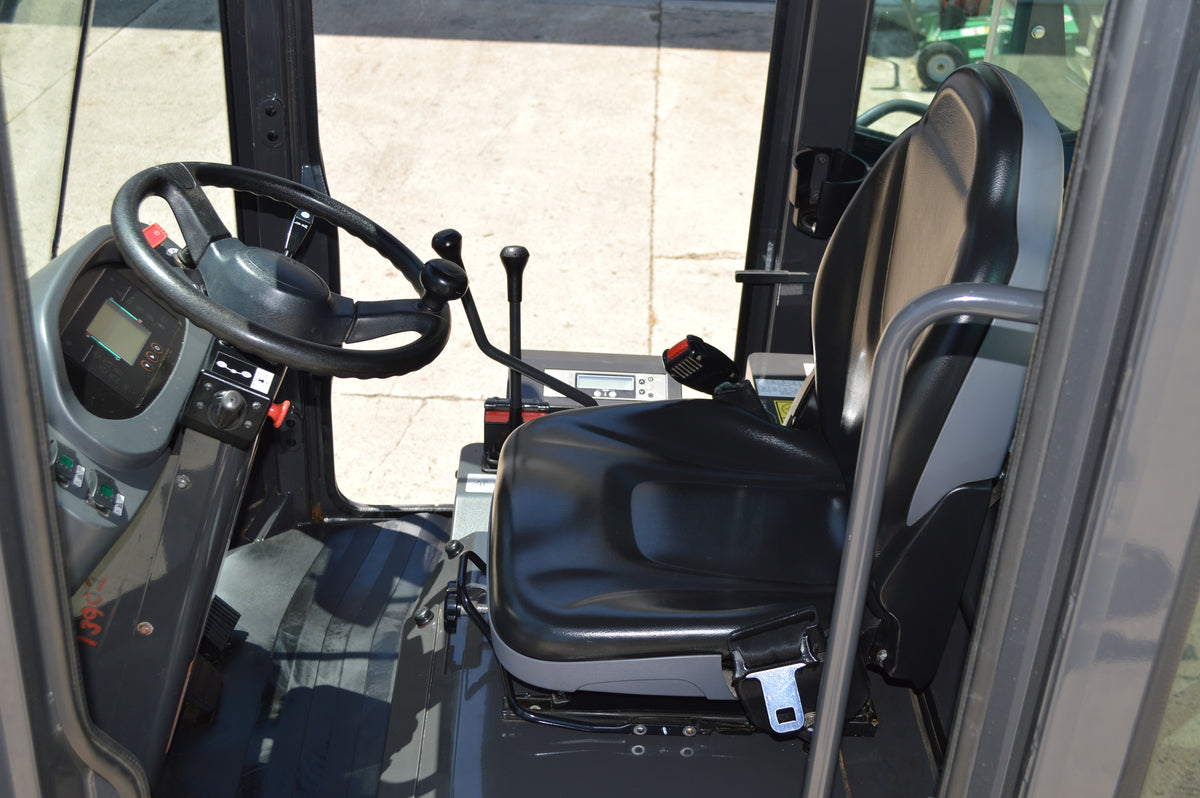

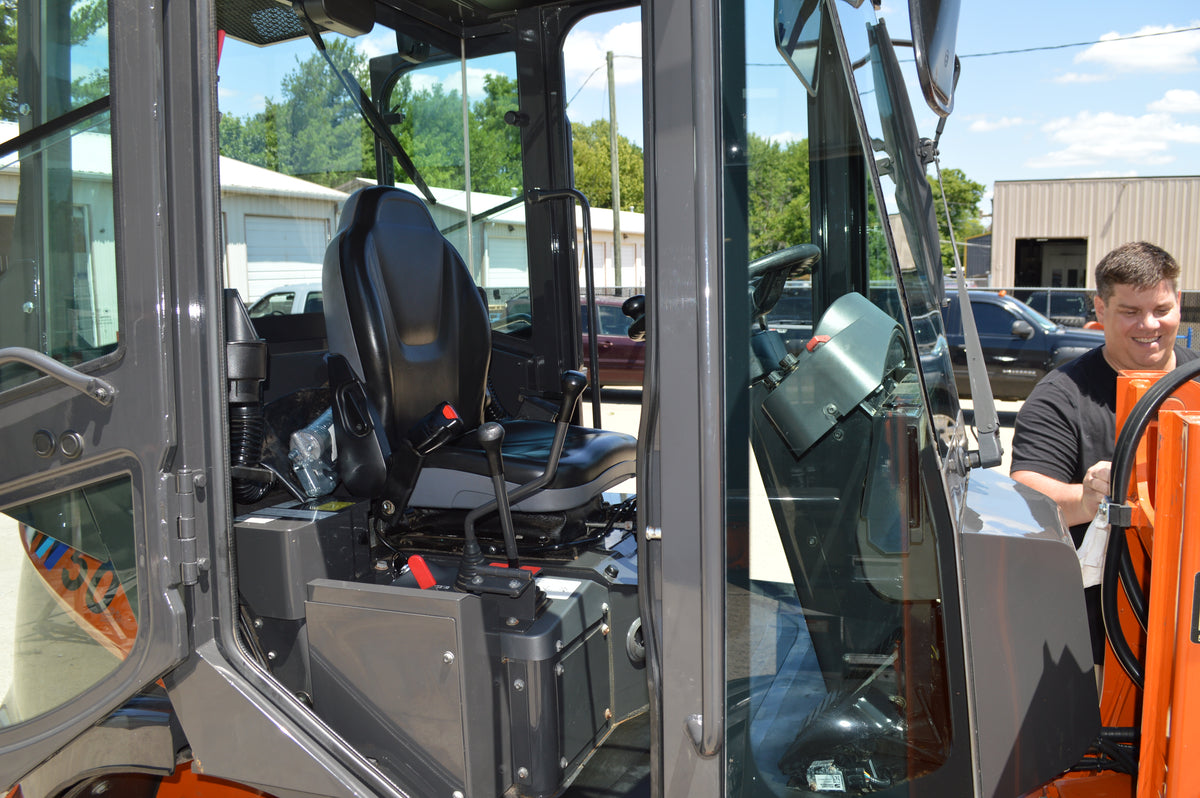

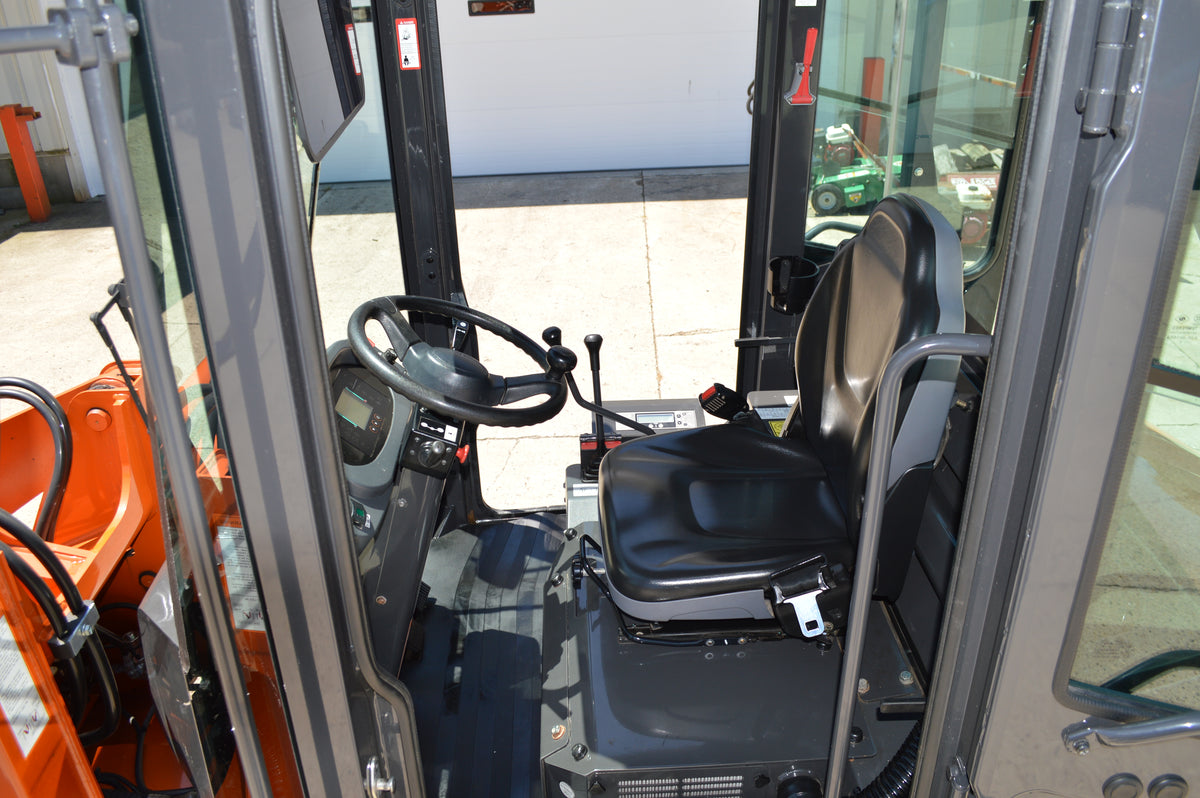

- EROPS - Enclosed Cab with Heat & Air
- Auxiliary Hydraulics

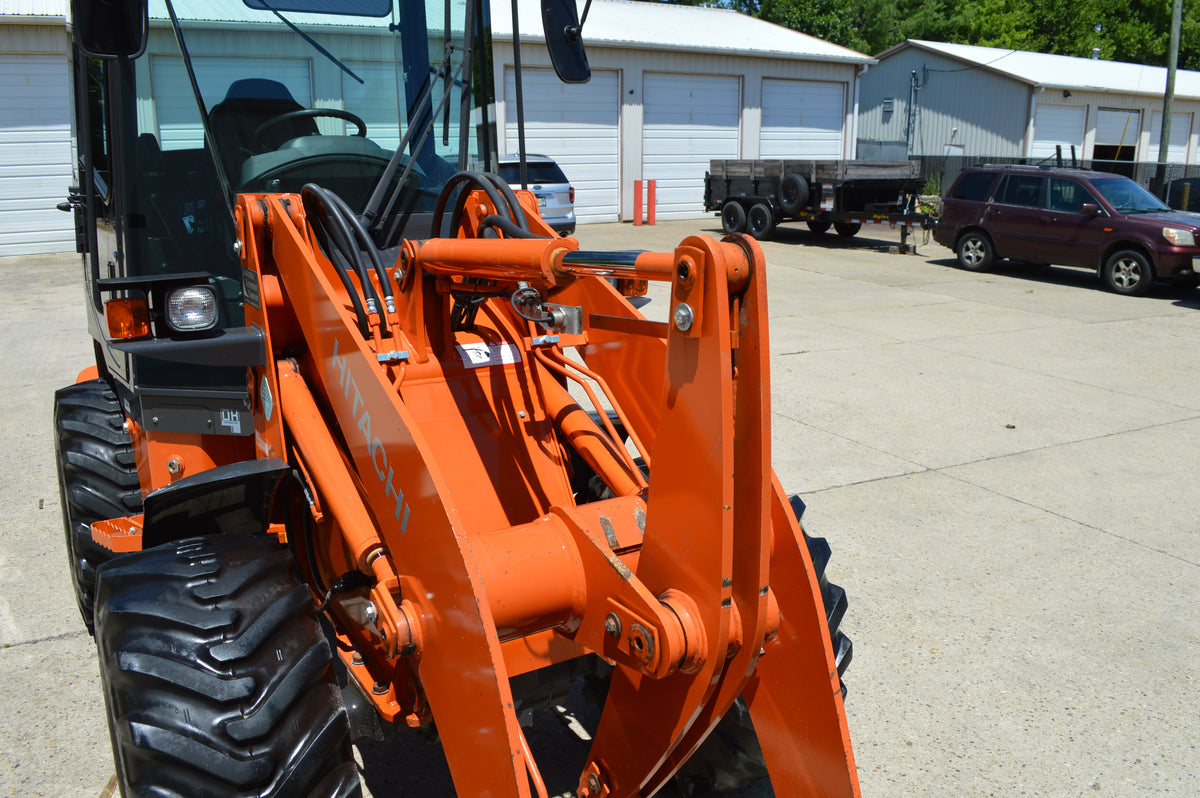

- Hydraulic Skid Steer Coupler

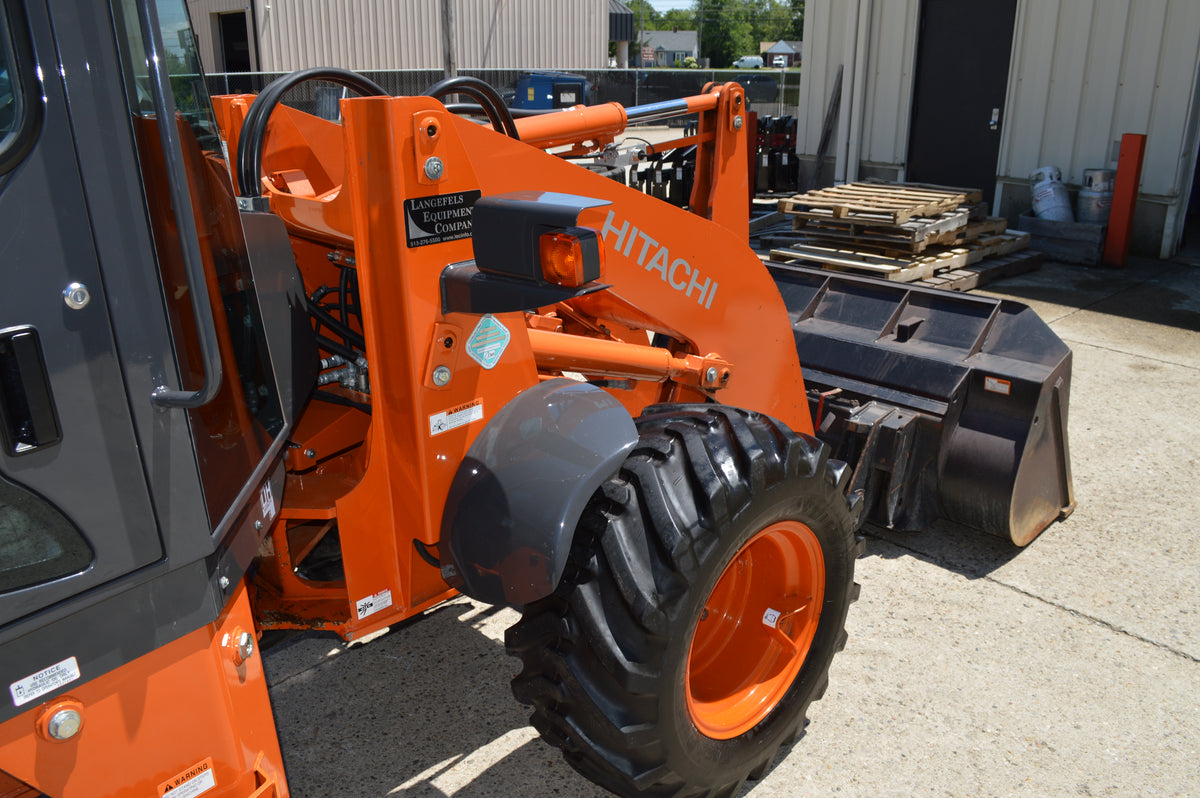

- 66" General Purpose bucket

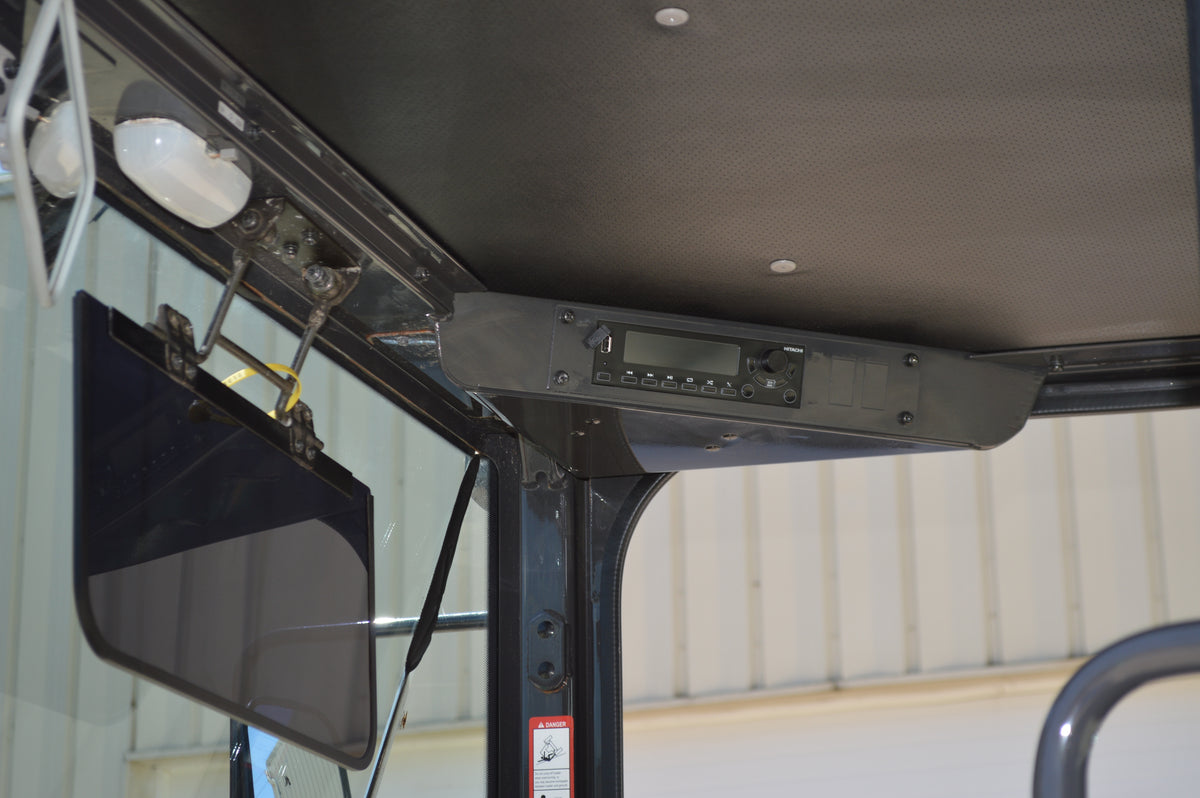

- Radio

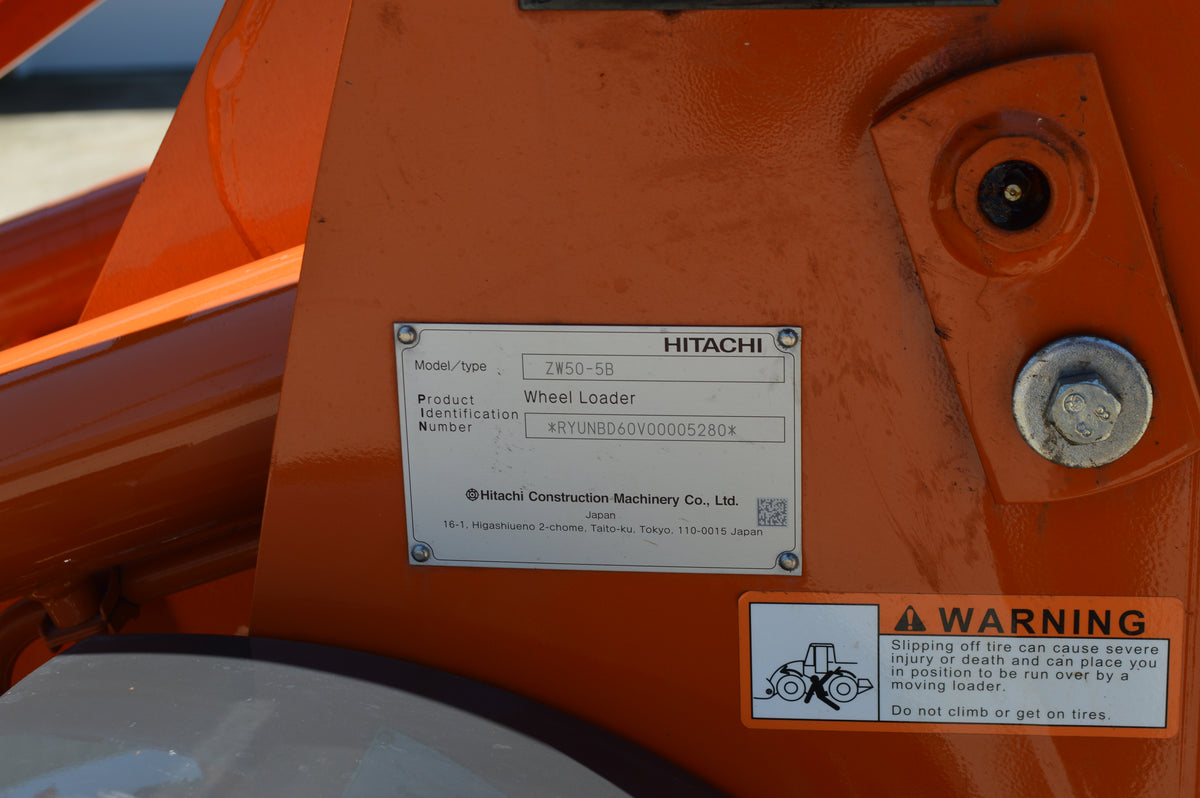

- Serial #RYUNBD60V00005280
FINANCING AVAILIBLE
SHIPPING: Must be quoted, flat bed or hot shot
| YEAR | 2021 |
| MANUFACTURER | Hitachi |
| MODEL | ZW50-5B |
| HOURS | 760 |
| CONDITION | Used |

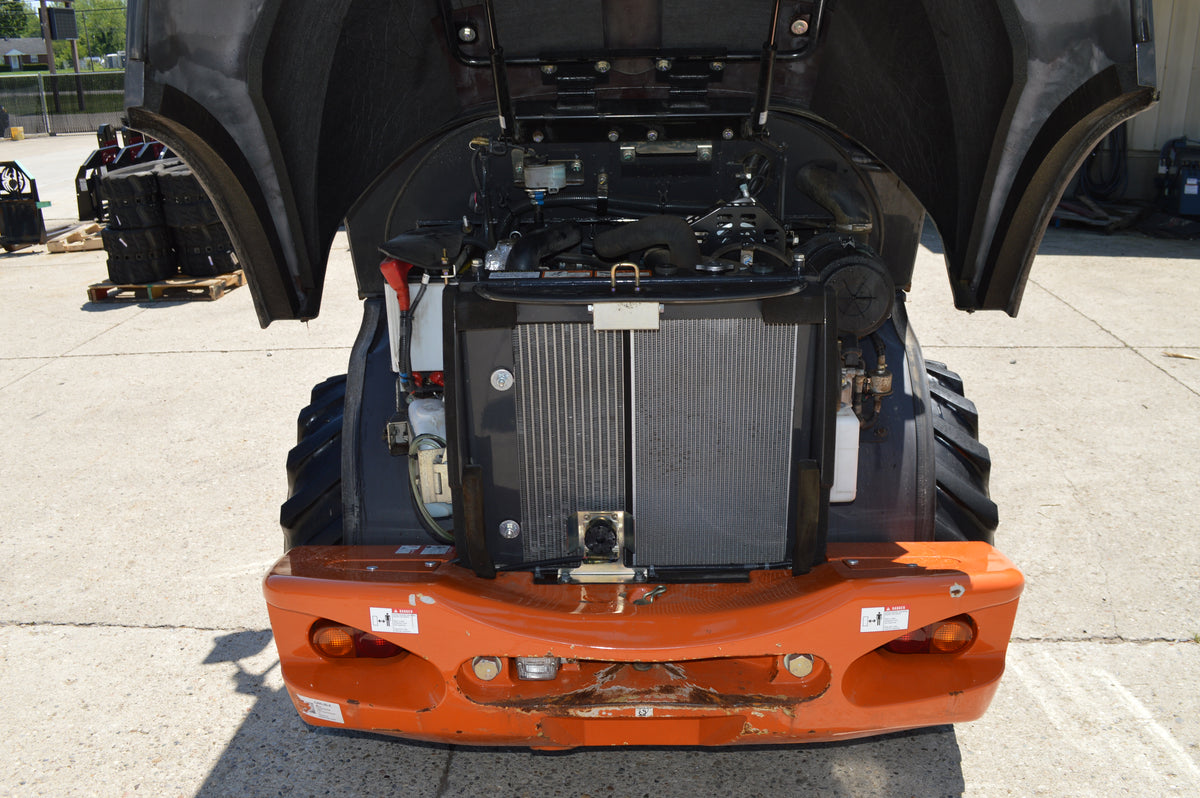

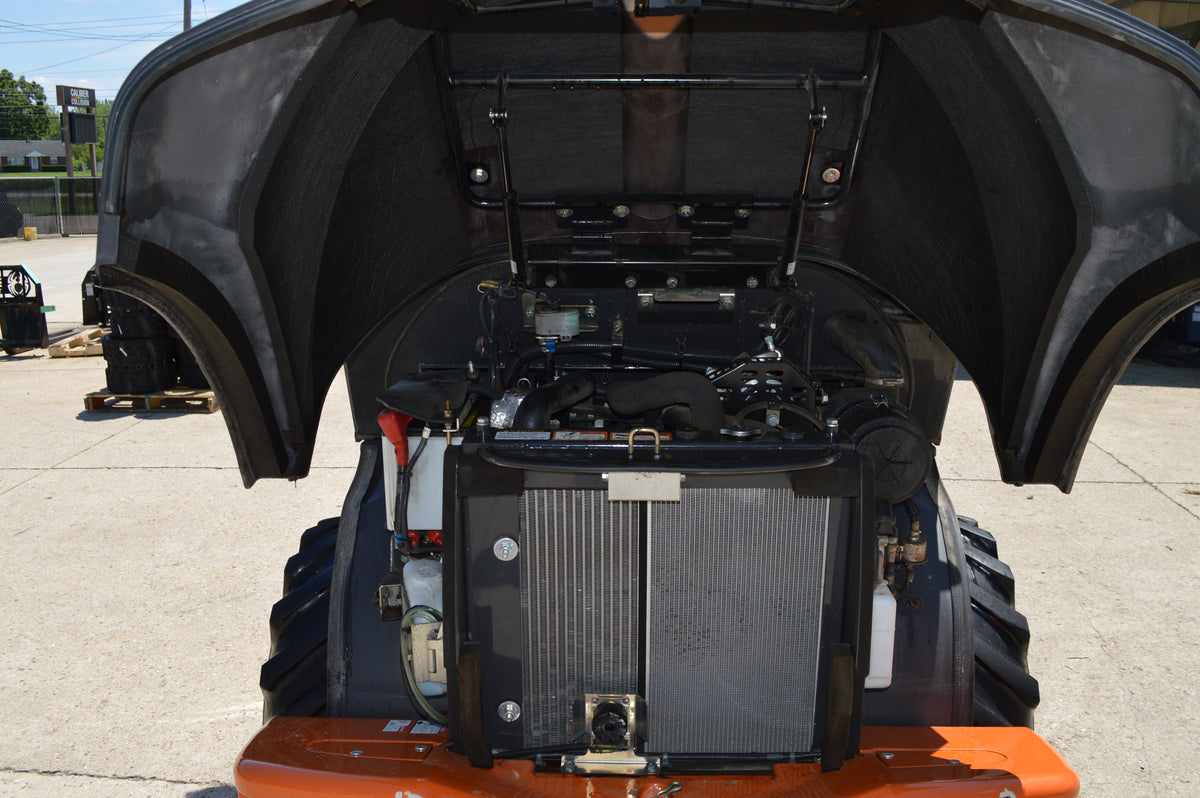

| ENGINE SPECS | |
| Gross power (ISO 14396) | 44 HP/2,400 RPM (32.8 kW/2,400 RPM) |
| Net power (ISO 9249) |
42 HP/2,400 RPM |
| Make/Model |
Kubota D1803-CR-TIE4 diesel engine |
| Type |
4-cycle, water-cooled, direct injection with |
| Fuel type |
#2 Diesel (Requires ultra-low sulfur fuel.) |
| Fuel injection pump |
Electronically controlled, common rail type |
| Governor |
All speed electrical type |

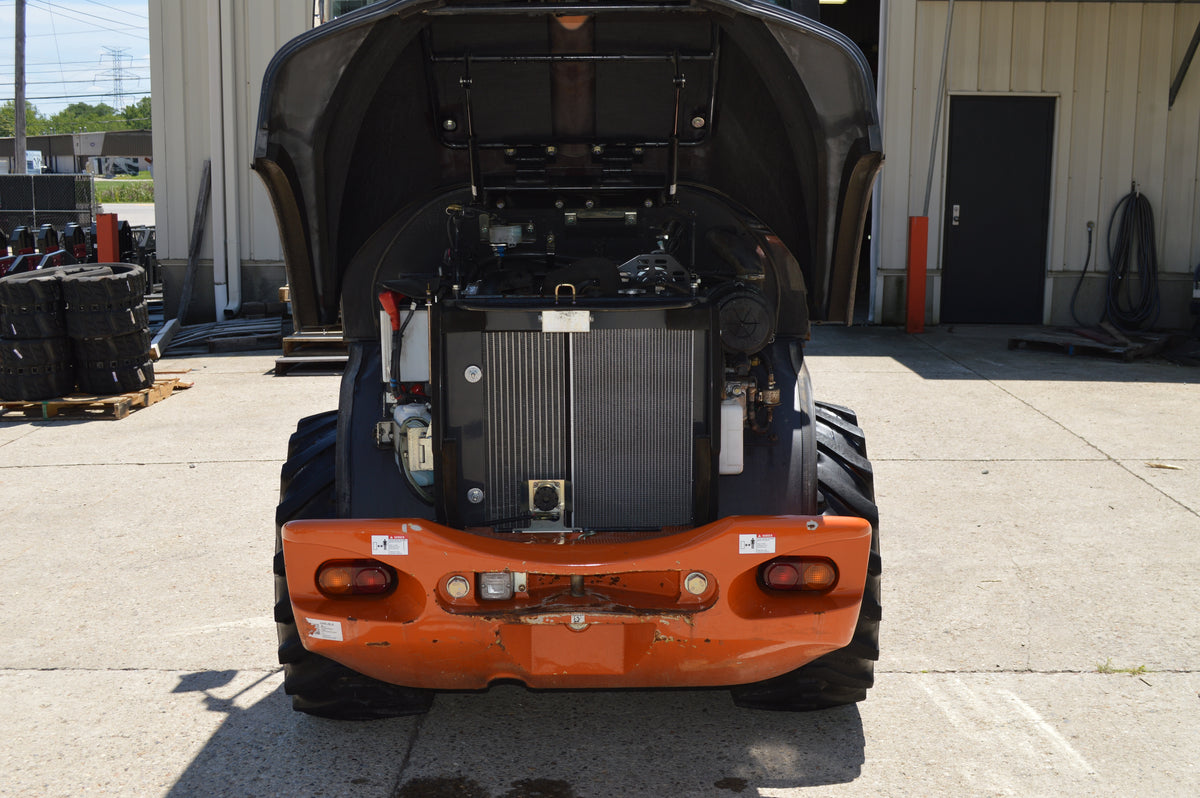

| Cooling module type |
Forced circulation type |
| Number of cylinders |
3 |
| Bore and stroke |
3.4" x 4.0" (87mm x 102.4mm) |
| Total displacement |
112 in3 (1.83 liters) |
| Alternator |
DC 12V-70A (8.4 kW) |
| Air cleaner |
Dry type (double element) with |
| Starter motor |
DC 12V–2.7 HP (2.0 kW |
| Battery |
12V–800 CCA (70Ah), 2 units |
| TRANSMISSION SPECS | |
| Transmission | Hydrostatic transmission (HST) automatically controls power and 2-speed |
| Speeds: Forward |
Low: 5.0 MPH (8.0 km/hr) Auto: 10.6 MPH (17.0 km/hr) |
| Speeds: Reverse |
Low: 5.0 MPH (8.0 km/hr) Auto: 10.6 MPH (17.0 km/hr |
| SYSTEMS REFILL CAPACITY | ||
| LOCATION | GALLONS | LITERS |
| Fuel tank (diesel fuel) | 11.1 | 42 |
| Engine lubricant (including oil pan) |
2.0 | 8 |
| Engine coolant | 1.7 | 7 |
| T/M | 0.5 | 2 |
| Axle (front/rear) | 1.2/1.2 | 5/5 |
| Hydraulic oil tank | 7.1 | 27 |
| HYDRAULIC AND STEERING SYSTEM | |
| Steering type | Articulated frame steering. Full hydraulic power steering unit, pilot operation |
| Steering mechanism | Double-acting piston type |
| Lift (boom) cylinder | Two (2) double-acting piston type: 2.8" x 20.9" (70mm x 531mm) |
| Tilt (bucket) cylinder | Two (2) double-acting piston type: 2.8" x 17.7" (70mm x 450mm) |
| Steering cylinder | Two (2) double-acting piston type: 2.4" x 9" (60mm x 228mm) |
| Main oil pump | 13.9 GPM/1,000 PSI @ 2,400 RPM (52.7 LPM/20.6 MPa @ 2,400 RPM) |
| HST charging pump | 4.0 GPM/3,260 PSI @ 2,400 RPM (15.3 LPM/2.5 MPa @ 2,400 RPM) |
| Relief valve set pressure |
2,987 psi, 20.6 MPa (210 kgf/cm2) |
| HYDRAULIC CYCLE TIME* front end loading, Z bar linkage system | |
| Lifting time (at full load) | 5.0 sec. |
| Lowering time (empty) | 3.0 sec. |
| Bucket dumping time | 1.0 sec. |
| total | 9.0 sec. |
| AXLE SYSTEM | |
| Drive system | 4-wheel drive |
| Front and rear axle | Semi-floating type, fixed to the front frame, trunnion support |
| Tires | 15.5/60-18 8PR (L-2) |
| Reduction and differential gear |
Limited slip differential (LSD) |
| Final reduction gear | Inboard mounted, heavy duty planetary gear |
| Oscillation angle | Total 16 (+8, –8)° |
| BRAKE SYSTEM | |
| Service brakes | Wet disc in reduction gear box |
| Parking/Emergency brake | Spring-applied, hydraulically-released wet disc |
