HITCHDOC

35-12510

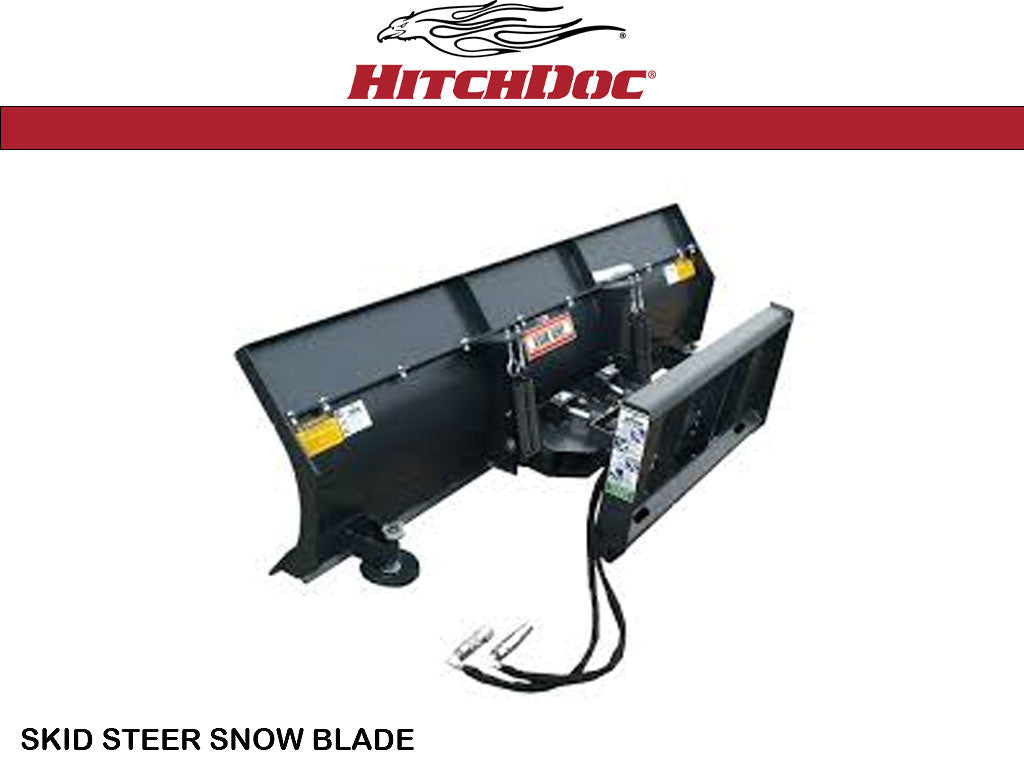

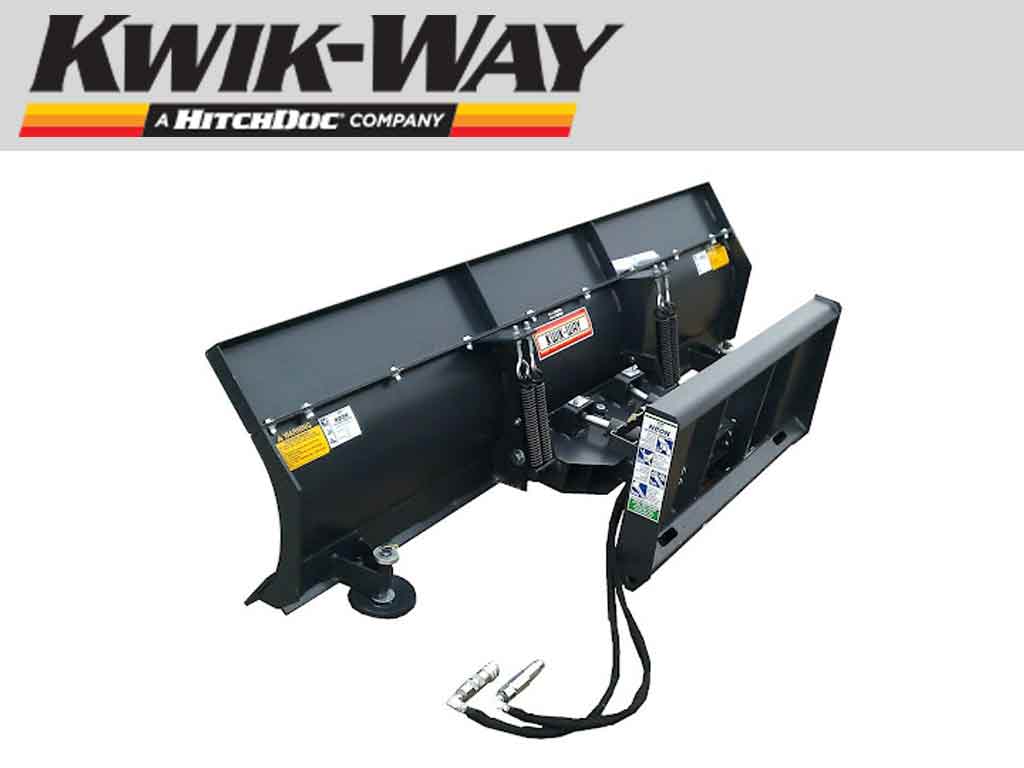

HITCH-DOC angel blade for skid steer loaders

Style
Size
Option

    SKID STEER BLADES

    • STANDARDFOR MACHINES UNDER 50 HORSE POWER
    • HEAVY DUTY FOR MACHINES OVER 50 HORSEPOWER

    Standard Features:

    • Heavy Dirt or Snow – Let nothing stand in your way when moving dirt, earth or other materials as this professional, heavy duty dozer blade surpasses expectations
    • Moldboard Tilt & Rotation – Tilt blade ends up or down 10 degrees on each side for variable slope and/or 30 degree rotation to the right or left for a changed cut angle and nothing will stand in your way
    • Electro-hydraulic Controls – Electric controls over hydraulics make it easy to position the blade with a different angle or tilt
    • 4 Double Hydraulic Cylinders – Quick connect couplers allow for easy attaching to any skid steer with over 50 HP and power the variety of angles your blade can reach without ever leaving the cab
    • Easy Transitions – Use this blade for dirt work or snow management with a quick change of the trip springs and lock out bolts
    • Adjustable Depth Guides – Manually change around the spacers on the skid shoes to modify blade height to control blade height and surface contact
    • Universal Mount – Allows for one standard attachment for skids steers, no need for special hook-ups or attachments
    • Solid Cutting Edge – Dense, removable and replaceable steel cutting edge is standard on all blades and will plow through the majority of obstructions
    • High Quality and Out Performing – Manufactured with American steel and inspected against the highest quality standards is why our employees are so proud of this Midwest made product
    • Rolled Steel Blade – We take the time to roll our thick steel for increased pressure resistance and minimize potential breakdowns by offering one solid steel blade
    • Continual Improvement – At HitchDoc, we take our products out year after year and push them to the breaking point, whether moving logs, earth, snow, rock, mulch, we try it all to maintain our quality levels

    Optional Features:

    • 8 inch Blade Extension – Attaches to the top of the blade and made from steel to increase capacity
    • Rubber Cutting Edge – This 1 inch thick, 6 inch wide option minimizes wear on the plowing surface
    • Float Kit – Available on skid steers above 50 HP, this option operates independently from the machine to self-adjust the blade-surface contact
    MODEL TYPE HEIGHT REQ HP WIDTH WEIGHT
    STANDARD
    35-22900 SSL 22" < 50 4' 490 LB
    35-13010 SSL 22" < 50 5' 525 LB
    35-12510 SSL 22" < 50 6' 560 LB
    35-12610 SSL 22" < 50 7' 590 LB
    35-12910 SSL 22" < 50 8' 635 LB
    HEAVY DUTY
    35-20202 SSL 28" > 50 6' 715 LB
    35-20203 SSL 28" > 50 7" 750 LB
    35-20204 SSL 28" > 50 8" 795 LB
    35-20205 SSL 28" > 50 9" 835 LB
    35-20206 SSL 28" > 50 10" 865 LB
