HITCHDOC

35-24902

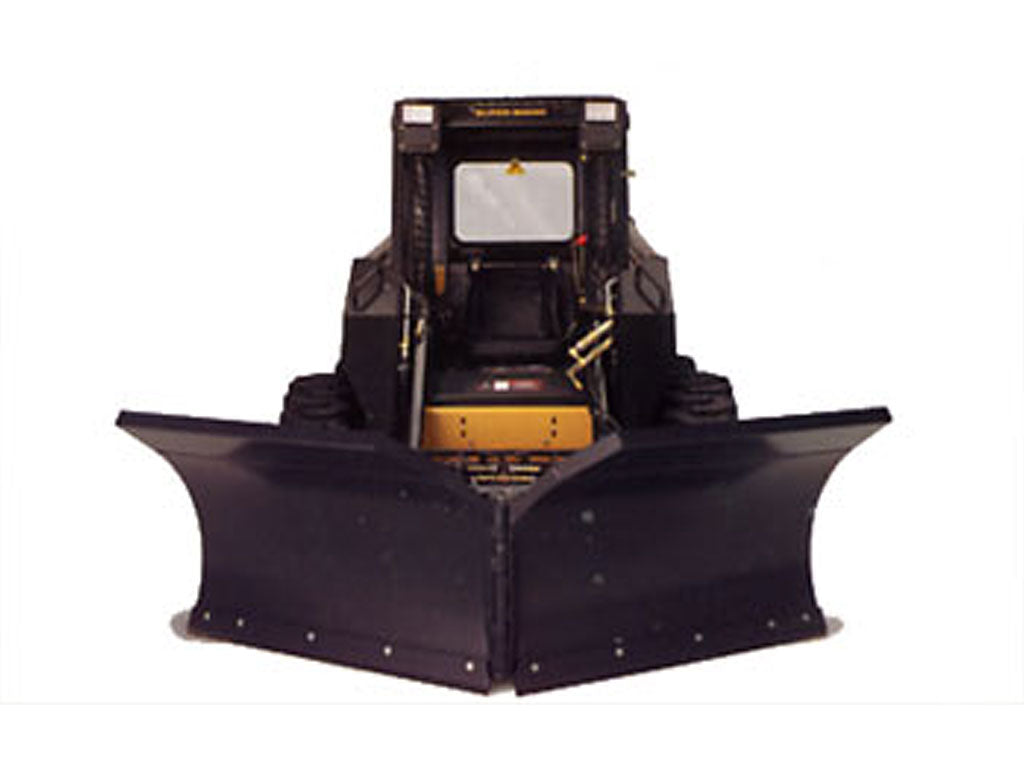

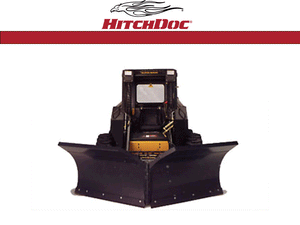

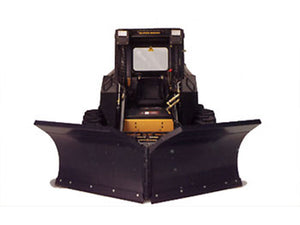

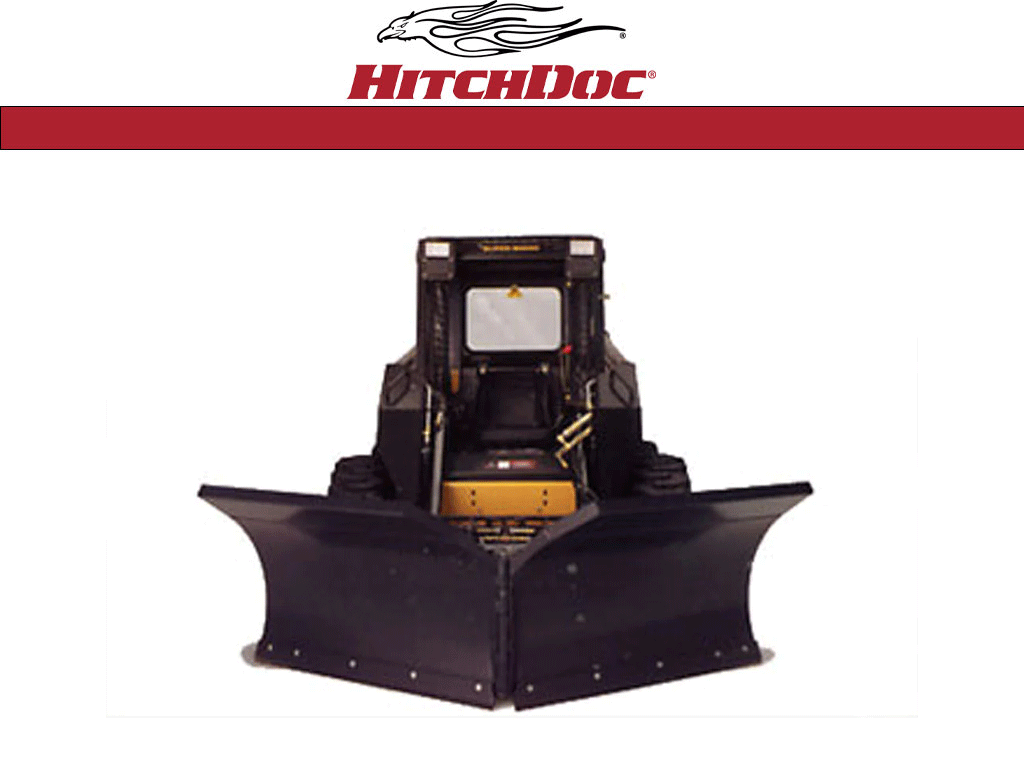

HITCH-DOC HEAVY DUTY V-BLADE (SSL)(CTL)

Size

V-BLADE (VARIABLE BLADE)

  • HEAVY DUTY MODELS FOR OVER 50 HP
  • BOBCAT / UNIVERSAL MOUNTING INCLUDED
  • RUBBER EDGES AVAILABLE (CALL)
  • 8" EXTENSIONS AVAILABLE (CALL)

Standard Features:

  • Dirt and Snow Management – Position the blade multiple ways to move heavy snow or light material for a variety of applications
  • Variable Blade Positions – For the ‘V-cut,’ position both blades backward; for ‘scooped,’ position both forward; for a straight cut or angle, just move the individual blades accordingly up to 30 degrees to the right or left
  • Electro-Hydraulic Controls – Electric controls over hydraulics make it easy to position the blade with a different angle or tilt
  • Double Hydraulic Cylinders – Quick connect couplers allow for easy attaching to any skid steer or mini skid steer machine with below or above 50 HP
  • Easy Transitions – Use this blade for dirt work or snow management with a quick change of the trip springs and lock out pin
  • 3R Cutting Edge – Save time and money with our 3R Cutting Edge, which is removable, reversible and replaceable
  • Adjustable Depth Guides – Manually adjust the spacers on the skid shoes to modify blade height, allowing control over blade height and surface contact
  • Rolled Steel Blade – We take the time to roll our thick steel for the best material movement, and we offer one solid steel blade which minimizes breakdowns
  • Universal Mount – Allows for one standard attachment for skid steers and for mini skid steers, no need for special hook-ups or attachments
  • Rugged Built and Out Performing – We manufacture with American steel and inspect against the highest quality standards; just one of the reasons our employees are so proud of this Midwest-made product
  • Continual Improvement – At HitchDoc, we take our products out year after year and push them to the breaking point; whether moving logs, earth, snow, rock, or mulch—we try it all to maintain our quality levels
 MODEL OPTIONS MACHINE TYPE HP REQ HEIGHT WIDTH OPT
Standard V-Blade & Universal Mount SKID STEER (SSL) <50 28.25 5,6,7,8,9
Professional Heavy Duty V-Blade & Universal Mount SKID STEER (SSL) >50 28.25 6,7,8,9
Mini Skid V-Blade & Universal Mount

MINI LOADER

(ML)

NA 22 4,5
Bobcat Mini Track Mount V-Blade

MINI LOADER

(ML)

NA 22 4,5
