HITCHDOC

HDD6BASE-HDD113-HE1614

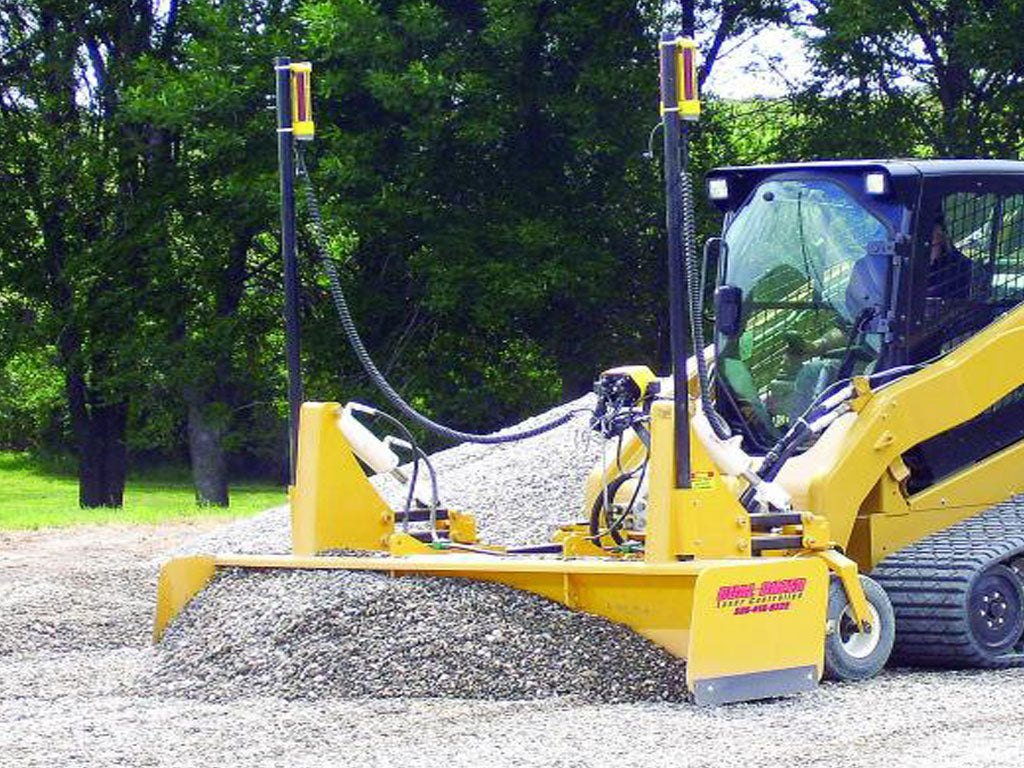

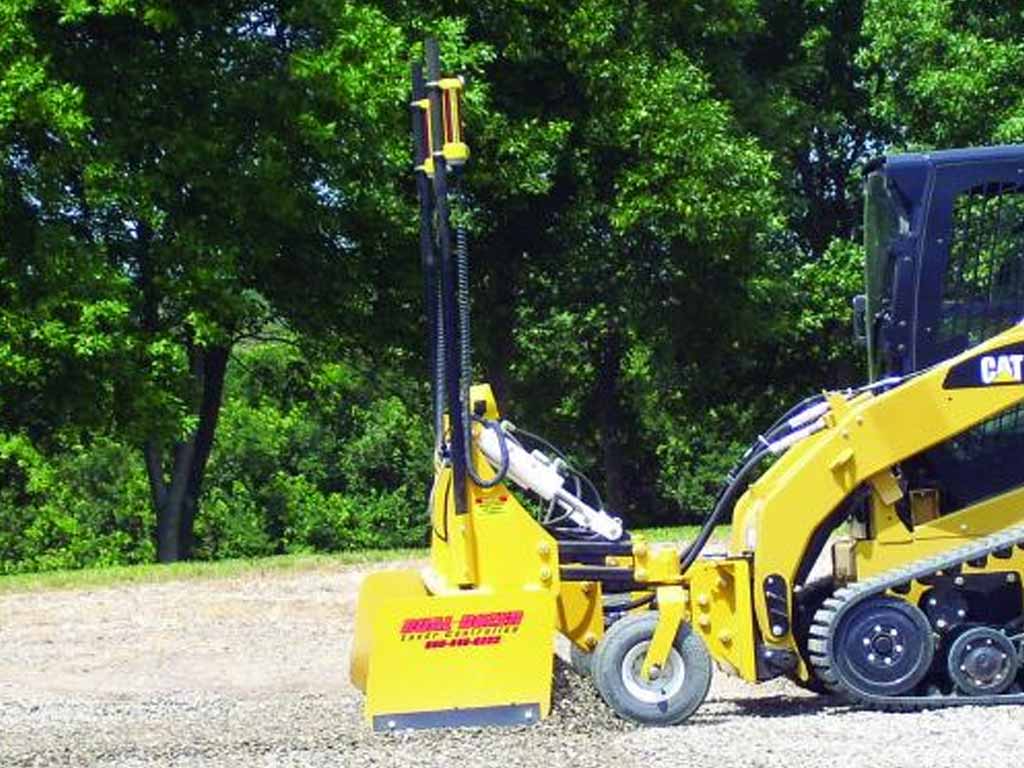

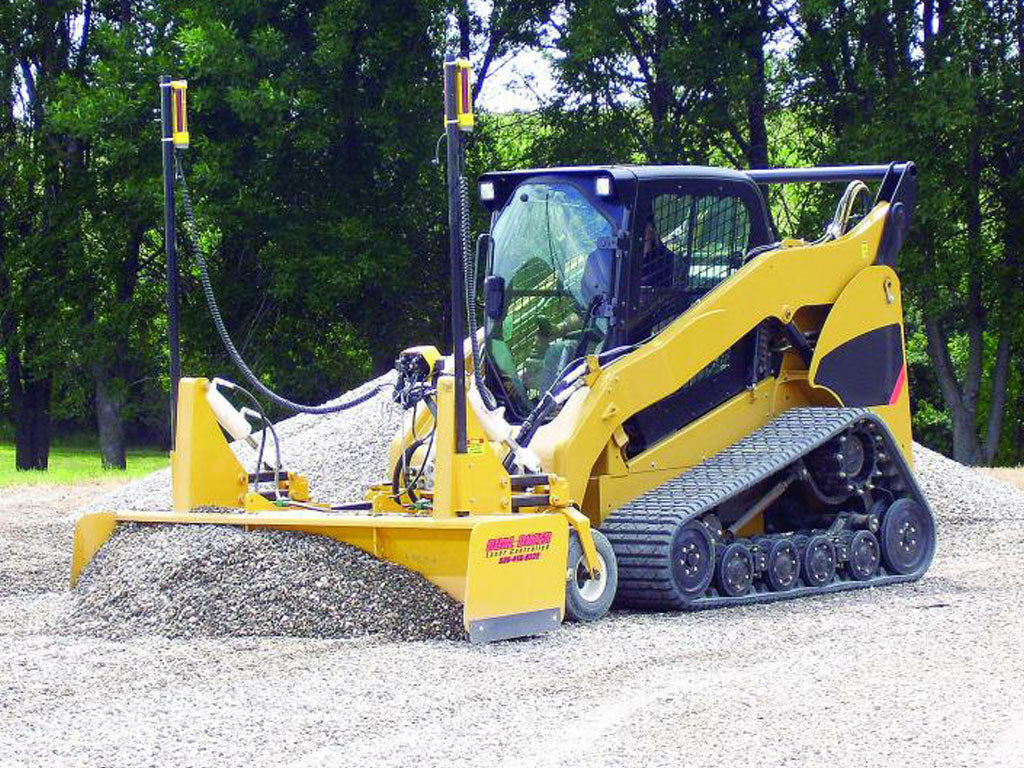

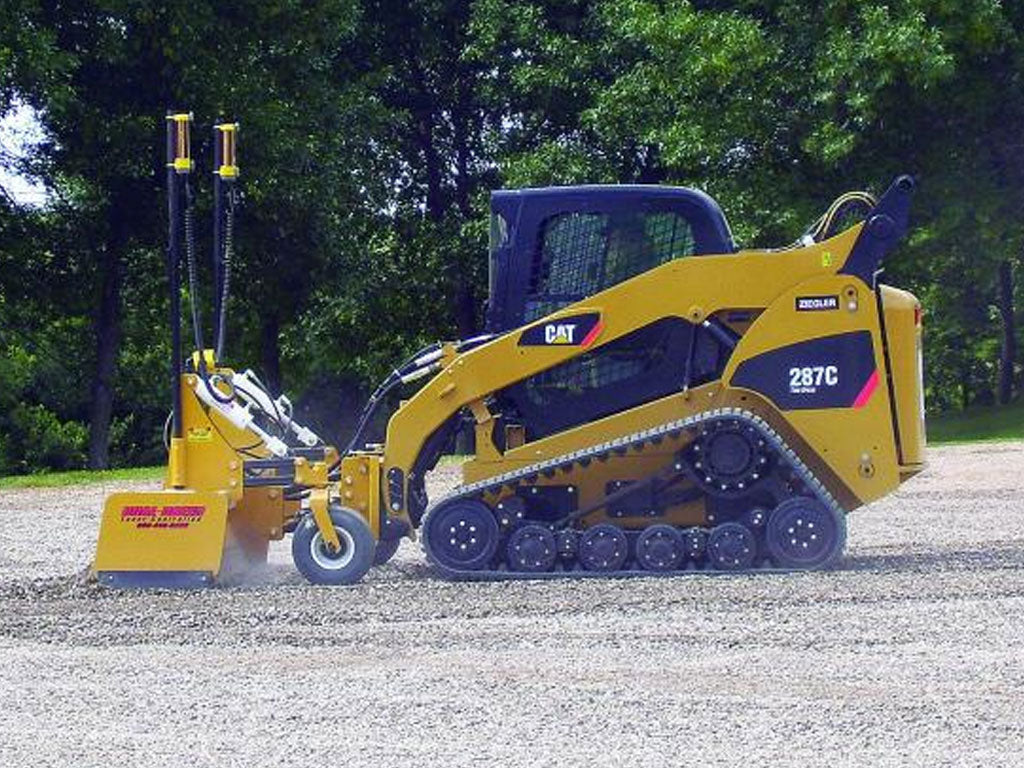

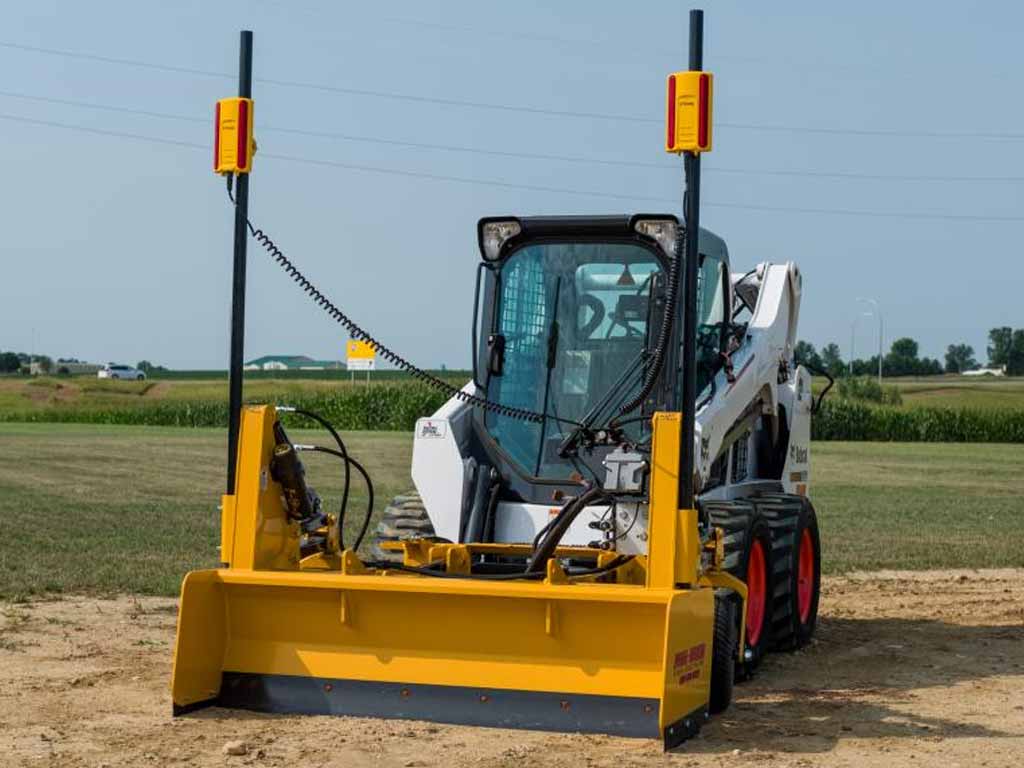

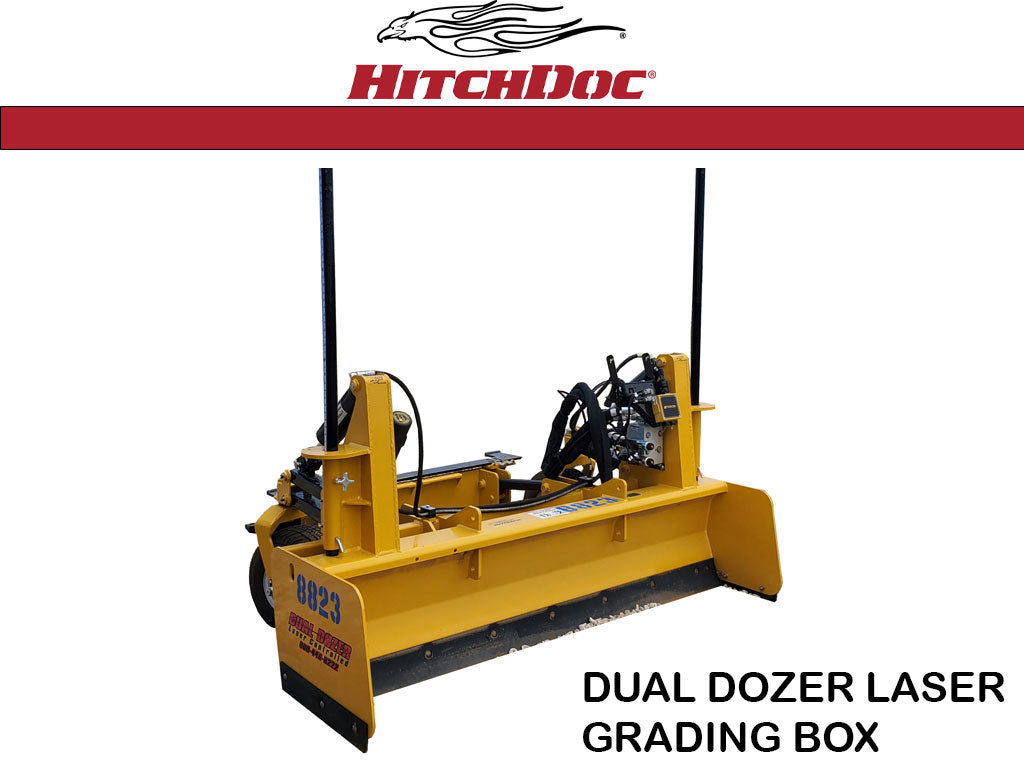

HITCHDOC dual dozer grading box for skid steer loader

Size
MOUNTING
FACTORY INSTALLED LASER SYSTEMS

    COMPACT GRADING SYSTEM

    Dual Laser Grading System that is far from Sub-grade

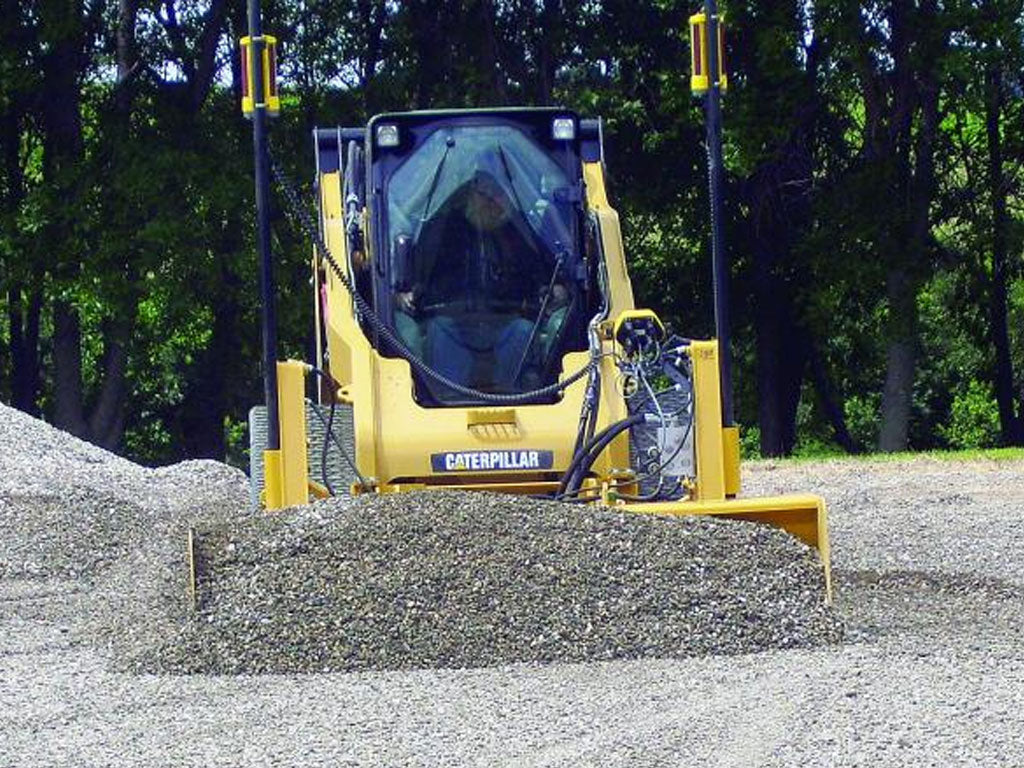

    HitchDoc has been manufacturing the Dual Dozer for over 20 years and it’s proven itself a reliable skid steer attachment for finish grading. Whether being used in buildings or arenas, sports fields or courts, trails or sidewalks, parking lots or golf courses, it’s not uncommon for this attachment quickly return the initial investment!

    Pair the Dual Dozer with lasers, slope/sonic tracers, 3D or GPS mapping from Trimble, Topcon or Leica and let the automatic grader do the work!

    • Rear Positioned Casters – Get into corners or against structures and around pillars with the compact design. Wheel then travel over an already graded surface for added stability.
    • Dual-Sided Cutting Edge – Dual cutting edges on this attachment allowing for precise material placement while traveling in either forward or reverse
    • Highly Maneuverable – Blade attachment can self-articulate up to 8 inches independently of the machine on either side
    • User-Friendly Controls – In-cab monitors and fingertip switches allow for easy operation in auto or manual by the operator

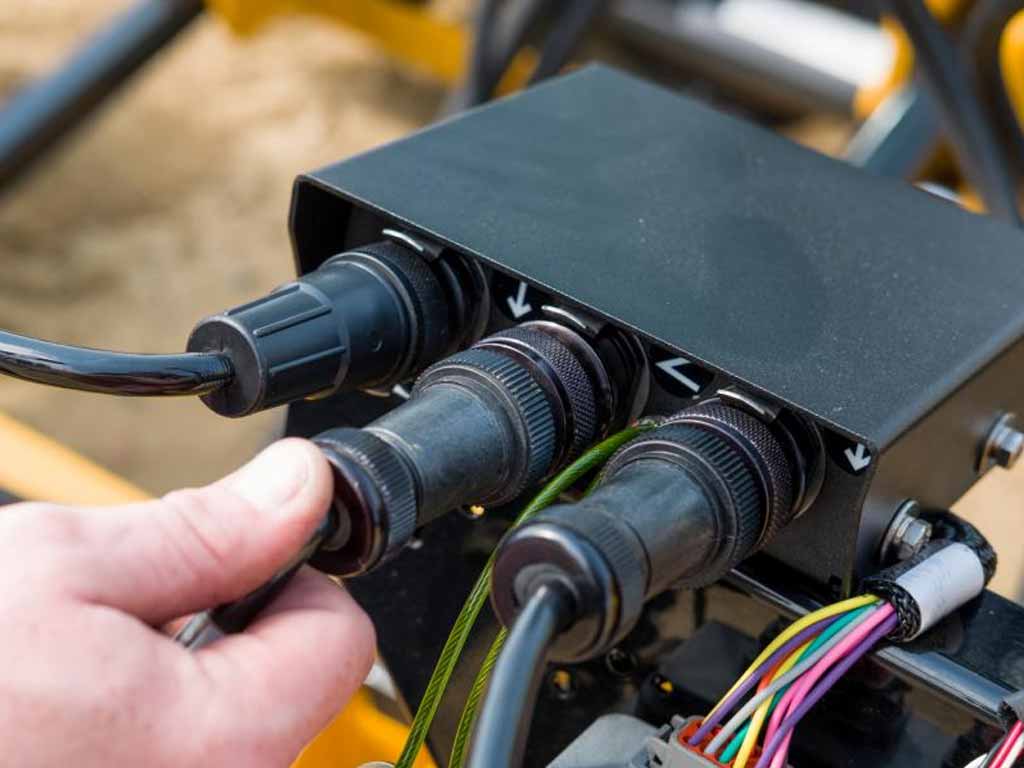

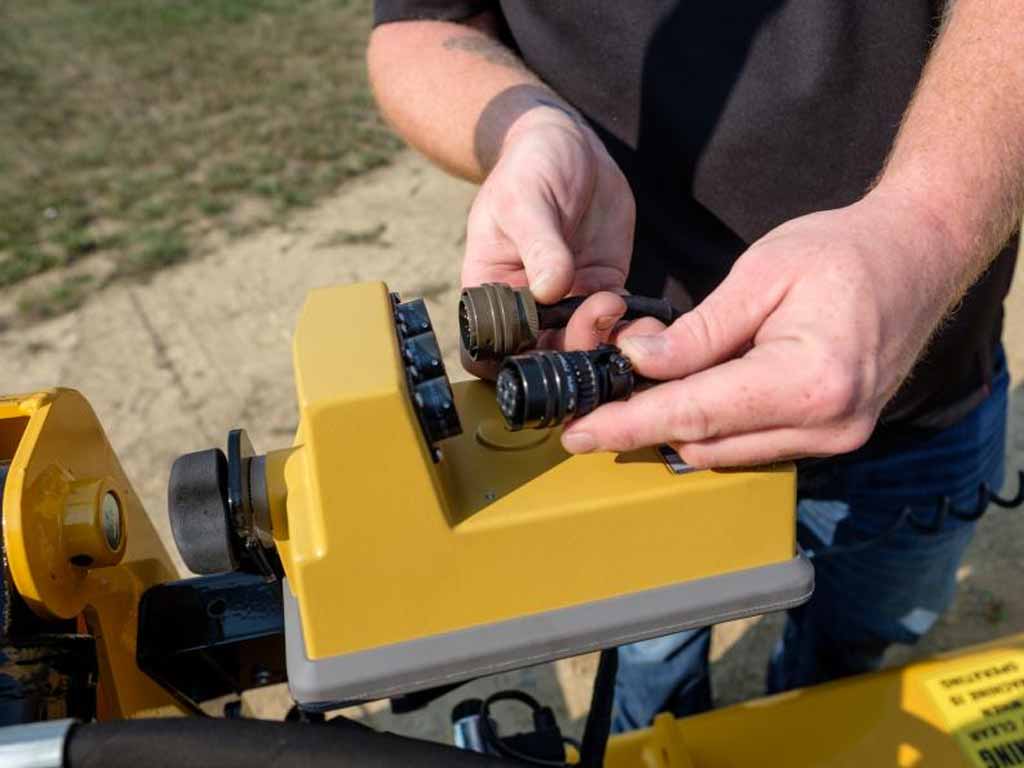

    • Hydraulically Controlled – Connectors, cylinders, hoses, valves and solenoids are standard equipment, just plug in the selected electronics and get to work
    • Overbuilt to Outlast – HitchDoc has over 20 years of experience in designing and manufacturing rugged finish graders and inspecting them against the industry’s highest quality standards

      Standard Features:
      Rear Positioned Casters: Easily carry material into place
      while traveling across a graded surface already created by
      the Dual Dozer
      Dual-Sided Cutting Edge: Front and rear cutting edges
      allow you to push or pull material for precise placement
      while traveling in either direction
      Compact Design: More maneuverable when grading
      around tighter areas, pillars, corners or loading on a trailer
      Independent Control: Ball joints and parallel links allow
      up/down and side to side movement independent from
      the machine creating the ultimate graded surface

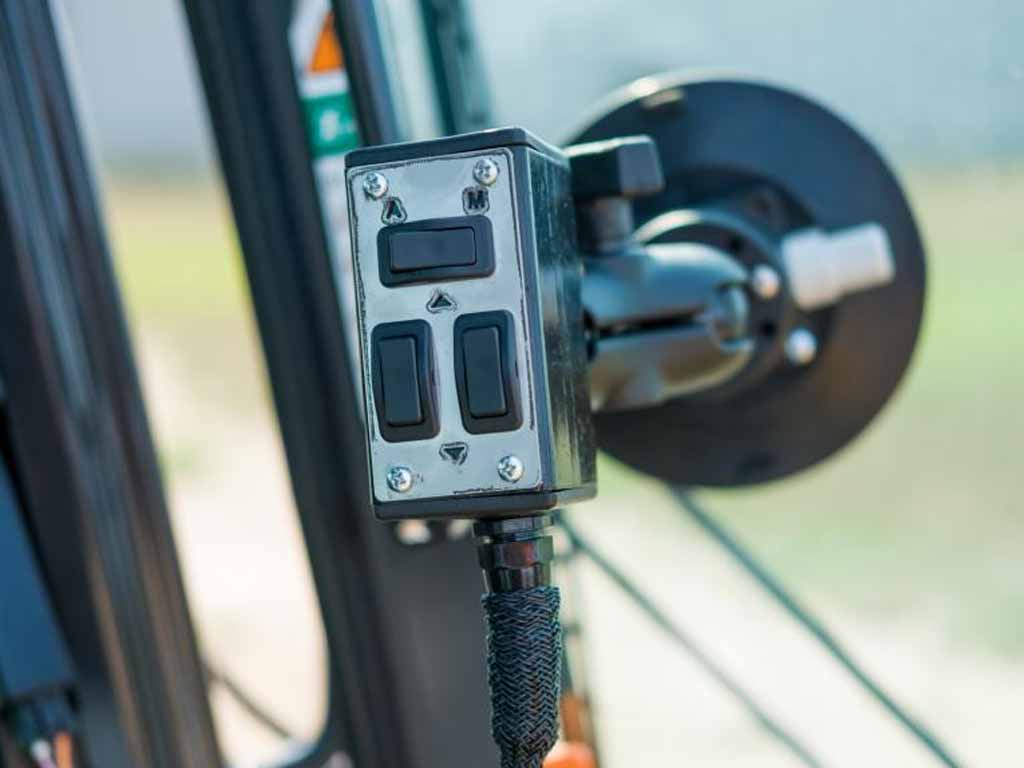

      User-Friendly Controls: In-cab monitors and fingertip
      switches allow for easy operation in auto or manual modes
      Industry Leading Technology: Complete your final grade

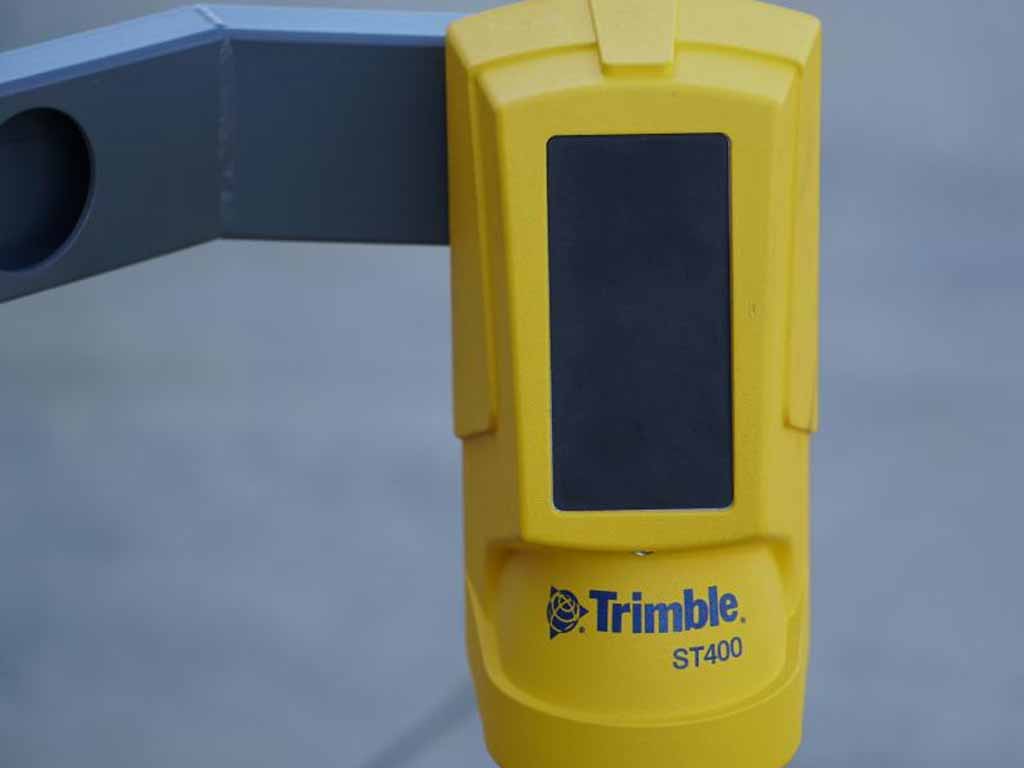

      guided by laser receivers, slope and sonic tracers, GPS,
      or 3D mapping
      Reduce Time & Materials: Studies estimate a 10%
      material savings when using an automated grade control
      Overbuilt to Outlast: HitchDoc has more than 20 years
      of experience manufacturing rugged-finish graders and
      inspecting them against the highest quality standards

      Quick-Tach or 3-Point Mounts: Select the mount that
      best fits your needs: standard quick-tach plate for easy
      mounting to skid steers, or an easy-attaching three-point
      mount
      Long-Lasting Powder Coating: Our custom finish holds up
      against the toughest elements on the job site
      Hydraulic Control: Connectors, cylinders, hoses, valves,
      and solenoids are standard equipment—just plug in the
      selected electronics and get to work
      Cutting Edges: Bolt-on, half-inch thick, hardened
      steel front and rear cutting edges are removable and
      replaceable, while the side edges are adjustable to the
      desired cut depth
      Certified American Steel: Heavy-duty construction
      features 7 gauge, 1⁄4”, 3/8”, and 1⁄2” steel reinforced with
      2” x 4” tubing for an extremely durable and long-lasting
      frame
      Continual Improvement: We test and push our products to
      the breaking point to maintain the high-level dependability
      you’ve come to expect from HitchDoc

      Electronic Packages:
      Trimble: Laser, Slope/Sonic, 3D, GPS
      TopCon: Laser, Slope/Sonic, 3D, GPS
      Leica: Laser, Slope/Sonic, 3D, GPS

      Applicable Jobs:
      Dual Dozer can be used in a variety of applications but has
      been field-tested and proven for the following projects:
      • Sub-Grade Preparations • Trails
      • Sports Fields • Tennis Courts
      • Livestock Arenas • Golf Courses
      • Parking Lots • Sidewalks

      The Hitch -Doc Dual Dozer grade boxes are set up with factory installed laser systems. The Equipment will be installed tested and calibrated then packed for shipping. You will need to provide your own laser.

        ** WE WILL NEED TO KNOW YOUR MAKE AND MODEL OF THE MACHINE THAT WILL RUN THIS ATTACHMENT. WE NEED TO MATCH UP THE HARNESSES AND TILT STOPS. I WILL CALL YOU AFTER YOU HAVE ORDERED.



         MODEL HDD6 HDD7 HDD8
        WIDTH 6' 7' 8'
        BOX HEIGHT 19" 19" 19"
        WEIGHT 1500 LB 1600 LB 1700 LB
        FRONT CAP. 14 CUFT 17 CUFT 19.5 CUFT
        REAR CAP. 8.5 CUFT 10 CUFT 11.5 CUFT
        HP REQUIRED 40+ 55+ 70+

         Optional Features: Various mounting brackets for GPS or 3D systems & Convex Mirror to allow for visual on material load.

        FULL FACTORY INSTALLED OPTIONS- LASER PACKAGE OPTIONS: The attachment comes ready to work on the pallet. Laser system is calibrated and tested at the factory. Some minor re-assembly maybe required. You will need to supply the laser and tripod that shots the beam.

          3 STEPS TO ORDERING THIS ATTACHMENT:

          STEP 1 - CHOOSE THE SIZE OF YOUR DUAL DOZER

          • 6’ (72”) Dual Dozer – 40+ HP Required
          • 7’ (84”) Dual Dozer – 55+ HP Required
          • 8’ (96”) Dual Dozer – 70+ HP Required

          STEP 2 - CHOOSE TO MOUNTING FOR YOUR DUAL DOZER

          • Skid Steer Universal QuickTach Hitch Kit

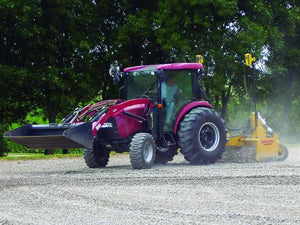

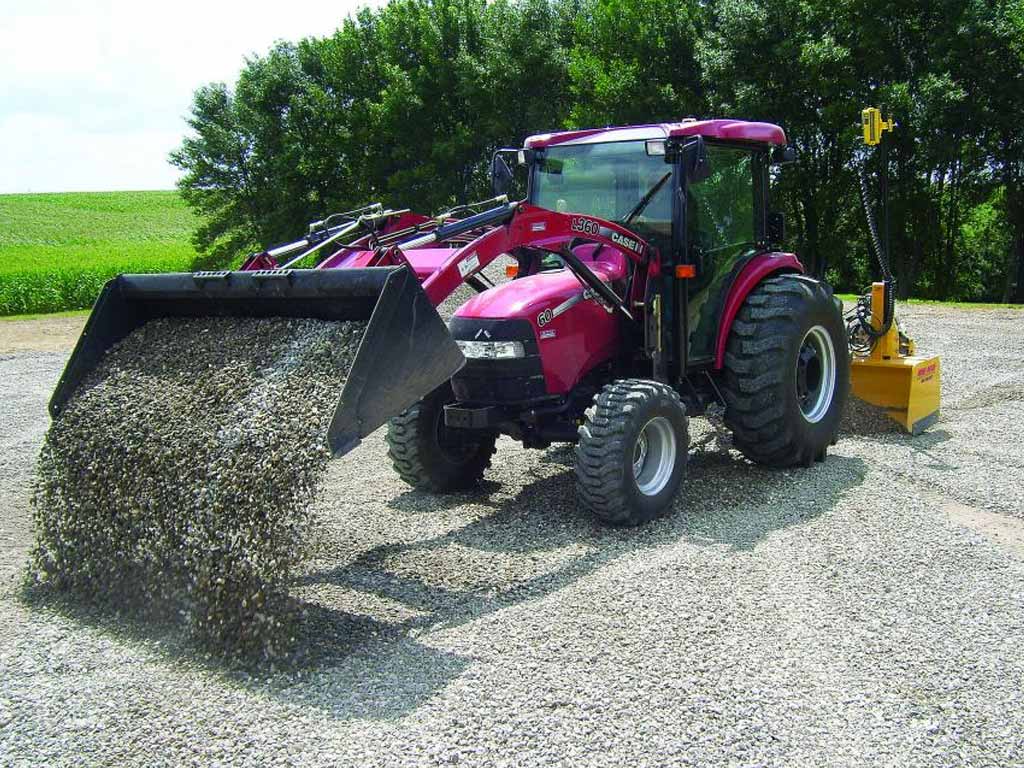

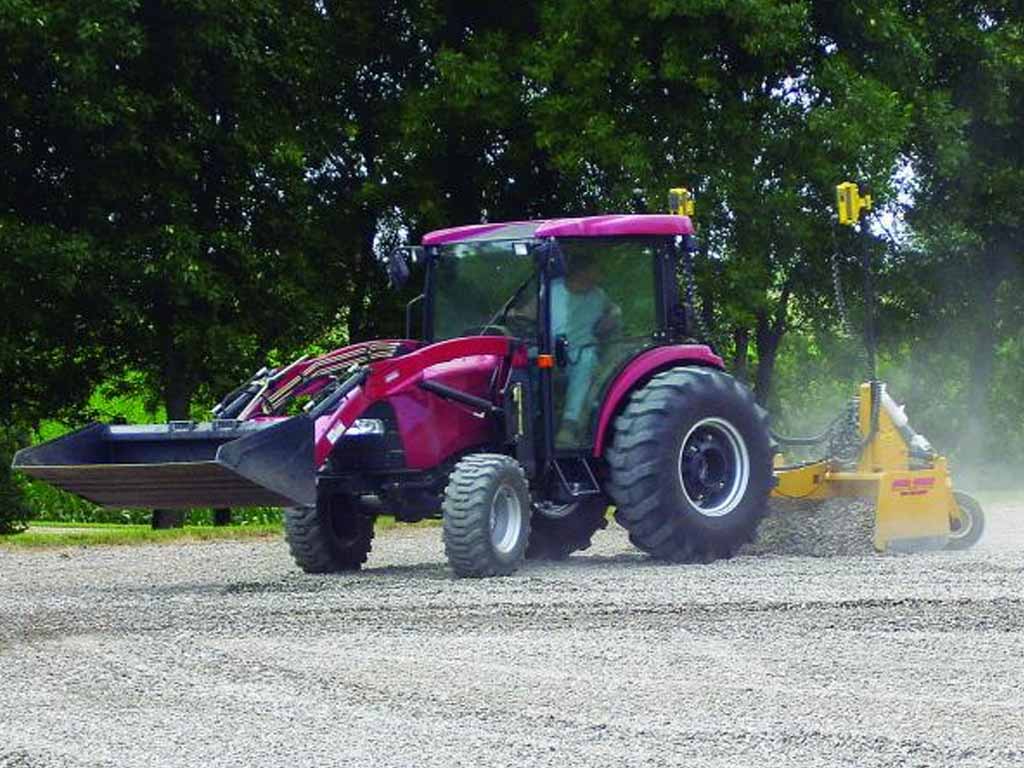

          • Tractor 3-point Hitch Kit

          STEP 3 - CHOOSE YOUR FACTORY INSTALLED LASER SYSTEM YOU WILL BE USING

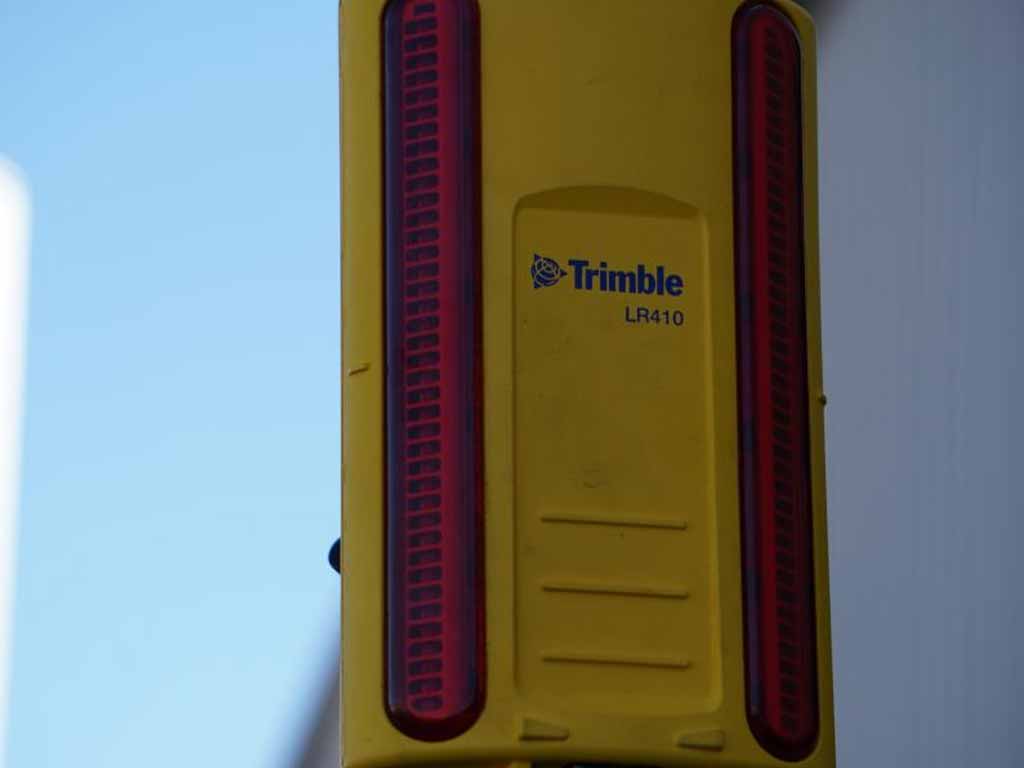

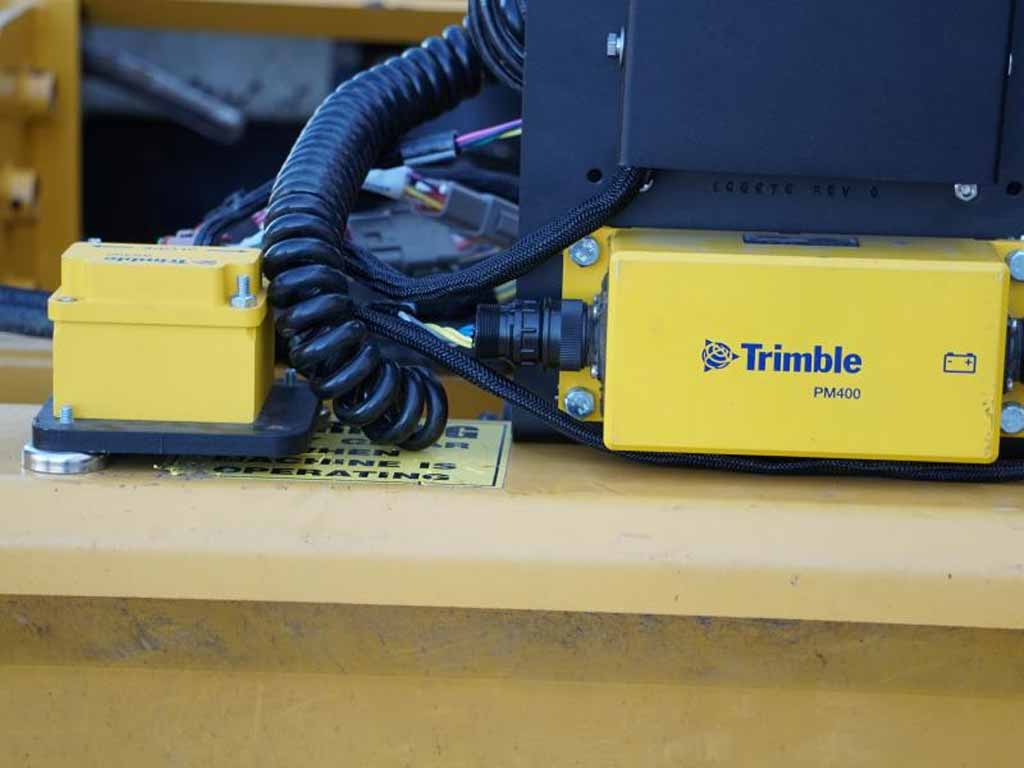

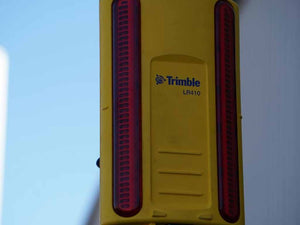

          HE1614-HE1623 Trimble GCS900 Dual Laser Kit – Includes CB450 monitor, valve module, LR410 receivers, RAM mounts and mounting hardware. GCS900 Integrated OEM Power & Controls Harness Kit – For select models with 14-pin
          work tool connector and at least 5 auxiliary functions. Includes necessary harnesses and DOZER mounted display.
          HE1614-HE1755 Trimble GCS900 Dual Laser Kit – Includes CB450 monitor, valve module, LR410 receivers, RAM mounts and mounting hardware. GCS900 Integrated OEM Power & Controls Harness Kit – For select models with 14-pin work tool connector and at least 5 auxiliary functions. Includes necessary harnesses and IN-CAB mounted display.
          HE1772- Trimble Earthworks GO! Box with Internal Slope Indicator System– Wireless system using, Bluetooth connection from dozer mounted indicator to in cab tablet. Includes tablet, RAM mounts and mounting hardware.
          HE1774- Trimble Earthworks GO! Box with Internal Slope Indicator & Dual Laser System– Wireless system using Bluetooth connection from dozer mounted indicator to in cab tablet. Includes tablet,LR410 receivers, RAM mounts and mounting hardware.

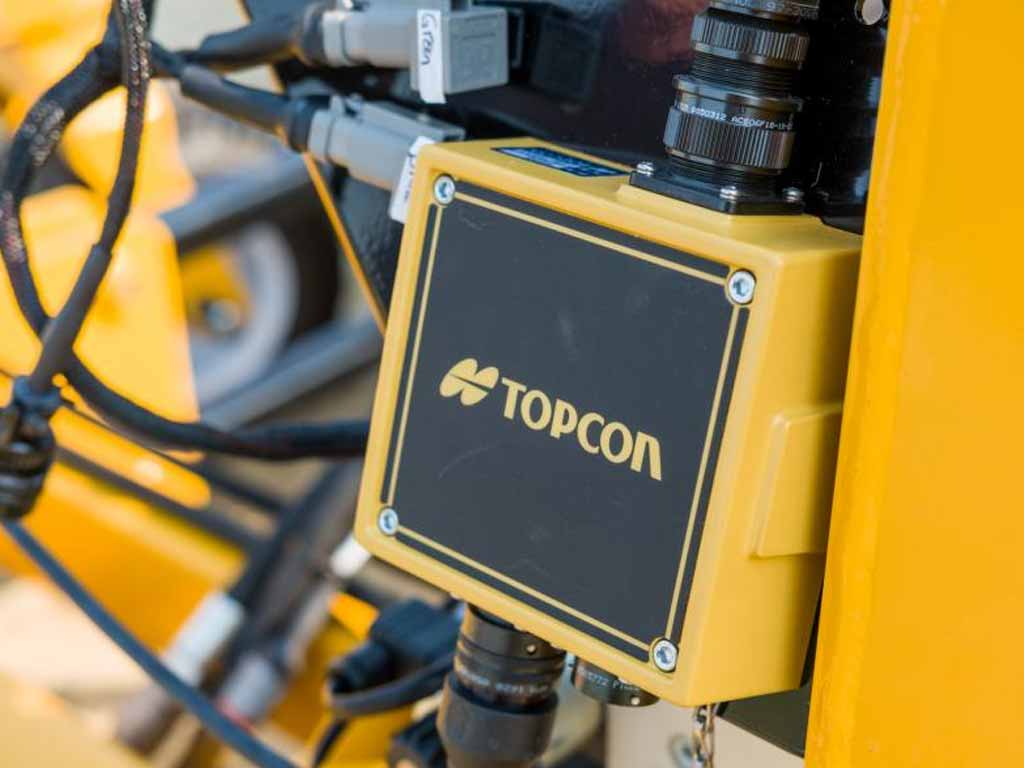

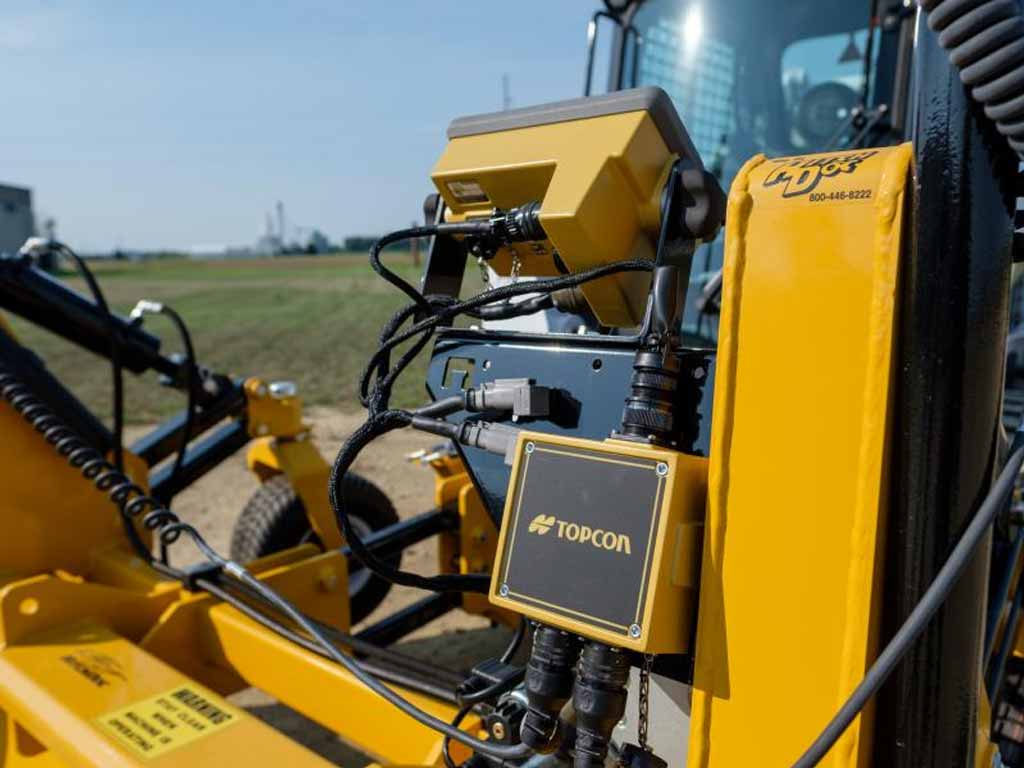

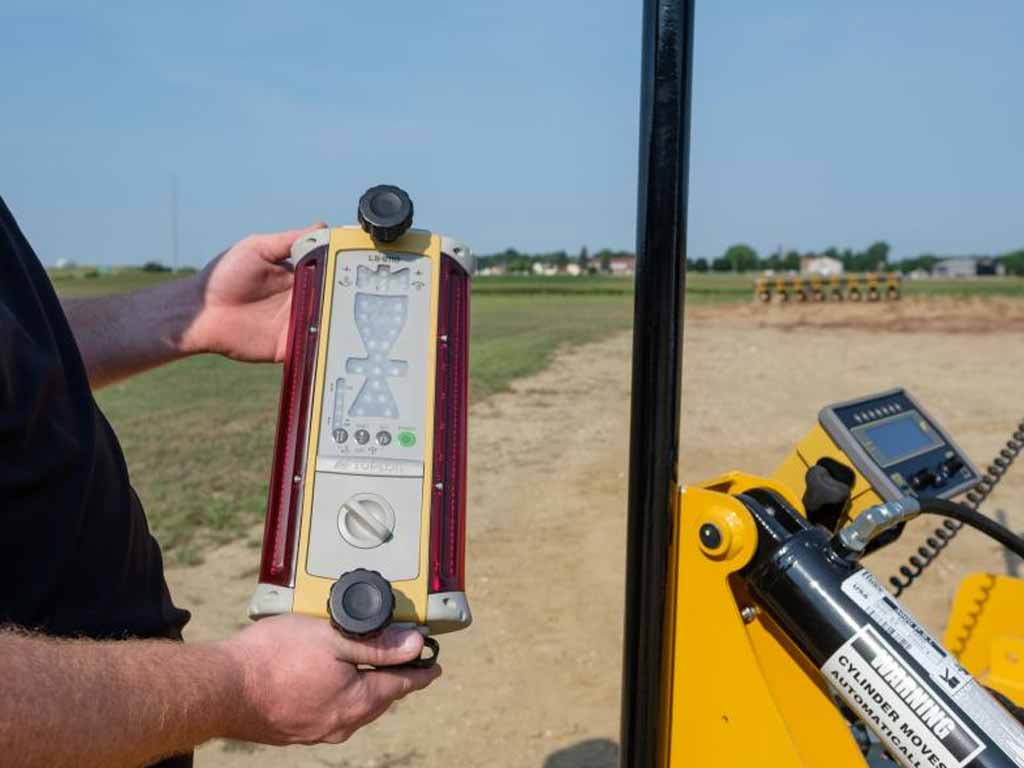

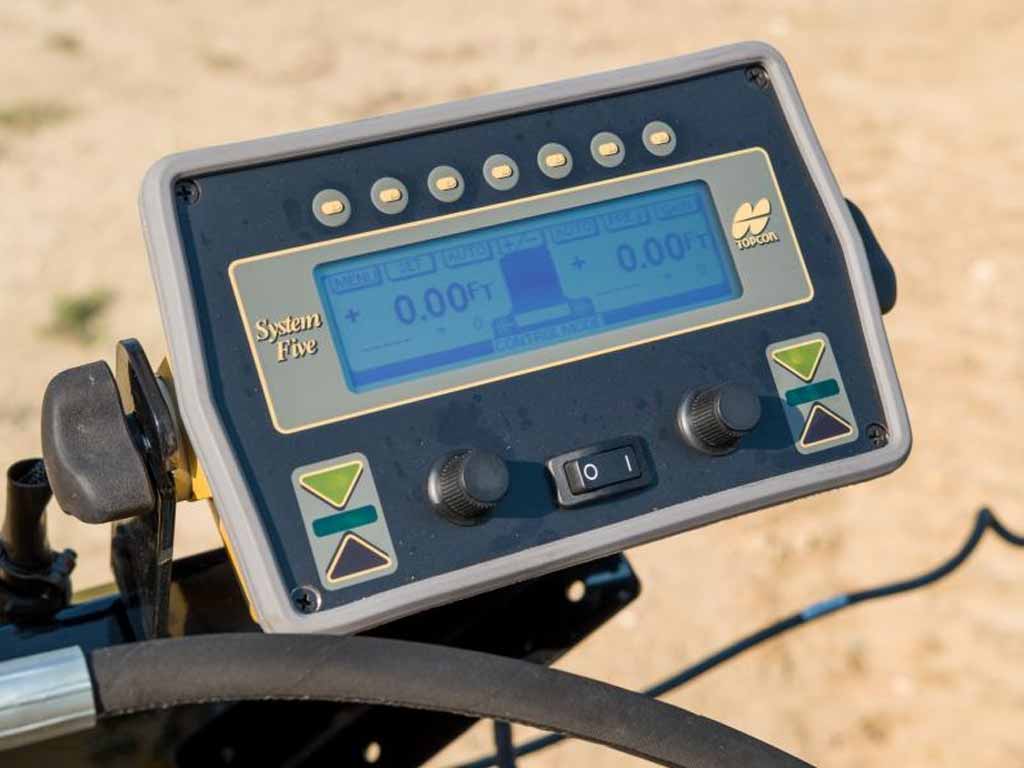

          HE1573 TOPCON System 5 Dual Laser Factory Install – Includes two (2) LSB110 receivers, System 5 control, necessary harnesses, junction box, control pendant and mounting hardware. Factory calibrated & tested.


            This is the best laser controlled grade box on the market.
