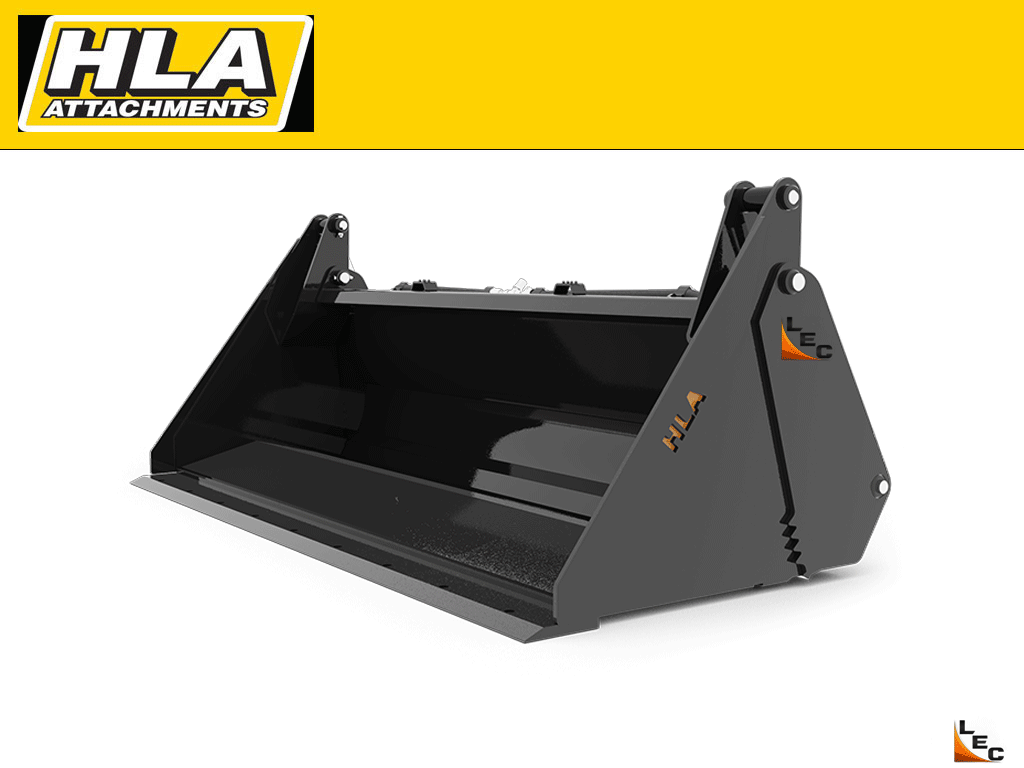

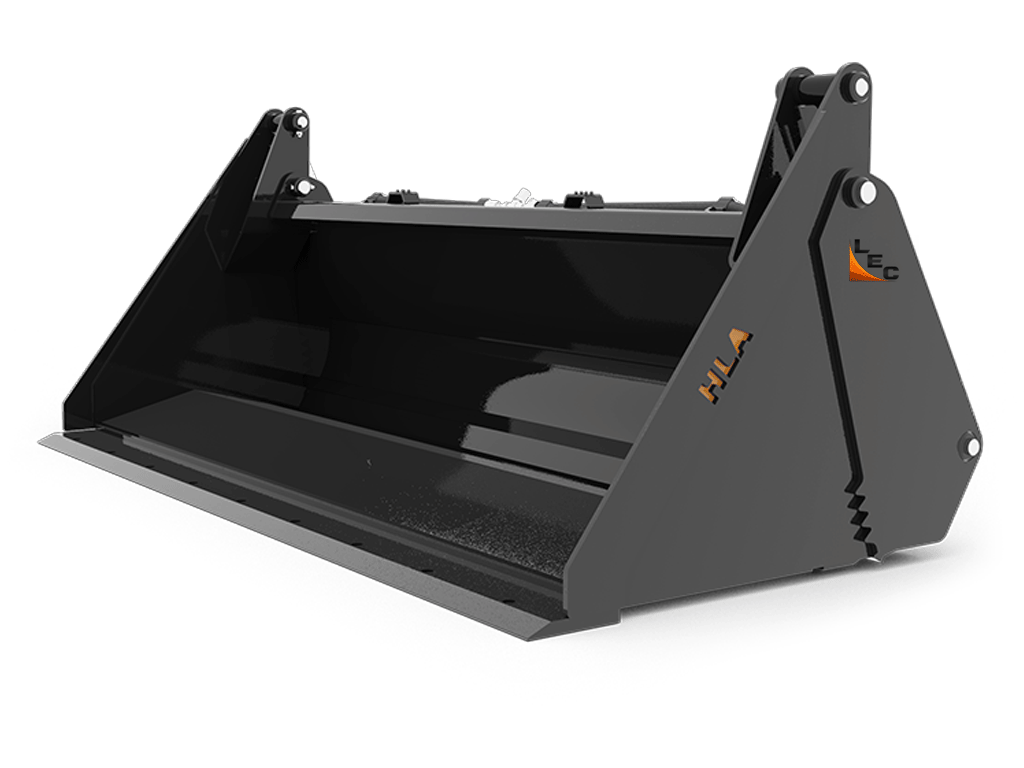

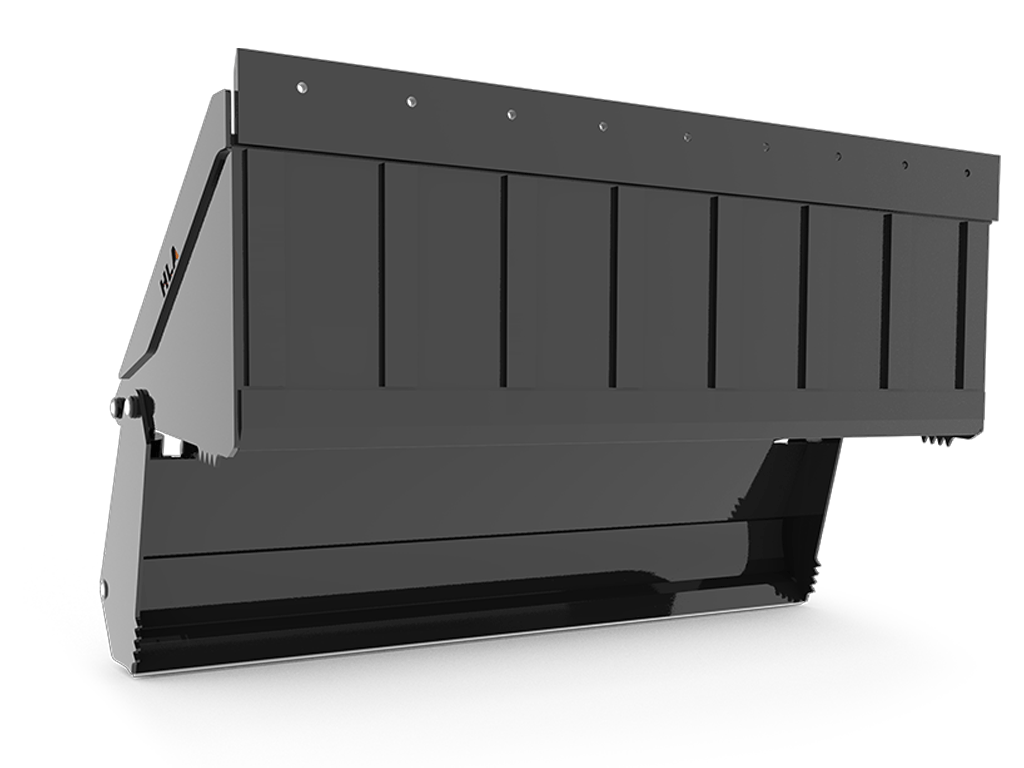

HLA 4-in-1 Loader Bucket – Heavy-Duty Multi-Purpose Bucket

The HLA 4-in-1 Loader Bucket is a heavy-duty hydraulic multi-purpose bucket for loaders designed to handle digging, loading, grading, dozing, clamping, and material handling with one attachment. Its hydraulic clam design gives operators more versatility than a standard loader bucket, making it an excellent attachment for construction, landscaping, agriculture, property maintenance, and material handling.

Available in 66", 72", 78", and 84" widths, the HLA 4-in-1 bucket combines heavy steel construction, large hydraulic cylinders, and high-capacity loader bucket geometry for demanding applications.

Heavy-Duty 4-in-1 Bucket for Loaders

The HLA Loader 4-in-1 Bucket combines several attachment functions into one hydraulic bucket. Operators can use the attachment as a traditional bucket and open the hydraulic clam for additional applications.

Use the HLA 4-in-1 Loader Bucket for:

• Digging and loading
• Grading and leveling
• Dozing material
• Back-dragging
• Clamping and grabbing material
• Carrying brush and debris
• Spreading dirt and gravel
• Construction cleanup
• Landscaping
• Agricultural applications

For operators who frequently switch between loading, grading, and material-handling jobs, a hydraulic 4-in-1 loader bucket can reduce attachment changes.

Powerful 2-1/2" x 8" Hydraulic Cylinders

The HLA 4-in-1 Bucket includes two 2-1/2" x 8" hydraulic cylinders to operate the clam.

Hydraulic operation allows the bucket to open and close for clamping material, grading, dumping, and other multi-purpose bucket applications.

Heavy-Duty Bucket Construction

The HLA heavy-duty loader bucket is built for demanding everyday use with:

• 1/4" main bucket material
• 3/8" end plates
• 3/8" clam floor bottom
• Heavy-duty hydraulic clam
• Two 2-1/2" x 8" cylinders
• Drilled for a standard bolt-on cutting edge

The heavy clam floor and reinforced end plates provide additional strength in high-contact areas.

High-Capacity Loader Bucket Design

The loader version of the HLA 4-in-1 Bucket measures approximately:

33" Deep × 26" High

This larger bucket profile provides substantial material capacity, with SAE heaped capacities ranging from 20 to 25.7 cubic feet, depending on bucket width.

Bolt-On Cutting Edge Ready

Every HLA 4-in-1 Loader Bucket is drilled for a standard bolt-on cutting edge.

A replaceable bolt-on edge can help protect the bucket's primary cutting edge in abrasive applications and simplifies replacement when the edge eventually wears.

HLA 4-in-1 Loader Bucket Specifications

Outside bucket width: Add 2" to the listed inside width to determine the approximate outside width.

That gives approximate outside widths of 68", 74", 80", and 86".

66", 72", 78" & 84" Loader 4-in-1 Buckets

HLA offers four widths to match different loaders and applications.

The 66" HLA 4-in-1 Loader Bucket weighs approximately 1,030 lbs. and provides a 20 cu. ft. SAE heaped capacity. The larger 84" HLA Loader Bucket increases capacity to 25.7 cu. ft. while weighing approximately 1,227 lbs.

The 72" and 78" models provide additional options for matching bucket width and capacity to the loader.

Optional Hydraulic Hose Kits

Optional hydraulic accessories are available to complete the installation:

HLA 4-in-1 Loader Bucket for Digging, Grading & Grappling

The hydraulic clam makes the HLA bucket much more versatile than a conventional loader bucket. Operators can dig and load with the bucket closed, grade or spread material with the clam open, and clamp brush, logs, debris, and irregular material between the bucket sections.

This makes the HLA 4-in-1 a practical multi-purpose loader bucket for contractors, landscapers, farmers, municipalities, and property-maintenance operations.

HLA 4-in-1 Loader Bucket for Sale

For operators searching for an HLA 4-in-1 bucket, loader 4-in-1 bucket, hydraulic loader bucket, multi-purpose loader bucket, clam bucket for loader, loader grapple bucket, hydraulic clam bucket, heavy-duty loader bucket, grading bucket, or construction loader attachment, the HLA 4-in-1 Bucket combines multiple functions into one attachment.

With 66" to 84" widths, up to 25.7 cu. ft. SAE heaped capacity, 2-1/2" x 8" hydraulic cylinders, 1/4" main bucket material, 3/8" end plates, and a 3/8" clam floor, the HLA 4-in-1 Loader Bucket is built for demanding material handling, grading, digging, and cleanup applications.

** CALL FOR DIFFERENT MOUNTINGS 513-777-6666
