SBFNO66-HK90-SHMK

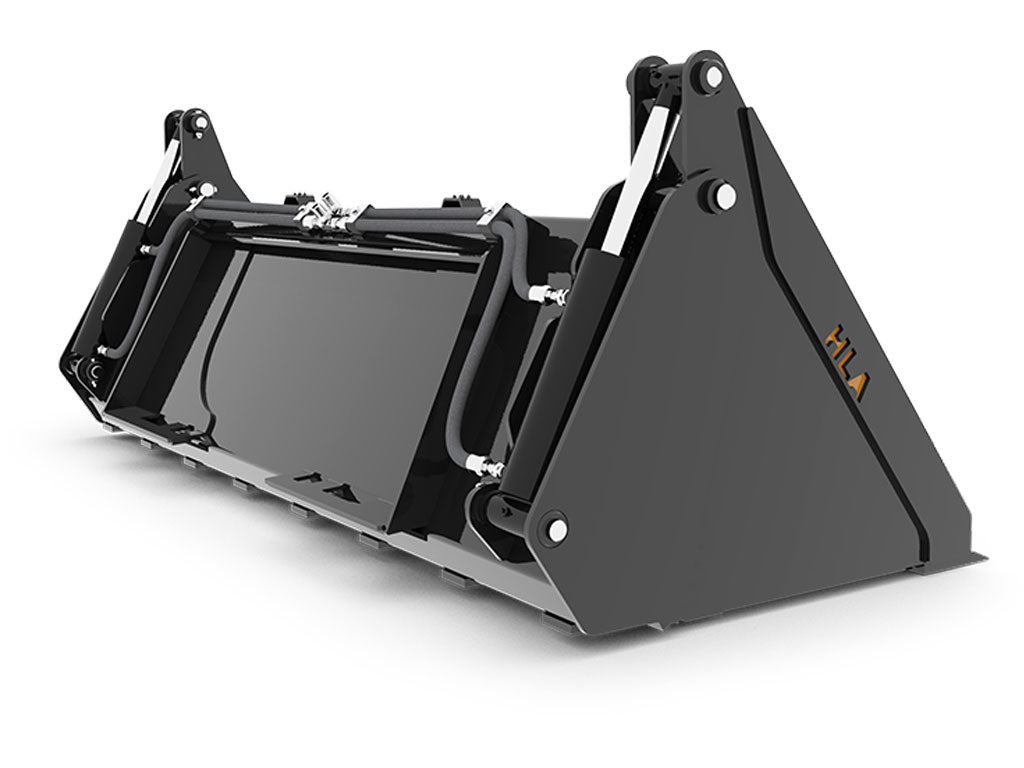

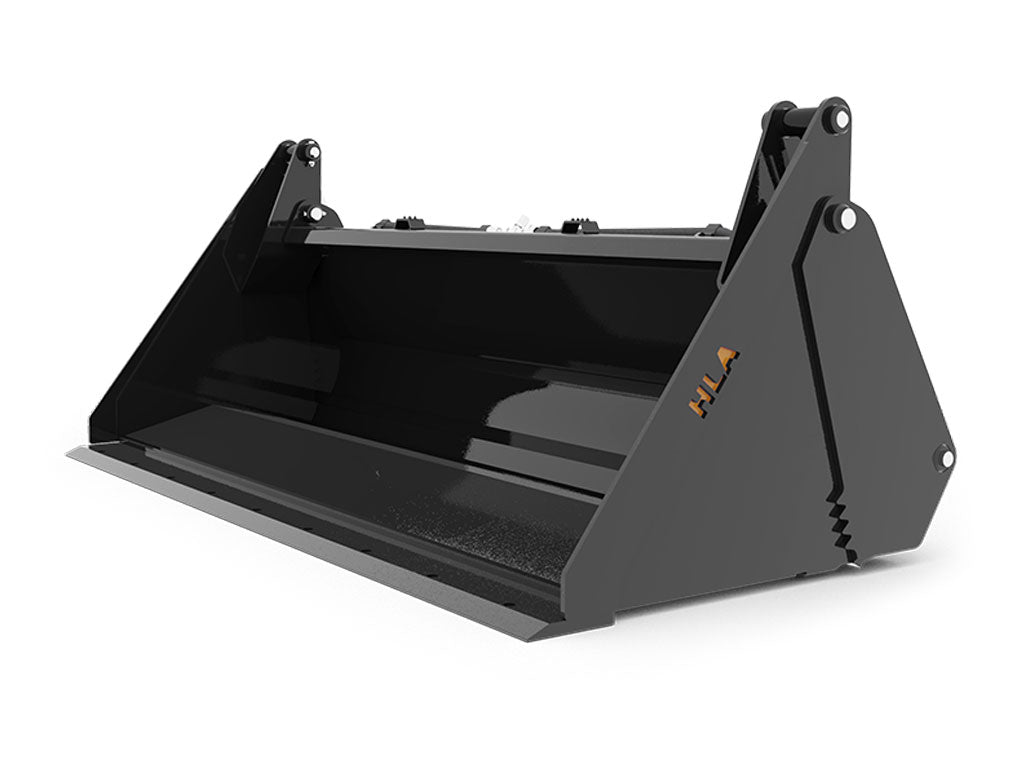

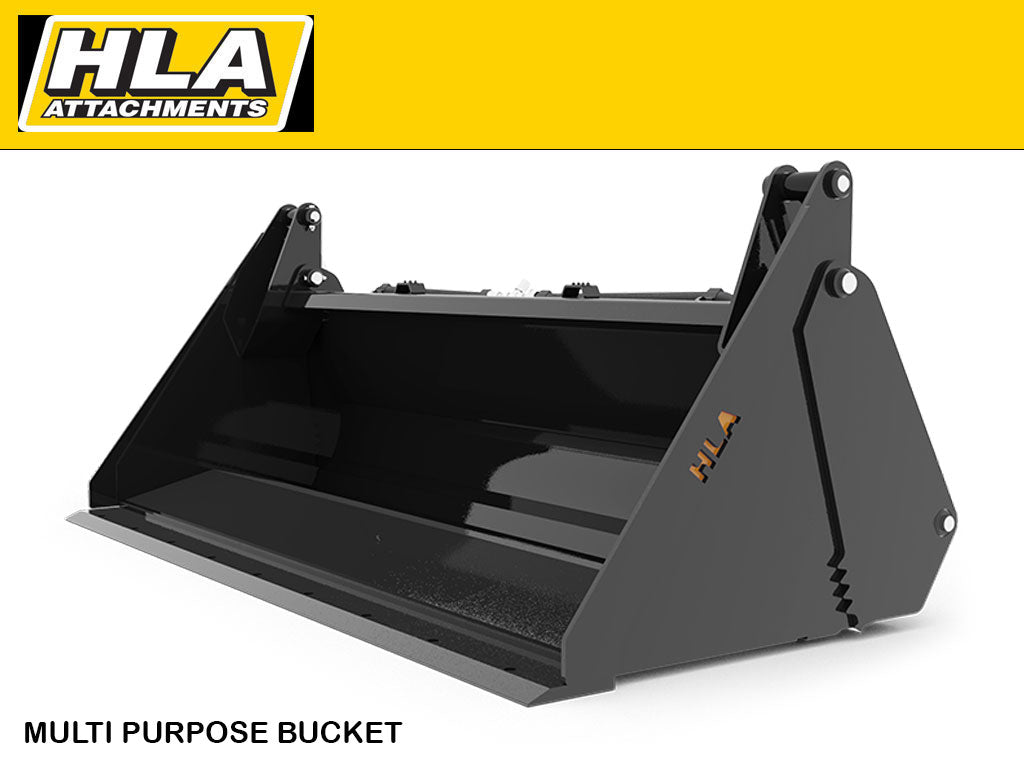

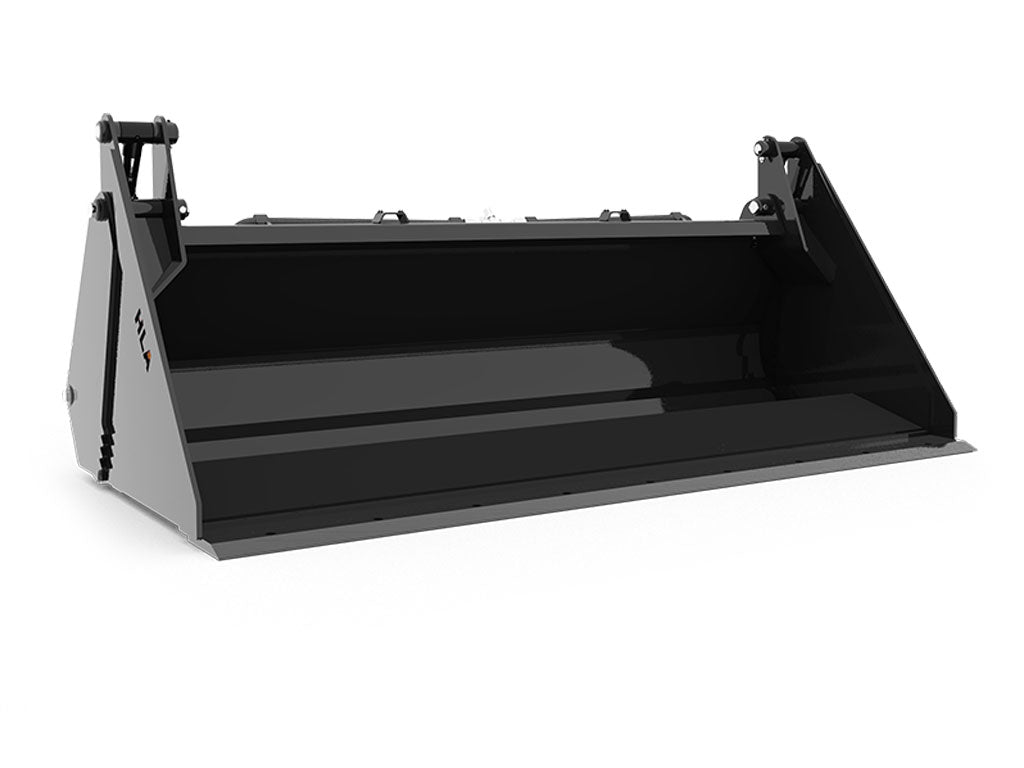

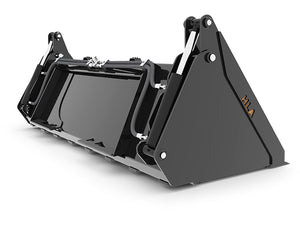

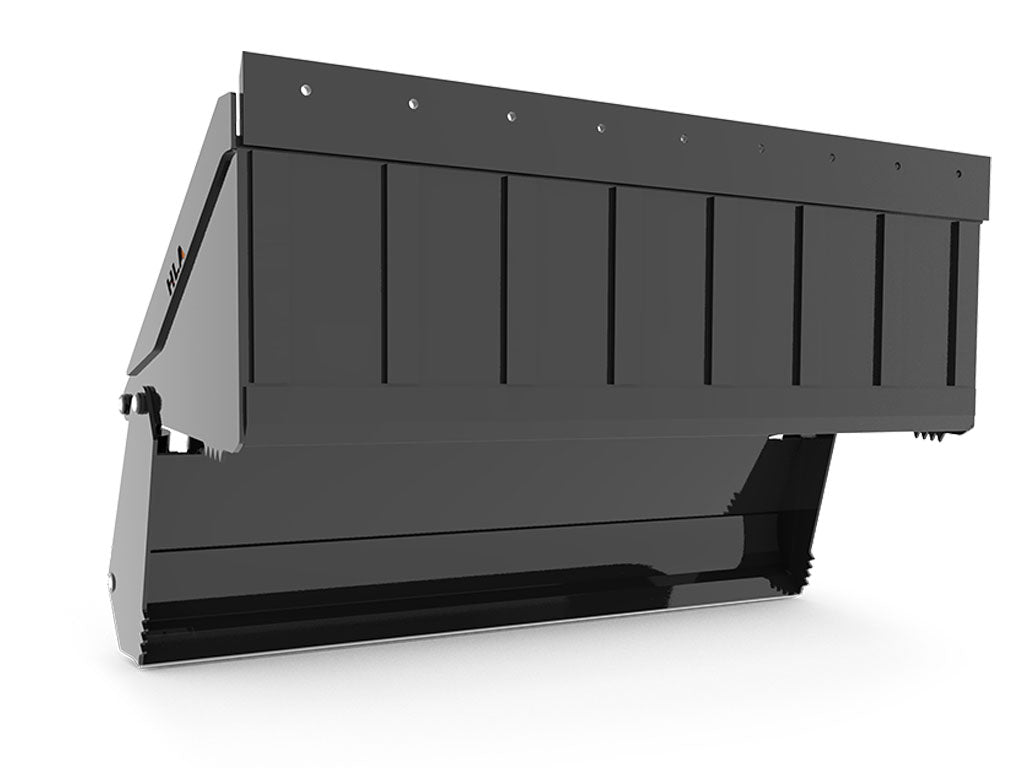

HLA 4-in-1 Multi purpose bucket
$5,614.00 - $7,101.00
DESCRIPTION
Revised 1/24
HLA 4 - IN - 1 Bucket
- Includes 2-1/2"x 8" cylinders
- Main bucket material 1/4"
- 3/8" end plates
- 3/8" clam floor bottom
- Skid steer - 29" deep, 20" high
- Loader - 33" deep, 26" high
- Drilled for standard bolt on cutting edge
- NOTE: Add 2" to Inside Width column to calculate outside width of bucket
Price includes:
- 90" hose kit with flat face couplers
- Spring hose mount kit
| Part Number | Description | INSIDE WIDTH INCHES |
STRUCK CAP. CU. FT. |
SAE HEAPED CAP. CU. FT. |
APPROX. WEIGHT LBS. |
|---|---|---|---|---|---|
| SBFNO66 | 66" Skidsteer 4-In-1 Bucket | 66 | 10.6 | 12.8 | 880 |
| SBFNO72 | 72" Skidsteer 4-In-1 Bucket | 72 | 11.6 | 15.1 | 935 |
| SBFNO78 | 78" Skidsteer 4-In-1 Bucket | 78 | 12.5 | 16.4 | 980 |
| SBFNO84 | 84" Skidsteer 4-In-1 Bucket | 84 | 13.5 | 17.7 | 1040 |
| HK90 | Optional 90" Hose Kit c/w Flat Faced Couplers | ||||
| SHMK | Optional Spring Hose Mount Kit |
