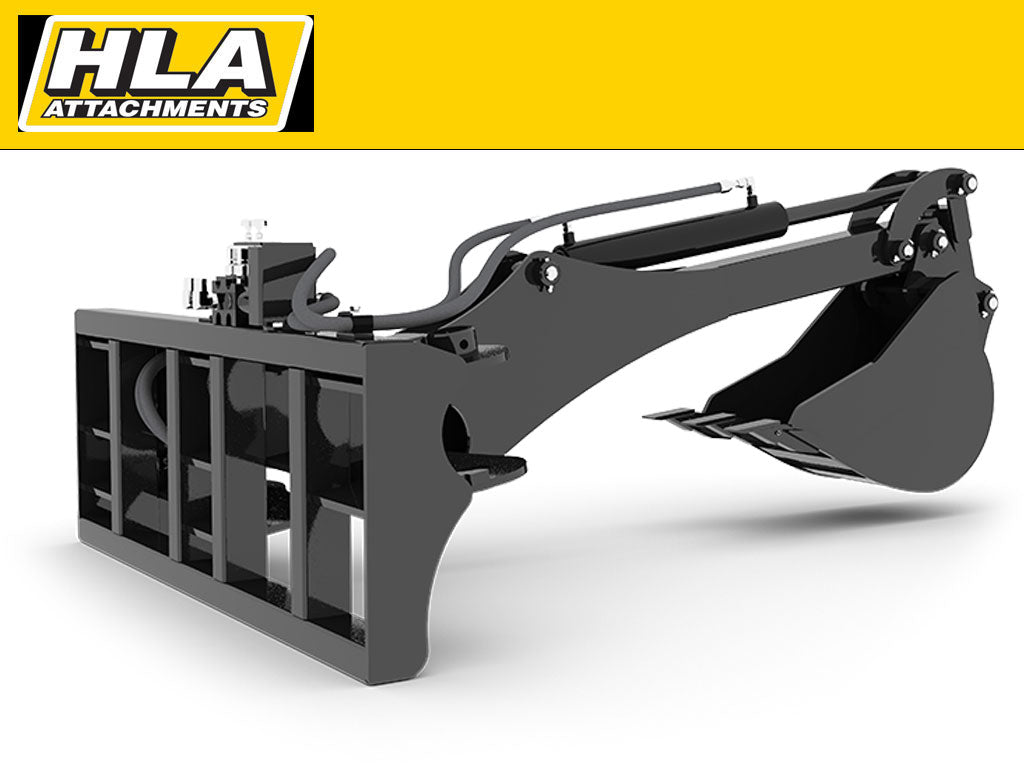

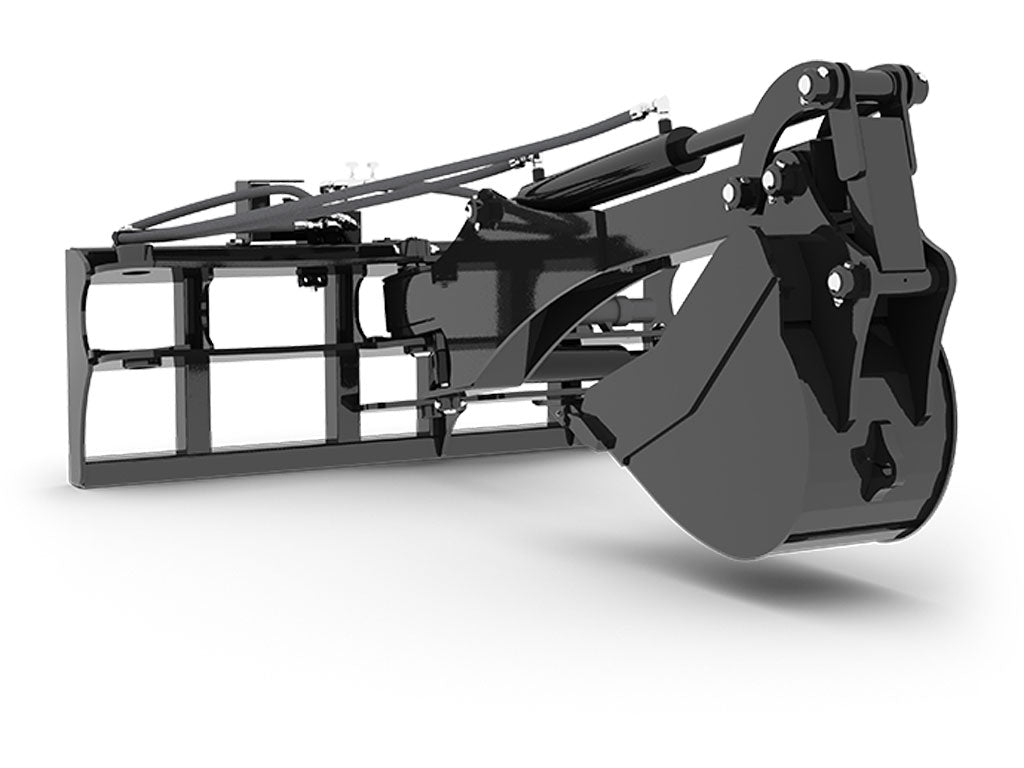

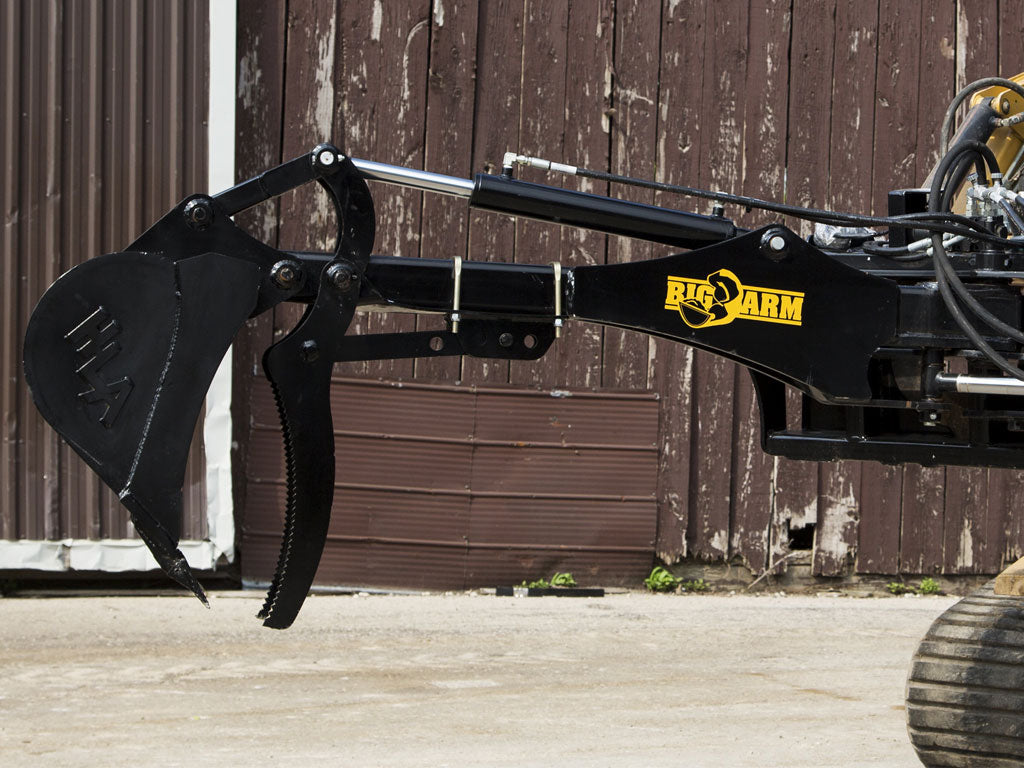

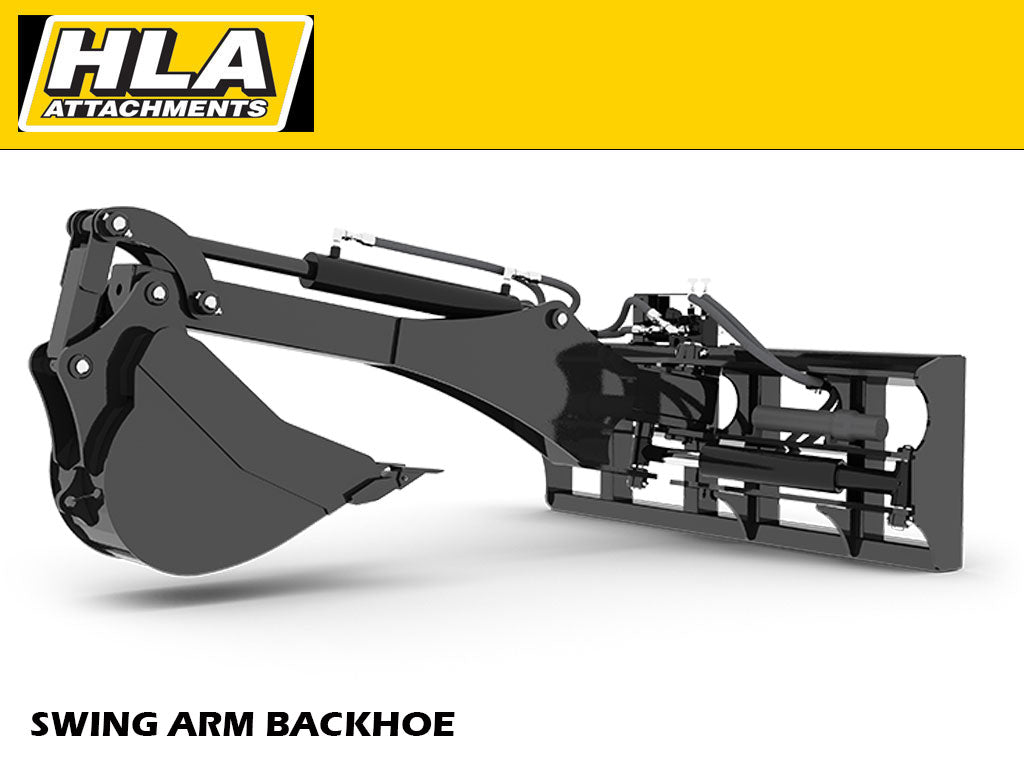

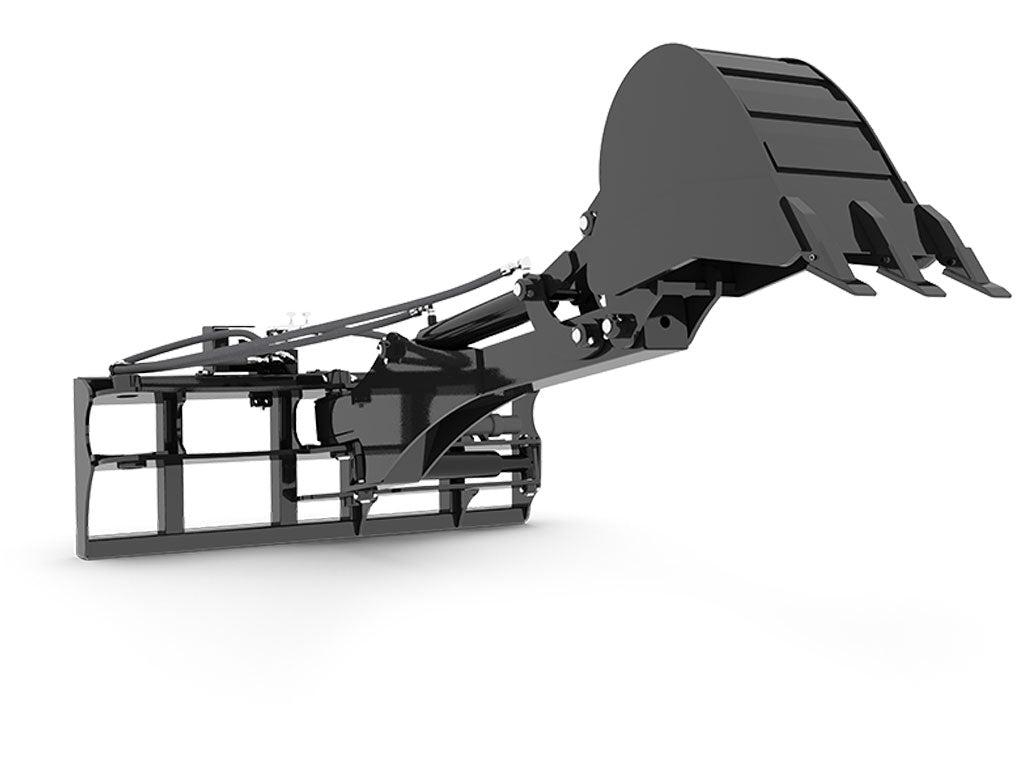

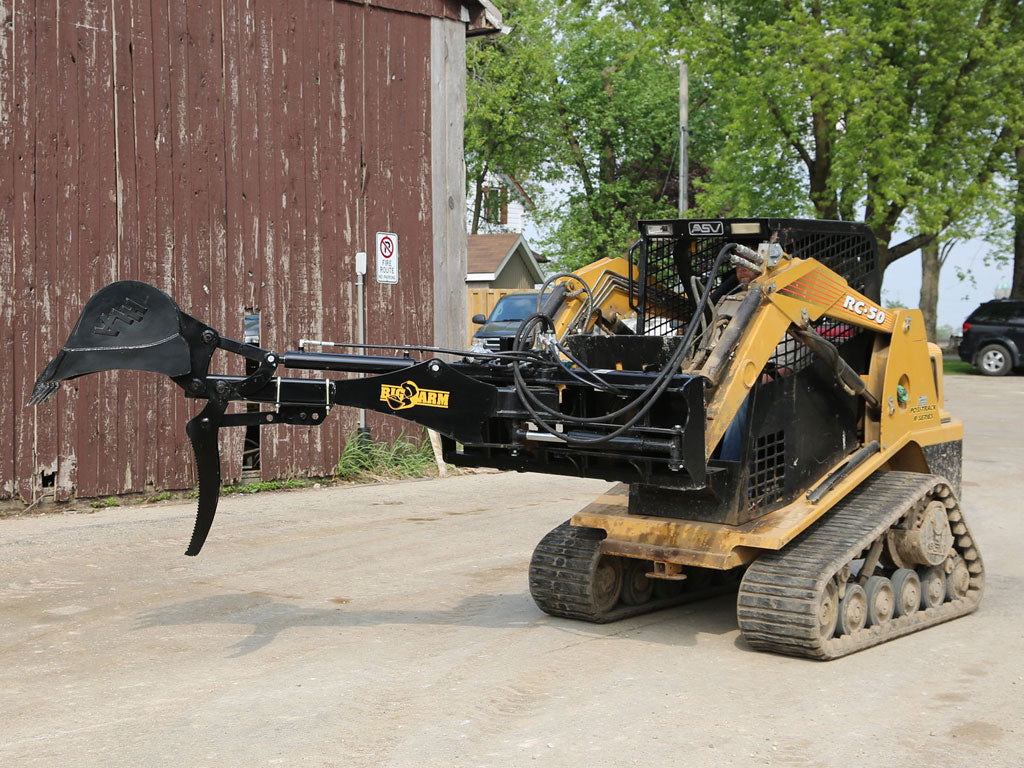

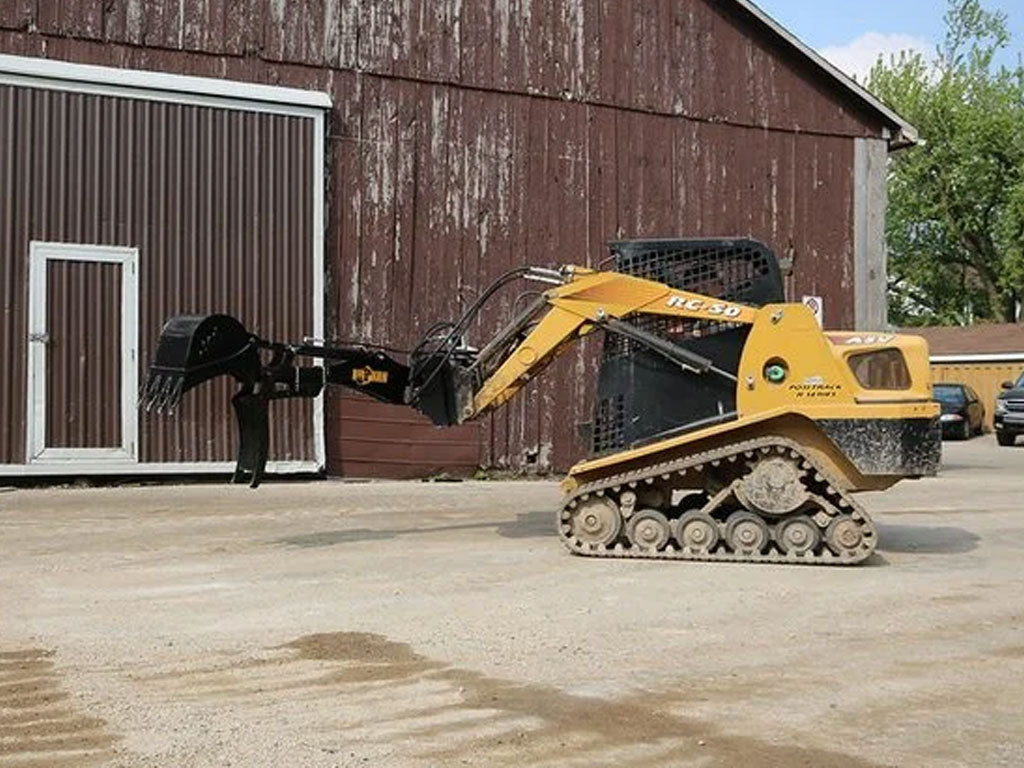

Big Arm Backhoe for Skidsteer

QTach to most skid steer loaders
6 ft digging depth
Hydraulic swing cylinder with 140° swing
Single electric selector valve with universal electro-hydraulic harness kit. 12V or 24V coils available.
Second boom mount on side of frame for digging along side foundations etc.

Part Number	Description	APPROX. WEIGHT LBS.
BH600	Backhoe Less Bucket	595
SHBT09	9" Bucket for Big Arm Backhoe c/w Three Teeth	71
SHBT12	12" Bucket for Big Arm Backhoe c/w Three Teeth	75
SHBT15	15" Bucket for Big Arm Backhoe c/w Four Teeth	81
SHBT18	18" Bucket for Big Arm Backhoe c/w Four Teeth	85
SHBT20	20" Bucket for Big Arm Backhoe c/w Four Teeth	87
SHB09	9" Bucket Less Teeth	63
SHB12	12" Bucket Less Teeth	67
SHB15	15" Bucket Less Teeth	71
SHB18	18" Bucket Less Teeth	74
SHB20	20" Bucket Less Teeth	77
HK90	Optional 90" Hose Kit c/w Flat Faced Couplers
SHMK	Optional Spring Hose Mount Kit
	Optional Wiring Kit - connect into your OEM skid steer auxiliary electric controls

HLA backhoe attachment for skid steer
