HRBC36-HK90-SHMK

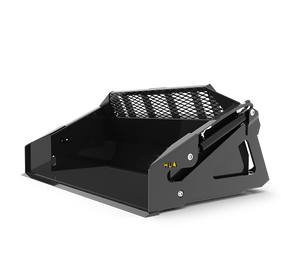

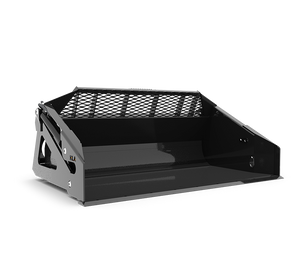

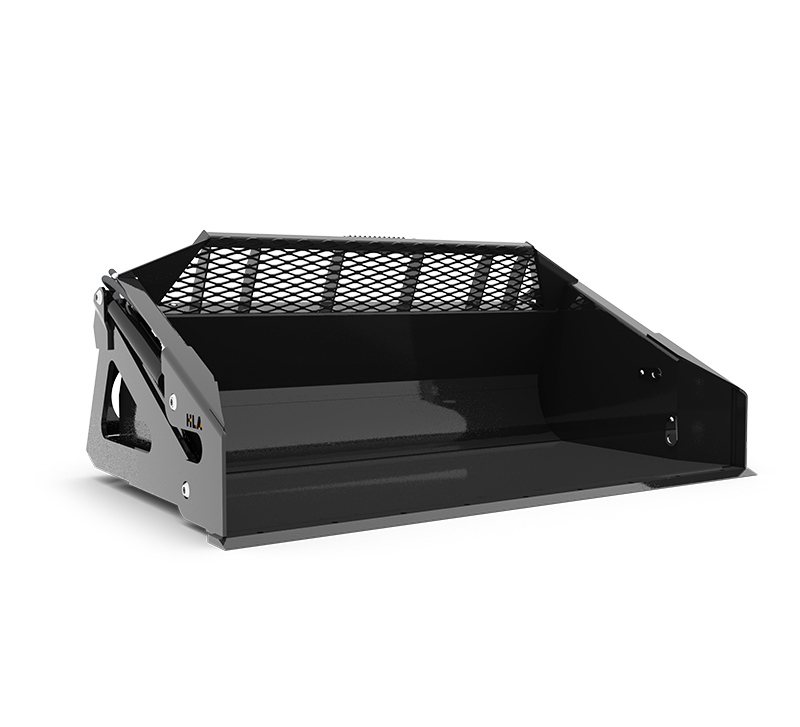

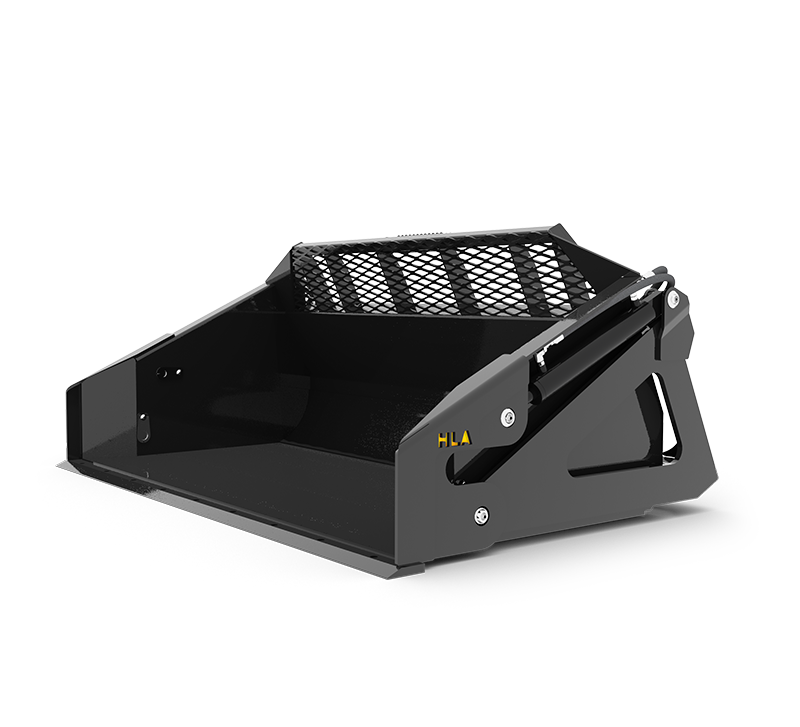

HLA high dump bucket for skid steer
$4,473.00 - $7,883.00
High Dump Bucket

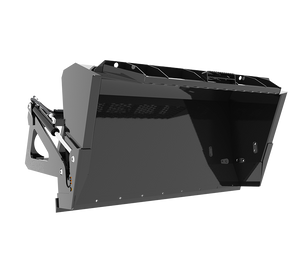

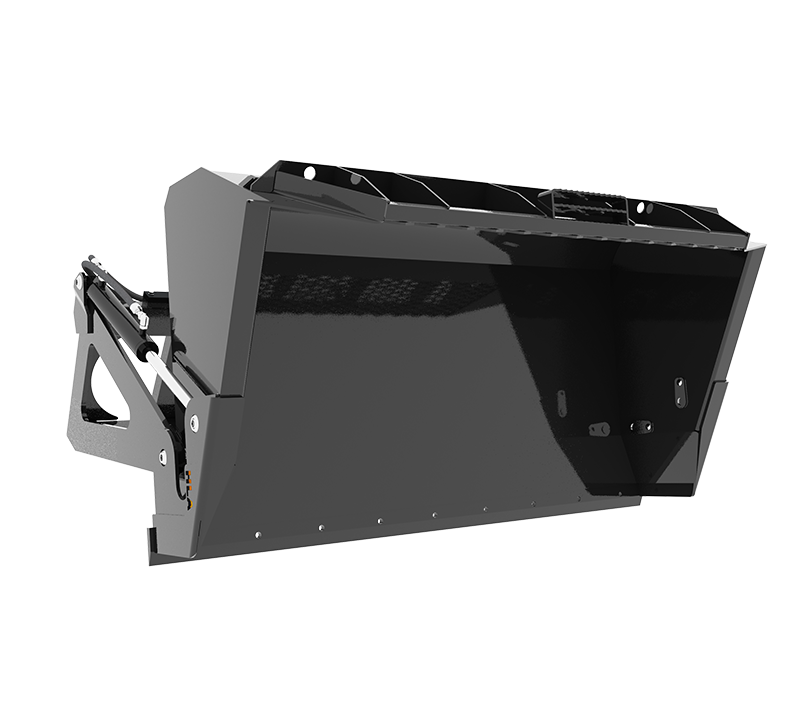

With a normal bucket you have to clear the heel before you can dump. This becomes a problem when you are trying to load a truck or high-sided wagon. And if you manage to clear the heel the bucket edge drops into the wagon when you dump it, limiting how full you can fill it. The HLA High-Dump increases your dump out height by 48 inches. That’s an extra 4 feet of clearance over a traditional bucket. And because the dump pivot point is close to the edge of the bucket you can fill wagons and trucks to their maximum levels without hassle. This also gives you more control of where the material is dumped. Give your loader or skid-steer a lift.
- High dump bucket increases dump out height up to 48"
- Exclusive flat bottom bucket design allows for easier clean out & no capacity sacrifice
- Compact 28" deep, 21" high
- Standard 39" deep, 29" high
- HV 39" deep, 33" high
- Soft Stop Cylinder for reduced vibration
- Drilled for standard bolt on cutting edge

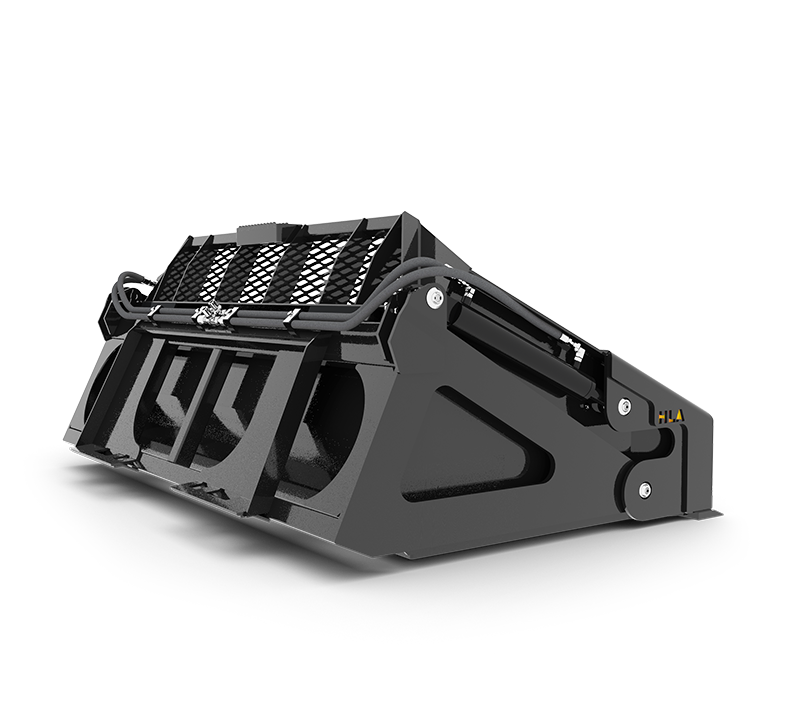

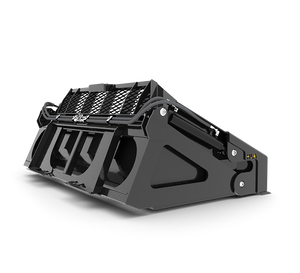

Exclusive Flat Bucket Design You shouldn’t have to compromise bucket quality for height. The HLA High-Dump Bucket is designed with a flat bottom to allow for easier clean out and no capacity sacrifice. Our hydraulics are located on the outside which not only gives us our exclusive flat bottom but also allows easier access for servicing.
* We have included hose kit in the price.
|
PART NUMBER |
DESCRIPTION |
OUTSIDE WIDTH INCHES |
STRUCK CAP. CU. FT. |
SAE HEAPED CAP. CU. FT. |
APPROX. WEIGHT LBS. |
| HRBC36 | 36" High Dump Bucket Compact | 36 | 5.3 | 6.7 | 530 |
| HRBC48 | 48" High Dump Bucket Compact | 48 | 7.4 | 9.6 | 595 |
| HRBC54 | 54" High Dump Bucket Compact | 54 | 8.4 | 11 | 625 |
| HRBC60 | 60" High Dump Bucket Compact | 60 | 9.5 | 12.5 | 655 |
| HRB60 | 60" High Dump Bucket Standard | 60 | 17.9 | 23.2 | 870 |
| HRB66 | 66" High Dump Bucket Standard | 66 | 19.9 | 25.9 | 905 |
| HRB72 | 72" High Dump Bucket Standard | 72 | 21.9 | 28.7 | 955 |
| HRB78 | 78" High Dump Bucket Standard | 78 | 23.9 | 31.5 | 1050 |
| HRB84 | 84" High Dump Bucket Standard | 84 | 25.9 | 34.3 | 1085 |
| HRB96 | 96" High Dump Bucket Standard | 96 | 29.9 | 39.9 | 1190 |
| HRBHV60 | 60" High Dump Bucket High Volume | 60 | 24.2 | 28.8 | 980 |
| HRBHV66 | 66" High Dump Bucket High Volume | 66 | 26.9 | 32.2 | 1030 |
| HRBHV72 | 72" High Dump Bucket High Volume | 72 | 29.5 | 35.5 | 1100 |
| HRBHV78 | 78" High Dump Bucket High Volume | 78 | 32.2 | 38.9 | 1205 |
| HRBHV84 | 84" High Dump Bucket High Volume | 84 | 34.9 | 42.3 | 1230 |
| HRBHV96 | 96" High Dump Bucket High Volume | 96 | 40.9 | 49 | 1340 |
| HK90 | Optional 90" Hose Kit c/w Flat Faced Couplers | ||||
| HK9090 | Optional 90" Hose Kit c/w 90° Flat Faced Couplers | ||||
| SHMK | Optional Spring Hose Mount Kit |
Very nice high quality dump bucket. I really like the feature of how the cylinders are mounted on the outside if the bucket. It is also nice to have standard capacity and high volume options.
