HLA Hydraulic Rotary Broom for Backhoe Loaders

9/26

HLA Hydraulic Rotary Broom for Backhoe Loaders

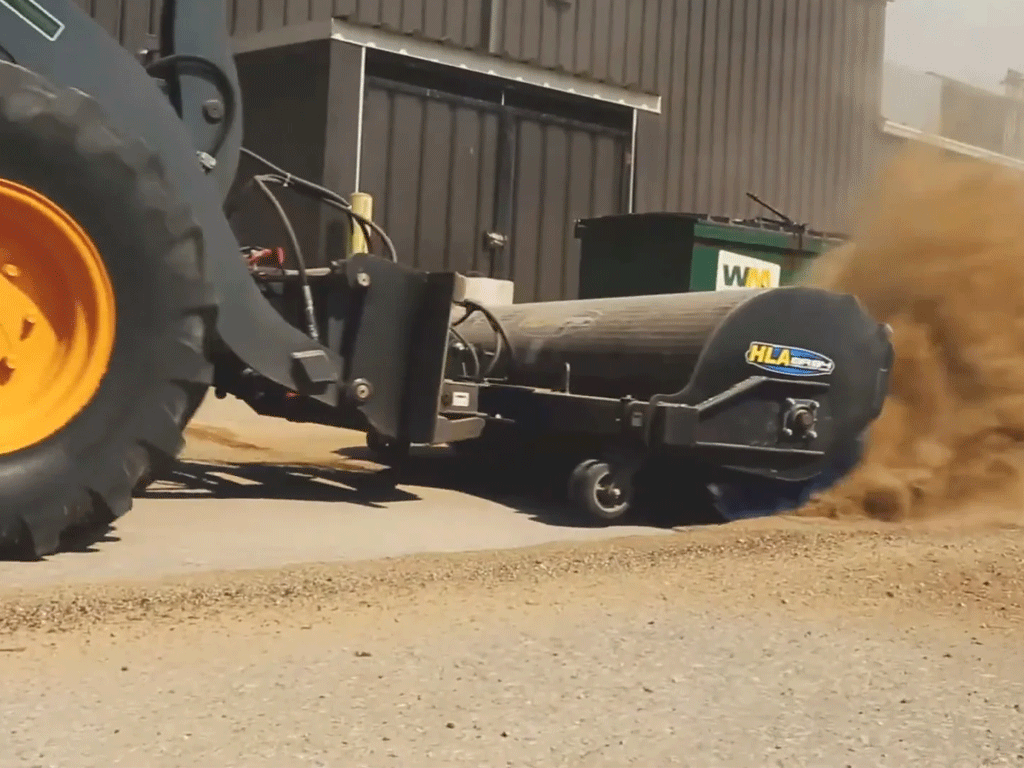

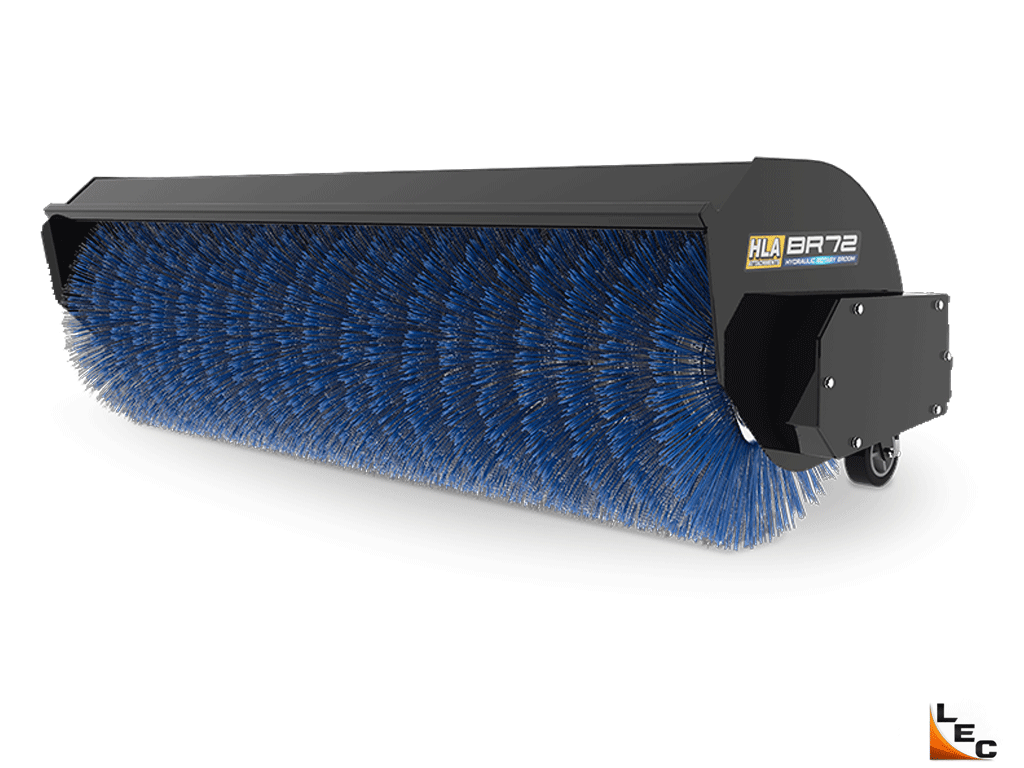

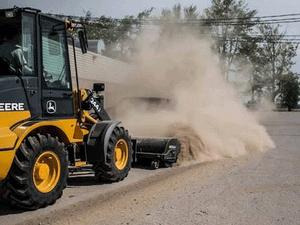

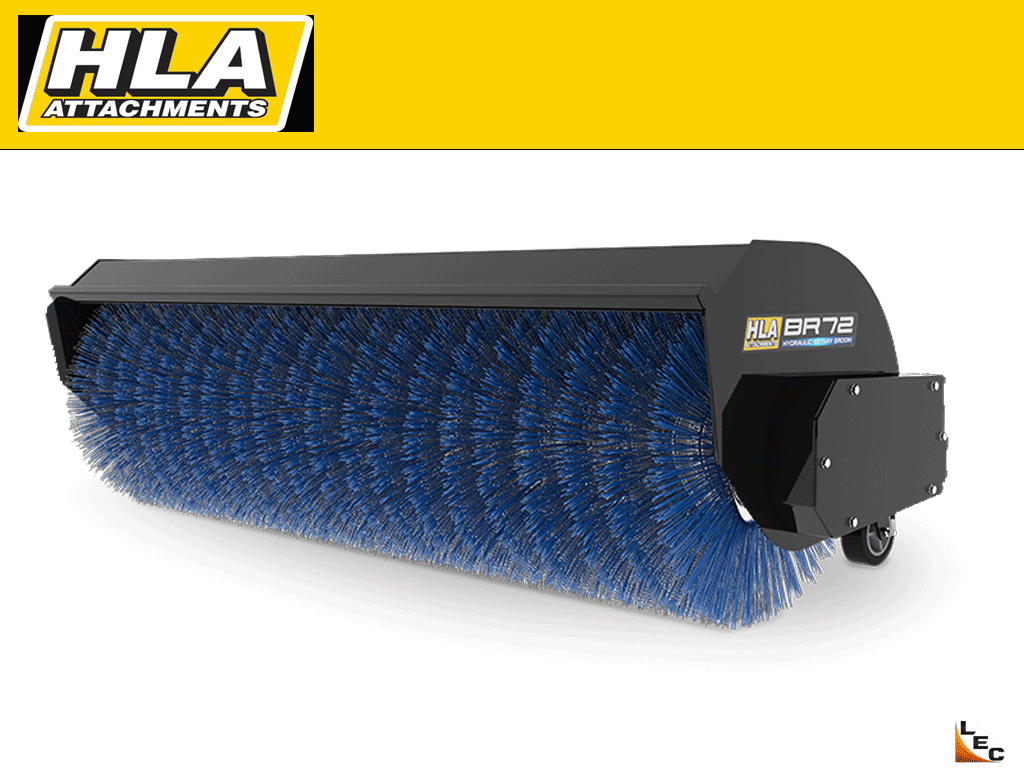

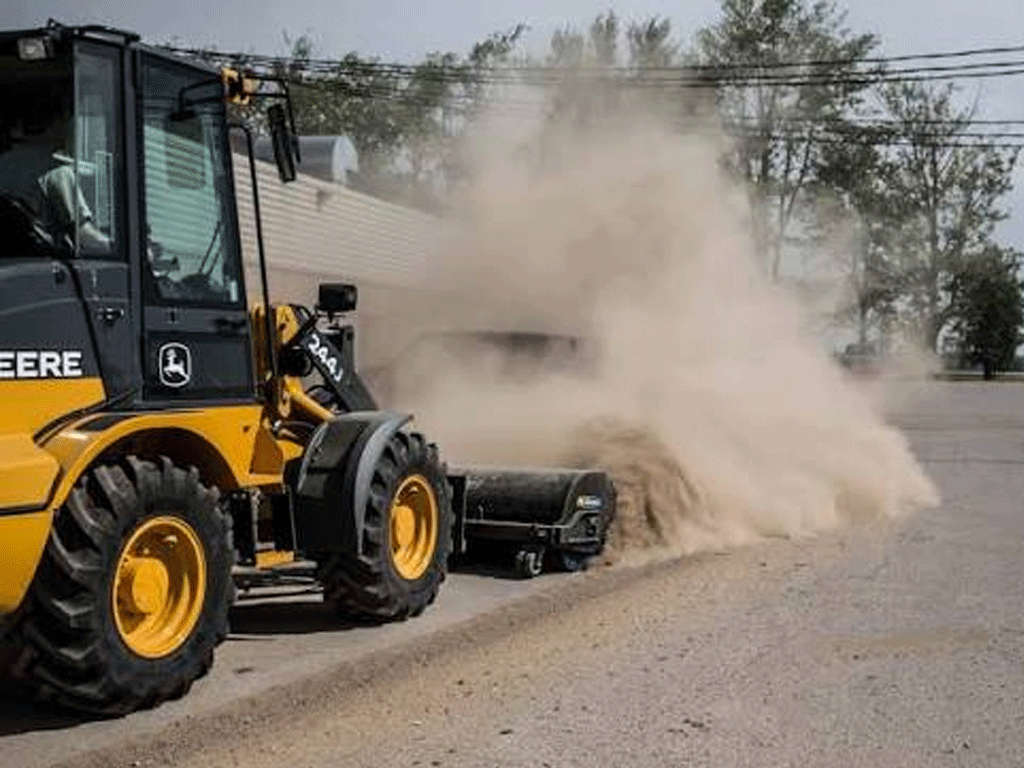

The HLA Hydraulic Rotary Broom for backhoe loaders is a heavy-duty hydraulic sweeper attachment designed for road maintenance, construction cleanup, parking lots, municipal work, industrial yards, and general property maintenance. Available in 60", 72", 84", and 96" sweeping widths, the HLA rotary broom combines hydraulic angling, direct motor drive, gauge wheels, and a unique float system for consistent sweeping performance.

Designed specifically for demanding equipment applications, this backhoe loader rotary broom attachment operates on 12–20 GPM at 1,500–3,000 PSI and includes hydraulic hoses and flat-faced couplers.

Heavy-Duty Backhoe Loader Rotary Broom

The HLA Backhoe Loader Hydraulic Rotary Broom gives operators an efficient way to sweep dirt, gravel, leaves, light snow, construction debris, and other loose material.

The broom is well suited for:

• Road and street sweeping
• Construction site cleanup
• Municipal maintenance
• Parking lot sweeping
• Industrial yards
• Dirt and gravel cleanup
• Jobsite cleanup
• Property maintenance
• Light snow sweeping

For contractors already using a backhoe loader for digging, loading, and grading, the HLA hydraulic broom attachment adds another year-round function to the machine.

Hydraulic Angle Broom – 30° Left or Right

The HLA backhoe loader angle broom hydraulically angles up to 30 degrees right or left. This allows operators to direct dirt, gravel, snow, and debris toward either side of the machine.

Hydraulic angling is particularly useful for road sweeping and construction cleanup, where material can be continuously moved toward the edge of the work area.

Unique Lateral & Forward Float

One of the key features of the HLA Hydraulic Rotary Broom is its lateral and forward float system.

The float design allows the broom to follow changes in the working surface instead of relying entirely on the movement of the backhoe loader. Combined with the included gauge wheels, this helps maintain consistent brush contact during sweeping.

26″ Diameter Poly/Steel Sweeper Brush

The HLA Backhoe Loader Rotary Broom uses 26" diameter bristle wafers and comes standard with a 50/50 combination of poly and steel bristles.

This combination provides aggressive sweeping performance for demanding construction, road, and municipal applications.

An all-poly brush configuration is optional for applications where steel bristles are not desired.

Direct Hydraulic Motor Drive

The HLA Rotary Broom uses a direct motor drive on the broom, creating a straightforward hydraulic drive system for professional sweeping applications.

Hydraulic Requirements

Flow: 12–20 GPM
Pressure: 1,500–3,000 PSI

Hydraulic hoses and flat-faced hydraulic couplers are included.

Always verify the auxiliary hydraulic flow and pressure of the backhoe loader before ordering.

60", 72", 84" & 96" Backhoe Loader Brooms

HLA offers four hydraulic rotary broom sizes for backhoe loaders, allowing the attachment to be matched to the machine and desired sweeping coverage.

The 60" and 72" rotary brooms provide more compact sweeping coverage, while the 84" and 96" HLA hydraulic brooms provide a wider working area for roads, parking lots, and large construction sites.

Optional Reverse Rotation Kit

An optional broom reversing kit allows the operator to reverse broom rotation.

Reverse rotation is useful when material needs to be swept away from doors, buildings, loading areas, or other structures, adding versatility to the backhoe loader sweeper.

Optional Dust Suppression Water Kit

For dusty road, construction, and industrial applications, HLA offers an optional 25-gallon Dust Suppression Water Kit complete with a spray nozzle.

HLA Backhoe Loader Rotary Broom Features

The HLA Hydraulic Rotary Broom combines several features designed for professional sweeping:

• 60", 72", 84", and 96" broom widths
• 26" diameter bristle wafers
• Standard 50/50 poly and steel bristles
• Optional all-poly bristles
• Hydraulic angle 30° left and right
• Unique lateral and forward float
• Gauge wheels
• Direct hydraulic motor drive
• 12–20 GPM hydraulic requirement
• 1,500–3,000 PSI operating range
• Hydraulic hoses included
• Flat-faced couplers included
• Optional reverse rotation kit
• Optional 25-gallon dust suppression water kit
• Optional OEM Connection Wire Kit

HLA Backhoe Loader Sweeper for Road & Construction Cleanup

For contractors and municipalities searching for a backhoe loader rotary broom, backhoe loader sweeper attachment, hydraulic broom for a backhoe loader, backhoe angle broom, road sweeper attachment, construction sweeper broom, hydraulic rotary sweeper, or heavy-duty backhoe broom, the HLA Hydraulic Rotary Broom provides multiple widths and professional features for demanding cleanup work.

With 60" to 96" widths, 30° hydraulic angling, a 26" diameter brush, lateral and forward float, gauge wheels, and direct hydraulic drive, the HLA Backhoe Loader Rotary Broom is built for efficient road, construction, municipal, and commercial sweeping.
