HLA Silage facer

Width
Frame size

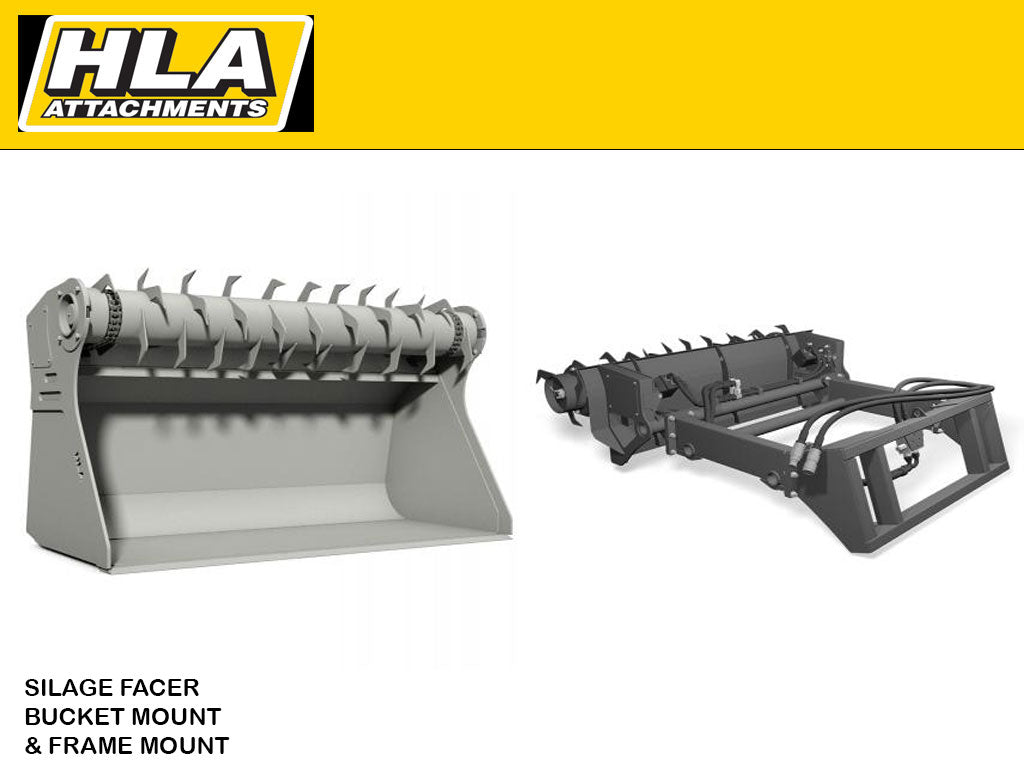

Silage Facer - Bucket Mount

To maintain quality feed it’s important to keep air out. When silage is faced with a regular bucket, deep cracks and fissures can form. Air can penetrate through these cracks, feet deep into the silage face potentially causing premature spoilage and reducing the quality of the feed. One of the best ways to avoid this is to keep a clean, smooth face that doesn’t trap air or moisture. The HLA silage facer is designed to help you better manage your silage and maintain your feed quality. Not only does the facer help you maintain the face of your pit silo, it also gives you more control of how much feed you remove at a time further reducing waste.

  • Minimum 20 GPM required
  • Maximum flow 40 GPM
  • Facing drum mounted on bucket
  • 400 Brinell high tensile steel teeth on drum
  • Dual drive motors
  • Heavy duty roller drive chains
  • Includes hose kit and flat-faced couplers

FEATURES

  • Heavy Duty Roller Chains Hungry Teeth Dual Hydraulic Motors Dual heavy duty roller chains transfer the power from the hydraulic drives to the cutting drum. They provide excellent slip resistance and are easily serviceable.
  • Hungry Teeth The ravenous teeth are designed to slice and shave your toughest silage. Made from high tensile steel they are shaped to easily remove feed and not get clogged. The adjustable depth gauge ensures that you take just what you need to reduce waste.
  • Dual Hydraulic Motors he driving force behind the HLA Silage Facer is two hydraulic motors that work together to provide the silage ripping power you need to get the Job Done Right.



FRAME MOUNT
 MODEL DESCRIPTION LBS
SBFD72 72" Silage Bunk Facer / 4ft Frame Mount 1,010 lb
SBFD726 72" Silage Bunk Facer / 6ft Frame Mount  1,075 lb
SBFD728 72" Silage Bunk Facer / 8ft Frame Mount 1,180 lb
SBFD7210 72" Silage Bunk Facer / 10ft Frame Mount 1,240 lb
SBFD84 84” Silage Bunk Facer / 4ft Frame Mount 1,085 lb
SBFD846 84” Silage Bunk Facer / 6ft Frame Mount  1,150 lb
SBFD848 84” Silage Bunk Facer / 8ft Frame Mount  1,255 lb
SBFD8410 84” Silage Bunk Facer / 10ft Frame Mount 1,315 lb
SBFD96 96” Silage Bunk Facer / 4ft Frame Mount 1,150 lb
SBFD966 96” Silage Bunk Facer / 6ft Frame Mount  1,215 lb
SBFD968 96” Silage Bunk Facer / 8ft Frame Mount  1,320 lb
SBFD9610 96” Silage Bunk Facer / 10ft Frame Mount  1,380 lb


BUCKET MOUNTED





 MODEL DESCRIPTION LBS WIDTH

STRUCK

CAPACITY

HEAPED

CAPACITY

MBHVSBFD72 72” Silage Facer / Bucket Mounted 1,160  72" 28.5 35.6
MBHVSBFD84 84” Silage Facer / Bucket Mounted  1,275 84" 33.3 41.6
MBHVSBFD96  96” Silage Facer / Bucket Mounted 1,385  96" 38.1 47.5
THMBSBFD96 96” Silage Facer / Telehandler Bucket Mounted 1,780 96" 54 59.4
