HT1440

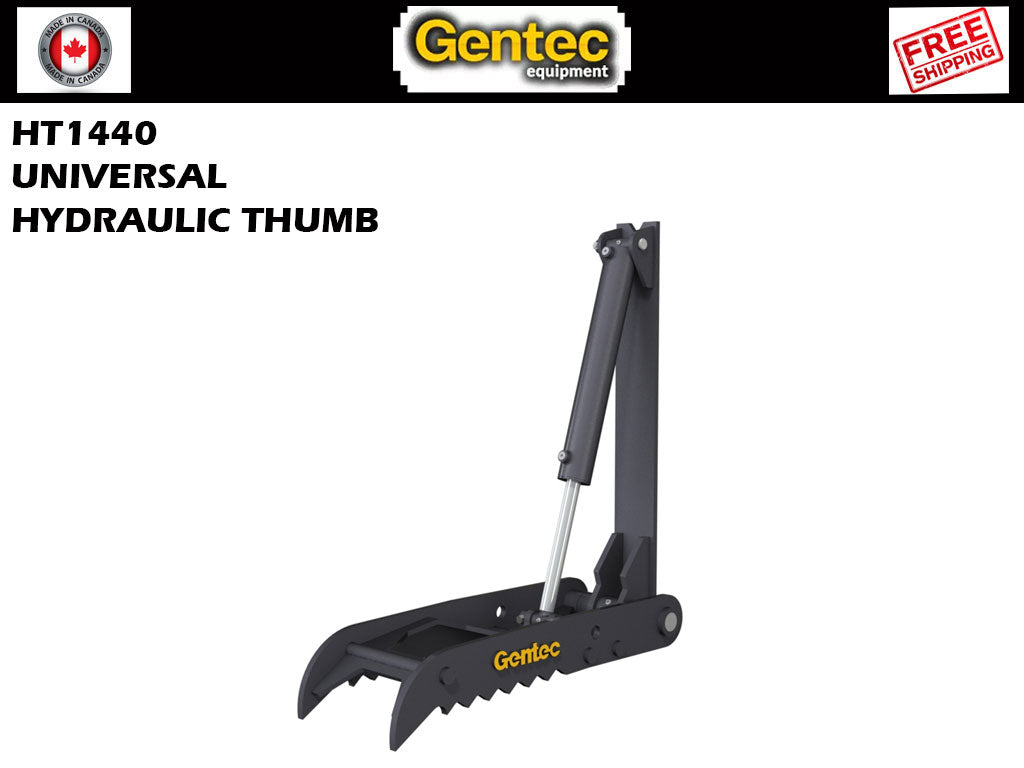

HT1440 Gentec Universal hydraulic excavator thumbs, 10000-22000 lbs excavators

2/24

Gentec Equipment

Built-Tough

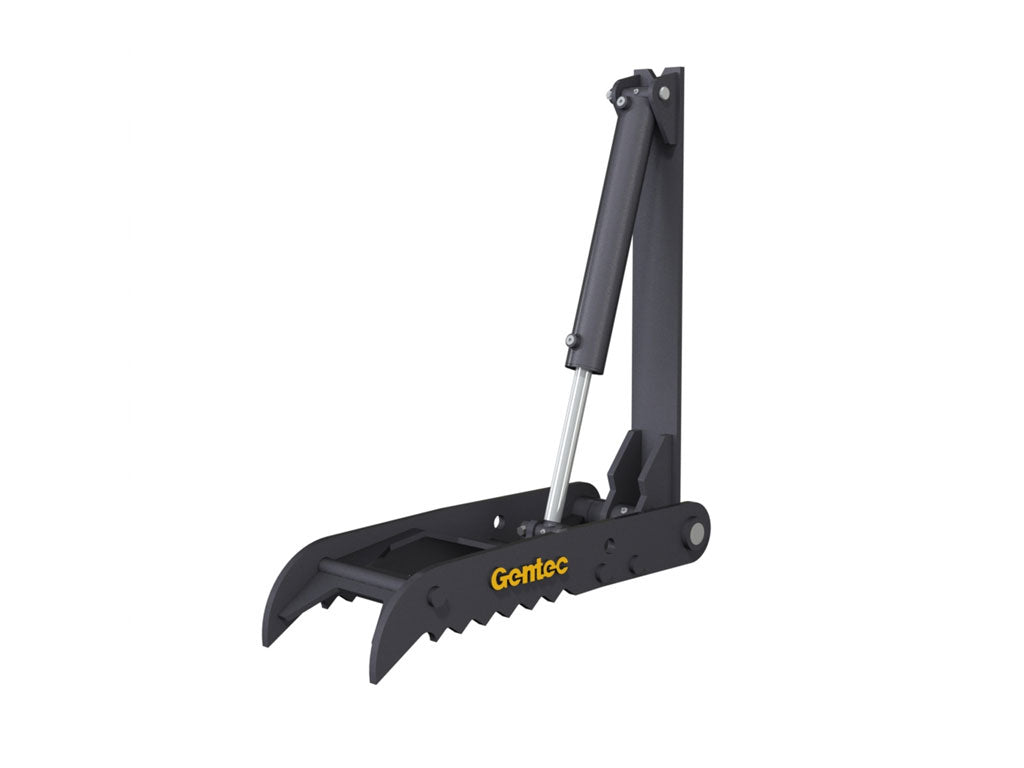

Introducing the HT1440 Hydraulic Weld-On Thumb by Gentec – built tough for contractors. This 14" wide and 40" long thumb is designed for machines between 13,000lbs and 19,000lbs an weighs 270lbs. Constructed with 3/4" thick AR400 Steel Tines in a ladder frame layout and reinforced with gussets, our HT1440 thumb is designed for increased strength and long-lasting durability. The double-sealed welded cylinder enhances reliability, ensuring your work remains uninterrupted. Both cylinder pins and the thumb main pin are greaseable, making maintenance a breeze.

Superior Geometry

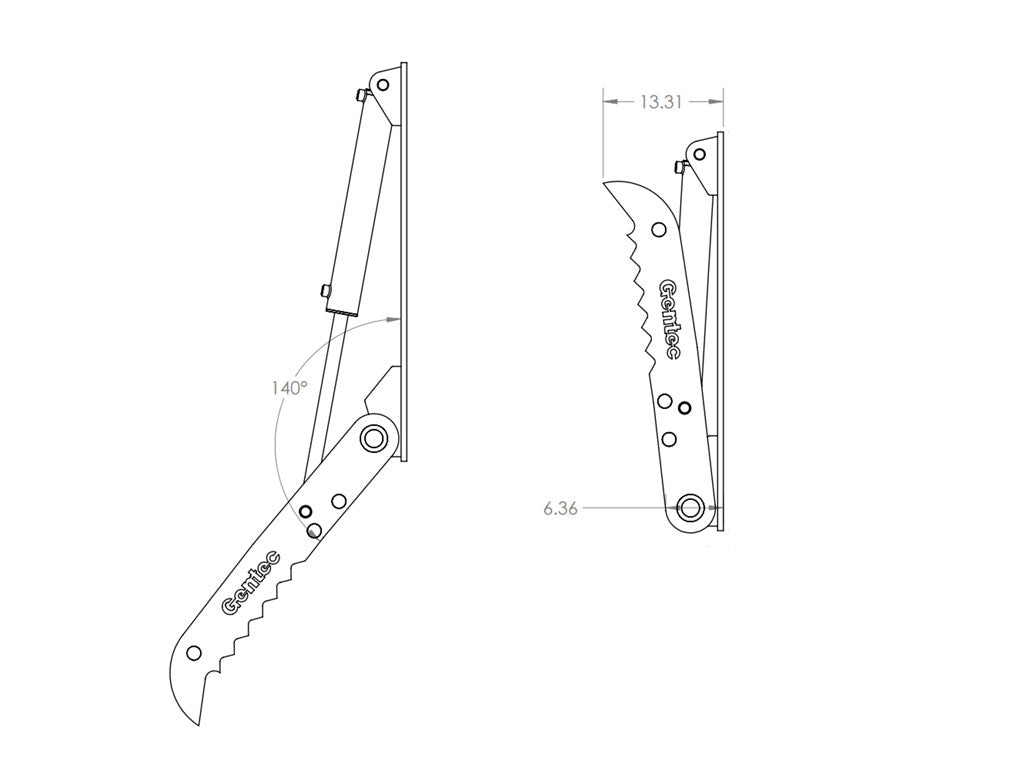

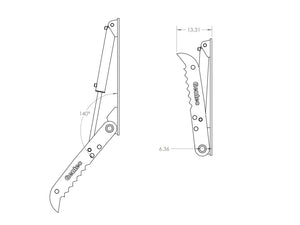

Experience superior geometry with the HT1440. The thumb boasts a maximum extension angle of 140 degrees, outperforming the competition. Designed to minimize stowed dimensions, when fully retracted, the tines only extend 13" away from the edge of the excavator stick – meaning it won't get in your way when digging. The backplate measures 44”, and the hydraulic cylinder is included.

Maximize your investment

Invest in the HT1440 to maximize the capabilities of your excavator and get the job done faster and more efficiently. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the HT1440 Hydraulic Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.

Features:

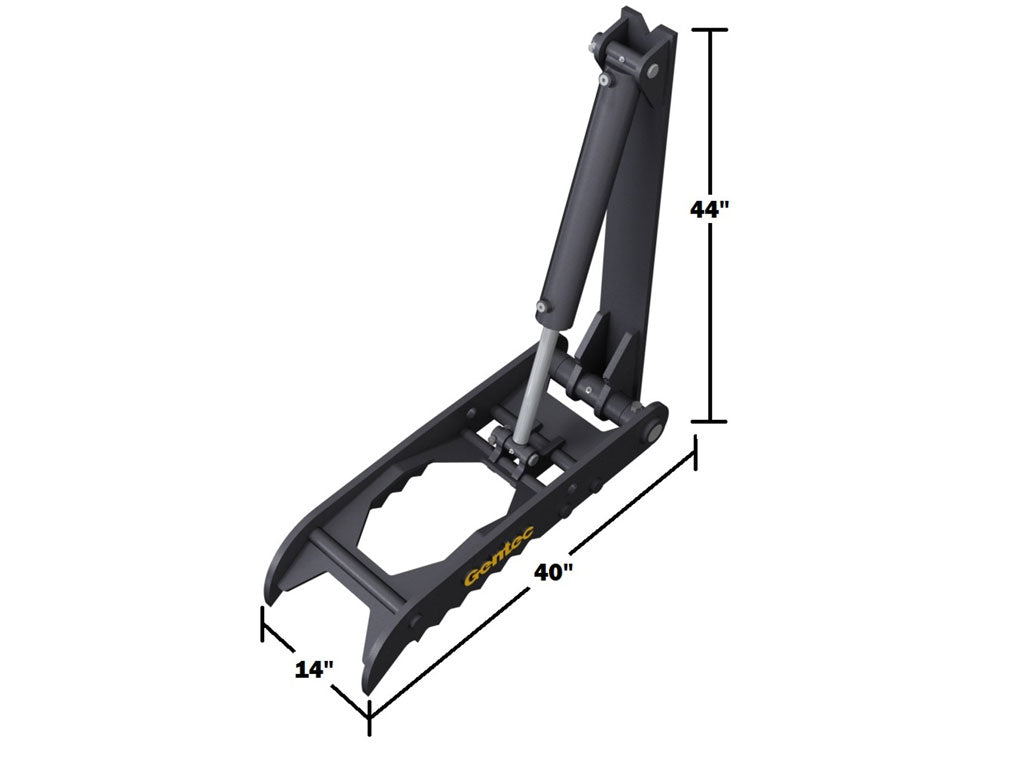

  • 14” wide, 40” long hydraulic thumb
  • Ideal for machines between 13,000lbs and 19,000lbs
  • 3/4” thick AR400 Steel Tines assembled in a ladder frame layout and with gussets
  • Double-sealed welded cylinder for increased reliability
  • 140-degree maximum extension angle
  • Minimized stowed dimensions for optimal digging performance
  • Thumb geometry designed to mechanically prevent cylinder lock-out when retracted
  • Greaseable pins for easy maintenance
  • 44” backplate
  • Hydraulic cylinder included
  • 1-year warranty
  • Replacement parts available

                      ** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.

                      ⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.

                      Mounting Weld-On
                      Operation Hydraulic
                      Width 14"
                      Length 40"
                      Tine Thickness 3/4"
                      Tine Material Hardox 400
                      Main Pin Diameter 2"
                      Stowed-Position Height 44"
                      Max. Extension Angle 140 Degrees
                      Min. Operating Weight 13,000lbs
                      Max. Operating Weight 19,000lbs
                      Net Weight 270lbs
                      Excavator Weight Class 10,000lbs to 22,000lbs


                       SAMPLE LIST ONLY

                      MAKE MODEL 10000 TO 12000 LB
                      BOBCAT 337, 341, 435ZHS, E42,E45,E50,E55
                      CASE CX50B, CX50, CX47
                      CAT 304CCR, 305CCR, 304.5, 304CR, 305CR
                      DAEWOO 50,55
                      DEERE 50ZTS, 50C, 50D, 50G
                      DOOSAN 55V, 55W
                      GEHL 503Z,603,502,602,652
                      HYUNDAI R55-7,R55W-7
                      IHI / KATO 45V4,55V4,60V4,45NX,55NX
                      JCB 8040,8045,8050,8052,48Z,51R,55Z
                      HITACHI EX50, ZX50
                      HYUNDAI R55-7, R55W-7
                      KOBELCO 50SR-3, SK045, SK050
                      KOMATSU PC40MR-2, PC50MR-2, PC58UU-3, PC45
                      KUBOTA KX151-3, KX61, KX161-3, U45
                      NAGANO NS-45
                      NEW HOLLAND E50, EC45, EH45
                      TAKEUCHI
                      TEREX HR16/TC35, HR3.7/TC37, TC48, TC50, TC60
                      THOMAS T45
                      VOLVO EC45PRO, EC50BPRO, ECR58, EW55B, EC55B
                      WACKER 50Z3,6003,6503
                      YANMAR VIO40-3, VIO50-3



                      MAKE MODEL 12000 TO 16000 LB
                      BOBCAT E63,E80,E85,442,
                      CASE

                      580, 590

                      9007,CX75,CX80

                      CAT

                      307C,308C CR,E70B

                      416C, 420D, 428F, 432F, 434F

                      DAEWOO
                      DEERE

                      310K, 310SK, 410K

                      310J, 310SJ, 410J

                      310G, 310SG, 410G, 510

                      DOOSAN S75-V, S70-III, SOLAR75-V
                      FORD

                      455, 555, 655

                      555E, 655E, 675E

                      GEHL
                      HYUNDAI R75-7, R80-7
                      IHI / KATO 65VX, 80VX, 55N, 65NX, 80NX
                      JCB 214, 3CX, 4CX, 8085, JS70
                      HITACHI Z80L, Z75US
                      KOBELCO SK70SR, 80CS
                      KOMATSU

                      WB146-5/156-5, WB140/150

                      PC60 ,PC75R-2, PC78

                      KUBOTA
                      LINK BELT 75, 80, 1600Q
                      NAGANO
                      NEW HOLLAND

                      LB75, LB115

                      LB90, LB110

                      TAKEUCHI TB290, TB285, TB180FR, TB175
                      TEREX HR32, TC75
                      THOMAS
                      VOLVO ECR88, BL60, BL70
                      WACKER
                      YANMAR VIO75,VIO70, B7, B7-5A





                      MAKE MODEL 12000 TO 20000 LB
                      BOBCAT E63,E80,E85,442,
                      CASE

                      580, 590

                      9007,CX75,CX80

                      CAT

                      307C,308C CR,E70B

                      416C, 420D, 428F, 432F, 434F

                      DAEWOO
                      DEERE

                      310K, 310SK, 410K

                      310J, 310SJ, 410J

                      310G, 310SG, 410G, 510

                      DOOSAN S75-V, S70-III, SOLAR75-V
                      FORD

                      455, 555, 655

                      555E, 655E, 675E

                      GEHL
                      HYUNDAI R75-7, R80-7
                      IHI / KATO 65VX, 80VX, 55N, 65NX, 80NX
                      JCB 214, 3CX, 4CX, 8085, JS70
                      HITACHI Z80L, Z75US
                      KOBELCO SK70SR, 80CS
                      KOMATSU

                      WB146-5/156-5, WB140/150

                      PC60 ,PC75R-2, PC78

                      KUBOTA
                      LINK BELT 75, 80, 1600Q
                      NAGANO
                      NEW HOLLAND

                      LB75, LB115

                      LB90, LB110

                      TAKEUCHI TB290, TB285, TB180FR, TB175
                      TEREX HR32, TC75
                      THOMAS
                      VOLVO ECR88, BL60, BL70
                      WACKER
                      YANMAR VIO75,VIO70, B7, B7-5A





                      Thumbs usually ship out within (3) days

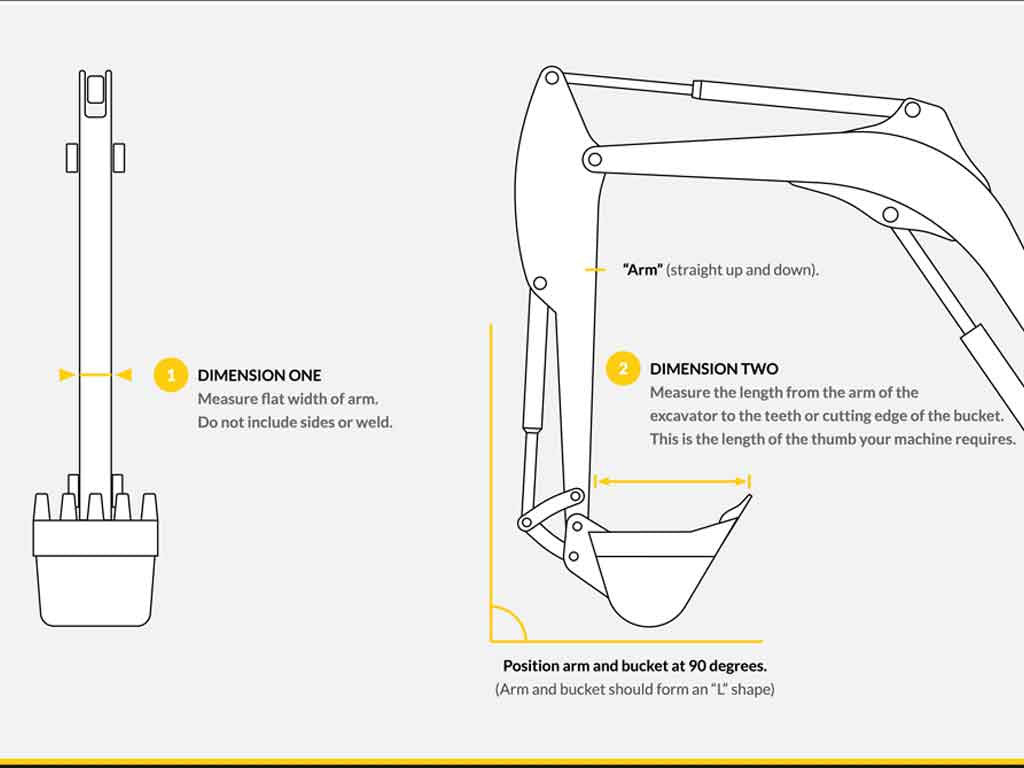

                      MEASUREMENTS

                      Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

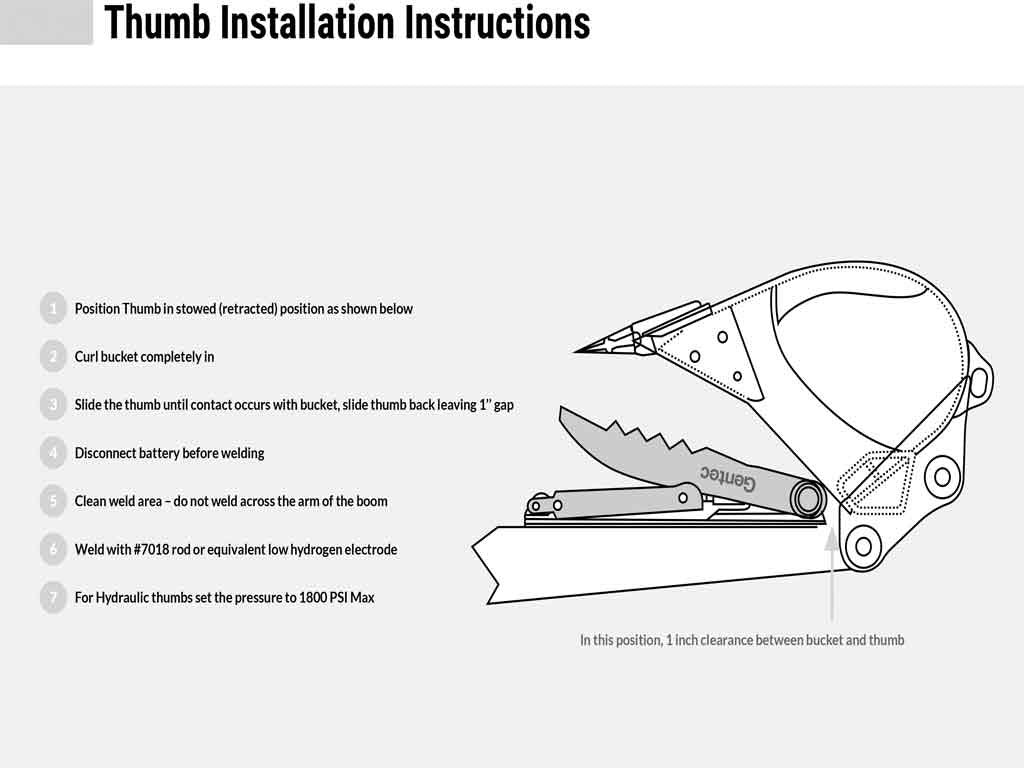

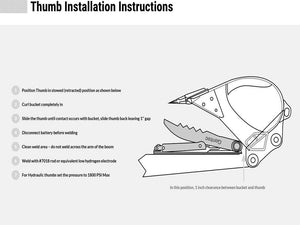

                      INSTALLATION

                      Please follow these instructions when installing your thumb.
