HT1445
HT1445 Gentec Universal hydraulic excavator thumbs, 10000-22000 lbs excavators
$2,500.00
2/24
Built-Tough

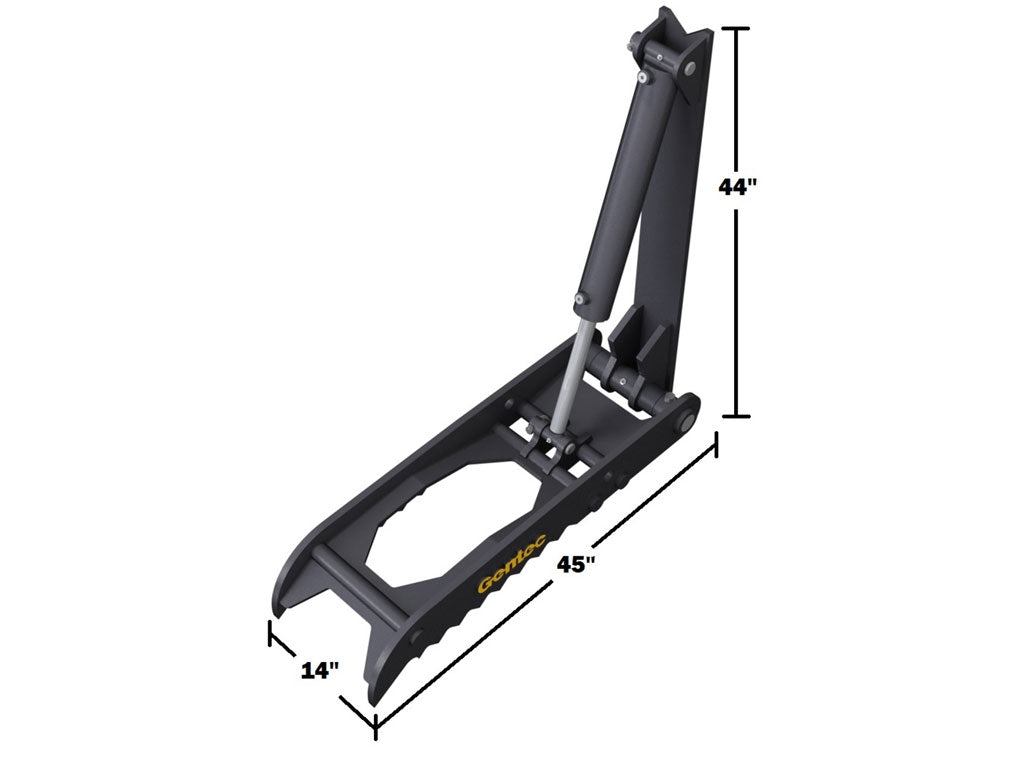

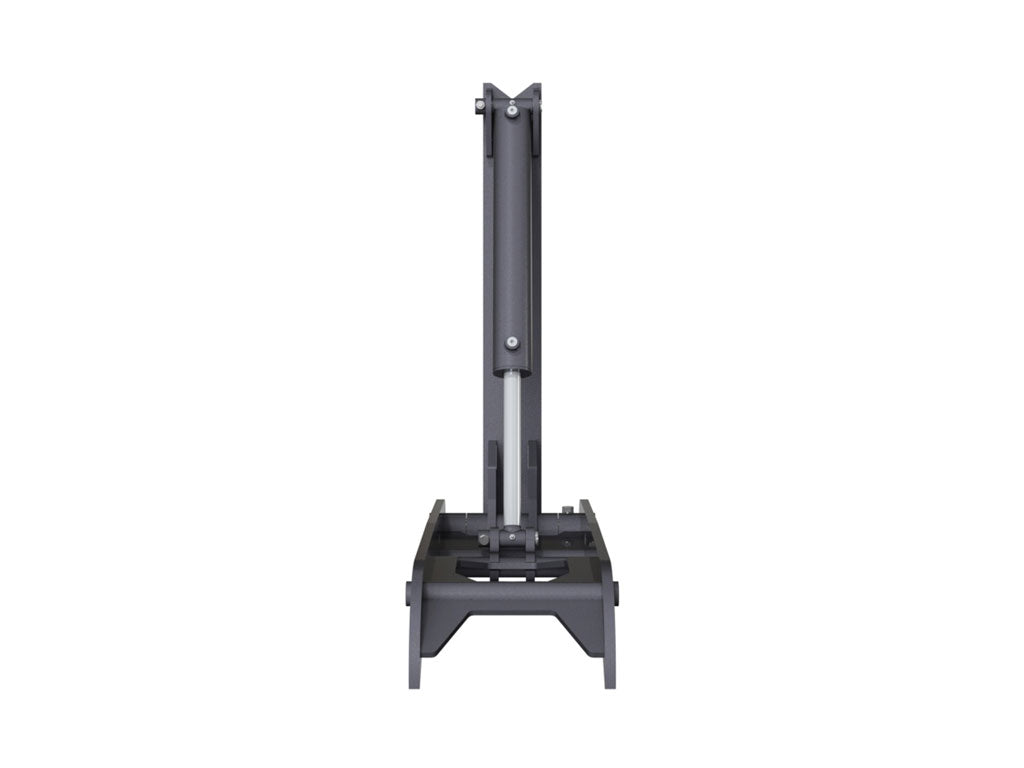

Introducing the HT1445 Hydraulic Weld-On Thumb by Gentec – built tough for contractors. This 14" wide and 45" long thumb is designed for machines between 13,000lbs and 19,000lbs an weighs 300lbs. Constructed with 3/4" thick AR400 Steel Tines in a ladder frame layout and reinforced with gussets, our HT1445 thumb is designed for increased strength and long-lasting durability. The double-sealed welded cylinder enhances reliability, ensuring your work remains uninterrupted. Both cylinder pins and the thumb main pin are greaseable, making maintenance a breeze.
Superior Geometry

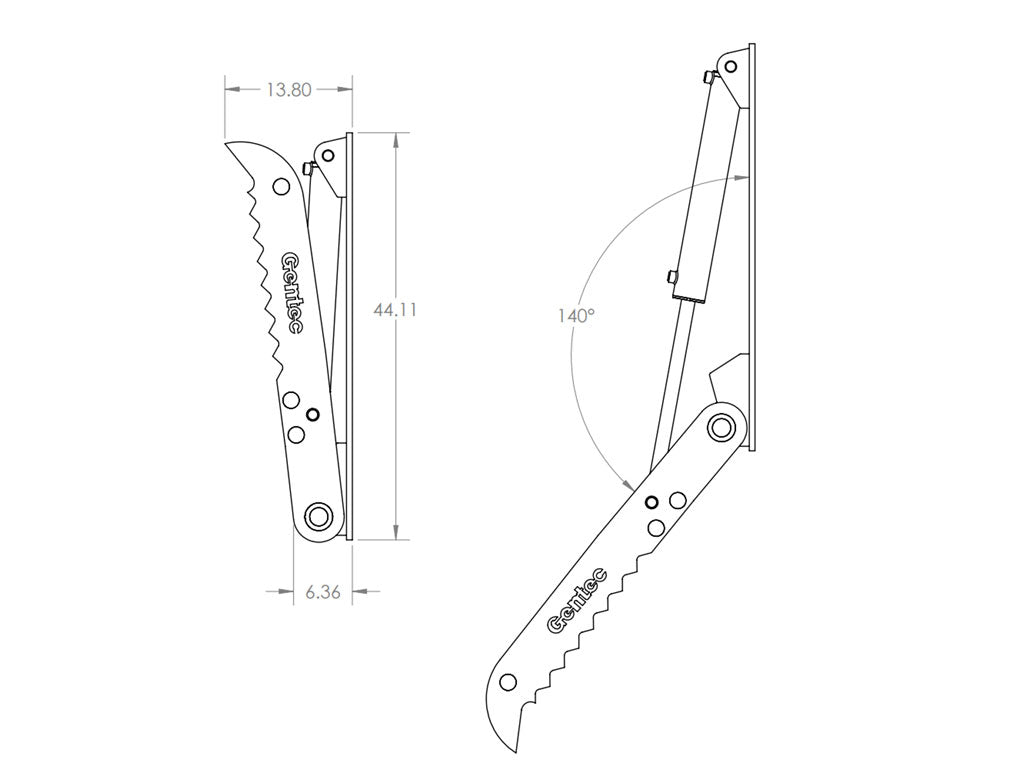

Experience superior geometry with the HT1445. The thumb boasts a maximum extension angle of 140 degrees, outperforming the competition. Designed to minimize stowed dimensions, when fully retracted, the tines only extend 14" away from the edge of the excavator stick – meaning it won't get in your way when digging. The backplate measures 44”, and the hydraulic cylinder is included.
Maximize your investment
Invest in the HT1445 to maximize the capabilities of your excavator and get the job done faster and more efficiently. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the HT1445 Hydraulic Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.
Features:
- 14” wide, 45” long hydraulic thumb
- Ideal for machines between 13,000lbs and 19,000lbs
- 3/4” thick AR400 Steel Tines assembled in a ladder frame layout and with gussets
- Double-sealed welded cylinder for increased reliability
- 140-degree maximum extension angle
- Minimized stowed dimensions for optimal digging performance
- Thumb geometry designed to mechanically prevent cylinder lock-out when retracted
- Greaseable pins for easy maintenance
- 44” backplate
- Hydraulic cylinder included
- 1-year warranty
- Replacement parts available
** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.
⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.
| Mounting | Weld-On |
|---|---|
| Operation | Hydraulic |
| Width | 14" |
| Length | 45" |
| Tine Thickness | 3/4" |
| Tine Material | Hardox 400 |
| Main Pin Diameter | 2" |
| Stowed-Position Height | 44" |
| Max. Extension Angle | 140 Degrees |
| Min. Operating Weight | 13,000lbs |
| Max. Operating Weight | 19,000lbs |
| Net Weight | 300lbs |
| Excavator Weight Class | 10,000lbs to 22,000lbs |
SAMPLE LIST ONLY
| MAKE | MODEL 10000 TO 12000 LB |
| BOBCAT | 337, 341, 435ZHS, E42,E45,E50,E55 |
| CASE | CX50B, CX50, CX47 |
| CAT | 304CCR, 305CCR, 304.5, 304CR, 305CR |
| DAEWOO | 50,55 |
| DEERE | 50ZTS, 50C, 50D, 50G |
| DOOSAN | 55V, 55W |
| GEHL | 503Z,603,502,602,652 |
| HYUNDAI | R55-7,R55W-7 |
| IHI / KATO | 45V4,55V4,60V4,45NX,55NX |
| JCB | 8040,8045,8050,8052,48Z,51R,55Z |
| HITACHI | EX50, ZX50 |
| HYUNDAI | R55-7, R55W-7 |
| KOBELCO | 50SR-3, SK045, SK050 |
| KOMATSU | PC40MR-2, PC50MR-2, PC58UU-3, PC45 |
| KUBOTA | KX151-3, KX61, KX161-3, U45 |
| NAGANO | NS-45 |
| NEW HOLLAND | E50, EC45, EH45 |
| TAKEUCHI | |
| TEREX | HR16/TC35, HR3.7/TC37, TC48, TC50, TC60 |
| THOMAS | T45 |
| VOLVO | EC45PRO, EC50BPRO, ECR58, EW55B, EC55B |
| WACKER | 50Z3,6003,6503 |
| YANMAR | VIO40-3, VIO50-3 |
| MAKE | MODEL 12000 TO 16000 LB |
| BOBCAT | E63,E80,E85,442, |
| CASE |
580, 590 9007,CX75,CX80 |
| CAT |
307C,308C CR,E70B 416C, 420D, 428F, 432F, 434F |
| DAEWOO | |
| DEERE |
310K, 310SK, 410K 310J, 310SJ, 410J 310G, 310SG, 410G, 510 |
| DOOSAN | S75-V, S70-III, SOLAR75-V |
| FORD |
455, 555, 655 555E, 655E, 675E |
| GEHL | |
| HYUNDAI | R75-7, R80-7 |
| IHI / KATO | 65VX, 80VX, 55N, 65NX, 80NX |
| JCB | 214, 3CX, 4CX, 8085, JS70 |
| HITACHI | Z80L, Z75US |
| KOBELCO | SK70SR, 80CS |
| KOMATSU |
WB146-5/156-5, WB140/150 PC60 ,PC75R-2, PC78 |
| KUBOTA | |
| LINK BELT | 75, 80, 1600Q |
| NAGANO | |
| NEW HOLLAND |
LB75, LB115 LB90, LB110 |
| TAKEUCHI | TB290, TB285, TB180FR, TB175 |
| TEREX | HR32, TC75 |
| THOMAS | |
| VOLVO | ECR88, BL60, BL70 |
| WACKER | |
| YANMAR | VIO75,VIO70, B7, B7-5A |
| MAKE | MODEL 12000 TO 20000 LB |
| BOBCAT | E63,E80,E85,442, |
| CASE |
580, 590 9007,CX75,CX80 |
| CAT |
307C,308C CR,E70B 416C, 420D, 428F, 432F, 434F |
| DAEWOO | |
| DEERE |
310K, 310SK, 410K 310J, 310SJ, 410J 310G, 310SG, 410G, 510 |
| DOOSAN | S75-V, S70-III, SOLAR75-V |
| FORD |
455, 555, 655 555E, 655E, 675E |
| GEHL | |
| HYUNDAI | R75-7, R80-7 |
| IHI / KATO | 65VX, 80VX, 55N, 65NX, 80NX |
| JCB | 214, 3CX, 4CX, 8085, JS70 |
| HITACHI | Z80L, Z75US |
| KOBELCO | SK70SR, 80CS |
| KOMATSU |
WB146-5/156-5, WB140/150 PC60 ,PC75R-2, PC78 |
| KUBOTA | |
| LINK BELT | 75, 80, 1600Q |
| NAGANO | |
| NEW HOLLAND |
LB75, LB115 LB90, LB110 |
| TAKEUCHI | TB290, TB285, TB180FR, TB175 |
| TEREX | HR32, TC75 |
| THOMAS | |
| VOLVO | ECR88, BL60, BL70 |
| WACKER | |
| YANMAR | VIO75,VIO70, B7, B7-5A |
Thumbs usually ship out within (3) days

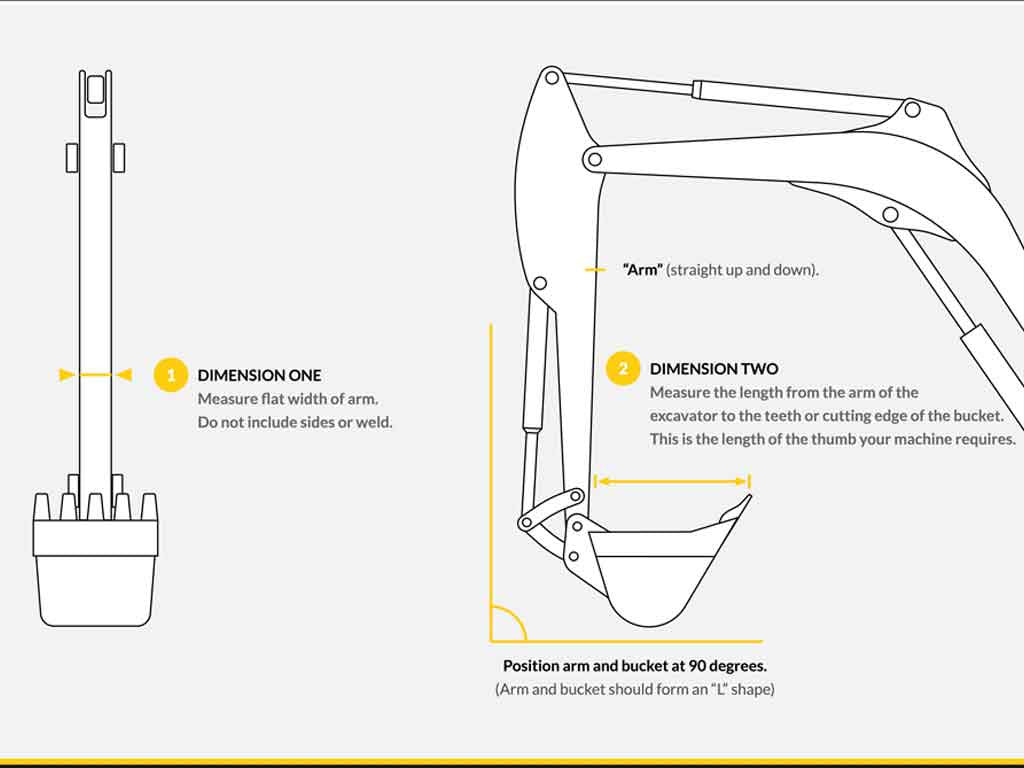

MEASUREMENTS
Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

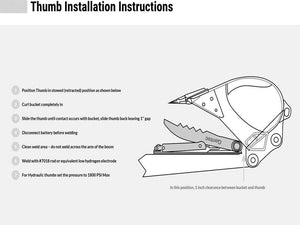

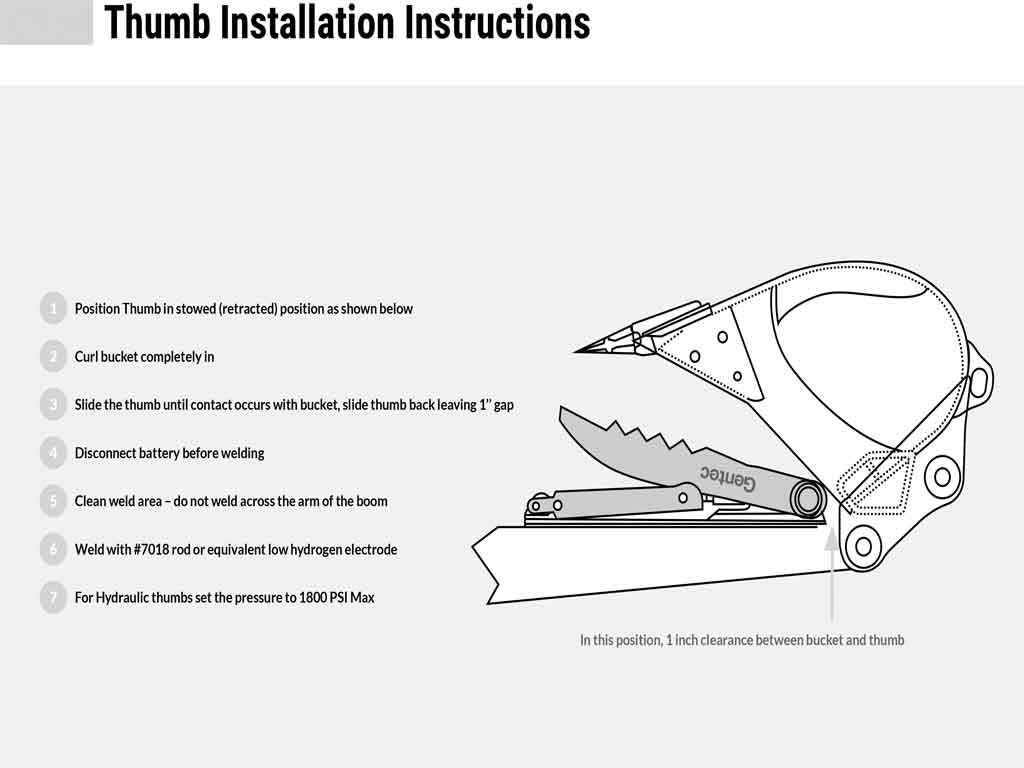

INSTALLATION
Please follow these instructions when installing your thumb.
