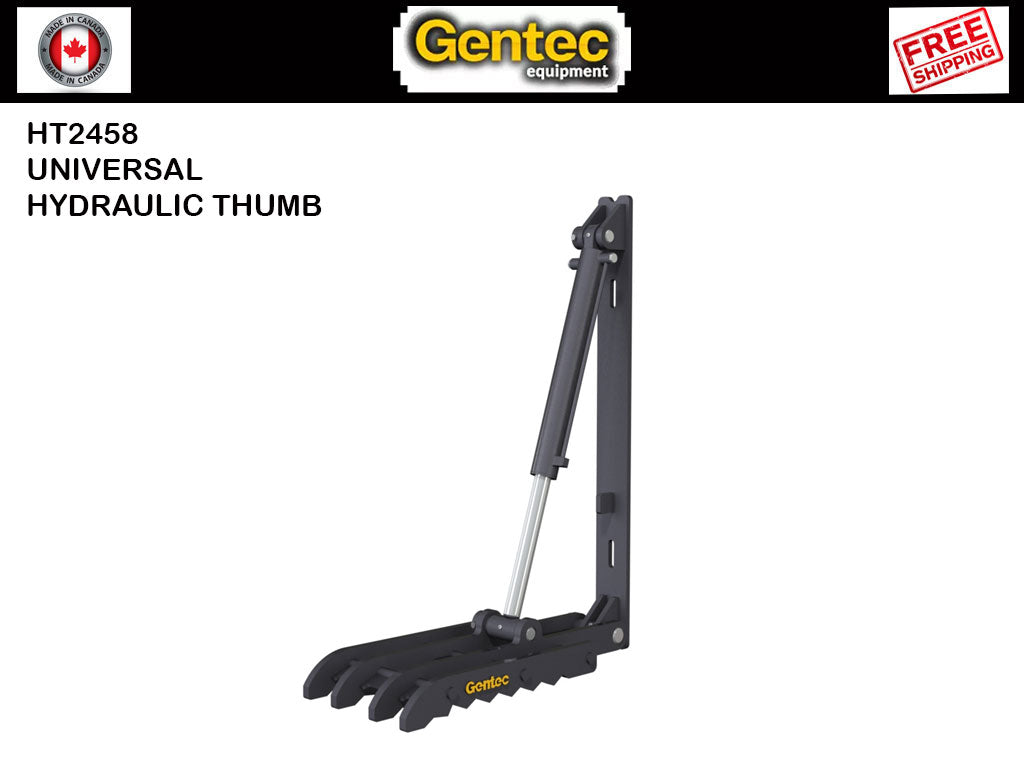

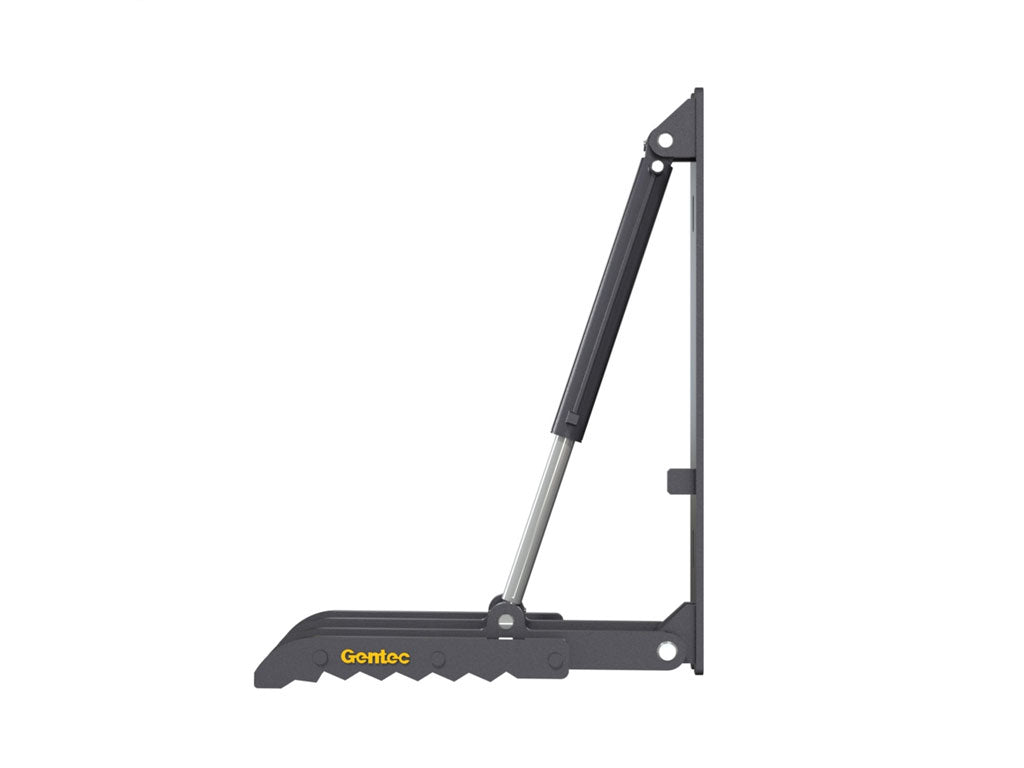

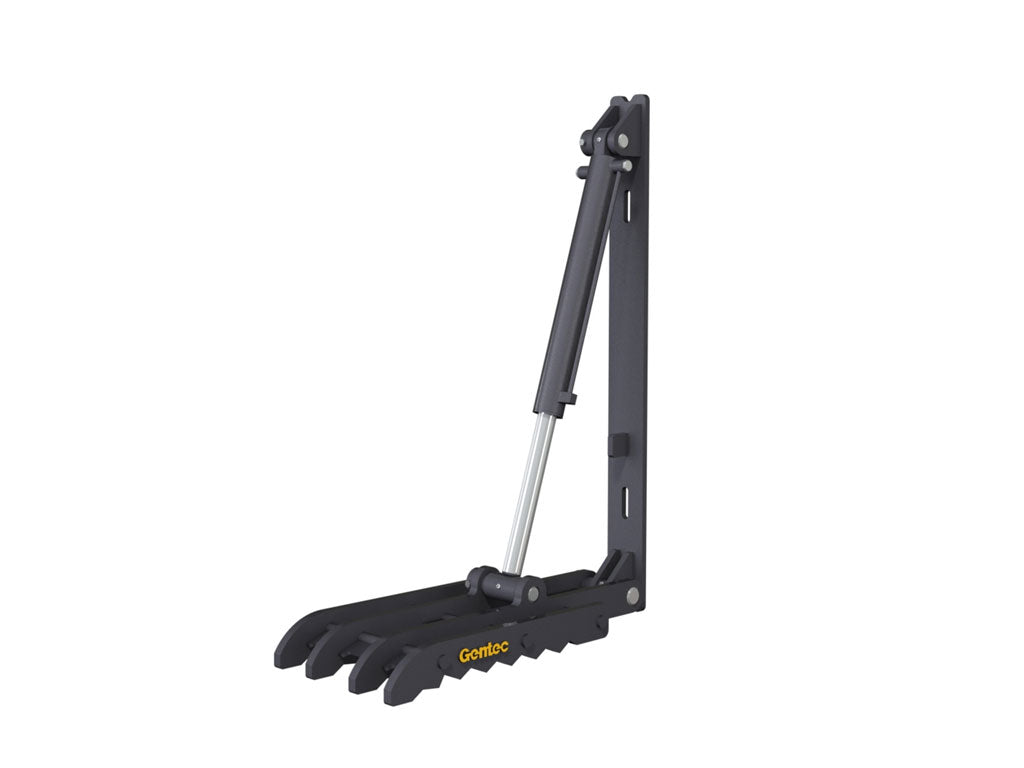

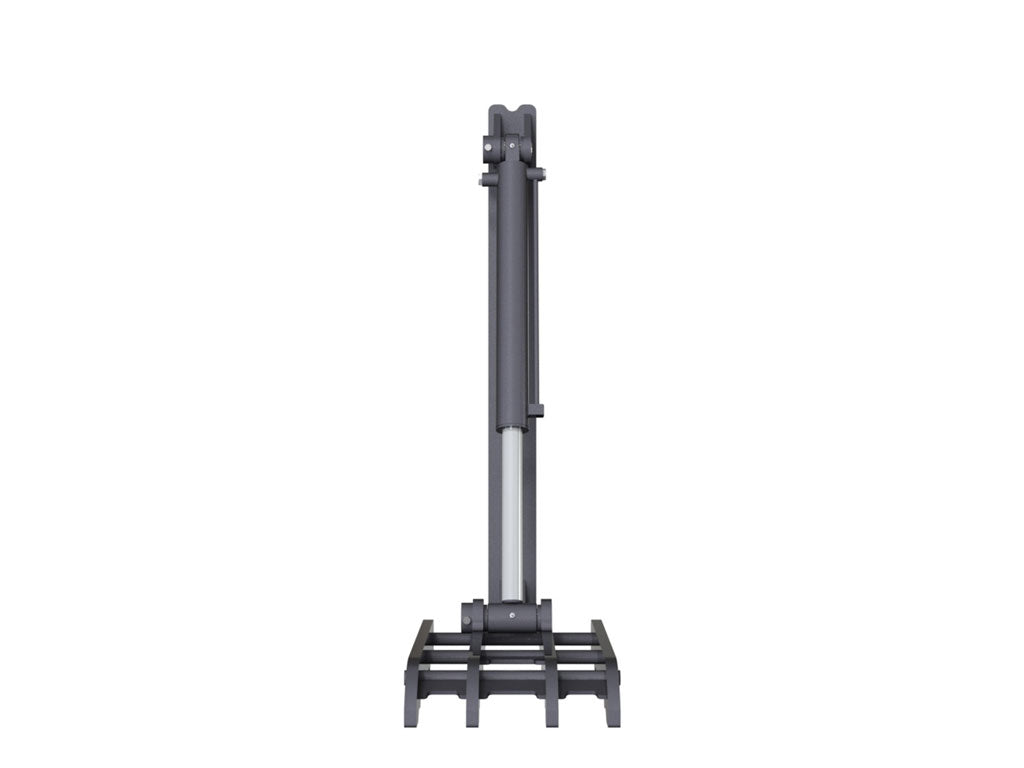

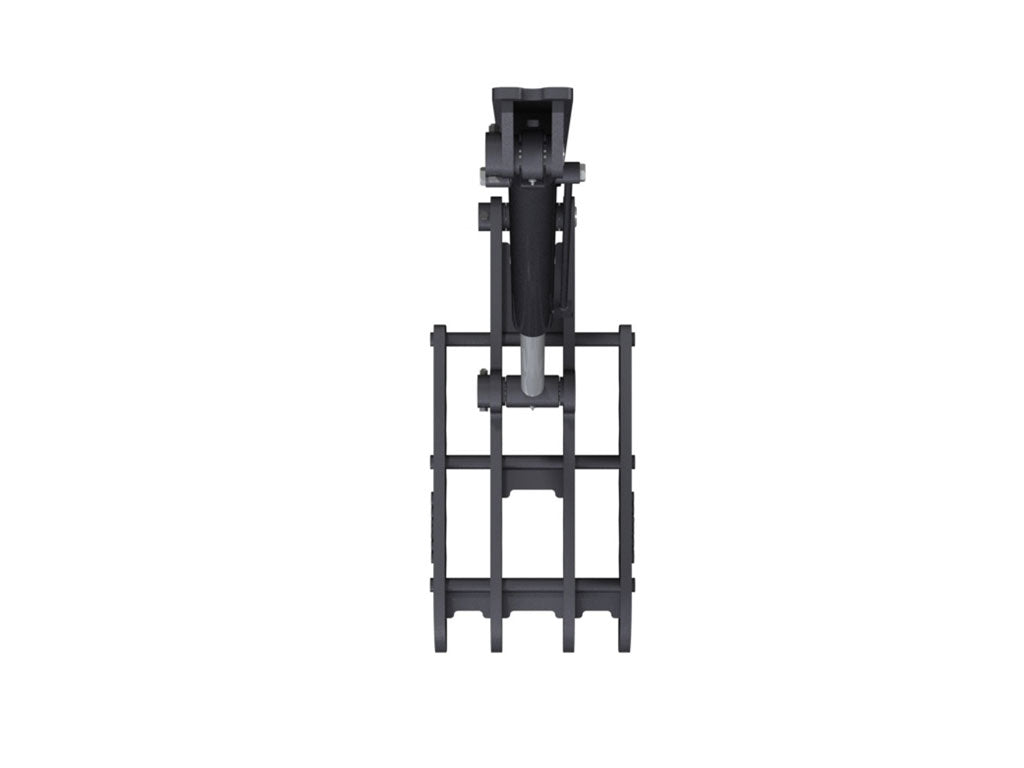

Introducing the HT2458 Hydraulic Weld-On Thumb by Gentec – built tough for large contractors. This 24" wide and 58" long thumb is designed for machines between 40,000lbs and 54,000lbs, and weighs 779lbs. Constructed with four 1 1/2" thick AR400 Steel Tines in a ladder frame layout and reinforced with gussets, our HT2458 thumb is designed for increased strength and long-lasting durability.The double-sealed welded cylinder further enhances reliability, and spherical bushings at the top of the cylinder protect it from side loading. The cylinder comes with a hydraulic cushion at the top of the stroke to protect it during retraction and has both hydraulic ports located at the top so your hydraulic hoses are safe and out of the way. Additionally, both cylinder pins and the thumb main pin are greaseable for easy maintenance. The main pin and main bushings are hardened for added durability.

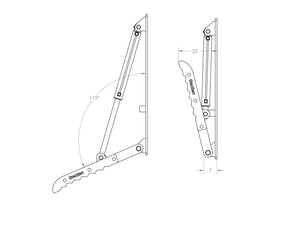

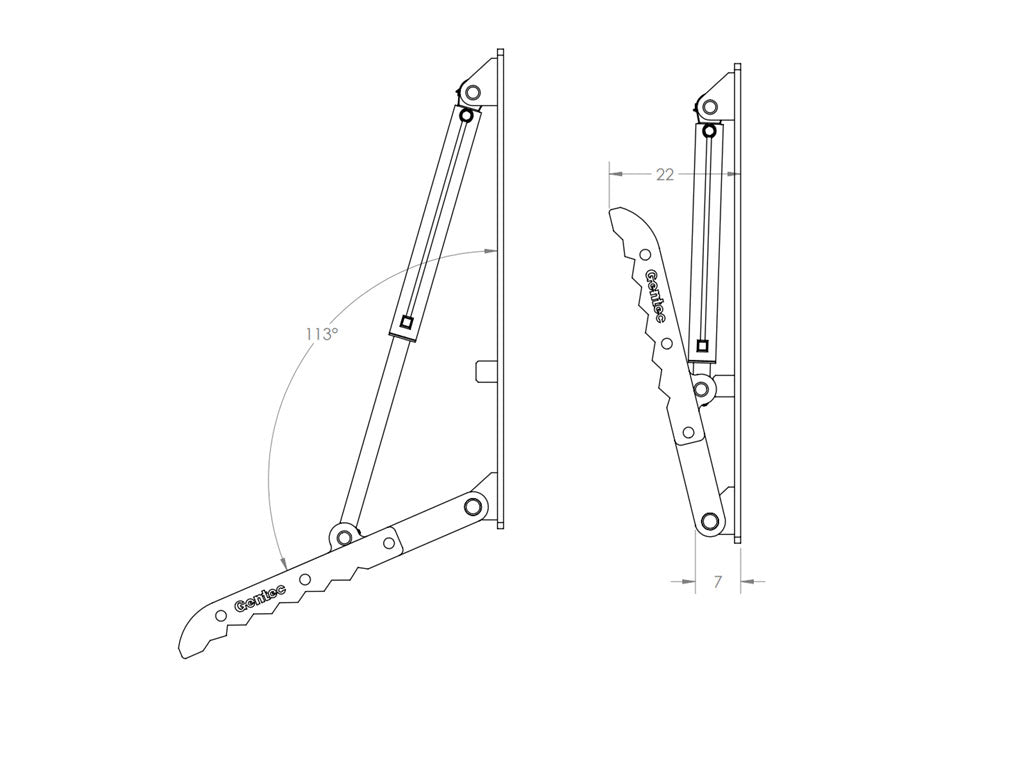

Experience superior geometry with the HT2458. The thumb boasts a maximum extension angle of 113 degrees. Designed to minimize stowed dimensions, when fully retracted, the tines only extend 22" away from the edge of the excavator stick – meaning it won't get in your way when digging. The backplate measures 78 5/8”, and the hydraulic cylinder is included. The port size on the cylinder is larger to allow for faster cycling.
Maximize your investment
Invest in the HT2458 to maximize the capabilities of your excavator and get the job done faster and more efficiently. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the HT2458 Hydraulic Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.

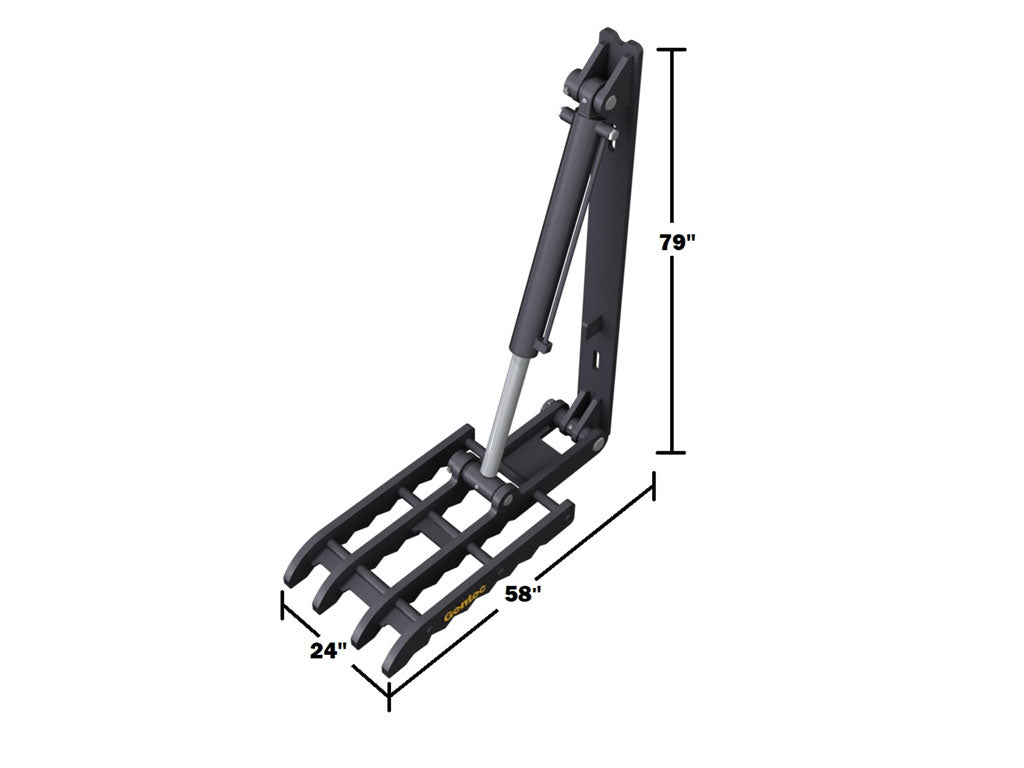

24” wide, 58” long hydraulic thumb
Ideal for machines between 40,000lbs and 54,000lbs
Four 1 1/2” thick AR400 Steel Tines assembled in a ladder frame layout and with gussets
Double-sealed welded cylinder with spherical bushings for increased reliability
Both cylinder ports located at top of cylinder to prevent hose damage
Hydraulic cushion at the top of the stroke for cylinder protection
Greaseable pins and hardened main pin and main bushings for easy maintenance
113-degree maximum extension angle
Minimized stowed dimensions for optimal digging performance
78 5/8” backplate
Hydraulic cylinder included with larger port size for faster cycling
Replacement parts available
** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.
⚠ Pro Tip!If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.
Main Pin Diameter
Max. Extension Angle
Min. Operating Weight
Max. Operating Weight
Excavator Weight Class
40,000lbs to 54,000lbs
SAMPLE LIST ONLY
CX210, CX225, CX235, 9030B
318C, 320C, E200B
200-3, 220-3, S225, S255
180CW, 180G, 190GW, 200C, 200D
225CRTS, 245G, 210G, 210CW, 690D/E
S225-V, S225N-V, S225S-V
Z200LC, Z210LC, Z225US
SK210, 200SR, 235SR,
X3, 235LX, 210LX, LS2800Q
9040, 9045, CX240, CX280
CX240D, CX290, CX270
322CL, 325C, 225B/D
300G, 290G, 250G, 230G, 270C, 230C, 790D/E
ZX250, ZX290, ZX245, ZX240-3, ZX270-3, 270LCV
SK250, SK220-IV, SK270-IV
PC220, PC250, PC270-8, PC308
225MSR, 240LX, 290LX, 3400
EC215, EC240, E215
Thumbs usually ship out within (3) days

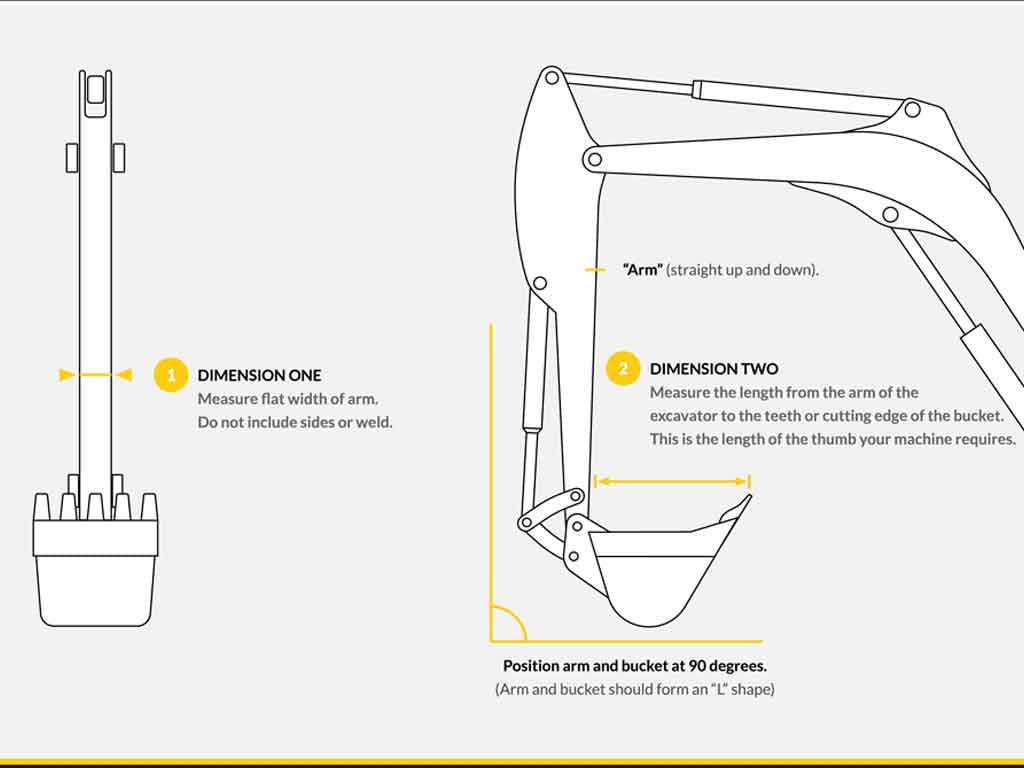

Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

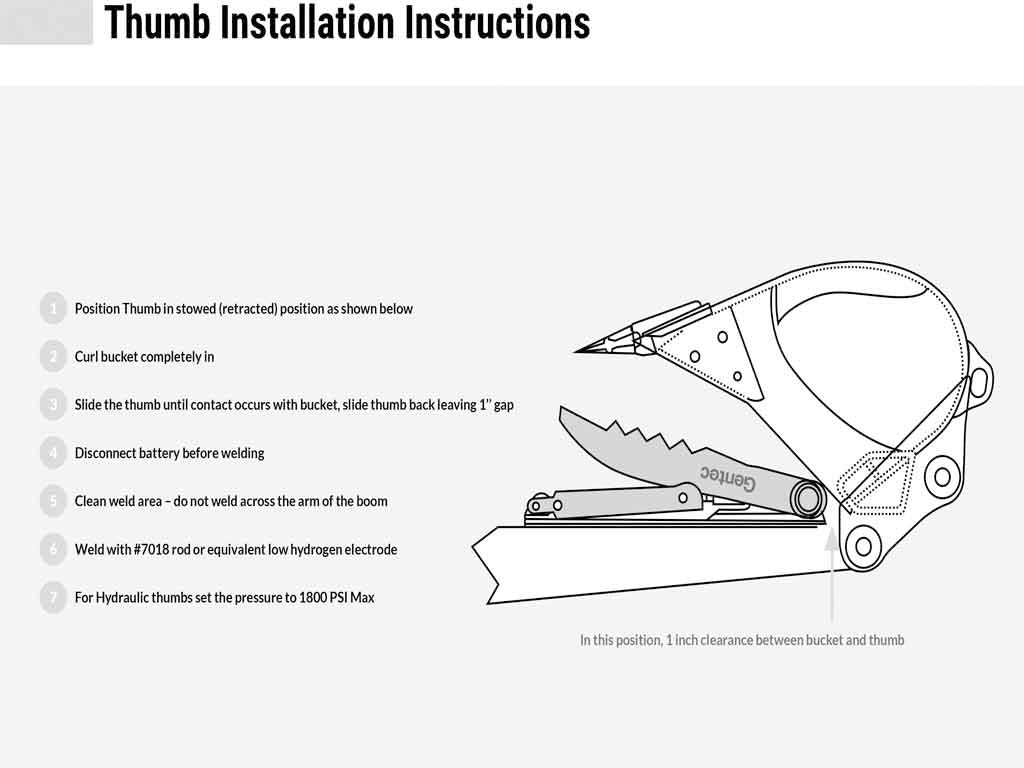

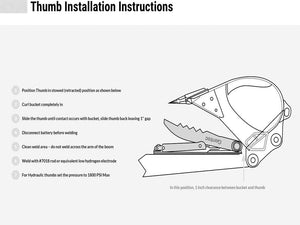

Please follow these instructions when installing your thumb.
