MT3262

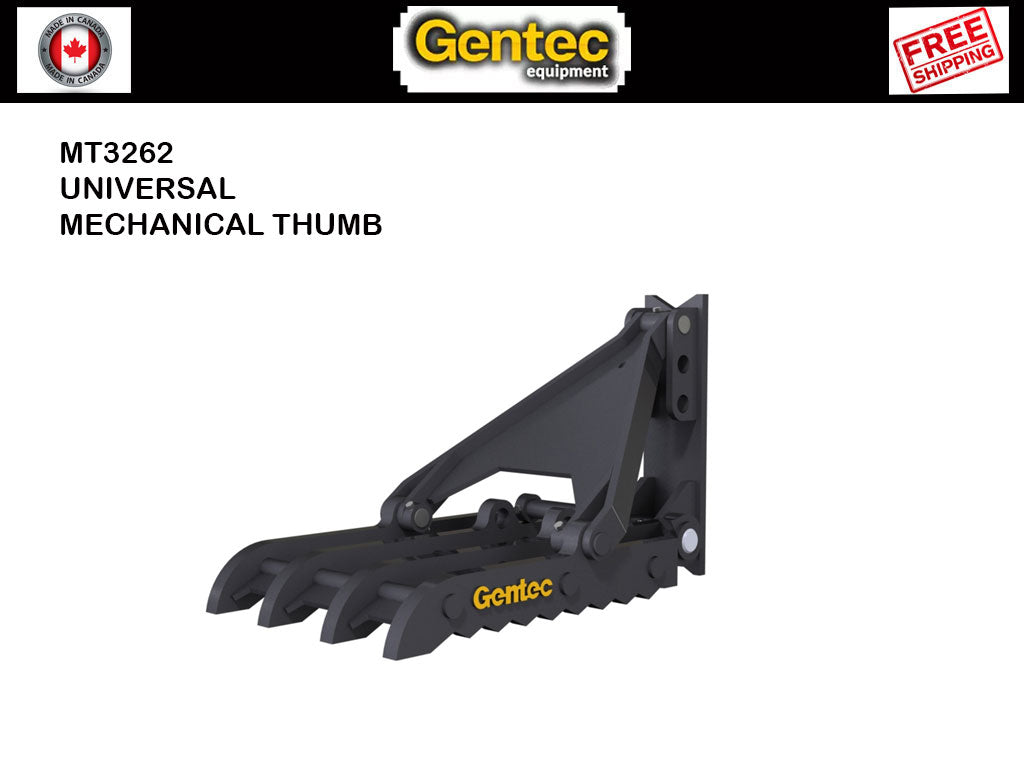

MT3262 Gentec Universal mechanical excavator thumbs, 55000-100000 lbs. excavators
$5,500.00
2/24
Built-Tough

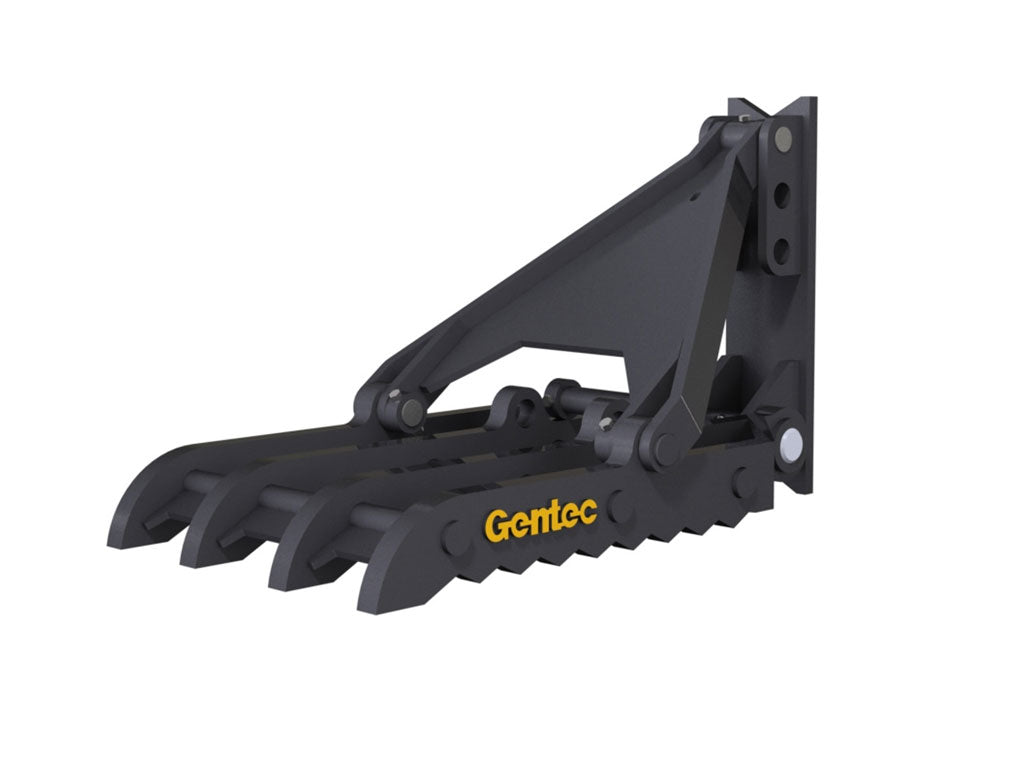

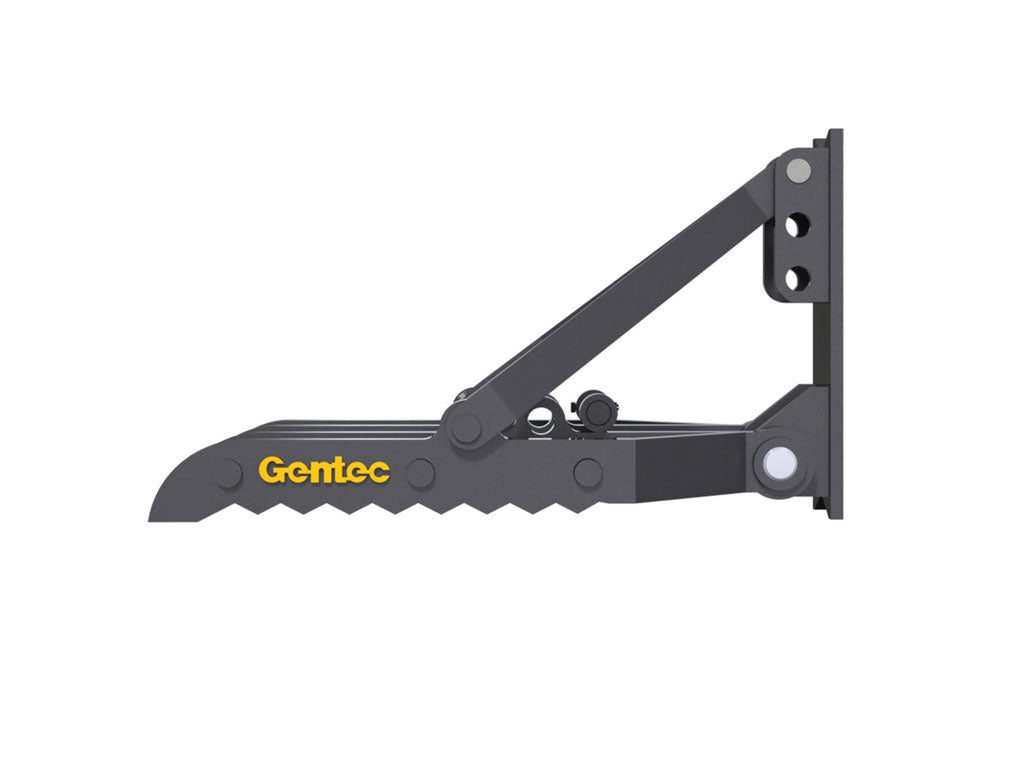

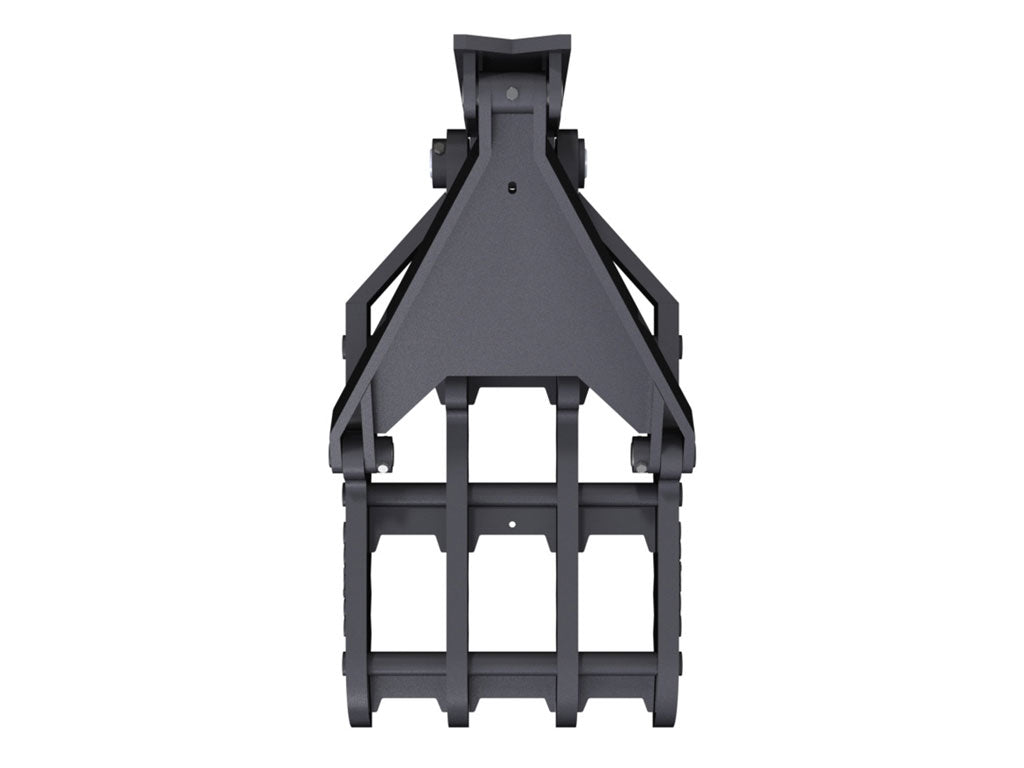

The MT3262 Mechanical Weld-On Thumb is designed for machines between 55,000lbs and 75,000lbs. It is 32" wide and 62" long, features four 2" thick AR400 steel tines assembled in a ladder frame layout and reinforced with gussets for increased strength and long-lasting durability. The A-Frame construction of the link significantly enhances the design by providing greater torsional rigidity, making it an ideal choice for farmers and demolition contractors who require top-notch performance and longevity. For added durability, the main pin and bushings are hardened.
Superior Geometry

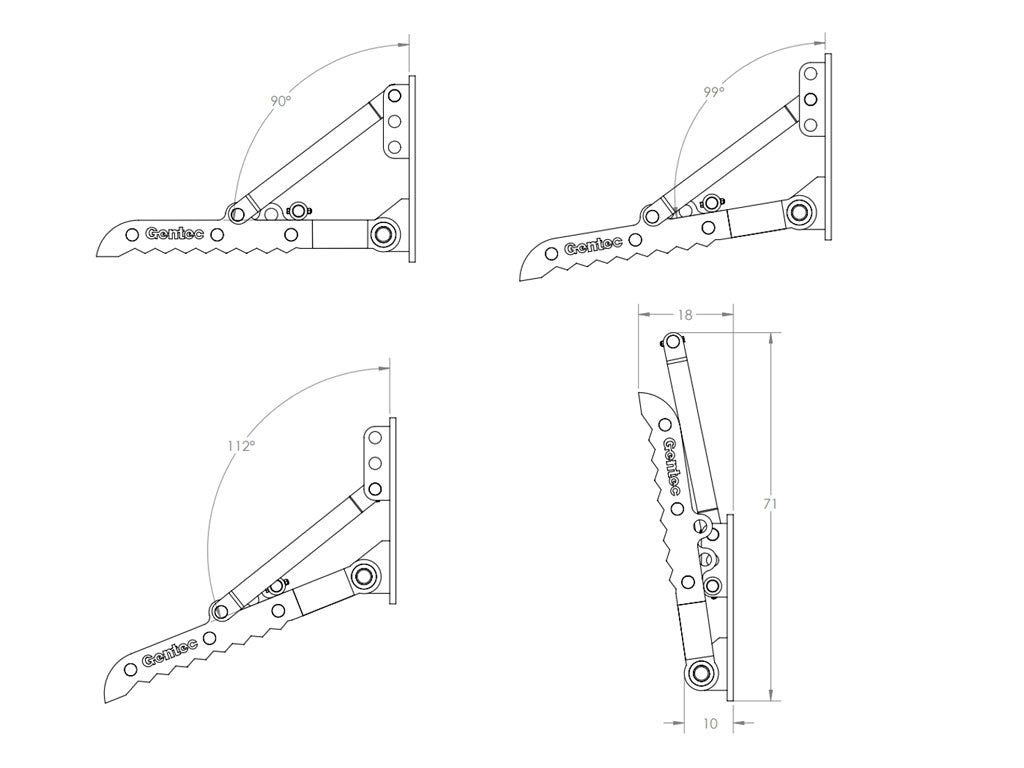

The MT3262 Mechanical Weld-On Thumb offers exceptional versatility with its three-position adjustability at 90 degrees, 99 degrees, and 112 degrees. When not in use, the thumb stows away easily, occupying only 71" of vertical space on the excavator stick and extending a mere 18" off the stick when stowed. This ensures it won't hinder your digging operations. With no loose parts when stowed, you can trust that your equipment remains secure and ready for use whenever necessary.
Maximize Your Investment
As a family-owned business with 35 years of experience and 50,000 satisfied clients, we understand the importance of delivering quality products that maximize your investment. The MT3262 Mechanical Weld-On Thumb enables you to get the most out of your machine, while its excellent adjustability and quick stowing capabilities ensure efficient and effective operation for farmers and demolition contractors alike.
Features
- Four 2" thick AR400 Steel Tines

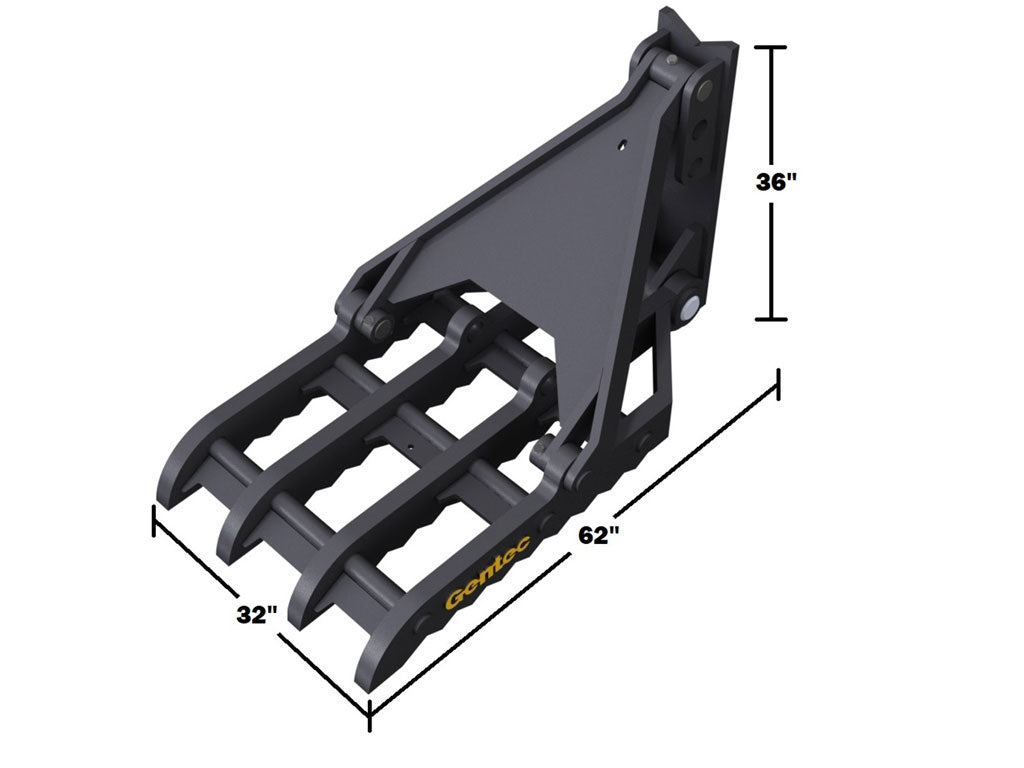

- 32" wide by 62" long
- Ladder frame layout with gussets for added strength

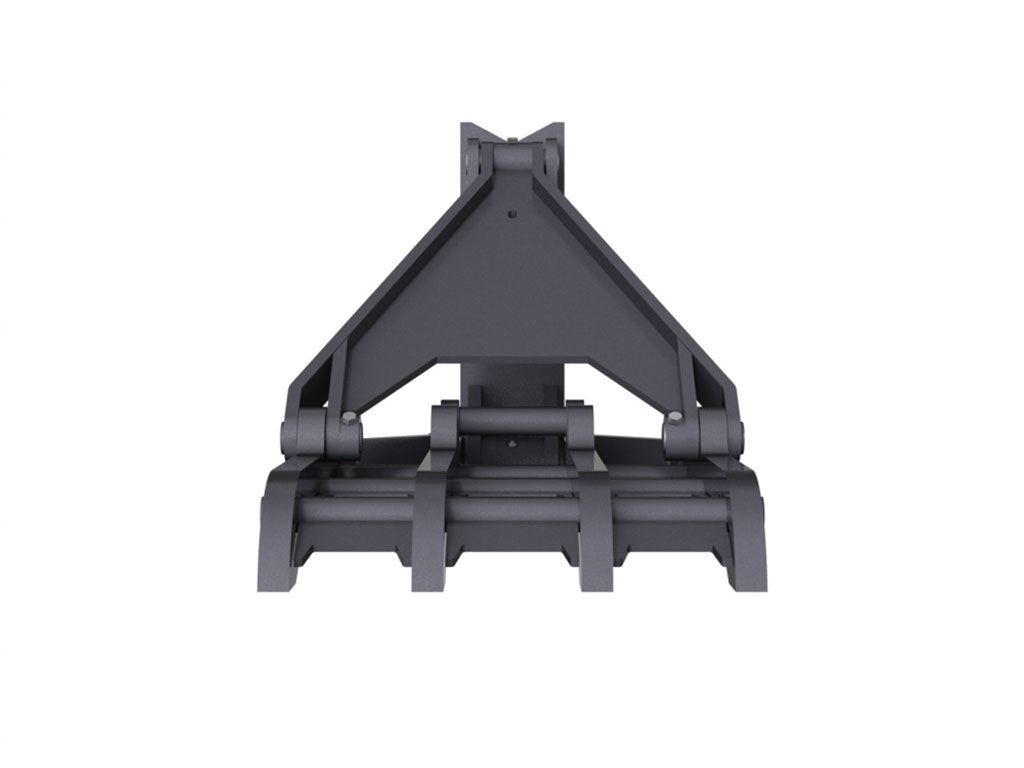

- A-Frame construction for increased torsional rigidity
- Three-position adjustability: 90 degrees, 99 degrees, and 112 degrees
- Quick stowing: takes up 71" of vertical room and only extends 18" off the stick when stowed
- Hardened main pin and bushings
- No loose parts when stowed
- Greaseable main pin for smooth operation and reduced wear
- Designed for machines between 55,000 and 75,000 lbs
- 1-year warranty
- Replacement parts readily available
** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.
⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.
| Operation | Mechanical |
|---|---|
| Width | 32" |
| Length | 62" |
| Net Weight | 1379lbs |
| Tine Thickness | 2" |
| Tine Material | Hardox 400 |
| Main Pin Diameter | 3 1/8" |
| Stowed-Position Height | 71.5" |
| Max. Extension Angle | 112 Degrees |
| Min. Operating Weight | 55,000lbs |
| Max. Operating Weight | 75,000lbs |
| Excavator Weight Class | 55,000lbs to 100,000lbs |
| Mounting | Weld-On |
SAMPLE LIST ONLY
| 45000-60000 LBS | |
| BRAND | MODELS |
| CASE |
9040, 9045, CX240, CX280 CX240D, CX290, CX270 |
| CAT | 322CL, 325C, 225B/D |
| DEERE |
300G, 290G, 250G, 230G, 270C, 230C, 790D/E |
| DOOSAN | SOLAR255-V |
| HITACHI | ZX250, ZX290, ZX245, ZX240-3, ZX270-3, 270LCV |
| HYUNDAI |
R220LC-9S, R250LC7 |
| JCB | JS220, JS260 |
| KOBELCO |
SK250, SK220-IV, SK270-IV |
| KOMATSU | PC220, PC250, PC270-8, PC308 |
| LINK BELT | 225MSR, 240LX, 290LX, 3400 |
| NEW HOLLAND |
EC215, EC240, E215 |
| SANY | SY235 |
| SAMSUNG | 280 |
| TEREX | TXC255 |
| VOLVO | EC240B, 290B |
| 65000-80000 LBS | |
| BRAND | MODELS |
| CASE | CX330, 9050B |
| CAT | 330CL, E300 |
| DAEWOO | S340LCV, 330LCV |
| DEERE |
350G, 380G, 892 350D, 330CLC, 370CLC |
| DOOSAN | DX300, DX340 |
| HITACHI | ZX350, ZX380, ZX330, ZX370 |
| HYUNDAI |
R320LC7, R360LC7 |
| JCB | JS330 |
| KOBELCO |
SK290LC-DA, SK330LC-DA SK350LC |
| KOMATSU | PC300LC-7 |
| LINK BELT | 330LX, 4300Q |
| NEW HOLLAND |
EC350-LC |
| SANY | SY335 |
| TEREX | TXC300, TXC340 |
| VOLVO | EC330B, EC360B |
| 80000-110000 LBS | |
| BRAND | MODELS |
| CASE | CX450, CX460, 9060B |
| CAT | 345BL, 345CL, 350F/G, 235/B/C/D |
| DAEWOO | S450-III, S470LCV |
| DEERE |
470G, 450D, 450CLC, 992E |
| DOOSAN | DX420, DX480 |
| HITACHI | ZX470, EX450-V, Z450LC |
| HYUNDAI |
4500-7, R450LC-7, R450LC-3 |
| JCB | JS450, JS460 |
| KOBELCO |
SK480LC-DA, SK400LC |
| KOMATSU | PC400-7, PC450-6 |
| LINK BELT | 460LX, 5800Q |
| NEW HOLLAND |
EX450LC |
| TEREX | TXC420, TXC470, TXC480 |
| VOLVO | EC460B |
Thumbs usually ship out within (3) days

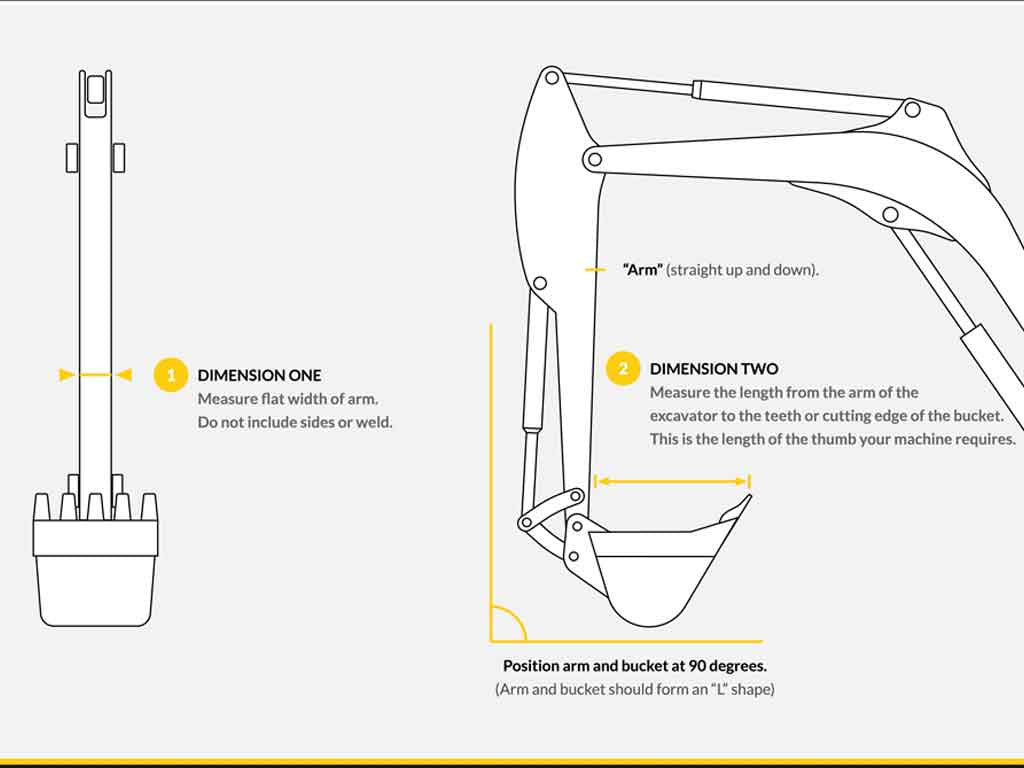

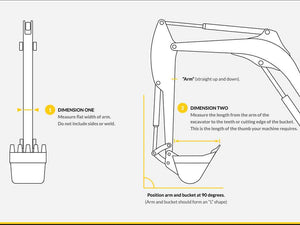

MEASUREMENTS
Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

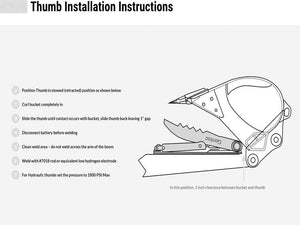

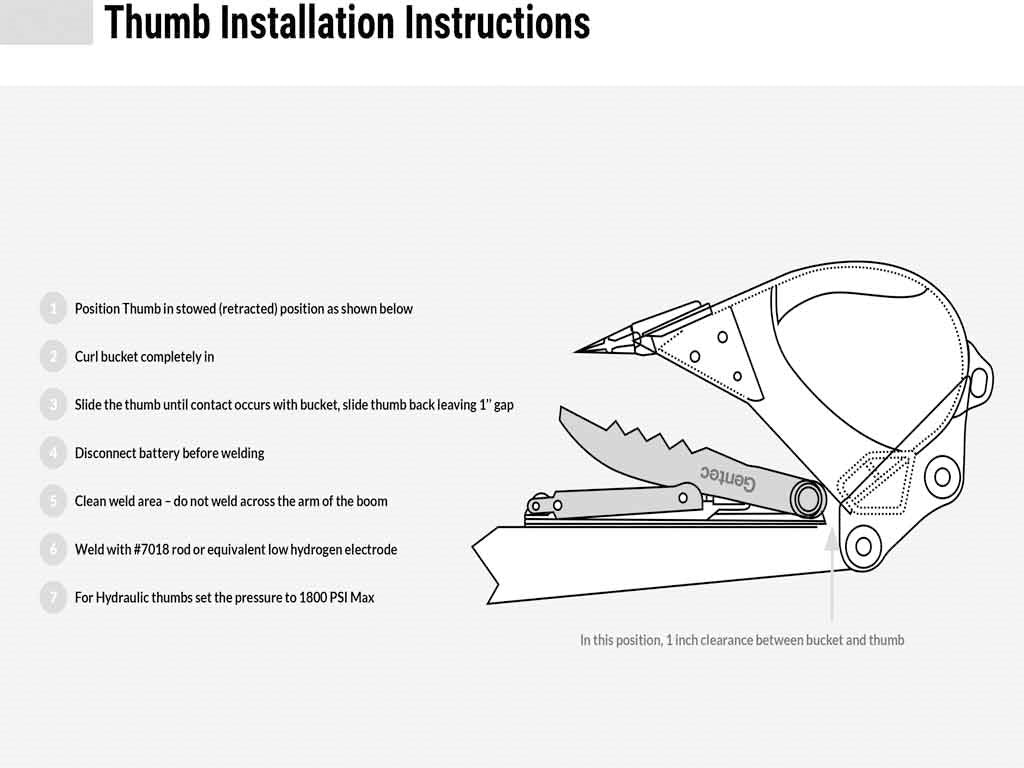

INSTALLATION
Please follow these instructions when installing your thumb.
