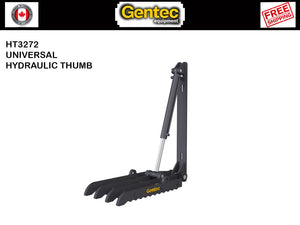

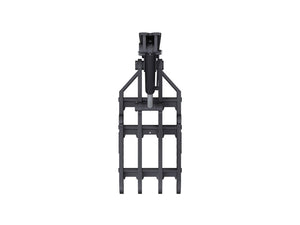

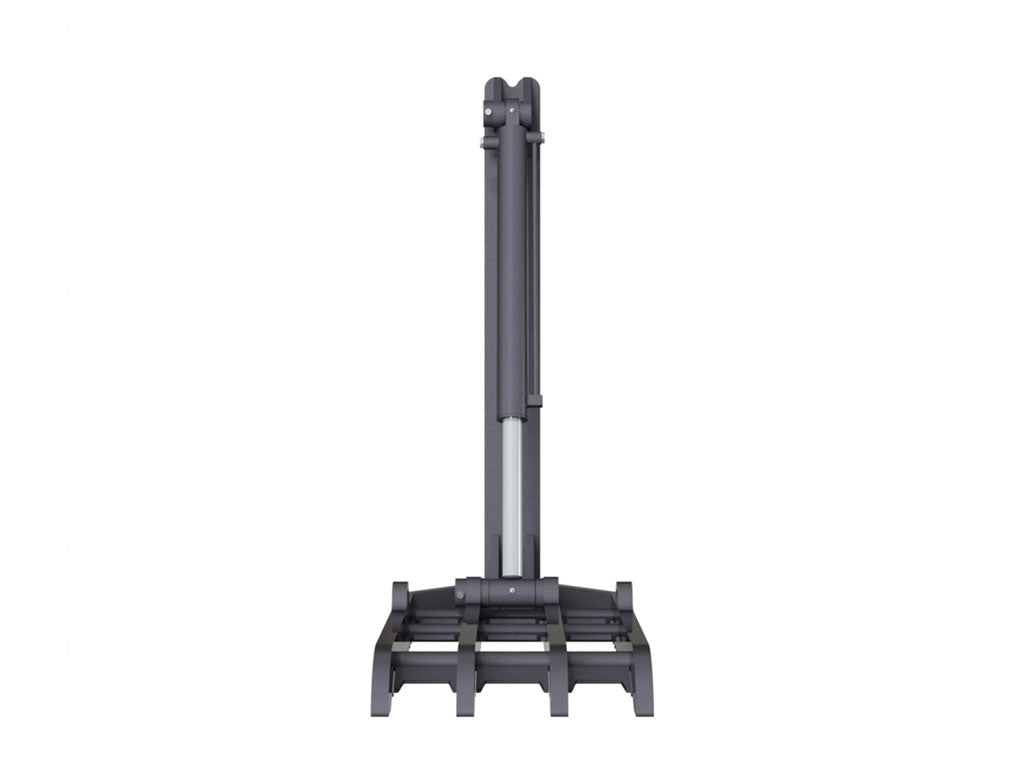

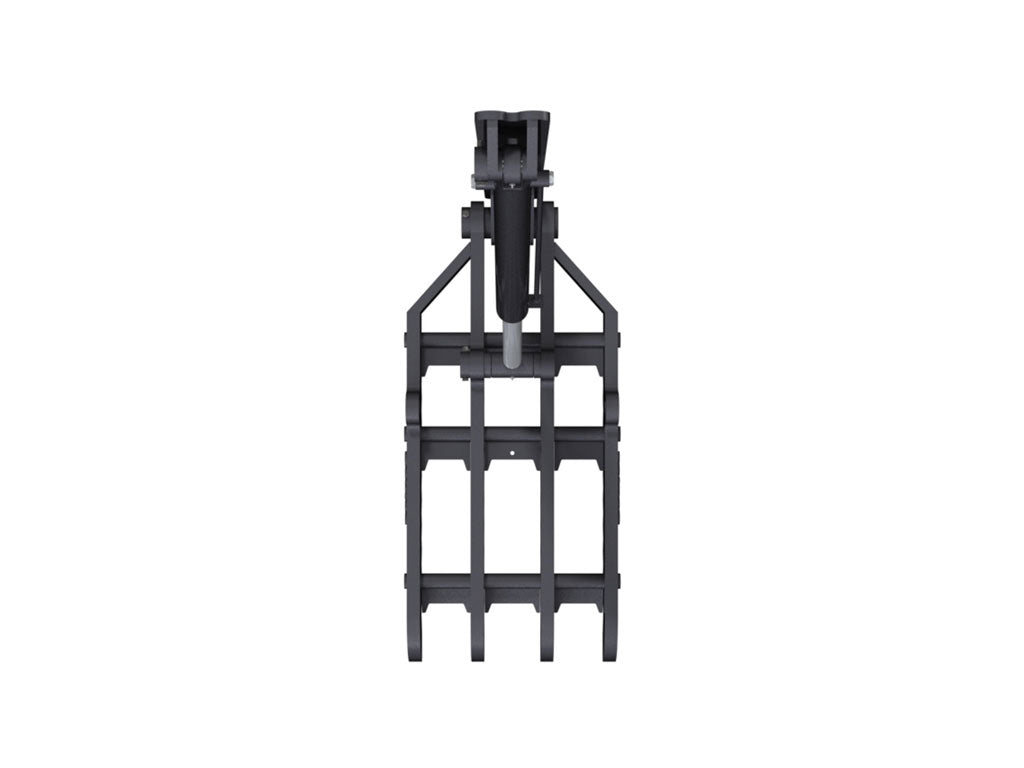

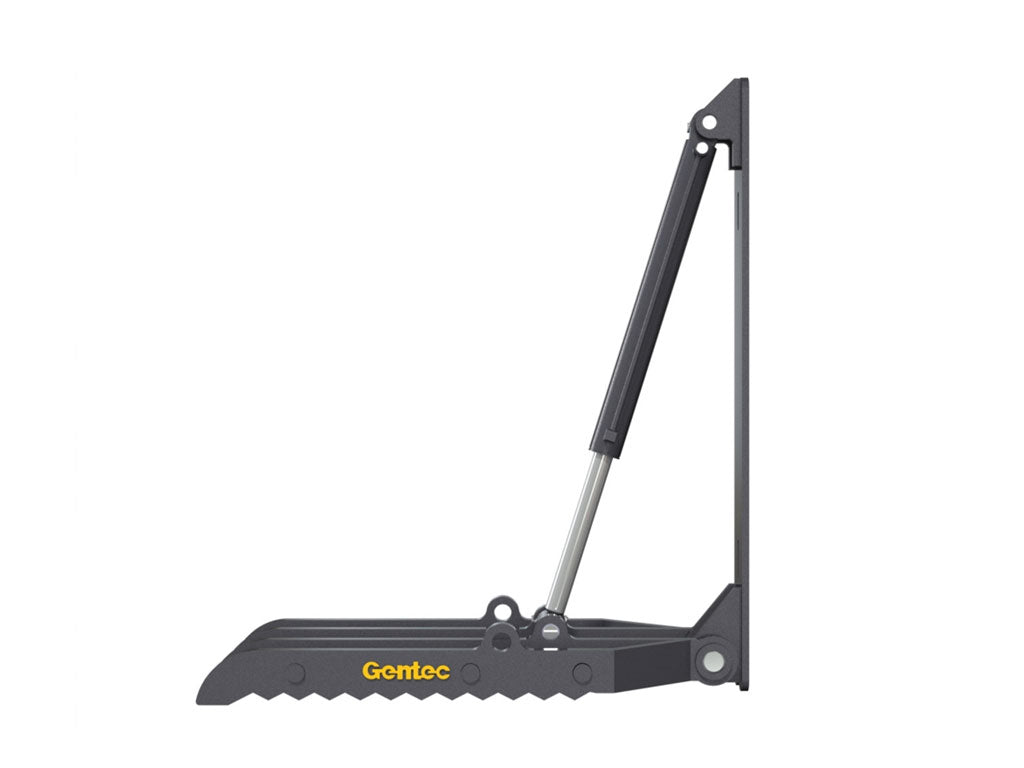

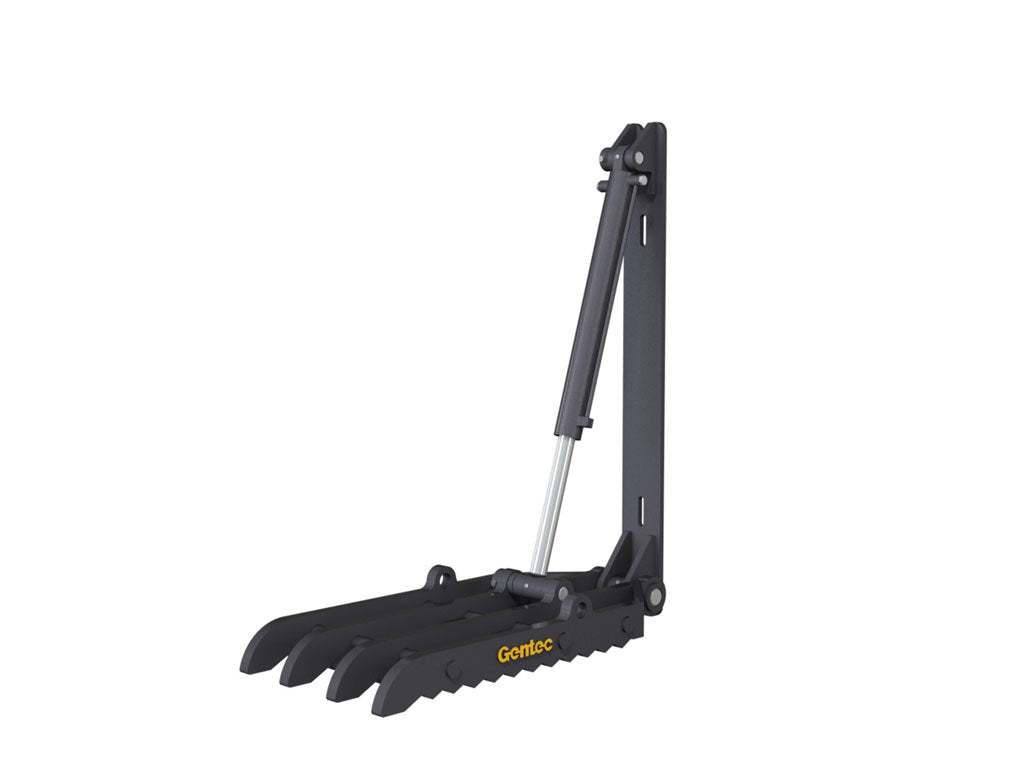

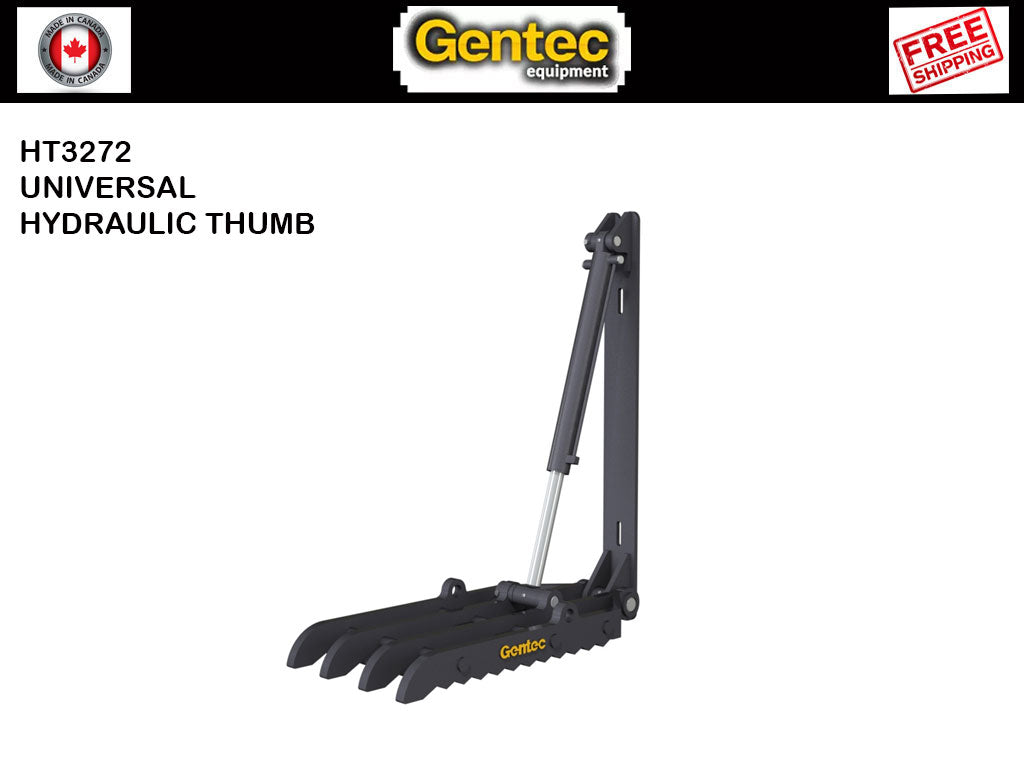

Introducing the HT3272 Hydraulic Weld-On Thumb by Gentec – built tough for large contractors. This 32" wide and 72" long thumb is designed for machines between 65,000lbs and 100,000lbs, and weighs 1498lbs. Constructed with four 2" thick AR400 Steel Tines in a ladder frame layout and reinforced with gussets, our HT3272 thumb is designed for increased strength and long-lasting durability.The double-sealed welded cylinder further enhances reliability, and spherical bushings at the top of the cylinder protect it from side loading. The cylinder comes with a hydraulic cushion at the top of the stroke to protect it during retraction and has both hydraulic ports located at the top so your hydraulic hoses are safe and out of the way. Additionally, both cylinder pins and the thumb main pin are greaseable for easy maintenance. The main pin and main bushings are hardened for added durability.

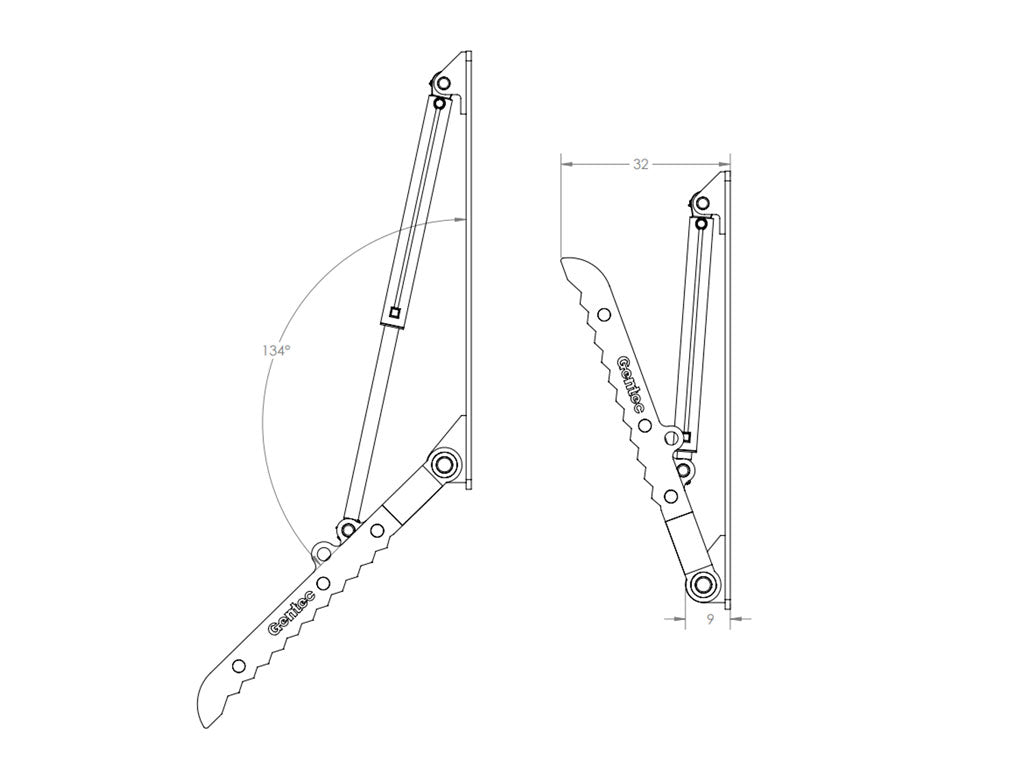

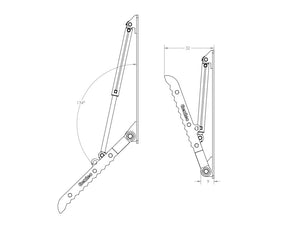

Experience superior geometry with the HT3272. The thumb boasts a maximum extension angle of 134 degrees. Designed to minimize stowed dimensions, when fully retracted, the tines only extend 32" away from the edge of the excavator stick – meaning it won't get in your way when digging. The backplate measures 83 3/8”, and the hydraulic cylinder is included. The port size on the cylinder is larger to allow for faster cycling.
Maximize your investment
Invest in the HT3272 to maximize the capabilities of your excavator and get the job done faster and more efficiently. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the HT3272 Hydraulic Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.

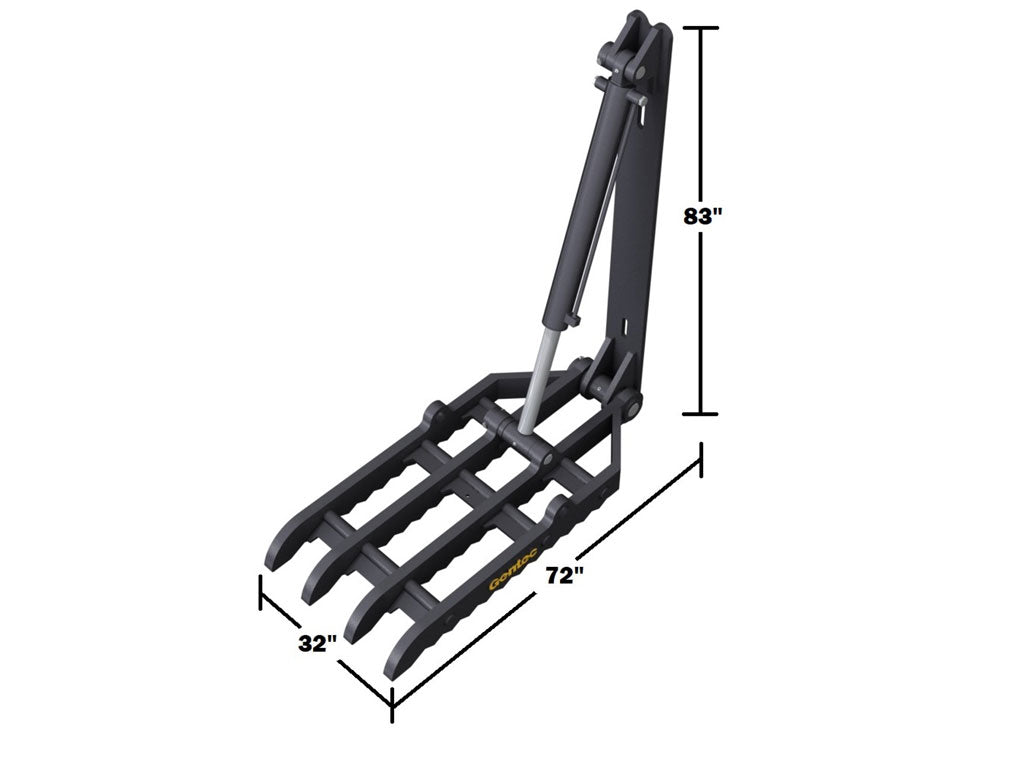

32 wide, 72” long hydraulic thumb
Ideal for machines between 65,000lbs and 100,000lbs
Four 2” thick AR400 Steel Tines assembled in a ladder frame layout and with gussets
Double-sealed cylinder and spherical bushings for increased reliability
Both cylinder ports located at top of cylinder to prevent hose damage
Hydraulic cushion at the top of the stroke for cylinder protection
Greaseable pins and hardened main pin and main bushings for easy maintenance
134-degree maximum extension angle
Minimized stowed dimensions for optimal digging performance
83 3/8” backplate
Hydraulic cylinder included with larger port size for faster cycling
Replacement parts available
** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.
⚠ Pro Tip!If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.
Main Pin Diameter
Max. Extension Angle
Min. Operating Weight
Max. Operating Weight
Excavator Weight Class
55,000lbs to 100,000lbs
SAMPLE LIST ONLY
350G, 380G, 892
350D, 330CLC, 370CLC
ZX350, ZX380, ZX330, ZX370
CX450, CX460, 9060B
345BL, 345CL, 350F/G, 235/B/C/D
470G, 450D, 450CLC, 992E
ZX470, EX450-V, Z450LC
4500-7, R450LC-7, R450LC-3
TXC420, TXC470, TXC480
Thumbs usually ship out within (3) days

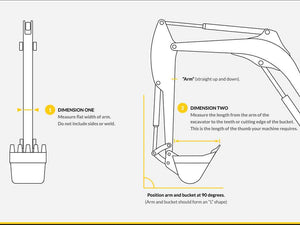

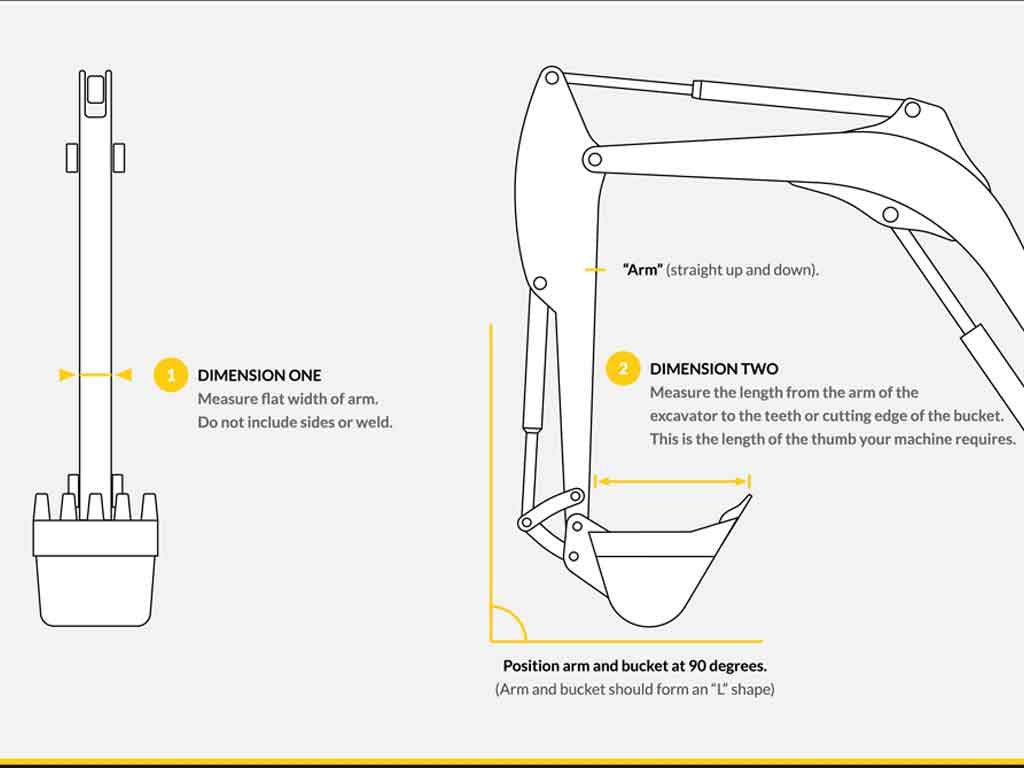

Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

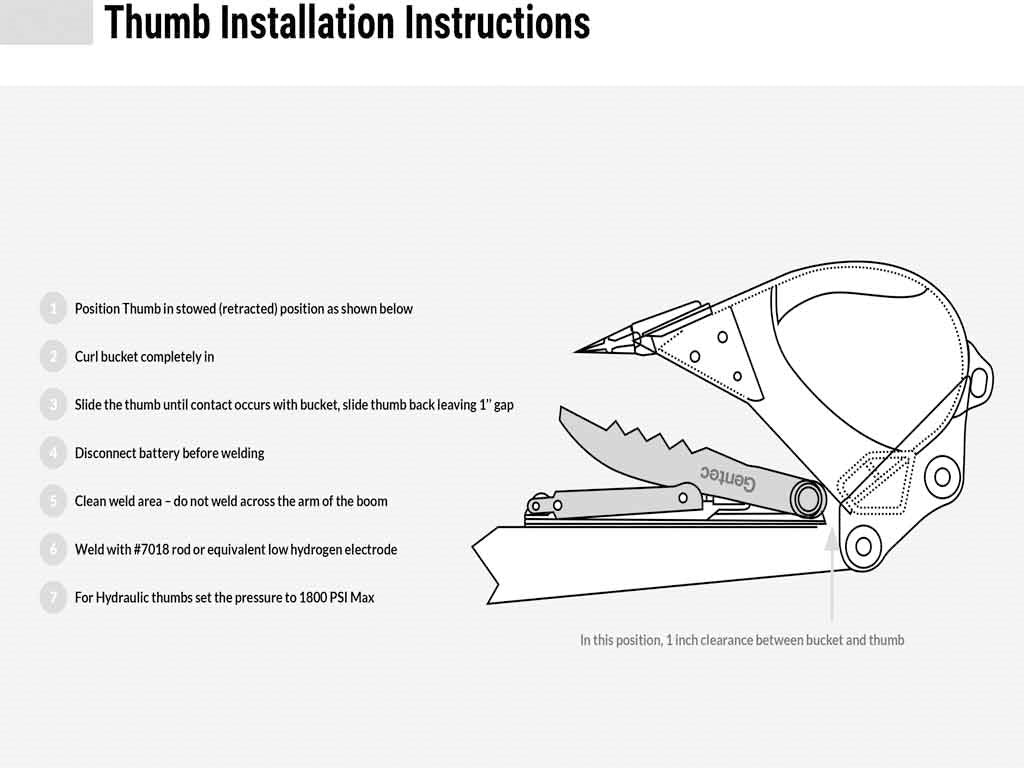

Please follow these instructions when installing your thumb.
