HT824

HT824 Gentec Universal hydraulic excavator thumbs, 4000-9900 lbs excavators

2/24

Gentec Equipment

Built-Tough

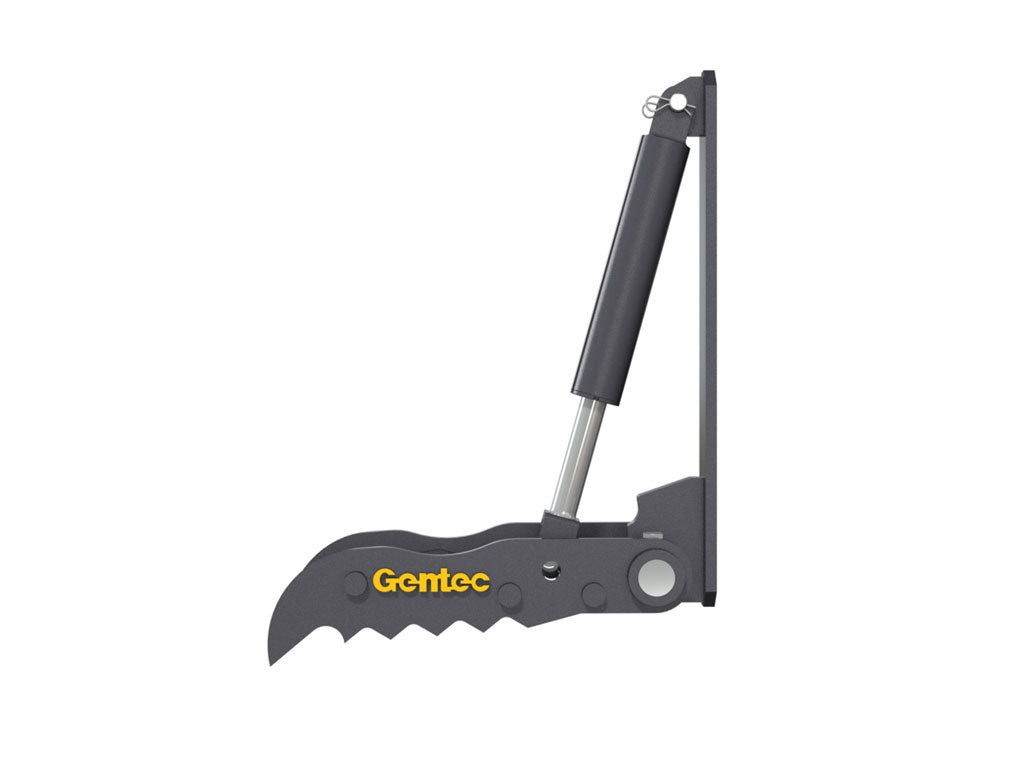

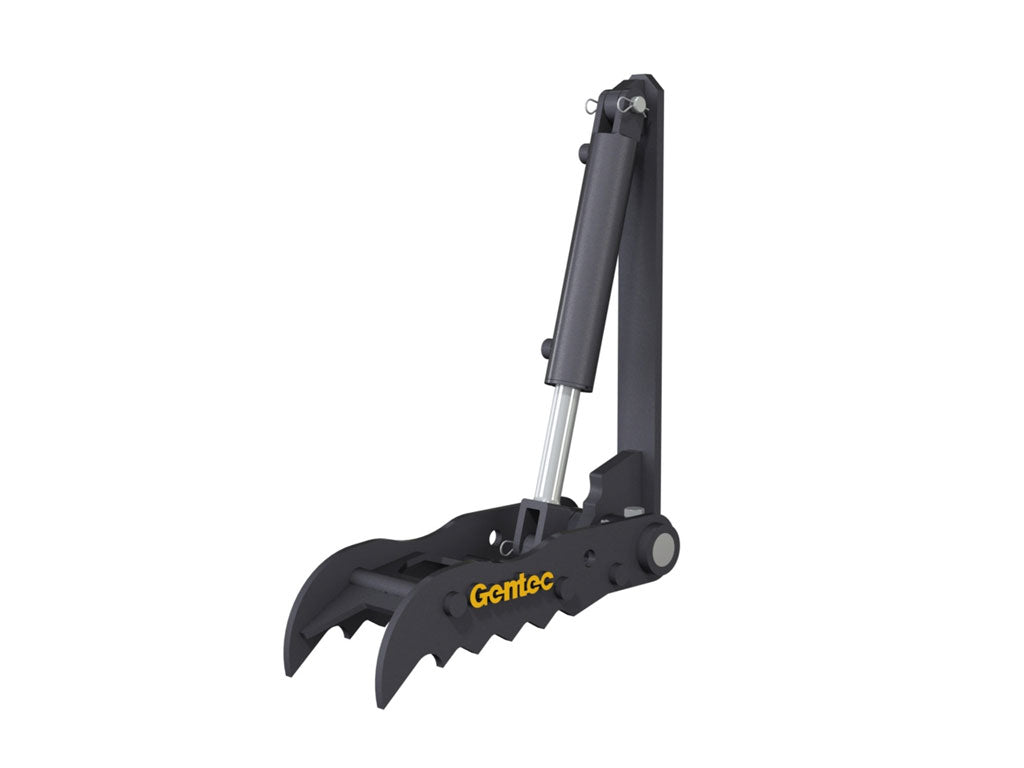

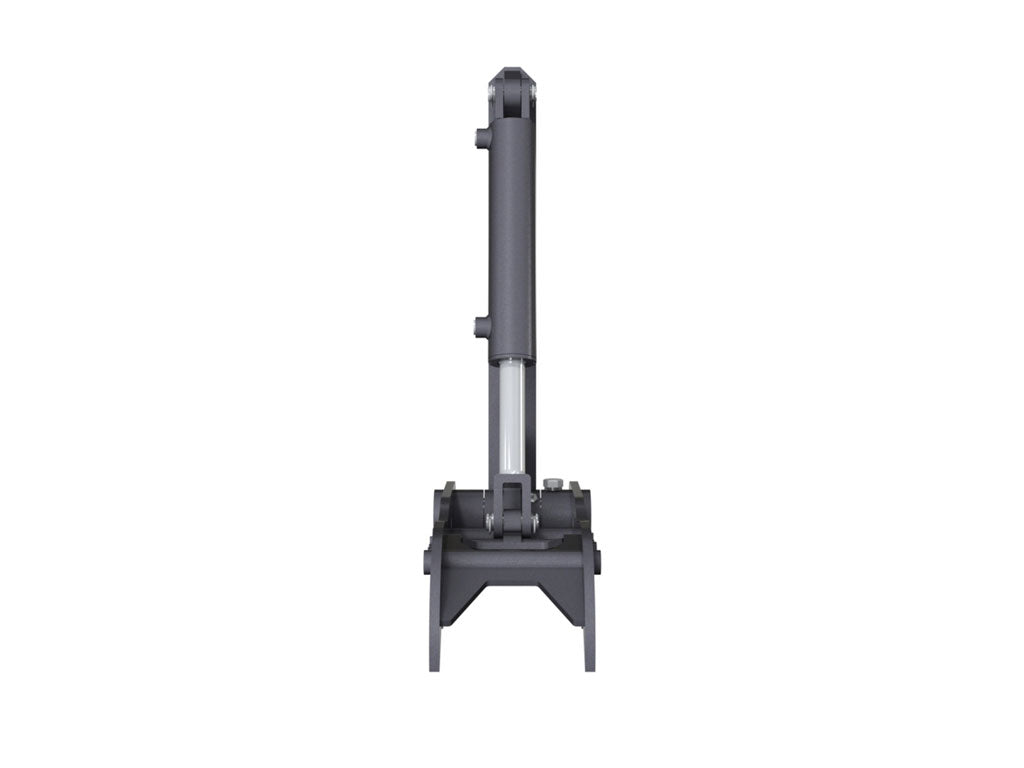

Introducing the HT824 Hydraulic Weld-On Thumb, built-tough for contractors, homeowners, and landscapers who demand reliability and durability. Our 8"x24" thumb is designed for machines between 4,000lbs and 9,000lbs and weighs just 107lbs. Constructed from 1/2" thick AR400 steel tines in a ladder frame construction with gussets, it's designed for increased strength and long-lasting durability. Trust in the HT824's double-sealed welded cylinder, ensuring increased reliability for years to come. Both the cylinder pins and main pin are greaseable, ensuring smooth operation and reduced wear.

Superior Geometry

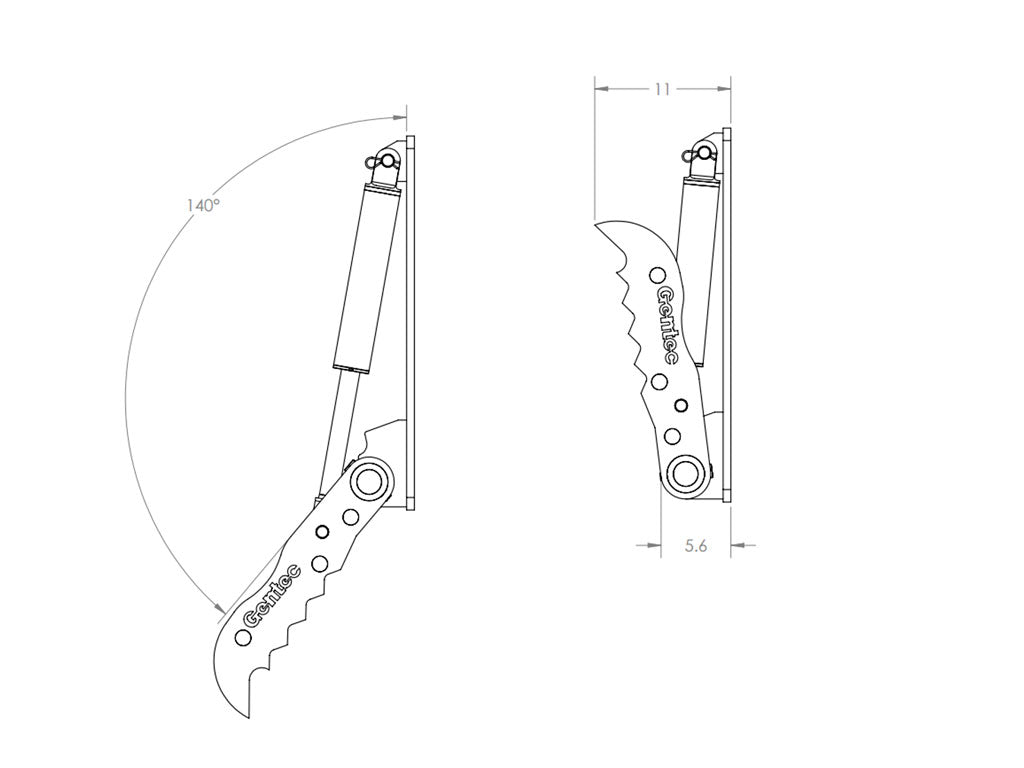

Experience the superior geometry of the HT824 Hydraulic Weld-On Thumb. With a maximum extension angle of 140 degrees, it outperforms the competition, offering greater versatility and ease of use. When fully retracted, the tines only extend 11" away from the edge of the excavator stick, ensuring minimal stowed dimensions and preventing interference when digging. The thumb's geometry is designed to mechanically stop the tine assembly from causing cylinder lock-out when retracted, protecting your equipment and guaranteeing a smooth operation.

Maximize Your Investment

Invest in the HT824 to maximize the capabilities of your excavator and get the job done faster and more efficiently. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the HT824 Hydraulic Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.

Features

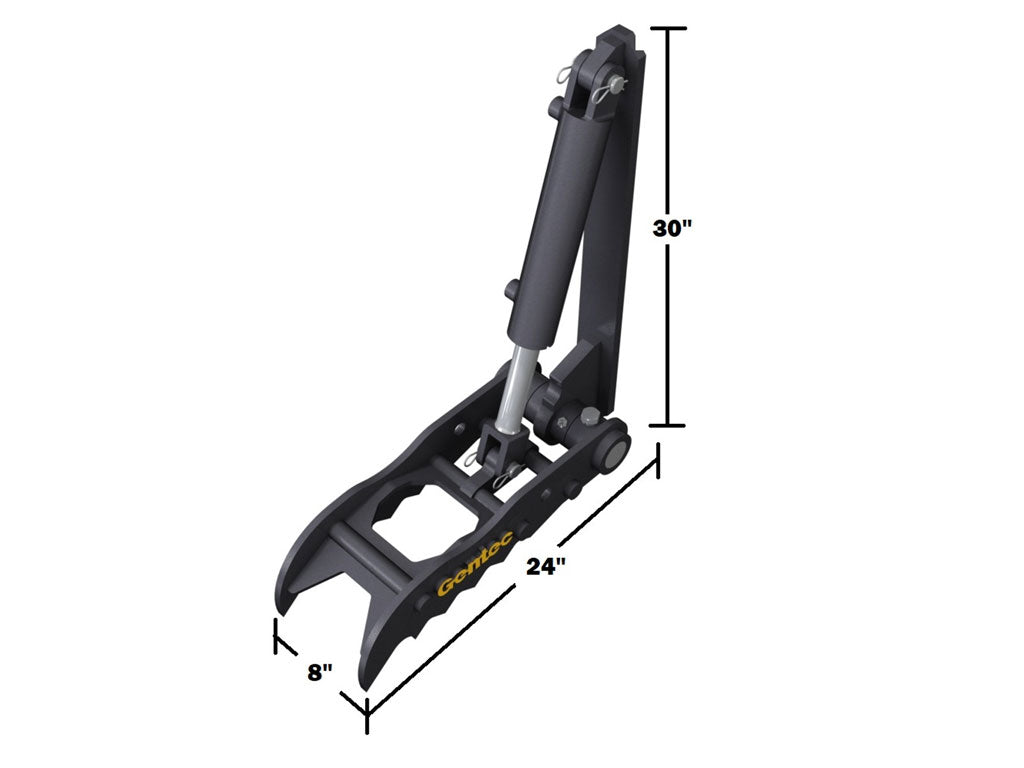

  • 8" wide, 24" long
  • Ideal for machines between 4,000lbs and 9,000lbs
  • 1/2" thick AR400 steel tines assembled in a ladder frame layout and with gussets
  • Double-sealed welded cylinder for increased reliability
  • Thumb geometry designed to mechanically prevent cylinder lock-out when retracted
  • Maximum extension angle of 140 degrees
  • Minimal stowed dimensions with tines extending only 11" from excavator stick
  • Greaseable cylinder pins and main pin
  • 30" backplate
  • Hydraulic cylinder included
  • 1 year Warranty
  • Replacement Parts Readily Available

            ** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.

            ⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.

            Operation Hydraulic
            Width 8"
            Length 24"
            Net Weight 107lbs
            Tine Thickness 1/2"
            Tine Material Hardox 400
            Main Pin Diameter 2"
            Stowed-Position Height 30"
            Max. Extension Angle 140 Degrees
            Min. Operating Weight 4,000lbs
            Max. Operating Weight 9,000lbs
            Excavator Weight Class 4,000lbs to 9,900lbs







             SAMPLE LIST ONLY

            4000 - 8000 lbs. excavators
             BRAND MODELS
            BOBCAT



            E26, E32, E35, 331, 334, 430
            CASE CX27B, CX31B, CX36B, CX25, CX27, CX31, CX36



            CAT



            302.5C, 303.5CCR, 303CCR
            DEERE 26G, 35G, 27D, 35D, 110, 27C, 35C
            DOOSAN

            SOLAR030, SOLAR035

            GEHL

            303, 353, 373, 383Z, ME3003

            HITACHI



            ZX27U-2, ZX35U-2, EX27U, EX30
            HYUNDAI R28-7, R35-7, R36N-7
            IHI 24V4, 30V4, 35V4, 25NX, 28N, 30NX, 35N, 35NX



            JCB 803, 8025, 8030, 8035
            KOBELCO

            27SR-3, 30SR-3, 35SR-3

            SK25, SK27, SK30, SK35

            KOMATSU PC27Mr-2, PC35Mr-2
            KUBOTA

            KX61-3, KX71, KX91-3, KX121-3

            U25, U35, L39, KX040



            MUSTANG

            3003, 3503, 3703, 3803

            NEW HOLLAND

            E27, E30, E35

            EC25, EH35

            TAKEUCHI TB125, TB135, TB138FR, TB240, TB228, TB230, TB235



            TEREX

            HR14/TC29

            VOLVO

            EC25, EC30, EC35

            ECR28, ECR38

            WACKER

            28Z3, 3503, 38Z3

            YANMAR Vio27-3, Vio35-3, CBL40



            8000 - 12000 lbs. excavators
            BRAND MODELS
            BOBCAT E42, E45, E50, E55, 337, 341, 435
            CASE CX50B, CX50, CX47
            CAT 304CCR, 305CCR, 304.5, 304CR, 305CR
            DAEWOO SOLAR50, SOLAR55
            DEERE  50G, 50D, 50C
            DOOSAN SOLAR55-V, SOLAR55-W
            GEHL 503Z, 603, 502, 602, 652
            HITACHI ZX50U-2, ZX60USB-5
            HYUNDAI R55-7, R552-7
            IHI 45V4, 55V4, 60V4, 45NX, 55NX
            JCB 8040, 8045, 8050, 8052, 48Z-1, 51R-1, 55Z-1
            KOBELCO 50SR-3, SK045, SK050
            KOMATSU

            PC40Mr-2, PC50Mr-2, PC58UU-3

            PC45

            KUBOTA KX151-3, KX161-3, U45
            NAGANO NS-45
            MUSTANG 5002, 6002, 6003, 6502
            NEW HOLLAND E50, EC45, EH45
            TEREX

            HR16/TC35, HR3.7/TC37, HR18

            TC48, HR5.0/TC50, HR20/TC60

            THOMAS
            T45
            VOLVO

            EC45Pro, EC55BPro

            WACKER 50Z3, 6003, 6503
            YANMAR

            Vio40-3, Vio-50-3

            Vio45-6A, Vio55-6A



            Thumbs usually ship out within (3) days

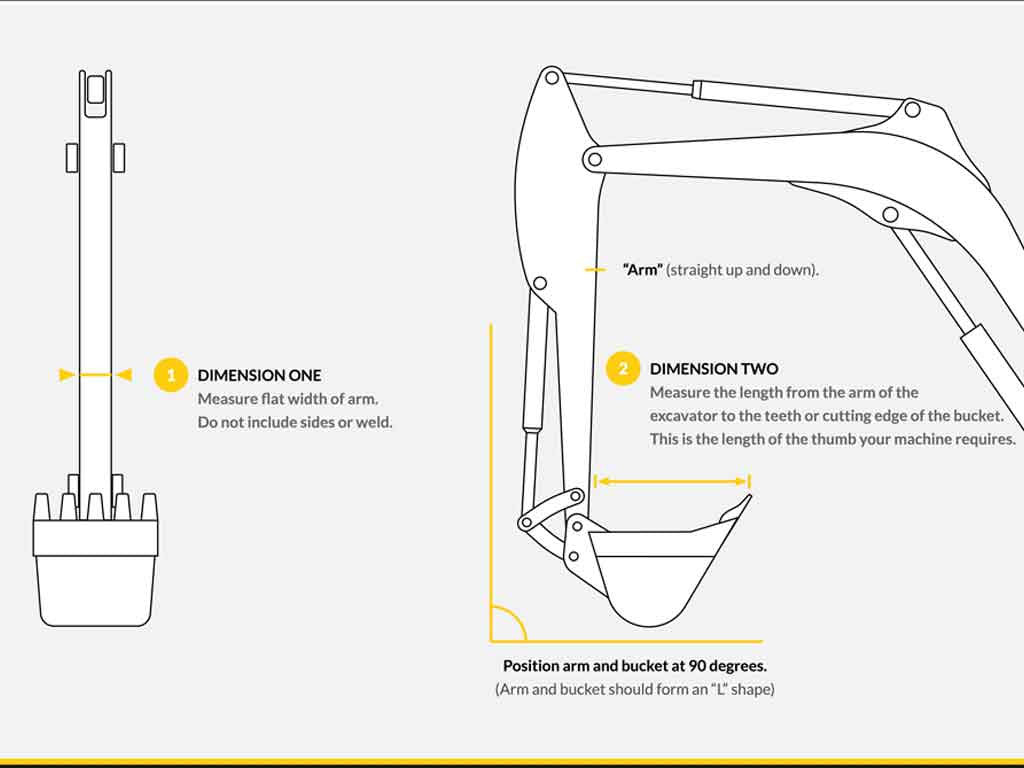

            MEASUREMENTS

            Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

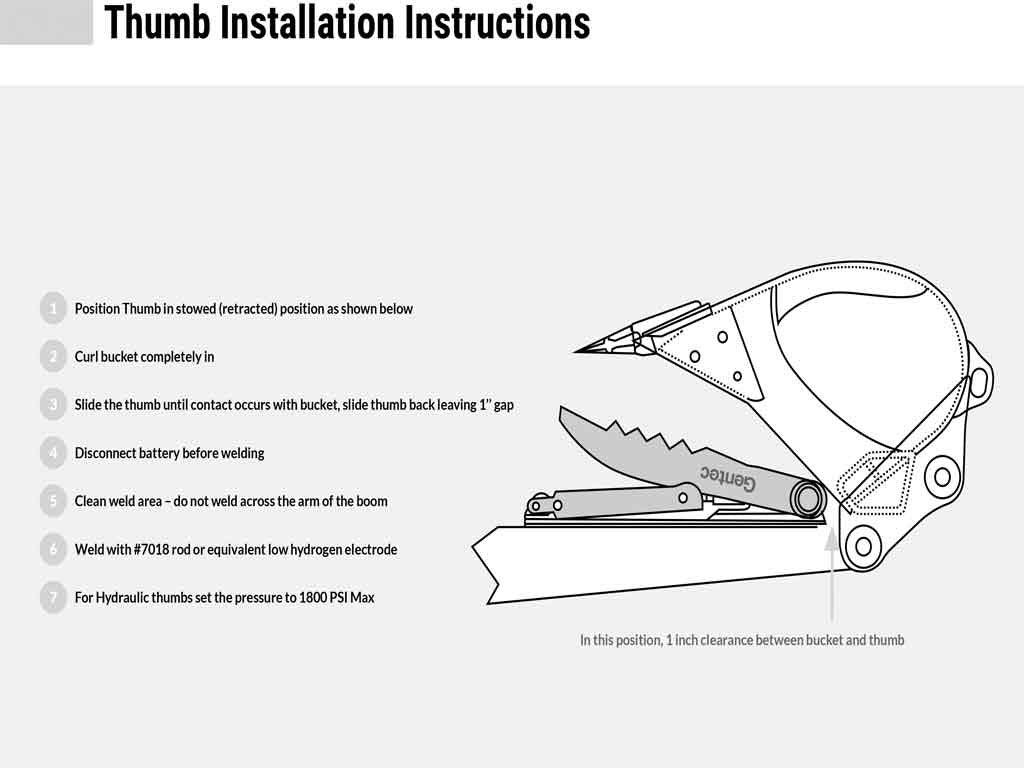

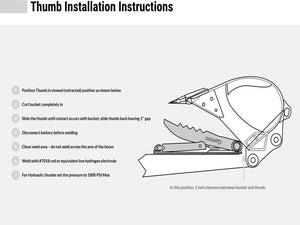

            INSTALLATION

            Please follow these instructions when installing your thumb.
