HT830

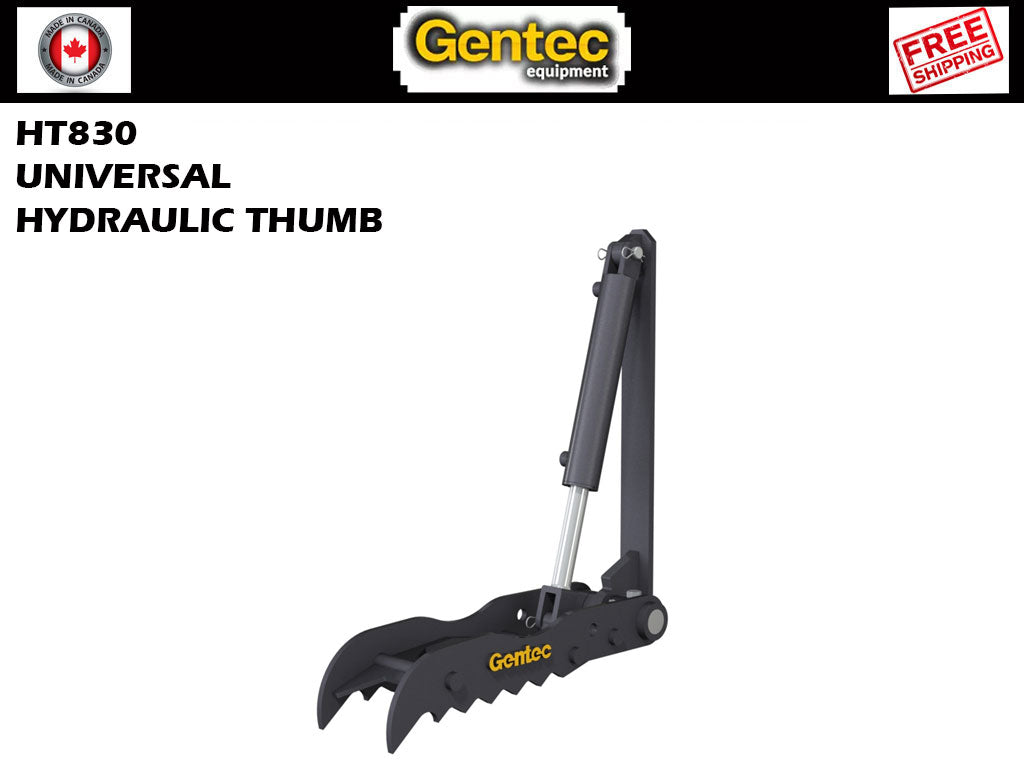

HT830 Gentec Universal hydraulic excavator thumbs, 4000-9900 lbs excavators

2/24

Gentec Equipment

Built-Tough

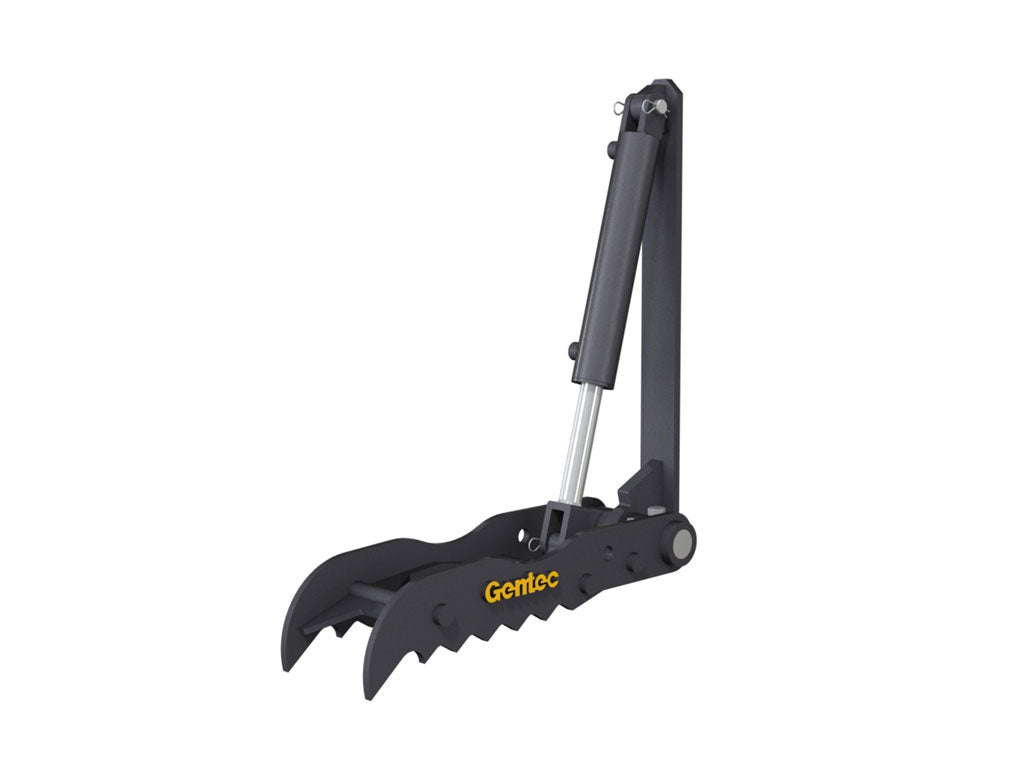

Introducing the HT830 Hydraulic Weld-On Thumb, built-tough for contractors, homeowners, and landscapers who demand reliability and durability. Our 8"x24" thumb is designed for machines between 6,000lbs and 9,900lbs and weighs just 117lbs. Constructed from 1/2" thick AR400 steel tines in a ladder frame layout with gussets, it's designed for increased strength and long-lasting durability. Trust in the HT830's double-sealed welded hydraulic cylinder, ensuring increased reliability for years to come. Both the cylinder pins and the thumb's main pin are greaseable, ensuring smooth operation and reduced wear.

Superior Geometry

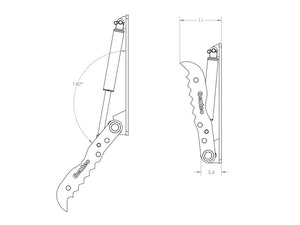

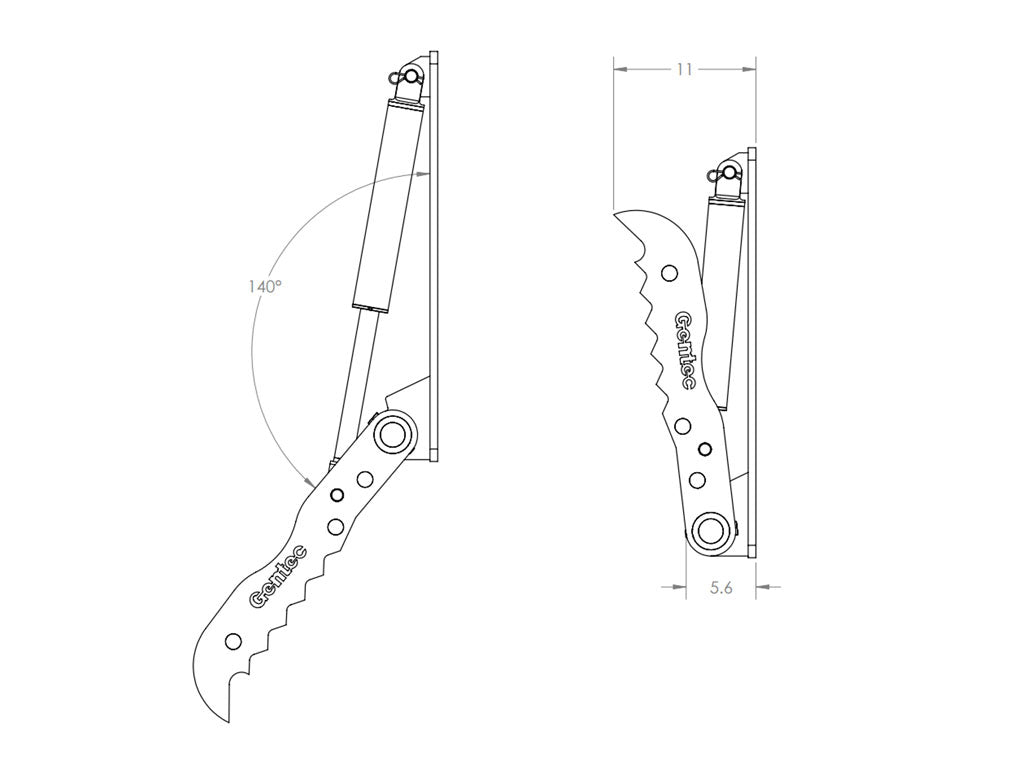

Experience the superior geometry of the HT830 Hydraulic Weld-On Thumb. With a maximum extension angle of 140 degrees, it outperforms the competition, offering greater versatility and ease of use. When fully retracted, the tip of the tines only extend 11" away from the edge of the excavator stick, ensuring minimal stowed dimensions and preventing interference when digging. The thumb's geometry is designed to mechanically stop the tine assembly from causing cylinder lock-out when retracted, protecting your equipment and guaranteeing a smooth operation.

Maximize Your Investment

Invest in the HT830 to maximize the capabilities of your excavator and get the job done faster and more efficiently. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the HT830 Hydraulic Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.

Features:

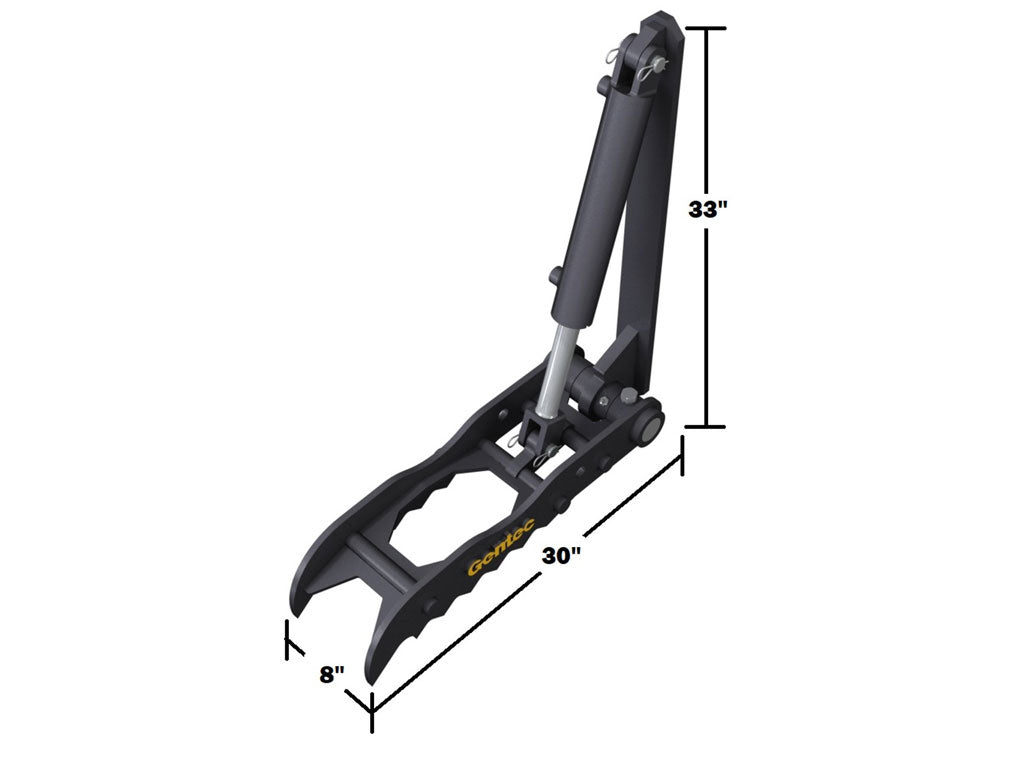

  • 8" wide, 30" long
  • Ideal for machines between 4,000lbs and 9,900lbs
  • 1/2" thick AR400 steel tines assembled in a ladder frame layout and with gussets
  • Double-sealed welded cylinder for increased reliability
  • Thumb geometry designed to mechanically prevent cylinder lock-out when retracted
  • Maximum extension angle of 140 degrees
  • Minimal stowed dimensions with tines extending only 11" from excavator stick
  • Greaseable cylinder pins and main pin
  • 33" backplate
  • Hydraulic cylinder included
  • 1 year warranty
  • Replacement parts readily available

              ** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.

              ⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.

              Mounting Weld-On
              Operation Hydraulic
              Width 8"
              Length 30"
              Tine Thickness 1/2"
              Tine Material Hardox 400
              Main Pin Diameter 2"
              Stowed-Position Height 33"
              Max. Extension Angle 140 Degrees
              Min. Operating Weight 6,000lbs
              Max. Operating Weight 9,900lbs
              Net Weight 117lbs
              Excavator Weight Class 4,000lbs to 9,900lbs









               SAMPLE LIST ONLY

              4000 - 8000 lbs. excavators
               BRAND MODELS
              BOBCAT



              E26, E32, E35, 331, 334, 430
              CASE CX27B, CX31B, CX36B, CX25, CX27, CX31, CX36



              CAT



              302.5C, 303.5CCR, 303CCR
              DEERE 26G, 35G, 27D, 35D, 110, 27C, 35C
              DOOSAN

              SOLAR030, SOLAR035

              GEHL

              303, 353, 373, 383Z, ME3003

              HITACHI



              ZX27U-2, ZX35U-2, EX27U, EX30
              HYUNDAI R28-7, R35-7, R36N-7
              IHI 24V4, 30V4, 35V4, 25NX, 28N, 30NX, 35N, 35NX



              JCB 803, 8025, 8030, 8035
              KOBELCO

              27SR-3, 30SR-3, 35SR-3

              SK25, SK27, SK30, SK35

              KOMATSU PC27Mr-2, PC35Mr-2
              KUBOTA

              KX61-3, KX71, KX91-3, KX121-3

              U25, U35, L39, KX040



              MUSTANG

              3003, 3503, 3703, 3803

              NEW HOLLAND

              E27, E30, E35

              EC25, EH35

              TAKEUCHI TB125, TB135, TB138FR, TB240, TB228, TB230, TB235



              TEREX

              HR14/TC29

              VOLVO

              EC25, EC30, EC35

              ECR28, ECR38

              WACKER

              28Z3, 3503, 38Z3

              YANMAR Vio27-3, Vio35-3, CBL40



              8000 - 12000 lbs. excavators
              BRAND MODELS
              BOBCAT E42, E45, E50, E55, 337, 341, 435
              CASE CX50B, CX50, CX47
              CAT 304CCR, 305CCR, 304.5, 304CR, 305CR
              DAEWOO SOLAR50, SOLAR55
              DEERE  50G, 50D, 50C
              DOOSAN SOLAR55-V, SOLAR55-W
              GEHL 503Z, 603, 502, 602, 652
              HITACHI ZX50U-2, ZX60USB-5
              HYUNDAI R55-7, R552-7
              IHI 45V4, 55V4, 60V4, 45NX, 55NX
              JCB 8040, 8045, 8050, 8052, 48Z-1, 51R-1, 55Z-1
              KOBELCO 50SR-3, SK045, SK050
              KOMATSU

              PC40Mr-2, PC50Mr-2, PC58UU-3

              PC45

              KUBOTA KX151-3, KX161-3, U45
              NAGANO NS-45
              MUSTANG 5002, 6002, 6003, 6502
              NEW HOLLAND E50, EC45, EH45
              TEREX

              HR16/TC35, HR3.7/TC37, HR18

              TC48, HR5.0/TC50, HR20/TC60

              THOMAS
              T45
              VOLVO

              EC45Pro, EC55BPro

              WACKER 50Z3, 6003, 6503
              YANMAR

              Vio40-3, Vio-50-3

              Vio45-6A, Vio55-6A



              Thumbs usually ship out within (3) days

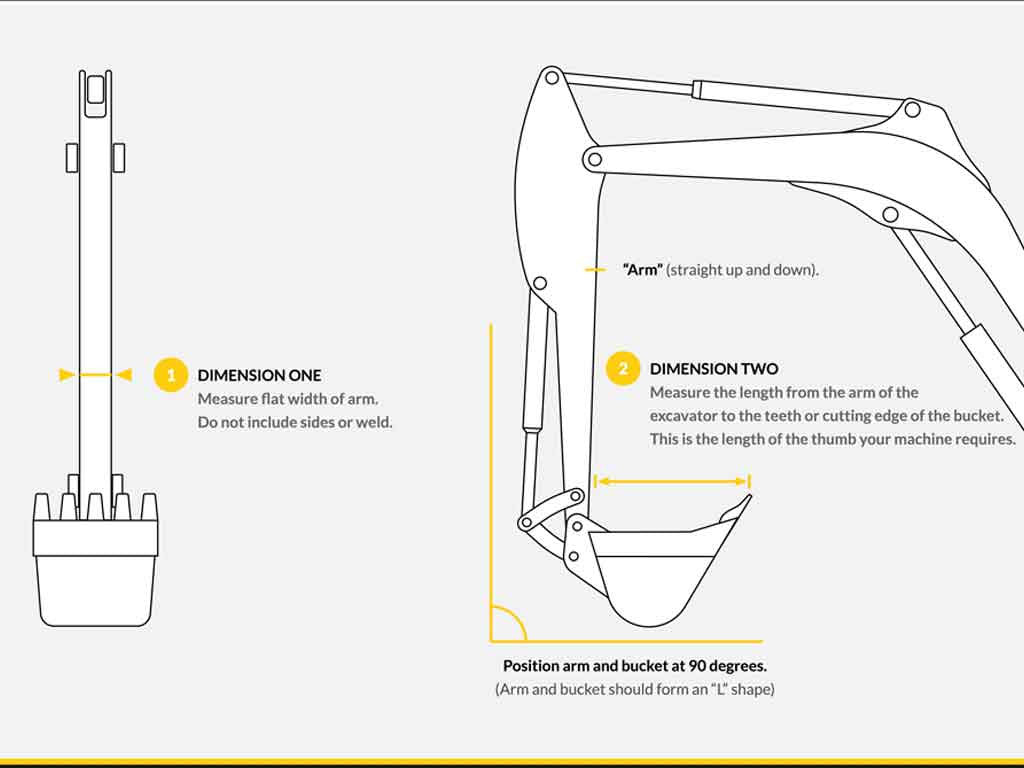

              MEASUREMENTS

              Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

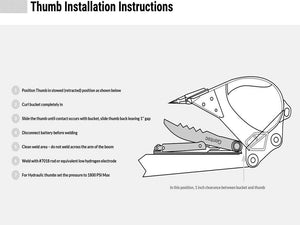

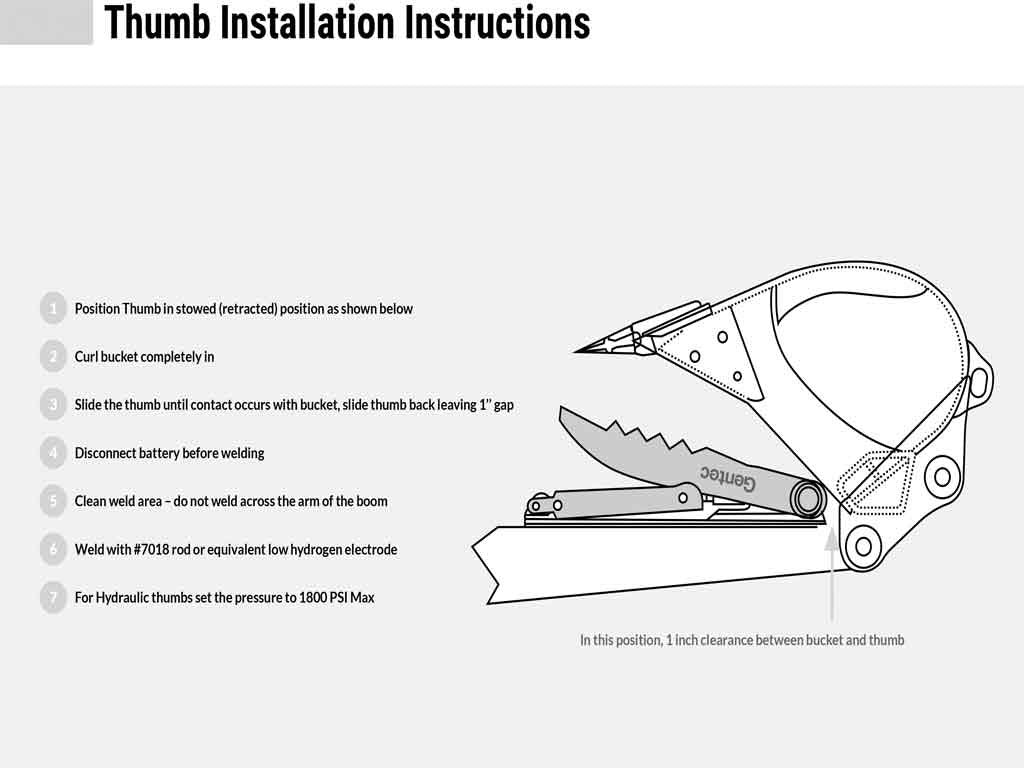

              INSTALLATION

              Please follow these instructions when installing your thumb.
