54548

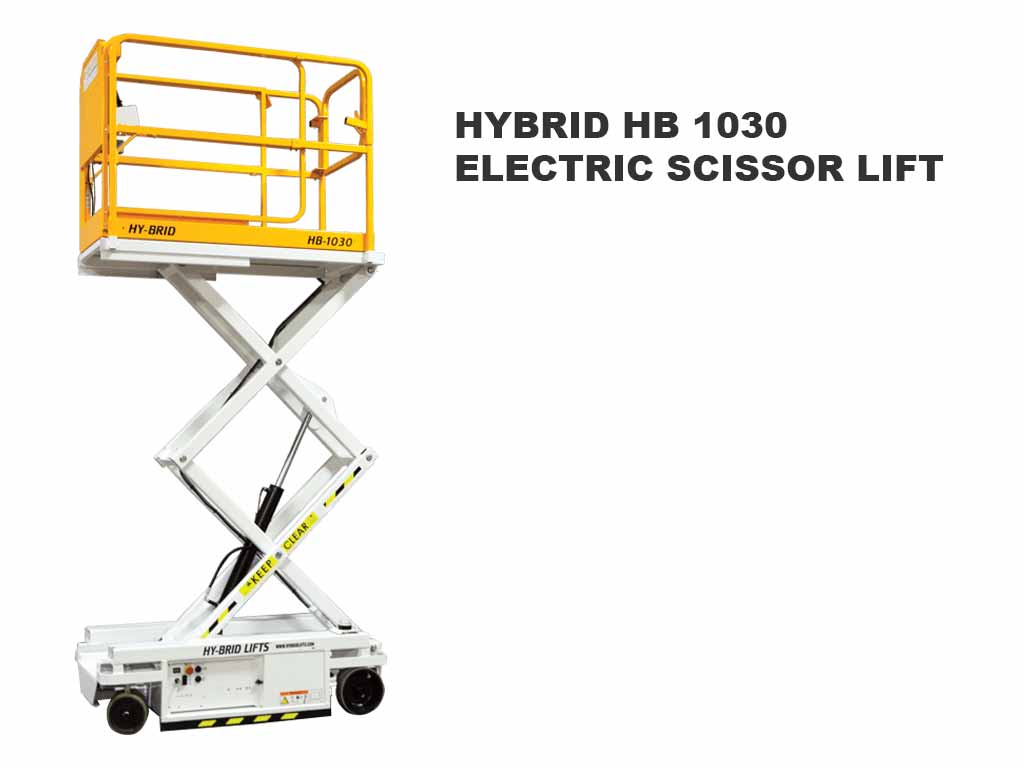

Hy-Brid Lifts self-propelled series have high lifting capacities, low step-in heights and a lightweight design, making them the ideal choice for a variety of applications.
| Maximum Machine Load | 153.9 psf | 7.37 kPa |
| Maximum Wheel Load | 99.3 psi | 684.8 kPa |
| Minimum Machine Load | 97.2 psf | 4.54 kPa |
| Minimum Wheel Load | 62.7 psi | 432.5 kPa |
| Ground Clearance Lowered | 2 in | 5.1 cm |
| Ground Clearance Raised | 0.4 in | 1 cm |
| Platform Height Max | 10 ft | 3 m |
| Platform Height Min | 21 in | 0.53 m |
| Working Height | 16 ft | 4.9 m |
| Overall Length | 63.5 in | 1.61 m |
| Overall Width | 30 in | 0.76 m |
| Platform Extension | 30 in | 0.76 m |
| Platform Length | 60 in | 1.52 m |
| Platform Width | 25 in | 0.64 m |
| Stowed Height | 65.63 in | 1.67 m |
| Extension Capacity | 250 lb | 113.4 kg |
| Inside Turning Radius | 21 in | 0.53 m |
| Lift Speed Up/Down | 15/22 sec | 15/22 sec |
| Platform Capacity | 750 lb | 340.2 kg |
| Rated Occupancy | 2 persons | 2 persons |
| Weight | 1273 lb | 577.4 kg |
