HYBRID

D01-10068

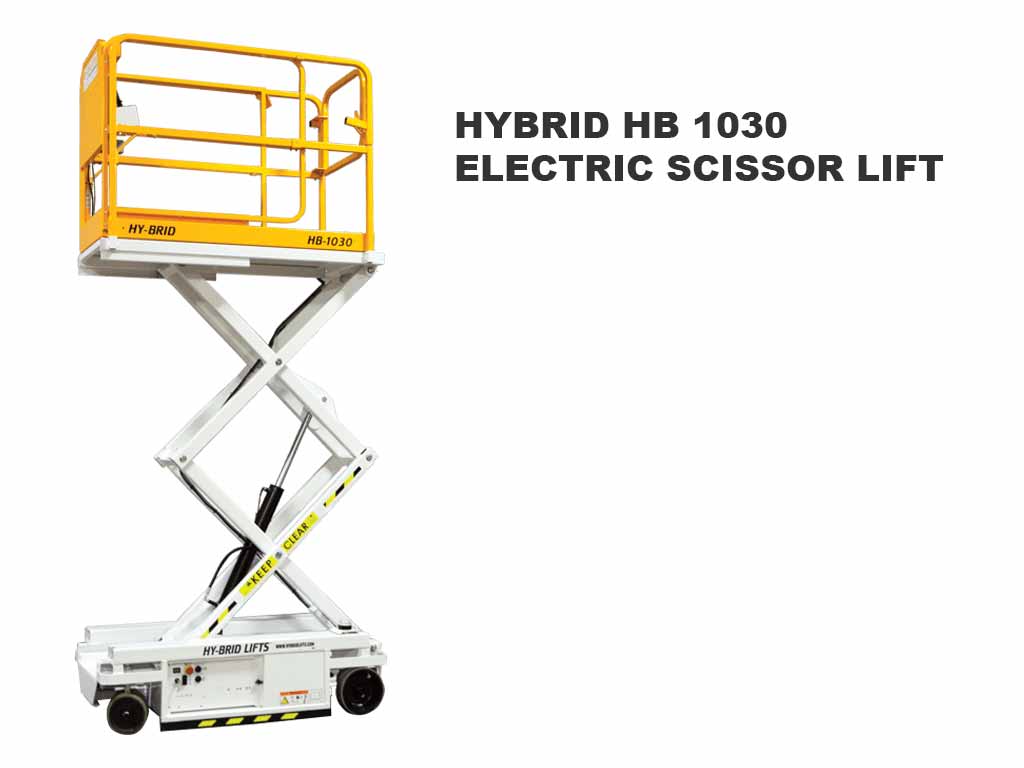

HYBRID HB1030 SCISSOR LIFT #D01-10068

  • USED
  • 2012 MODEL SERIAL NUMBER D01-10068
  • 210 HOURS

Electric Scissor Lift

Hy-Brid Lifts self-propelled series have high lifting capacities, low step-in heights and a lightweight design, making them the ideal choice for a variety of applications.

KEY FEATURES

  • Working height up to 16 ft
  • Weighs only 1275 lbs
  • Weight allows machine to go on delicate flooring
  • Lifts 750 lbs
  • Slide-out deck extension, with slip-resistant surface
  • Non-marking tires

STANDARD FEATURES

  • Proportional controls
  • Full-Swing entrance door
  • Tilt alarm
  • Hour meter

OPTIONS

  • Power to the Platform



Maximum Machine Load 153.9 psf 7.37 kPa
Maximum Wheel Load 99.3 psi 684.8 kPa
Minimum Machine Load 97.2 psf 4.54 kPa
Minimum Wheel Load 62.7 psi 432.5 kPa
Ground Clearance Lowered 2 in 5.1 cm
Ground Clearance Raised 0.4 in 1 cm
Platform Height Max 10 ft 3 m
Platform Height Min 21 in 0.53 m
Working Height 16 ft 4.9 m
Overall Length 63.5 in 1.61 m
Overall Width 30 in 0.76 m
Platform Extension 30 in 0.76 m
Platform Length 60 in 1.52 m
Platform Width 25 in 0.64 m
Stowed Height 65.63 in 1.67 m
Extension Capacity 250 lb 113.4 kg
Inside Turning Radius 21 in 0.53 m
Lift Speed Up/Down 15/22 sec 15/22 sec
Platform Capacity 750 lb 340.2 kg
Rated Occupancy 2 persons 2 persons
Weight 1273 lb 577.4 kg
