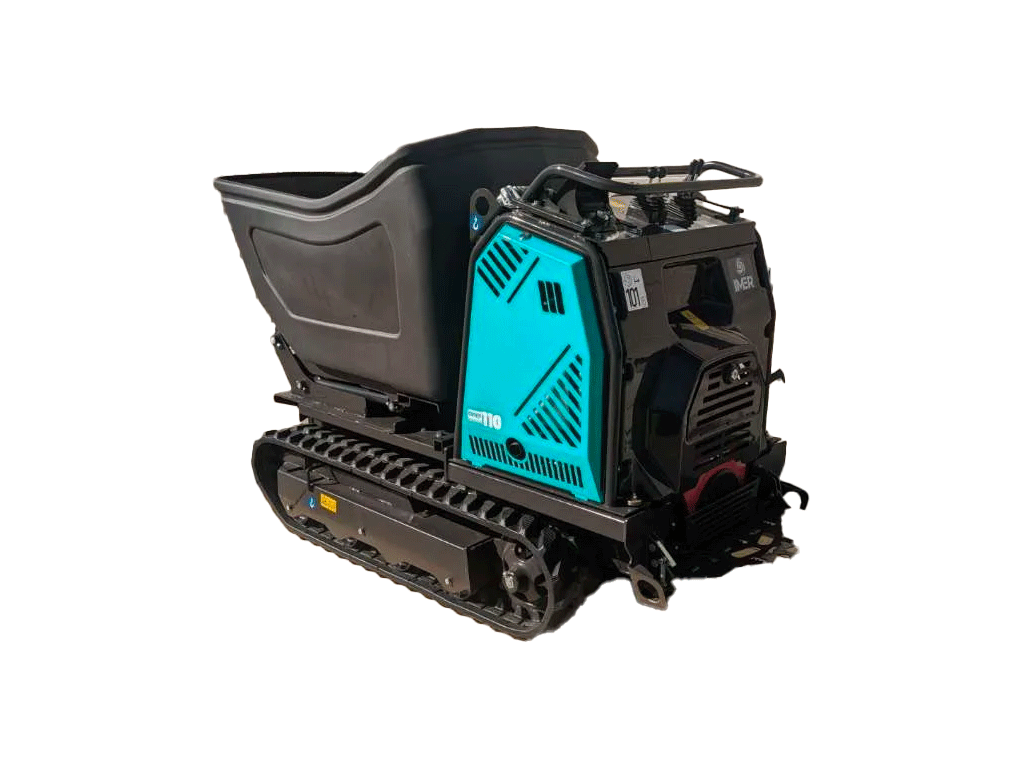

The CARRY 110 checks all the columns for the busy concrete contractor. From driveways to patios and across rough terrain this tracked unit can handle it. Equipped with a poly drum and IMER’s expected dedication to quality of design and manufacturer this latest addition to IMER’s large line of track dumpers will satisfy your needs. Powered by Honda’s latest and most powerful electronic controlled gasoline engine it also features 3-level speed control, auto idle, and electronic controlled start up. Can Bus digital touch screen dashboard provides information on hours, battery voltage, fuel consumption, percentage engine load, and diagnostic capabilities. For operator comfort the platform is double rubber shock mounted and features a hydraulic joystick for speed control.
Intuitive controls with reduced vibration for operator comfort
A manual parking brake prevents the drive from running by mechanically locking the LH wheel
The amount of oil in the machine’s hydraulic circuit allows long intervals between servicing
Extremely compact dimensions and limited weight guarantees high-level performance
Narrow enough to fit through standard 36” doors and gates
The innovative track system ensures the rubber tracks are always perfectly tensioned, easily adjusted via a bolt on the lower carriage
The Honda engine is low noise, which meets established noise pollution standards. The engine is mounted on vibration dampers to significantly reduce the amount of vibration transmitted.

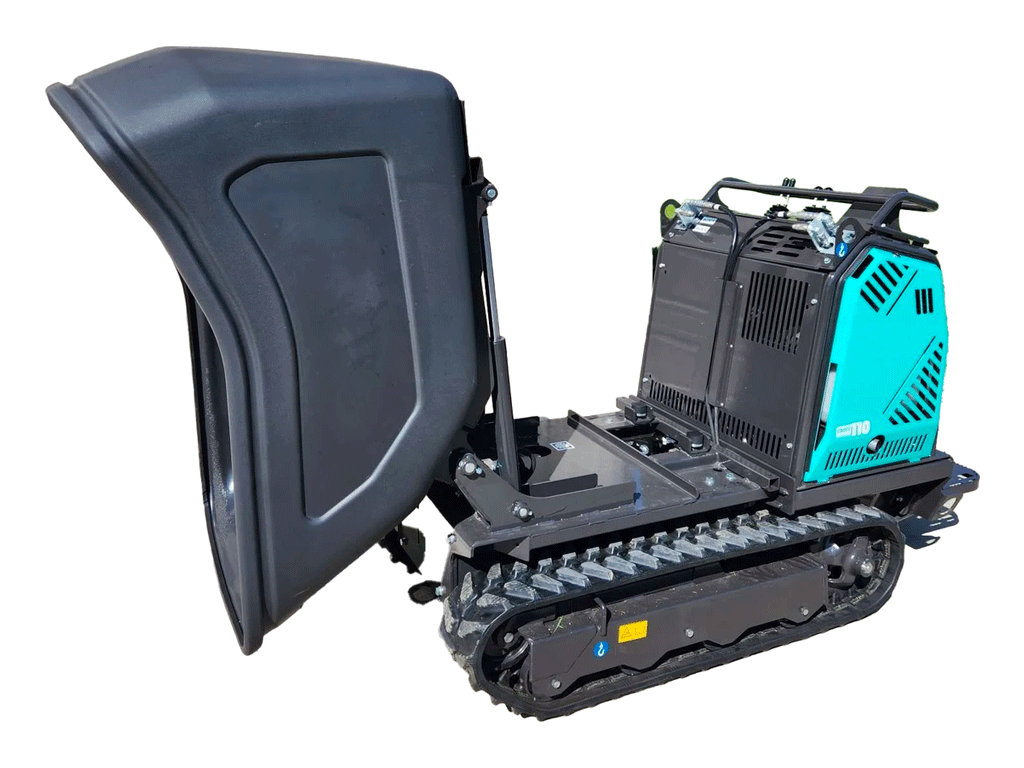

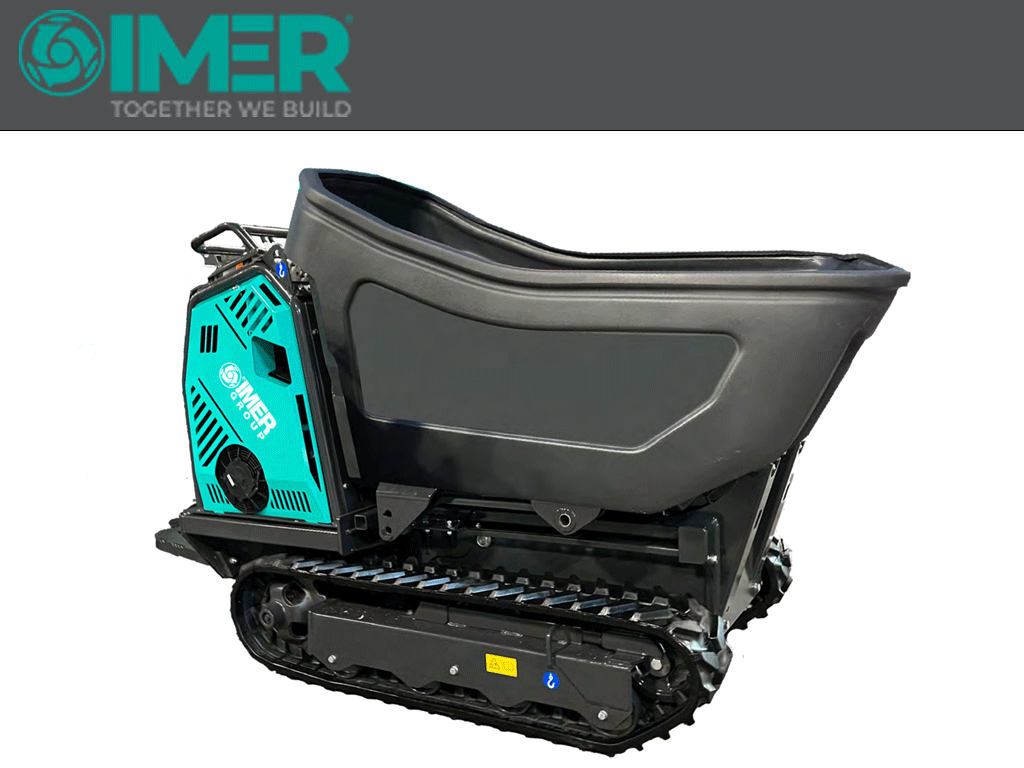

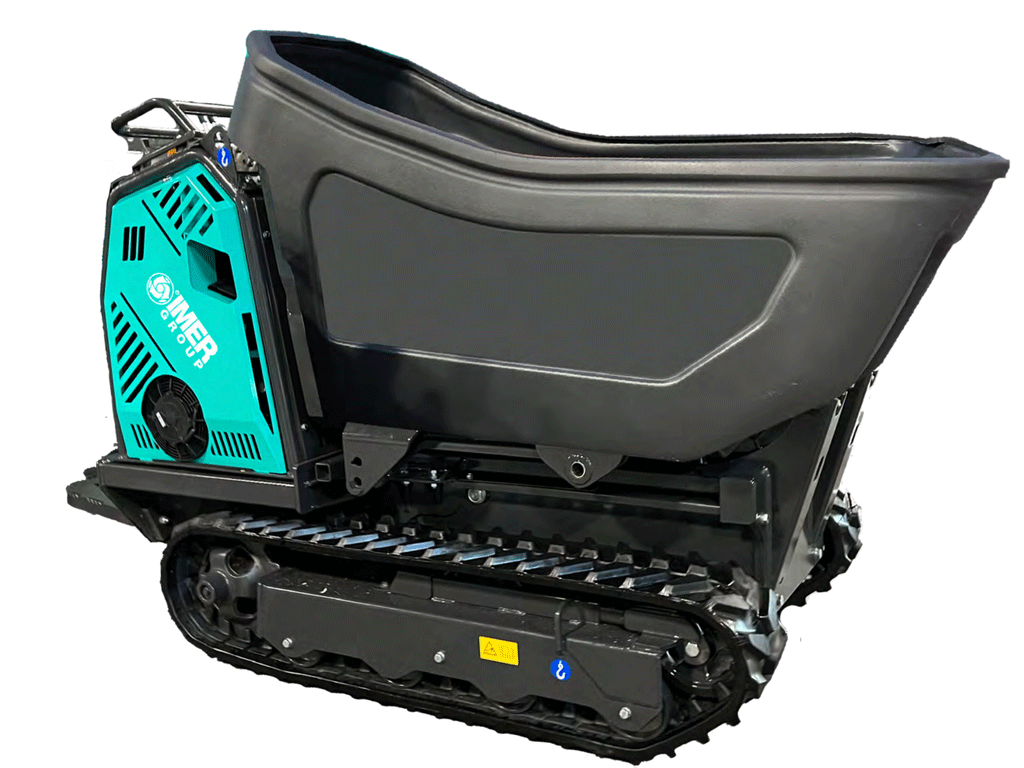

POLY TUB OPTION

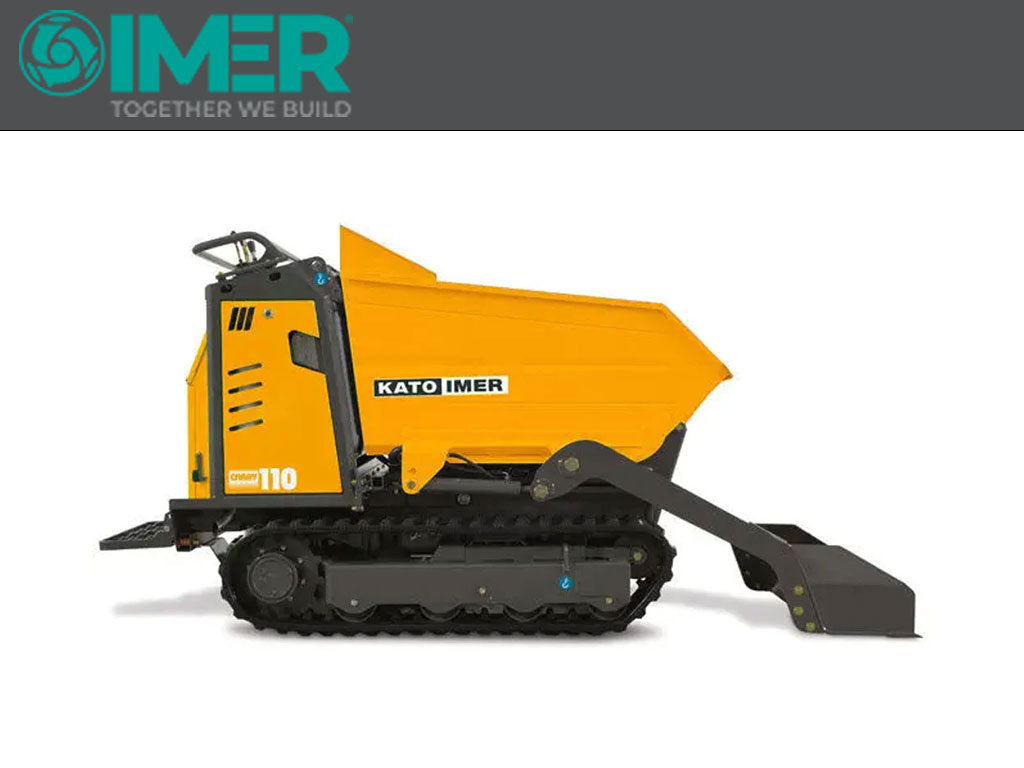

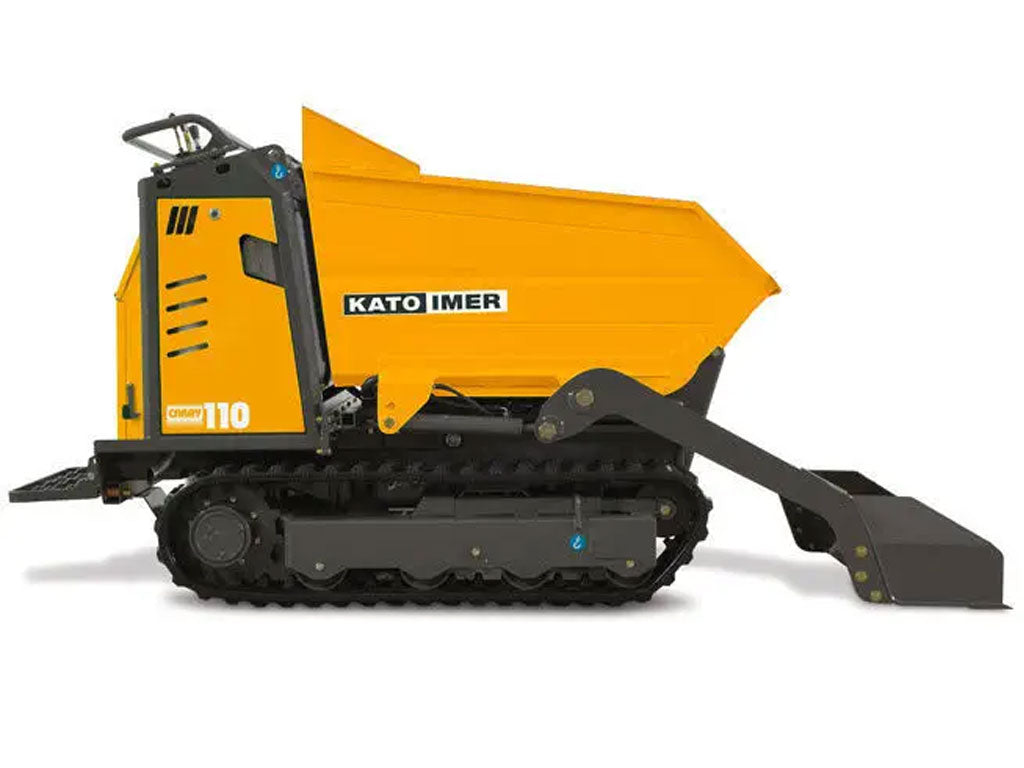

HIGH FLOW VERSION W/ ATTACHMENTS

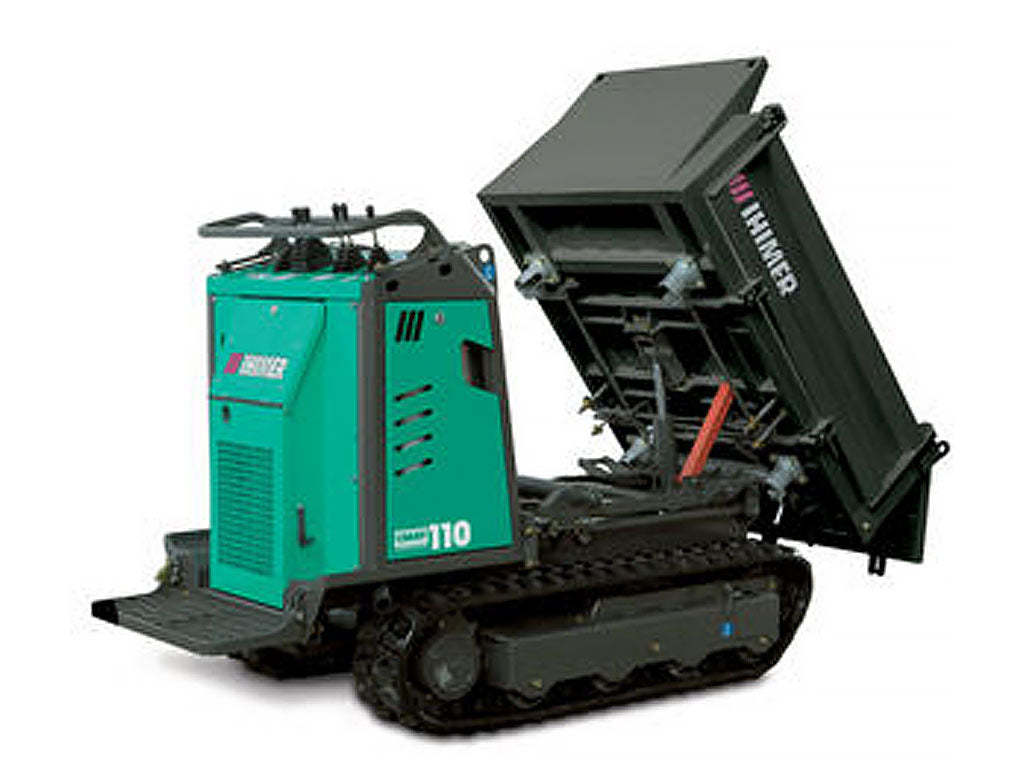

180 SWIVEL BUCKET AND DUMP
CARRY 110 Engine* Honda GX800IRH-TX-F9-OH Machine weight 1,521 lbs Operating load 2,205 lbs Payload capacity (struck / heaped) 14.83 / 17.66 cu ft Speed (forward / reverse) 4.97 / 2.49 mph Max allowed slope when empty 20° - 36% Max allowed slope when loaded** 11° - 20%*** Ground clearance 5 1/2 in Start Electric Length 75 1/2in Height 52 in Width 35 3/8 in
