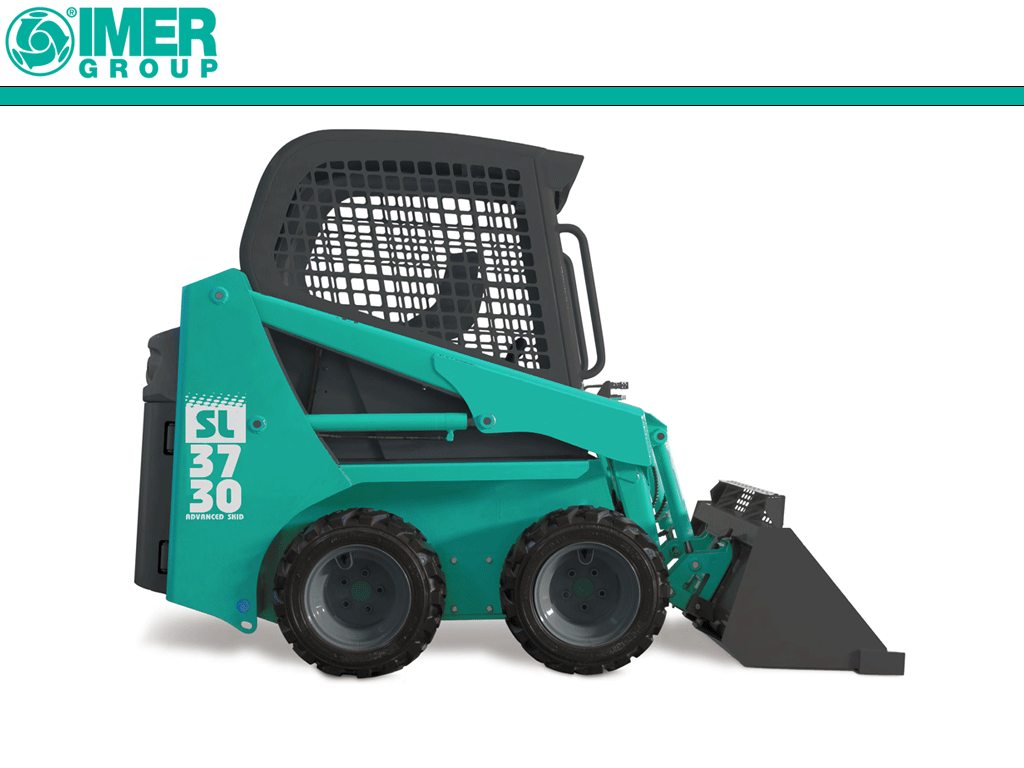

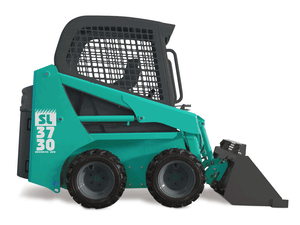

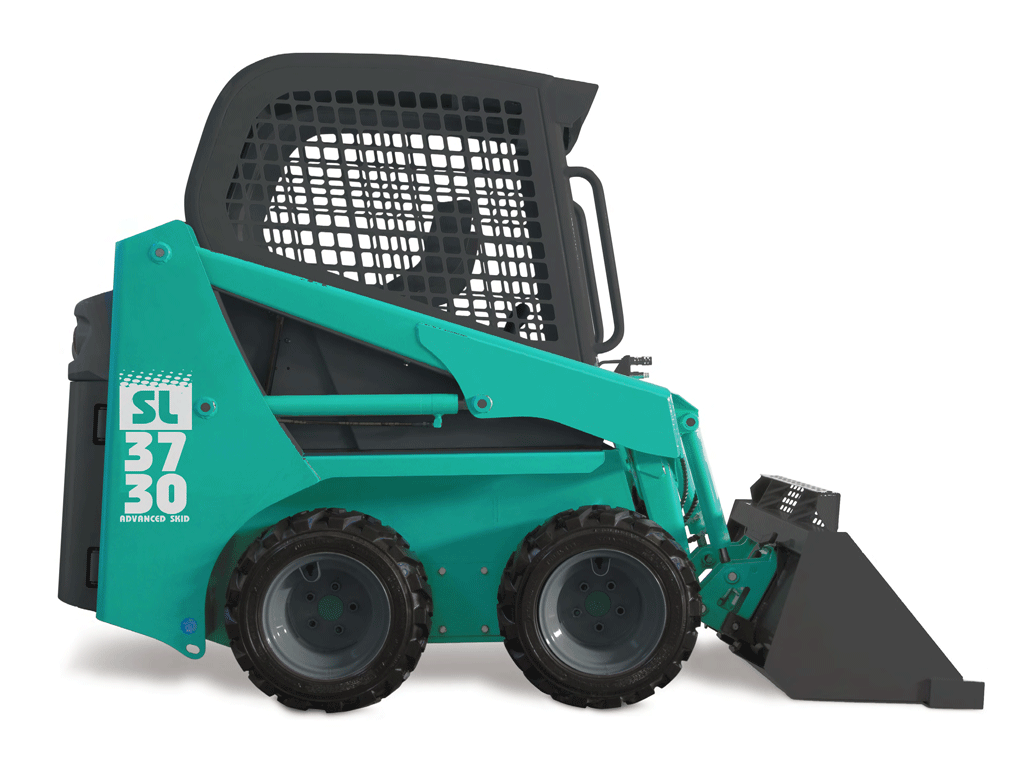

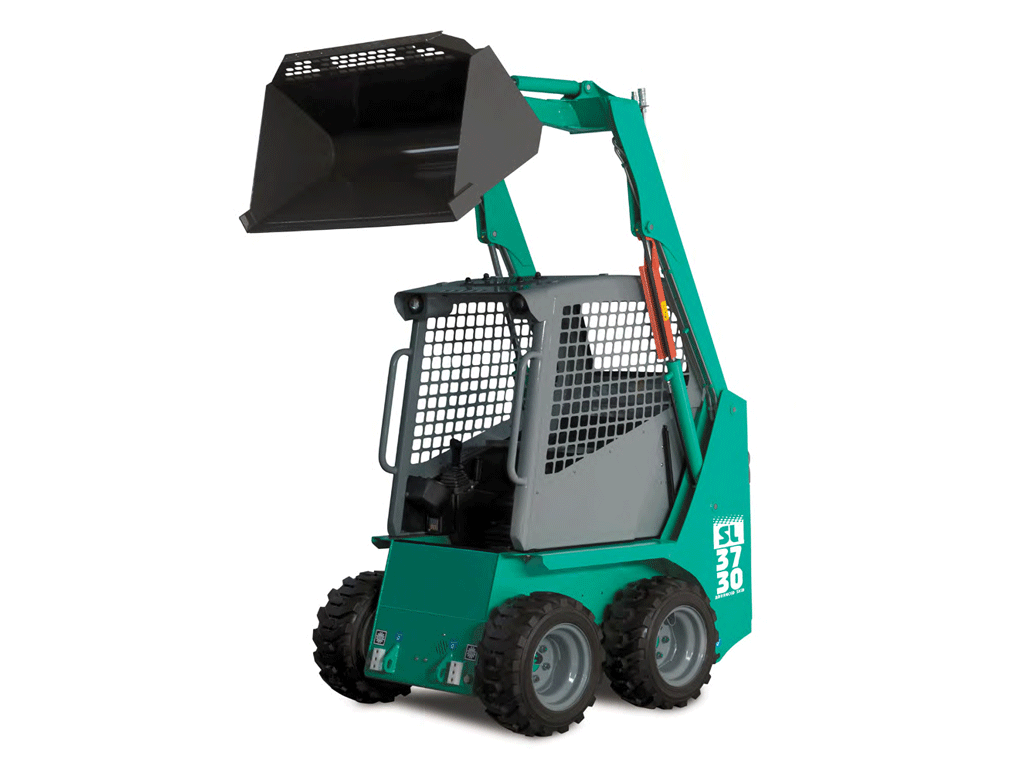

IMER SL3730 Diesel Skid Steer Loader

Compact • Reliable • Precision-Controlled Performance

The IMER SL3730 is a compact, diesel-powered skid steer engineered for productivity in confined spaces. Featuring a powerful 21 HP Yanmar diesel engine, it delivers an impressive operating load of 728 lbs. and breakout force of 1,658 ft/lb, ensuring exceptional performance in tough jobsite conditions.

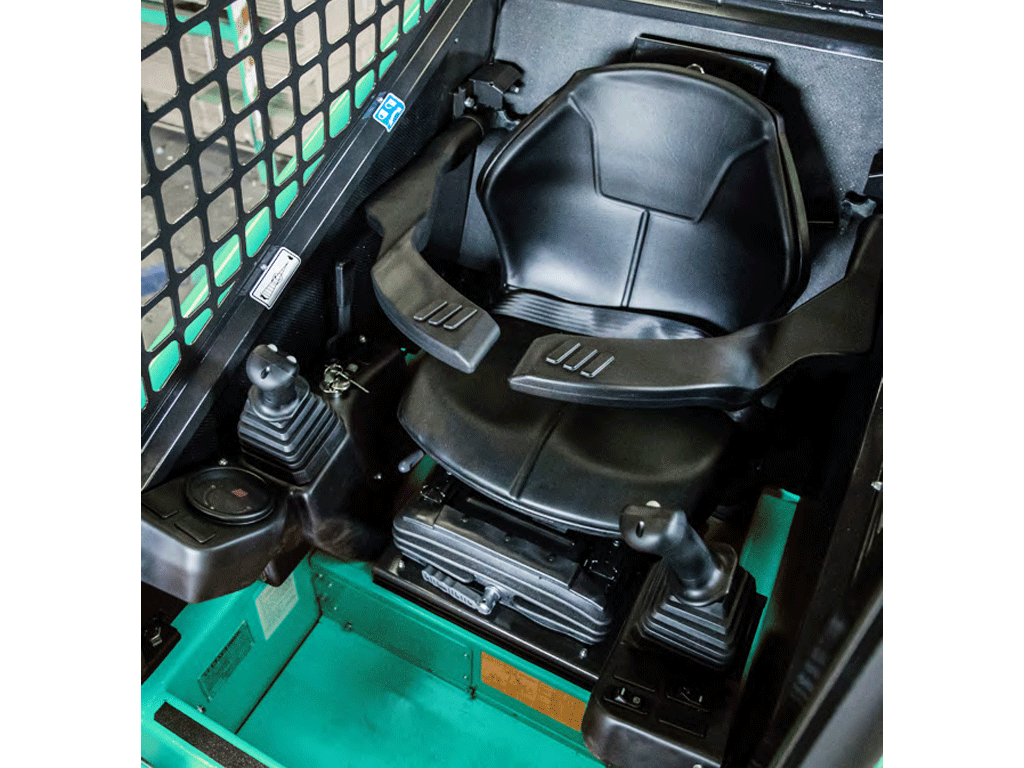

Designed with operator comfort and efficiency in mind, the SL3730 comes standard with pilot-operated joystick controls, auto-leveling bucket, and auxiliary hydraulics for easy attachment changes. At just 37 inches wide, it fits through most gates, making it ideal for landscaping, construction, and property maintenance.

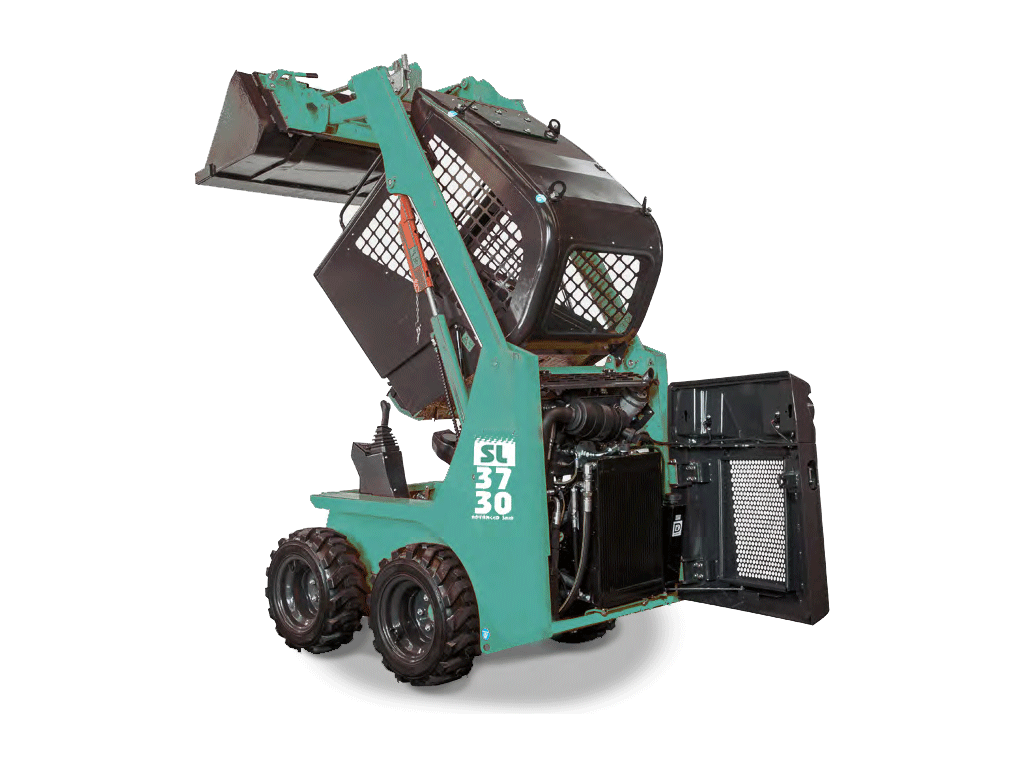

Maintenance is simple thanks to the 90° rear hatch and tilting cab for full access to the engine and hydraulic components. Optional enclosed cab provides added comfort in harsh environments.

Key Features:

  • Compact 37" width for tight spaces

  • 21 HP Yanmar diesel engine

  • 728 lb operating load (SAE)

  • 1,658 ft/lb breakout force

  • Pilot joystick controls

  • Auto-leveling bucket standard

  • Easy maintenance access

MODEL  L3730
ENGINE Yanmar, 21 hp, Diesel
ROC CAPACITY  728 LBS.
TIPPING LOAD 1455 LBS.
BREAKOUT FORCE 1658 FT/LBS.
MAX SPEED 4.5 MPH
FUEL TANK 2.2 GAL
HYDRAULIC PRESSURE 2610 PSI
AUXILIARY FLOW 7.4 GPM
NOISE LEVEL 79 DBA
OPERATING WEIGHT 2955 LBS.


SL-3730 Working Ranges & Dimensions

Ref. Specification Measurement
A Operating Height – Fully Raised 10’10”
B Height to Hinge Pin – Fully Raised 8’4”
C Dump Height 6’8”
D Bucket Tilt Angle 112º
E Dumping Angle at Max Height 31º
F Dump Reach – Fully Raised 1’2”
G Maximum Rollback at Ground 34º
H Departure Angle 27º
I Wheelbase Length 2’6”
L Total Length (without Bucket) 6’7”
M Total Length (with Bucket) 8’6”
N Minimal Ground Clearance 6”
O Overall Height 6’2”
P Bucket Width 3’2” – 3’8”
Q Crawler Width 3’1” – 3’8”
X Front Clearance Radius (with Bucket) 5’1”
Y Front Clearance Radius 2’8”
Z Rear Clearance Radius 3’11”
