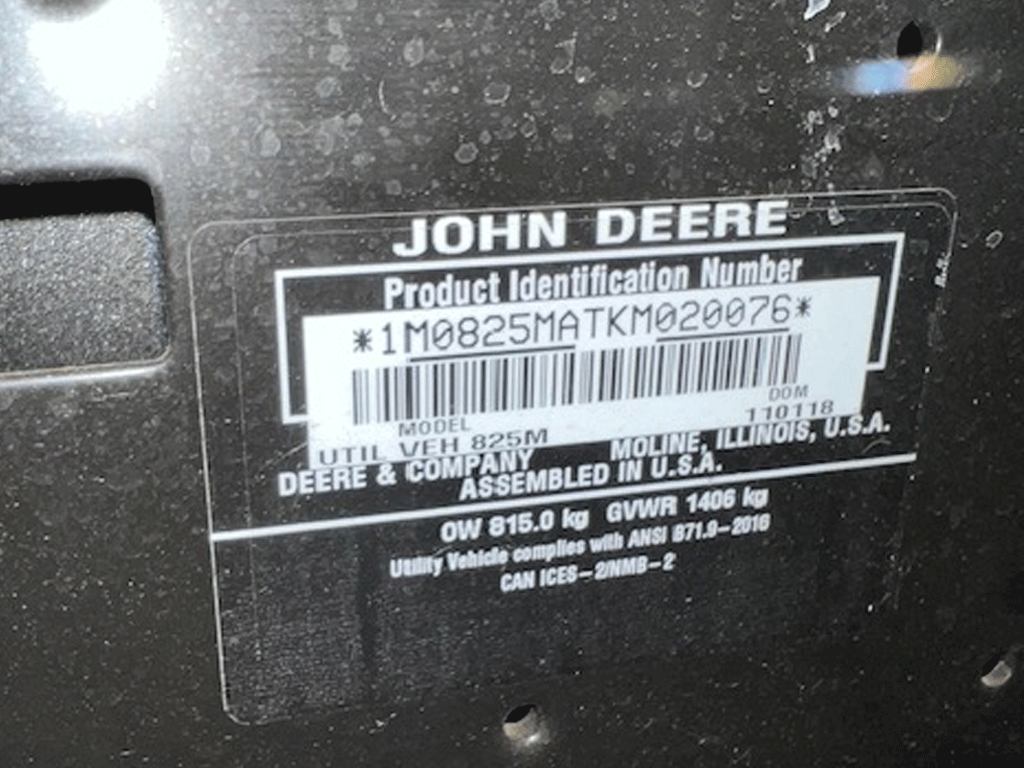

1M0825MATKM020076

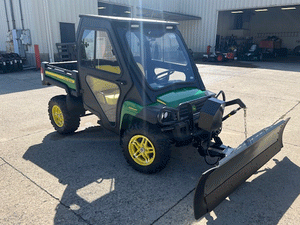

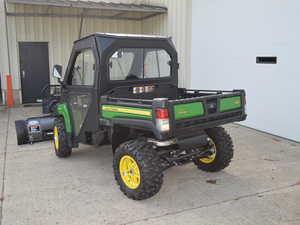

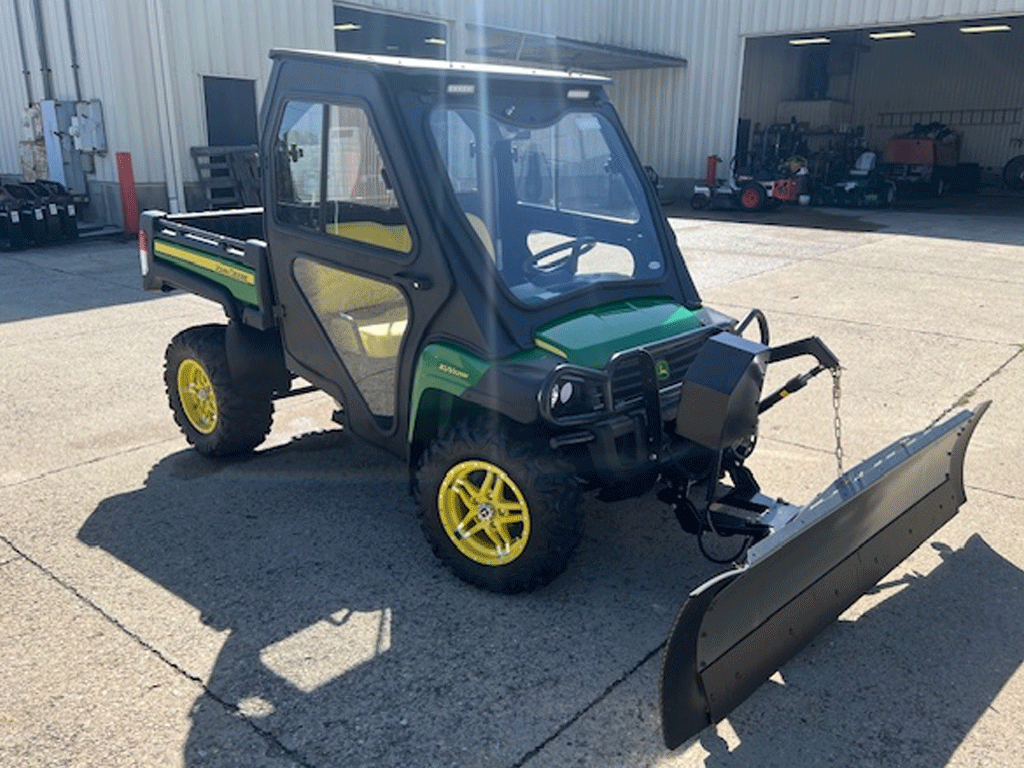

JOHN DEERE Gator XUV 825M UTV, used
$29,500.00

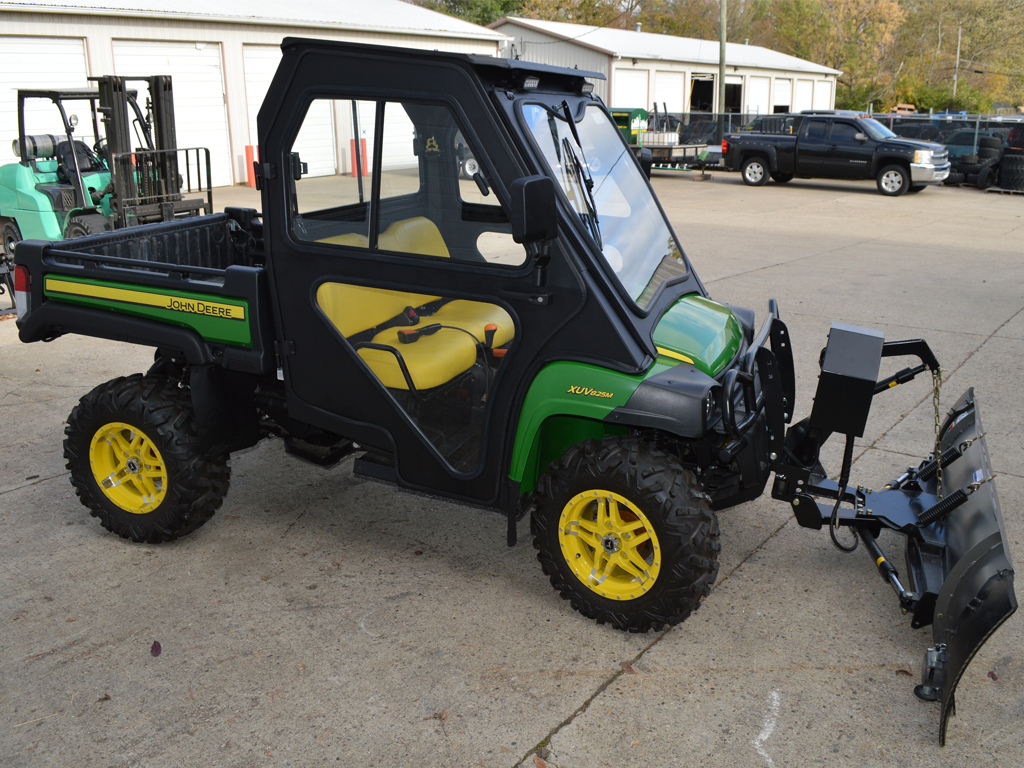

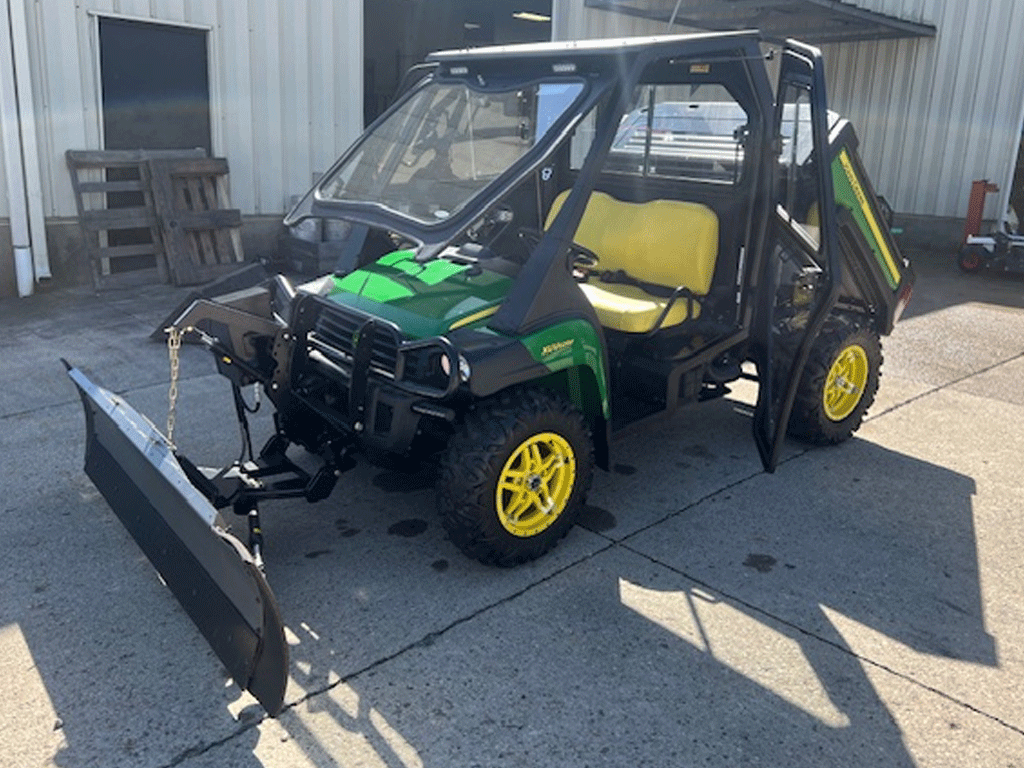

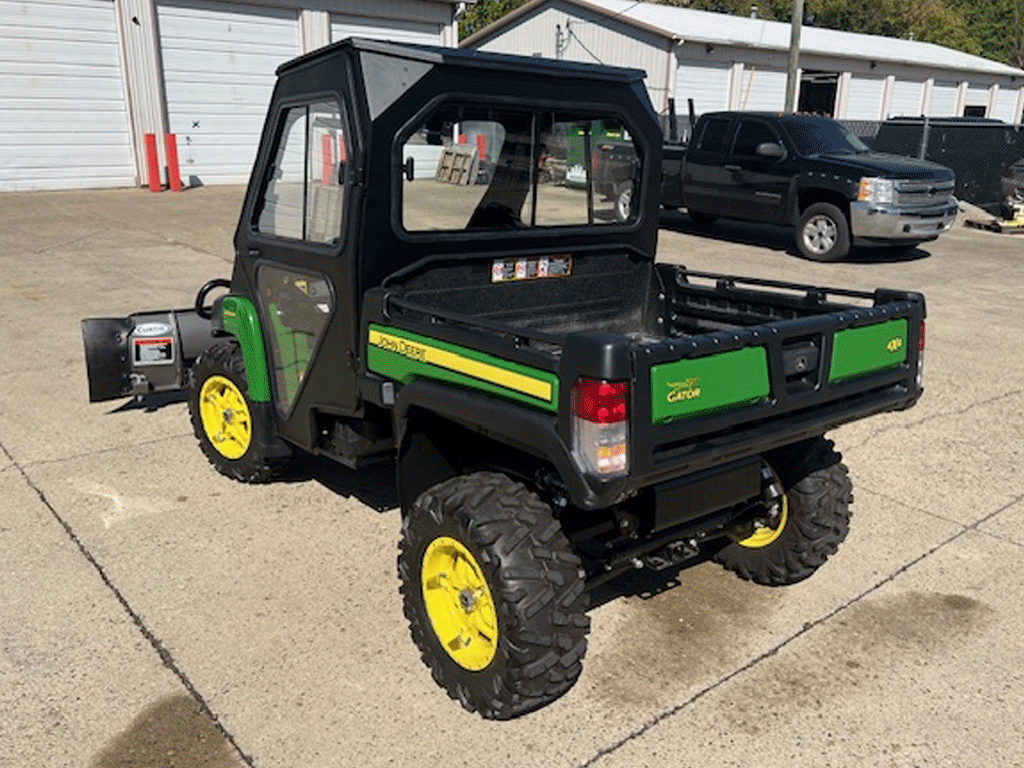

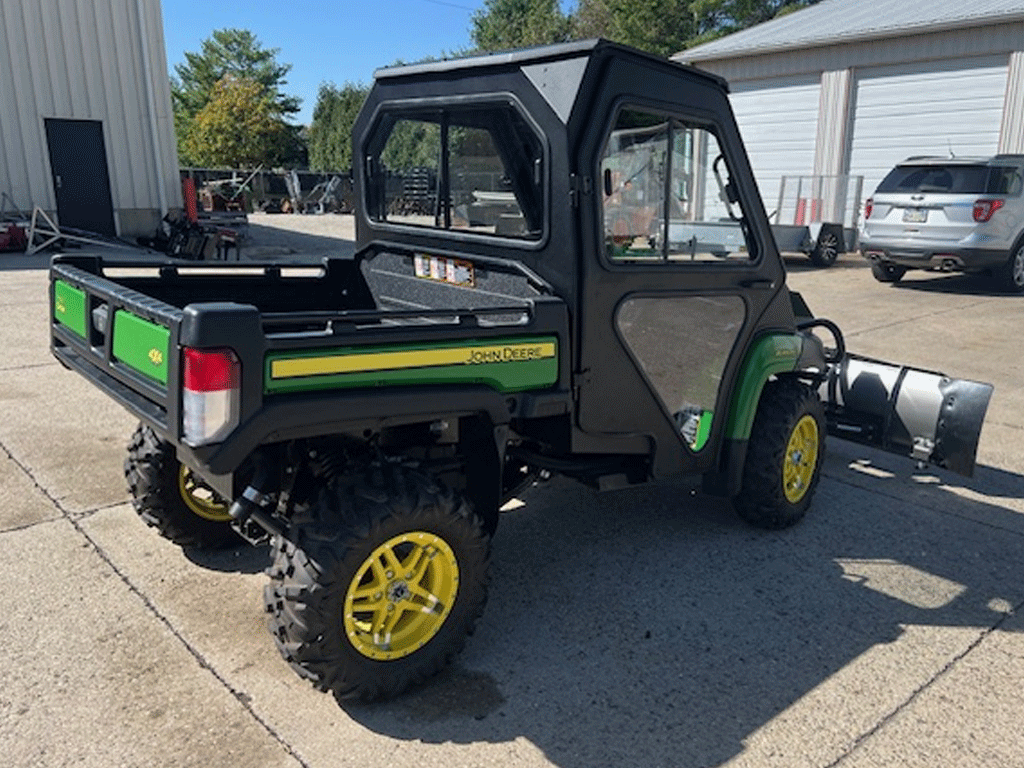

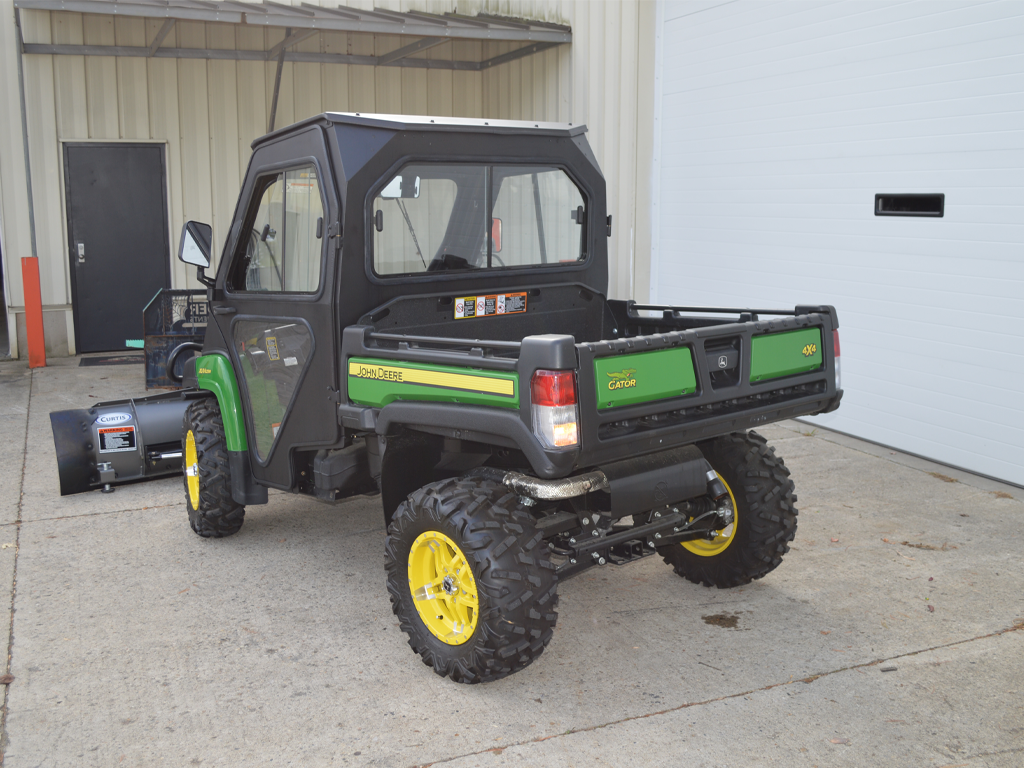

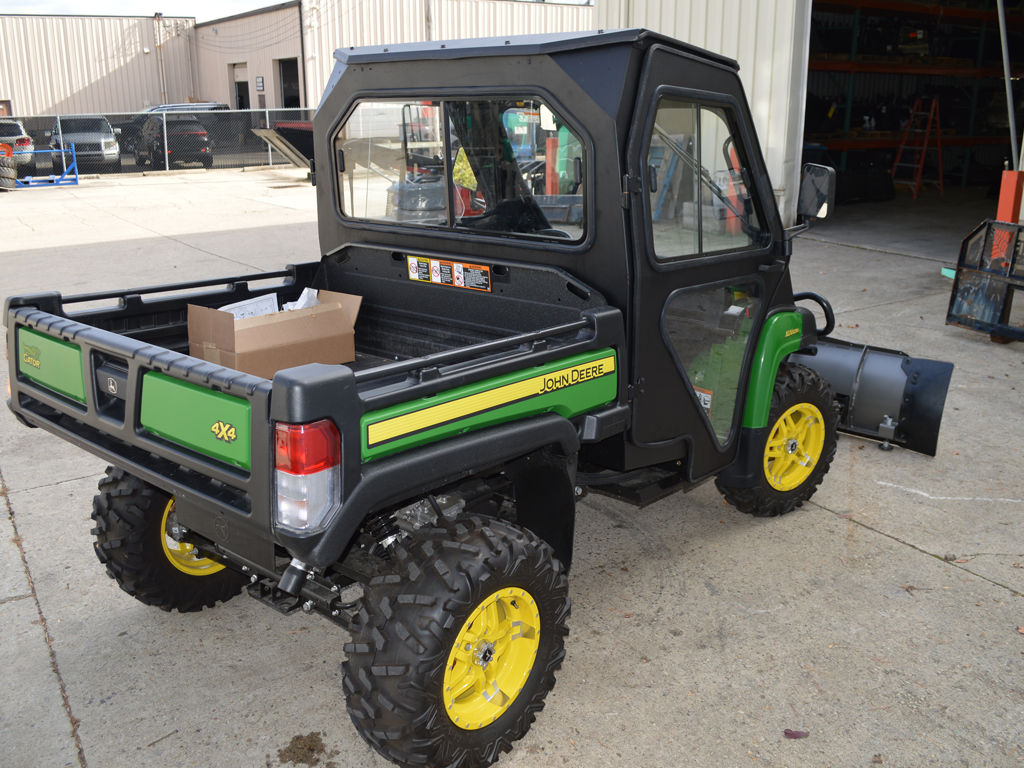

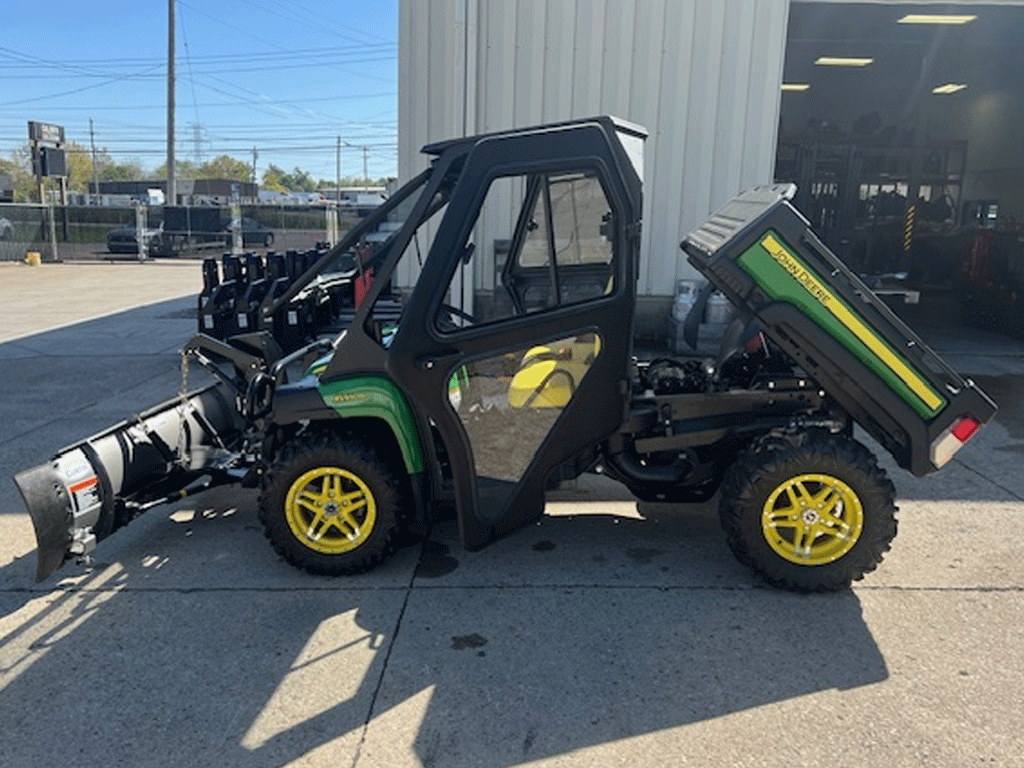

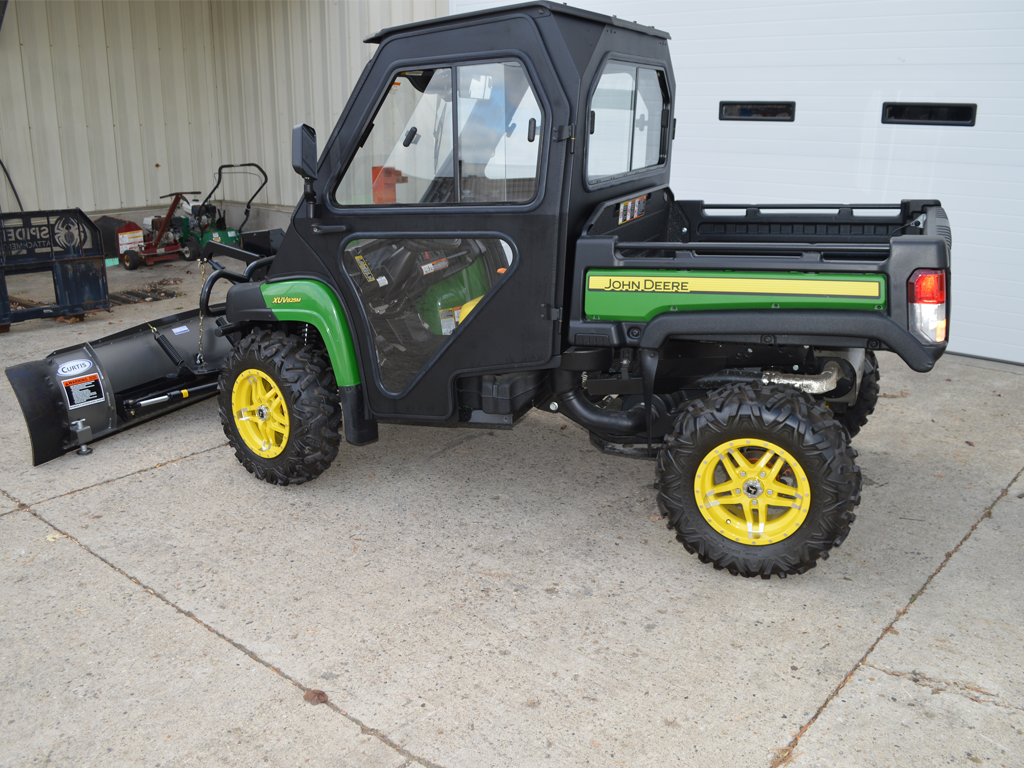

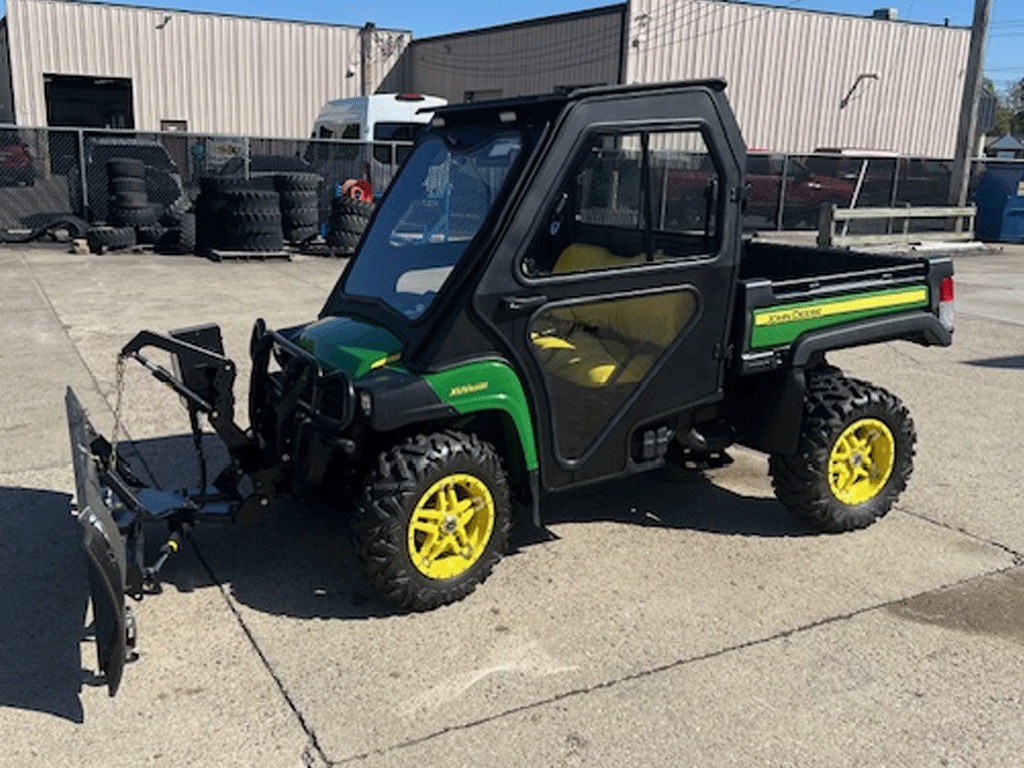

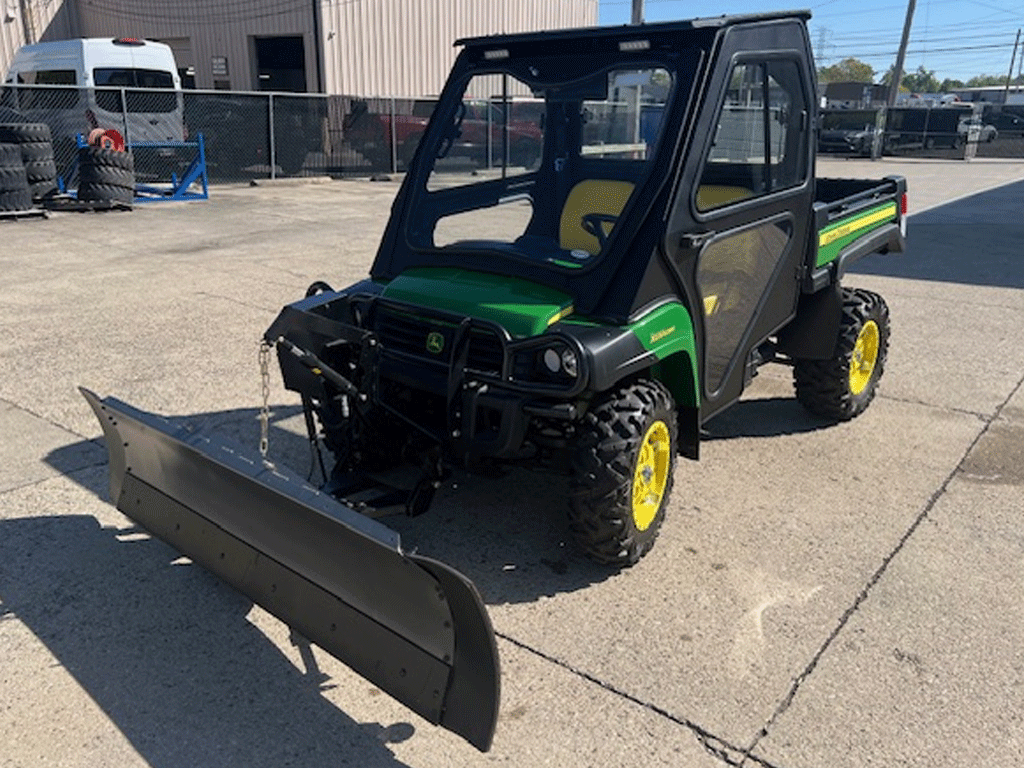

JOHN DEERE GATOR XUV 825M
This like new XUV 825M GATOR is a absolute must have for your property maintenance. This work horse is high performance front to back. We have added a new Curtis cab, heater and snow plow to this unit to increase this UTV's usefulness. This unit was a display unit for selling UTV options and accessories at our dealership.
- YEAR: 2018

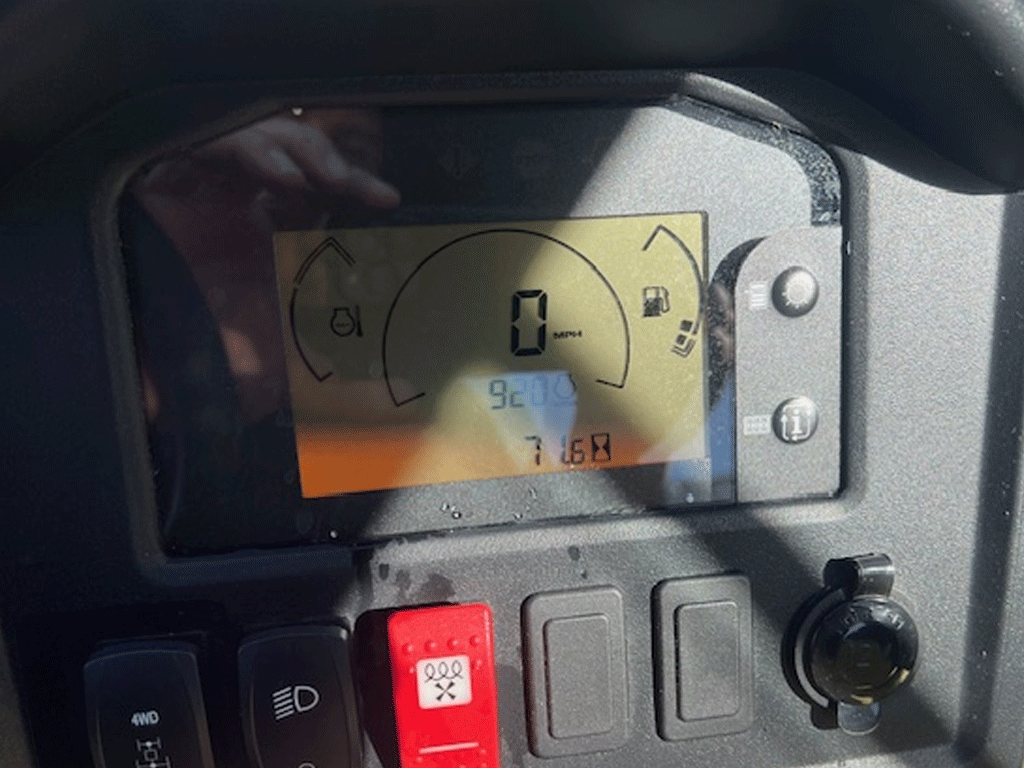

- 71.6 HOURS
- High Performance Engine: 812 cc, 4-cycle gas, electronic fuel injection (EFI), 52 horsepower
- 4X4

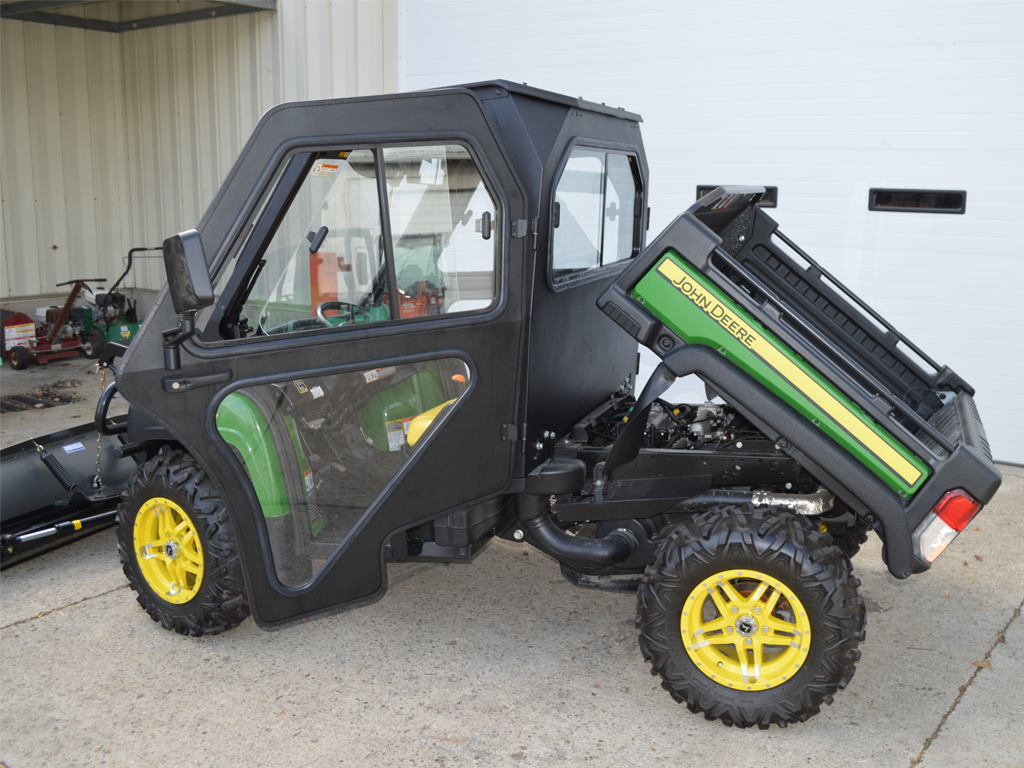

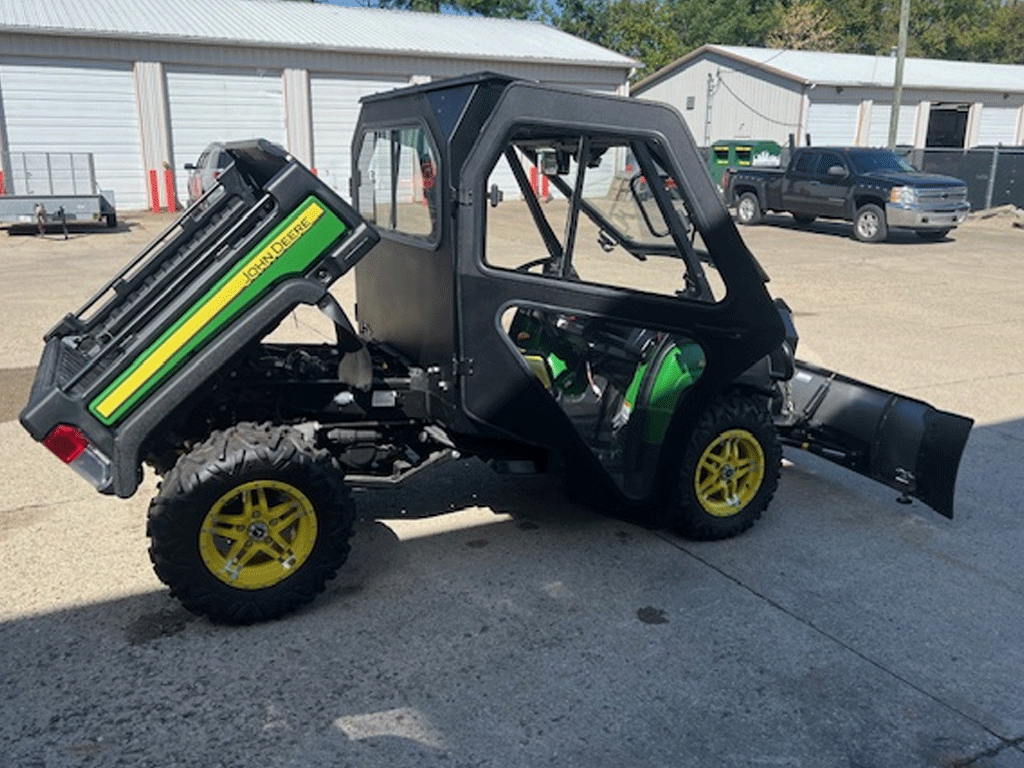

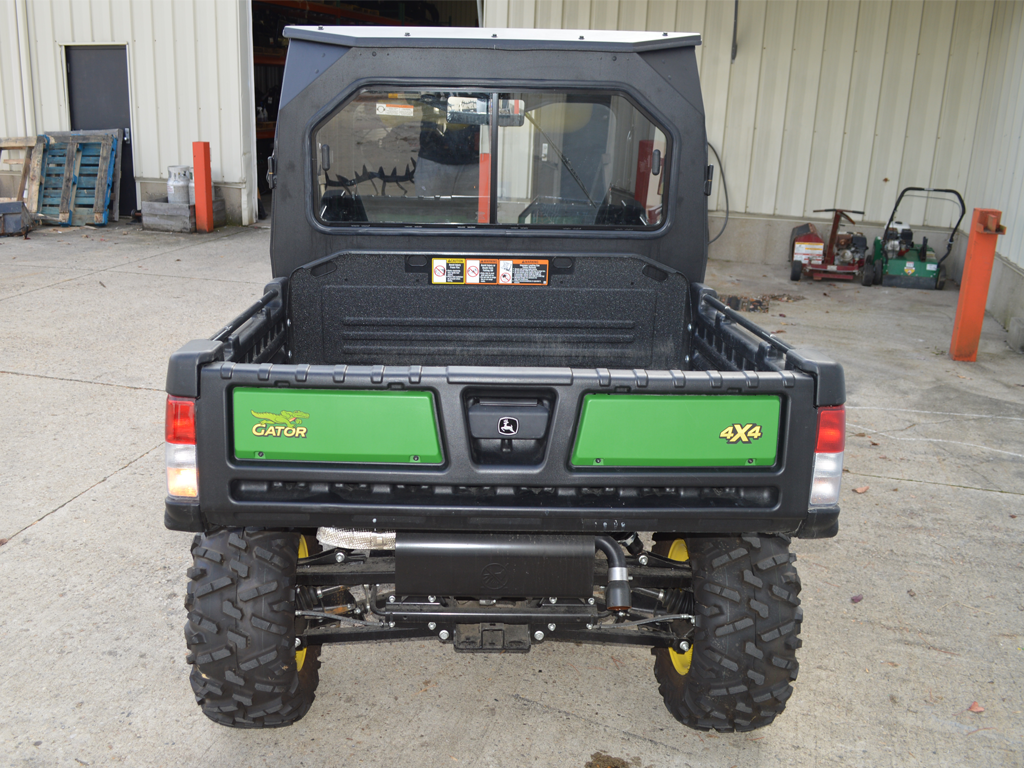

- Dump bed with liner
- Front grill guard
- High Performance All terrain trail tires
- Front and rear hitch
- New Curtis metal and glass cab installed with optional features. Side mirrors, rear view mirrors, Switch panel and LED low profile work lights.
- New Curtis heater

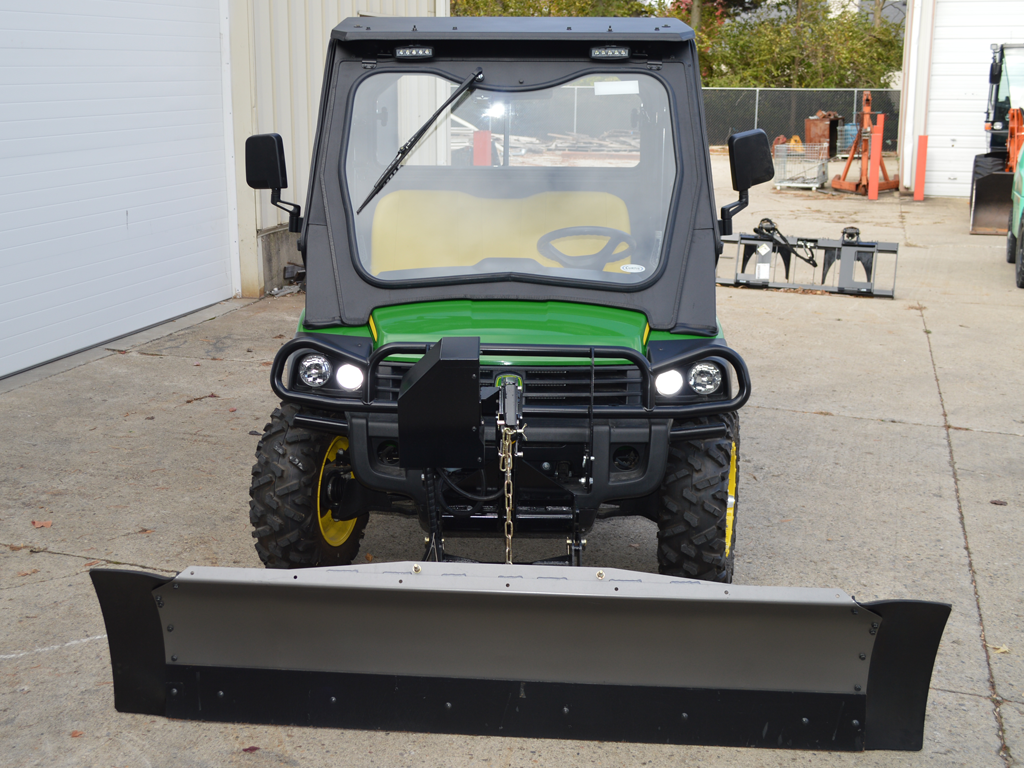

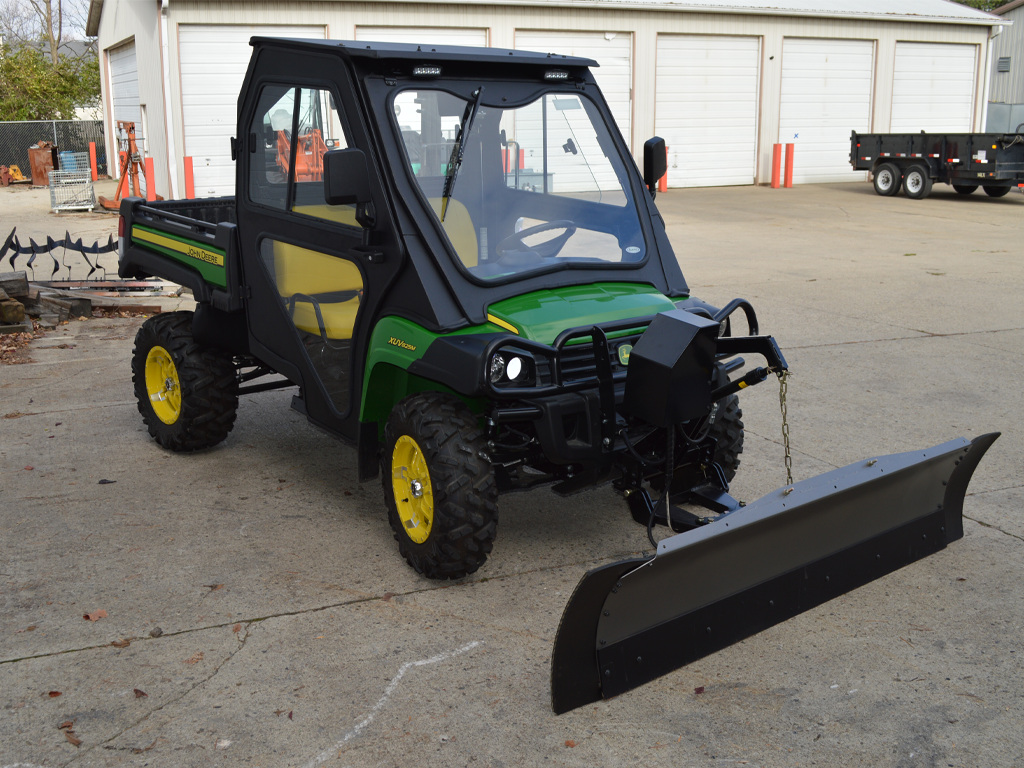

- New Curtis 72" Hydraulic UTV snow blade including snow wings and markers
*Curtis cab, heater and snow plow all will be sold with new warranty.
* This item is to large to ship by box truck. Please call for invoice and shipping.
ENGINE
|
Type..............4-cycle Gas, Electronic Fuel Injection (EFI) |
|
|
Cylinders..............3 |
|
|
Oil Filter..............Spin On Filter |
|
|
Air Cleaner..............Dry replaceable single element with remote intake |
|
|
Cooling System..............Liquid |
DRIVETRAIN
|
Type..............Continuously Variable Transmission (CVT) with Clutch Enclosure |
|
Gear Ranges..............Forward HI and LO - Neutral - Reverse |
|
Travel Speeds: |
|
Forward HI..............71 km/h (44 mph) |
|
Forward LO..............43 km/h (27 mph) |
|
Reverse..............48 km/h (30 mph) |
ELECTRICAL
|
Type..............12 Volt |
|
Battery Size..............480 Cold Cranking Amps @ -18°C (0°F) |
|
Alternator..............75 Amp |
|
Spark Plug Gap..............0.95 mm (0.04 in.) |
STEERING & BRAKES
|
Steering..............Rack and Pinion |
|
Brakes..............Hydraulic Disc |
TIRES
|
Front Tires |
|
CST Terra Hawk..............25x9-12 |
|
Load Capacity..............530 kg (1168 lb) |
|
Maxxis Bighorn 2.0..............27x9-R14 |
|
Load Capacity..............472 kg (1041 lb) |
|
Inflation Pressure (All Front Tires)..............97 kPa (14 psi) |
|
Rear Tires |
|
CST Terra Hawk..............25x11-12 |
|
Load Capacity..............630 kg (1389 lb) |
|
Inflation Pressure - Cargo Load Condition 0-318 kg (0-700 lbs)..............97 kPa (14 psi) |
|
Inflation Pressure - Cargo Load Condition 318-454 kg (700-1000 lbs)..............152 kPa (22 psi) |
|
Maxxis Bighorn 2.0..............27x11-R14 |
|
Load Capacity..............665 kg (1466 lb) |
CAPACITIES
|
Fuel Tank..............26.5 L (7.0 gal) |
|
Crankcase (with filter)..............2.2 L (2.3 qt) |
|
4WD Front Differential..............0.59 L (19.6 oz) |
|
Transaxle..............3.8 L (4.0 qt) |
|
Cooling System (Including Recovery Tank)..............5.0 L (5.2 qt) |
|
Brake..............237 mL (8 oz) |
DIMS
|
Width (overall)..............1.6 m (62.0 in.) |
|
Length (with bumper)..............3.0 m (119.0 in.) |
|
Height (with Protective Structure)..............1.9 m (75.0 in.) |
|
Ground Clearance..............27.9 cm (11.0 in.) |
WEIGHTS
|
Weight (XUV825E - Empty vehicle with full fluids)..............805 kg (1774 lb) |
|
Weight (XUV825M - Empty vehicle with full fluids)..............815 kg (1797 lb) |
|
Gross Vehicle Weight Rating (GVWR)..............1406 kg (3100 lb) |
|
Payload Capacity XUV825E..............601 kg (1326 lb) |
|
Payload Capacity XUV825M..............591 kg (1303 lb) |
|
Cargo Box Capacity (Not to exceed GVWR)..............454 kg (1000 lb) |
|
Towing Capacity (Not to exceed GVWR)..............680 kg (1500 lb) |
|
Maximum Trailer Tongue Weight..............68 kg (150 lb) |
|
Maximum Front Axle Load..............650 kg (1433 lb) |
LUBE
|
Engine Oil..............John Deere PLUS-50™ |
|
..............John Deere Torq-Gard Supreme™ |
|
Grease..............John Deere Multi-Purpose HD Lithium Complex Grease |
|
..............Grease-Gard™ Premium Plus |
|
Transmission Oil (Transaxle)..............John Deere HY-GARD™ (JDM J20C) |
|
Transmission Oil (4WD Front Differential)..............John Deere HY-GARD™ (JDM J20C) |

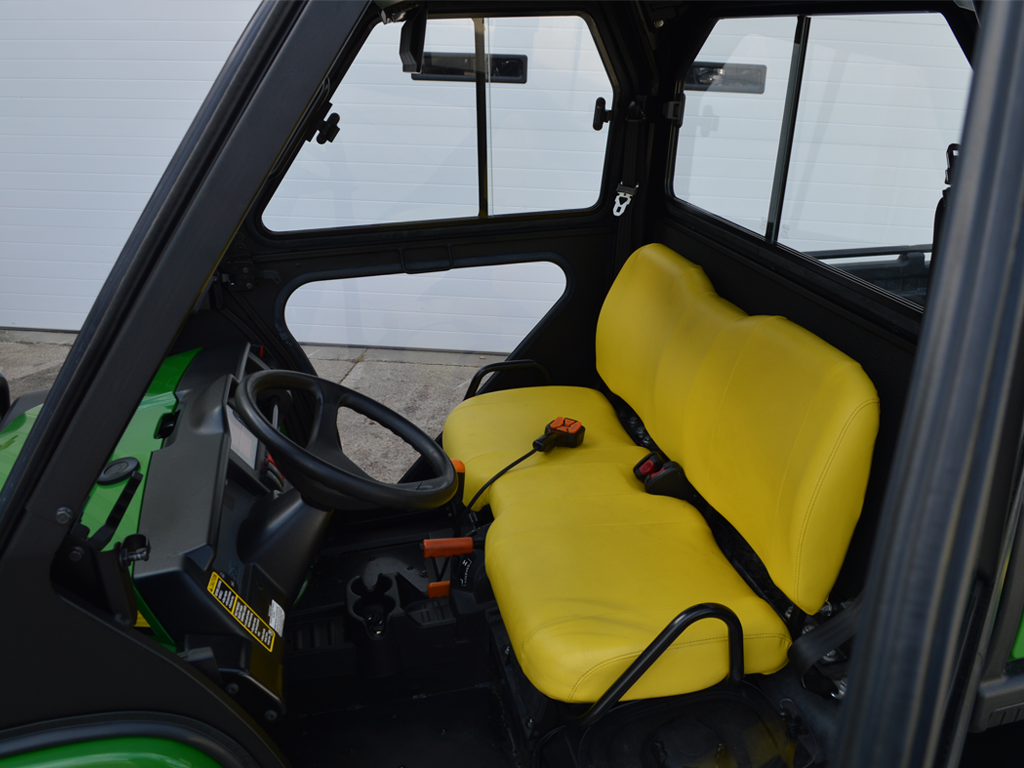

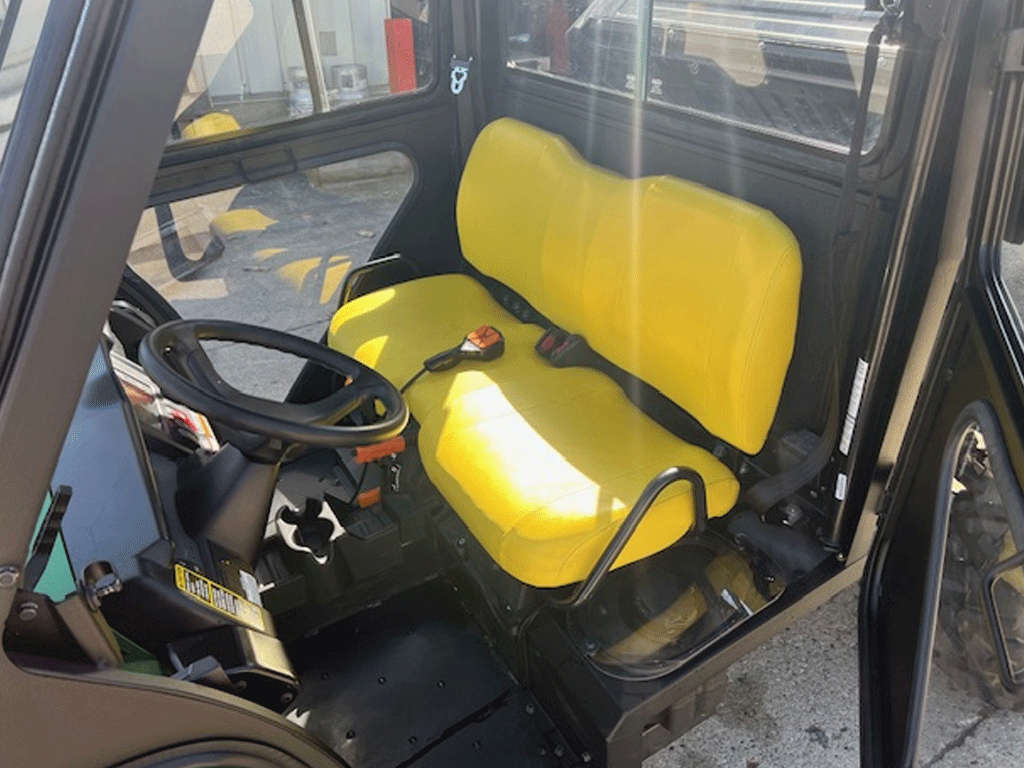

All-Steel Cab for John Deere Gator HPX/XUV (2005+), SKU: 1GTRXUV2
Fits John Deere models 625i, 825i (E & M Models), 855d (E & M Models), HPX 615e & 815e model years 2005 to current
Heavy-duty all-steel cab built for style and durability. Venting windshield, door sliders, and rear panel slider for exceptional airflow throughout the cab year-round.
FEATURES
- Mounts to existing factory standard ROPS
- Commercial-grade, powder-coated 16-gauge steel frame, roof, and doors
- Windshield wiper
- Automotive-style AS1 safety glass venting windshield
- Dual sliding rear window and dual sliding door windows
- Pin-hinged doors remove in seconds without tools
- Quick-release clear gas cap cover
- Wide door openings
- Lockable doors
XUV Switch Panel Kit (1XUVSP)
- The kit includes 3 pre-wired illuminated switches, an adjustable swivel LED dome light, and plug for the windshield wiper
- Pre-wired for front and rear work lights and flashers
Cab heater (9PH20S30)
- Powerful forced hot water heater
- Features high/low-speed fan
- In-line shutoff valve quickly converts the heater into a summertime blower
Side mirrors: (9PM5)
- Stylish black mirrors complement any color vehicle
- Mirrors adjust with incremental detent stops
- Simple 2-bolt mount
- Drilling template included
- Breakaway design
- Easily relocate from door to frame
- Kit includes 2 mirrors and all mounting hardware
Rearview mirror: (9PM3)
- Dash or roof mount, this rearview mirror will ensure visibility and safety while working and driving.
2 x 6-inch low-profile work lights (9LEDW4)
- Stylish 5-LED flat work light complements any vehicle
- Mounts to both metal and plastic roofs
- Lights tilt up & down
- Pre-wired for fast, easy installation
- Kit includes 2 lights, toggle switch, and all mounting hardware
- Light may be purchased individually (9LEDFWL-LO)

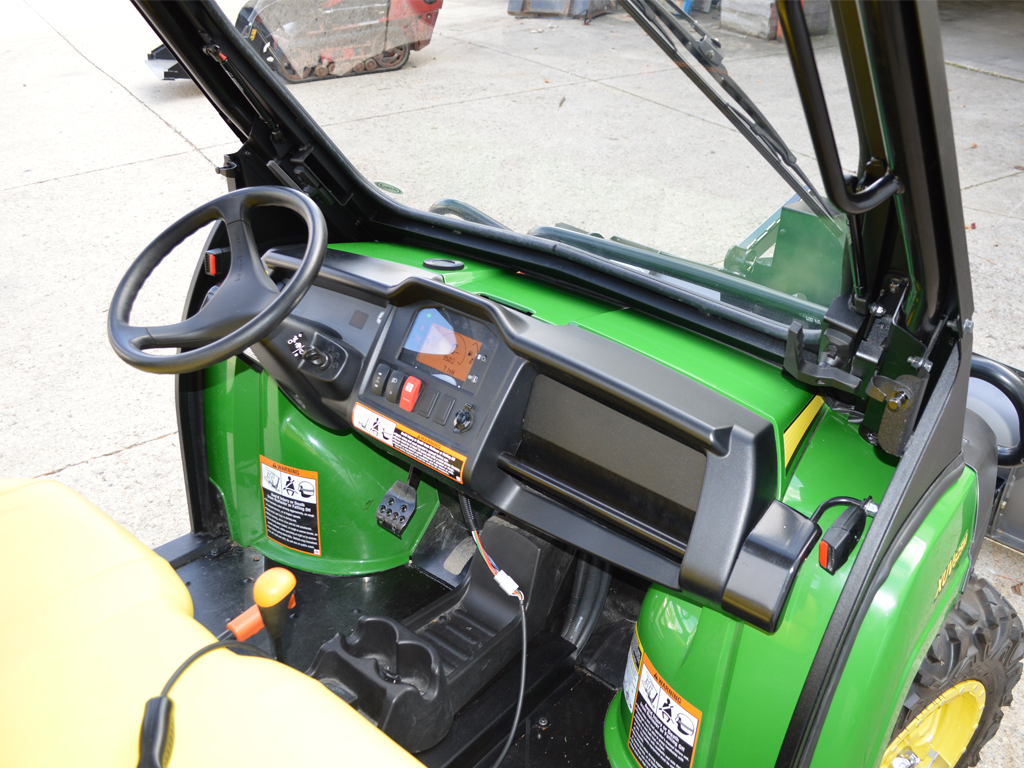

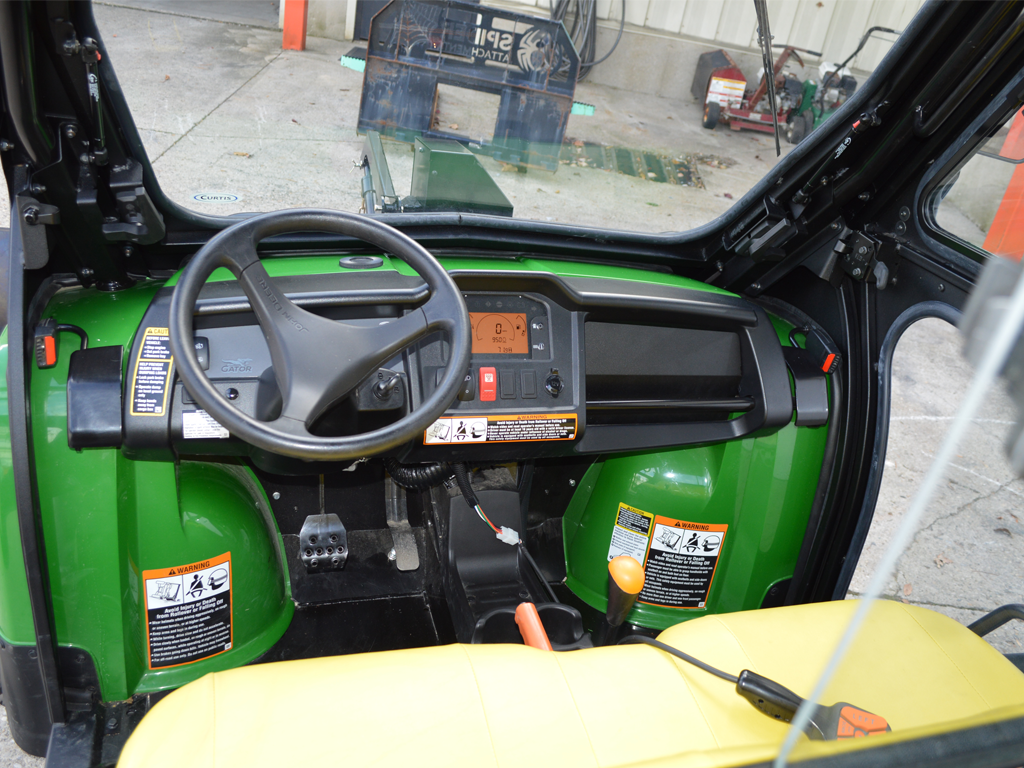

Switch panel (1GXV25P)
- The kit includes 3 pre-wired illuminated switches, an adjustable swivel LED dome light, and plug for the windshield wiper
- Pre-wired for front and rear work lights and flashers

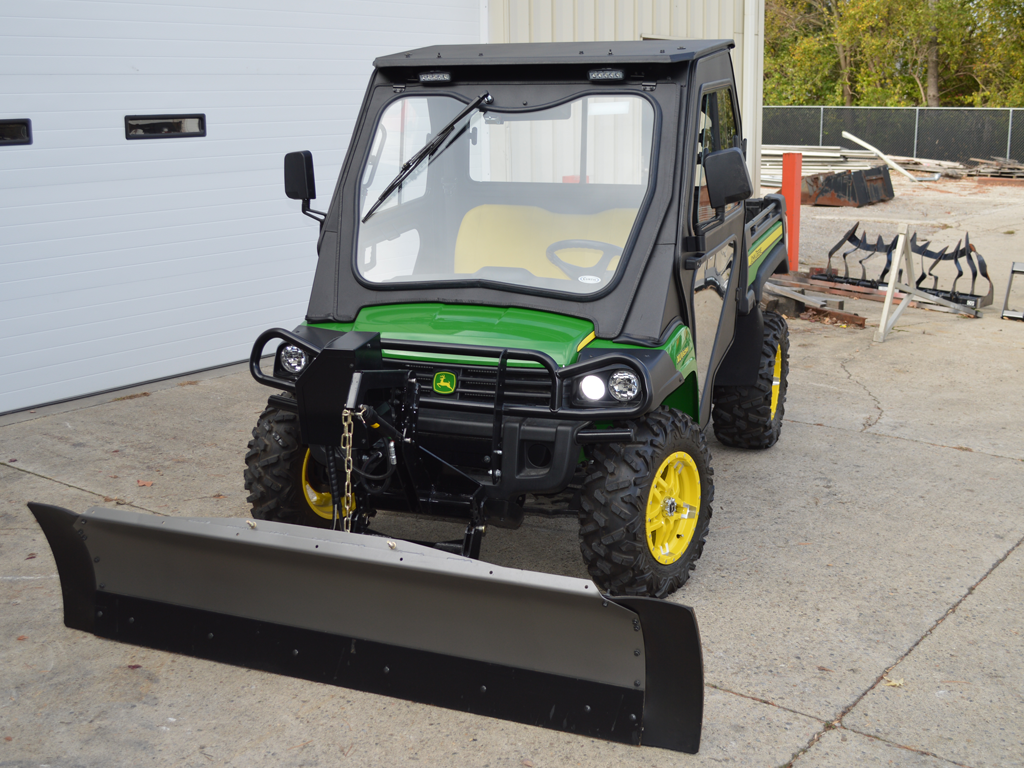

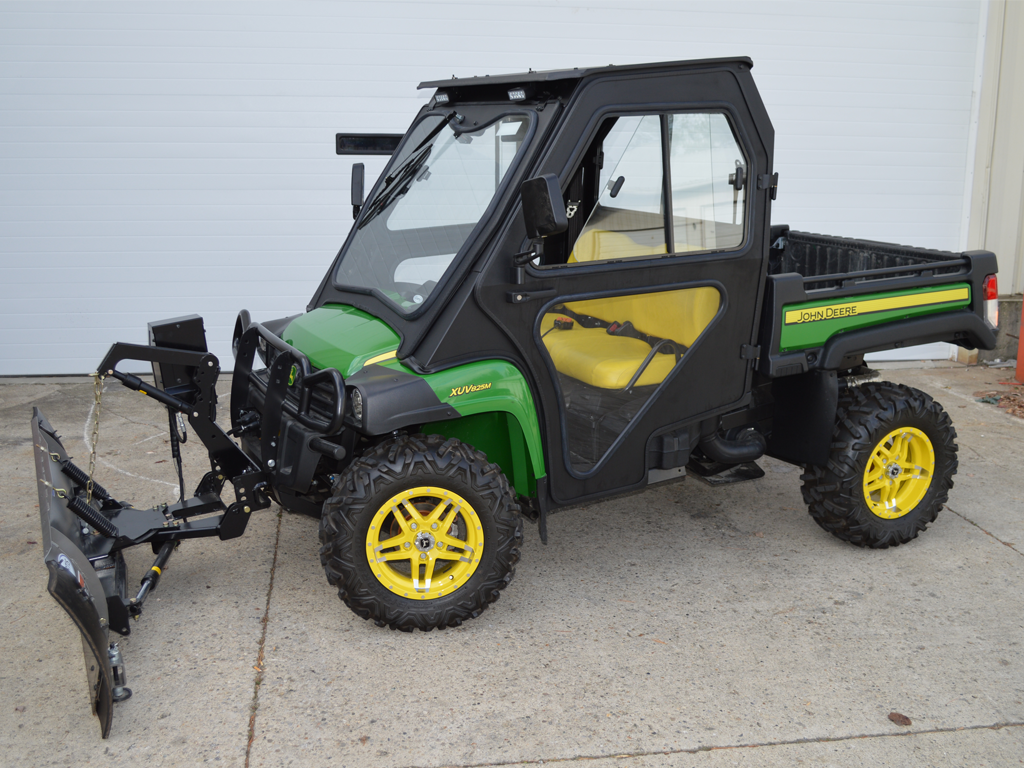

Hydraulic UTV Plow
Full hydraulic plow makes quick work clearing sidewalks, small parking lots and driveways. Illuminated, hand-held in-cab controller for easy operation in low light conditions. Plow comes assembled or unassembled. (Shown with optional blade markers.)
FEATURES
- Full hydraulic lift and angle control
- Single plug electrical connection
- Fully enclosed, sealed hydraulic system located on top for easy access and servicing
- Custom 2-inch receiver mount
- Quick hook up and detach
- 72-inch wide moldboard with 48-inch push frame
- Full trip, durable 12 gauge steel moldboard
- Adjustable trip springs
- Replaceable and reversible cutting edge
- Adjustable skid shoes included
- Mount kit required (sold separately)
SPECS
- Moldboard: Width, 72 inches; Height, 18 inches
- Full trip moldboard
- Commercial-grade steel construction
- Steel A-Frame
- 48-inch trip frame
- Maximum blade angle: 0 degrees thru 28 degrees
- Skid shoes: 1/2 inch diameter stem
- Weight: 254 lbs.
- Cutting edge height; 6 inches, double-sided
- Custom 2-inch receiver hitch
OPTIONS
- Rubber snow deflector (1UTVSD)
- Blade markers (1TBP37)
- Rubber cutting edge, ideal for cobblestone, brick, or other more sensitive surfaces (9PRU1)
- Assembled (1UTVP)
- Unassembled (1UTVP-1)
- Replacement cutting edge (UTV-CE)
- Custom plow mount kit
