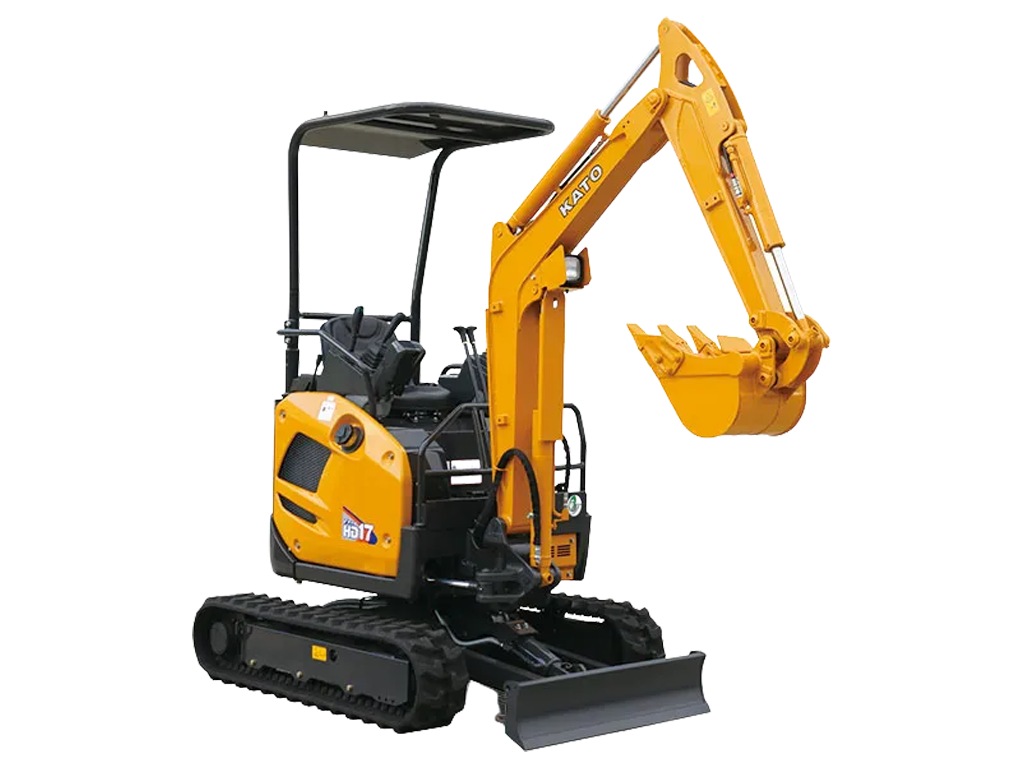

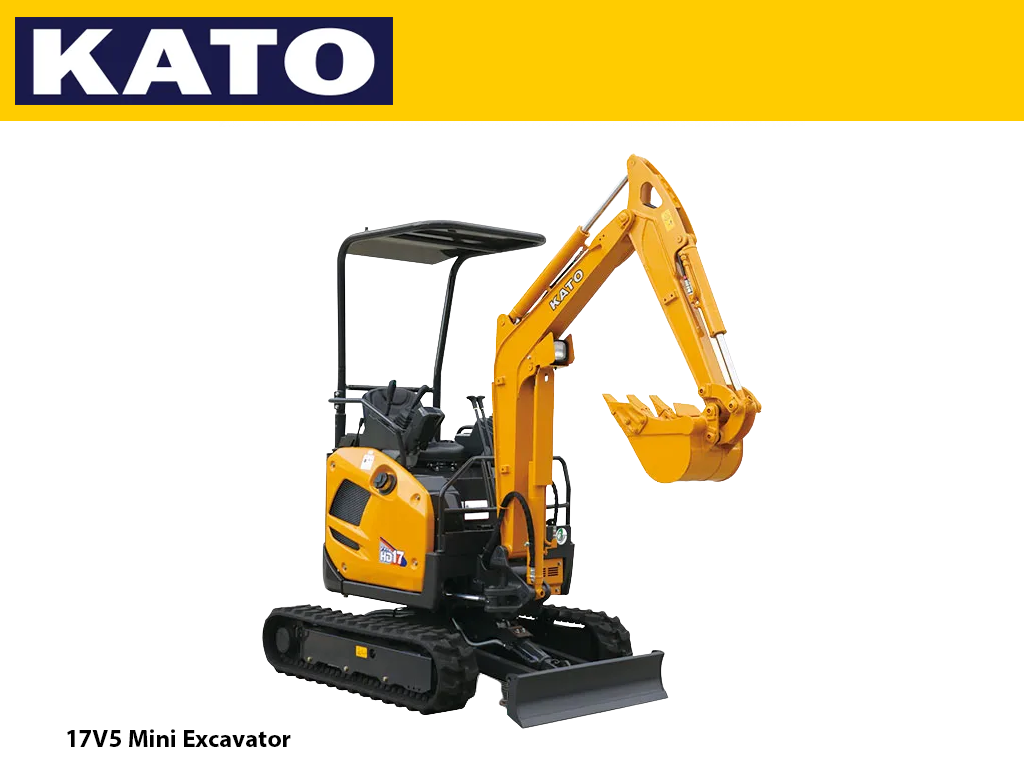

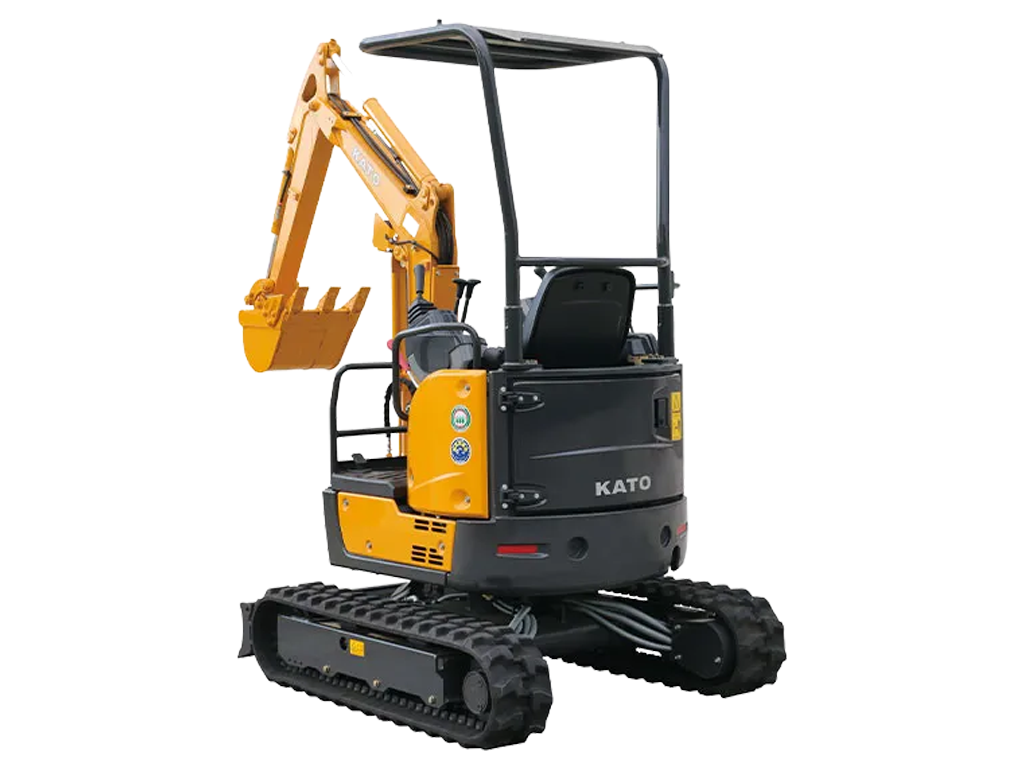

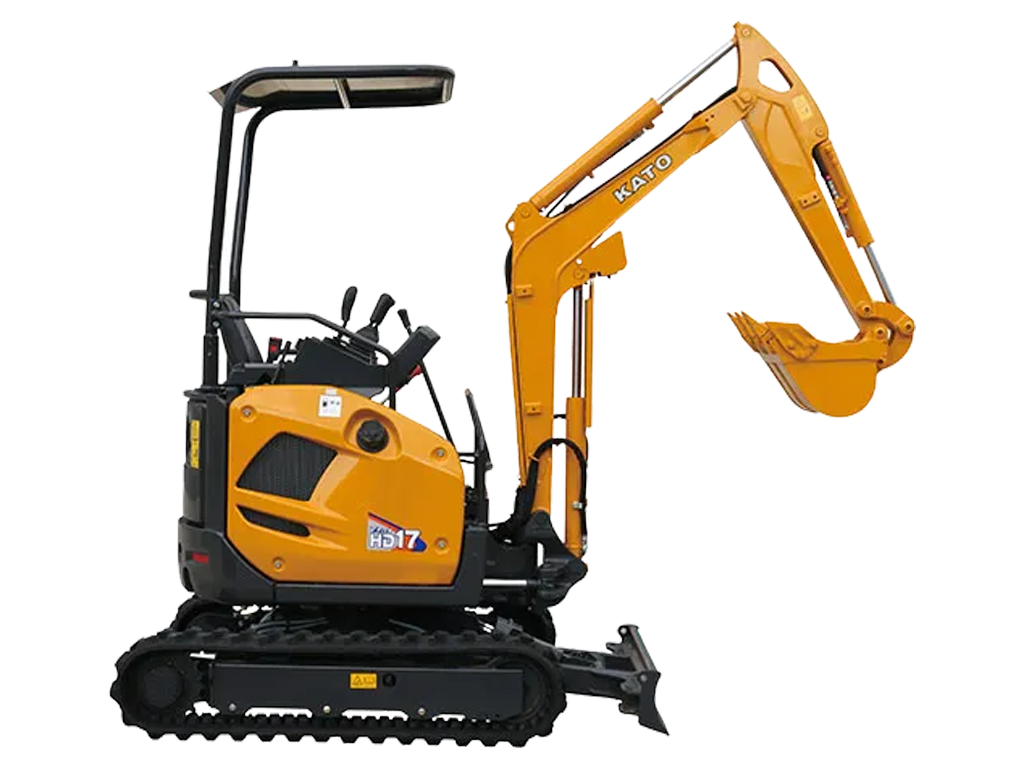

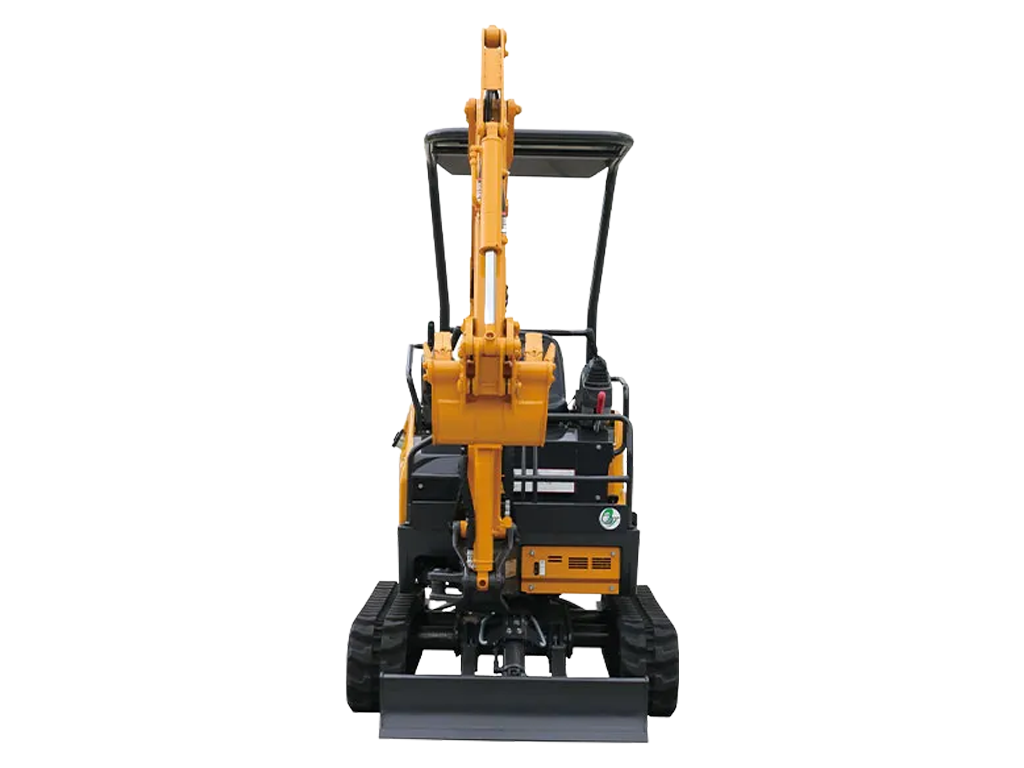

KATO 17V5 Mini Excavator

Model
Bucket option

17V5 Mini Excavator

Comfortable, Easy-to-Use, and Stable

The V5 Mini Excavator series not only has zero tail swing, but its high-powered digging force is increased by 10%, and the 4-pump system is quick to respond, making this the ultimate mini excavator.

Comfortable and easy-to-use, the V5 mini excavators are also fuel efficient and easy to maintain. With an auto-parking brake and a neutral engine-start, the V5 mini excavators are proactive in error-prevention.

Specifications

Bucket Capacity 1.6 ft3
Bucket Width 12″
Operating Weight 4,261 lbs.
Transport Weight 3,924 lbs.
Swing Speed 8.5 rpm
Travel Speed (Low/ High) 1.3 mph / 2.5 mph
Gradeability 30°
Ground Pressure 4.4 psi
Bucket Digging Force 4,842 lbs.


Engine

Model YANMAR 3TNV74F
Output Rating 14.1 hp / 2,300rpm
Fuel Tank Capacity 5.8 gallons



Boom Swing System

Type Offset Boom w/ Hydraulic Cyl.
Swing Angle (L / R) 55° / 70°



Hydraulic System

Total Hydraulic System Flow 12 gpm
Max Auxiliary Hydraulic Flow 7 gpm



Dozer Blade

Size 3’ 3” x 9.25”
Lift Above / Drop Below Ground 11.8” / 9”
