35N5

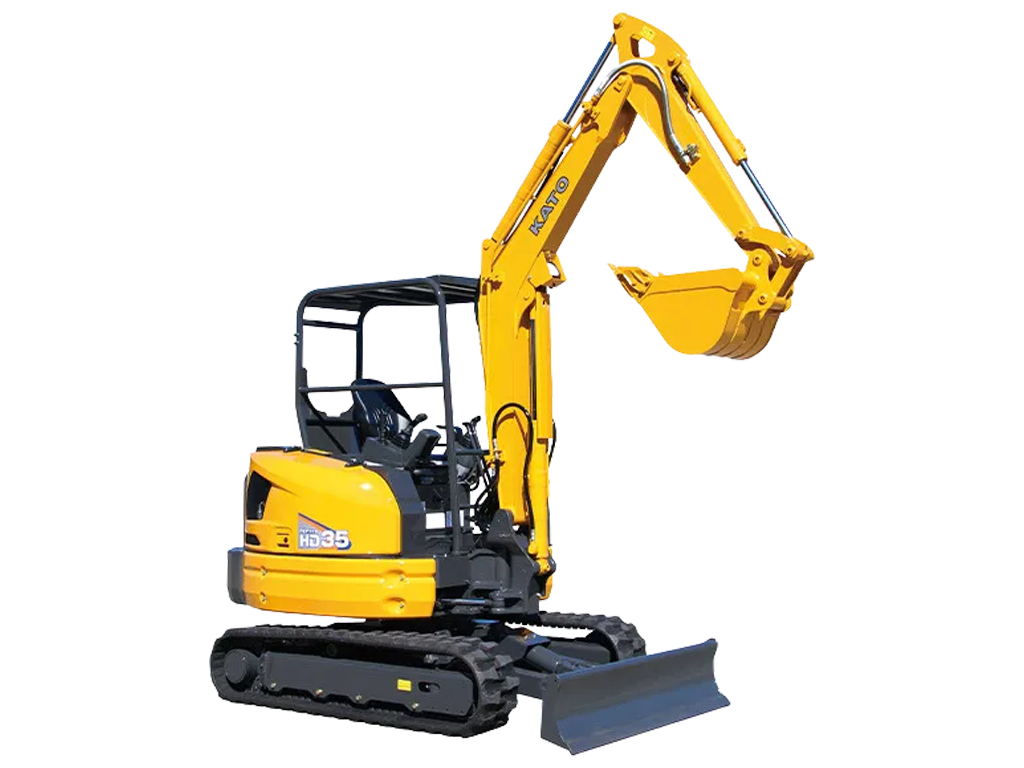

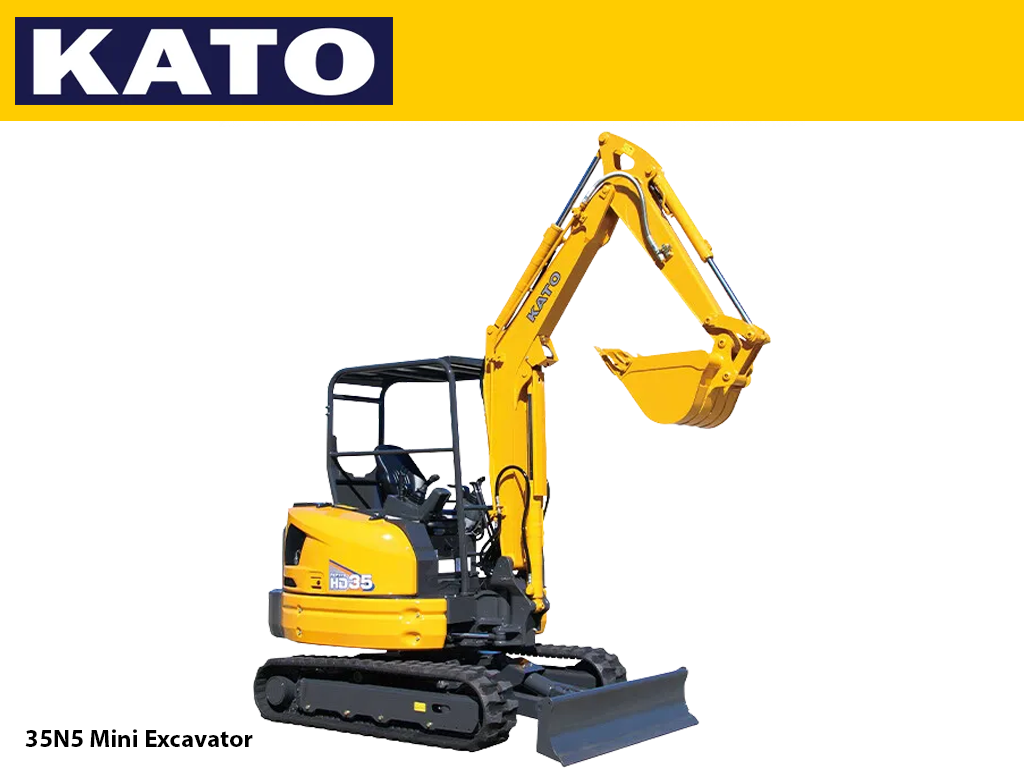

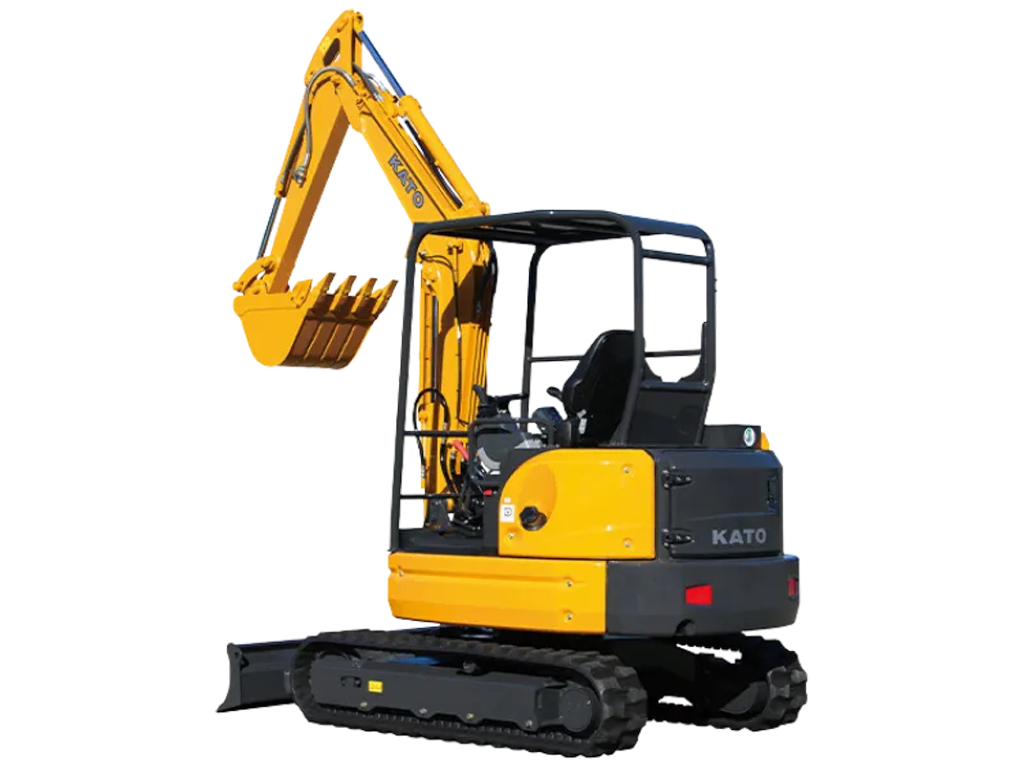

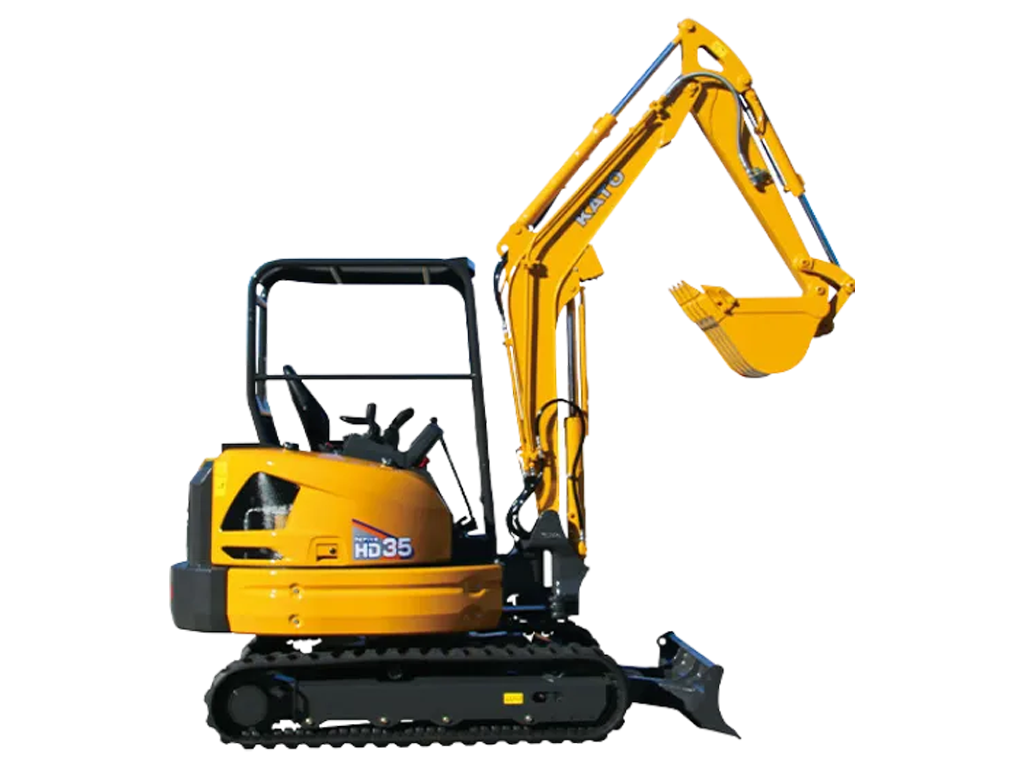

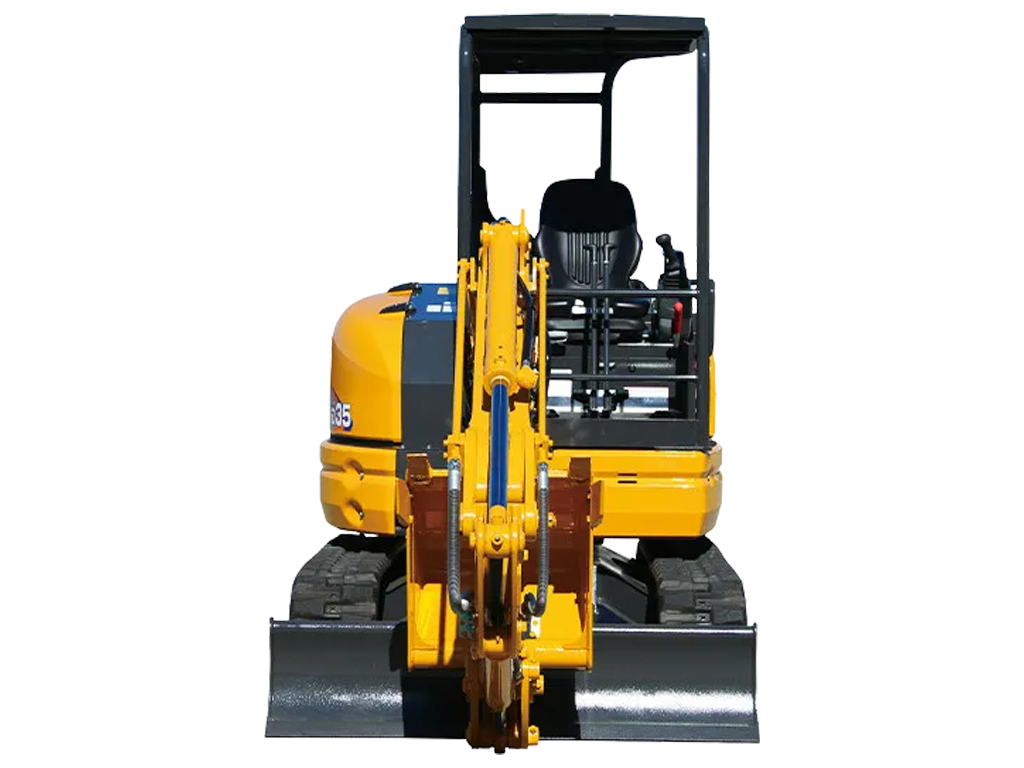

KATO 35N5 Mini Excavator

Model
Bucket option
Cab option

35N5 Mini Excavator

THE NEXT GENERATION Robust Design for 3.5 metric ton Conventional Type Mini Excavator

The all new 35N5 mini excavator has been revamped from the previous 35N4 model to allow maximum performance and reliability. With an increased cabin space, and redesigned engine, this mini excavator provides the comfort and strength needed to accommodate you on every job. This machine fully capitalizes on all of the qualities and characteristics that the previous 35N4 had to offer, given a new sleek design and feel. With an overall increased machine weight, the all new 35N5 has the extreme digging force that you are seeking in a mid-sized machine.

Great stability and high performance! Powerful Strong Reliable! Easy routing maintenance and inspection!

Workability
Enhanced dumping height: Dumping height is higher than previous model(110mm higher than HD35N4). Workability has been improved.

Fully versatile easy skimming work: The closer distance between bucket teeth and dozer blade allows it to skim the ground easier.

Compact body & wide working range: The perfect combination of compactness and wide working range allows it to access confined spaces and enables for excellent performance. It also secures enough digging height for truck loading.

Safety
Engine start system & safety lock system: The engine is turned on when that lever is in the neutral position. Auto-parking brake is activated when the lock lever is raised. (Including dozer blade and swing) It offers high operating safety and prevents unexpected movements.

ROPS compliant 4-post canopy: 4-post canopy with a retractable seat belt is available as standard feature. Safety of operator has significantly improved. (Fasten your seat belt when you operate)

Comfortability
Comfortable operating space: Ergonomic wide comfortable operating space has been designed to fit operator.

Durability
Frame protection: Durability and sturdiness are increased all around the body by casting

Working light under the boom: The light installed under the boom is protected from damage.

Reinforced dozer blade: The box-shaped dozer provides higher rigidity.

.

Specifications

Bucket Capacity 0.055-0.12m3
Max. ground clearance 11.4in
Crawler length 82.7in
Operating Weight 7,264.2LBS.
Overall width 61in
Swing Speed 9.0min-1
Travel Speed (low/high) 2.7/4.7km/h
Gradeability 50%
Max Bucket Digging Force 7,662 lbs

Engine

Model YANMAR 3TNV88F
Rated output 23.06HP
Fuel Tank Capacity 11.1 gallons

Boom Swing System

Type Boom Offset with Hydraulic Cylinder
Swing Angle (L / R) 50° / 90°

Hydraulic System

Pressure 24.5MPa
Pumps Double variable piston pump and gear pump
Control valves 9 section multiple control valves
Travel motor Variable displacement plunger motor

Dozer Blade

Size 14″
Lift Above ground / Drop Below Ground 15″ / 18″
