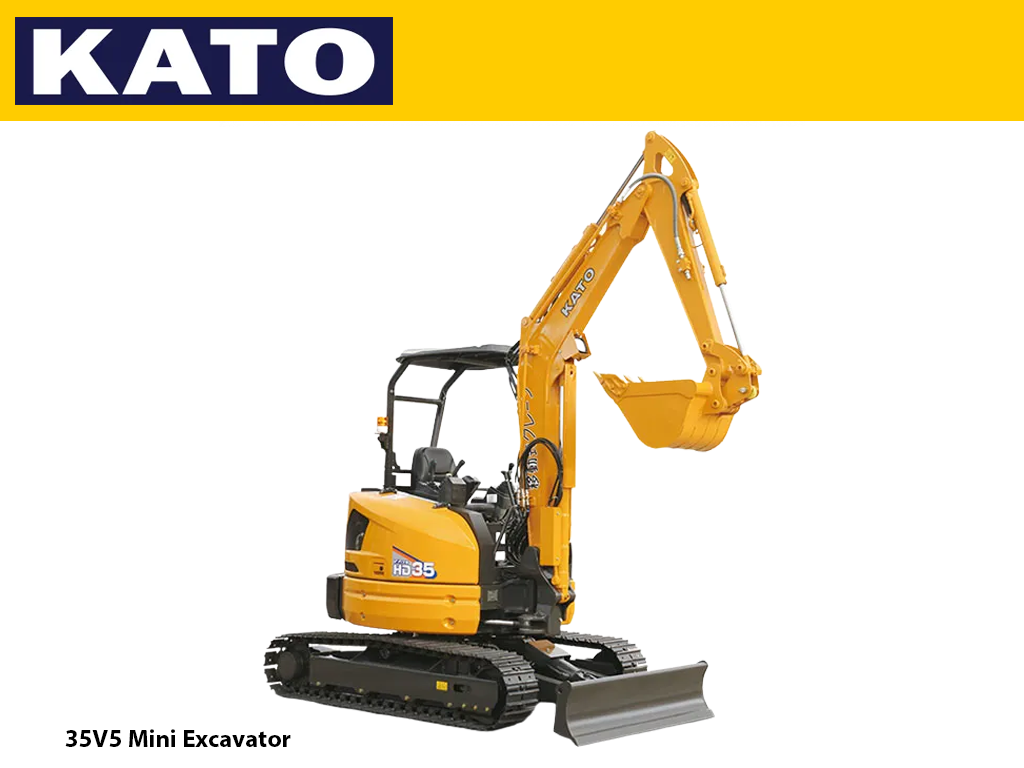

KATO 35V5 Mini Excavator

12/25

KATO 35V5 MINI EXCAVATOR

COMPACT POWER, PRECISION & OPERATOR COMFORT

The KATO 35V5 Mini Excavator combines zero tail swing performance with increased digging force, responsive hydraulics, and exceptional stability. With a 10% boost in digging power and a fast-acting 4-pump hydraulic system, the 35V5 is perfect for construction, landscaping, utilities, and tight-space excavation projects where precision and maneuverability are essential.

Designed for operator comfort and ease-of-use, the 35V5 features smooth hydraulic pilot controls, fuel-efficient Yanmar power, and a spacious operating cabin. Safety features such as an auto-parking brake and neutral engine-start system provide reliable error prevention for safer operation. With a compact footprint, versatile boom swing, and strong breakout force, this mini excavator is ready to tackle any job efficiently and effectively.

KEY FEATURES & BENEFITS

• Operating weight: 8,082 lbs

• Bucket capacity: 3.5 ft³, width: 24"

• Bucket digging force: 7,688 lbs

• Swing speed: 9 RPM, travel speed (low/high): 1.7 / 2.9 mph

• Gradeability: 30°, ground pressure: 4.4 psi

• Offset boom with hydraulic cylinder, boom swing angle: 50° left / 80° right

• Total hydraulic system flow: 25 GPM, max auxiliary flow: 16 GPM

• Engine: YANMAR 3TNV88F, 23 HP @ 2200 RPM, fuel tank: 11 gal

• Standard dozer blade: 1’3” x 5’1”, lift/drop: 1’3” / 1’6”

• Zero tail swing design for tight work areas

The KATO 35V5 Mini Excavator delivers precision, power, and durability in a compact, highly maneuverable package—ideal for operators who demand high productivity in confined jobsite environments.

Specifications

Engine

Boom Swing System

Hydraulic System

Dozer Blade
