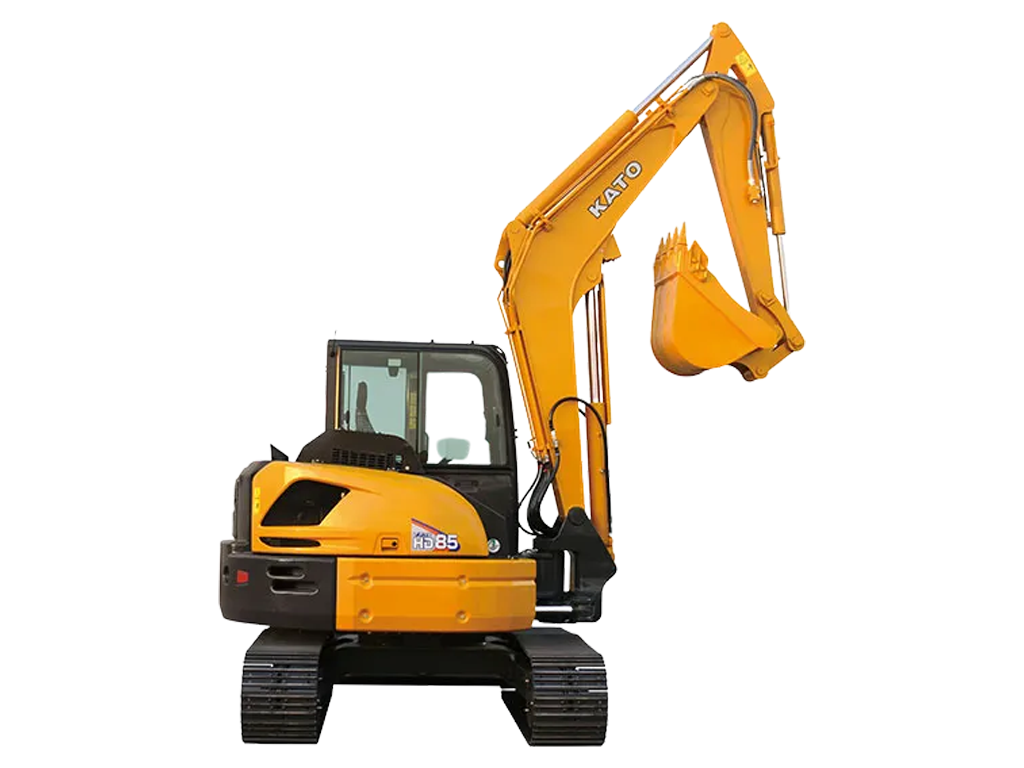

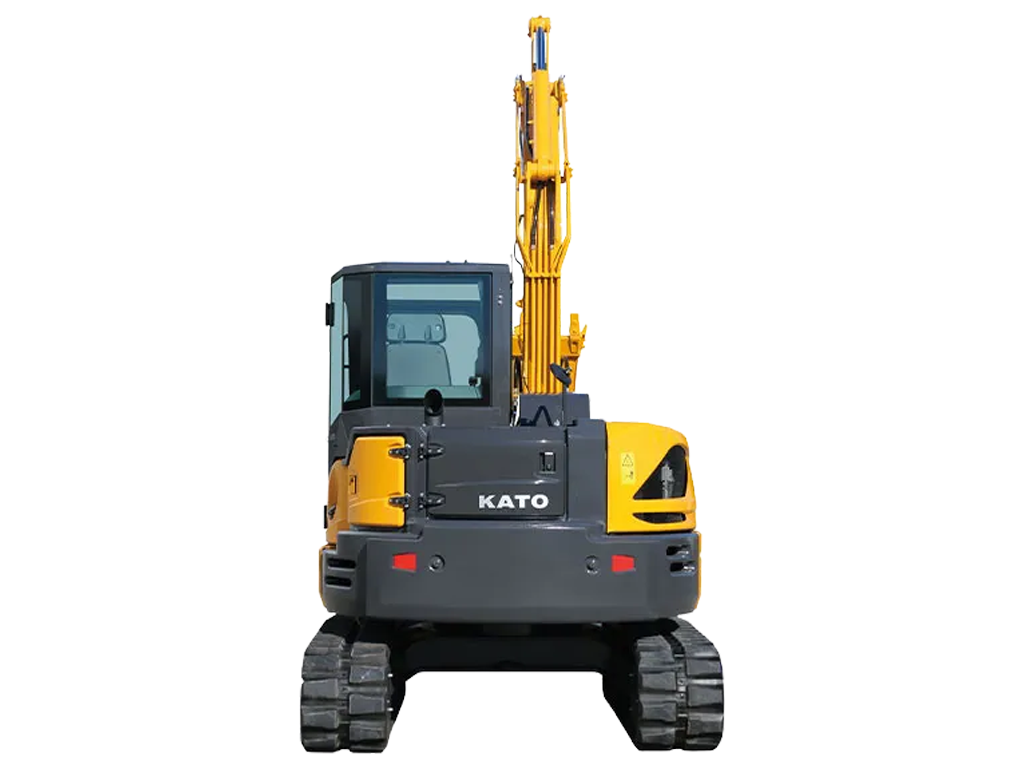

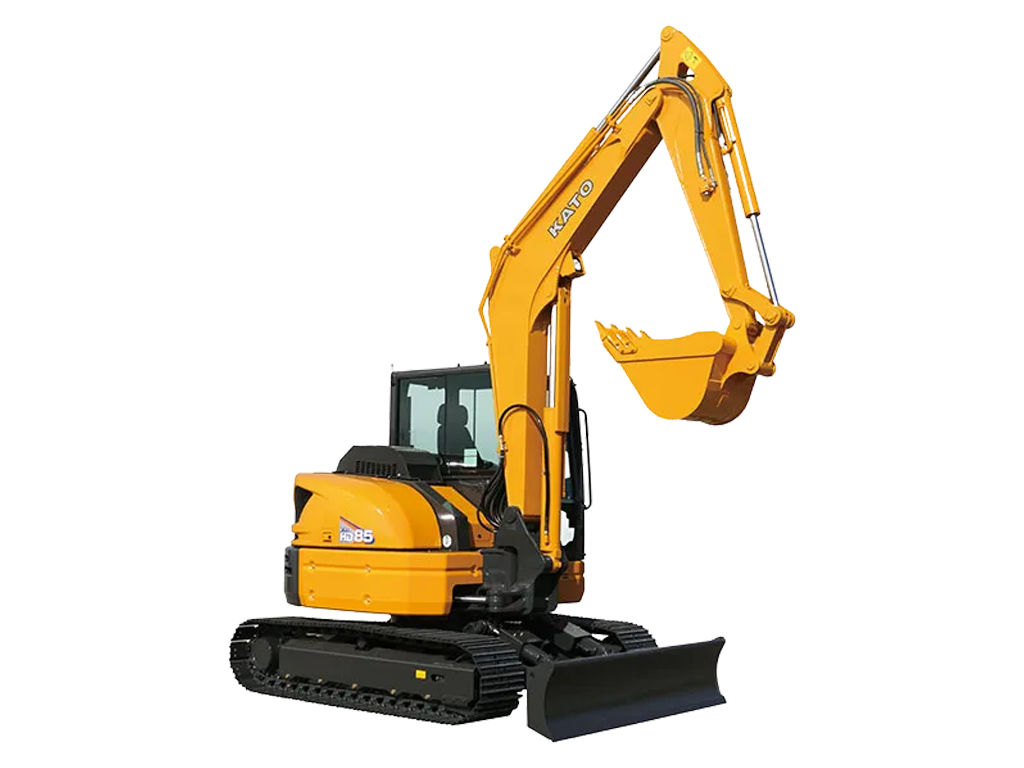

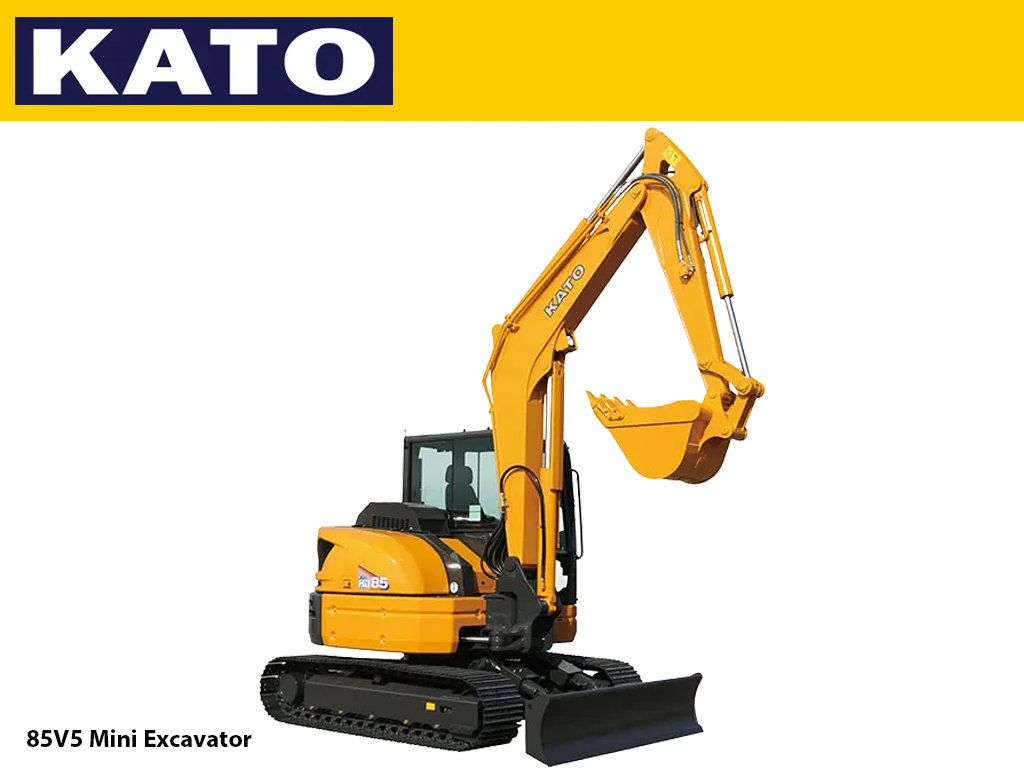

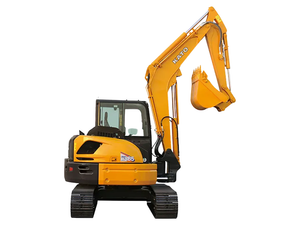

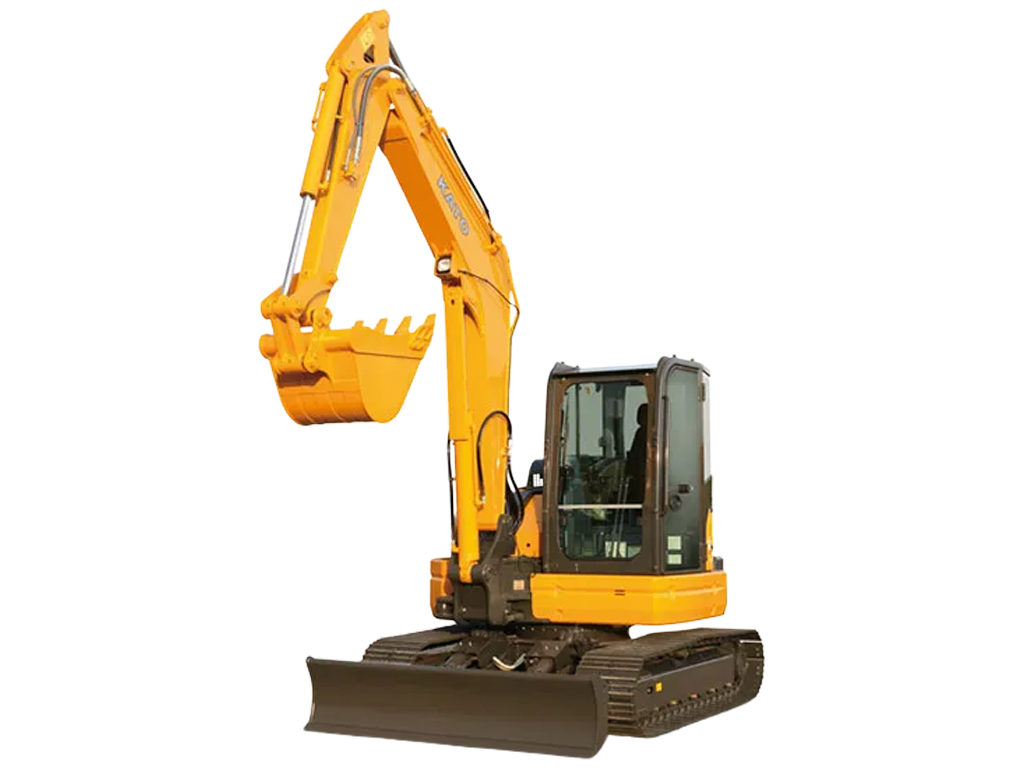

KATO 85V5 Mini Excavator
$105,350.00 - $106,550.00
85V5 Mini Excavator
The 85V5 is the largest of all mini-excavators from IHI/Compact Excavator Sales, offering more than brute strength to improve productivity in the most demanding work situations. This all new 18,775 lb excavator is a zero-tail-swing machine that comes standard with an additional 900 lb. counterweight for added stability. The 85V5 exhibits power and performance that is paving the way for a new world standard. This mini excavator offers a comfortable operating environment with a wide cabin that has the largest space in its class. It has a compact size zero tail swing with a 7’3″ width, especially beneficial when working in tight spaces.
Specifications
| Bucket Capacity | 8.8 ft3 |
| Bucket Width | 30” |
| Operating Weight | 19,595 lbs. |
| Transportation Weight | 18673 lbs. |
| Swing Speed | 9 rpm |
| Travel Speed (low/high) | 1.6 / 2.7 mph |
| Gradeability | 30° |
| Ground Pressure | 4.5 psi |
| Max Bucket Digging Force | 12, 364 lbs. |
Engine
| Model | YANMAR 4TNV98C |
| Rated output | 57 hp @ 2100 rpm |
| Fuel Tank Capacity | 29 gal |
Boom Swing System
| Type | Offset Boom w/ Hydraulic Cyl. |
| Swing Angle (L / R) | 50°/80° |
Hydraulic System
| Pressure | 3550 psi |
| Hydraulic Flow | 81 gpm |
| 1st Line Max Auxiliary Flow | 20 gpm |
Dozer Blade
| Size | 1’ 8” x 7’ 3” |
| Lift Above ground / Drop Below Ground | 1’ 4” / 1’ 5” |
