AS12

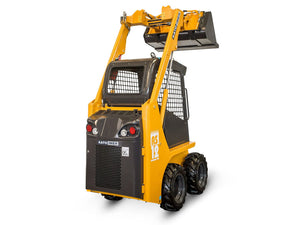

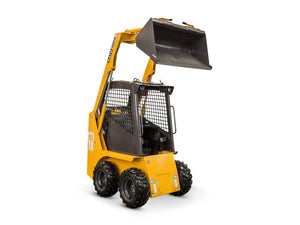

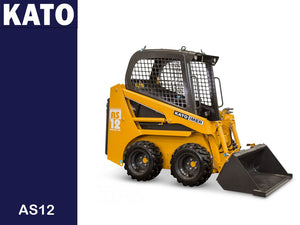

KATO AS12 skid steer loader
$34,000.00 - $40,134.00
AS12 Skid Steer
RUBBER TIRE SKID STEER. Reliability, speed, PILOT OPERATED JOYSTICK controls and compactness. The AS-12 is ideal for working in confined spaces with maximum flexibility. With an operating weight of 2955 lbs., the AS-12 can handle an operating load (SAE Standard) of up to 728 lbs., with a breakout force of 1658 ft/lb. The AS-12 Skid Steer Loader is equipped with a 21 Hp Yanmar diesel engine ensuring excellent performance in the most complex applications.

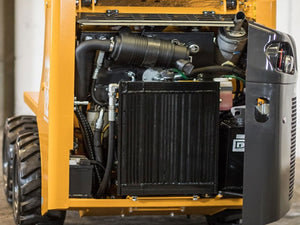

21 Hp Yanmar diesel engine
2955 Lbs. operating weight
728 Lbs. SAE load capacity
1658 Ft/Lb. bucket breakout force
Rubber tires (23 – 8.50 x 12 )
STANDARD EQUIPMENT

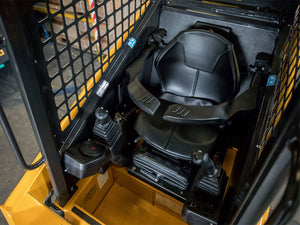

- JOYSTICK CONTROLS
- UNIVERSAL COUPER (TORO)
- TWO SPEED TRAVEL
- AUXILARY HYDRAULICS
- 23x8.5-12 WIDE TIRES & RIMS
- PUSH BUTTON BOOM ARM FLOAT

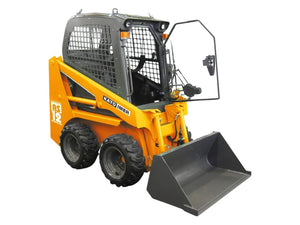

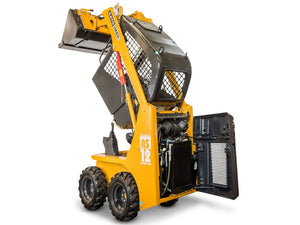

- TILT UP CAB
- 44" UNIVERSAL SMOOTH BUCKET
| PERFORMANCE | |
| OPERATING WEIGHT | 2955 LBS |
| TRANSPORT WEIGHT | 2778 LBS |
| SAE LOAD CAPCITY 35% | 728 LBS |
| TIPPING LOAD | 1455 LBS |
| BUCKET BREAKOUT FORCE | 1658 LBS |
| TRAVEL SPEED | 0-4.35 MPH |
| ENGINE | |
| MANUFACTURE | YANMAR |
| MODEL | 3TNV76 |
| OUTPUT | 21 HP / 2500 RPM |
| BATTERY | 12 VOLT |
| FUEL CONSUMPTION | 1.26 GAL / HR |
| COOLING | WATER |
| FUEL CAPACITY | 2.2 GAL |
| HYDRAULIC SYSTEM | |
| PREASURE | 2610 PSI |
| AUX FLOW | 7.4 GPM |
| BUCKET | |
| STD BUCKET | 13.06 CU FT |
|
TIRES |
|
| SIZE | 23-8.5X12 |
| ROPS/FOPS | |
| CERTIFICATIONS | ISO3471:1994, ISO 3449:1998 LEVEL 1 |
| REFILLING | |
| COOLING | 1 GAL |
| FUEL | 5.3 GAL |
| HYDRAULICS | 10.3 GAL |
| HYD TANK | 5.3 GAL |
| NOISE | |
| OPERATOR | 85 DBA |
| EXTERNAL | 101 DBA |
