CL35

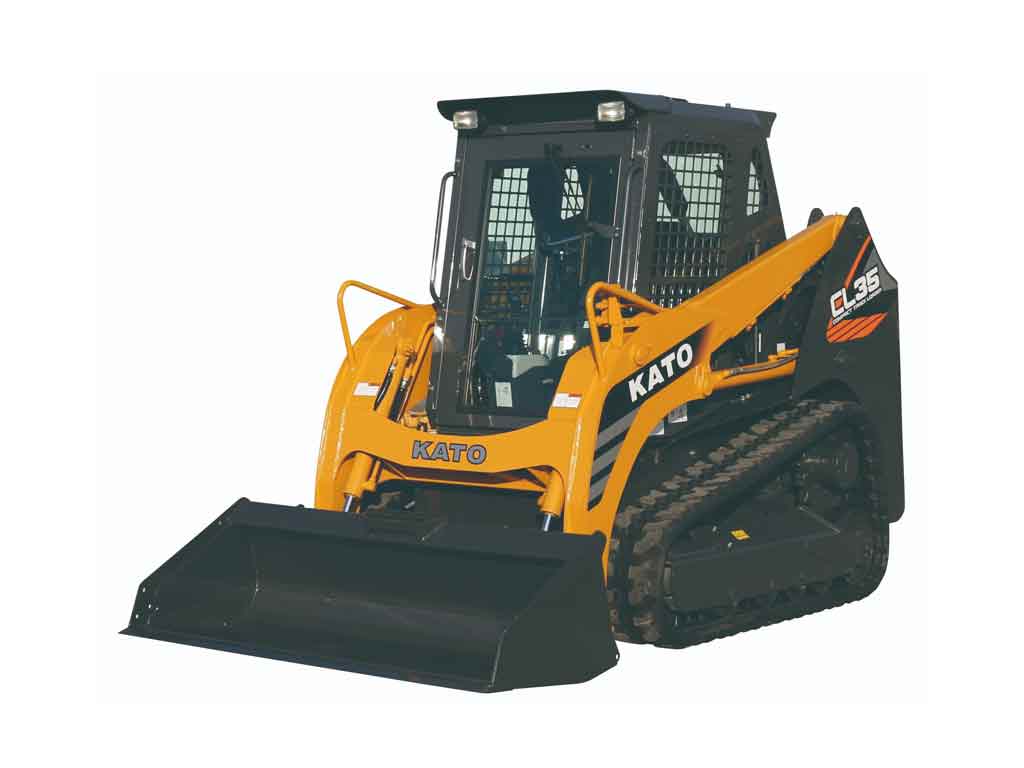

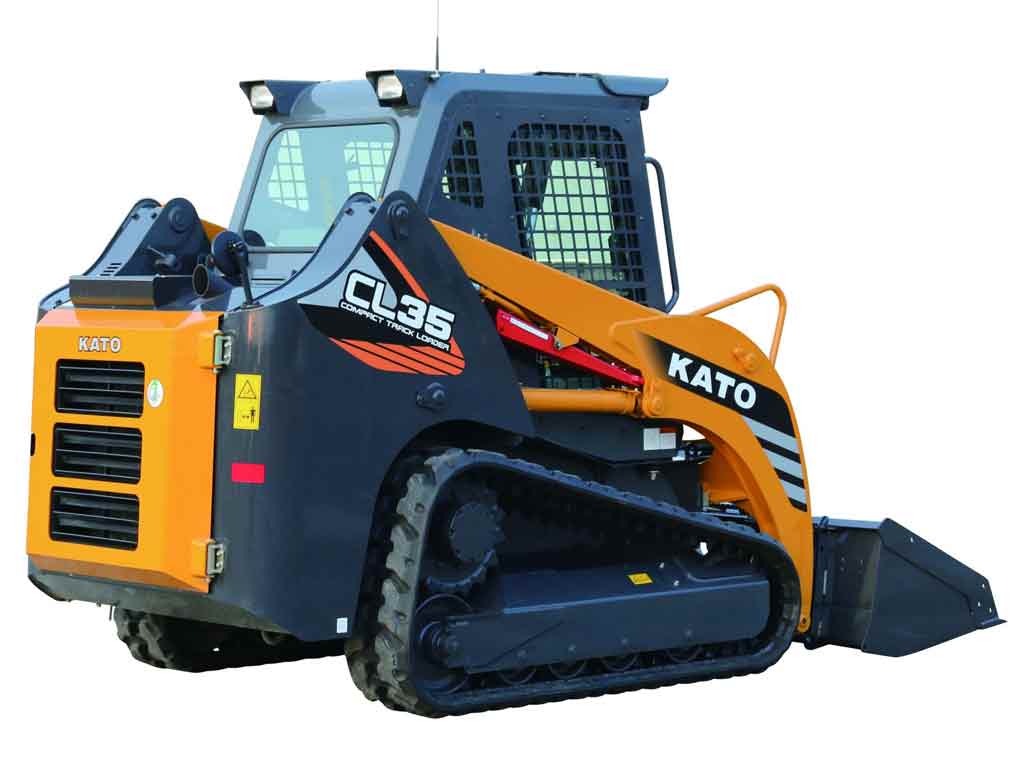

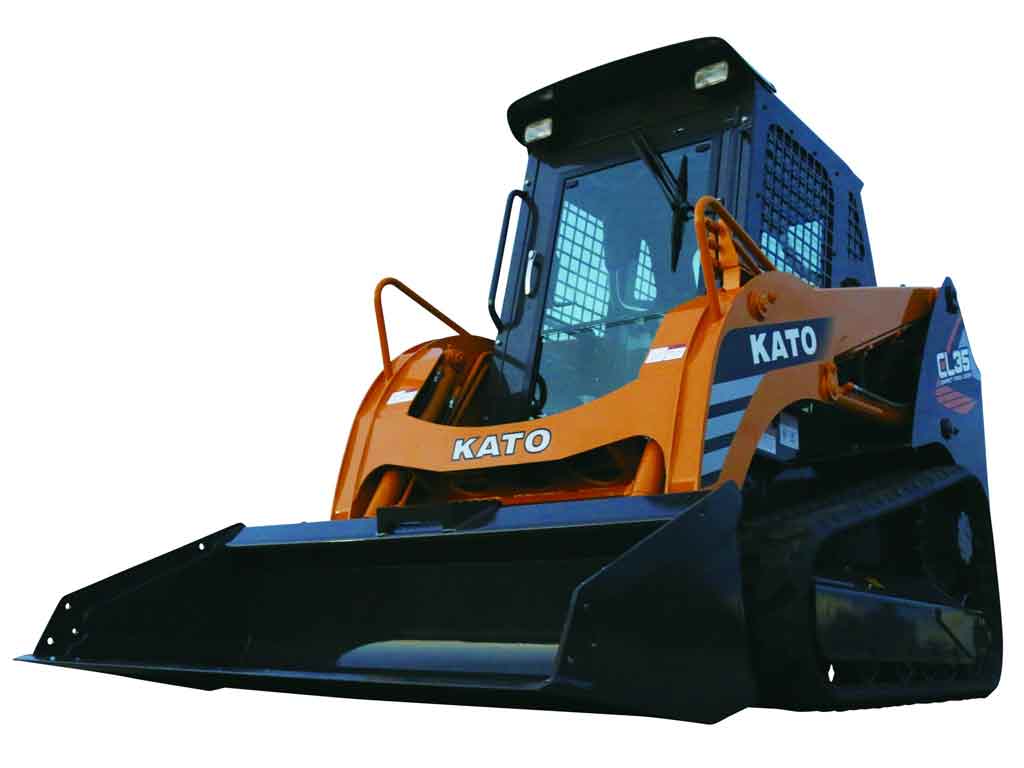

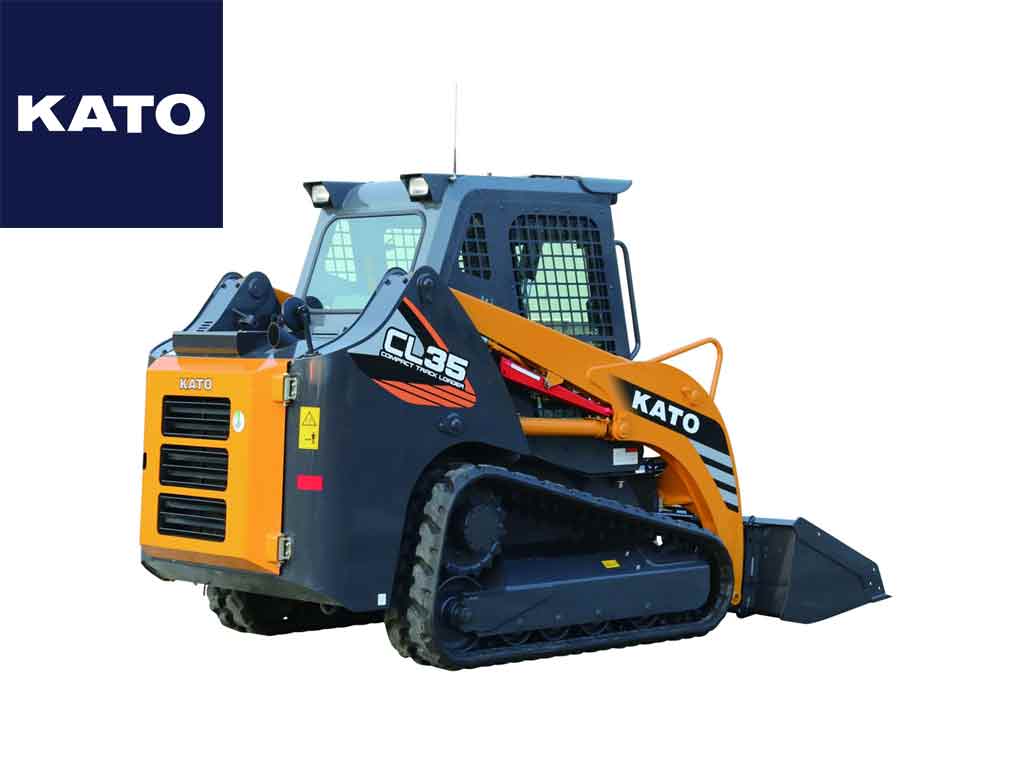

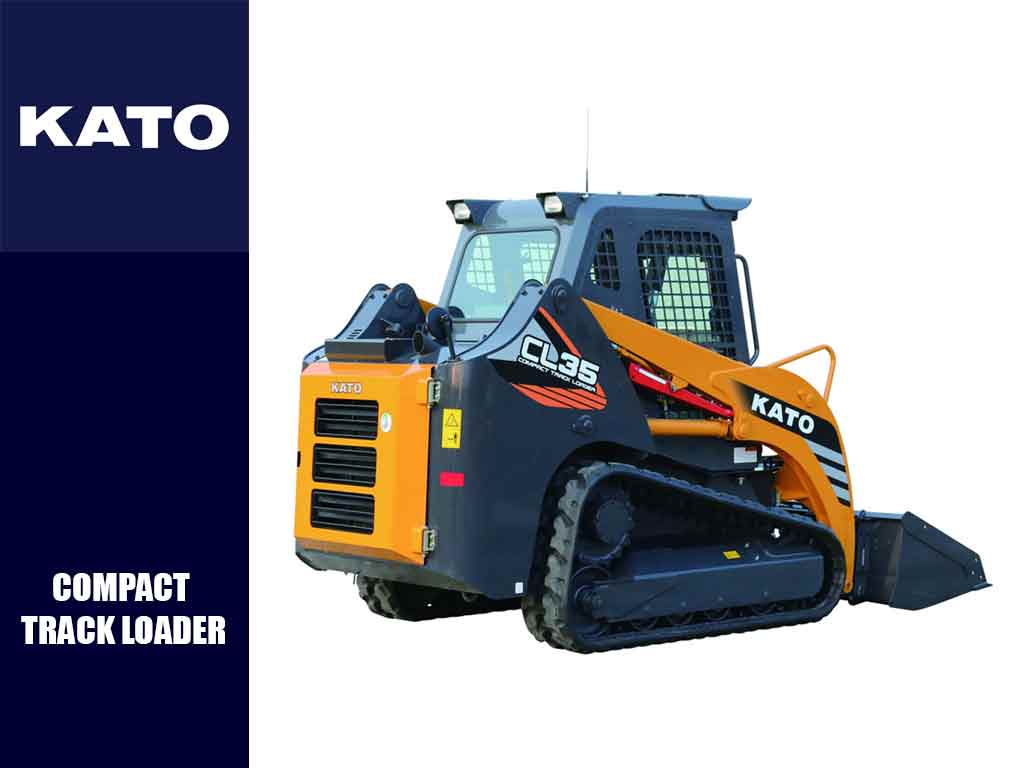

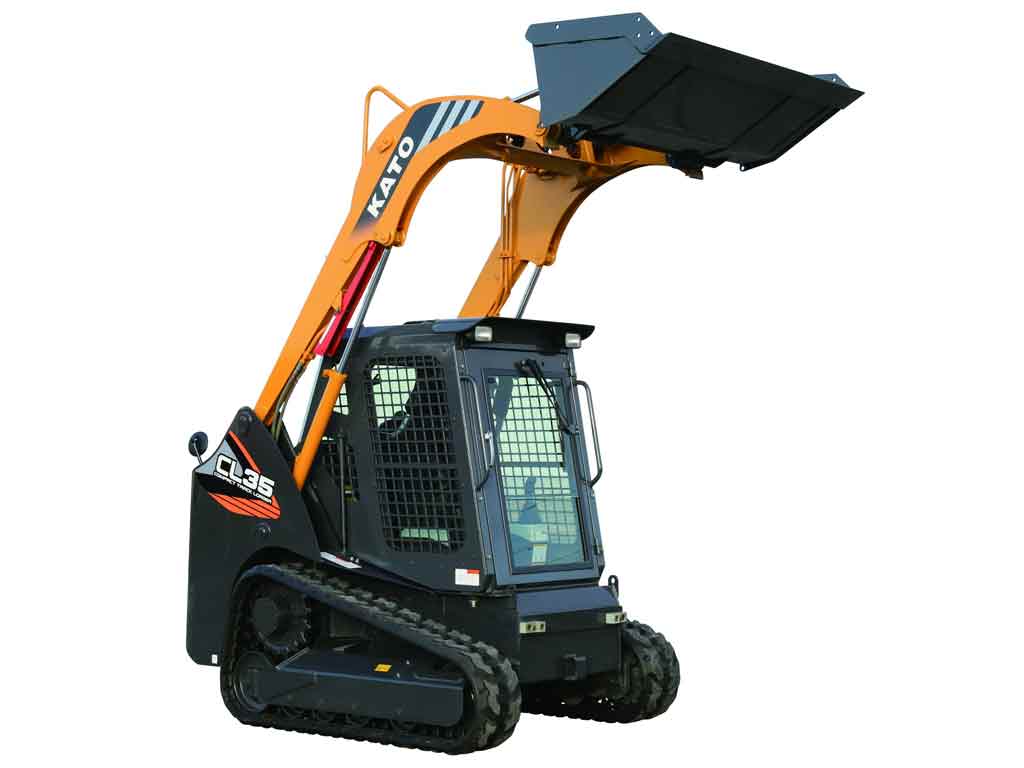

KATO CL-35 compact track loader

TYPE

CL-35 Track Loader

Based on a rock-solid concept and heavy-duty construction, the CL35 Track Loader is designed to show off its high usability and functionality even in adverse working conditions. With a proven track record in heavy equipment, KATO’s hydraulic system accurately responds to the will of the operator. The CL35 offers comfort, ease of use, eco-friendliness, durability and reliability, as well as easy maintenance. Developed through the pursuit of what a track loader should do and what it should be, the CL35 is ready to revolutionize the way you work, wherever in the world you are.

TWO CONFIGURATIONS

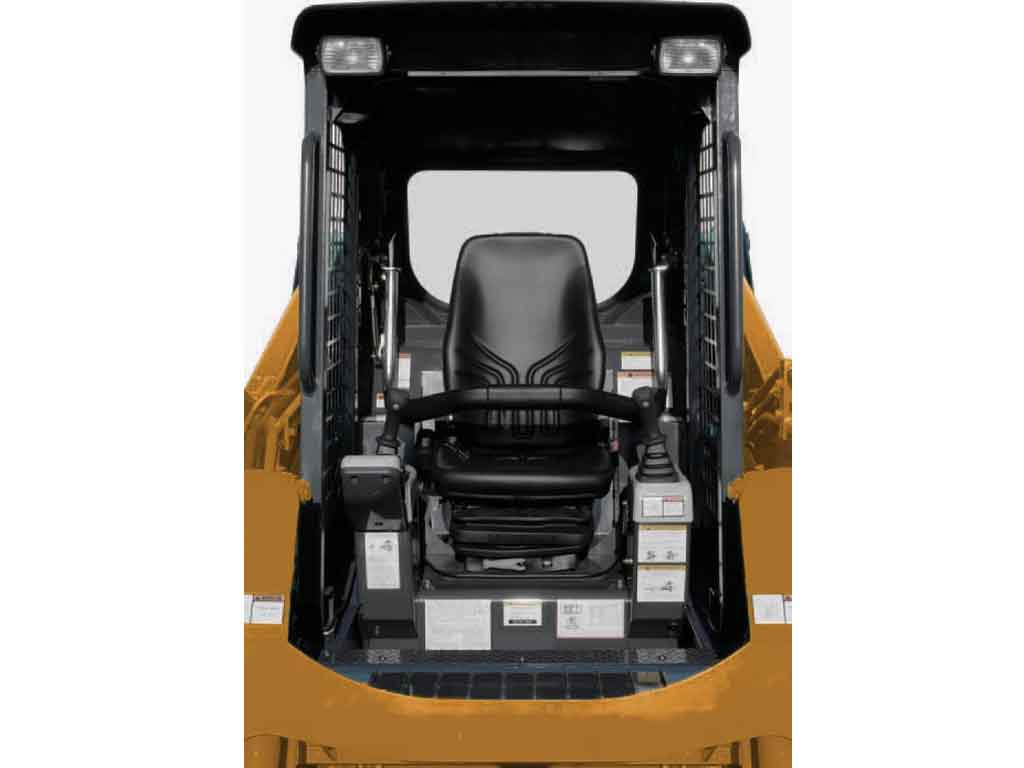

OROPS - CL35 with Tilt Up Operator's Compartment, Pilot Operated Joystick
Controls, Two Speed Travel, Aux Hydraulics, 12.6" Tracks, Universal
Quick Attach, Push Button Boom Arm Float
*Base Machine Excludes Bucket

EROPS - CL35 with Tilt Up Operator's Compartment, Pilot Operated Joystick
Controls, Two Speed Travel, Aux Hydraulics, 12.6" Tracks, Universal
Quick Attach, Push Button Boom Arm Float, CAB, HEAT & AC.
*Base Machine Excludes Bucket

Description Specification
Tipping Load 4916 lbs
Operating Weight 7804 lbs
Bucket Breakout 6474 lbs
Horse-power 62 hp
Engine Kubota V2403-CR
Bucket Capacity
Vessel Capacity Struck 3.5 cu. yd.
Vessel Capacity Heaped 5.0 cu. yd.
Bucket Capacity SAE Heaped 14.3 cu. ft.
Dimensions
Bucket Width 5'8
Dump Clearance 2'8
Max Dumping Angle 60°
Height From Ground 3'10
Weights
Transportation Weight 7,645 lbs.
Operating Weight 7,826 lbs.
Performance
Travel Speed - High 6.2 mph
Travel Speed - Low 4.2 mph
Stability
Gradeability 30
