KATO

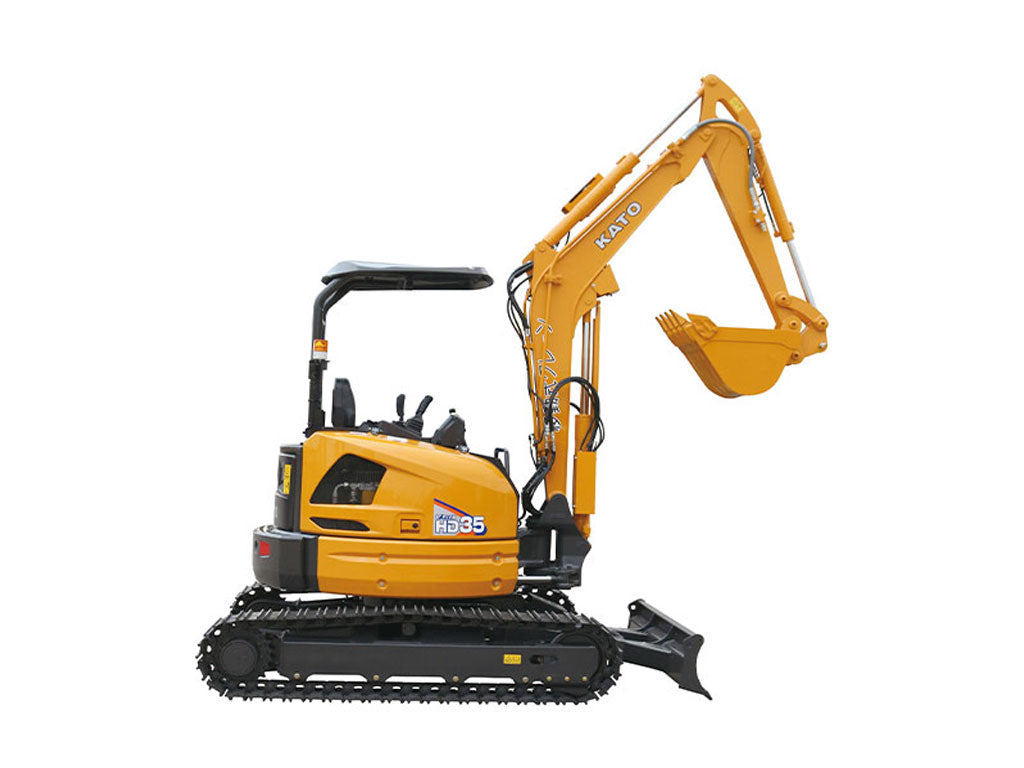

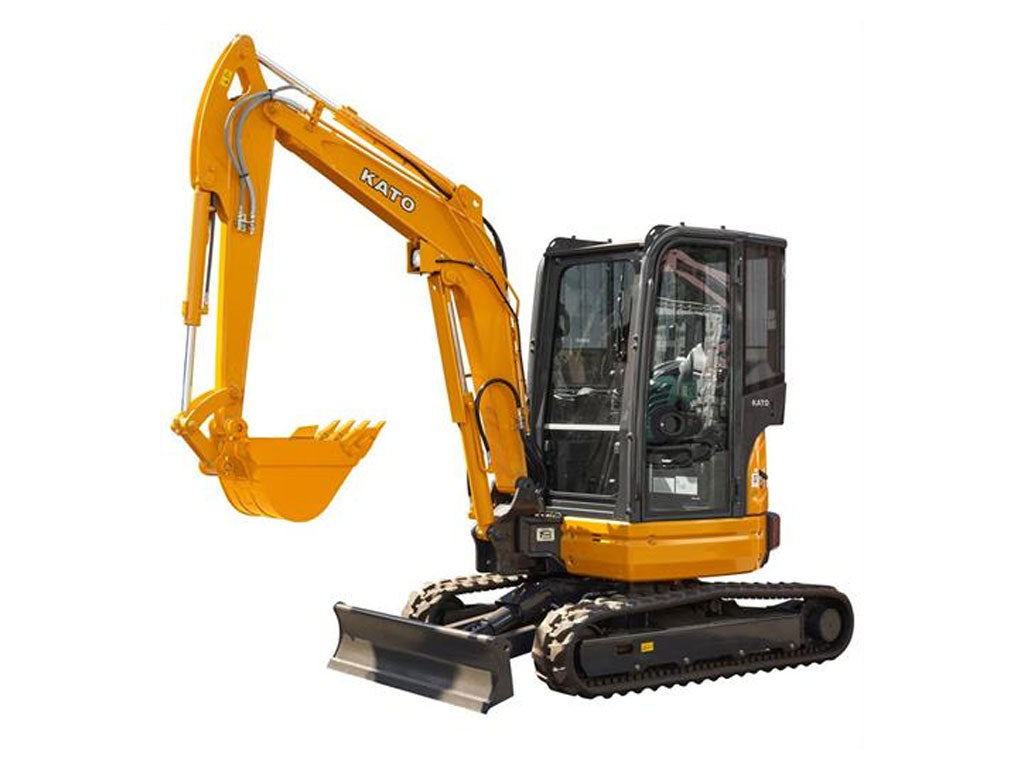

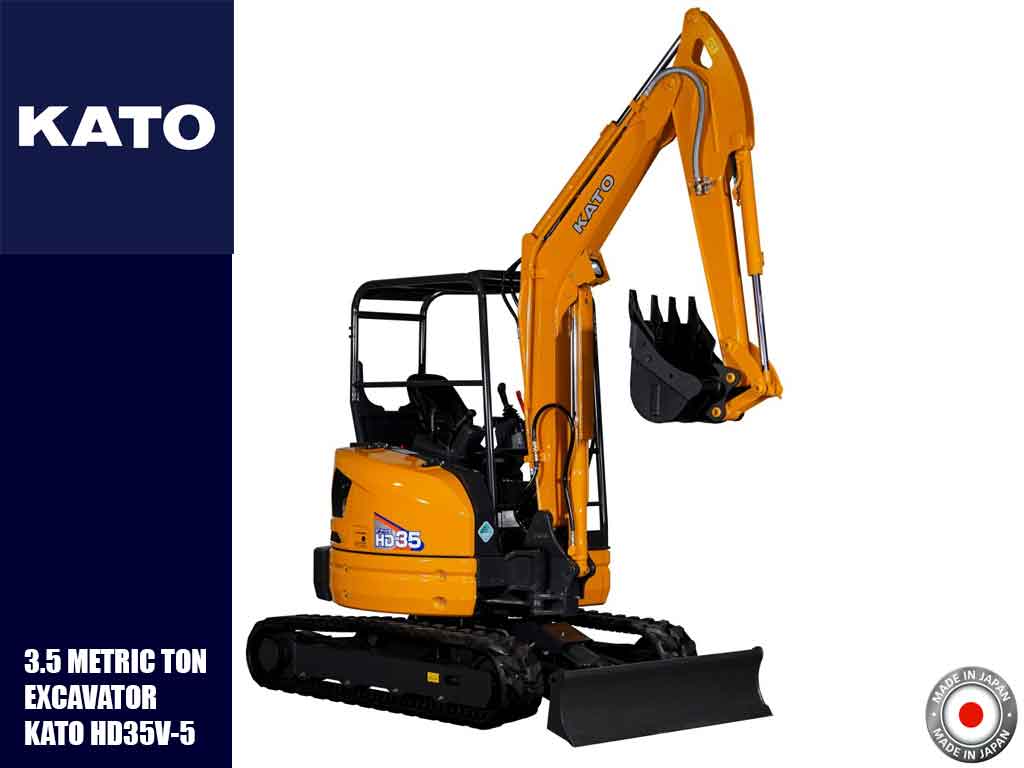

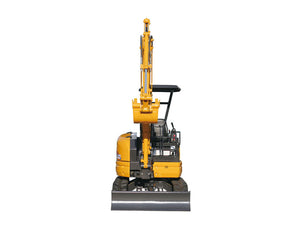

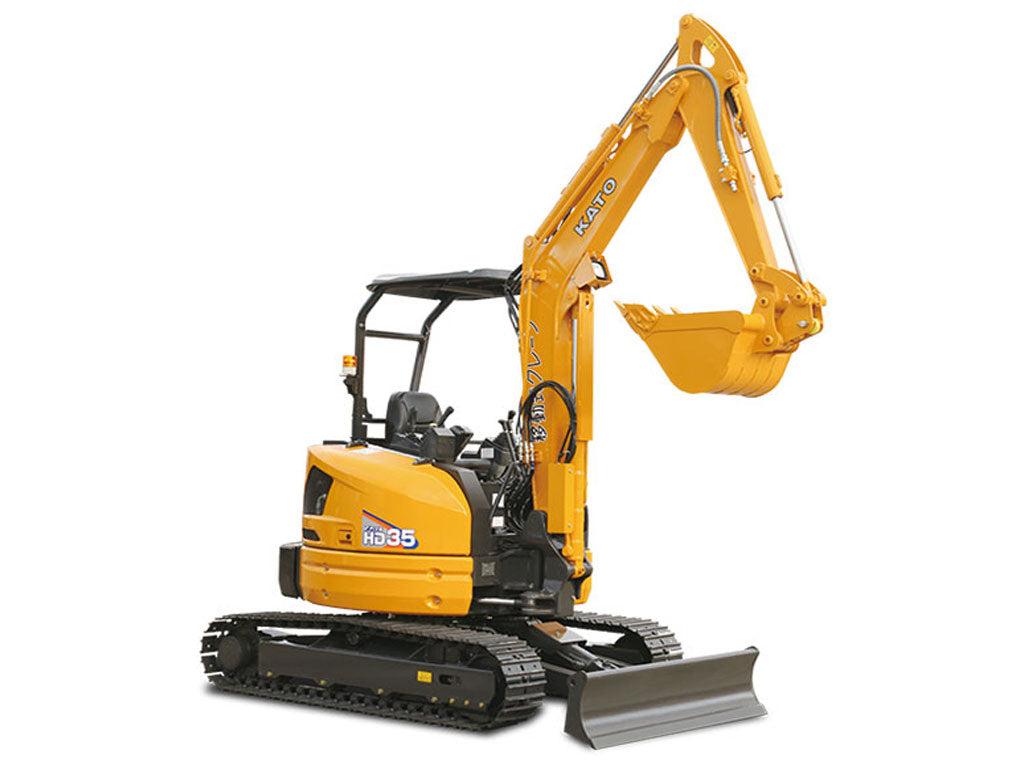

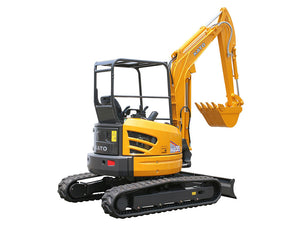

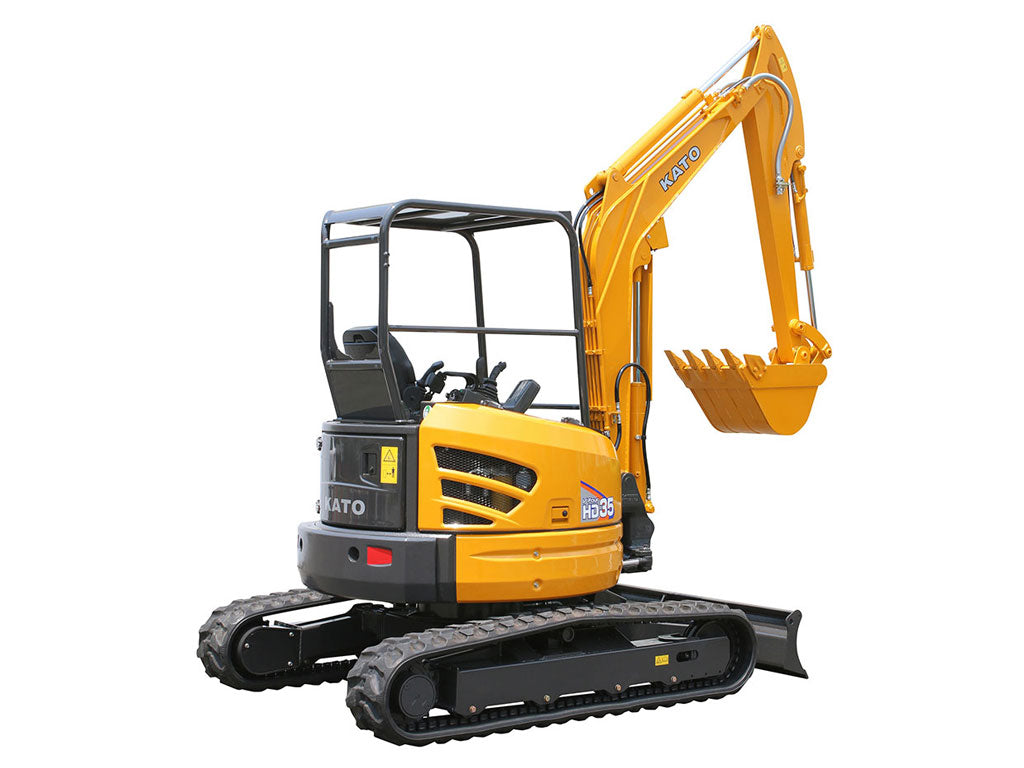

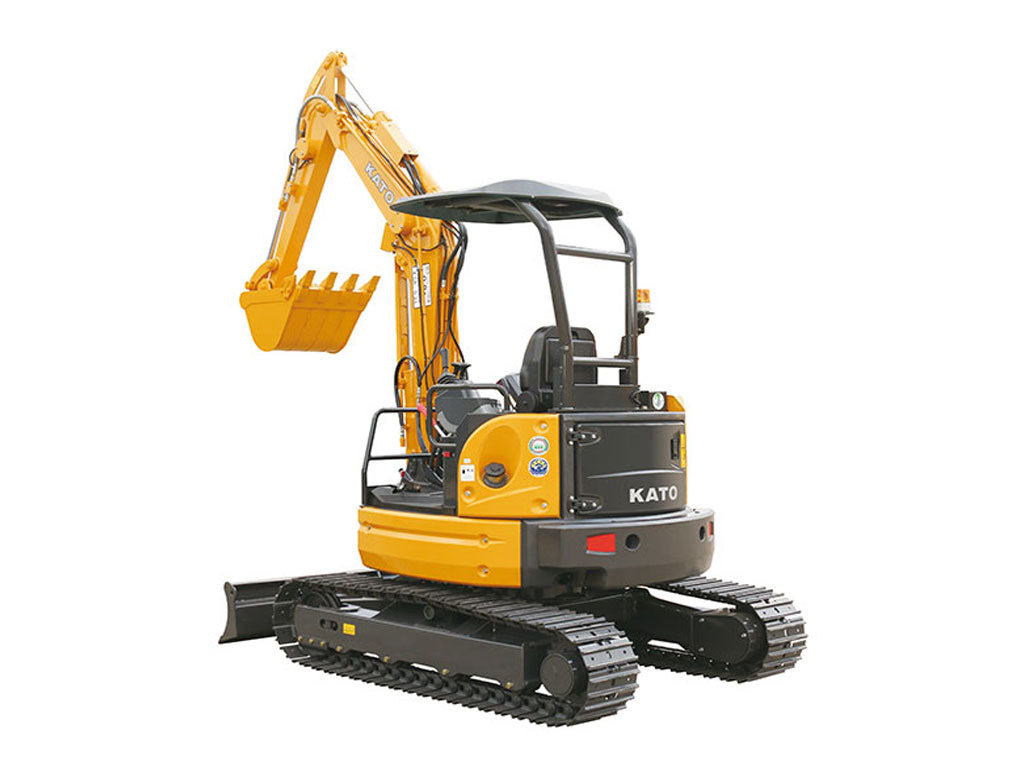

KATO HD35V-5 3.5 metric ton class excavator

Check out the 3.5 metric ton class KATO HD35V-5 excavator.

 BASICS

ACCESS KATO’s V5 line features wide-opening access panels & large compartments for working around the engine and hydraulic systems

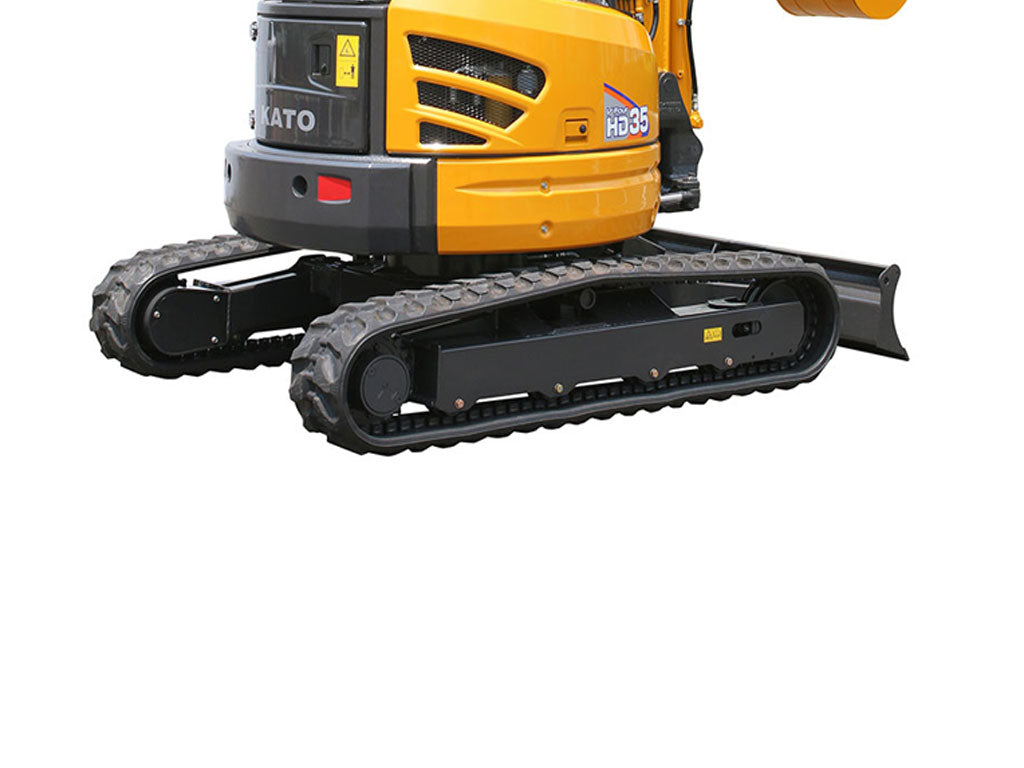

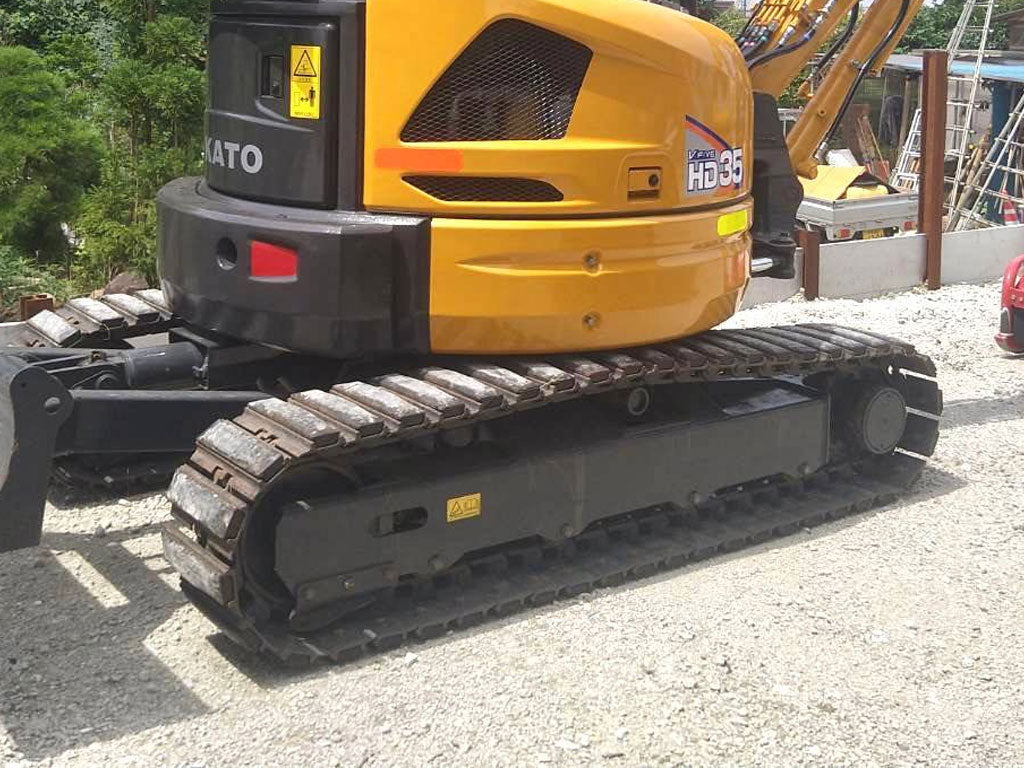

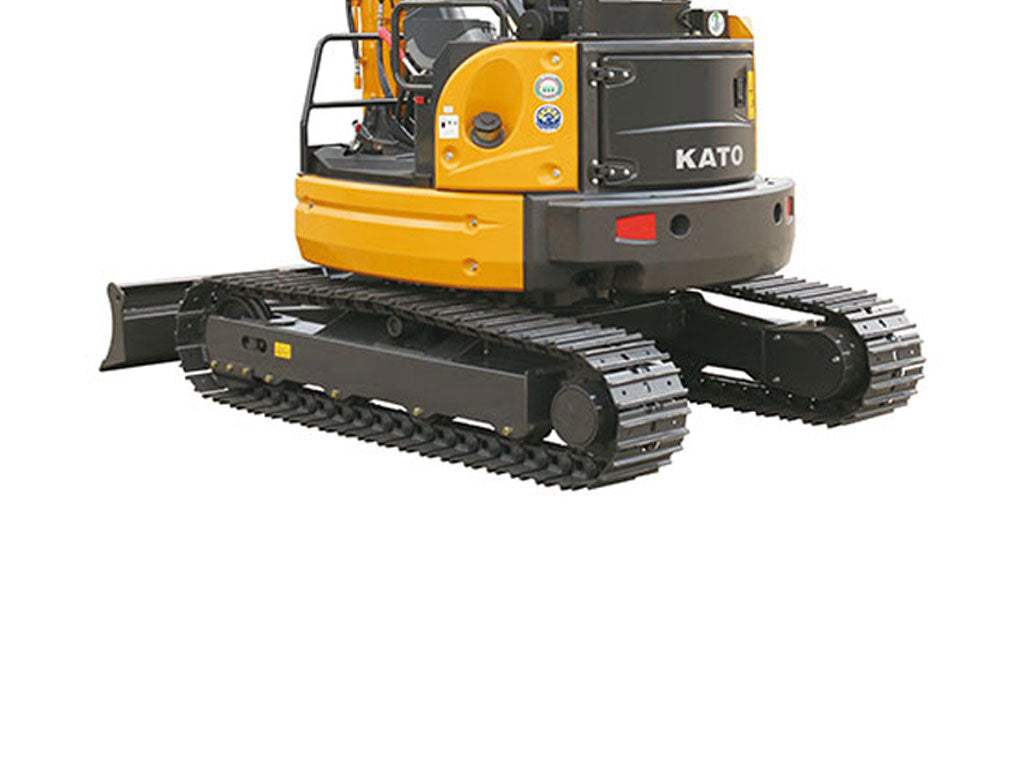

EXPAND The 35V5 offers hydraulic expandable tracks, ranging between 61” and 71”, giving the operator greater flexibility and stability.

CONTROL KATO’s V5 line features highly responsive pilot controls and easy to read instrument panels, all within the most comfortable cabs on the market.

EXTEND Add 2’ of digging depth with the optional Hydraulic Extend-a-Hoe (slide arm) on the KATO 35V5 excavator.

FEATURES

World-Standard Safety

  • ROPS Certified

Error-Prevention

  • All-lever lock
  • Neutral engine-start
  • Auto-parking brake in swing & traction motors

High Power Digging and Quick Response

  • Digging force increased by 10%
  • Quickly responsive 4-pump system

Easy Maintenance

  • Large covers for easier access

Easy Fuel Refilling

Low Fuel Consumption

All-new V5 Generation Zero Tail Swing Mini Excavator improvements

  • Easily visible monitor
  • Legroom enlarged by 20%
  • Cabin room enlarged by 25%
  • Centralized switches
  • Spare power port
 MODEL HD35V-5
TRANSPORT LENGTH 15'7"
WIDTH 5'1"
HEIGHT 8'1"
WEIGHT OPERATING 8082 LBS
WEIGHT TRANSPORT 7606 LBS
MAX DIG RADIUS 18'
MAX DIGGING DEPTH 10'11"
MAX VERTICLE DIG 9'2"
MAX DUMP HEIGHT 12'
MAX DIG HEIGHT 17'
FRONT TURN RADIUS 7'2"
RIGHT BOOM SWING 6'3"
SWING SPEED 9 RPM
TRAVEL SPEED 1.7-2.9 MPH
GRADEABILITY 30 DEGREES
GROUND PREASURE 4.4 PSI
BUCKET DIGGING FORCE 7688 LBS
BOOM SWING OFFSET WITH CYLINDER
SWING ANGLE 50 / 80 DEGREE
HYDRAULICS
SYSTEM 25 GPM
AUXILARY  16 GPM
ENGINE
MAKE
YANMAR
MODEL 3TNV88F
HP 23
FUEL 11 GAL
