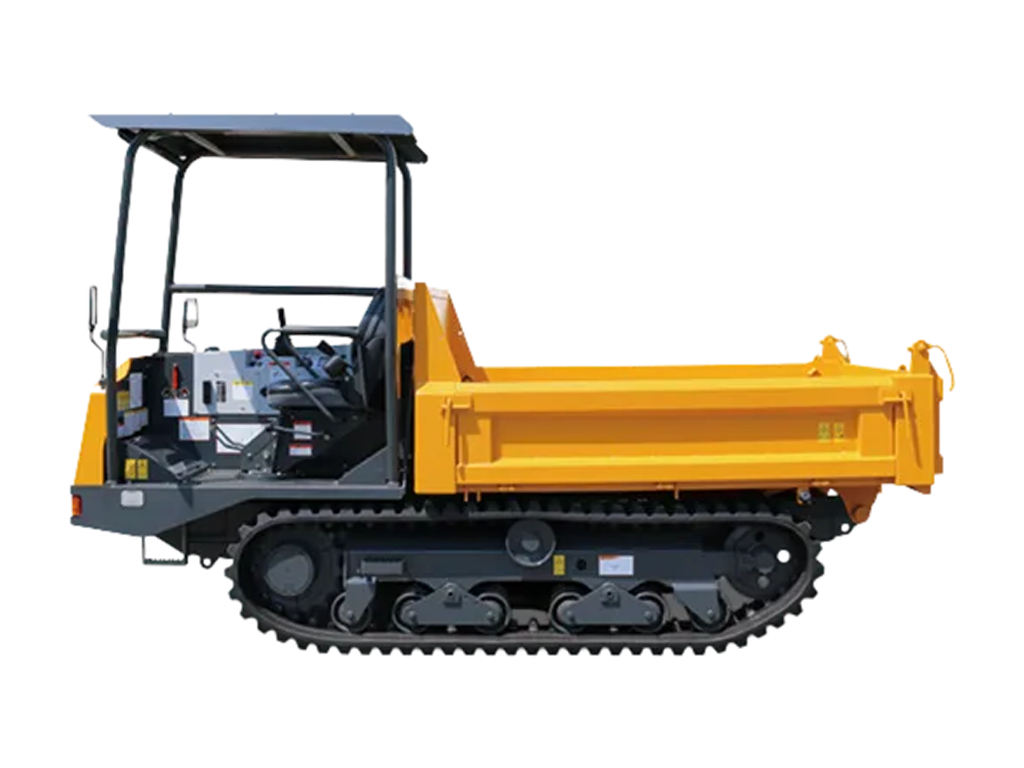

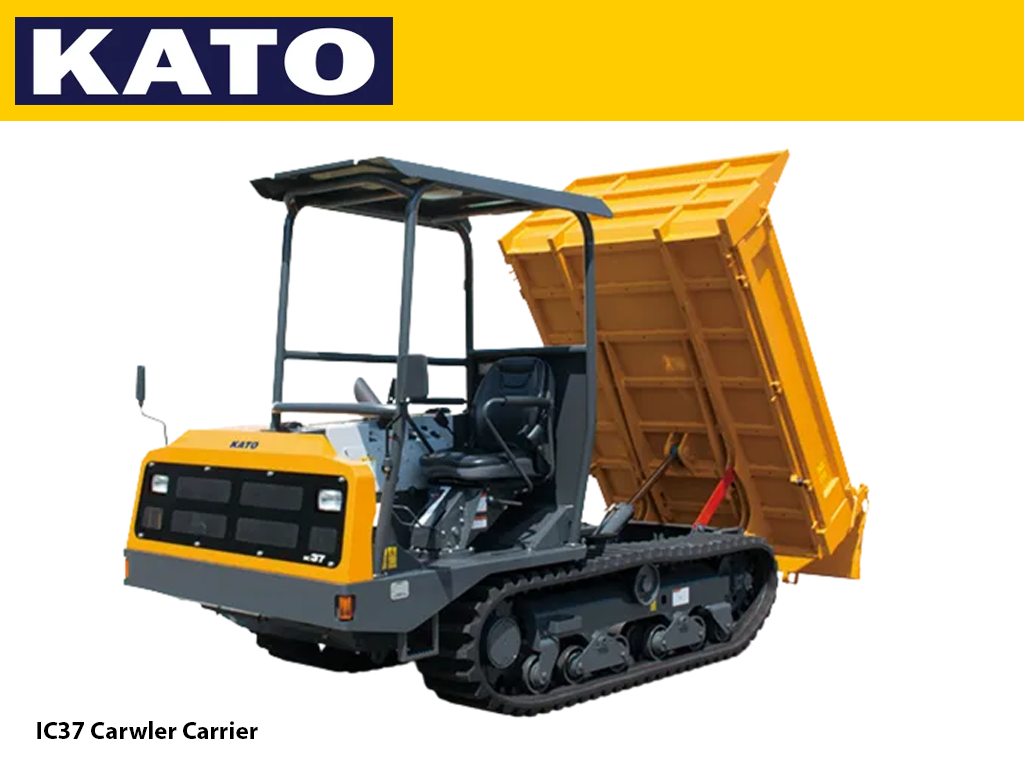

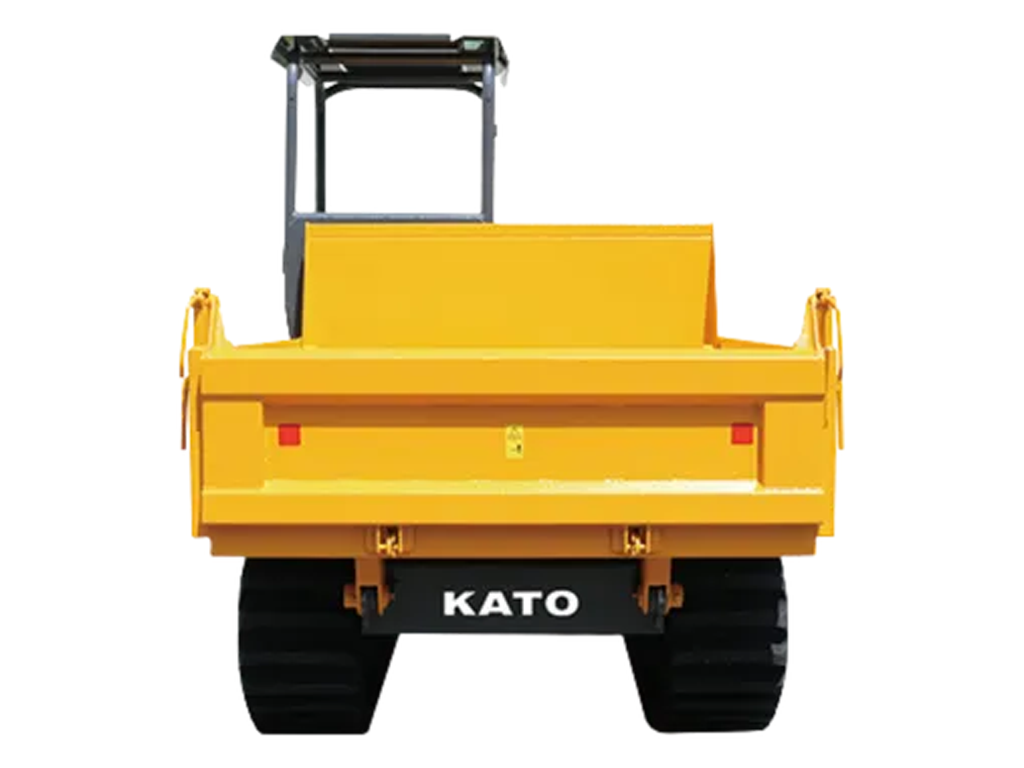

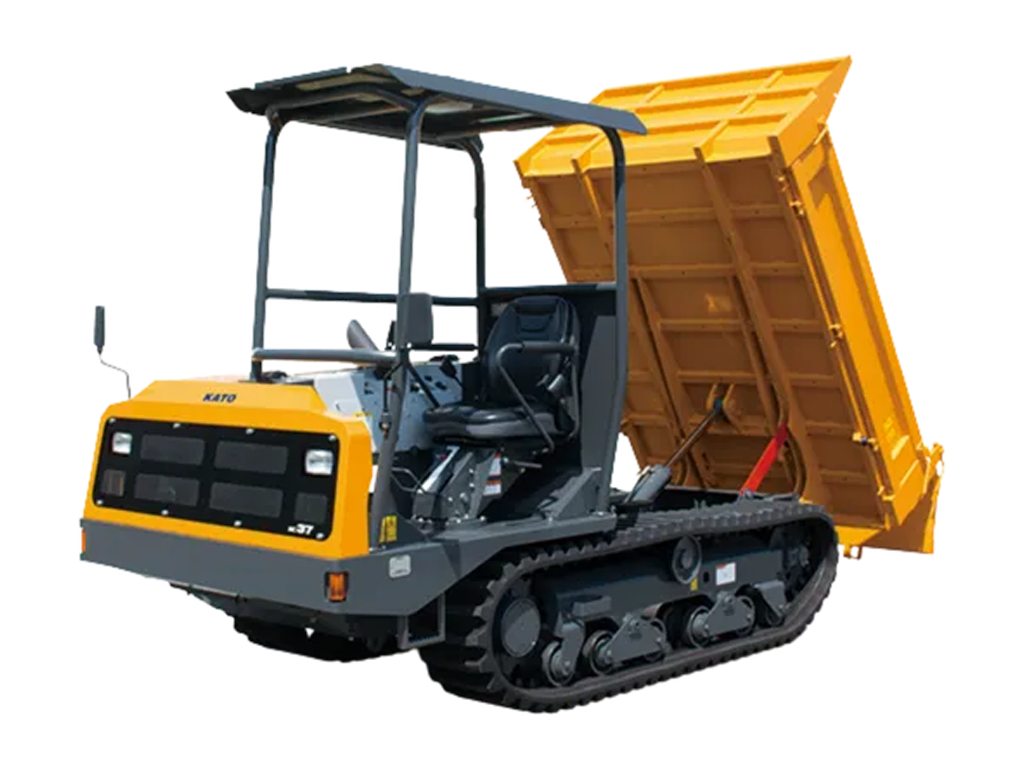

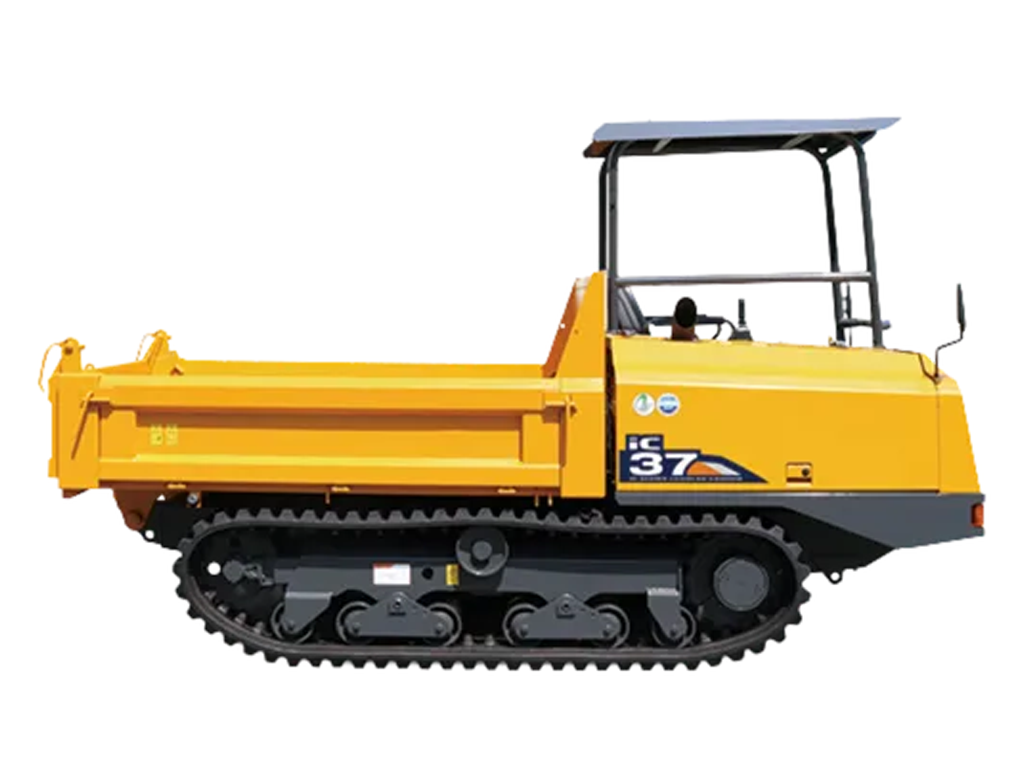

KATO IC37 Carwler Carrier

Kato IC37 Carwler Carrier

Easy to Operate, Maintain, Safe & Rugged

Class-leading payload of 8,185 lbs.
Dynamic spin-turn capability with independent travel system
Instrument panel concentrated on right side of seat
Fully opening engine cover
Ample maintenance around pump
Battery positioned for easy access
Sturdy box-type frame and durable rollers
Low center of gravity construction for outstanding durability
Inclination indicator for added safety
Thick Rubber Crawler

Key Specs

Overall length 12’6’’
Overall width 5’10”
Overall height 7’9”
Overall crawler width 5’1”
Tumbler center distance 6’11’
Crawler track width 1’2’’
Minimum ground clearance 1’.6”
Vessel length 7’3”
Inner vessel width 5’0’’
Vessel 16.5’’
Vessel floor height from ground 2’7’’
Max dump height 9’4’’



Performance

Transport Weight 6,415 lbs
Payload 8,157 lbs
Ground Pressure (Empty/ Loaded) 3.75 psi/ 8.64 psi
Travel Speed (Low/High) 3.9/6.2 MPH
Gradeability 20 Degrees



Engine

Model Kubota V2403-CR-TE5
Rated Output 62.7 HP/ Tier 4 Final
Fuel Tank Capacity 18.5 Gallons
Def Tank Capacity n/a



Vessel

Leveled 1.83 yards3
Heaped 2.16 yards3
Dimensions LxWxH 7’2’’ x 5’ x 1’5’
Style Three way opening vessel
