BP-150-PKG

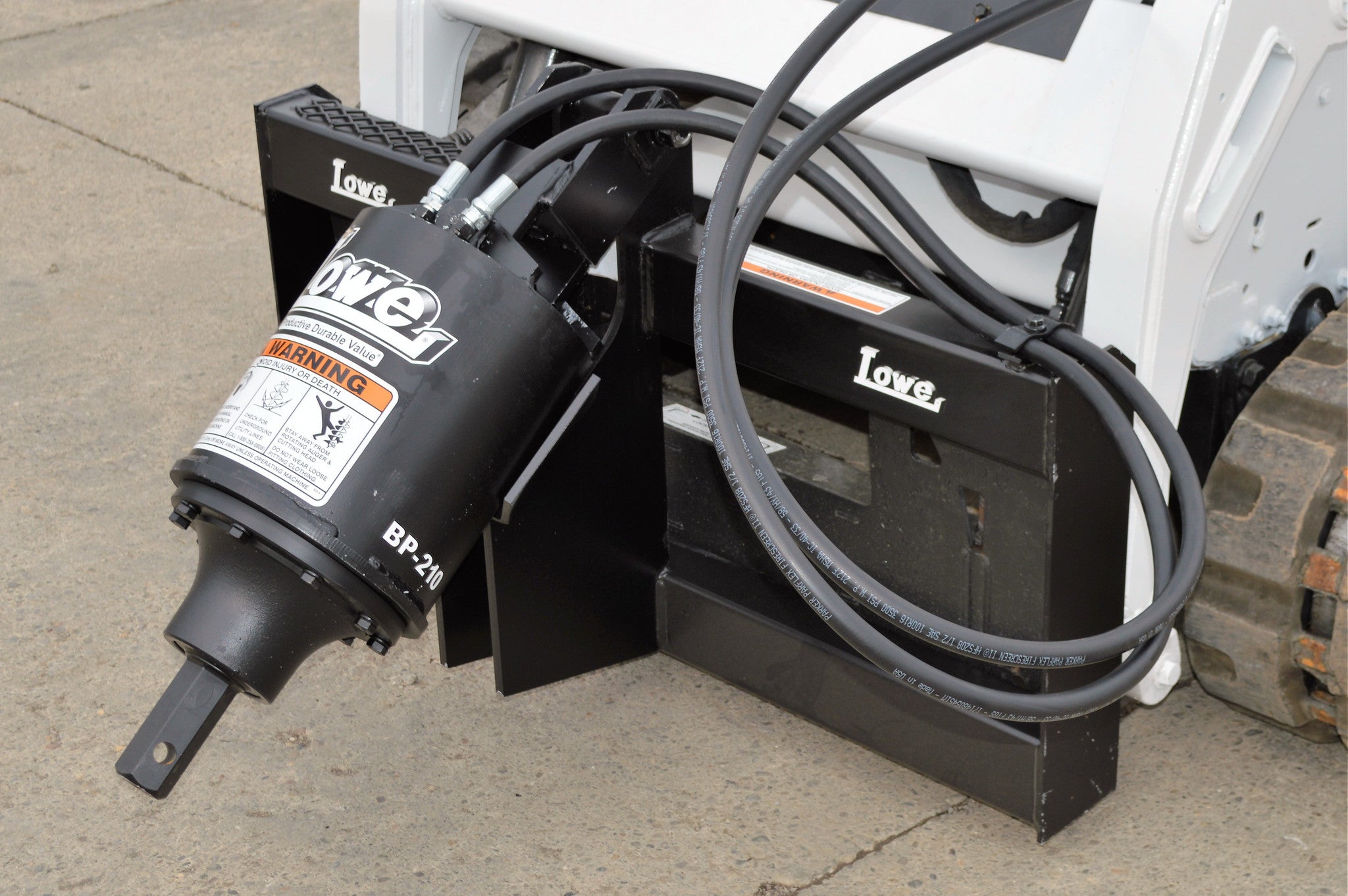

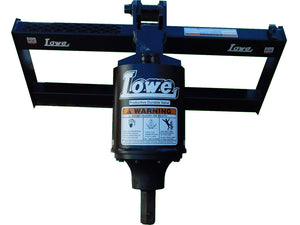

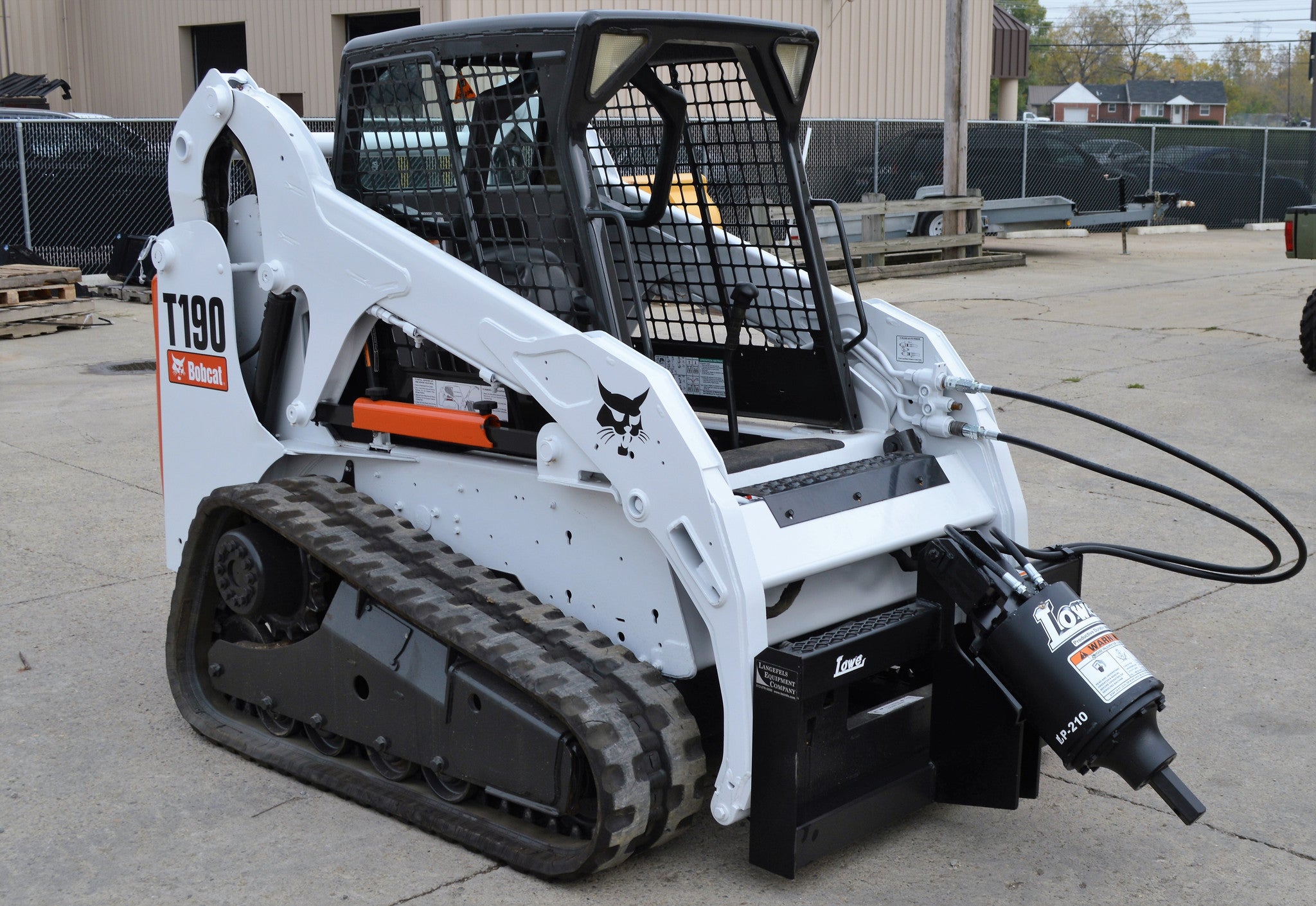

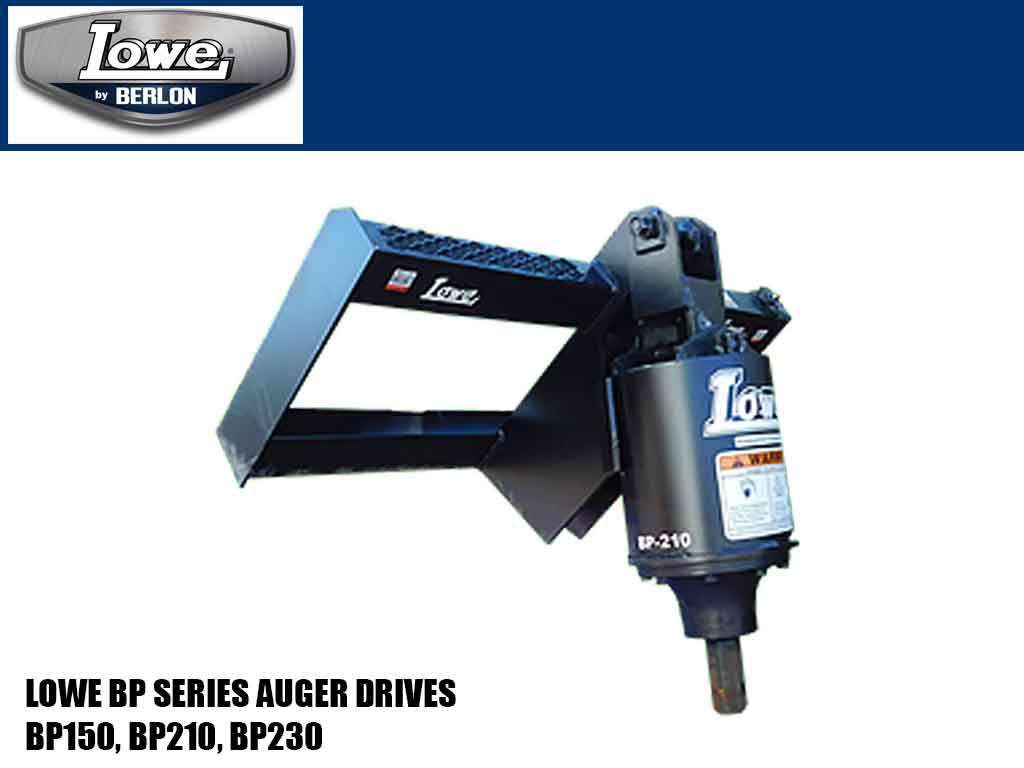

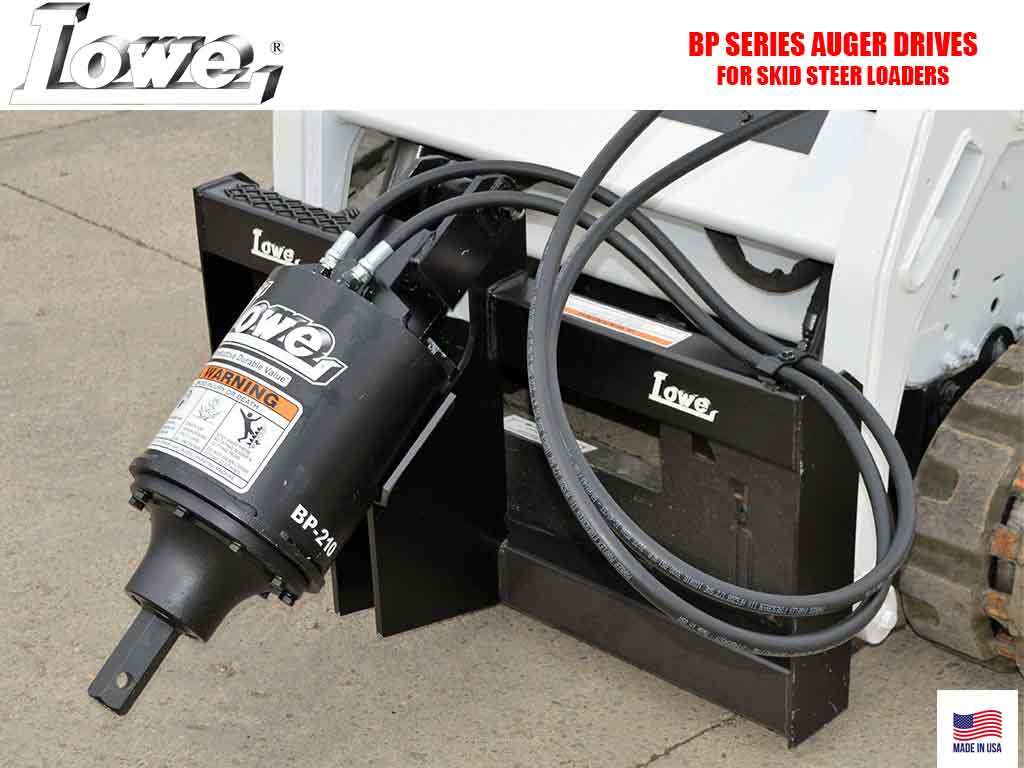

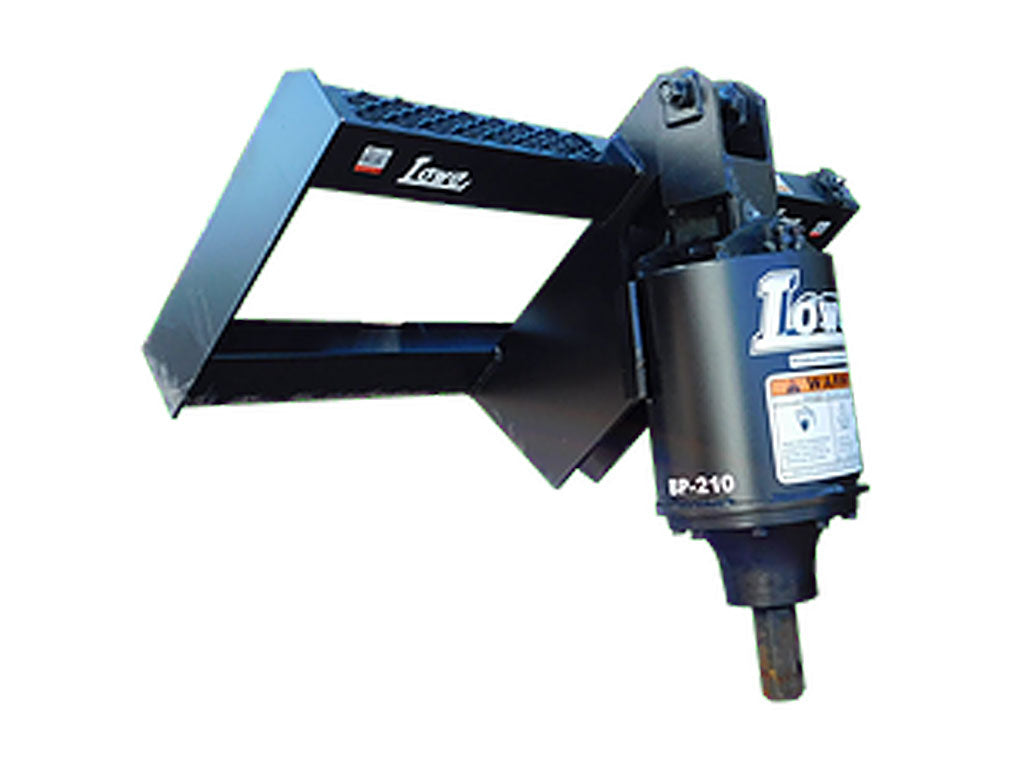

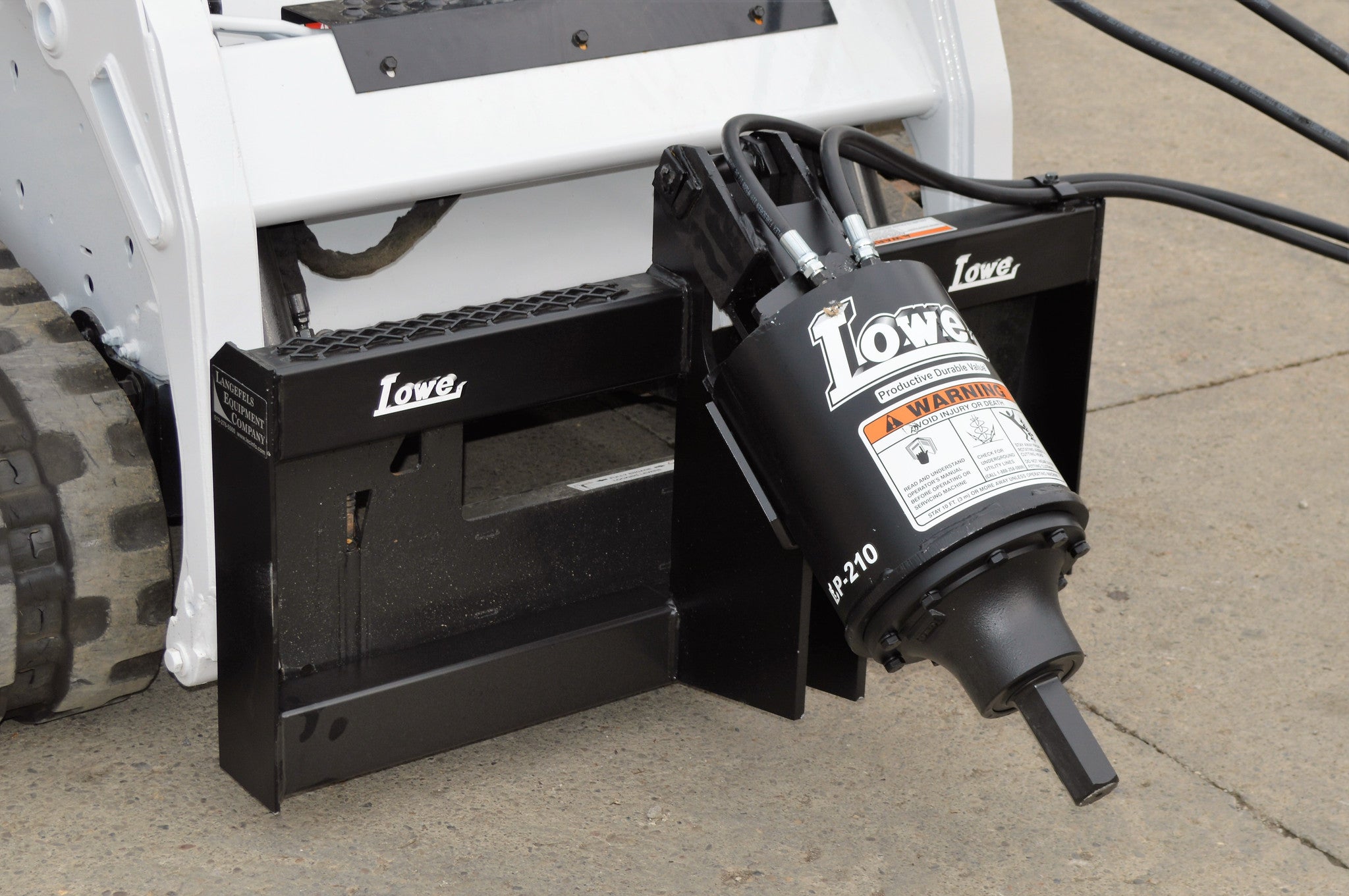

BERLON LOWE BP series auger drives for skid steer loaders
$3,213.36 - $3,535.00$3,310.00
Revised 3/24
THE BP-SERIES AUGER
The new BP-Series planetary reduction auger drives bring new elements of performance and dependability to the attachment marketplace.
- An estimated 20% increase in gear strength over previous LOWE models and far more strength than the competition.
- An even stronger shaft bearing support than previous models.
- A zero leak motor mount.
- A through hardened alloy drive shaft with unbreakable performance.
- A high grade shaft seal with increased durability over competitors.
- A new design attachment fastening system with superior strength and durability.
Model break down
- "H" in the model number means 2" hex shaft
- "HP" in the model number means high pressure, for units with higher PSI relief settings.
- "PKG" in the model number means package including mounting, hoses & fittings
All of this comes with a new FIVE (5) YEAR Limited REPAIR or REPLACE WARRANTY on the BP gearbox.
PACKAGE INCLUDES
- AUGER DRIVE
- SKID STEER UNIVERSAL / BOBCAT MOUNTING PLATE
- HOSES & FLAT FACE COUPLERS
- HEX DRIVE SHAFT (BP210H) OR 2 5/16 ROUND SHAFT (BP210)
| Model | Suggested Flow | Rec. Max Auger Size |
|---|---|---|
| BP-150 | 10-20 GPM (2,000-3,000 PSI) | 30-inch (762mm) |
| BP-210 | 15-25 GPM (2,000-3,000 PSI) | 36-inch (914 mm) |
| BP-210 High Pressure | 15-30 GPM (2,000-3,500 PSI) | 36-inch (914mm) |
| BP-230 | 18-25 GPM (2,000-3,000 PSI) | 36-inch (1,219 mm) |
| BP-230 High Pressure | 18-30 GPM (2,000-3,500 PSI) | 48-inch (1,219 mm) |
| MODEL | BP150 | BP210 | BP230 |
| FLOW REQ | 10-20 GPM | 15-30 GPM | 20-30 GPM |
| MAX BIT | 30" | 36" | 48" |
| EST. WEIGHT LBS. | 301 | 302 | 303 |
| MAX PSI | 3500 | 3500 | 3500 |
| FLOW | STD | STD | HIGH FLOW |
| WARRANTY | 5 YR | 5 YR | 5 YR |
|
PERFORMANCE SPECIFICATIONS |
RPM @ 20 GPM |
TORQUE@ 3000 PSI (THEO / ACTUAL) |
|
| 500CL | 132 (14GPM) | 980/882 | |
| 750CL | 161 | 1118/1006 | |
| 1200CL | 106 | 1724/1552 |
|
| 1650CL | 73 | 2478/2230 | |
| 2175CL | 60 | 2989/2690 | |
| BP150 | 130 | 1783/1604 | |
| BP210 | 68 | 2562/2306 | |
| BP230 | 54 | 2998/2698 | |
| A275 | 73 | 2256/2031 | |
| A400 | 42 (22GPM) | 4454/4009 | |
| TJ100 | 103 (14GPM) | 1082/972 |
Here are some of the LOWE BP Series Auger Drive advantages.
- Premium performance
- Exceptional quality
I have been selling these drives since they came out. They have always been great products. We have had no problems with the product. The most popular unit is the BP210H.
