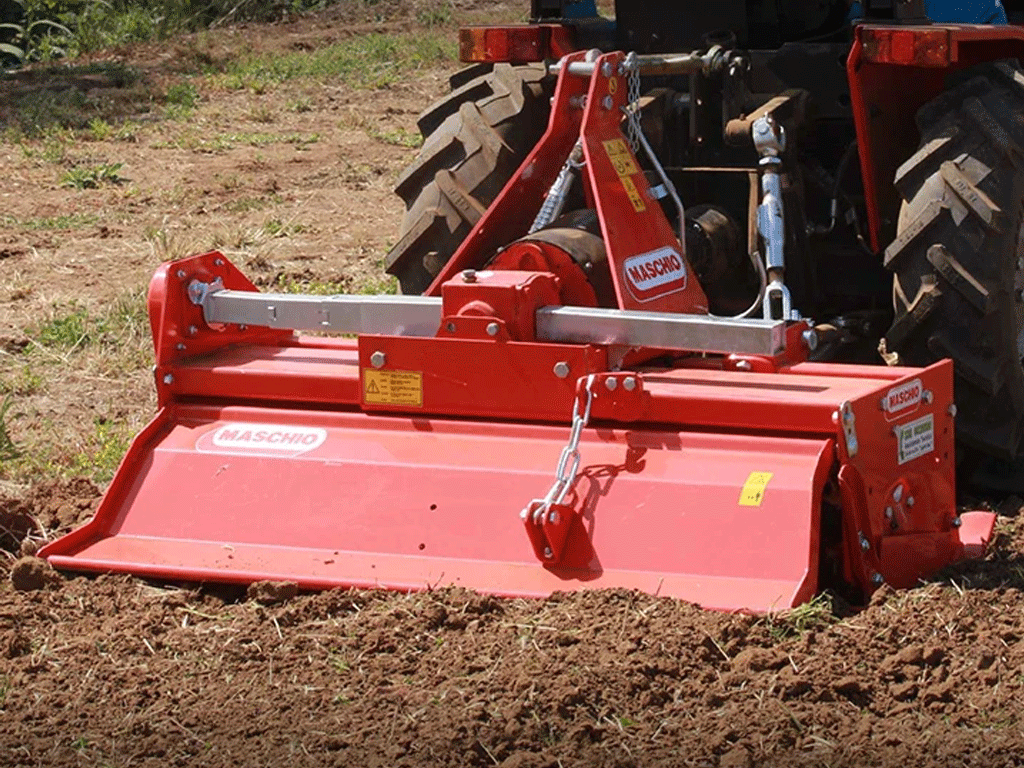

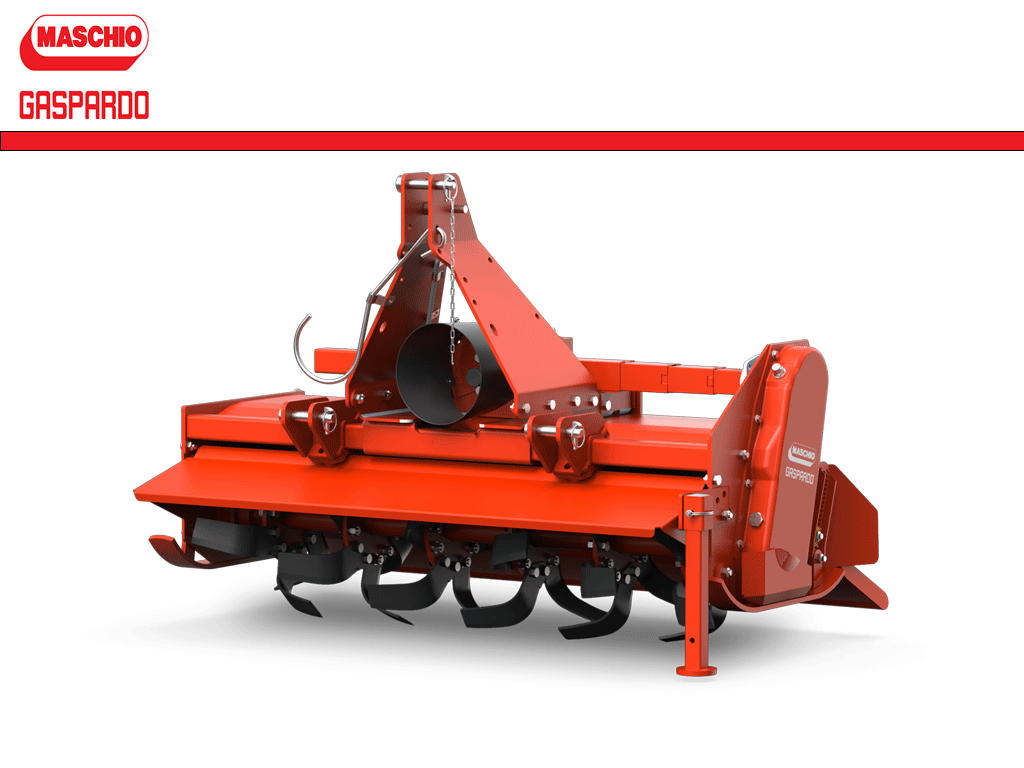

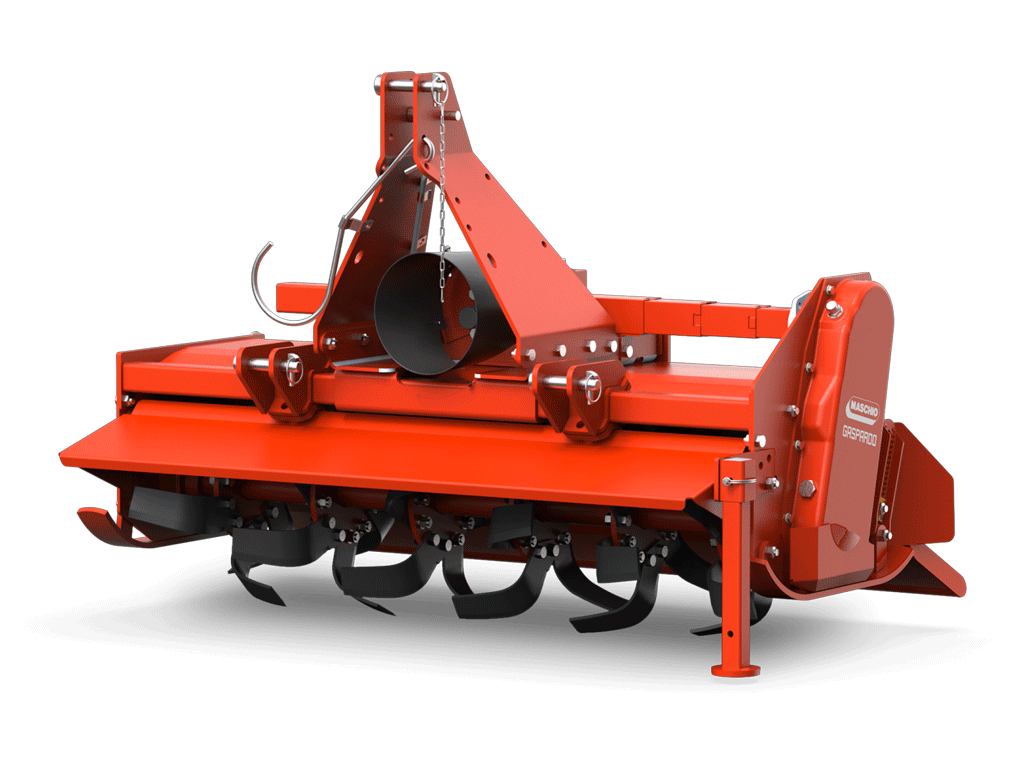

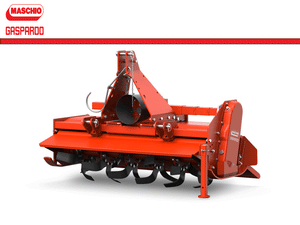

Maschio Adjustable Offset Rigid Frame Rotary Tiller – Model W

The Maschio Model W Adjustable Offset Rotary Tiller is a versatile and durable soil preparation implement designed for compact and utility tractors up to 40 horsepower. As part of the historic Maschio rotary tiller lineup, the Model W combines proven engineering with modern functionality to deliver dependable performance for gardening, horticulture, vineyards, and narrow row crop applications.

With working widths ranging from 41.3 inches to 65 inches, this rotary tiller is perfectly suited for small farms, specialty crop operations, and property maintenance. Its manual side offset capability allows operators to shift the tiller laterally relative to the three-point hitch, making it ideal for working close to plants, rows, fences, and orchard trees.

Adjustable Offset for Maximum Versatility

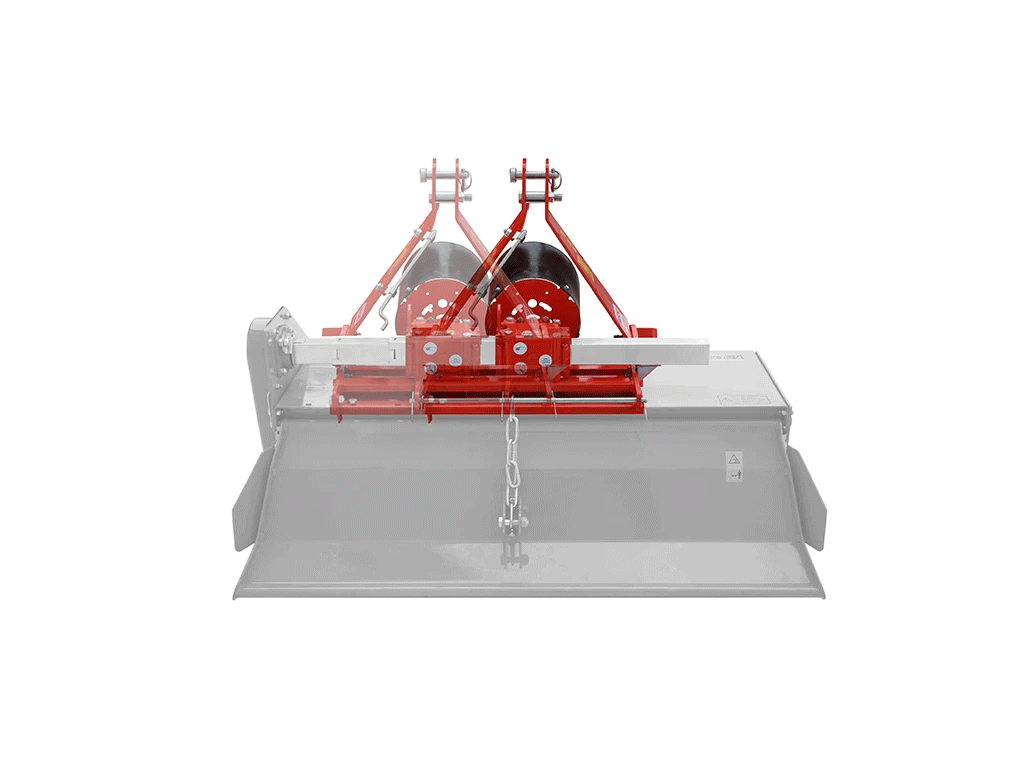

One of the defining features of the Maschio Model W tiller is its manual side offset system, which allows the tiller to be repositioned laterally from the tractor’s centerline. By simply adjusting a pin position, operators can shift the tiller to better align with rows or work around obstacles.

This flexibility makes the Model W especially effective in vineyards, orchards, horticultural fields, and other narrow-row crops, where precision soil cultivation is essential.

Built for Reliable Performance

The Model W rotary tiller is engineered with a simple yet extremely robust frame design, allowing it to perform reliably in a wide variety of soil conditions. From sandy soils to moist or partially clay-heavy ground, the tiller delivers consistent soil preparation while maintaining durability and ease of operation.

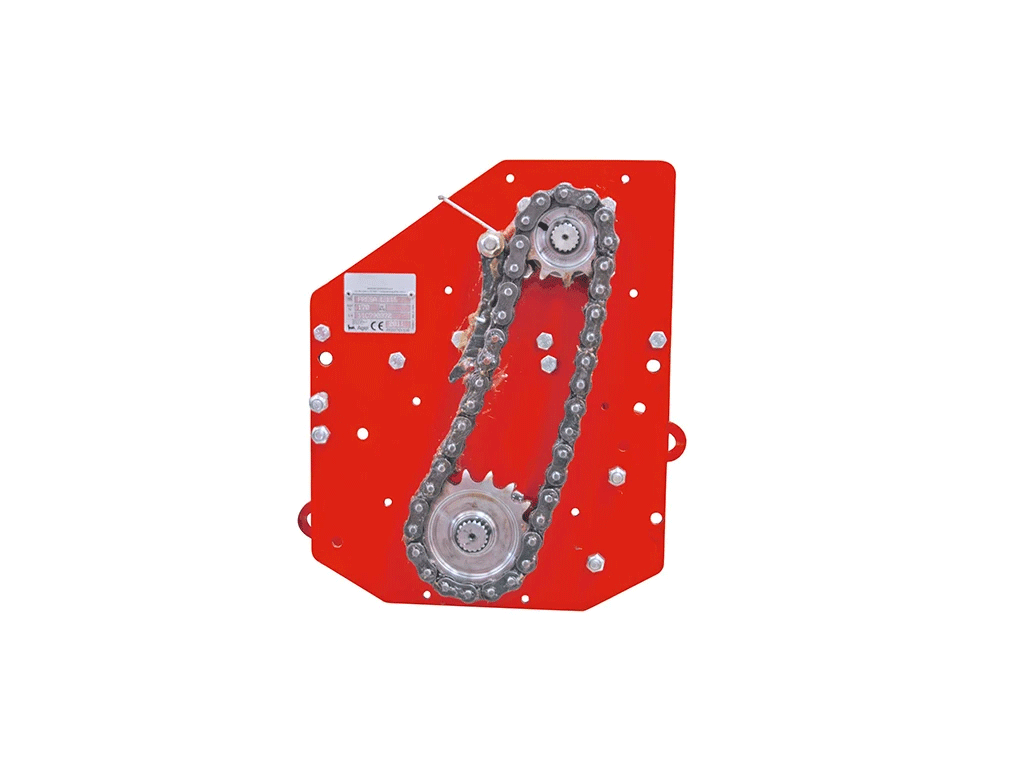

The drivetrain features a single-speed gearbox combined with an oil-bath chain transmission, ensuring smooth power delivery and long service life while minimizing maintenance.

Efficient Soil Refinement

Each rotor flange is equipped with four durable blades, designed to provide excellent soil penetration and consistent tilling performance. This blade configuration works well in moist or clay-based soils, ensuring reliable soil breakdown and mixing.

For dry soil conditions, operators can add two additional blades per flange, increasing the tiller’s refining capability and creating a finer seedbed.

Wider Rear Bonnet for Better Soil Leveling

The rear bonnet extends wider than the rotor, helping to level soil beyond the direct cutting area. This design improves the perceived working width and leaves the soil surface smooth and evenly finished—perfect for planting or landscaping preparation.

Key Features

• Adjustable manual side offset for row crop and vineyard applications

• Compatible with tractors up to 40 HP

• Working widths from 41.3" to 65"

• Maximum working depth of approximately 7 inches

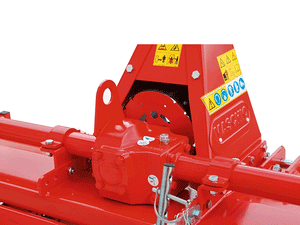

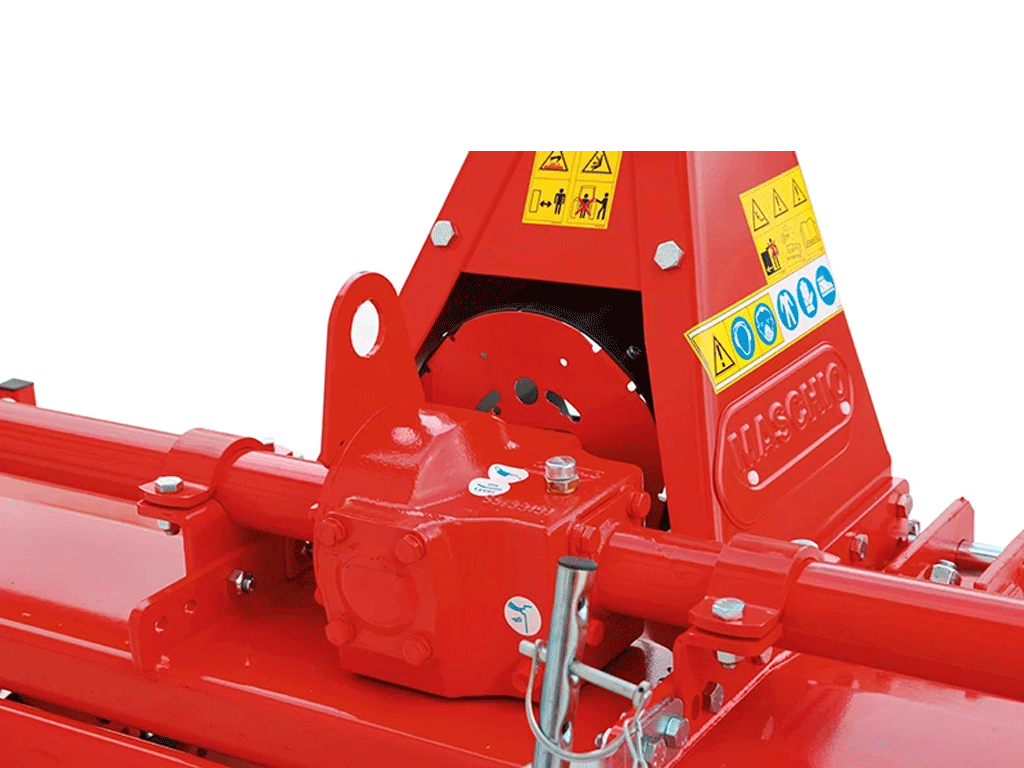

• Single-speed gearbox with oil level indicator

• Oil-bath chain drive transmission for durability

• Slip clutch PTO shaft for drivetrain protection

• Adjustable side skids for precise depth control

• 4 blades per flange, with optional additional blades

• 540 RPM PTO rotor speed (208 RPM rotor)

• Category 1 three-point hitch compatibility

• CE safety protections

Ideal Applications

The Maschio Model W rotary tiller is ideal for:

• Vegetable gardens

• Vineyards and orchards

• Horticultural operations

• Narrow row crop cultivation

• Small farm soil preparation

• Landscaping and seedbed preparation

Its adjustable offset design allows operators to work closer to crops and field edges, improving efficiency and versatility across a wide range of applications.

Maschio Quality and Durability

Maschio is known worldwide for producing high-quality agricultural equipment built to perform under demanding conditions. The Model W Adjustable Offset Rotary Tiller continues this tradition with a rugged frame, reliable transmission system, and flexible operating features designed to meet the needs of modern growers.
