MBW Skid Steer Roller Attachments

MBW ATS Smooth Drum & ATP Padded Drum Vibratory Rollers

Turn your skid steer or compact track loader into a powerful compaction machine withMBW Skid Steer Roller Attachments. Built for contractors, construction crews, landscapers, utility contractors, and rental fleets, these hydraulic vibratory rollers provide professional compaction performance without the expense and maintenance of a dedicated self-propelled roller.

MBW offers two drum configurations: theATS Smooth Drum Roller andATP Padded Drum Roller, with both available in73" and 84" working widths.

SHIPPING IS INCLUDED IN THE PRICE.

MBW ATS Smooth Drum vs. ATP Padded Drum

Choosing the right MBW roller depends primarily on the material you're compacting.

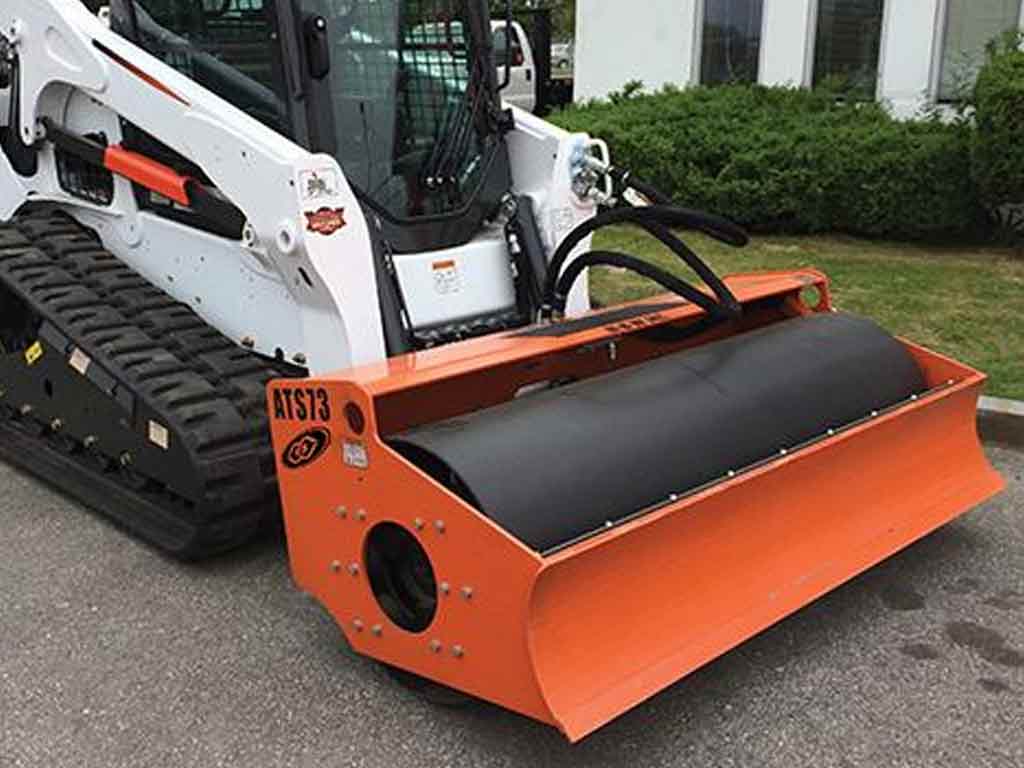

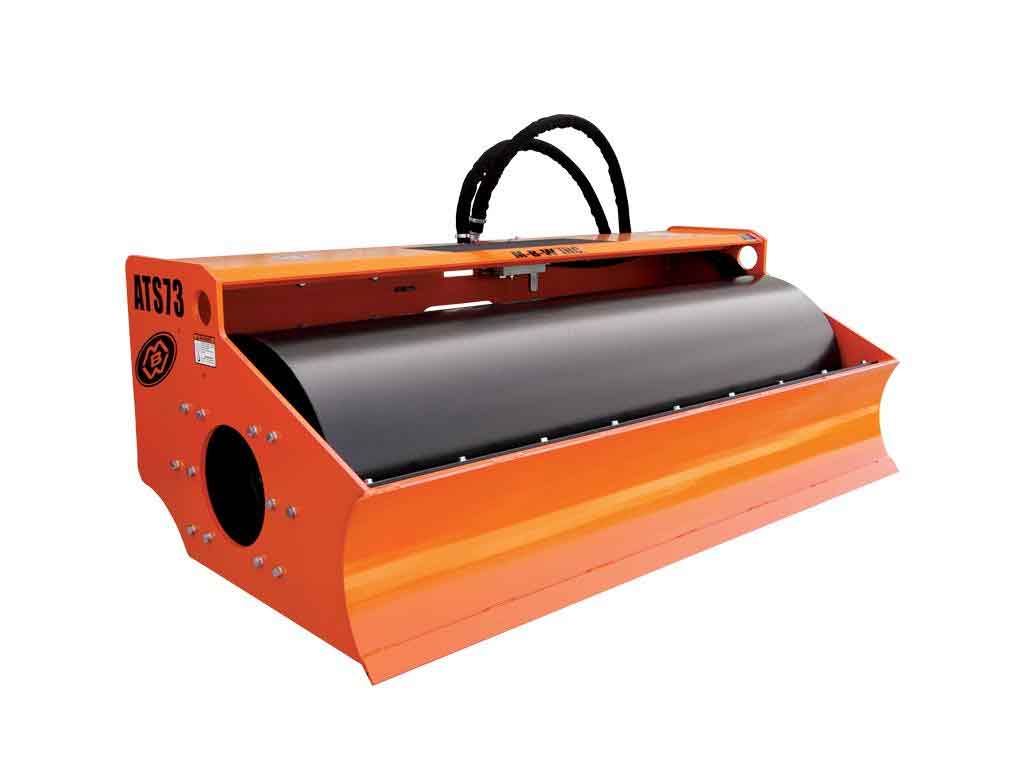

MBW ATS Smooth Drum Roller

TheATS Series features a smooth steel drum designed for compacting and finishing granular materials. It's an excellent choice for applications where a smooth, uniform finished surface is important.

Common applications include:

• Gravel and crushed stone
• Driveways and parking areas
• Road base
• Asphalt patching and repair
• Trench restoration
• Site preparation
• Landscaping and hardscape preparation

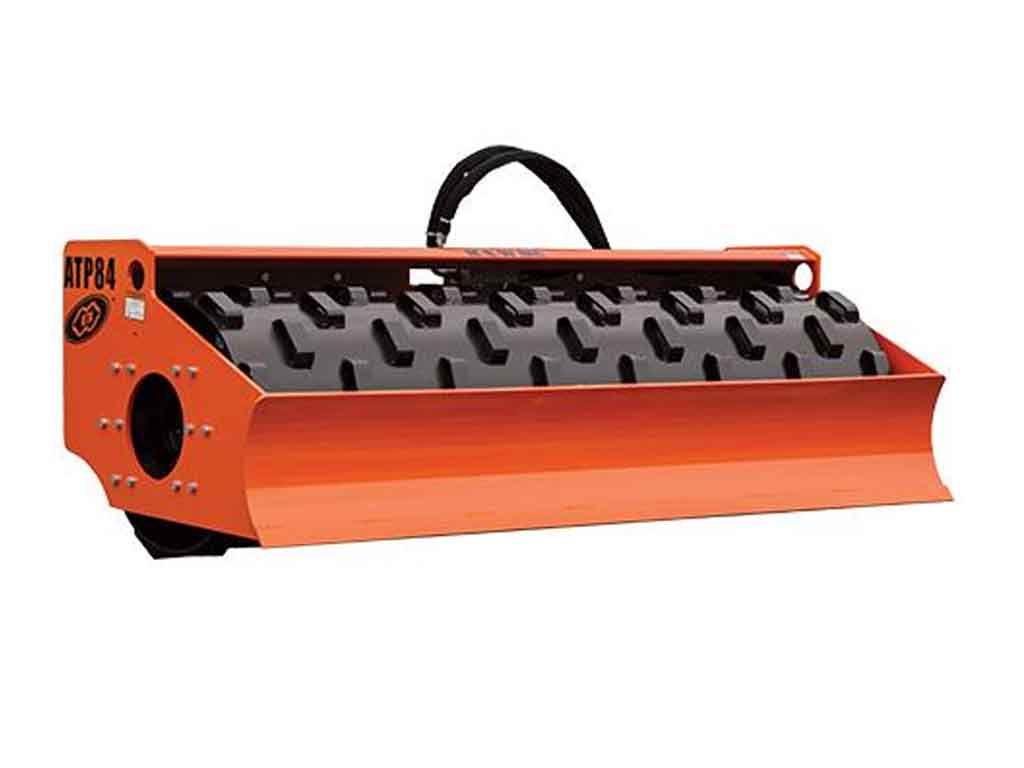

MBW ATP Padded Drum Roller

TheATP Series features a padded drum designed to penetrate and compact cohesive soils. The raised pads concentrate compaction force into the material, making the ATP a better choice when working with soil that requires kneading action.

Common applications include:

• Clay and cohesive soils
• Trench backfill
• Utility installation
• Building pads
• Site development
• Road construction
• General earthwork

Available in 73" and 84" Working Widths

MBW offers both smooth and padded drum rollers in two working widths:

73" Models

• ATS73 Smooth Drum
• ATP73 Padded Drum

84" Models

• ATS84 Smooth Drum
• ATP84 Padded Drum

This gives contractors the ability to select the drum style and working width that best matches their skid steer, compact track loader, material, and application.

High-Performance Hydraulic Exciter System

Every MBW skid steer roller uses ahydraulically powered exciter system with an oil-mist lubrication design.

At the heart of the system is MBW'spatented exciter shaft design, engineered to minimize exciter shaft deflection and reduce operating temperatures. The result is a durable vibration system designed to provide long service life while minimizing bearing and seal failures.

The ATS73 and ATP73 generate up to8,850 lb. of centrifugal force, while the larger ATS84 and ATP84 produce up to9,765 lb. of centrifugal force.

3,000 RPM Exciter Speed

All four MBW skid steer roller models operate at anexciter speed of 3,000 RPM with a0.05" amplitude.

This combination delivers consistent vibratory energy into the material for efficient compaction across the width of the drum.

Integrated Knockdown Blade

Aknockdown blade is built directly into the roller frame, giving operators an additional tool for leveling and knocking down loose material during compaction operations.

The integrated design eliminates the need for a separate attachment when minor grading or material leveling is required.

Vibration-Isolated Roller Frame

The vibrating drum is isolated from the main attachment frame to help minimize the amount of vibration transmitted back into the skid steer or compact track loader.

Reducing vibration transfer helps improve operator comfort while limiting unnecessary vibration through the host machine.

Universal Skid Steer Quick Attach

All MBW ATS and ATP roller attachments come standard with auniversal skid steer quick attach system, making them compatible with a wide range of skid steers and compact track loaders equipped with the standard universal mounting system.

Wide Hydraulic Operating Range

MBW roller attachments are designed to work across a broad range of hydraulic systems.

All models require:

Hydraulic Flow: 10–50 GPM
Hydraulic Pressure: 1,500–3,000 PSI
Hydraulic Connection: 1/2" Flat Face Quick Couplings

The broad hydraulic flow range allows these rollers to work with many different skid steer and compact track loader configurations.

MBW Skid Steer Roller Specifications

Which MBW Roller Should I Choose?

Forgravel, crushed stone, road base, asphalt repair, and finish compaction, choose anATS Smooth Drum Roller.

Forclay, cohesive soil, trench backfill, and earthwork, choose anATP Padded Drum Roller.

For smaller skid steers or jobs where maneuverability is important, the73" models provide a compact working width. For larger machines and applications where covering more ground per pass is the priority, consider the84" models.

Cost-Effective Alternative to a Dedicated Roller

MBW compaction attachments give contractors and rental yards a practical alternative to purchasing and maintaining a separate self-contained roller.

Instead of transporting another powered machine to the jobsite, contractors can use the skid steer or compact track loader already on the job. This can reduce equipment costs, transportation requirements, maintenance, and the amount of equipment needed on smaller compaction projects.

Why Choose an MBW Skid Steer Vibratory Roller?

MBW combines high centrifugal force with a durable exciter system and heavy-duty construction to create a roller attachment built for professional use.

Key advantages include:

• ATS smooth and ATP padded drum configurations
• 73" and 84" working widths
• Up to9,765 lb. of centrifugal force
• 3,000 RPM exciter speed
• Patented MBW exciter shaft design
• Oil-mist exciter lubrication
• Reduced exciter shaft deflection
• Lower operating temperatures
• Integrated knockdown blade
• Vibration-isolated drum
• Universal skid steer quick attach
• Wide 10–50 GPM hydraulic operating range
• 1/2" flat face hydraulic couplings
• Low-maintenance alternative to a dedicated roller

MBW Roller Attachments for Contractors & Rental Fleets

Whether you're compacting a driveway, trench, building pad, road base, asphalt repair, or construction site,MBW ATS and ATP Skid Steer Roller Attachments provide the compaction power of a dedicated roller while taking advantage of the skid steer or compact track loader already in your fleet.

Choose theATS73 or ATS84 Smooth Drum for granular materials and finishing work, or theATP73 or ATP84 Padded Drum when working with cohesive soils and demanding earthwork applications.

SHIPPING INCLUDED IN THE PRICE.
