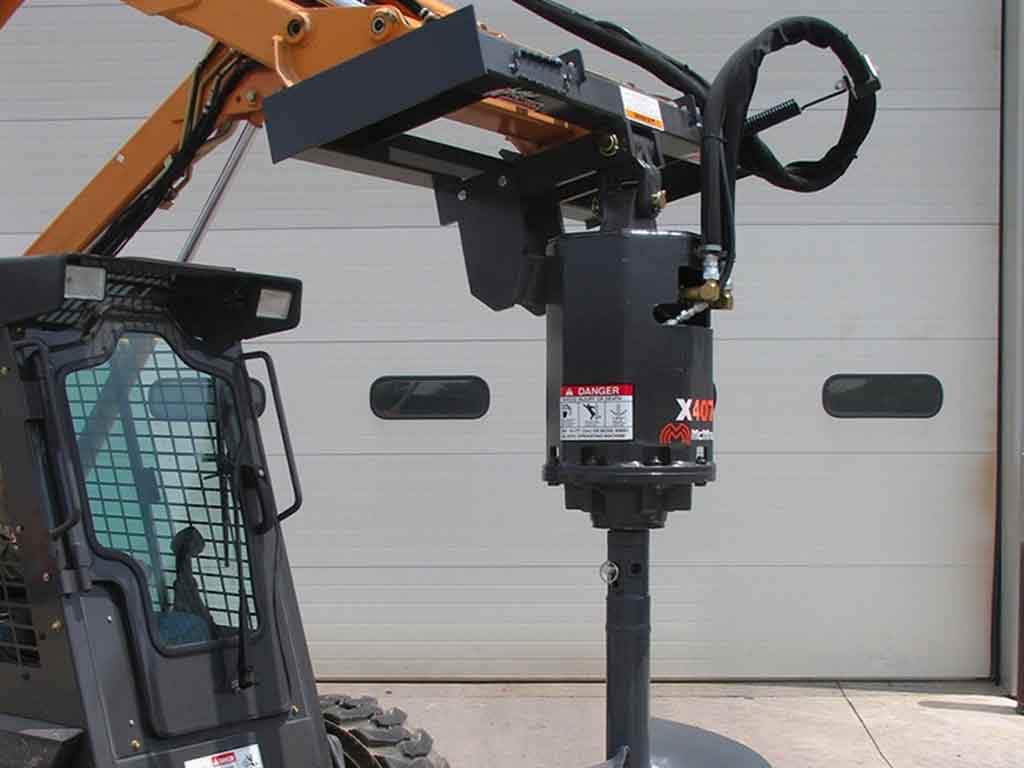

MCMILLEN Auger drives, X SERIES high torque, skid steer mounting (SSL)(CTL)

MODEL
ORDER INCLUDES
  • SSL MOUNTING BRACKET WITH CRADLE
  • HOSE KIT WITH UNIVERSAL FLAT FACE COUPLERS
  • AUGER BIT IS NOT INCLUDED

McMillen High torque Auger Drives for Skid Steer Loaders and Compact Track Loaders

McMillen's Auger Drives feature a wide variety of auger diameters, lengths and styles for every digging application. Comes with various mounts available for most applications. All X Series hydraulic motors drive the auger through a sealed planetary gear reduction. The heavy-duty, all-gear design gives these units a long life with minimal maintenance and service costs. X Series drive units are completely sealed, with all moving components running in oil for total lubrication on a constant basis. All models feature reverse rotation for quick back-out when obstructions are encountered. The system's hydraulic relief valve protects the units from damage when the auger hits large, immovable objects. This product is also available CE certified.

  • All X Series hydraulic motors drive the auger through a sealed planetary gear reduction
  • The heavy-duty, all-gear design gives these units a long life with minimal maintenance and service costs
  • X Series drive units are completely sealed, with all moving components running in oil for total lubrication on a constant basis
  • Features reverse rotation for quick back-out when obstructions are encountered
  • The systems' hydraulic relief valve protects the units from damage when the auger hits large, immovable object
  • All system pressure translates to torque and productivity. No pressure reducers are used.
  • All models feature reverse rotation for quick back-out when obstructions are encountered.
  • The systems hydraulic relief valve protects the units from damage when the auger hits large immovable objects.


    THINGS TO CONSIDER BEFORE SELECTING AN AUGER DRIVE

    • When selecting an auger drive you will need to match to the recommended GPM and Pressure specifications shown for the drive to your prime mover.
    • When deciding which model auger drive you need, please note the different model numbers for each drive. The larger model numbers will give you more torque and the smaller model numbers will give you more speed when operating within the recommended flow (GPM) range specified for each model.
    • If you plan to dig holes in hard, compacted, or frozen soils, you should consider selecting a larger model as it will give you more torque. The same is true if you plan to use larger bits like the 36” versions. They need more torque than the smaller bits.
    • If speed and production are most important and you are using smaller bits, a smaller model drive will give you more speed than the larger models allowing you to dig faster.
    MODEL X4075 X4575
    ORDER# 24900 113459
    FLOW RANGE 24-32 GPM 22-36 GPM
    SHIP LB 345 LB 350 LB
    MAX BIT 48 48
    SHAFT 2" HEX 2" HEX



    MODEL X5075 X6075
    ORDER# 24901 24902, 24903
    FLOW RANGE 28-40 GPM 30-53 GPM
    SHIP LB 375 LB 400 LB
    MAX BIT 48 48
    SHAFT 2" HEX 2" HEX OR 2.5" HEX



    MODEL X8075
    ORDER# 24904
    FLOW RANGE 30-53
    SHIP LB 400 LB
    MAX BIT 48"
    SHAFT 2.5" HEX





    MODEL 3000 PSI 3500 PSI
    X4075 3786 4417
    X4575 4660 5437
    X5075 4345 5096
    X6075 5437 6343
    X8075 7791 9090



    MODEL

    GPM

    RANGE

    PSI MAX

    WEIGHT

    LBS

    X4075 24-32 4000 345
    X4575 22-36 3500 350
    X5075 28-40 3500 375
    X6075 30-53 3500 400
    X8075 36-54 3500 400
    • X Series drive units are completely sealed with all moving components running in oil for total lubrication on a constant basis
    • The X Series hydraulic motor drives the auger through a sealed planetary gear reduction
    • The heavy duty all gear design gives these units a long life with minimal maintenance and service costs
    • All models feature reverse rotation for quick back-out when obstructions are encountered
    • The systems’ hydraulic relief valve protects the units from damage when the auger hits large immovable object

    Typically ships in (3-5) days. If Back-ordered (3-6) weeks.

    If you have a high flow skid steer or compact track loader you can use one of these auger drives. Match the machines flow and pressure to the drive specs.
