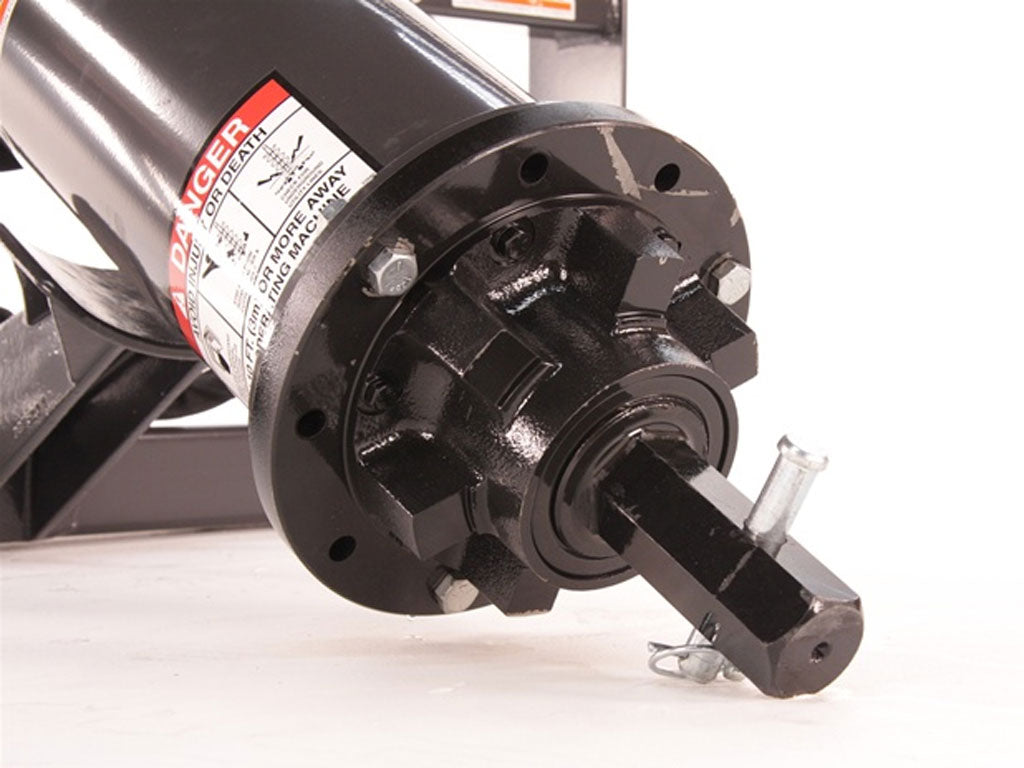

PALADIN / MCMILLEN auger drive for excavators

Model
Shaft

McMillen Auger Drive for excavators

McMillen's Auger Drives feature a wide variety of auger diameters, lengths and styles for every digging application. Comes with various mounts available for most applications. All X Series hydraulic motors drive the auger through a sealed planetary gear reduction. The heavy-duty, all-gear design gives these units a long life with minimal maintenance and service costs. X Series drive units are completely sealed, with all moving components running in oil for total lubrication on a constant basis. All models feature reverse rotation for quick back-out when obstructions are encountered. The system's hydraulic relief valve protects the units from damage when the auger hits large, immovable objects. This product is also available CE certified.

**CALL FOR MOUNTING PRICES

  • All X Series hydraulic motors drive the auger through a sealed planetary gear reduction
  • The heavy-duty, all-gear design gives these units a long life with minimal maintenance and service costs
  • X Series drive units are completely sealed, with all moving components running in oil for total lubrication on a constant basis
  • Features reverse rotation for quick back-out when obstructions are encountered
  • The systems' hydraulic relief valve protects the units from damage when the auger hits large, immovable objects


    THINGS TO CONSIDER BEFORE SELECTING AN AUGER DRIVE

    • When selecting an auger drive you will need to match to the recommended GPM and Pressure specifications shown for the drive to your prime mover.
    • When deciding which model auger drive you need, please note the different model numbers for each drive. The larger model numbers will give you more torque and the smaller model numbers will give you more speed when operating within the recommended flow (GPM) range specified for each model.
    • If you plan to dig holes in hard, compacted, or frozen soils, you should consider selecting a larger model as it will give you more torque. The same is true if you plan to use larger bits like the 36” versions. They need more torque than the smaller bits.
    • If speed and production are most important and you are using smaller bits, a smaller model drive will give you more speed than the larger models allowing you to dig faster.



    MODEL X975D X1475D
    ORDER# 124803, 124804 124805, 124806
    FLOW RANGE 6-15 GPM 10-25 GPM
    SHIP LB 405 LB 407 LB
    SPEED @ 12 GPM 75 RPM 49 RPM
    SPEED @ 15 GPM 95 RPM 61 RPM
    TORQUE @ 3000 PSI 1500 FT LB 2377 FT LB
    TORQUE @ 3500 PSI 1713 FT LB 2630 FT LB
    MAX BIT 24" 30"



    MODEL X1975D X2475D
    ORDER# 124807, 124808 124809, 124810
    FLOW RANGE 15-30 GPM 20-35 GPM
    SHIP LB 409 LB 411 LB
    SPEED @ 20 GPM 79 RPM 56 RPM
    SPEED @ 24 GPM 84 RPM 67 RPM
    TORQUE @ 3000 PSI 2769 FT LB 3451 FT LB
    TORQUE @ 3500 PSI 3044 FT LB 3821 FT LB
    MAX BIT 36" 36"



    MODEL

    3000 PSI

    TORQUE

    15 GPM

    RPM

    24 GPM

    RPM

    LBS
     X975 1500 89 NA 405
    X1475 2377 60 NA 407
    X1975 2769 49 78 409
    X2475 3451 NA 63 411
    X3375 4279 NA 45



    MODEL

    GPM

    RANGE

    PSI MAX

    PSI

    CONTINUOUS

     X975 6 - 15 3500 3000
    X1475 10 - 25 3500 3000
    X1975 15 - 30 3500 3000
    X2475 20 - 35 3500 3000
    X3375 18 - 30 3500 3000
    • X Series drive units are completely sealed with all moving components running in oil for total lubrication on a constant basis
    • The X Series hydraulic motor drives the auger through a sealed planetary gear reduction
    • The heavy duty all gear design gives these units a long life with minimal maintenance and service costs
    • All models feature reverse rotation for quick back-out when obstructions are encountered
    • The systems’ hydraulic relief valve protects the units from damage when the auger hits large immovable object

    Typically ships in (3-5) days. If Back-ordered (3-6) weeks.
