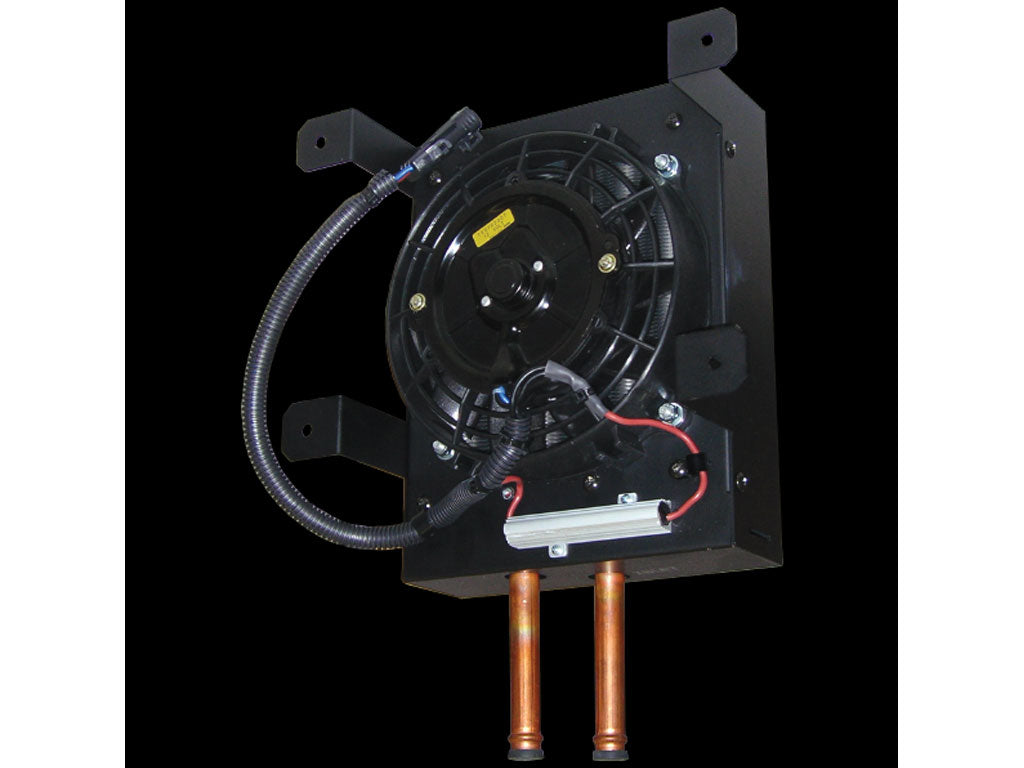

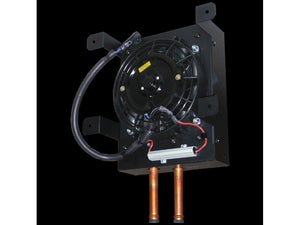

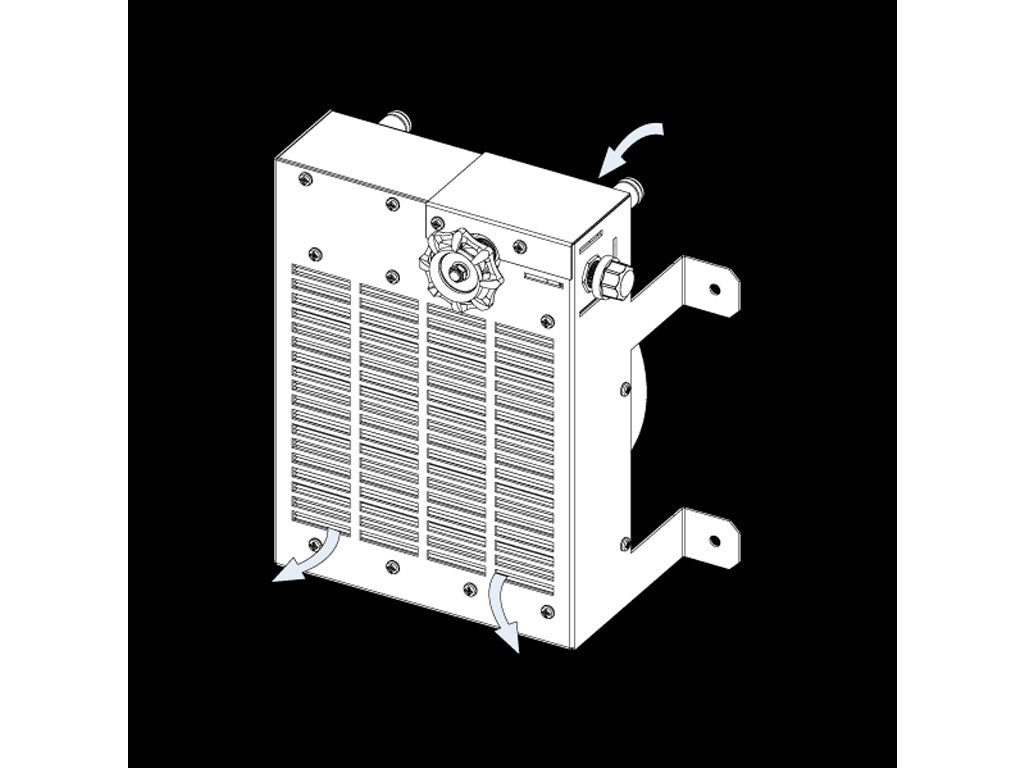

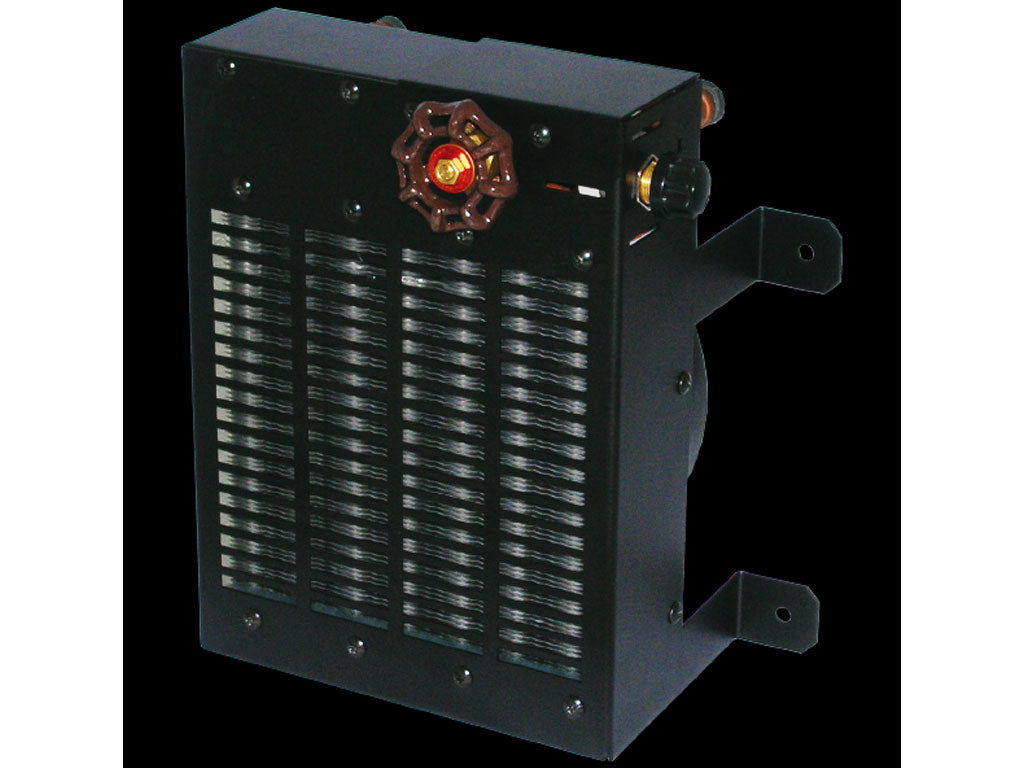

MESA WALL MOUNT HEATER

MESA 4000 SERIES HEATER. This heater is universal mount. The mounting hole are set up for a wall / horizontal mount. The one piece compact design allows for easy installation in multiple positions and locations. This heater also features Rheustat fan control  and in-line coolant shut off valve for temperature control.

  • Two-Speed Fan Control Switch
  • Resistor Provides PM Motor with Two-Speeds
  • Heater Hose Kit P/N H-64006 (not included)

This fan replaces BOBCAT heater #213014

HEATING BTU/HR

14000

POWER REQUIREMENT

2.7 AMPS @ 12V

POWER REQUIREMENT

1.7 AMPS @24V

AIR FLOW HEAT

205 CFM

CASE MATERIAL

22 GAUGE STEEL

CORE MATERIAL

TUBE & FIN

FAN MATERIAL

PLASTIC

FITTINGS

.625"

12V

H-410112

24V

H-410124

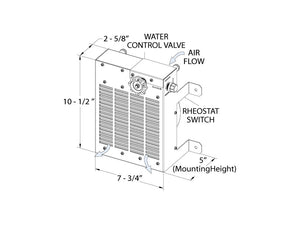

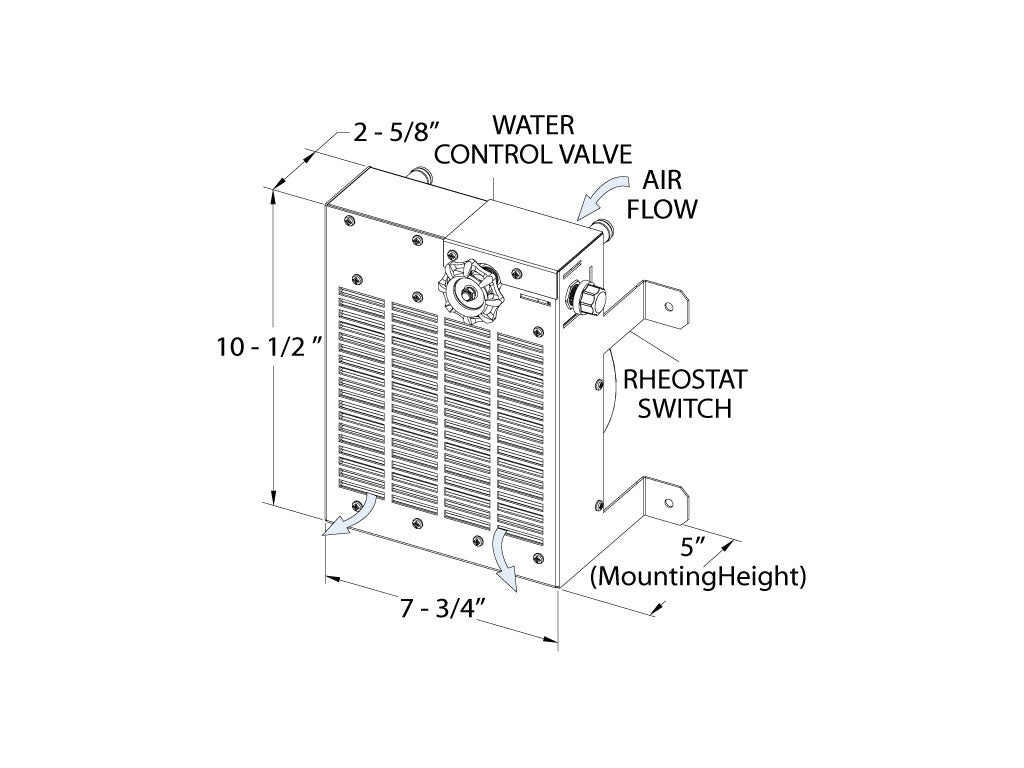

DIMENSIONS

10 in. H x 7.75 in. L x 4.75 in. D
