MONGO excavator tilt buckets, 3300 - 33000 lbs. machines
$3,776.99 - $12,475.99
1/25

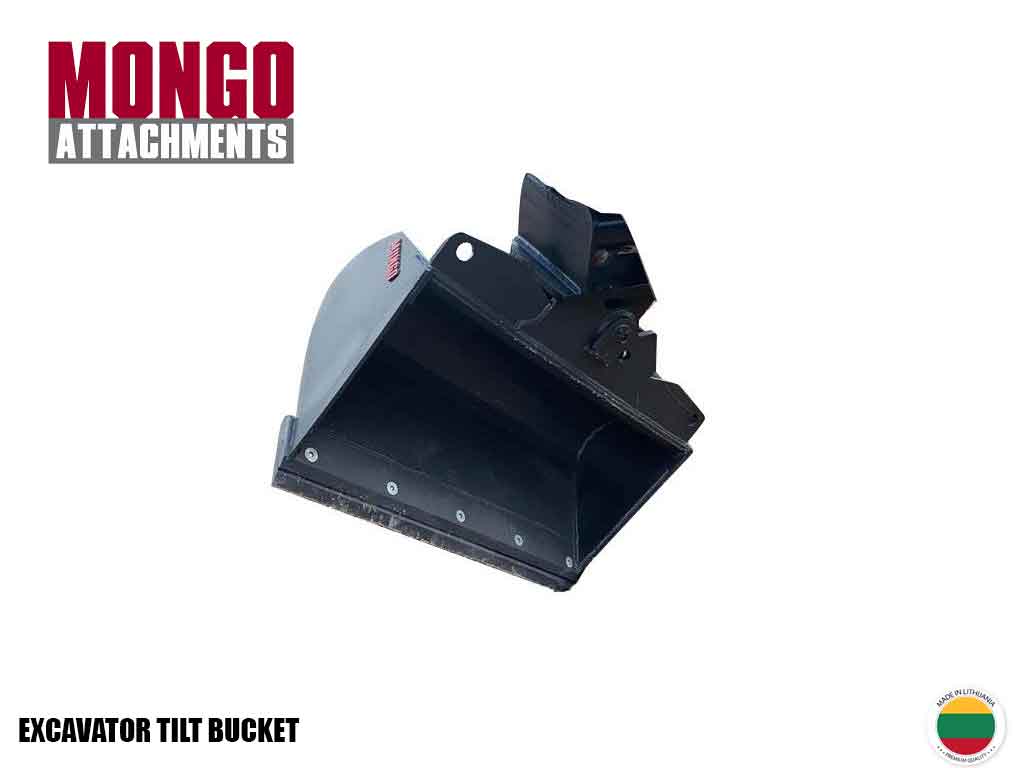

Mongo Attachments Tilt Bucket

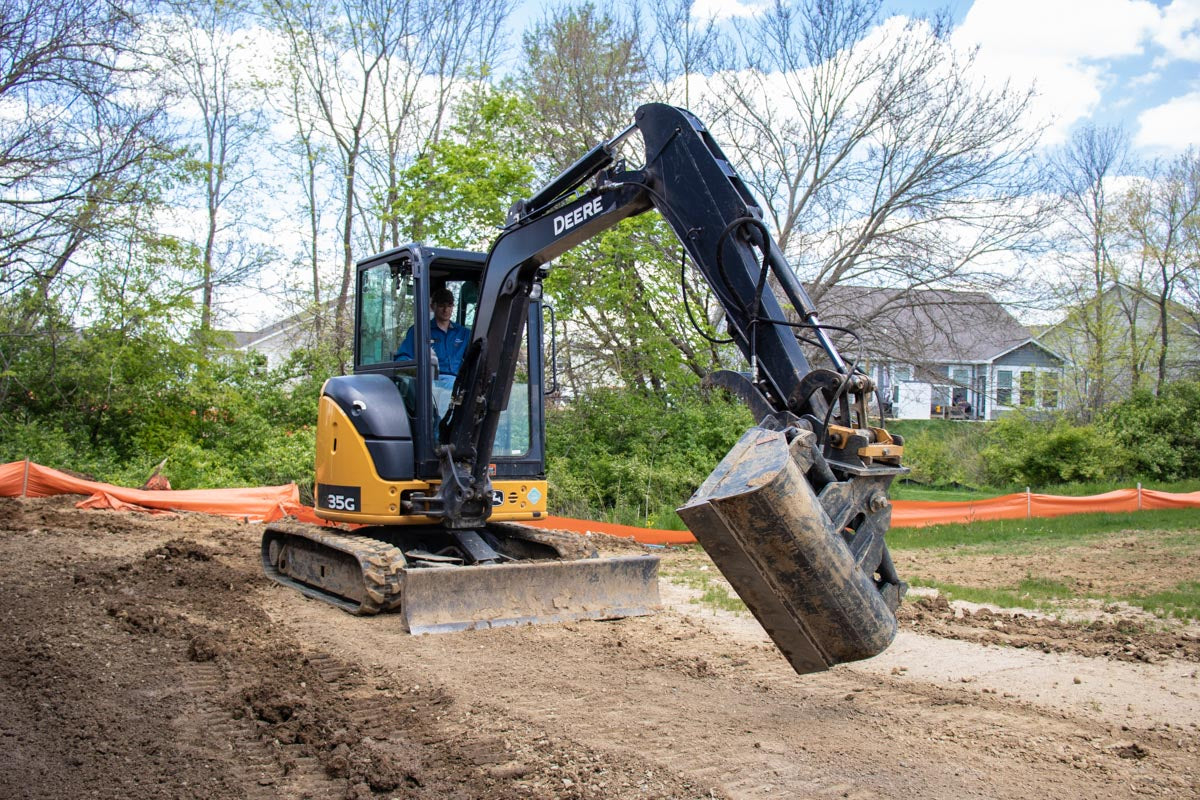

The Mongo Tilt Bucket gives you the versatility to dig hard-to-reach areas and extreme angles. This two-way 45 degree tilting bucket gives you 90 degrees of digging freedom. Whether digging pools, ponds, sidewalks, foundations, hardscapes, utility trenches, swales, or drainage ditches the Mongo Attachments Hydraulic Tilt Bucket will get the job done faster and more precisely.
What Is Included With A Mongo Attachments Hydraulic Tilt Bucket?
Mongo tilt buckets come ready to use, with the appropriate length hoses and flat-face couplers included. Installation is a simple as attaching the hoses and mounting the bucket to the excavator coupler. At Mongo we custom build each mount, tailor-made for your excavator. You can be digging with your Mongo tilt bucket within minutes of receiving it. Mongo Tilt Buckets include a reversible/replaceable Hardox cutting edge with flush-mount bolts. The 50”, 60” and 36” deep models all feature a built-in Hardox back grading edge.
Tilt Bucket Features:
- Available in 30″, 36”, 42”, 50”, 60”, and 36″ Deep Profile models
- 45 degree tilt in both directions
- Sizes 42″ and up have dual tilt cylinders

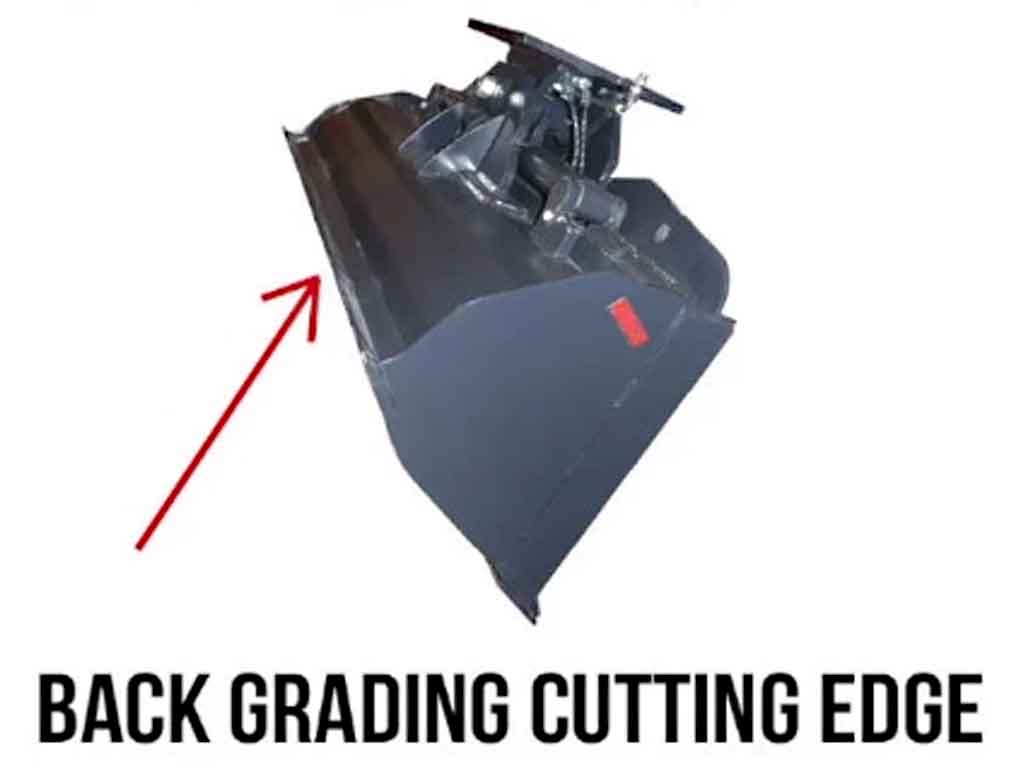

- Sizes 50″ and up have a welded on back grading edge
- Bolt-on, reversible, HARDOX cutting edge
- Hydraulic hoses and connectors included for plug and play setup
- Machine specific coupler included
* WE WILL CONTACT YOU FOR YOUR MACHINE INFORMATION
| BUCKET |
COMPATIBLE MACHINE SIZE |
STRUCK CAPACITY |
HEAPED CAPACITY |
LBS. NO MOUNT |

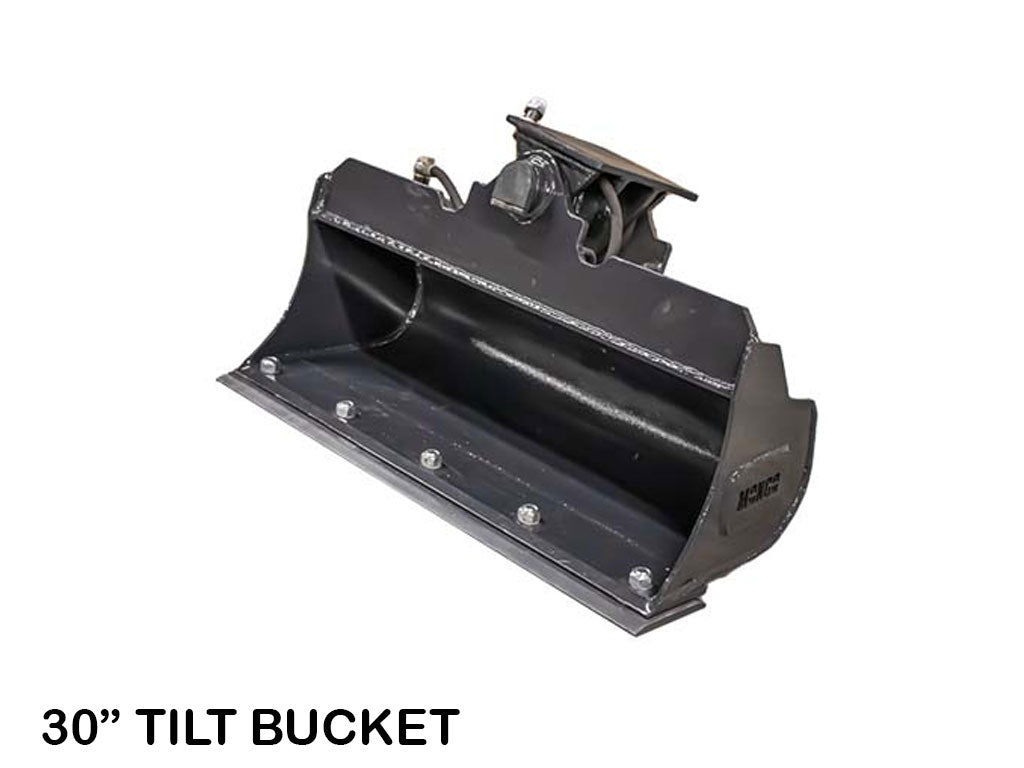

| 30" TILT | 1.5-2 TON | 2 CU FT | 2.6 CU FT | 250 |

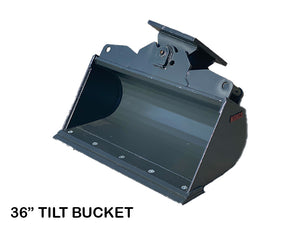

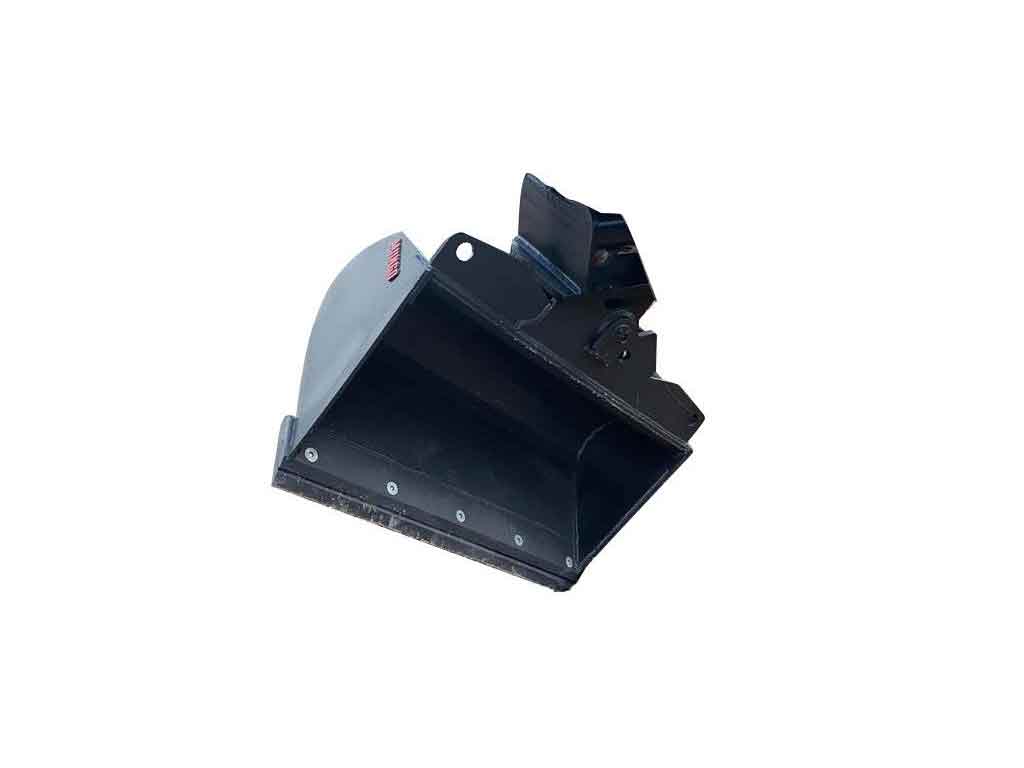

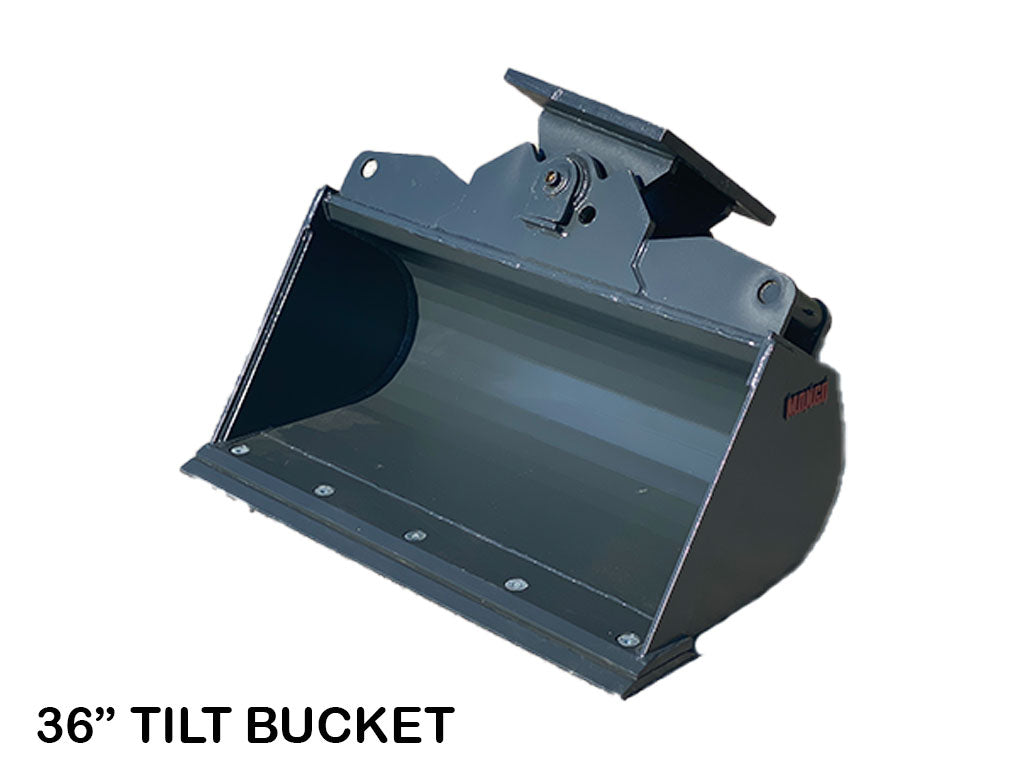

| 36" TILT | 2.5-4.5 TON | 2.5 CU FT | 4.1 CU FT | 300 |

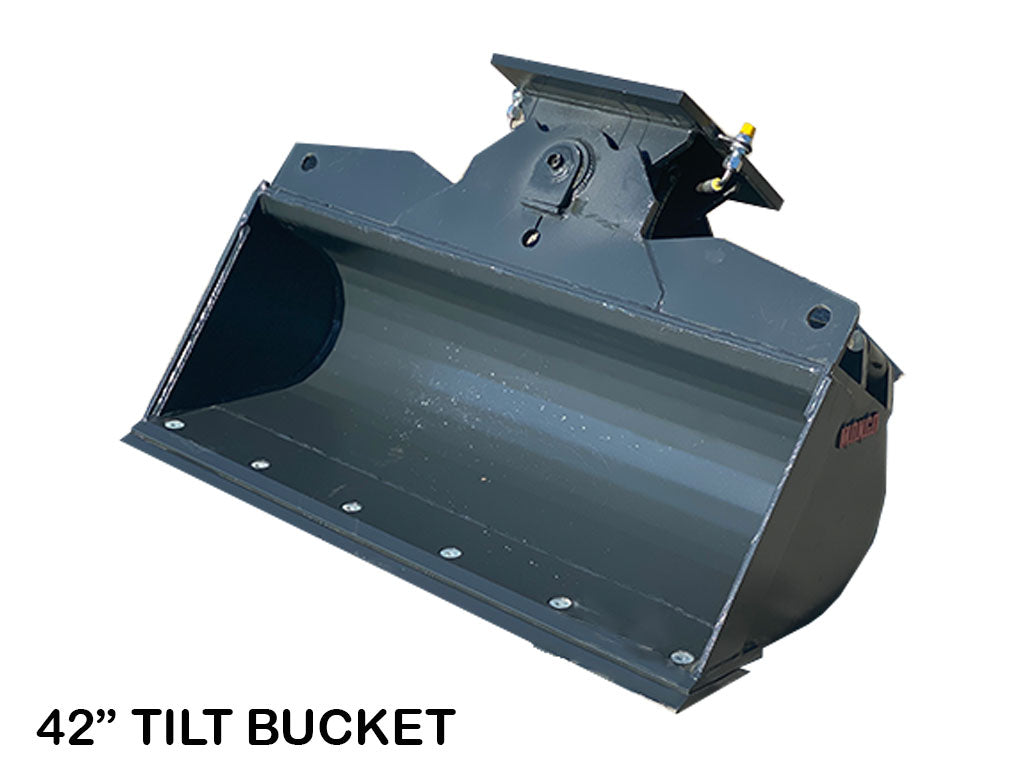

| 42" TILT | 3.5-5 TON | 2.8 CU FT | 4.8 CU FT | 400 |

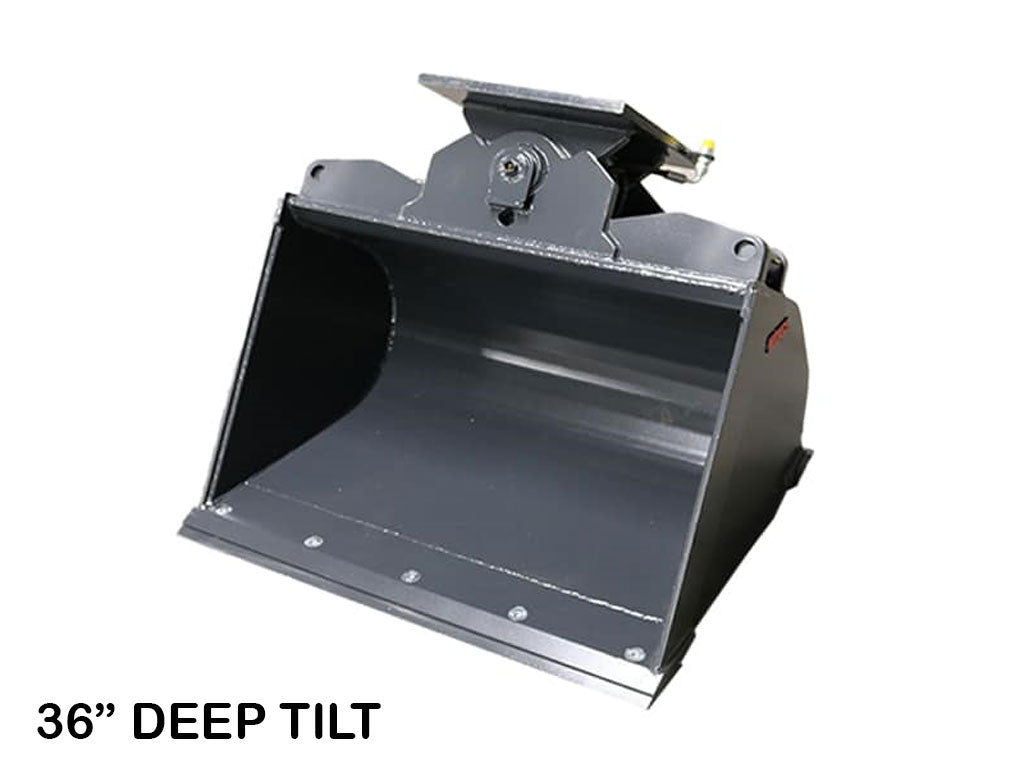

| 36" DEEP TILT | 5-10 TON | 5.6 CU FT | 8.9 CU FT | 600 |

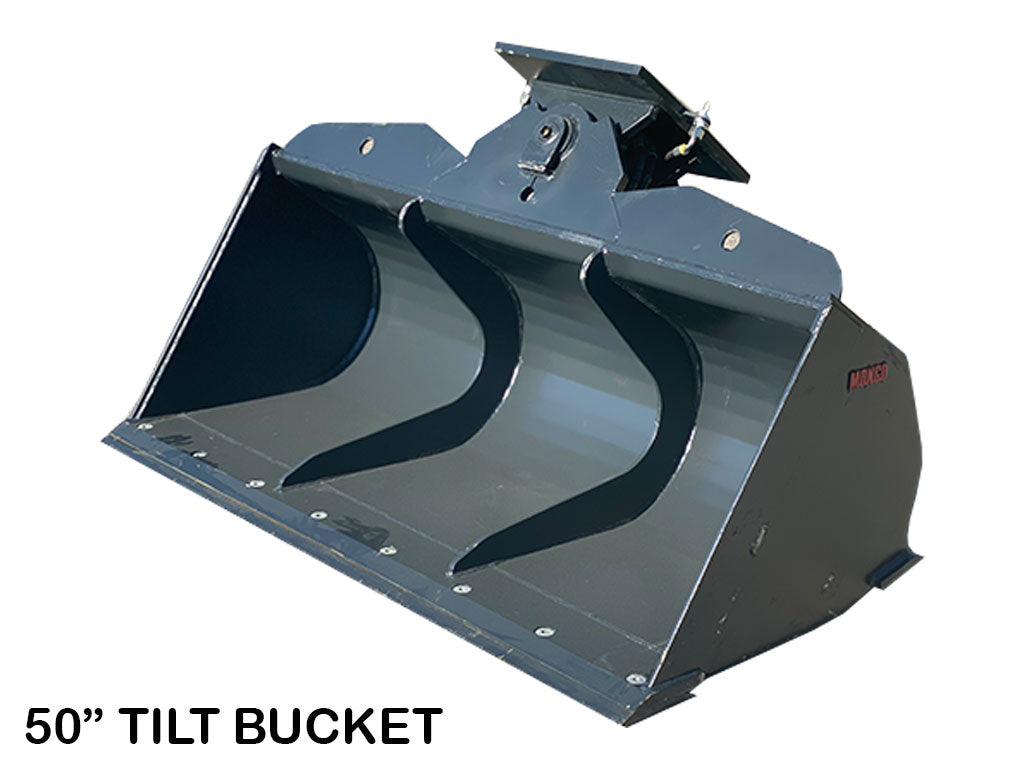

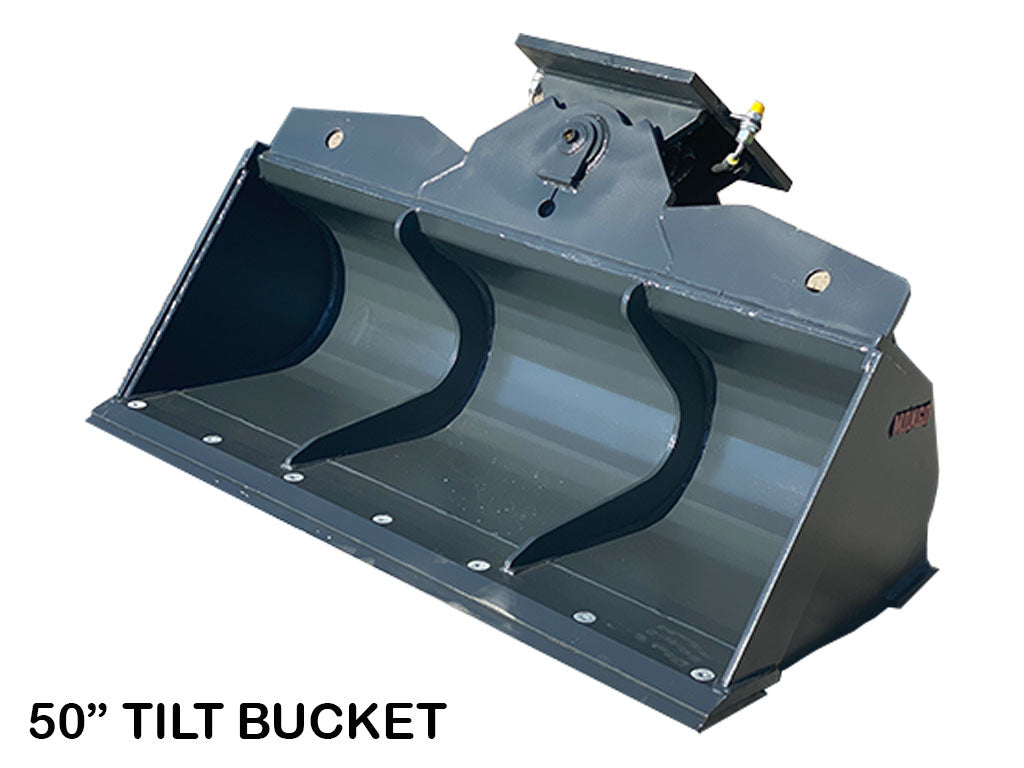

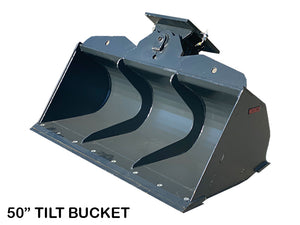

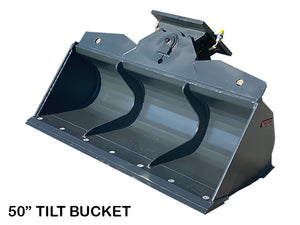

| 50" TILT | 7.5-10 TON | 5.6 CU FT | 8.8 CU FT | 580 |

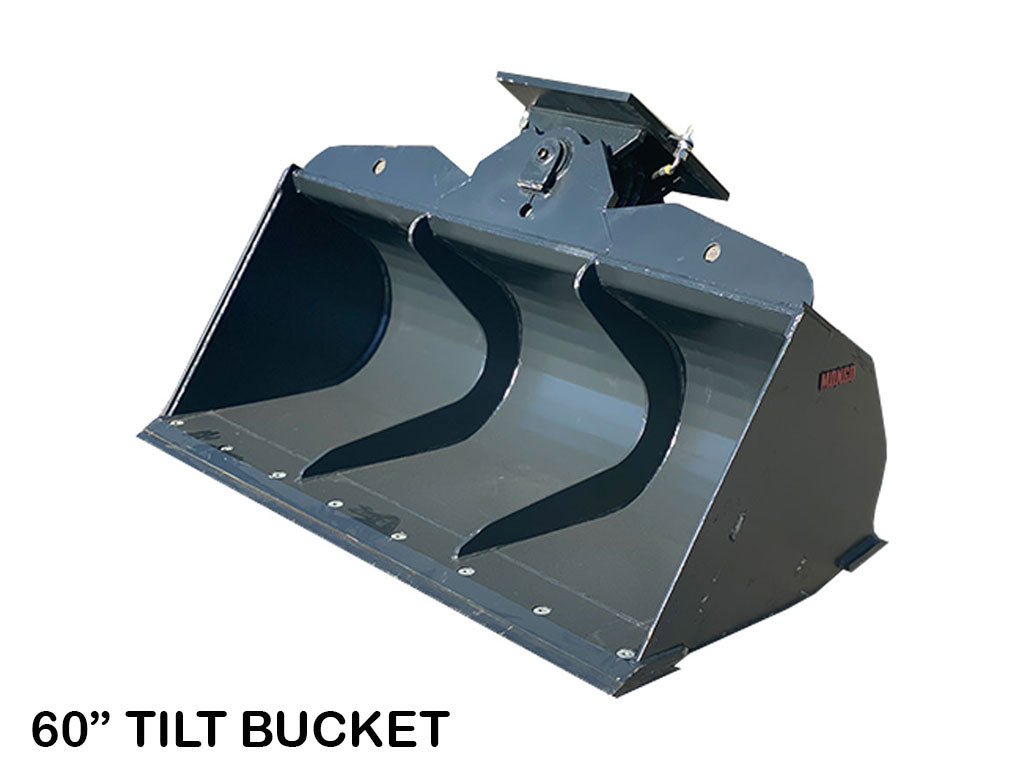

| 60" TILT | 5-10 TON | 7.0 CU FT | 10.8 CU FT | 650 |

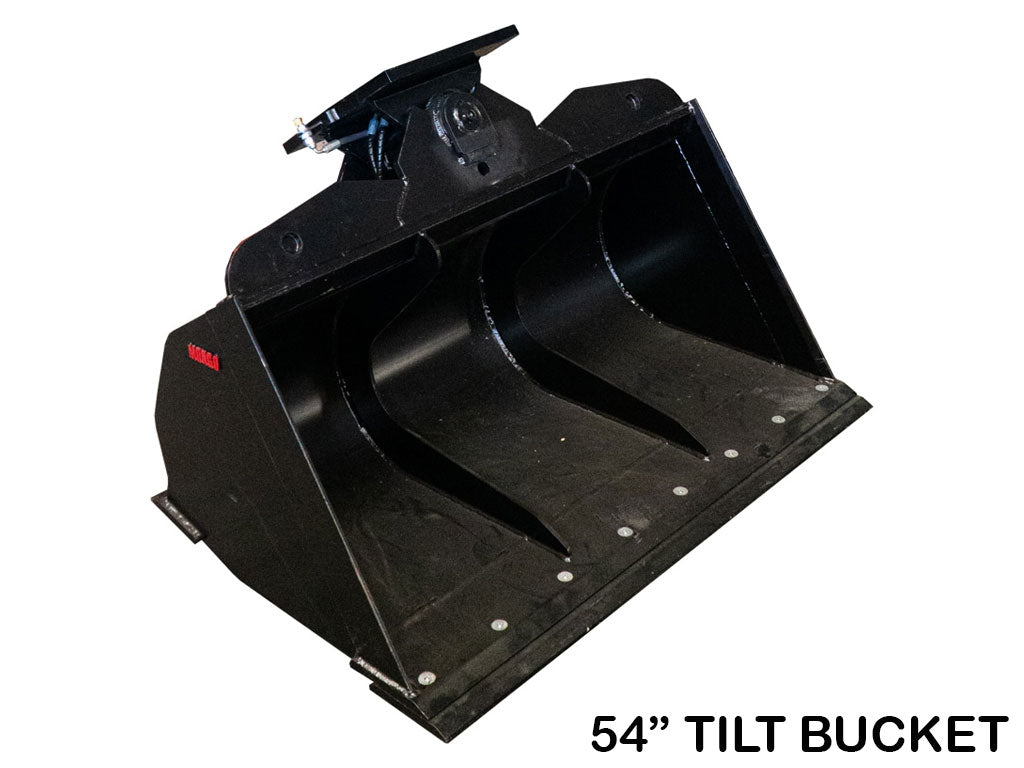

| 54" TILT | 8-16 TON | 13.5 CU FT | 18.9 CU FT | 1040 |
COMMON MOUNTINGS
| BOBCAT EXCHANGE COUPLERS |
| E26, E32, E35, E42, E42, E45, E50, E60, E63 |
| E80, E85 |
| KUBOTA USA COUPLERS |
| U15, U17, KX018 |
| U25, U27 |
| KX033, U35, KX040, KX71 |
| KX057, U48, U55 |
| KX161, U45 |
| WEDGE LOCK |
| DEERE 15, 17 |
| DEERE 27, 35 |
| DEERE 50, 60 |
| DEERE 75, 85 |
| TAG / CP / WAIN ROY ORIGINAL |
| 1.25" T-PIN QUICK COUPLER (QC27) |
| 1.75" T-PIN QUICK COUPLER (QC30) (WR ORG.) |
| WAIN ROY XLS |
| 1.50" T-PIN QUICK COUPLER |
| 1.75" T-PIN QUICK COUPLER |
| OEM PIN ON |
| NO COUPLERS |
| WERK BRAU SPRING AND HYDRAULIC COUPLERS |
| WAIN ROY SPRING AND HYDRAULIC COUPLERS |
| JRB SPRING AND HYDRAULIC COUPLERS |
| CP SPRING AND HYDRAILIC COUPLERS |
| TAG SPRING AND HYDRAULIC COUPLERS |
HOSE KIT
- Measure from end of couplers to end of coupler or stick. We will add about 12" for range of motion
| SIZE RECOMENDATONS | EXCAVATOR | 2204.62 LBS X | |
| BUCKET SIZE | SPEC | MACHINE LBS |
MT CLASS |
| 30" | SINGLE CYLINDER | 3300 - 4500 LBS | 1.5-2 |
| 36" | SINGLE CYLINDER | 5500 - 9000 LBS | 2.5-4 |
| 42" |
DUAL CYLINDER |
6500 -9000 LBS | 3-4 |
| 36" DEEP |
DUAL CYLINDER BACK-DRAG EDGE |
10000 - 15000 LBS | 5-7.5 |
| 50" |
DUAL CYLINDER BACK-DRAG EDGE |
10000 - 15000 LBS | 5-7.5 |
| 60" |
DUAL CYLINDER BACK-DRAG EDGE |
16000 - 26000 LBS | 8-13 |
| 54" |
DUAL CYLINDER BACK DRAG EDGE |
18000-32000 LBS. |
COMMON MACHINE MATCH UPS
| KUBOTA | |
| 30" TILT BUCKET | K008,KX018,U17 |
| 36" TILT BUCKET | KX71,KX91,KX033,U35,KX121,KX040 / U25, U27 |
| 42" TILT BUCKET | U35,KX033,U35,KX121,KX040 |
| 50" TILT BUCKET | U48,U55,KX057,KX080 |
| 36" DEEP TILT BUCKET | U48,U55,KX057,KX080 |
| 60" TILT BUCKET | KX080 |
| JOHN DEERE | |
| 30" TILT BUCKET | 17D,17G |
| 36" TILT BUCKET | 26G,27ZTS,27C,27D,30G,35ZTS,35C,35D,35G |
| 42" TILT BUCKET | 35ZTS,35C,35D,35G |
| 50" TILT BUCKET | 50ZTS,50C,50D,50G,60D,60G |
| 36" DEEP TILT BUCKET | 50ZTS,50C,50D,50G,60D,60G |
| 60" TILT BUCKET | 60D,60G,75D,75G,85D,85G |
| BOBCAT | |
| 30" TILT BUCKET | E10,E20 |
| 36" TILT BUCKET | E26,E32,E35,E42,E45 |
| 42" TILT BUCKET | E35,E42,E45 |
| 50" TILT BUCKET | E45,E50,E55,E60,E63,E80,E85,E88 |
| 36" DEEP TILT BUCKET | E45,E50,E55,E60,E63,E80,E85,E88 |
| 60" TILT BUCKET | E63,E80,E85,E88 |
| TAKEUCHI | |
| 30" TILT BUCKET | TB210R,TB216 |
| 36" TILT BUCKET | TB225,TB230,TB235,TB240 |
| 42" TILT BUCKET | TB235,TB240 |
| 50" TILT BUCKET | TB250,TB260,TB370,TB280,TB285,TB290 |
| 36" DEEP TILT BUCKET | TB250,TB260,TB370,TB280,TB285,TB290 |
| 60" TILT BUCKET | TB280,TB285,TB290 |
| YANMAR | |
| 30" TILT BUCKET | SV08,VIO12,VIO17,VIO20 |
| 36" TILT BUCKET | VIO25,VIO35,SV40 |
| 42" TILT BUCKET | VIO35,SV40 |
| 50" TILT BUCKET | VIO45,VIO50,VIO55,VIO75,VIO80,SV100 |
| 36" DEEP TILT BUCKET | VIO45,VIO50,VIO55,VIO75,VIO80,SV100 |
| 60" TILT BUCKET | VIO75,VIO80,SV100 |
| CAT | |
| 30" TILT BUCKET | 309.9,301.5,301.7,301.8,302 |

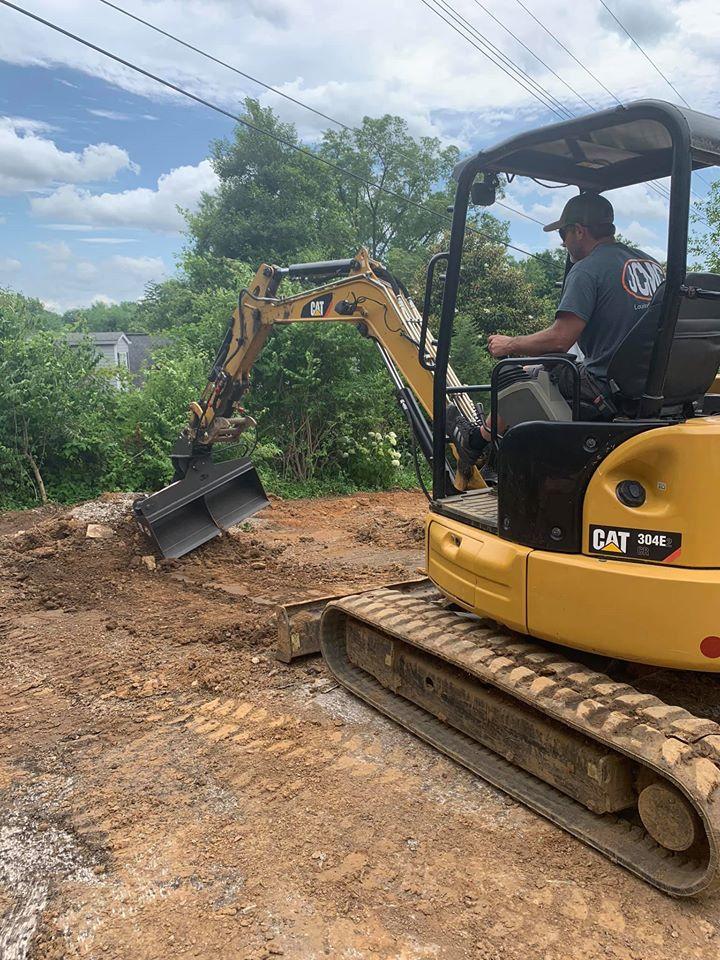

| 36" TILT BUCKET | 302.7,303,303.5,304,304.5 |
| 42" TILT BUCKET | 303.5,304,304.5 |
| 50" TILT BUCKET | 304.5,305,306,307.5,308,309,310 |
| 36" DEEP TILT BUCKET | 304.5,305,306,307.5,308,309,310 |
| 60" TILT BUCKET | 307.5,309,310 |
| SANY | |
| 30" TILT BUCKET | SY16 |
| 36" TILT BUCKET | SY26,SY35 |
| 42" TILT BUCKET | SY35 |
| 50" TILT BUCKET | SY50,SY60,SY75,SY80,SY95 |
| 36" DEEP TILT BUCKET | SY50,SY60,SY75,SY80,SY95 |
| 60" TILT BUCKET | SY75,SY80,SY95 |
| CASE | |
| 30" TILT BUCKET | CX17 |
| 36" TILT BUCKET | CX26,CX30,CX37 |
| 42" TILT BUCKET | CX37 |
| 50" TILT BUCKET | CX57,CX60,CX75,CX80 |
| 36" DEEP TILT BUCKET | CX57,CX60,CX75,CX80 |
| 60" TILT BUCKET | CX75,CX80,CX75,CX80 |
| NEW HOLLAND | |
| 30" TILT BUCKET | E17 |
| 36" TILT BUCKET | E26,E30,E33,E37 |
| 42" TILT BUCKET | E33,E37 |
| 50" TILT BUCKET | E57,E60 |
| 36" DEEP TILT BUCKET | E57,E60 |
| 60" TILT BUCKET | |
| HYUANDIA | |
| 30" TILT BUCKET | HX10,R17,R18 |
| 36" TILT BUCKET | R25,R30,R35 |
| 42" TILT BUCKET | R35 |
| 50" TILT BUCKET | R55,R60,R80,HX85 |
| 36" DEEP TILT BUCKET | R55,R60,R80,HX85 |
| 60" TILT BUCKET | R80,XH85 |
| HITACHI | |
| 30" TILT BUCKET | EX17,ZX17 |
| 36" TILT BUCKET | ZX26,ZX30,ZX35 |
| 42" TILT BUCKET | EX35,ZX35 |
| 50" TILT BUCKET | EX50,ZX50,ZX60,ZX75,ZX85 |
| 36" DEEP TILT BUCKET | EX,50,ZX50,ZX60,ZX75,ZX85 |
| 60" TILT BUCKET | ZX75,ZX85 |
* MONGO HYDRAULIC DIVERTER VALVE AVAILIBLE FOR THESES MACHINES
-
John Deere 27D, 30G, 35D, and 35G
-
Hitachi ZX27U-3, ZX30U-5, and ZX35U-5
- 30" - 1.5-2 Metric Ton machine - Single Tilt Cylinder
- 36" - 2.5-4 Metric Ton Machine - Single Tilt Cylinder
- 36" - (DEEP) 5-75 Metric Ton Machine Dual tilt cylinder
- 42" - 3-4 Metric Ton Machine - Dual Tilt Cylinders
- 36" - ( 36" DEEP) 5-7.5 Metric Ton Machine Dual tilt cylinder
- 50" - 5-7.5 Metric Ton Machine - Dual Tilt Cylinders
- 60" - 8-13 Metric Ton Machine - Dual Tilt Cylinders
| WIDTH | 30" | 36" | 42" | 36" DEEP | 50" | 60" |
| DEPTH | 12.2" | 12.76" | 12.20 |
25.7" | 14.29 |
14.29 |
| HEIGHT | 9.6" | 18.9" | 18.03" |
19" | 21.02" |
21.02" |
| HEIGHT W/O MOUNT | 29.98" | 28.03" | 31.02" | 31.02" | ||
| BKT VOLUME CU FT | 2.47 | 2.83 | 5.6 | 5.65 | 6.71 | |
| DEGREE ANGLE | 45 | 45 | 45 | 45 | 45 | 45 |
| WEIGHT W/ MOUNT (ESTIMATED) | 335 LBS | 437 LBS |
640 LBS | 620 LBS | 675 LBS | |
|
WEIGHT NO MOUNT |
300 | 393 | 575 | 626 | ||
| GPM | 7.9-26.4 | 7.9-26.4 | 7.9-26.4 | 7.9-26.4 | 7.9-26.4 | 7.9-26.4 |
| PSI | 2320-3481 | 2320-3481 | 2320-3481 | 2320-3481 | 2320-3481 | 2320-3481 |
| CYLINDERS | 1 | 1 | 2 | 2 | 2 | 2 |
| MACHINE LB | 3300-5000 | 5000-8000 | 6000-8000 | 10000-15000 | 10000-15000 | 16000-26000 |
MOUNTINGS
- BOBCAT EXCHANGE
- DEERE WEDGE - LOC
- TAG / CP / GANNON
- WAIN ROY XLS
- KUBOTA
- OEM PIN ON
- OTHER
