MT3272
MT3272 Gentec Universal mechanical excavator thumbs, 65000-100000 lbs. excavators
$7,900.00
2/24
Built-Tough
The MT3272 Mechanical Weld-On Thumb boasts a 32" width and 72" length, and is comprised of four 2" thick AR400 Steel Tines. These tines are arranged in a ladder frame layout and reinforced with gussets, guaranteeing enhanced strength and lasting durability. Designed to fit machines weighing between 65,000 and 100,000 lbs, the Gentec MT3272 itself weighs 1,750 lbs. Its A-Frame link construction greatly improves torsional rigidity, making it a dependable choice for farmers and demolition contractors who require top performance and longevity. Additionally, the main pin and bushings are hardened for increased durability.
Superior Geometry

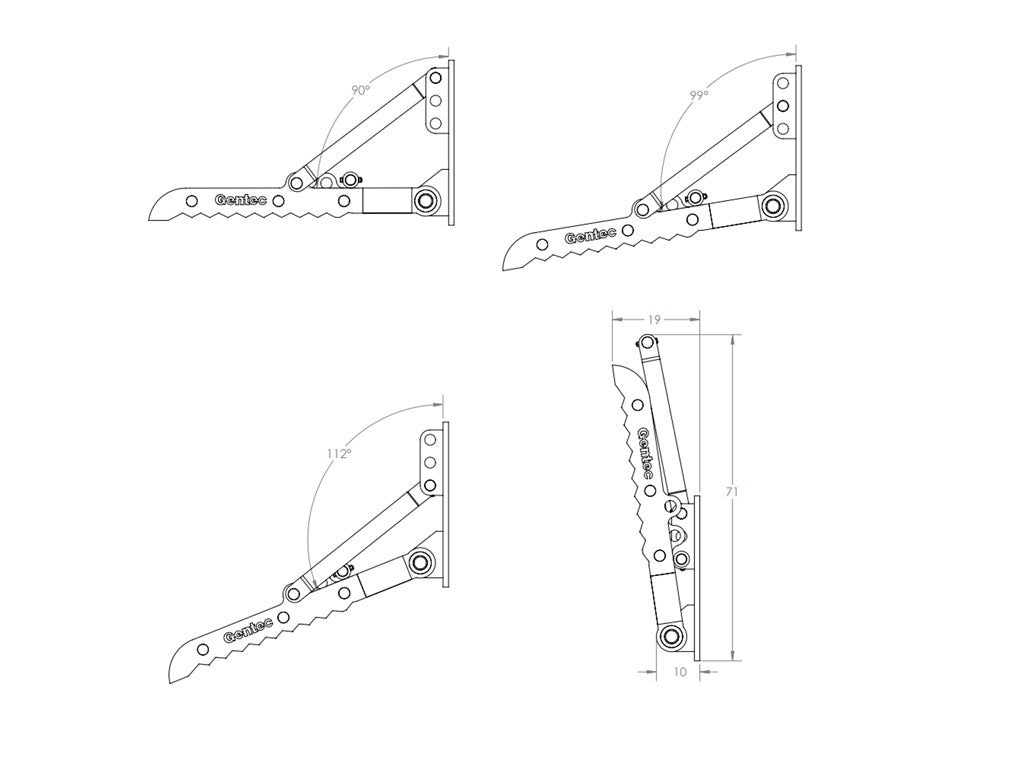

Offering exceptional versatility, the MT3272 Mechanical Weld-On Thumb features three-position adjustability at angles of 90, 99, and 112 degrees. When not in use, the thumb easily stows away, occupying only 71" of vertical space on the excavator stick and extending a mere 19" off the stick when stowed. This ensures it won't obstruct your digging operations. With no loose parts when stowed, you can trust that your equipment remains secure and ready for use whenever needed.
Maximize Your Investment
As a family-owned business with 35 years of experience and 50,000 satisfied clients, we recognize the importance of providing quality products that help you maximize your investment. The MT3272 Mechanical Weld-On Thumb enables you to get the most out of your machine, while its excellent adjustability and swift stowing capabilities ensure efficient and effective operation for farmers and demolition contractors alike.
Features:
- Four 2" thick AR400 Steel Tines

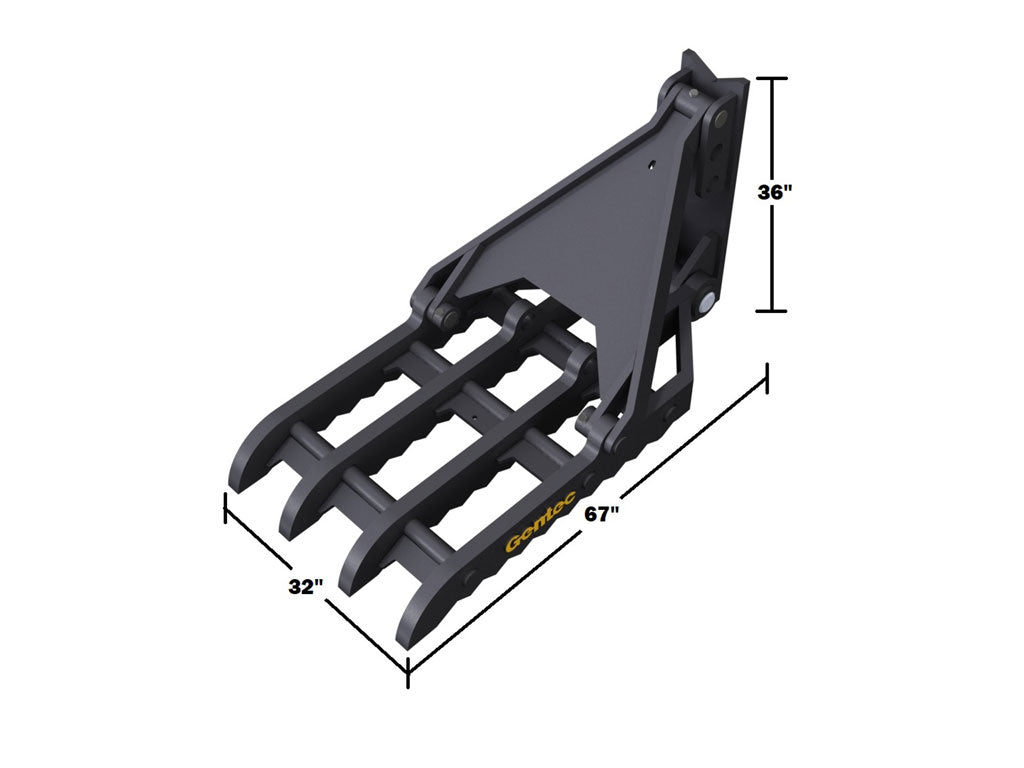

- 32" wide by 72" long
- Weighs 1,750 lbs
- Ladder frame layout with gussets for added strength
- A-Frame Link construction for increased torsional rigidity
- Three-position adjustability: 90 degrees, 99 degrees, and 112 degrees
- Compact stowing: takes up 71" of vertical room and only extends 19" off the stick when stowed
- Hardened main pin and bushings
- No loose parts when stowed
- Greaseable main pin for smooth operation and reduced wear
- Designed for machines between 65,000 and 100,000 lbs
- 1-year warranty
- Replacement parts readily available
** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.
⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.
| Operation | Mechanical |
|---|---|
| Width | 32" |
| Length | 67" |
| Net Weight | 1449lbs |
| Tine Thickness | 2" |
| Tine Material | Hardox 400 |
| Main Pin Diameter | 3 1/8" |
| Stowed-Position Height | 71.5" |
| Max. Extension Angle | 112 Degrees |
| Min. Operating Weight | 65,000lbs |
| Max. Operating Weight | 100,000lbs |
| Excavator Weight Class | 55,000lbs to 100,000lbs |
| Mounting | Weld-On |
SAMPLE LIST ONLY
| 45000-60000 LBS | |
| BRAND | MODELS |
| CASE |
9040, 9045, CX240, CX280 CX240D, CX290, CX270 |
| CAT | 322CL, 325C, 225B/D |
| DEERE |
300G, 290G, 250G, 230G, 270C, 230C, 790D/E |
| DOOSAN | SOLAR255-V |
| HITACHI | ZX250, ZX290, ZX245, ZX240-3, ZX270-3, 270LCV |
| HYUNDAI |
R220LC-9S, R250LC7 |
| JCB | JS220, JS260 |
| KOBELCO |
SK250, SK220-IV, SK270-IV |
| KOMATSU | PC220, PC250, PC270-8, PC308 |
| LINK BELT | 225MSR, 240LX, 290LX, 3400 |
| NEW HOLLAND |
EC215, EC240, E215 |
| SANY | SY235 |
| SAMSUNG | 280 |
| TEREX | TXC255 |
| VOLVO | EC240B, 290B |
| 65000-80000 LBS | |
| BRAND | MODELS |
| CASE | CX330, 9050B |
| CAT | 330CL, E300 |
| DAEWOO | S340LCV, 330LCV |
| DEERE |
350G, 380G, 892 350D, 330CLC, 370CLC |
| DOOSAN | DX300, DX340 |
| HITACHI | ZX350, ZX380, ZX330, ZX370 |
| HYUNDAI |
R320LC7, R360LC7 |
| JCB | JS330 |
| KOBELCO |
SK290LC-DA, SK330LC-DA SK350LC |
| KOMATSU | PC300LC-7 |
| LINK BELT | 330LX, 4300Q |
| NEW HOLLAND |
EC350-LC |
| SANY | SY335 |
| TEREX | TXC300, TXC340 |
| VOLVO | EC330B, EC360B |
| 80000-110000 LBS | |
| BRAND | MODELS |
| CASE | CX450, CX460, 9060B |
| CAT | 345BL, 345CL, 350F/G, 235/B/C/D |
| DAEWOO | S450-III, S470LCV |
| DEERE |
470G, 450D, 450CLC, 992E |
| DOOSAN | DX420, DX480 |
| HITACHI | ZX470, EX450-V, Z450LC |
| HYUNDAI |
4500-7, R450LC-7, R450LC-3 |
| JCB | JS450, JS460 |
| KOBELCO |
SK480LC-DA, SK400LC |
| KOMATSU | PC400-7, PC450-6 |
| LINK BELT | 460LX, 5800Q |
| NEW HOLLAND |
EX450LC |
| TEREX | TXC420, TXC470, TXC480 |
| VOLVO | EC460B |
Thumbs usually ship out within (3) days
MEASUREMENTS
Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)
INSTALLATION
Please follow these instructions when installing your thumb.
