MT824

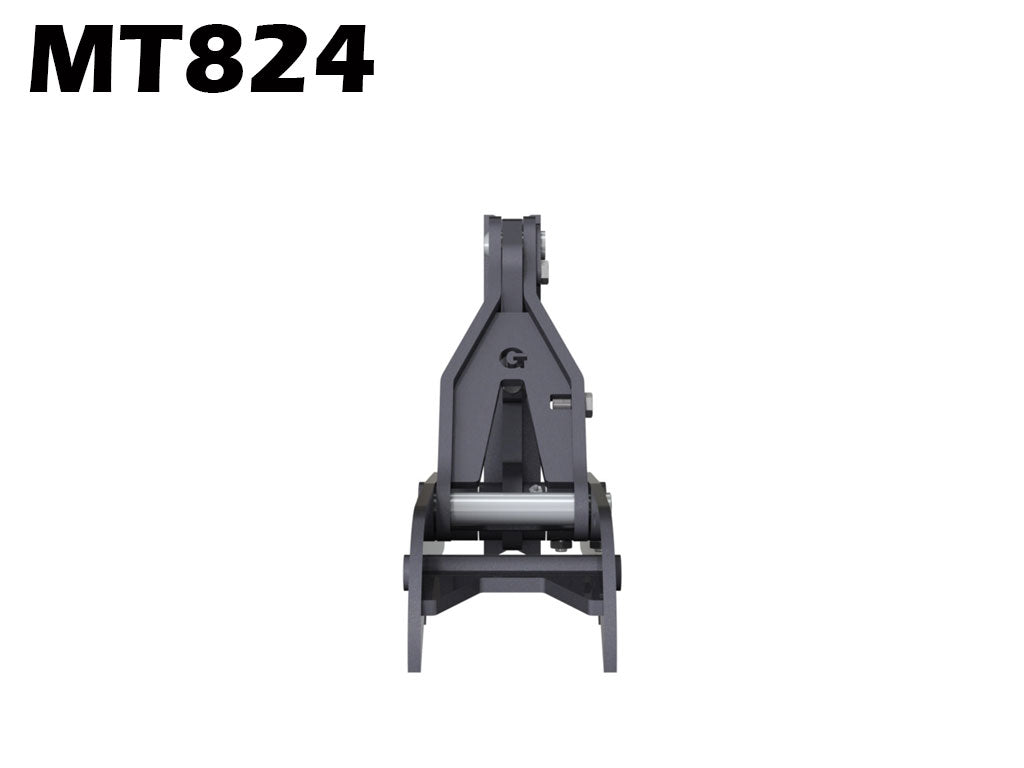

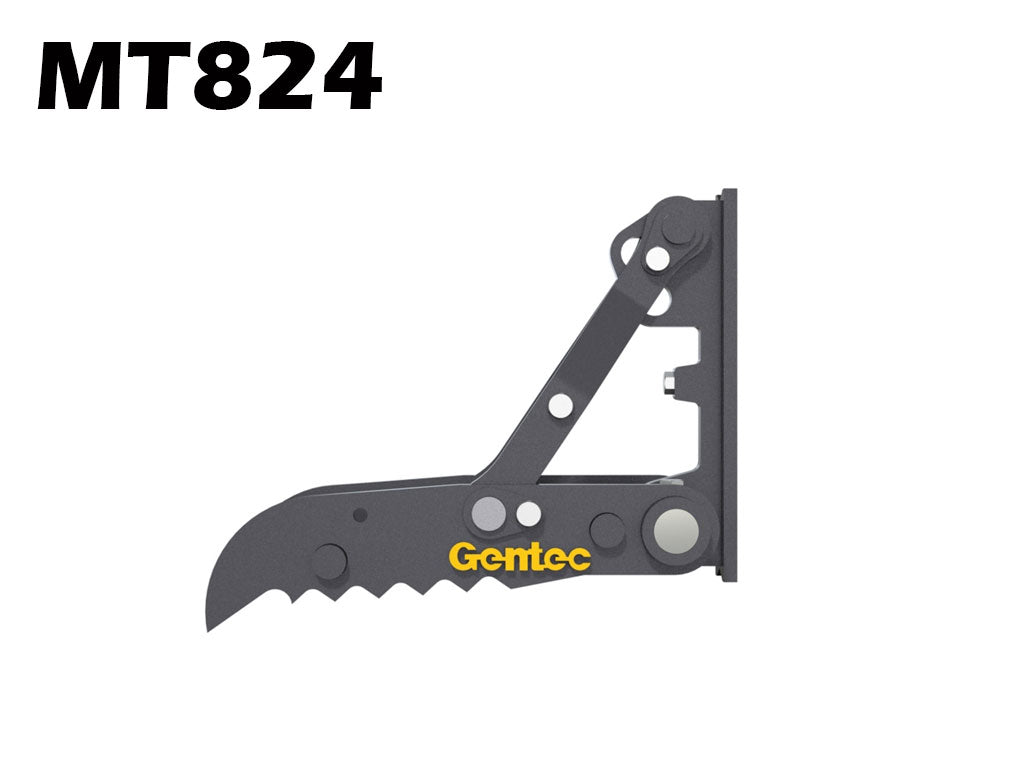

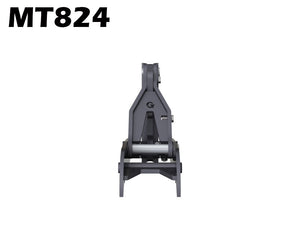

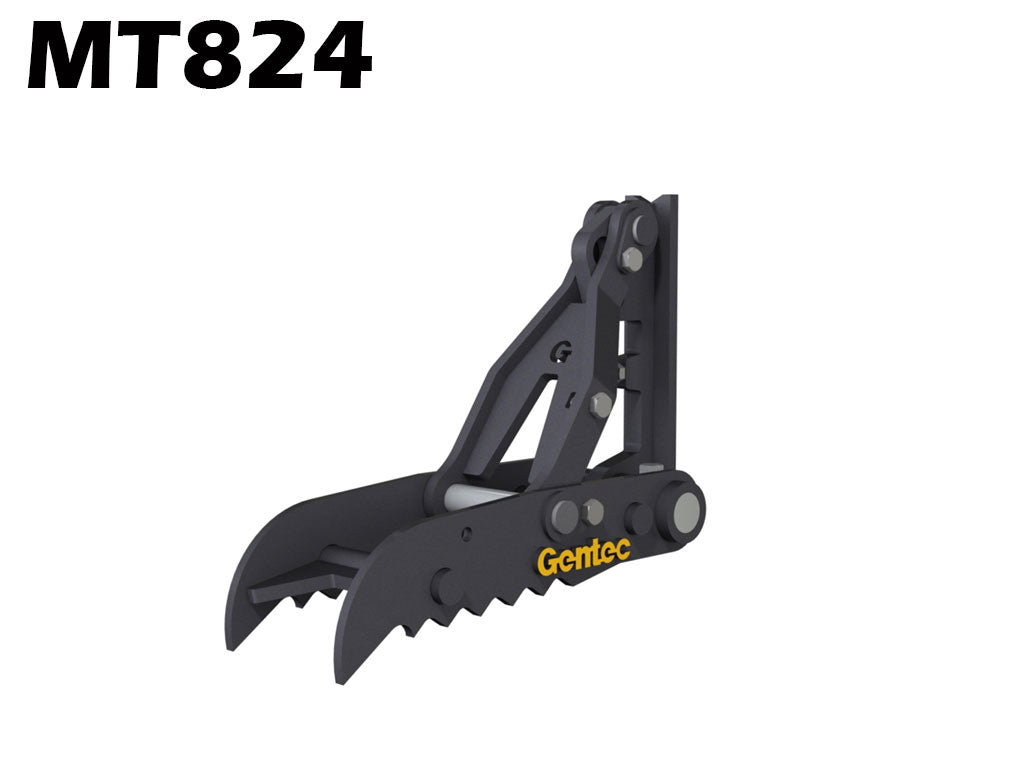

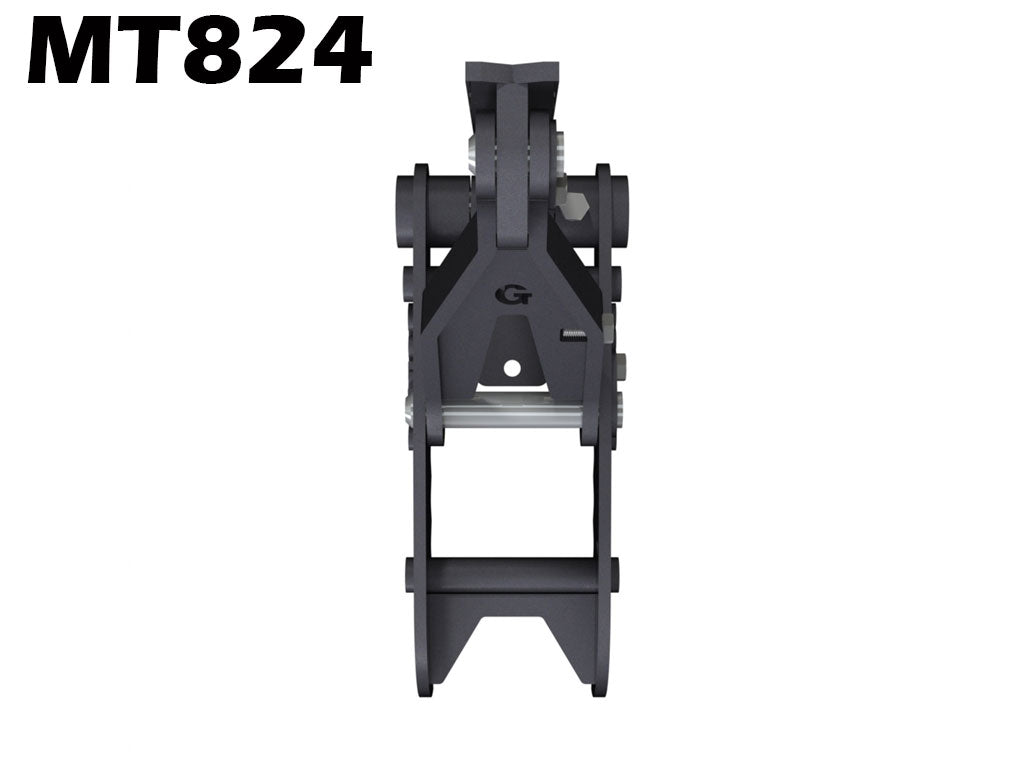

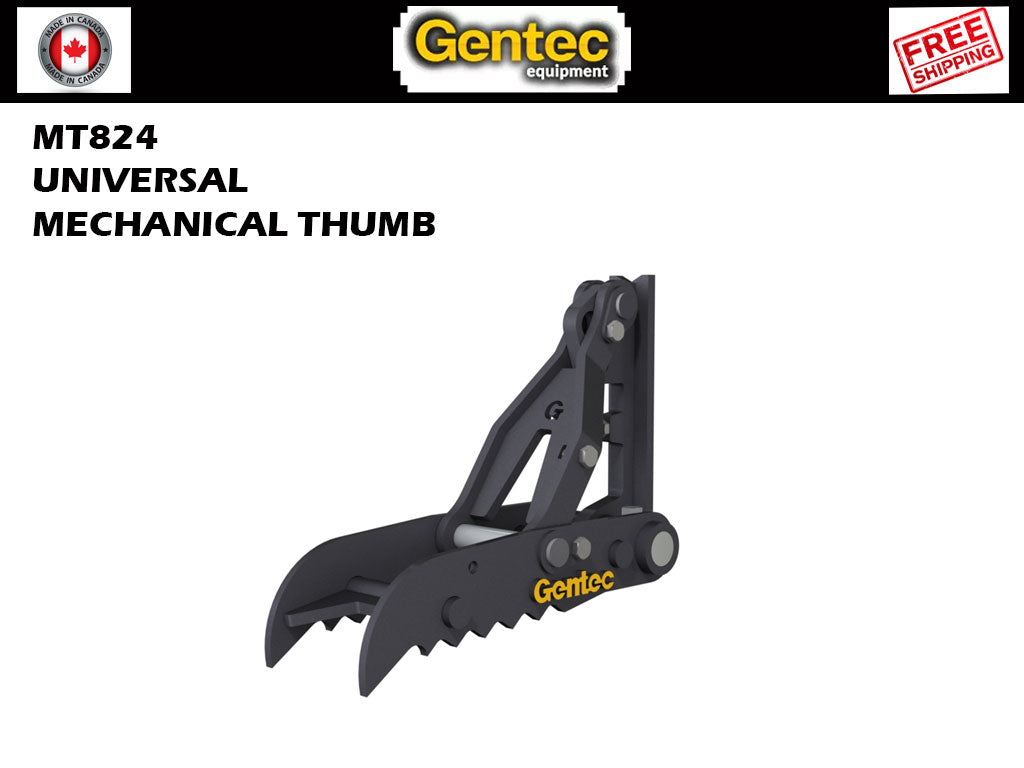

MT824 Gentec Universal mechanical excavator thumbs, 4000-9900 lbs excavators

2/24

Gentec Equipment

Built-Tough

Introducing the MT824 Mechanical Weld-On Thumb, a reliable and robust solution designed to optimize your material handling tasks. Measuring 8" wide by 24" long, this thumb is ideal for machines between 4,000lbs and 9,000lbs and weighs102lbs. Constructed with ½" thick AR400 steel tines assembled in a ladder frame construction and reinforced with gussets, this thumb is built for increased strength and long-lasting durability. The A-Frame link design further enhances the thumb by increasing torsional rigidity, ensuring that it can handle the toughest of tasks with ease. Additionally, the MT824's main pin is greaseable to ensure smooth operation and minimize wear.

Superior Geometry

The MT824 features an unparalleled design that sets it apart from the competition. With three adjustable positions at 90, 105, and 120 degrees, you can customize your thumb for the perfect fit and optimal functionality. The 120-degree position offers greater flexibility and reach compared to other brands. When not in use, this compact thumb quickly stows away, taking up only 21 7/8" of vertical room on your excavator stick and extending just 7.5" off the stick, ensuring it won't get in your way when digging. With no loose parts when stowed, you can rest assured that your equipment is secure and ready for use whenever you need it.

Maximize Your Investment

Invest in the MT824 to maximize the capabilities of your excavators between 4,000lbs and 9,000lbs. With it's three position ajustability and compact stowing, this thumb is perfect for homeowners, landscapers, and smaller contractors looking to get the most out of their equipment. With 35 years of experience and a strong commitment to our company values, Gentec has become a trusted choice for more than 50,000 satisfied clients. As a family-owned business, we take pride in our products and prioritize your satisfaction. Choose the MT824 Mechanical Weld-On Thumb for a lasting investment that will make a difference in your projects for years to come.

Features:

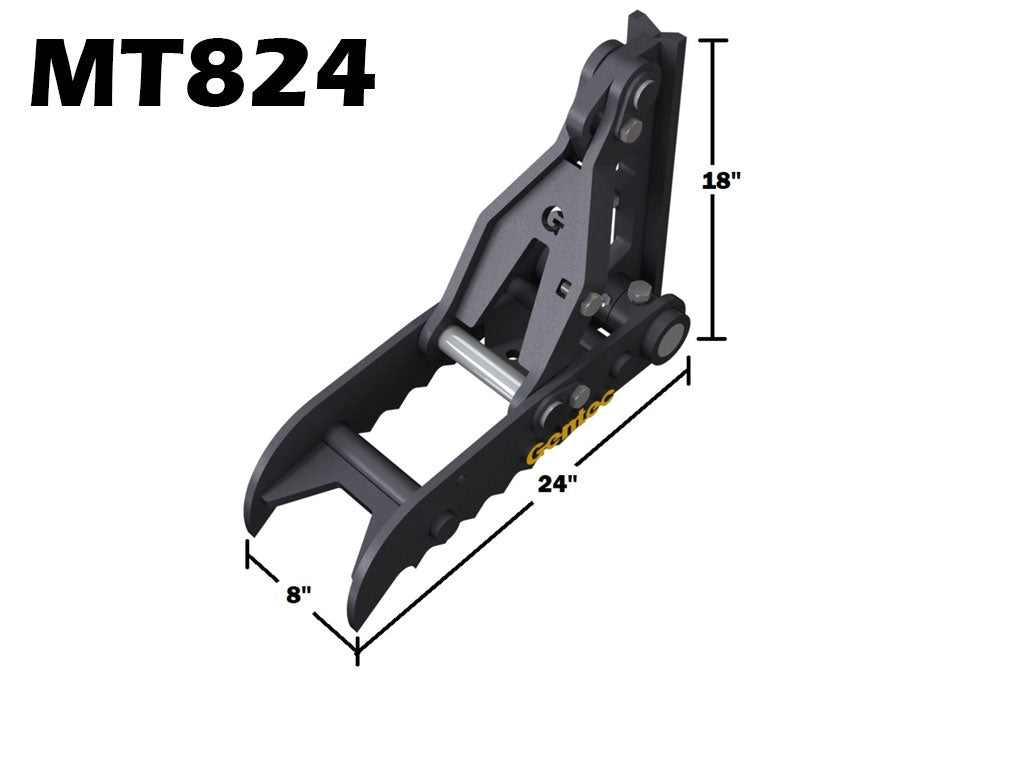

  • 8" wide, 24" long
  • Ideal for machines between 4,000lbs and 9,000lbs
  • Weighs 102lbs
  • ½" thick AR400 steel tines with ladder frame construction and gussets for durability
  • A-Frame link design for increased torsional rigidity

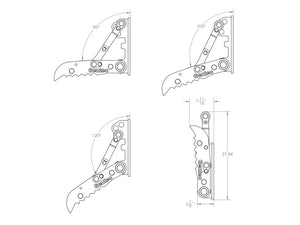

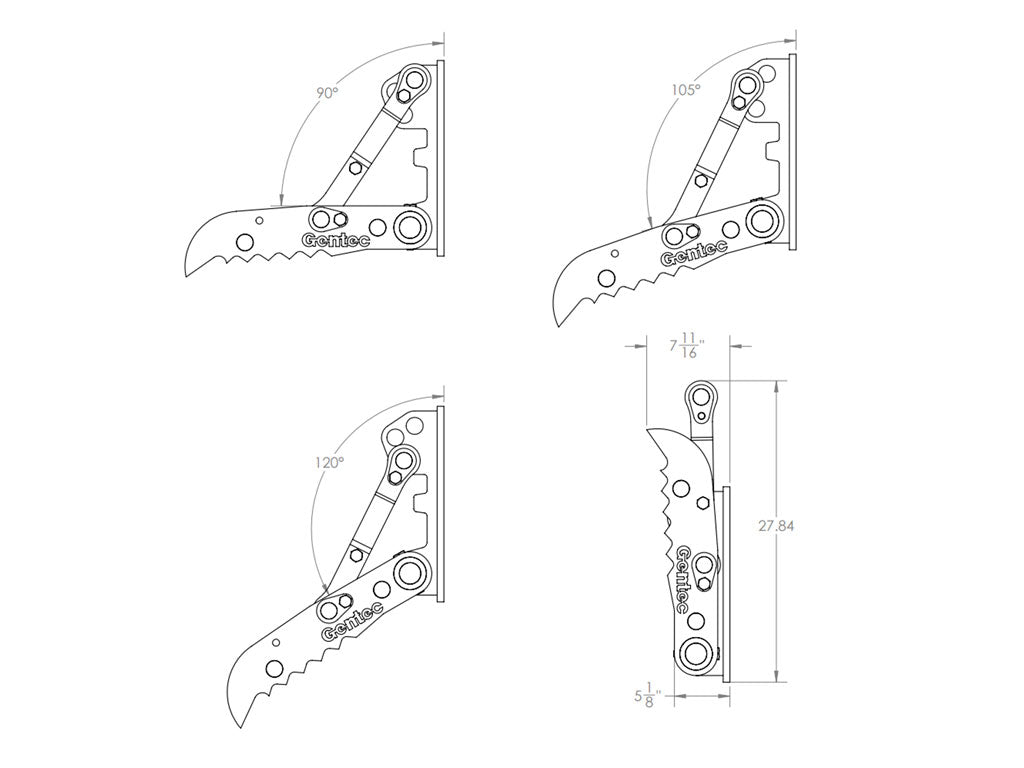

  • Three adjustable positions: 90, 105, and 120 degrees
  • Compact design, taking up only 21 7/8" of vertical room and extending 7.5" off the stick when stowed
  • No loose parts when stowed for secure storage
  • Perfect for homeowners, landscapers, and smaller contractors
  • Greaseable main pin
  • Replacement parts readily available
  • 1 year warranty

          ** PLEASE CHECK YOUR MEASUREMENTS BEFORE ORDERING. (LOOK UNDER "BIG DAVE" TAB FOR INSTRUCTIONS) CALL WITH ANY QUESTIONS OR IF YOU NEED HELP THE THUMBS CAN BE TRICKY TO ORDER CORRECT.

          ⚠ Pro Tip! If your excavator is equipped with a Pin-Grabber quick coupler, choose a longer thumb to ensure a suitable fit with your bucket.

          Mounting Weld-On
          Operation Mechanical
          Width 8"
          Length 24"
          Net Weight 102lbd
          Tine Thickness 1/2"
          Tine Material Hardox 400
          Main Pin Diameter 2"
          Stowed-Position Height 27 7/8"
          Max. Extension Angle 120 Degrees
          Min. Operating Weight 4,000lbs
          Max. Operating Weight 9,000lbs
          Excavator Weight Class 4,000lbs to 9,900lbs





           SAMPLE LIST ONLY

          4000 - 8000 lbs. excavators
           BRAND MODELS
          BOBCAT



          E26, E32, E35, 331, 334, 430
          CASE CX27B, CX31B, CX36B, CX25, CX27, CX31, CX36



          CAT



          302.5C, 303.5CCR, 303CCR
          DEERE 26G, 35G, 27D, 35D, 110, 27C, 35C
          DOOSAN

          SOLAR030, SOLAR035

          GEHL

          303, 353, 373, 383Z, ME3003

          HITACHI



          ZX27U-2, ZX35U-2, EX27U, EX30
          HYUNDAI R28-7, R35-7, R36N-7
          IHI 24V4, 30V4, 35V4, 25NX, 28N, 30NX, 35N, 35NX



          JCB 803, 8025, 8030, 8035
          KOBELCO

          27SR-3, 30SR-3, 35SR-3

          SK25, SK27, SK30, SK35

          KOMATSU PC27Mr-2, PC35Mr-2
          KUBOTA

          KX61-3, KX71, KX91-3, KX121-3

          U25, U35, L39, KX040



          MUSTANG

          3003, 3503, 3703, 3803

          NEW HOLLAND

          E27, E30, E35

          EC25, EH35

          TAKEUCHI TB125, TB135, TB138FR, TB240, TB228, TB230, TB235



          TEREX

          HR14/TC29

          VOLVO

          EC25, EC30, EC35

          ECR28, ECR38

          WACKER

          28Z3, 3503, 38Z3

          YANMAR Vio27-3, Vio35-3, CBL40



          8000 - 12000 lbs. excavators
          BRAND MODELS
          BOBCAT E42, E45, E50, E55, 337, 341, 435
          CASE CX50B, CX50, CX47
          CAT 304CCR, 305CCR, 304.5, 304CR, 305CR
          DAEWOO SOLAR50, SOLAR55
          DEERE  50G, 50D, 50C
          DOOSAN SOLAR55-V, SOLAR55-W
          GEHL 503Z, 603, 502, 602, 652
          HITACHI ZX50U-2, ZX60USB-5
          HYUNDAI R55-7, R552-7
          IHI 45V4, 55V4, 60V4, 45NX, 55NX
          JCB 8040, 8045, 8050, 8052, 48Z-1, 51R-1, 55Z-1
          KOBELCO 50SR-3, SK045, SK050
          KOMATSU

          PC40Mr-2, PC50Mr-2, PC58UU-3

          PC45

          KUBOTA KX151-3, KX161-3, U45
          NAGANO NS-45
          MUSTANG 5002, 6002, 6003, 6502
          NEW HOLLAND E50, EC45, EH45
          TEREX

          HR16/TC35, HR3.7/TC37, HR18

          TC48, HR5.0/TC50, HR20/TC60

          THOMAS
          T45
          VOLVO

          EC45Pro, EC55BPro

          WACKER 50Z3, 6003, 6503
          YANMAR

          Vio40-3, Vio-50-3

          Vio45-6A, Vio55-6A



          Thumbs usually ship out within (3) days

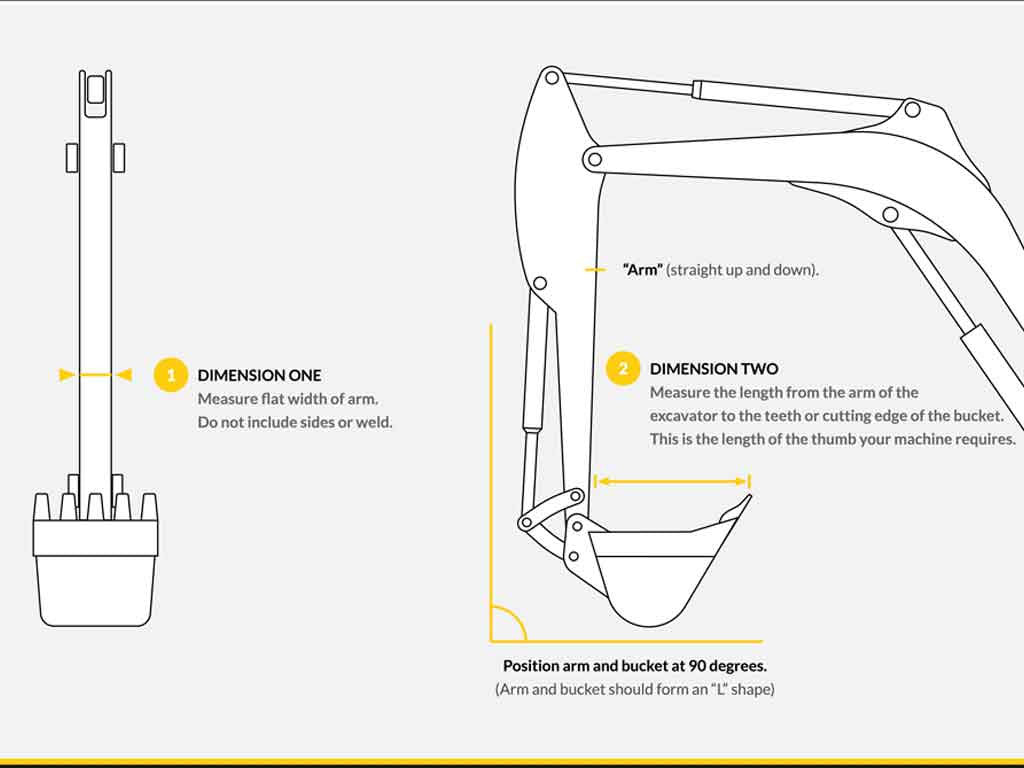

          MEASUREMENTS

          Please follow these instructions when measuring. You want your "stick to tip" measurement to be as close to the thumb tine length as possible. GENTEC's mounting plates are very narrow so typically there is no problems with the mounting plate (exception is the very smallest class of mini excavator)

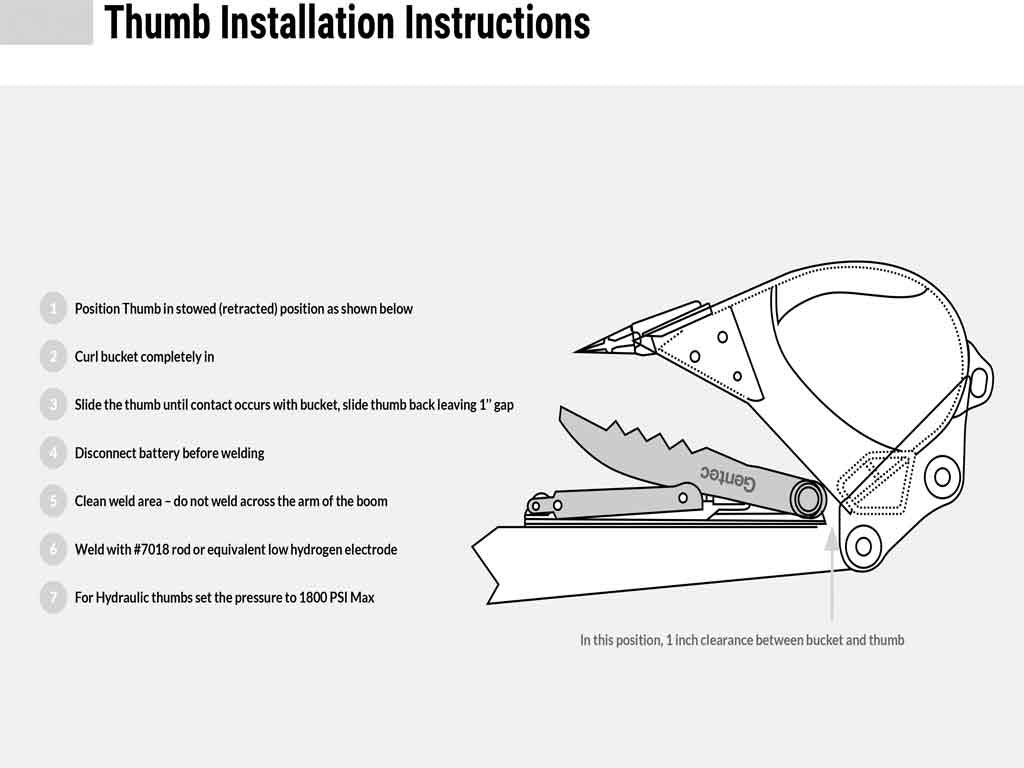

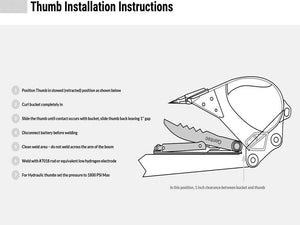

          INSTALLATION

          Please follow these instructions when installing your thumb.
