FFC

LAF3566-0022

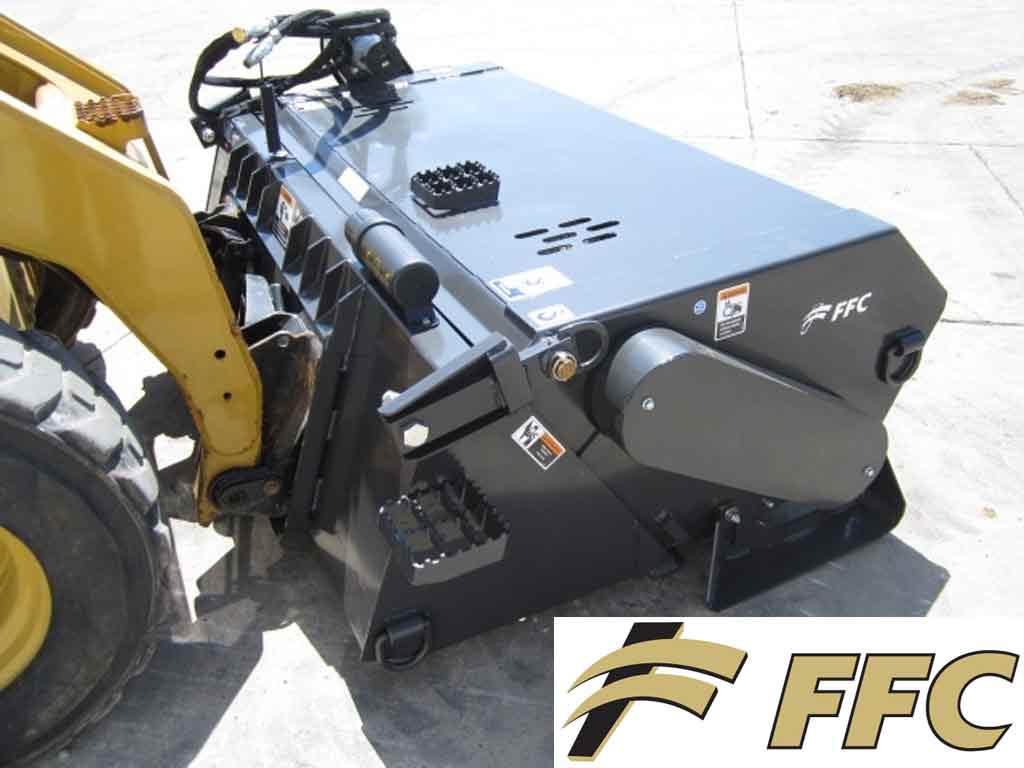

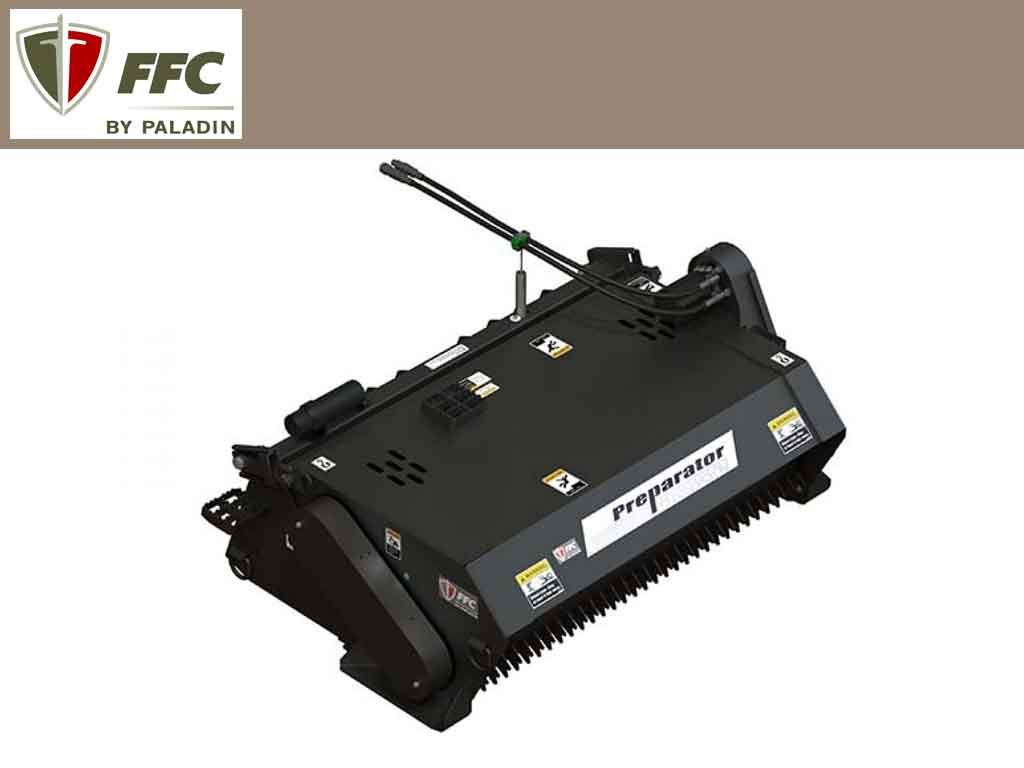

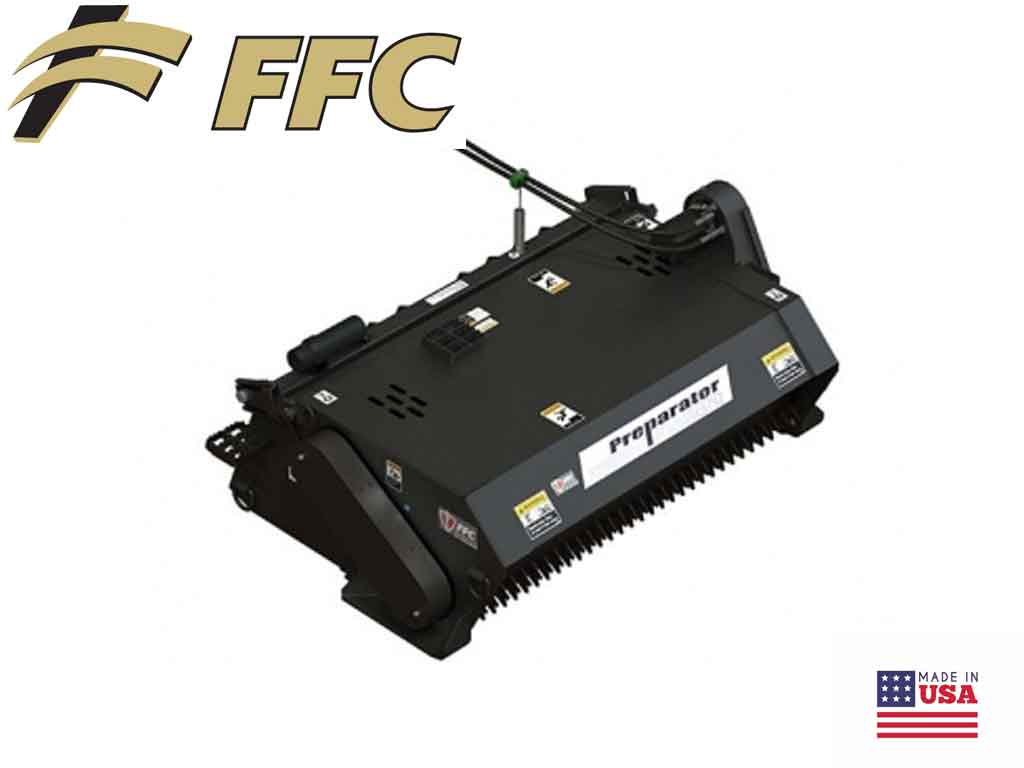

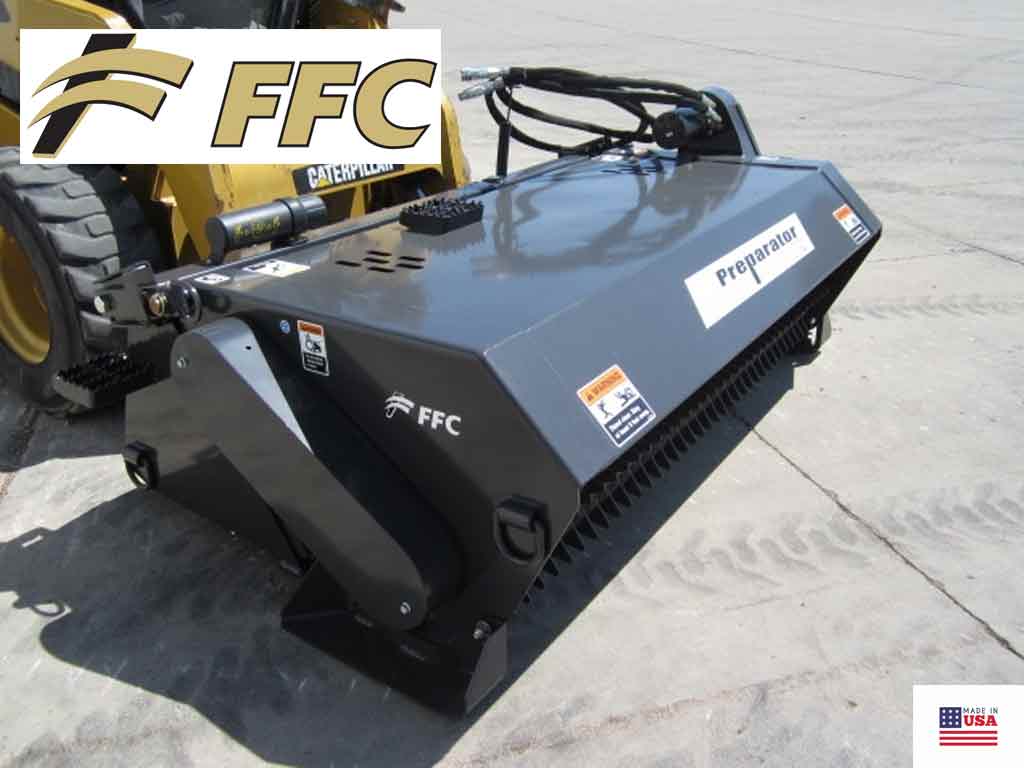

PADALIN FFC PREPARATOR LANDSCAPE RAKE (SSL)(CTL)

Size

Preparator

The FFC Preparator® is a more professional series of the FFC Auto Rake, having bidirectional capabilities. Operating this unit in reverse will perform the same tasks as the Auto Rake, site cleanup and soil preparation, collecting material of 3/4 - 6". A spinning brush located inside the unit removes fine material, allowing it to fall into the collection bucket, which has a perforated floor. This permits fine workable loam to remain on the job site and not be carried away as discarded debris. While operating this unit in a forward direction, you can till and homogenize to 2 1/2 inches in depth, creating an excellent seedbed. This product is also available CE certified.

FEATURES

  • Efficiently handles cleanup, rock removal and soil preparation
  • Follows ground contour while picking up rocks and debris
  • Picks up rocks 1" to 20" in diameter
  • Bi-directional drum tilts up to 2.5" deep

SPECIFICATIONS 66" 76"
ORDER CODES LAF3566 LAF3576
WEIGHT 1270 LB 1465 LB
WORKING WIDTH 66" 76"
OVERALL WIDTH 74" 84"
TEETH INSIDE 300 340
TEETH OUTSIDE 10 10
GPM RANGE 10-25 10-25
PSI RANGE 2000-3500 2000-3500
CAPACITY 10.32 CU FT 12.50 CU FT
MACHINE REQUIRMENT
LIFT CAPACITY < 9000 LB < 9000 LB
OPERATING WEGHT < 11000 LB < 11000 LB
