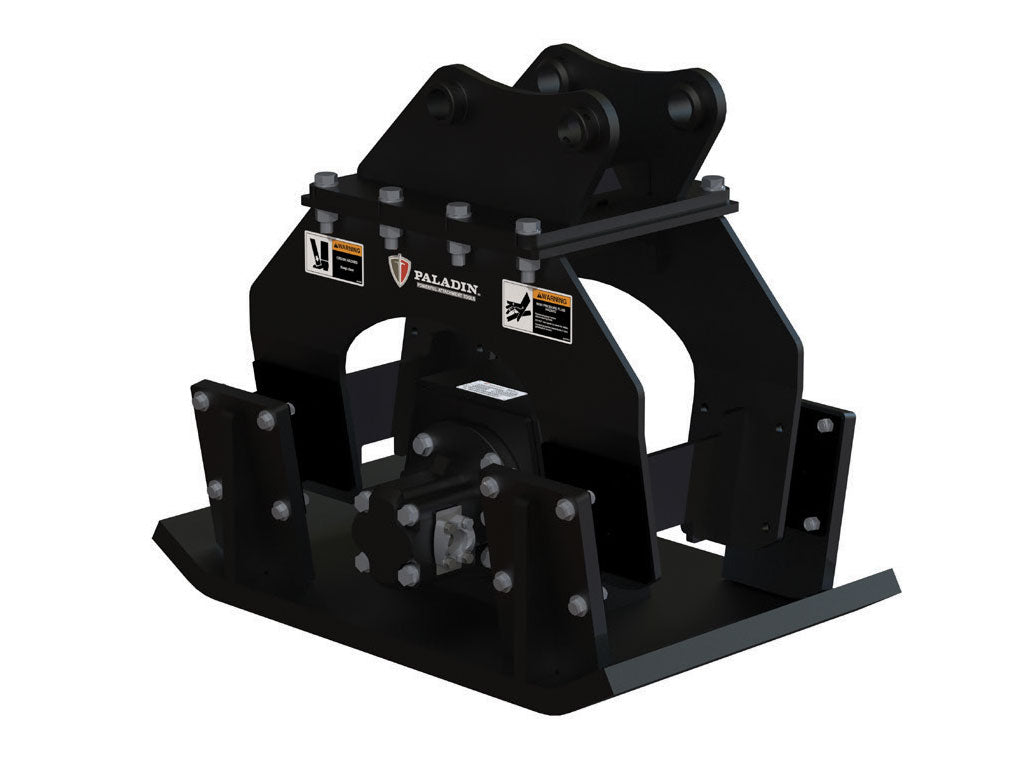

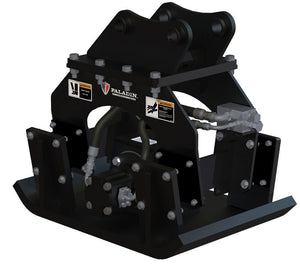

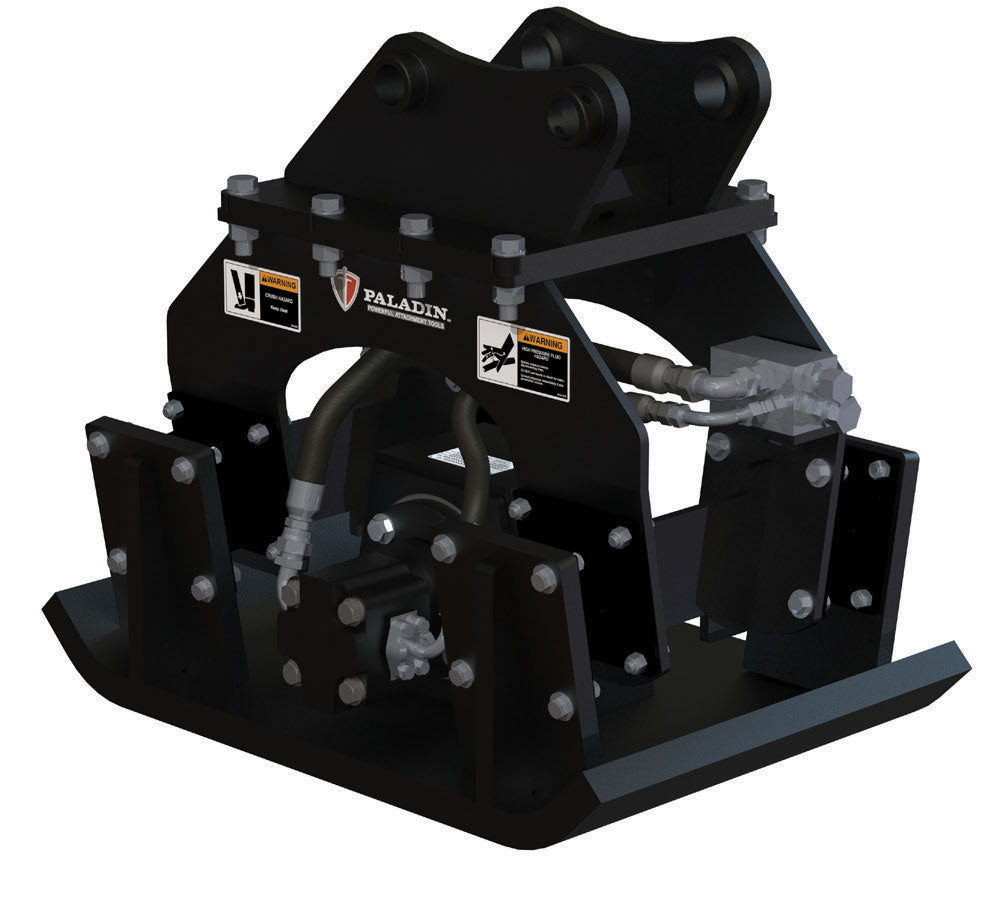

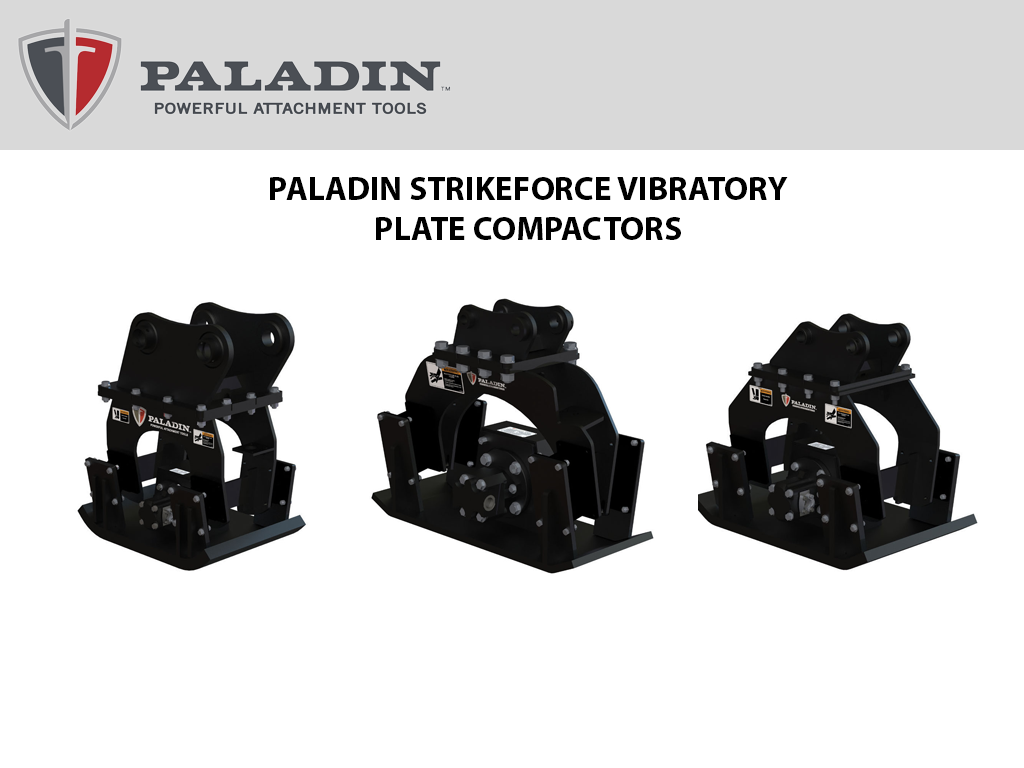

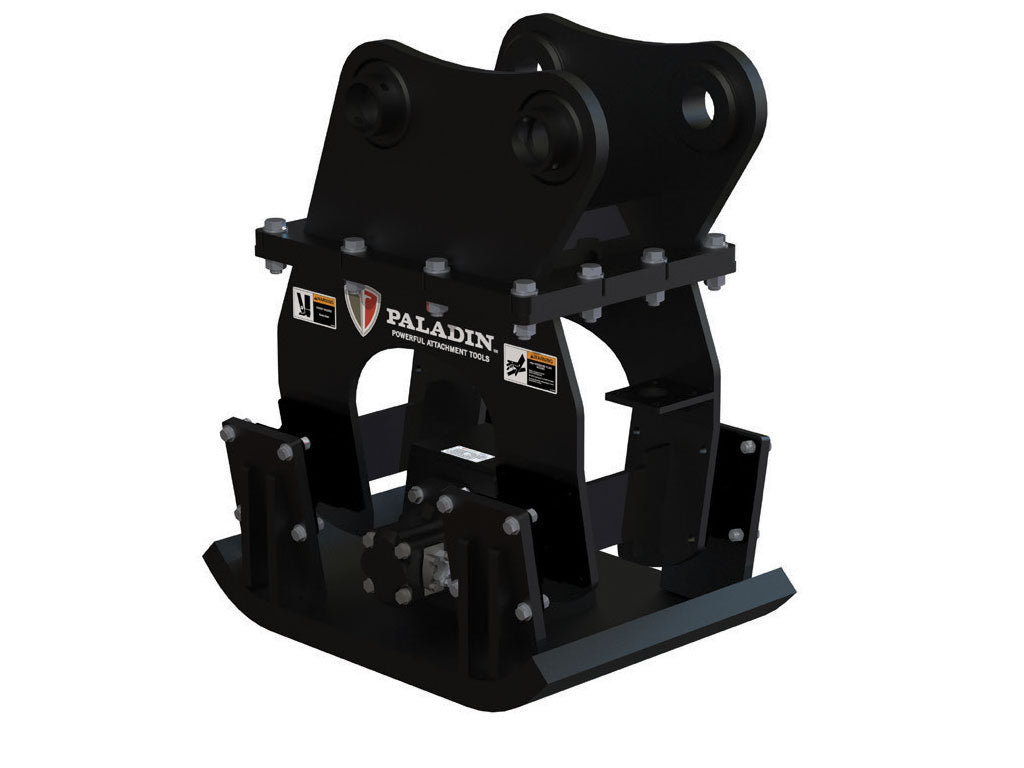

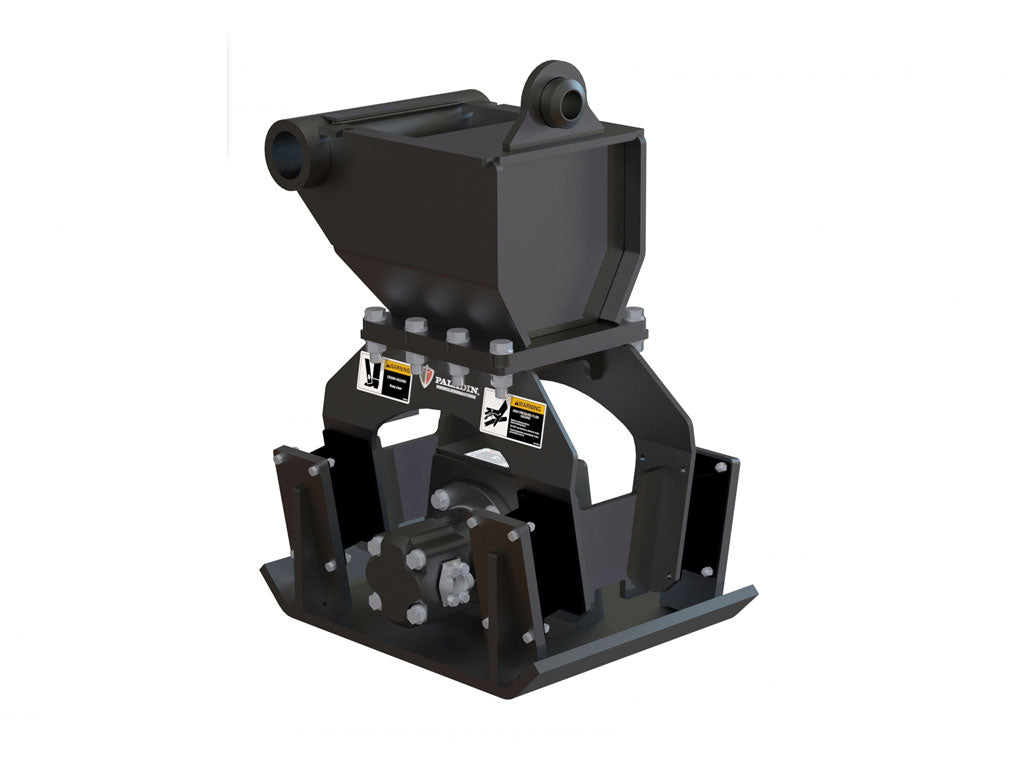

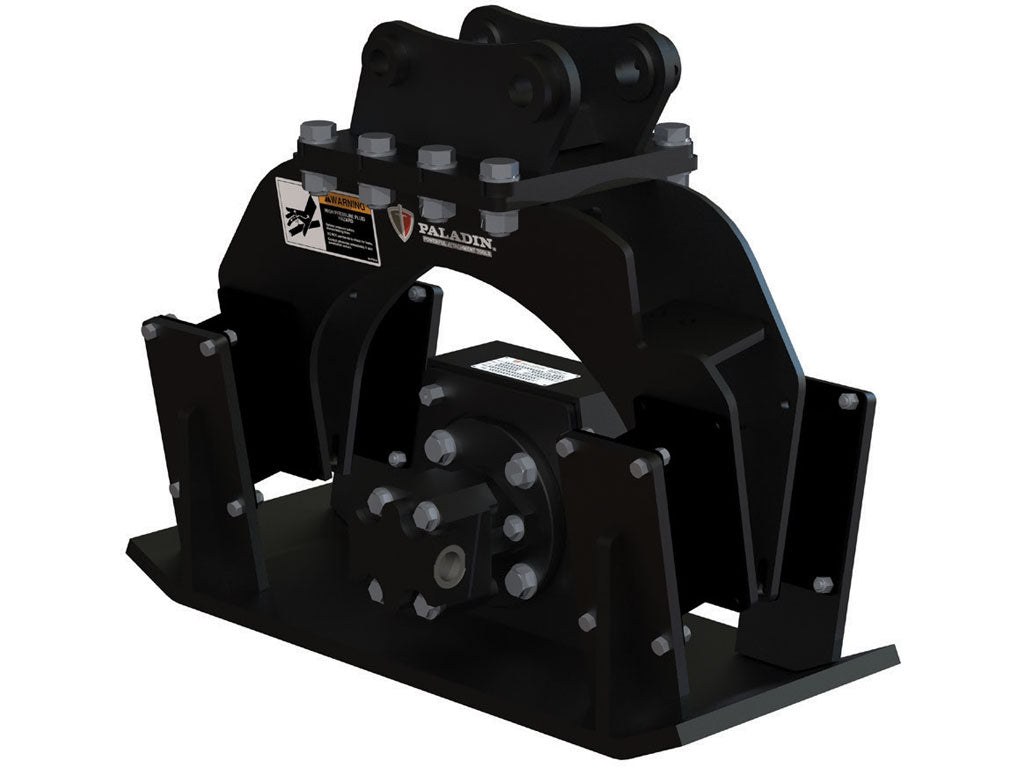

PALADIN StrikeForce EX TCP Vibratory Plate Compactors

Size
MOUNTING

Paladin boom mounted TPC Plate compactors provide the perfect combination of impulse force and frequency for handling trench and surface compaction needs. Each of the TPC models are focused to the needs of the Contractor in road construction and repair, embankment preparation, utility and waste drain excavation backfill, as well as special needs in sheet, post, and plate driving for soil stabilization.

The TPC line of Compactors provide features to enhance compaction effectiveness as well as to protect the owners investment by limiting damaging forces resulting from operation and hydraulic impulses. The TPC family is supported by the industries largest dealer network and service expertise.

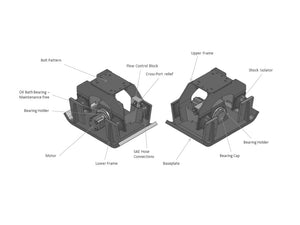

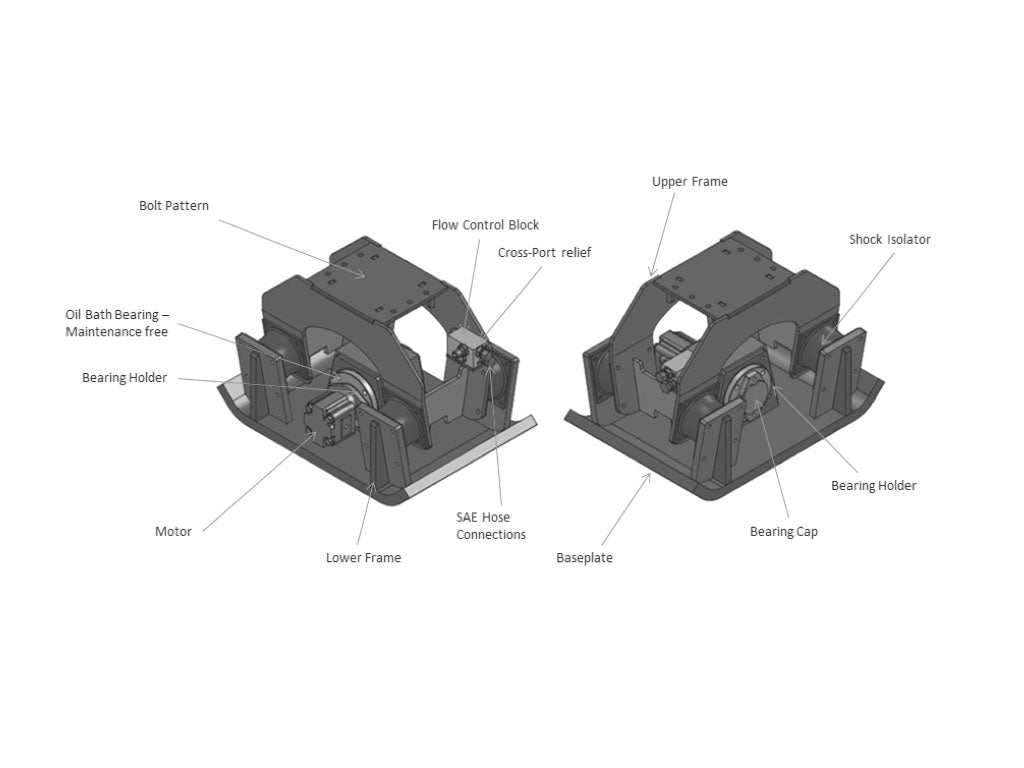

• “Outboard” shock isolator location to provide the maximum stability in baseplate for optimal transmission of impulse force into effective compaction

• Isolators are angled to reduce damaging shear stresses in the isolator and extend life while providing a functional advantage in delivering compaction forces to the soil.

• Integral Flow Control block manages flow and pressure to provide effective and repeatable compaction as well as to protect the hydraulic motor

• Oil Bath bearing design maximizes bearing life while minimizing maintenance needs

 ITEM TPC250 TPC350 TPC1000 TCP2K TCP4K TCP10K

WORKING

WEIGHT

353 525 946 1300 1940 3450
VIBERATION 2000 2000 2000 2000 2100 2100
FORCE 2500 3400 6400 8000 11350 22000
FLOW RANGE 9-25 12-25 12-25 24-40 28-60 40-70
MAX BACK PREASURE 250 250 250 250 250 250
CARRIER WEIGHT 5000-10000 5000-14000 9000-28000 12000-40000 16000-50000 50000-130000
 TPC MIN LB MAX LB DEERE CAT BOBCAT KUBOTA KOMATSU
TPC250 2000 4400 26G-50G 302.7-304.5 E26-E63 KX-71 - 040 PC27-PC55
TPC350 3250 7150 26G-50G 305-308 E42-E85 KX-040 -80 PC55-PC130
TPC1000 8145 18000 50G-85G 305-308 E42-E85 KX-057-KX-080 PC55-PC130
TCP2K 15000 40000 60G-160G 307-316 E85 KX-057-KX-080 PC78-PC130
TCP4K 18000 45000 75G-190G 307-323 E85 KX-080 PC78-PC130
TCP10K 35000 60000 210G-380GL 323-352 PC200-PC400

USUALLY SHIPS IN (1) TO (2) WEEKS
