PALADIN / BRADCO drum style mulcher for excavators

SIZE
FLOW RANGE
TOOTH KIT (REQUIRED)

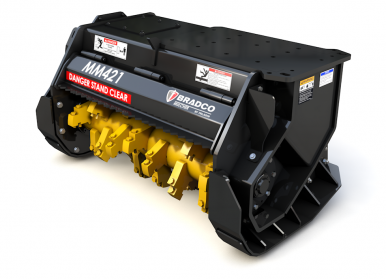

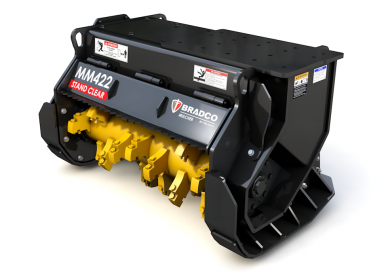

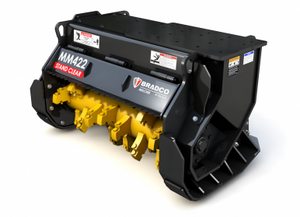

Bradco HD EX Mulcher MM421/MM422

The Bradco MM421/MM422 Mulcher, by Paladin, available in both standard and hi-flow hydraulic options, shreds up to 12” diameter hardwood trees with a cutting width of 42" using a patented reversible tooth design. Each tooth has a cross bar the full width of the tooth to help keep proper cutting alignment during operation. The fixed hammers with reversible and replaceable carbide and claw teeth can be easily interchanged without needing to rebalancing the rotor. The synchronous belt drive system eliminates belt and drive sprocket slippage and the heavy duty bent axis variable displacement piston motor offers better performance and optimization. This allows mulcher to be switched easily to other prime movers without having to change out hydraulic motors, belts, or belt drive sprockets/pulleys.

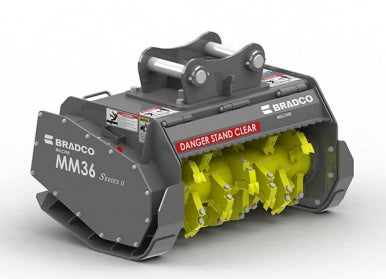

Bradco Excavator Mulcher II MM36

The Bradco MM36 Mulcher, by Paladin, available in both standard and hi-flow hydraulic options, shreds up to 12” diameter hardwood trees with a cutting width of 36" using a patented reversible tooth design. Each tooth has a cross bar the full width of the tooth to help keep proper cutting alignment during operation. Brado excavtor mulchers have a synchronous belt drive system eliminates belt and drive sprocket slippage and a heavy duty bent axis variable displacement piston motor that offers better performance optimization. The piston motor also allows the mulcher to be switched easily to other prime movers without having to change out hydraulic motors, belts, or belt drive sprockets/pulley

**CALL FOR PRICNIG ON EXCAVATOR MOUNTS



Model MM422E MM421E
MM36E
Overall Width 58.6" 58" 48.5"
Overall Height 33" 32" 25"
Overall Length 35" 34" 33"
Cutting Width 42" 42" 36"
Operating Pressure 4500-5800 4500-5800 3500-5000
Hydraulic Flow 40-52 GPM 29-39 / 39-49 GPM 28-41 / 42-60 GPM
Recommended HP 75-115 95-135
Weight 2920 lbs 2505 lbs 1600


Not available at this time.
