PALADIN

KD33861

PALADIN BRADCO LOW PROFILE BUCKET

Style
Size
EDGE

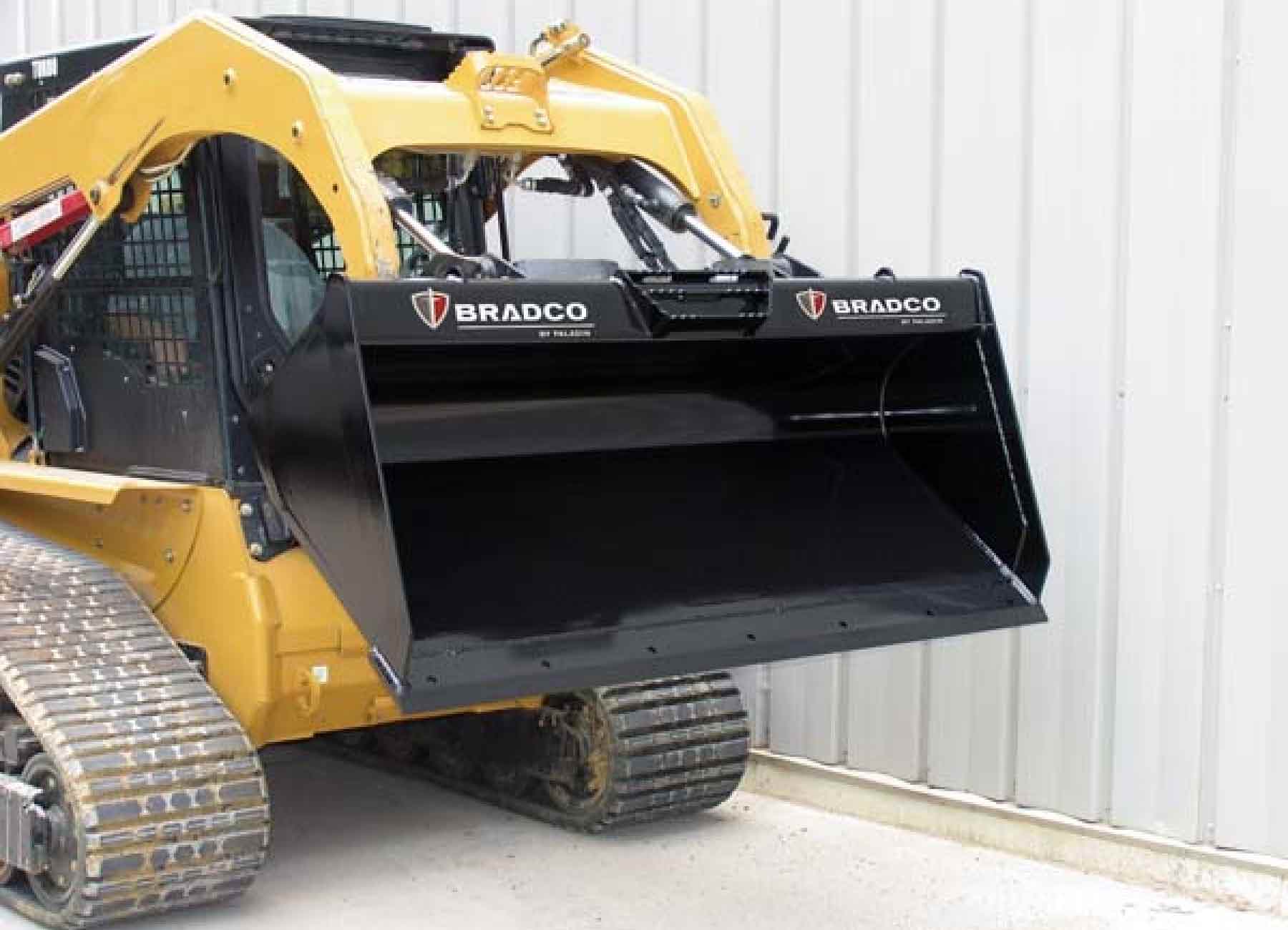

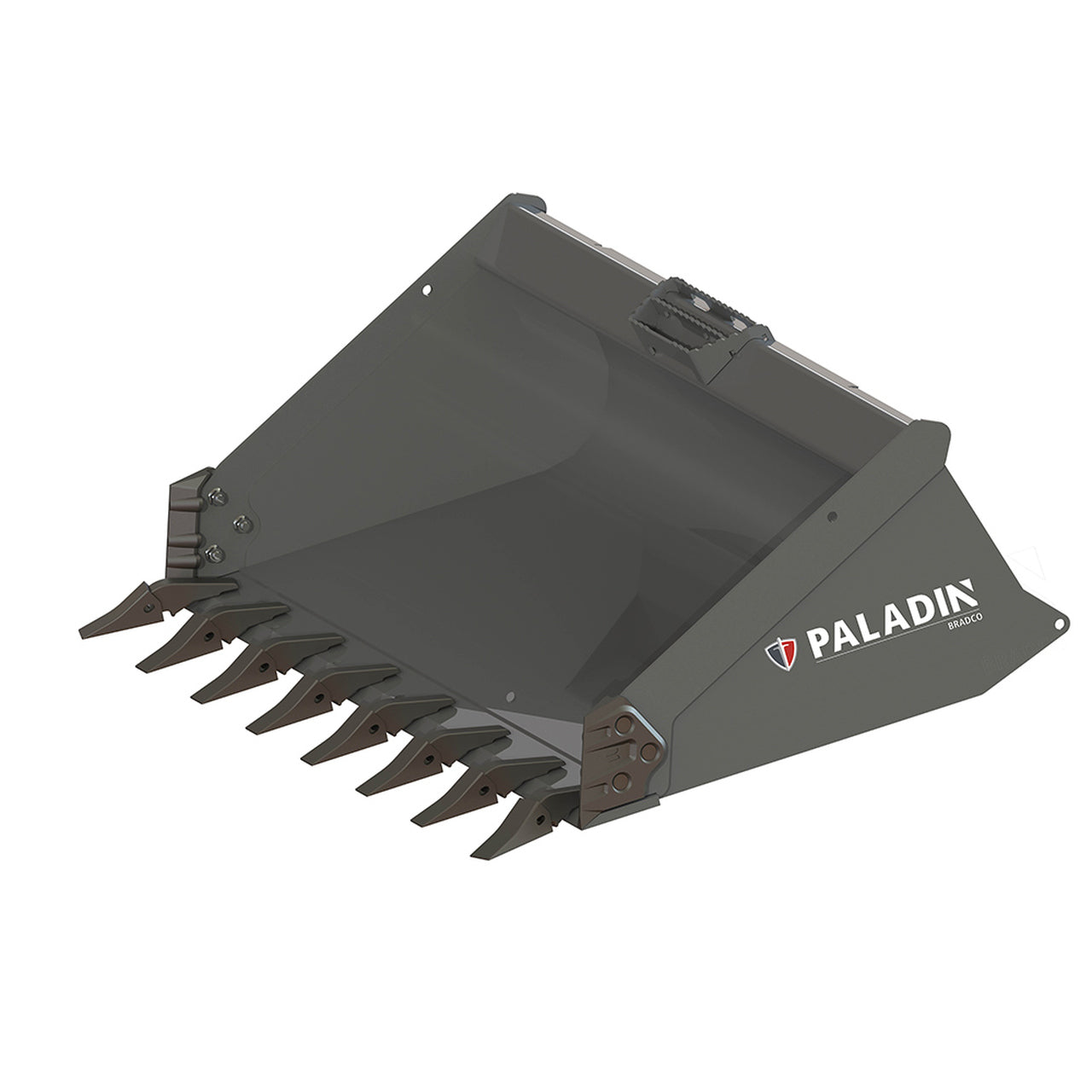

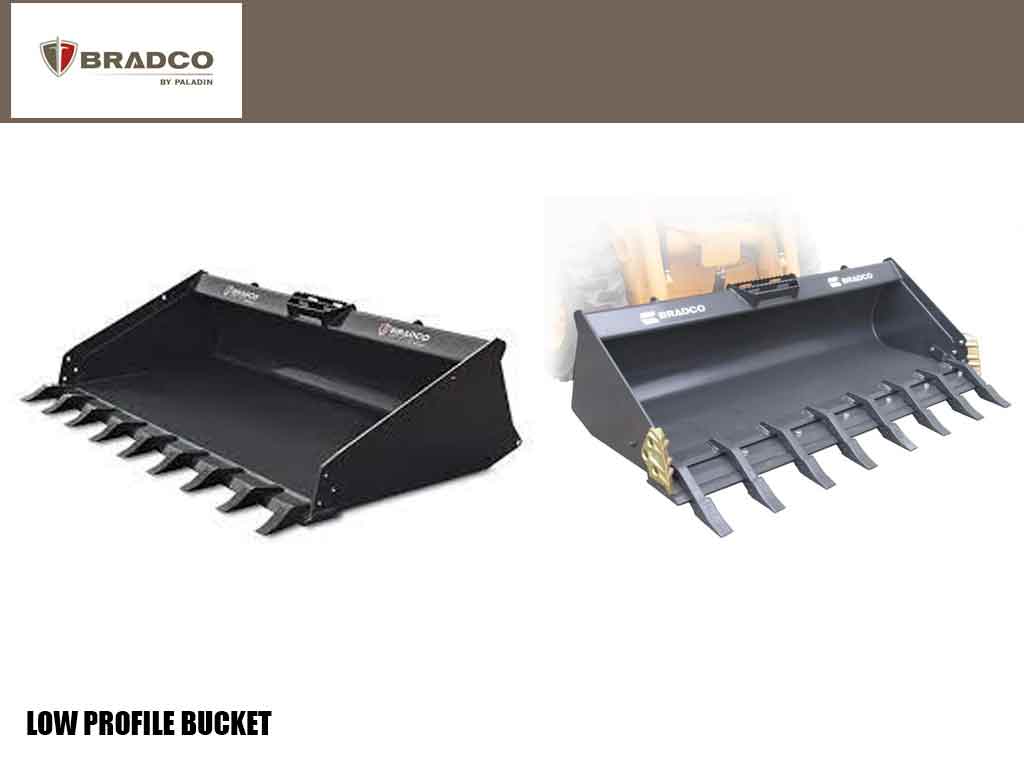

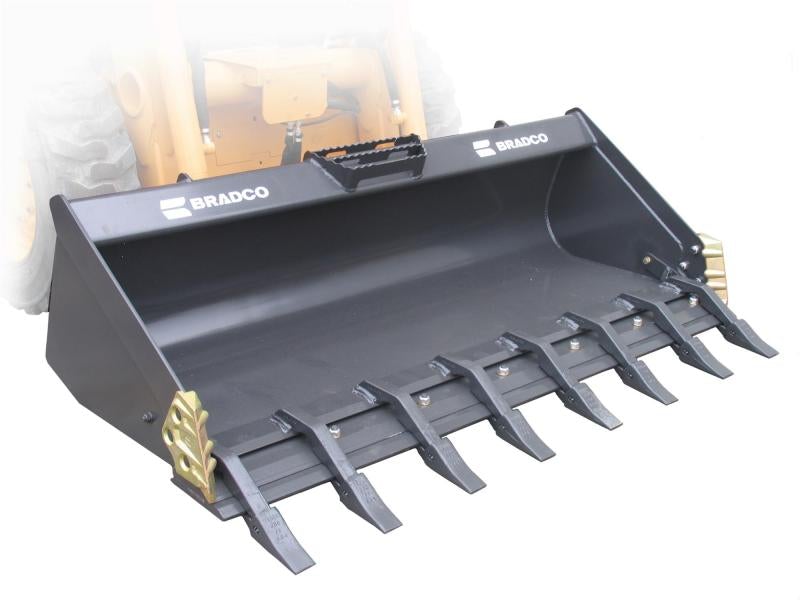

Low-Profile Dirt Bucket

Paladin Attachments is your single source for high-quality attachments for skid steers, compact tool carriers, and excavators used for vegetation/land management, landscaping, soil preparation, material handling and construction. Bradco buckets are available in many styles, sizes and patterns to fit any need.

  • 30" standard floor buckets
  • 36" long floor buckets for better visibility, productivity and cutting grade
  • High-strength side cutters tie in to the front edge for better strength and longer life
  • Replacement bolt-on wear edge and tooth bars, and tooth bars that fit over bolt-on wear edge and bolt-on corner guards

STANDARD FLOOR (32")

WIDTH HEIGHT DEPTH WEIGHT HOLES HOLE SPACING
60" 20" 32" 429 LBS 7 9"
68" 20" 32" 465 LBS  7 10'
72" 20" 32" 473 LBS 7 11"
78" 20" 32" 543 LBS 9 9"
84" 20" 32" 683 LBS  9 10"



LONG FLOOR (36")

WIDTH HEIGHT DEPTH WEIGHT HOLES HOLE SPACING
68" 20" 36" 506 LBS  7 10"
72" 20" 36"
533 LBS 7 11"
75" 20" 36" 719 LBS 8 10"
78" 20" 36" 608 LBS 9 9"
80" 20" 36" 748 LBS  7 12"
84" 20" 36" 728 lbs 9 10"



Not available at this time
