PALADIN / BRADCO SWING HOE (SSL)
$8,430.00 - $8,781.00

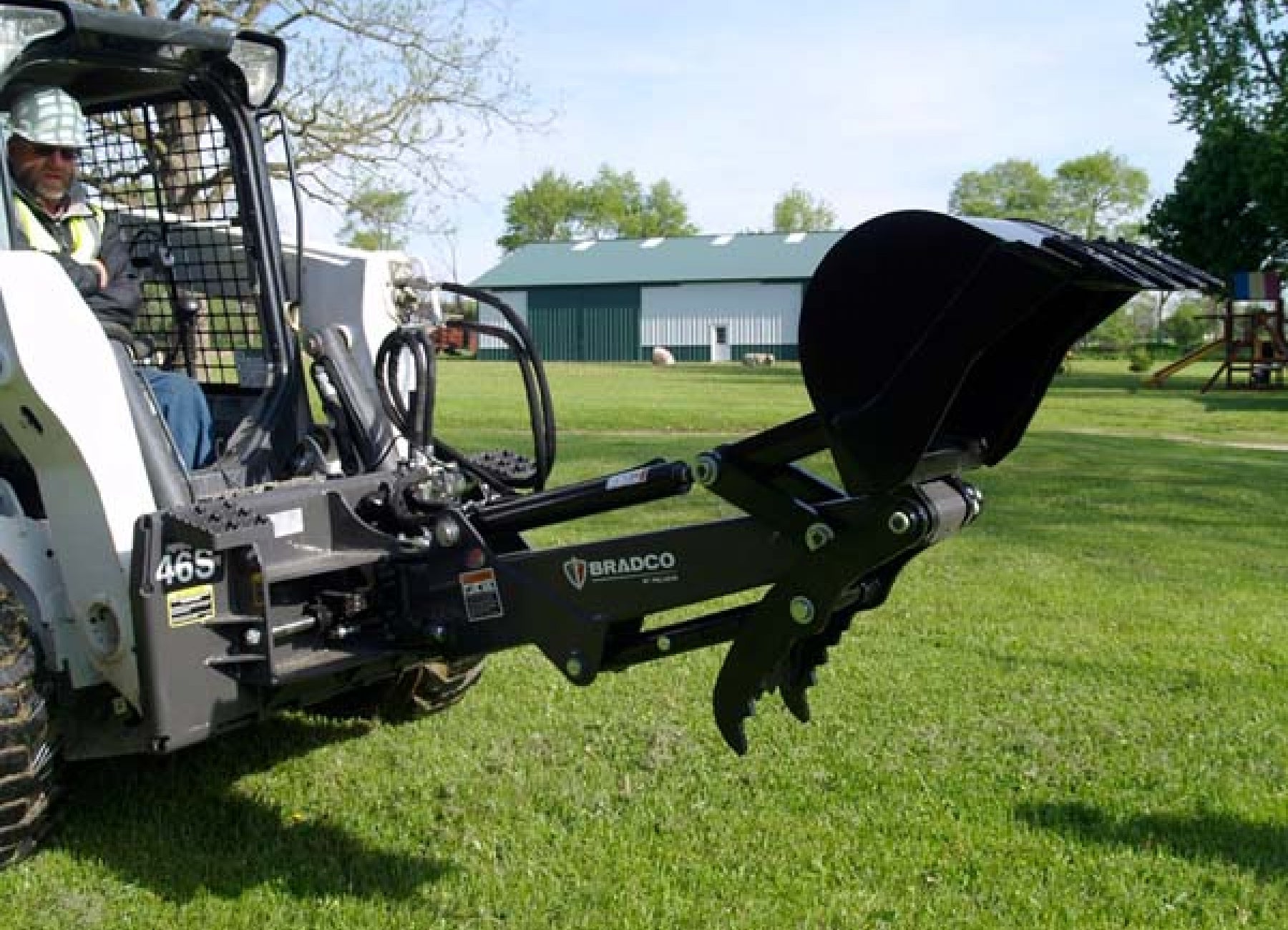

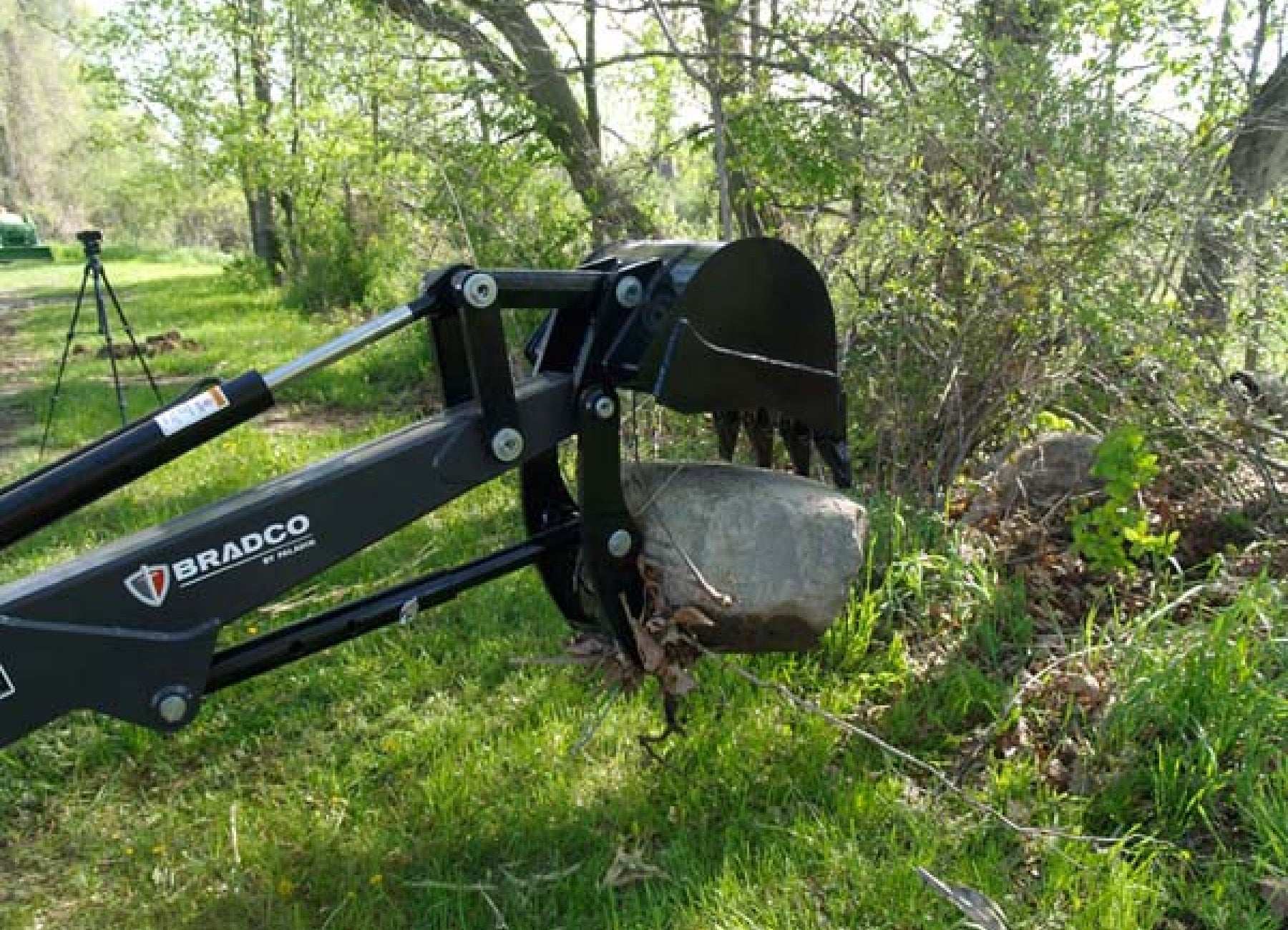

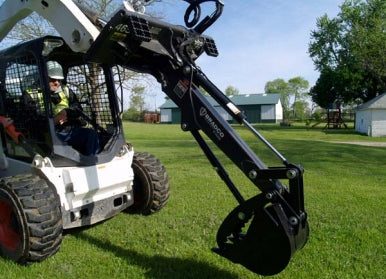

The Bradco Swing Hoe efficiently digs trenches up to 6 ft deep and provides excellent mobility for digging footings. Comes with an optional fixed thumb and has available bucket sizes of 12", 18" and 24". Mounts easily on all major skid steer loader brands with a universal hitch. The bucket linkage improves bucket breakout force with increased bucket rotation, and the stress-proof pins provide higher strength with increased wear resistance. The replaceable hardened bushing and greaseable fittings on all pivot points reduce maintenance costs. The Bradco Swing Hoe is fully engineered and tested in rigorous real-life conditions.
FEATURES
- Fixed or swing configurations available
- Bucket curl feature
- Factory installed buckets available in 12", 18" and 24"
SWING HOE
| MODEL | SWING HOE |
|
OVERALL WIDTH |
47.5" |
|
REACH |
78" |
|
MAX DEPTH |
76" |
| DIGGING FORCE | 3,800 LBS |
| WEIGHT | 535 LBS |
| SWING ANGLE | 140° |
BUCKETS (FACTORY INSTALLED)
| BUCKET WIDTH | 12" | 18" | 24" |
|
WEIGHT |
76 lbs | 95 lbs | 115 lbs |
|
TEETH |
3 | 5 | 5 |
