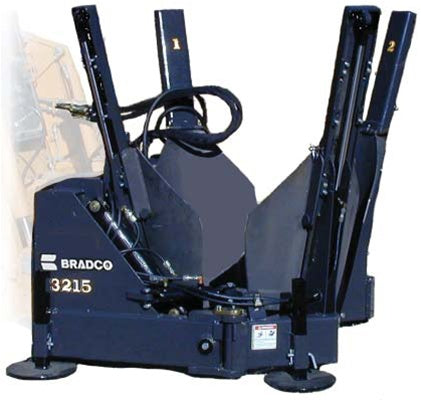

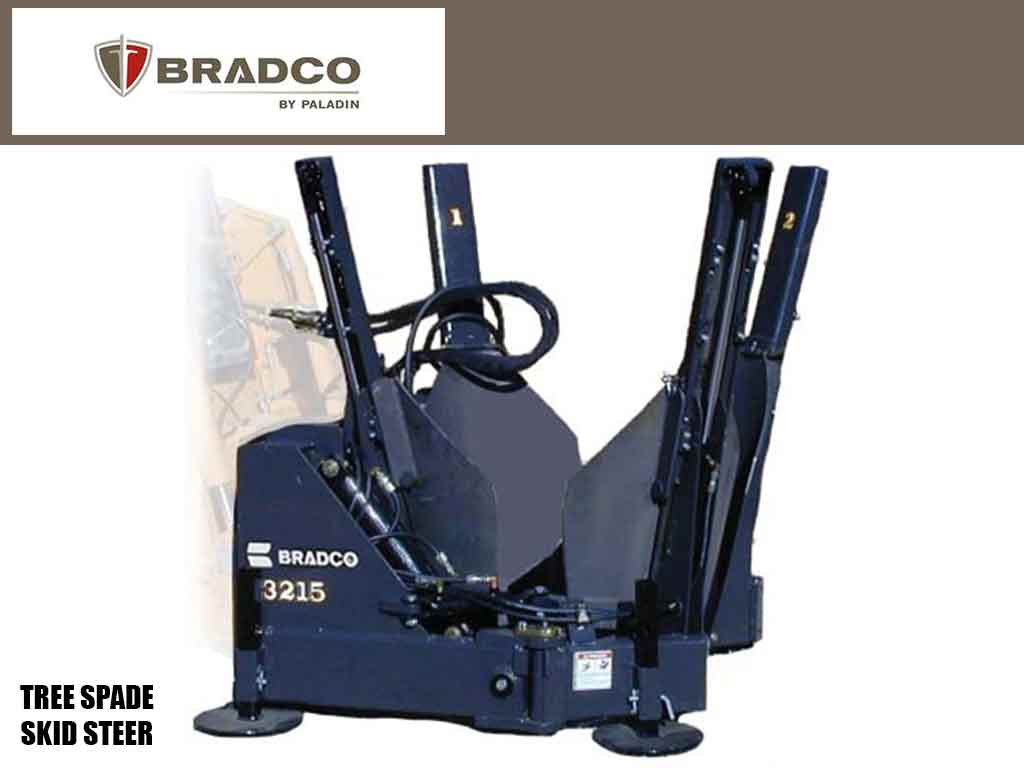

PALADIN / BRADCO tree spade for skid steer

Size

Bradco® Tree Spades by Paladin® are ideal for transplanting small trees and shrubs. A variety of styles allow you to work in all soil types

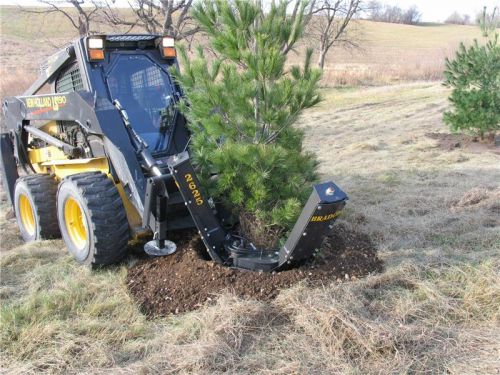

25 SERIES TREE SPADES

  • Provides an uncompromised digging angle between truncated and cone style to adapt to various soil conditions
  • 25° angle and deep stroke of the blades produces several uniform ball sizes with one set of blades
  • Pointed high tensile, abrasion resistant blades
  • Blade towers incorporate high density plastic slides that are self lubricating
  • Industry standard wire baskets for balled and burlap tree harvesting

30 SERIES TREE SPADES

  • Ideal for transplanting and bur-lapping small trees and shrubs in sandy or hard packed soil
  • Low profile blade towers allow tree spade to fit between closely planted trees
  • Adjustable legs to set digging depth
  • High tensile, abrasion resistant blades close to a point in the down position to clean cut tap roots
  • Electric over hydraulic control with hand held joystick to operate the spade and rear stabilizers and an optional cord extension for the joystick control

FEATURES

  • Available in three series: 15-degree truncated series with undercutter; 25-degree modified truncated series; 30-degree cone model
  • Standard electric control joystick to function the hydraulic valve
  • Overlapping blades to clean cut roots
  • Adjustable legs slide to control ball depth
  • Wide gate opening to engage tree easily
ORDER CODE CAPACITY DIG DEPTH BALL LBS BLADES
25605-25696 COMPACT CAPACITY 16" 16"-20" 525 3
25670 STANDARD CAPACITY 22" 18"-26" 1100 3
25370 HIGH CAPACITY 31" 24"-36" 1500 3
25570 EXTREME CAPACITY 31" 32"-44" 1825 4
