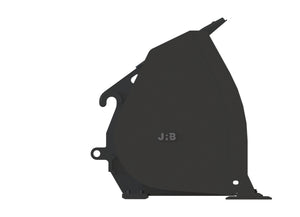

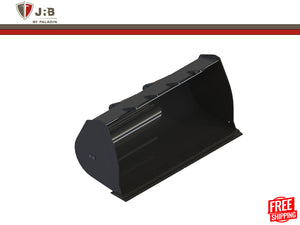

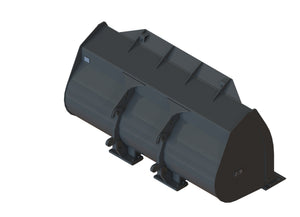

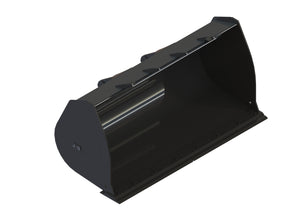

PALADIN class 200 general purpose curved bucket for backhoes

5/25

General Purpose Curved Buckets

BACKHOES

The JRB General Purpose Curved (GPC) bucket
builds upon the GP bucket with curved sides and other
features to keep spillage to a minimum for a more
productive job site.

•  Curved sides allow for a larger heap of material in the bucket

•  Sloped bottom design maximizes fill capacities and improves
  dump angle by 5 degrees

• Bucket width and cutting edge match OEM standard specifications
  for easy wear part replacement
• Curved sides and a spill guard keep the material in the bucket, not on the production floor
• AR400 material used in high wear areas
• Custom buckets available by request

• Rubber edges available by request
• Widths and cutting edge hole patterns drilled to OEM standard wear parts specification
• Available as pin-on or compatible with Quick Coupler System
• 100, 200, 300, 500, 600, 700, 800, & 900 classes
