03HQ0-12

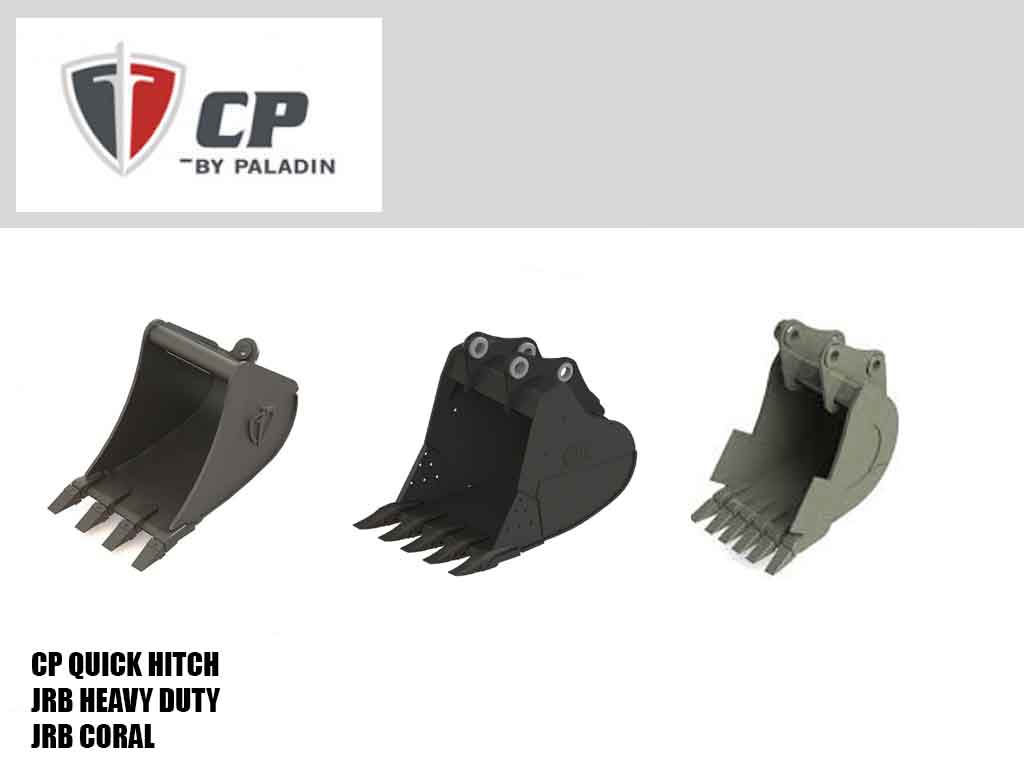

PALADIN / CP dirt buckets for 3 metric ton class excavators

Style
Size

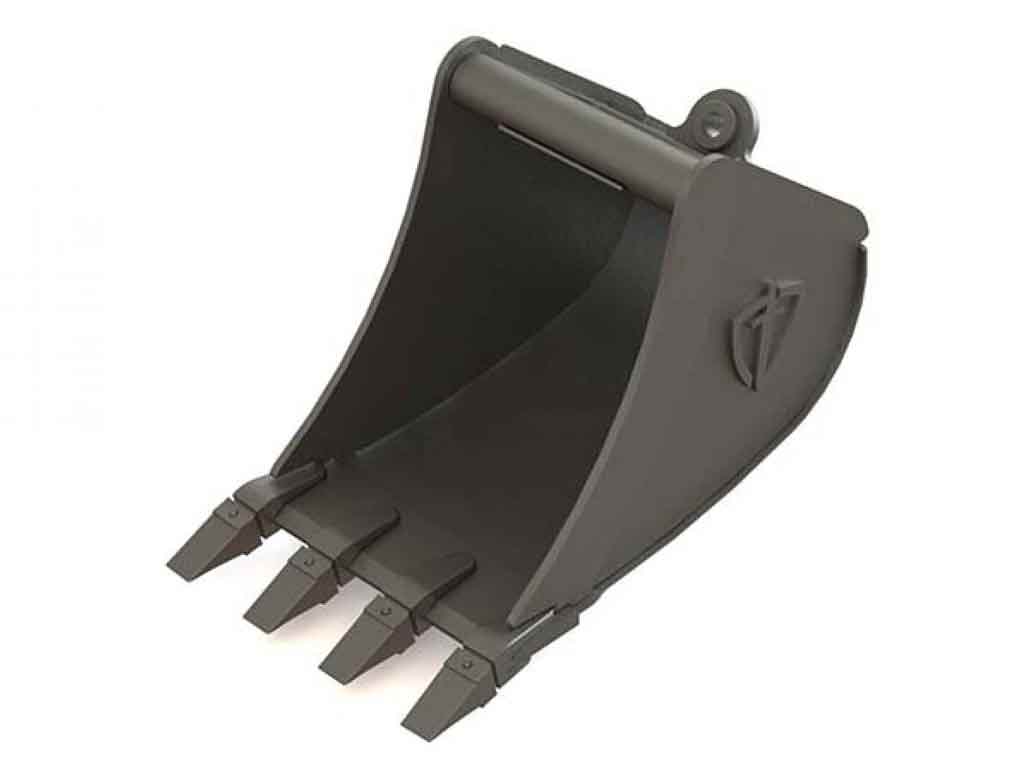

Quick Hitch Heavy-Duty Buckets

  • Unique, long floor design for superior trenching and grading
  • Curved side edges reduce stress and enhance power concentration in dig cycle •
  • Manufactured using high-quality materials with protected welds for superior wear resistance and durability
  • AR400 shell, cutting edge and side edges provide superior wear-resistance over traditional mild steel design without compromising structural integrity
  • Double-radius curl geometry allows for:
  • Aggressive Digging
  • Optimal Bucket Capacities
  • Minimal Heel Drag
  • All QuickShip buckets are stocked with Hensley X156 teeth.
  • Multiple tooth options are available
  • Hook and vertical t-pin mounting

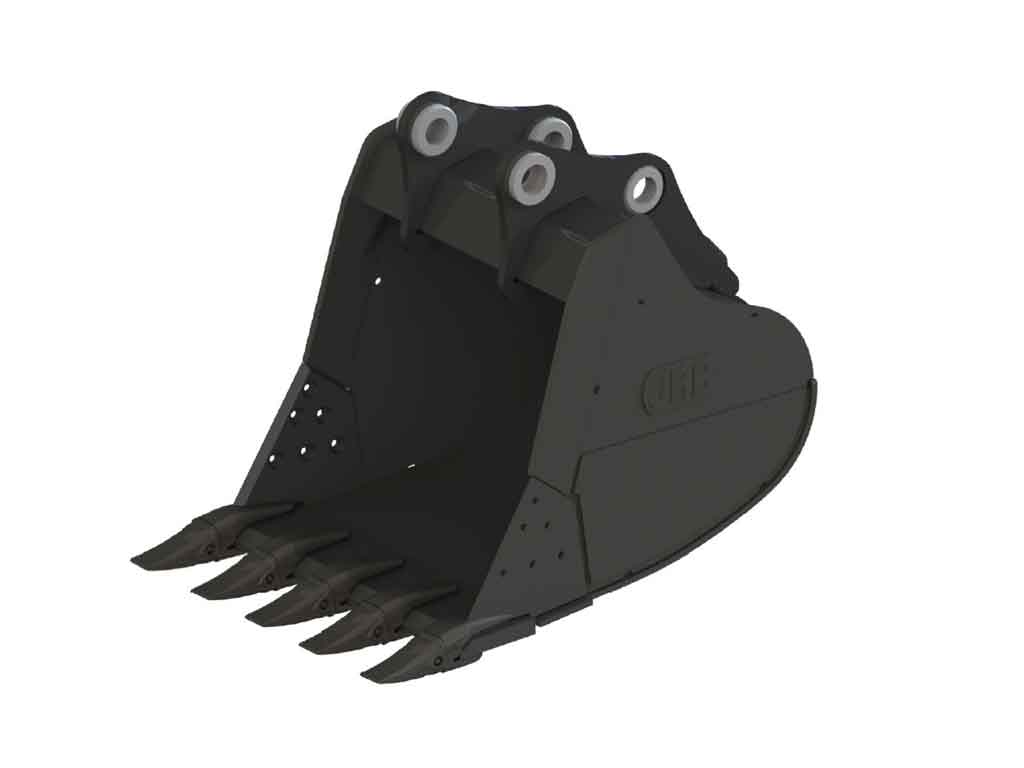

JRB Heavy Duty Buckets

  • Optimized profile for better filling & dumping
  • Dual taper design provides better heel clearance for less resistance and wear during digging
  • Improved construction reduces weight up to 10% for larger payloads
  • Horizontal two pin mounting

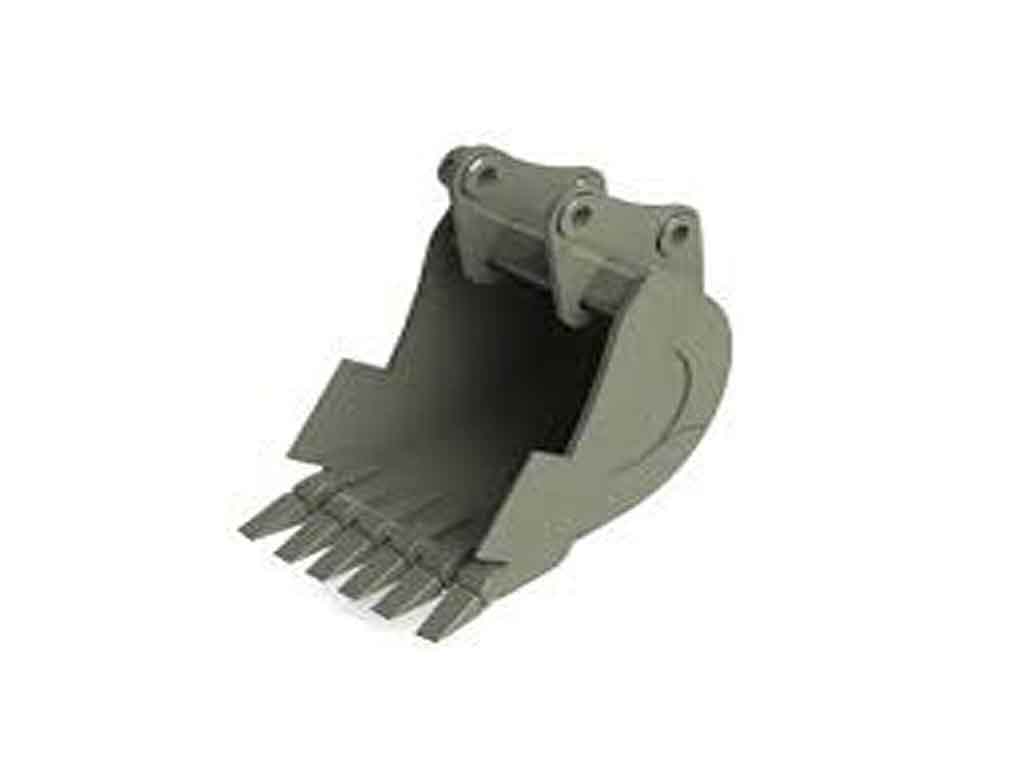

JRB Coral Rock Buckets

  • Performs Severe Duty applications
  • Weld-on wings for peeling away coral rock
  • Operates under frost conditions
  • Side wear pads for extra durability
  • Buckets are equipped with standard Hensley X156 Teeth
  • Horizontal two pin mounting
    TYPE  WIDTH CAPACITY TEETH WEIGHT
    DIRT QH 12 1.75 3 150
    DIRT QH 18 2.74 4 185
    DIRT QH 24 3.94 5 220
    DIRT HD PIN 12 1.56 3 150
    DIRT HD PIN 18 2.65 4 185
    DIRT HD PIN 24 3.78 5 220
    DIRT HD PIN 30 4.92 5 255
    DIRT HD PIN 36 6.06 6 295
    CORAL PIN 12 1.56 4 150
    CORAL PIN 18 2.65 6 185
    CORAL PIN 24 3.78 8 220
    CORAL PIN 30 4.92 9 255
    CORAL PIN 36 6.06 11 295



    MAKE  MODELS
    BOBCAT E26, E32, E32i, E35, E35i
    CASE CX31B, CX36B
    CAT 302.4D, 302.7DCR, 303E 303.5CR
    GEHL Z25, Z35
    HITACHI ZX26U-5, ZX35U-5
    HYUNDIA  R25, R35
    IHI 20JX, 25J, 25VX, 28J 30JX, 30V, 35J, 35VX
    KATO HD30V4, HD35V4
    JCB 8029, 8035, 8040
    JOHN DEERE 26G,35G, 27ZTS, 27D, 35ZTS, 35D
    KOBELCO SK25SR, SK35SR
    KOMATSU PC27MR-3, PC35MR-3
    KUBOTA U25S, KX71-3, K91-3S2, B21 B26, L39, L45 L47, L48
    LIUGONG  904D
    MUSTANG 250Z, 350Z
    NEW HOLLAND  E22.2, E27B, E27.2SR, 30B
    SANY  SY35U
    TAKEUCHI TB228, TB230, TB235, TB138FR TB240
    TEREX TC25, TC29
    VOLVO  ECR25D, EC35C, ECR38D, ECR40
    WACKER NEUSON EZ28, EZ38, 3503
    YANMAR  ViO25, ViO35
