125140A-BLNK

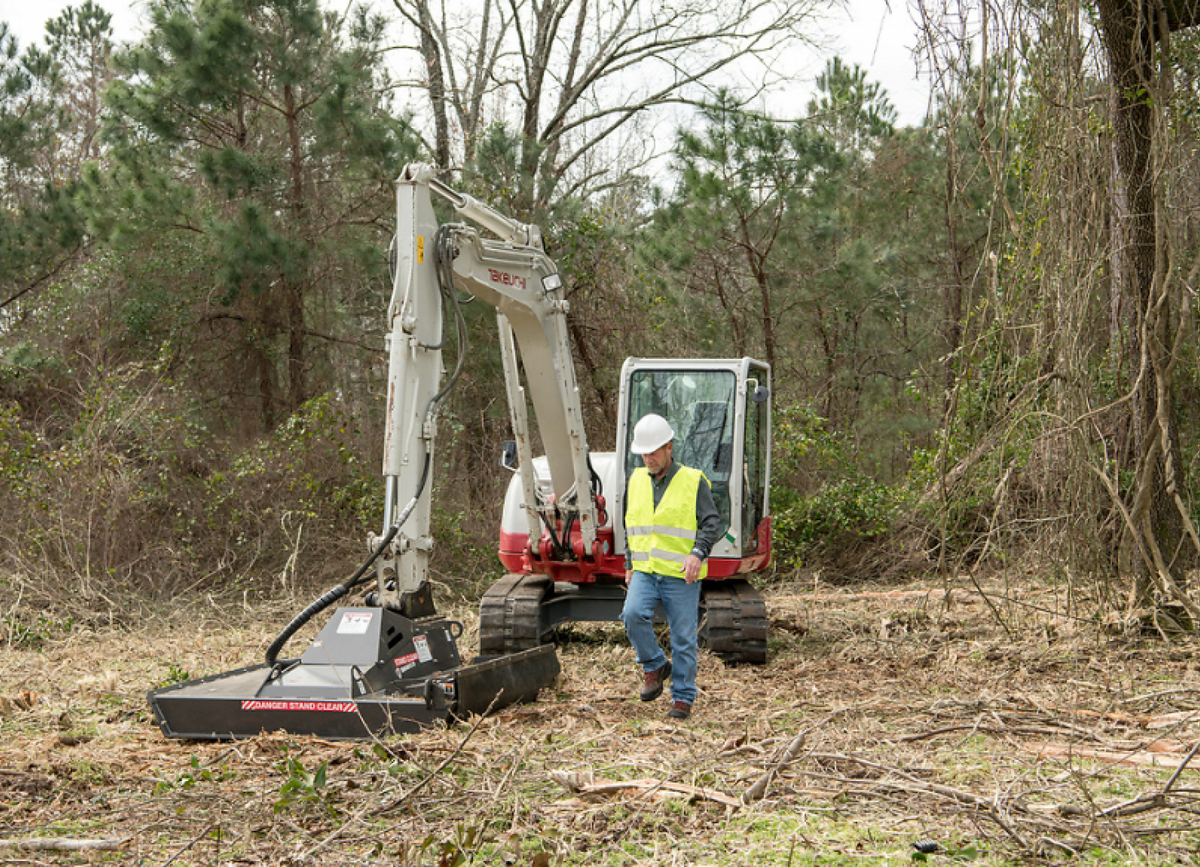

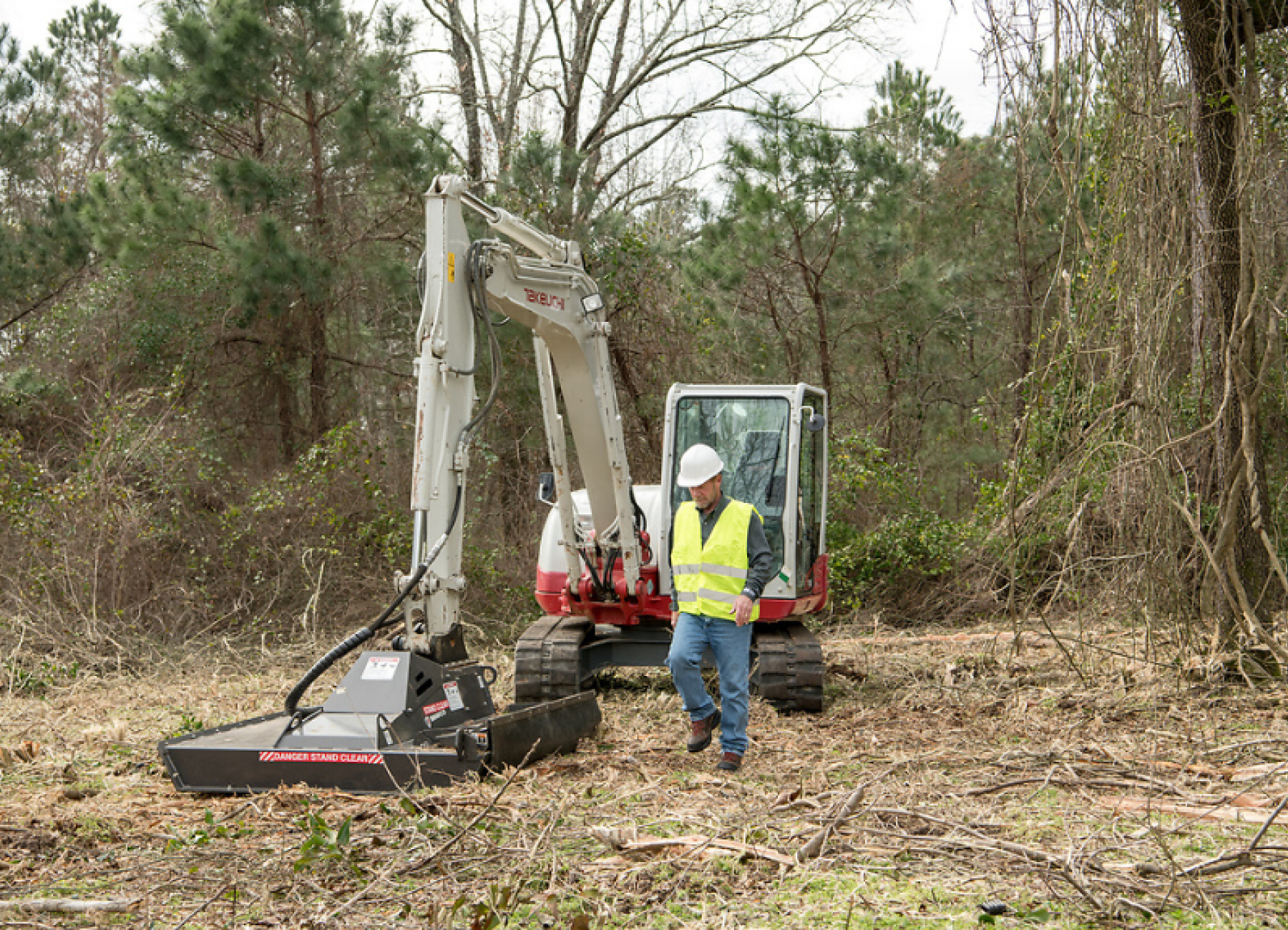

PALADIN mini excavator brush cutter

SIZE
GPM FLOW

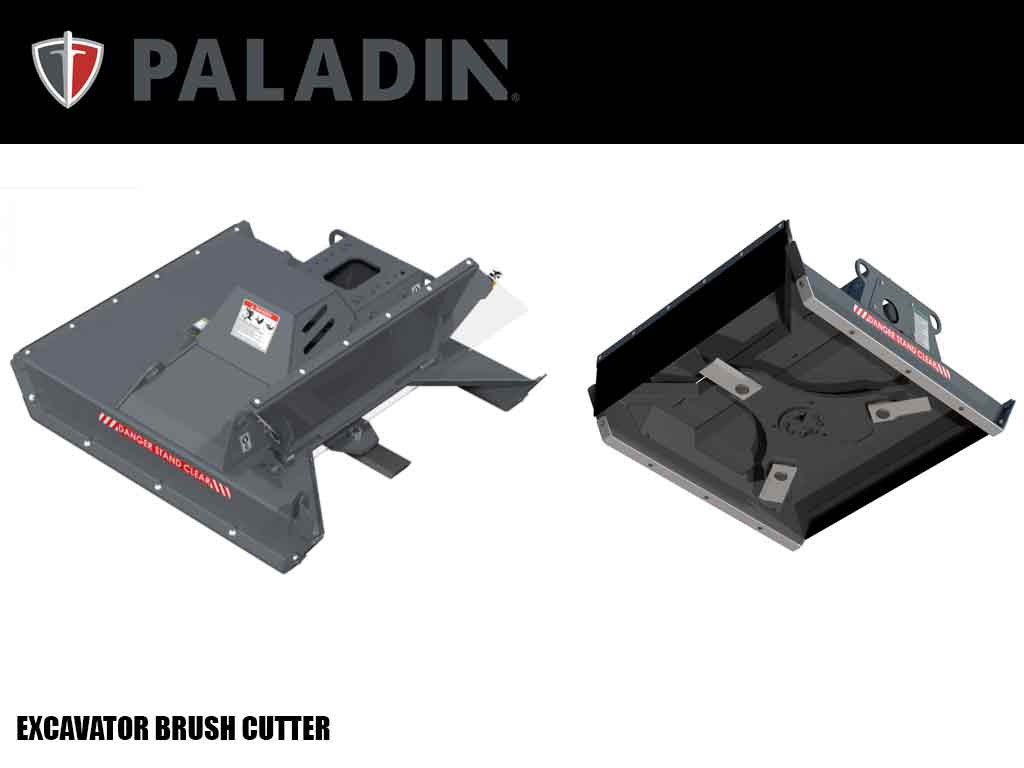

Mini-Excavator Brush Cutter

Paladin is expanding its offerings for mini-excavators with a new line of brush cutters, the MX Series. The MX Series is compatible with 3mT - 10mT mini-excavators, and facilitates a variety of applications, including over-fence brush management, embankment and ditch management, and rail right-of-way management.



With a solid formed T-1 steel deck and reversible AR400 cutting blades, the MX series can efficiently process brush and trees up to 6” in diameter. Equipped with Paladin’s bolt-on mounting system, it offers a seamless configuration to a variety of coupling systems; if coupling requirements change, units can be quickly and easily reconfigured without welding or grinding, even in the field.

Prime Mover: Mini-Excavator

  • Heavy-duty hinged debris shield retracts when the head is engaged with trees and brush, exposing the blades and allowing for aggressive cuts at maximum blade engagement
  • Fore and aft curtain shielding dampens debris projection and gives operators more control, making it easier to operate in areas where debris projection is a concern
  • Automatic hydraulic braking stops blade rotation 10-15 seconds after the machine is turned off, making it faster for operators to get out of the cab
  • Direct-drive hydraulic motor with heavy-duty bearing housing, ensuring long hydraulic life
  • All models operate without a case drain, for maximum versatility across machines
  • Large cutting size, up to 6", for clearing large areas and trees more efficiently
  • Powder coat finish, for maximum rust and erosion protection



PART 1: CUTTER SELECTION

  • STEP 1: Select machine ton range. (Metric Tons) = (Weight in LBS) / (2,200).
  • STEP 2: Select machine lifting capacity.
  • STEP 3: Select auxiliary hydraulic flow*. If not specified, use 65% of total machine flow in GPM. • NOTE: Cutter must always be operated in bidirectional mode, never in hammer/breaker mode.
  • STEP 4: Select desired cut width (multiple options may not always be available)
  • Larger = More productive / Can be used on larger, more powerful machines.
  • Smaller = Less expensive / Will likely fit a broader population of machines.
  • STEP 5:  Select correct mounting for your machine.
Model Mini Excavator Flow (gpm) Cutting Width (in) Max. Brush Size (in) Dimensions (ex. pallet) (in) Weight (lb) Adapter Pattern
BC40MX10 3mT-6mT 13-19 40 4 47 x 52 x 22 660 A
BC40MX20 3mT-6mT 19-26 40 4 47 x 52 x 22 660 A
BC50MX10 5mT-8mT 17-22 50 5 57 x 63 x 24 1,050 B or C
BC50MX20 5mT-8mT 22-34 50 5 57 x 63 x 24 1,050 B or C
BC60MX10 7mT-10mT 20-28 60 6 67 x 73 x 26 1,240 B or C
BC60MX20 7mT-10mT 28-35 60 6 67 x 73 x 26 1,240 B or C
